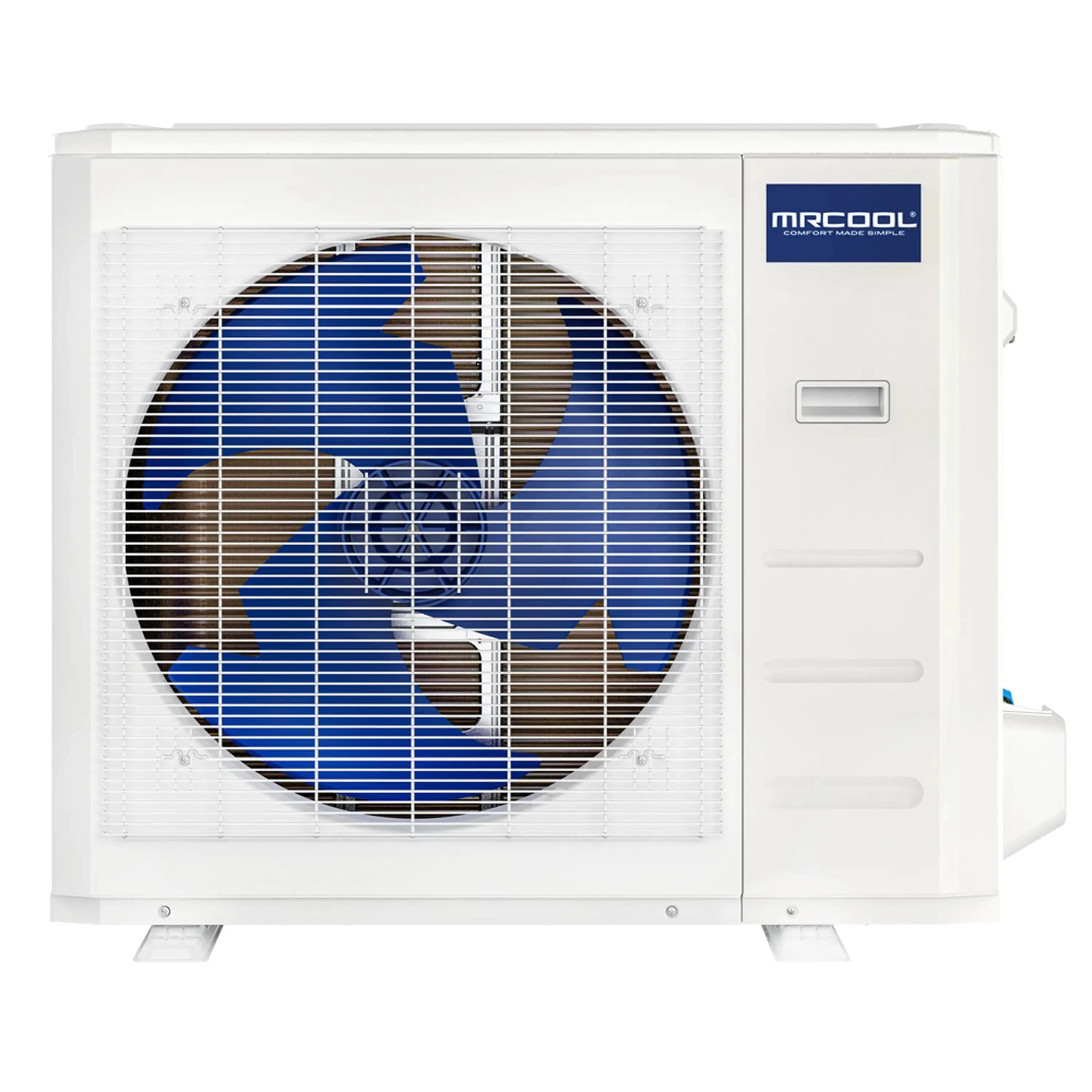

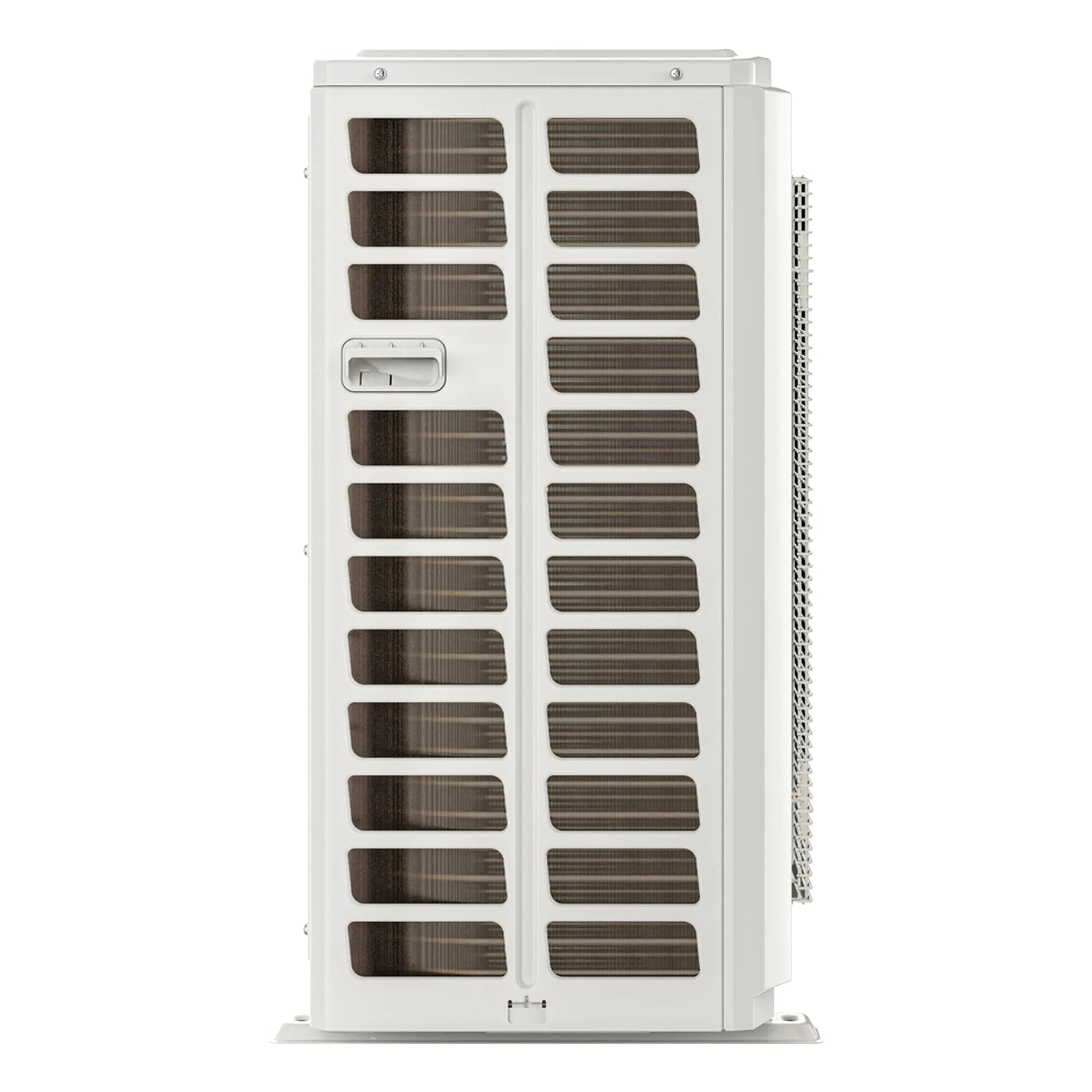

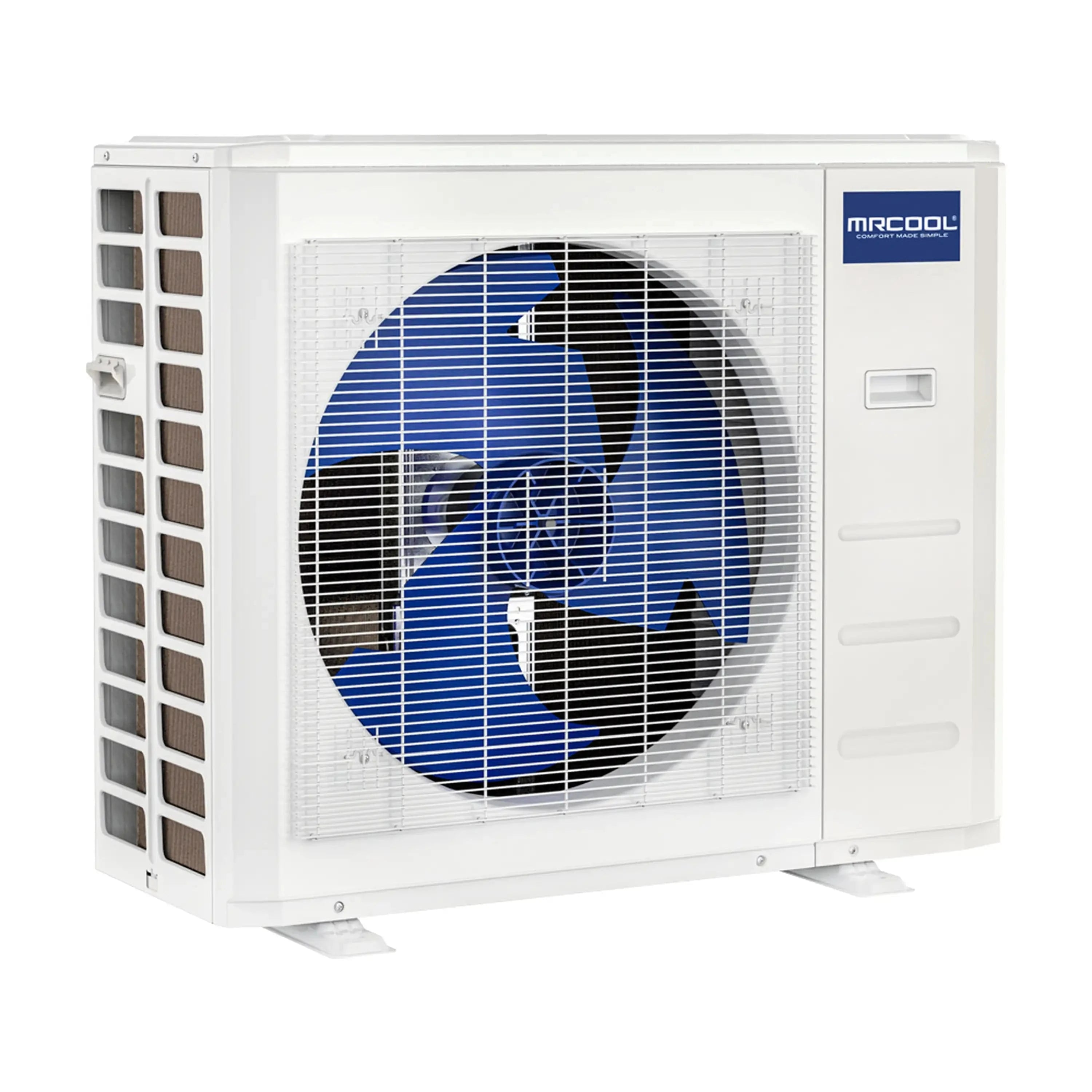

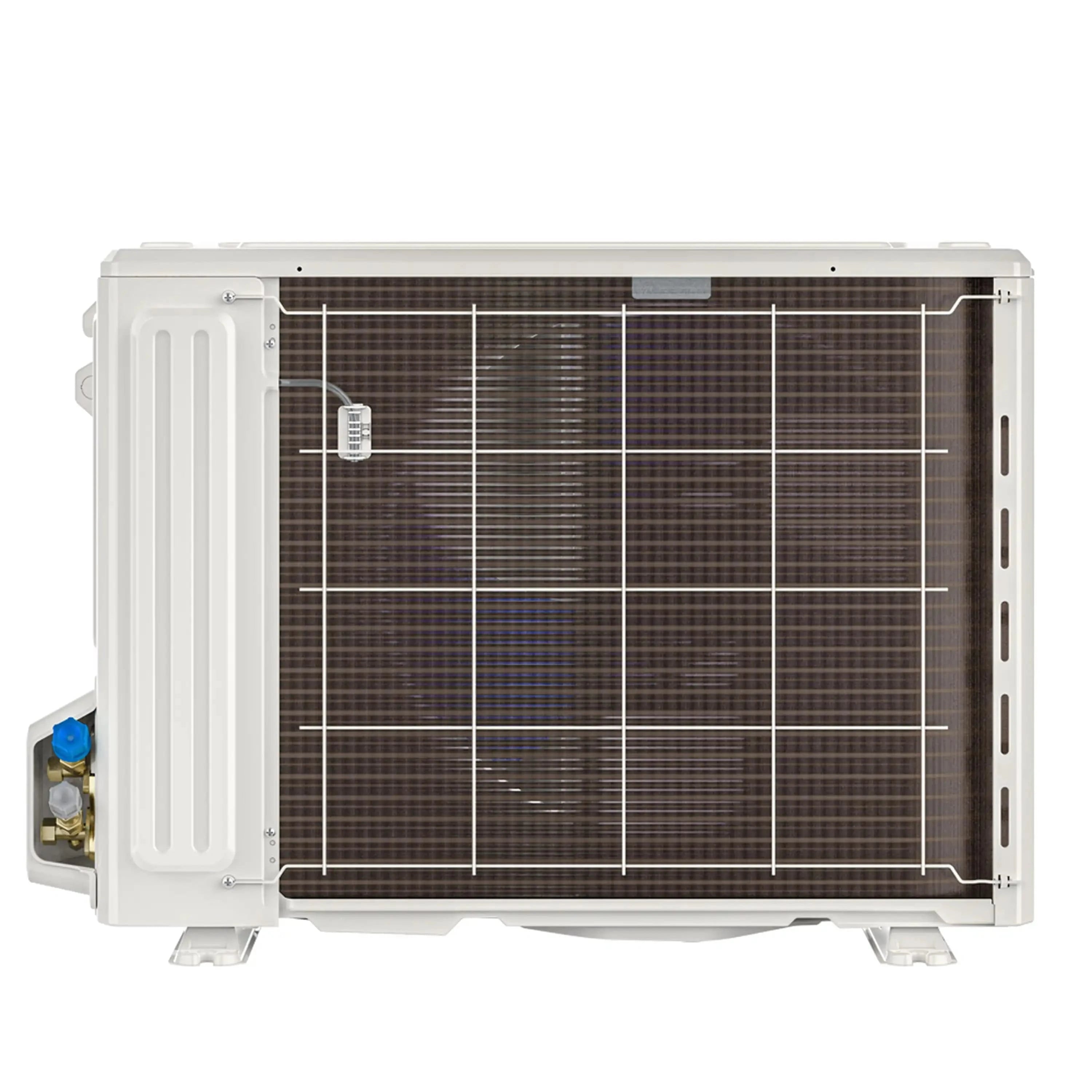

MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser (MVP-30-HP-C-230A00-O)
The MRCOOL VersaPro 2nd Gen 30K BTU Central Ducted Condenser is designed to provide efficient and reliable year-round heating and cooling performance for mid-sized homes and light commercial buildings. With a 17 SEER2 energy rating, this 2.5-ton system delivers cost-effective comfort backed by durable components and smart engineering.
This product only includes a condenser. Click here for our complete central HVAC systems
MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser Features
High-Efficiency Operation – 17 SEER2 rating helps reduce energy bills and environmental impact.
Durable Scroll Compressor – Engineered for longevity and consistent performance.
Quiet Operation – Designed with sound-dampening technology to minimize noise output.
R-410A Pre-Charged – Unit arrives pre-charged with eco-friendly refrigerant for faster installation.
Weather-Resistant Cabinet – Built with corrosion-resistant coating to withstand outdoor elements.
Universal Compatibility – Pairs easily with MRCOOL VersaPro air handlers and other compatible ducted units.
MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser Applications
-
Mid-Sized Homes – Delivers powerful climate control for homes up to approximately 1,800–2,200 sq ft.
-
Retrofit Projects – A great option for replacing outdated systems with a high-efficiency upgrade.
-
Light Commercial – Suitable for small offices, shops, or hospitality settings.
-
All-Season Performance – Provides dependable heating and cooling throughout the year.
What’s Included?
MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton, 17 SEER2 Central Ducted Condenser Specifications
| Dimensions |
16.14" D x 31.89" H x 37.24" W |
| SEER2 |
17 |
| EER2 |
10.7 |
| HSPF-4 |
8.5 |
| HSPF-5 |
6.6 |
| CFM |
3001.8 |
| Tonnage |
2.5 |
| Cooling Capacity (BTU) |
30000 |
| Heating Capacity (BTU) |
31000 |
| Voltage (V) |
208-230 |
| Phase |
1 |
| Cycle |
60 |
| Max Fuse Breaker (A) |
25 |
| Min Circuit Ampacity (A) |
22.5 |
| Color |
Gray |
| Refrigerant Type |
R454B |
| Refrigerant Volume (Oz) |
91.71 |
| Decibel Rating (DBA) |
60 |
| Liquid Line Size |
3/8 |
| Suction Line Size |
3/4 |
| WiFi Compatibility |
Yes |
| App Compatibility |
Yes |
| ETL Certified |
Yes |
| Energy Star Certified |
No |
| AHRI Certified |
Yes |
| Base Parts Warranty |
10 Years |
| Base Compressor Warranty |
10 Years |
| Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
| Contains Compressed Gas |
Yes |
| Net Weight (Lbs) |
141.76 |
| Gross Depth (In) |
19.68 |
| Gross Height (In) |
34.84 |
| Gross Width (In) |
42.91 |
| Gross Weight (Lbs) |
152.34 |
Frequently-Asked Questions
Does this unit support both heating and cooling?
Yes, it is a heat pump condenser capable of delivering year-round comfort with both heating and cooling functionality.
Can I install this unit myself?
Professional installation is strongly recommended to ensure performance, safety, and warranty coverage.
Is it compatible with other MRCOOL air handlers?
Yes, it’s designed to work seamlessly with the MRCOOL VersaPro air handler line.
