IMO Automation Emergency Stop Disconnect Switch

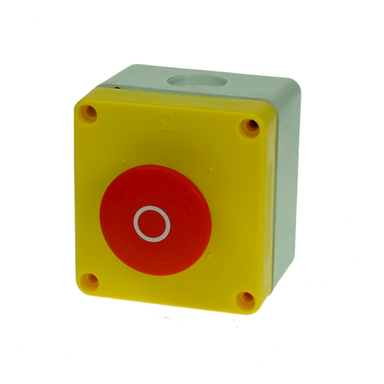

The IMO Automation Emergency Stop Disconnect Switch is a compact emergency stop station designed for fast manual shutdown control in electrical and automation systems. This unit features a 40mm red mushroom emergency stop button, a yellow enclosure face, and 1 normally open + 1 normally closed contact configuration. The switch uses a twist-to-release design and is commonly used to control electromagnetic starters, contactors, relays, and other automatic control circuits.

IMO Automation Emergency Stop Disconnect Switch Features

High-Visibility Emergency Stop Station - The red emergency stop button with yellow enclosure face provides clear visibility for emergency shutdown applications.

40mm Twist-to-Release Button - The switch uses a 40mm mushroom-style emergency stop button with a twist-to-release reset function for quick operation and controlled reset.

1NO + 1NC Contact Configuration - Includes 1 normally open and 1 normally closed contact, supporting control circuit applications that require both contact states.

500VAC Rated Current - The switch is listed with a 500VAC rated current and 10A rated amperage, making it suitable for compatible control circuit applications.

Multiple Conduit Entries - Designed with multiple conduit entries on the top, sides, and bottom, helping installers route wiring based on the installation layout.

IP65 / Type 12 Protection - The emergency stop station is listed with IP65 / Type 12 protection, helping protect the enclosure against dust and water exposure in supported environments.

Compact Control Circuit Design - The switch is structured for quick operation and can be used to control automatic electric circuits such as starters, contactors, and relays.

IMO Automation Emergency Stop Disconnect Switch Applications

Solar rapid shutdown systems - used as an emergency stop or shutdown initiator in compatible PV and energy systems.
Battery energy systems - supports manual emergency shutdown control for compatible battery and inverter installations.
Automation control circuits - can control electromagnetic starters, contactors, relays, and other automatic circuits.
Industrial control panels - provides a visible emergency stop point for equipment control systems.
Commercial electrical systems - suitable for safety shutdown applications in supported commercial installations.
Service and maintenance areas - gives operators a clear manual stop station for emergency or service-related shutdown needs.

What’s Included?

1 x IMO Automation Emergency Stop Disconnect Switch / Emergency Stop Station

Frequently-Asked Questions

What is the IMO Automation Emergency Stop Disconnect Switch used for?

It is used as a manual emergency stop station for compatible electrical and automation control circuits. It can be used to control electromagnetic starters, contactors, relays, and other automatic control circuits.

What does 1NO + 1NC mean?

1NO + 1NC means the switch includes one normally open contact and one normally closed contact, giving installers both contact types for compatible control wiring.

How does the switch reset?

This model uses a twist-to-release reset function. After the emergency stop button is pressed, it is released by turning/twisting the button.

Is this switch outdoor rated?

The product information lists IP65 / Type 12 protection. It should be installed according to the project requirements and applicable electrical code.

What is the rated amperage?

The switch is listed with a 10A rated amperage.

What is the rated voltage?

The product listing shows a 500VAC rated current.

Does it include both normally open and normally closed contacts?

Yes. This model includes 1 normally open and 1 normally closed contact.
