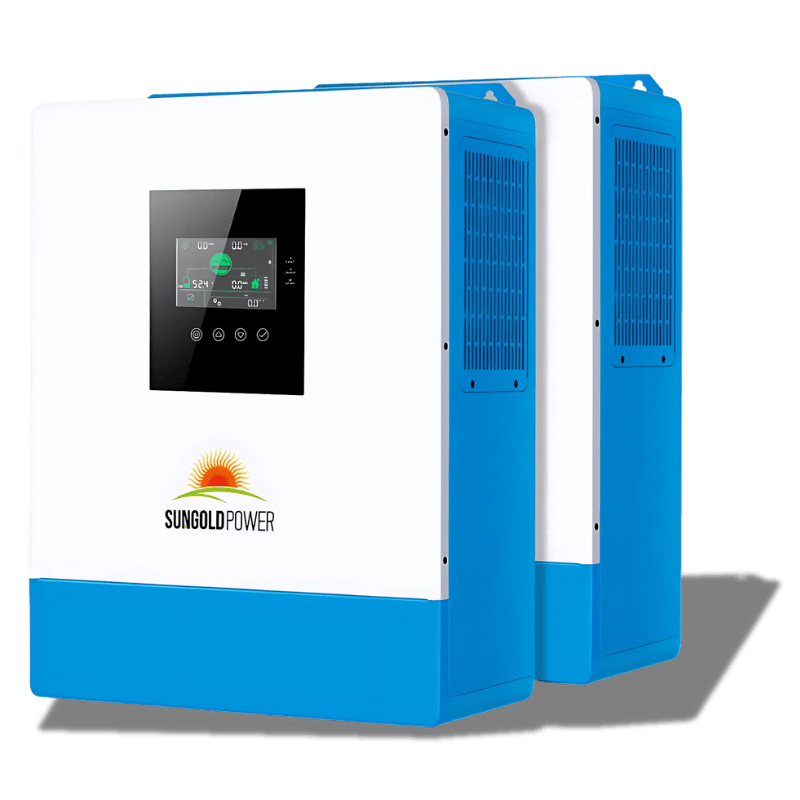

SunGold Power 10,000W 48V Solar Charger Inverter (2 Units Parallel)

SunGold Power 10,000W 48V Solar Charger Inverter (2 Units Parallel)

SunGoldPower
SKU SPH504880Ax2
Save $295.00
$1,698.00
$1,403.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

SunGold Power 10,000W 48V Solar Charger Inverter (2 Units Parallel)

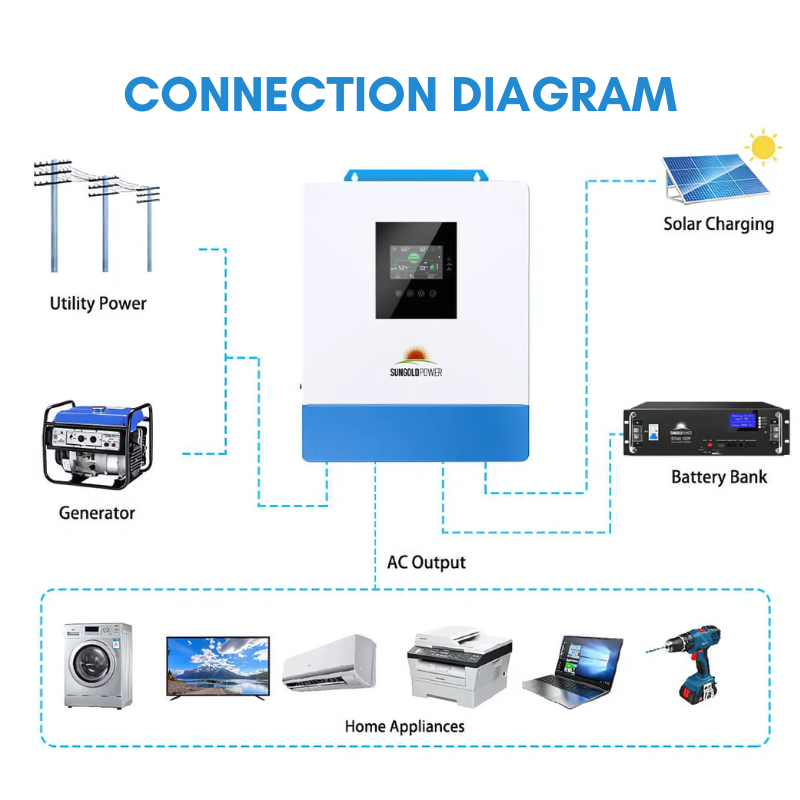

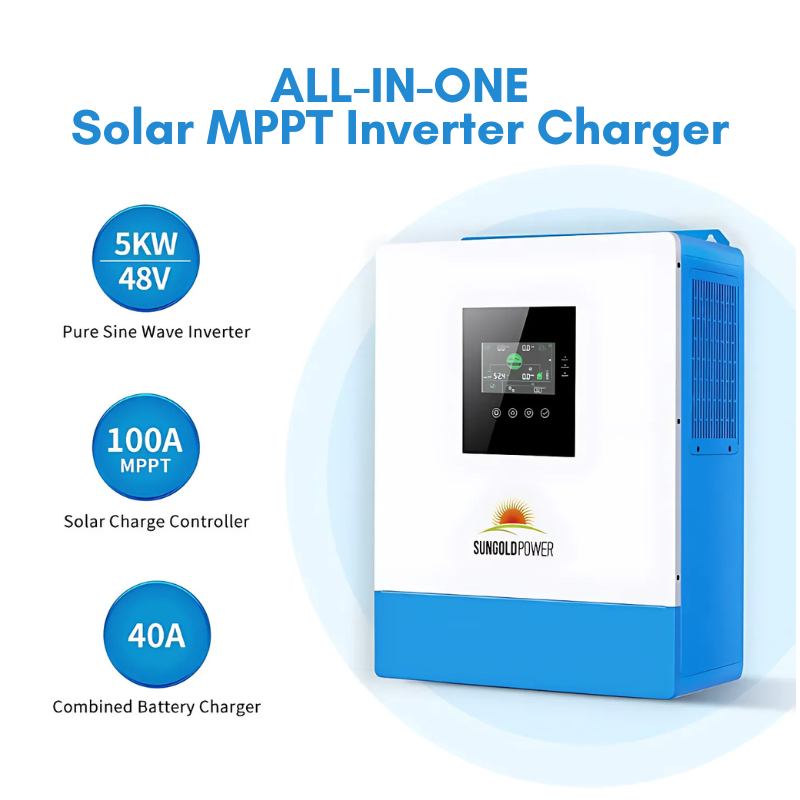

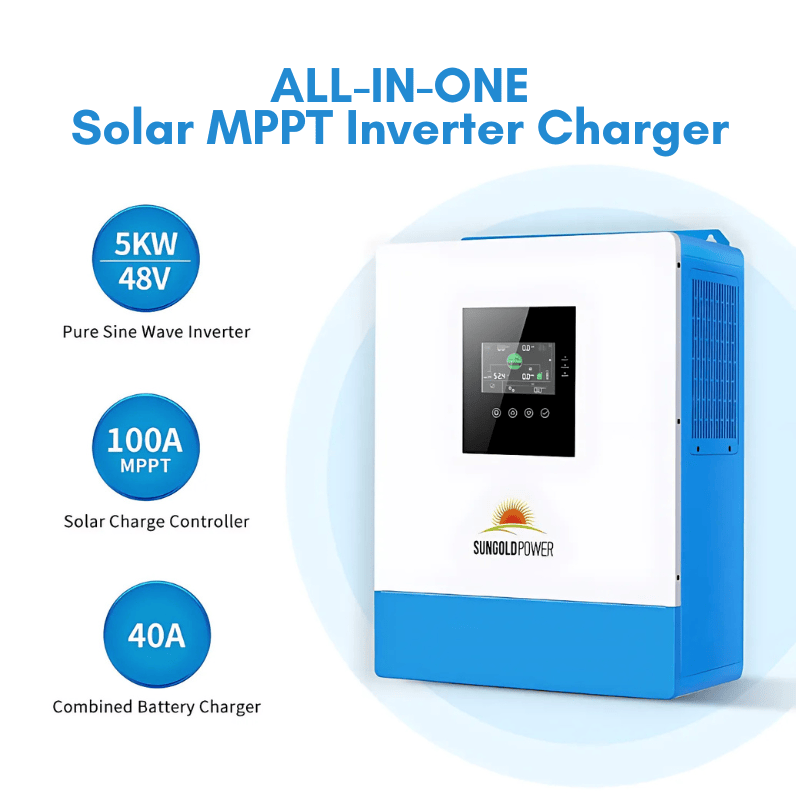

The SunGold Power 10,000W 48V Solar Charger Inverter is a high-performance, pure sine wave inverter designed for off-grid solar power systems. With a power output of 10,000W and the ability to operate in parallel with up to six units, this inverter is perfect for home, commercial, and industrial applications requiring reliable and efficient power conversion. Equipped with a UPS function, Wi-Fi monitoring (optional), and multiple battery compatibility, this inverter ensures a seamless energy transition for both solar and grid-tied setups.

Placeholder Image

SunGold Power 10,000W 48V Solar Charger Inverter (2 Units Parallel) Features

Pure Sine Wave Power

  • Delivers a clean and stable 10,000W output for sensitive electronics and heavy-duty appliances.
  • AC 120V output with 50Hz/60Hz switchable frequency.

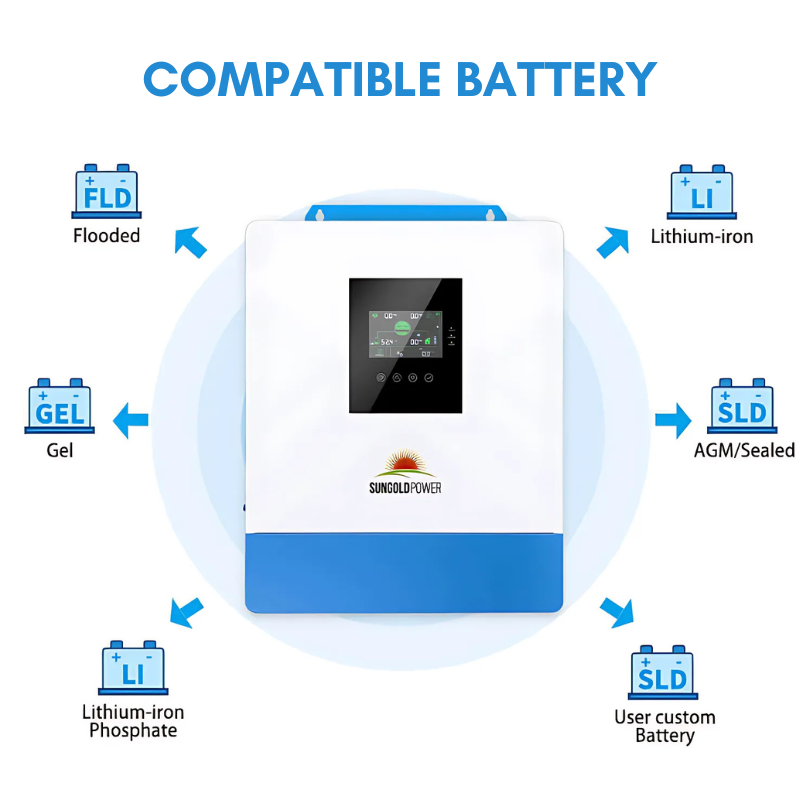

Battery Compatibility & Smart Charging

  • Supports multiple battery types: Flooded, GEL, Lithium-iron, AGM, and custom batteries.
  • Batteryless operation: Powers loads directly from PV array and AC grid without a battery.
  • 4 charging modes: Solar-only, PV priority, Utility priority, and Hybrid charging.

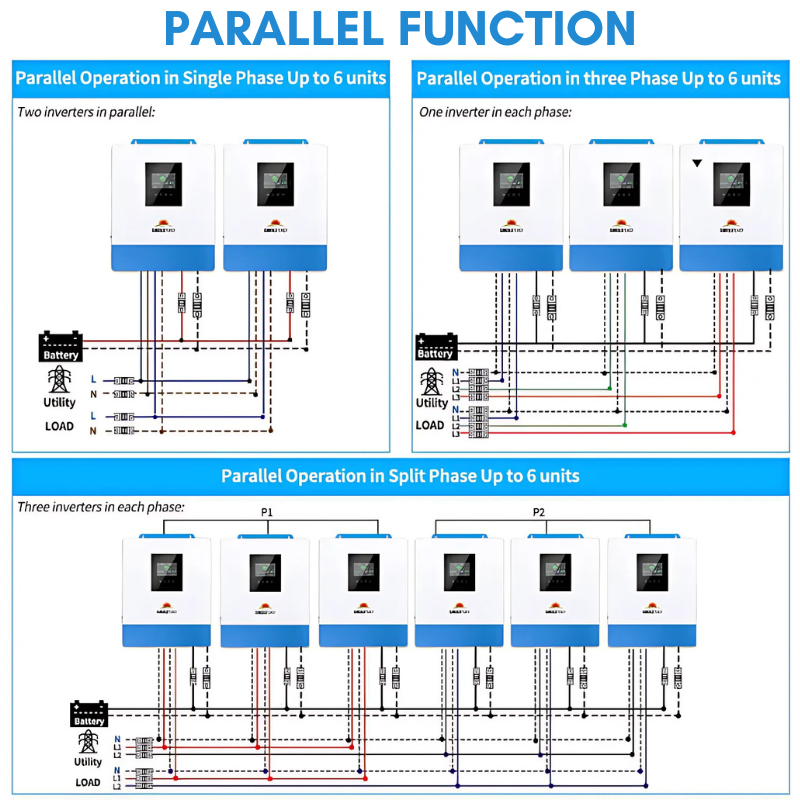

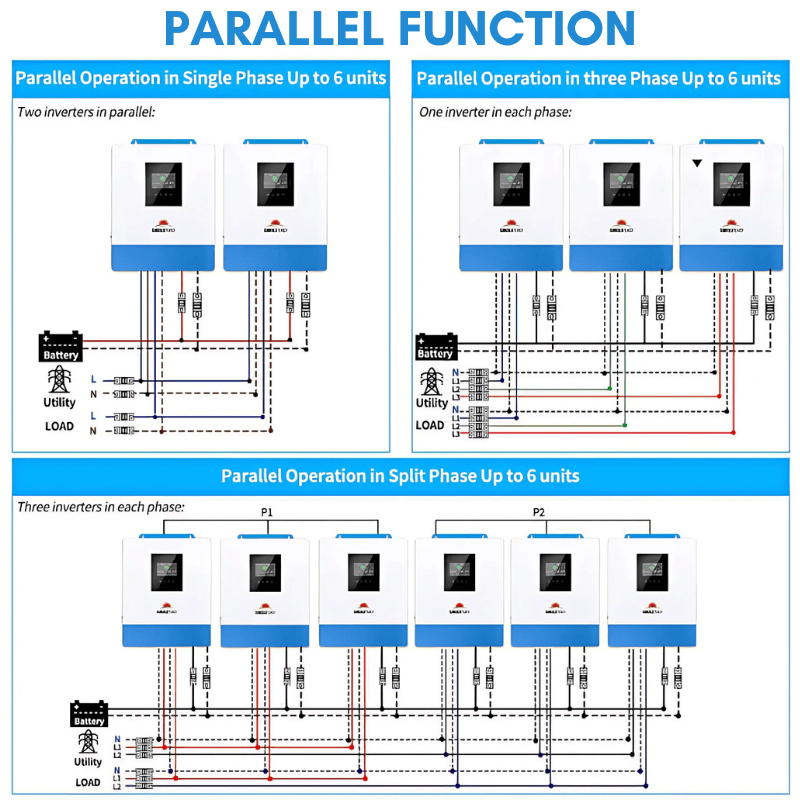

Parallel Support for Higher Power Needs

  • Parallel up to 6 units for 30KW output in single-phase, split-phase (240V), or 3-phase (208V) configurations.
  • Built-in parallel kits for seamless operation.

UPS Function for Uninterrupted Power Supply

  • Automatic switch to alternative power source within 10ms.
  • Bypass function ensures continuous power to appliances.

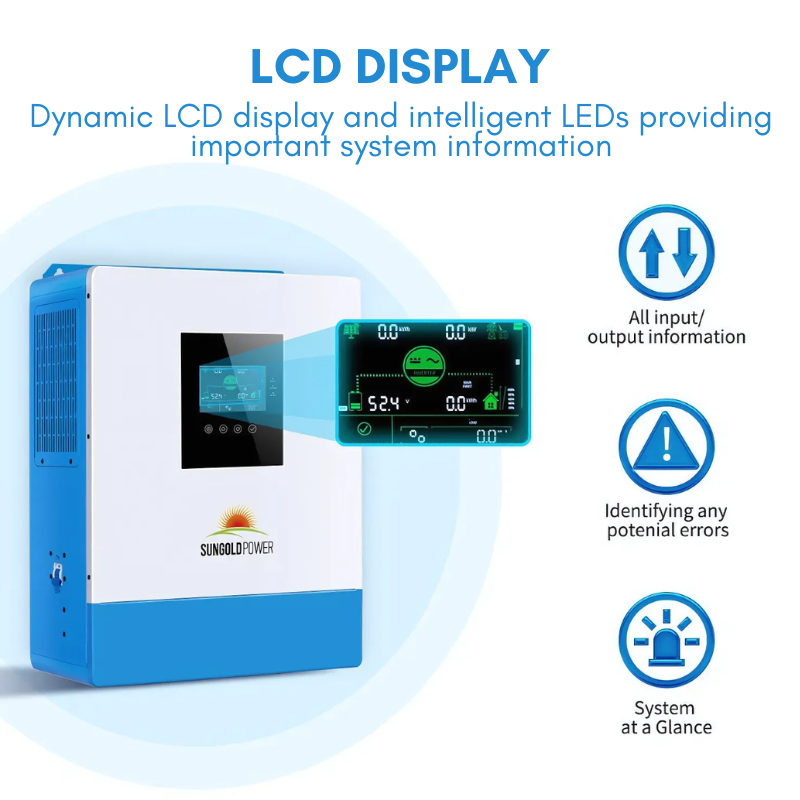

Smart Monitoring & Control

  • Wi-Fi module support (optional) allows remote monitoring via a mobile app.
  • RS485 communication port for Lithium Battery BMS connection.
  • Auto-start generator support via dry contacts.

Energy Efficiency & Power-Saving Mode

  • Reduces no-load loss with a smart power-saving function.
  • Cooling system with dual fans for improved thermal management.
Placeholder Image

SunGold Power 10,000W 48V Solar Charger Inverter Applications

Reliable Backup for Home Power Outages

Keep essential appliances like refrigerators, lights, and medical devices running during unexpected blackouts. With a powerful 10,000W capacity, this inverter ensures your home remains comfortable and safe.

Commercial Solar Solutions

Ideal for businesses requiring high-efficiency, uninterrupted power supply to maintain productivity during outages.

Industrial Equipment Support

Power heavy machinery and tools with stable energy, ensuring smooth operations in industrial settings.

Off-Grid Living & Remote Locations

Perfect for RVs, marine applications, and remote cabins needing reliable electricity where grid power is unavailable.

Agriculture & Farming Power Needs

Keep irrigation systems, farm equipment, and processing units running efficiently with off-grid solar power support.

Placeholder Image

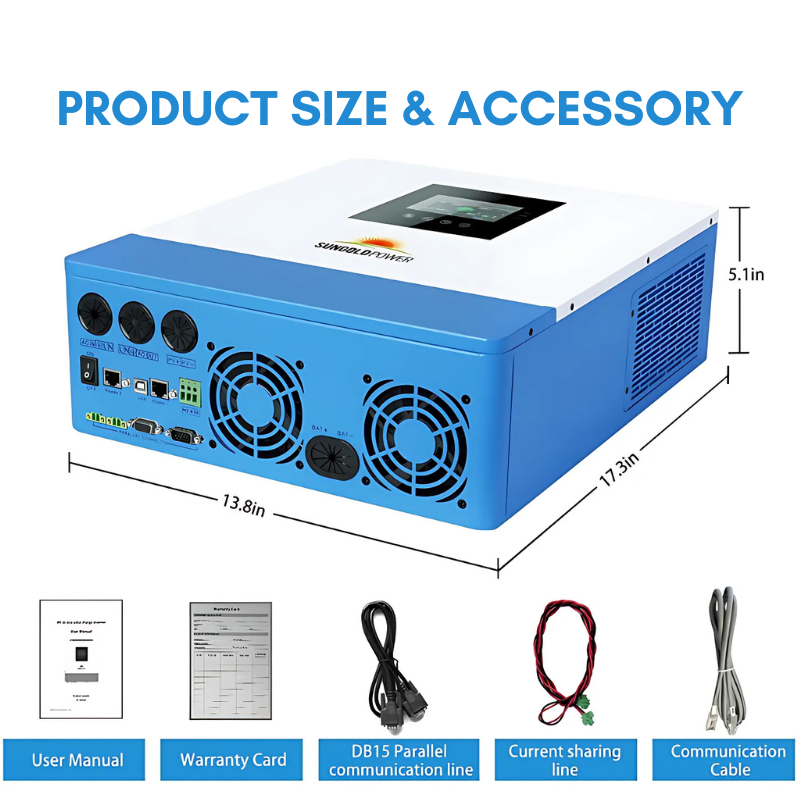

What's Included

Everything you need is included with your product.

  • SunGold Power 10,000W 48V Solar Charger Inverters
  • Parallel Communication Cables
  • User Manual
  • Accessory Kit
Placeholder Image

SunGold Power 10,000W 48V Solar Charger Inverter Specifications

PARALLEL MODE

Specification Details
Rated input voltage 1~6

AC MODE

Specification Details
Rated input voltage 110/120Vac
Input voltage range (90Vac-140Vac)+2%
Frequency 50Hz/ 60Hz (auto-sensing)
Overload/short- circuit protection Circuit breaker
Efficiency >95%
AC reverse flowing protection Yes
Maximum bypass overload current 63A

INVERTING MODE

Specification Details
Output voltage waveform Pure sine wave
Rated output power (W) 5000
Rated output voltage (Vac) 120Vac (100/105/110Vac Settable)
Overload protection (102%125%±10%: reporting error and turn off the output after 5 seconds;
Peak power 10000VA
Loaded motor capacity 4HP
Output short-circuit protection Breaker Breaker
Specification of bypass breaker 63A
Rated battery input voltage 48V (minimum start voltage 44V)
Battery voltage range 40.0Vdc~60Vdc ± 0.6Vdc
Power saving mode Idle consumption is 20~25W
Power saving off mode Idle consumption is 45~50W

AC CHARGER

Specification Details
Battery type Lead acid or lithium battery
Maximum charge current(can be set) 0-40A
Charge voltage range 40-60Vdc
Short-circuit protection Circuit breaker and blown fuse
Breaker specification 63A
Overcharge protection Alarm and turn off charging after 1 minute

SOLAR CHARGER

Specification Details
Maximum PV open-circuit voltage 500Vdc
PV operation voltage range 120-500Vdc
MPPT voltage range 120-450Vdc
Maximum output power 5000W
PV charging current range (can be set) 100A
Charge short-circuit protection Blown fuse
Wiring protection Inverse wiring protection

AUTHENTICATION SPECIFICATION

Specification Details
Operation temperature range 5°F to 131°F (-15°C to 55°C)
Storage temperature range -13°F to 140°F (-25°C ~ 60°C)
Noise <60dB
Thermal dissipation Forced cooling with adjustable air speed

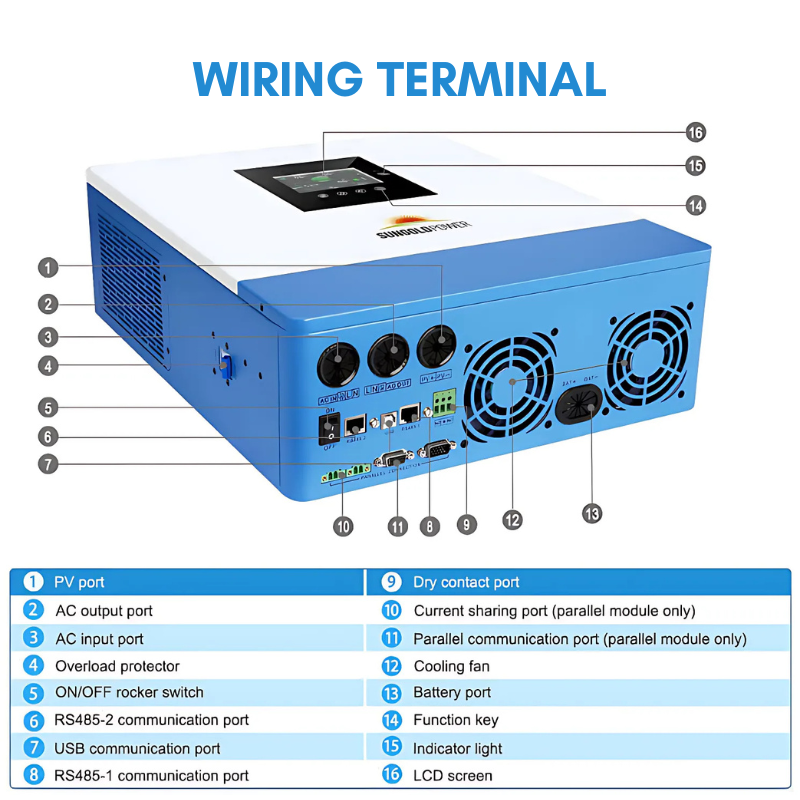

Communication interface USB/RS485 (WiFi/GPRS)/dry node control
Dimension (L*W*D) IN 17.3*13.8*5.1
Weight (LB) 28
Certification UL1741
Placeholder Image

FAQs

What types of batteries are compatible with this inverter?

This inverter supports Lithium-ion, AGM, Gel, Flooded, and custom batteries for flexible energy storage.

Can this inverter work without a battery?

Yes, the inverter can power loads directly from solar panels and the AC grid without a connected battery.

Does this inverter support remote monitoring?

Yes, an optional Wi-Fi module allows real-time monitoring and control via a mobile app.

What happens if the grid fails while using this inverter?

The UPS function ensures an automatic switch to the battery or solar power within 10ms, keeping appliances powered.
