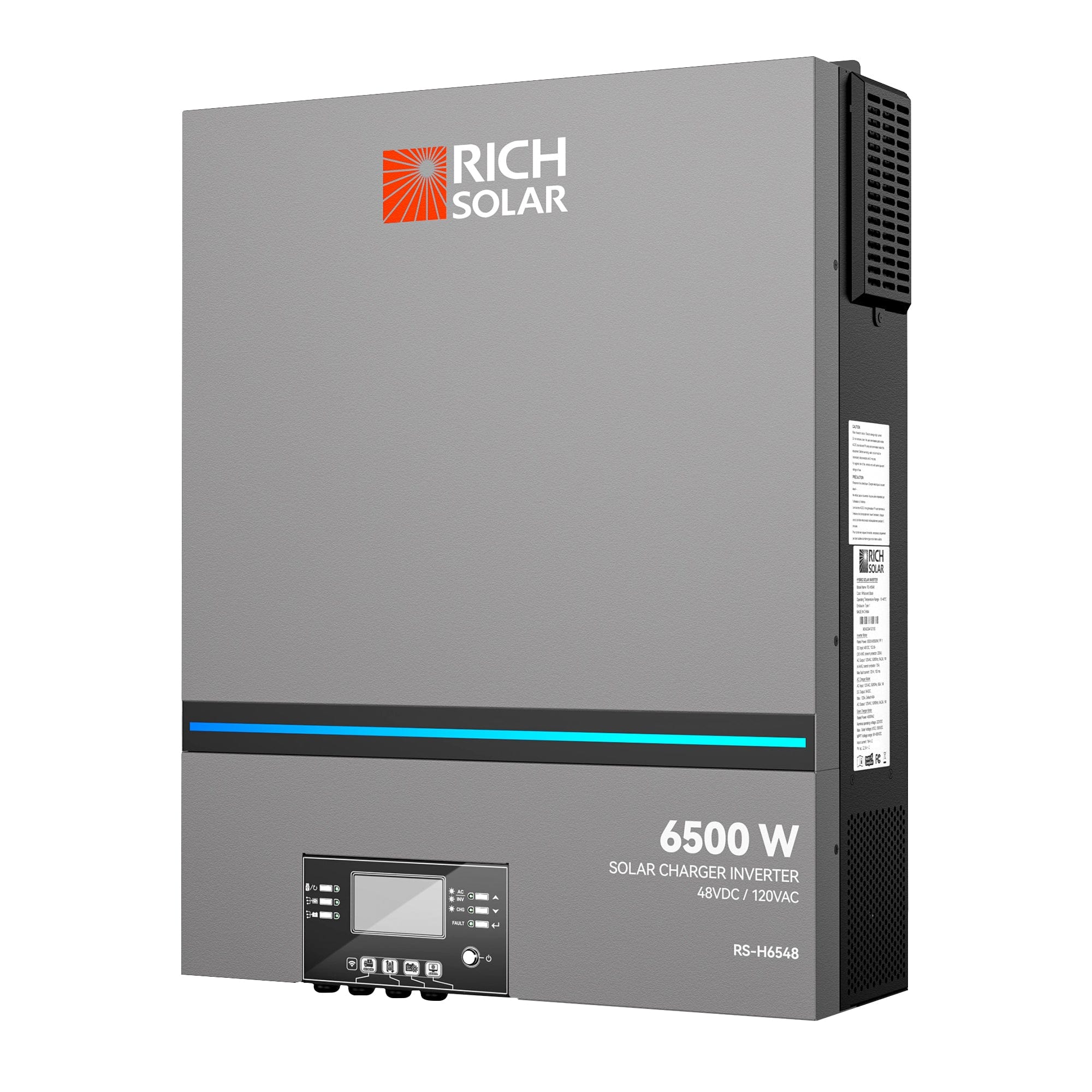

RICH SOLAR NOVA 6K - 6500W 48V Off-Grid Hybrid Solar Inverter, 550V PV Input, UL Certified

FEATURES

• Pure Sine Wave Inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible to utility mains or generator power
• Auto restart while AC is recovering
• Overload / Over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

Tech Specs

Specifications:

Model: RS-H6548V5
Rated Output Power: 6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Input Voltage: 120 VAC
• Efficiency:>95% (Rated R load, battery full charged)
• Frequency Range: 50Hz / 60Hz (Auto detection)

OUTPUT

• Rated Output Power: 6500W
• Output Voltage Waveform: Pure Sine Wave
• Output Voltage Regulation: 120VAC±5%
• Peak Efficiency:91%
• Surge Capacity:2* rated power for 5 seconds
• Nominal DC Input Voltage: 48VDC
• Cold Start Voltage: 46.0VDC

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

OPERATING ENVIRONMENT

• Operating Temperature Range: -10°C to 40°C
• Storage temperature: -15°C~ 60°C
• Humidity: 5% to 95% Relative Humidity (Non-condensing)

PHYSICAL

• Dimension (mm): 147.4 x 432.5 x 575.6 (620.6) (with extension box)
• Net Weight: 18.4kg/41lb

User Manual & Specification

6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter 550V PV Input

User Manual    Specification
