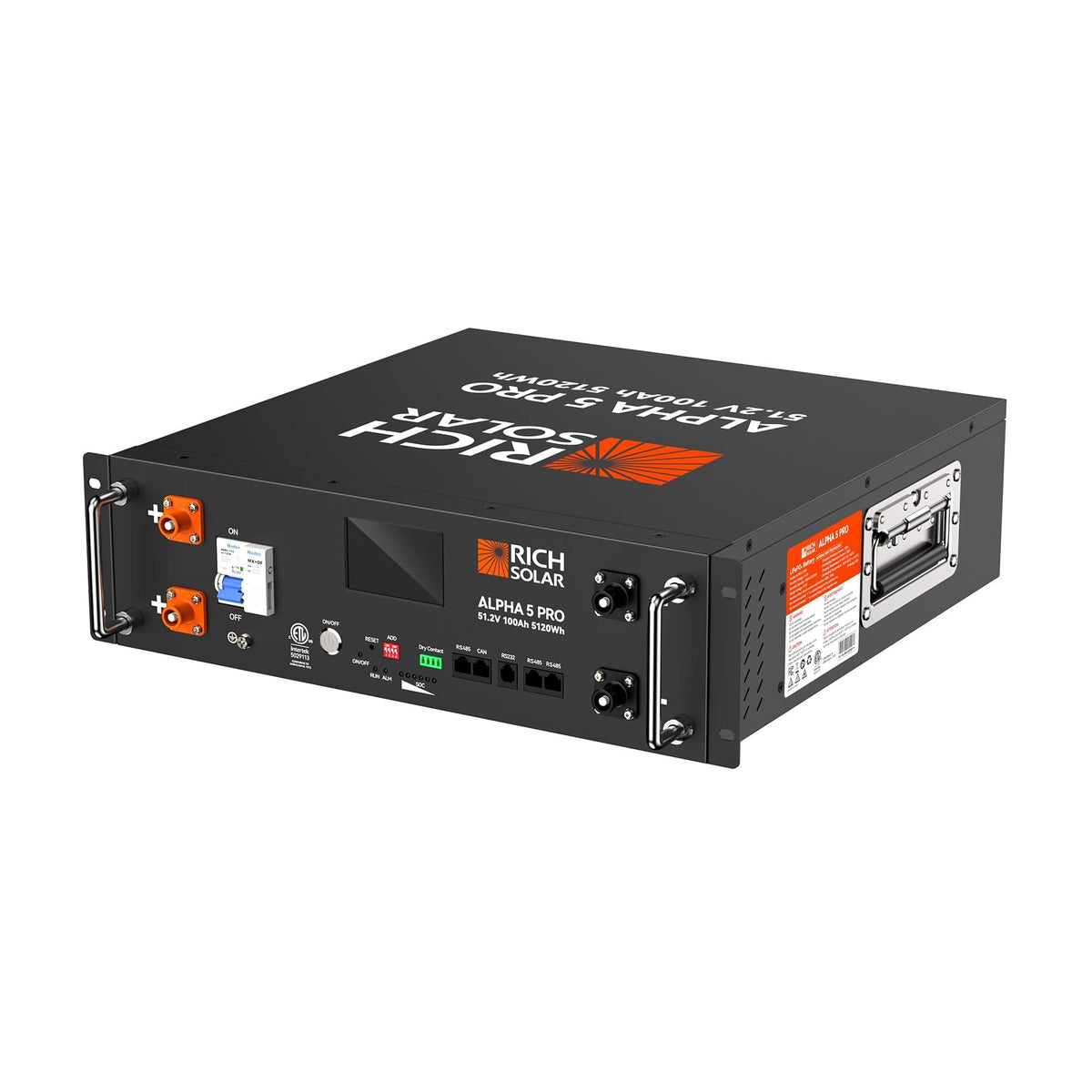

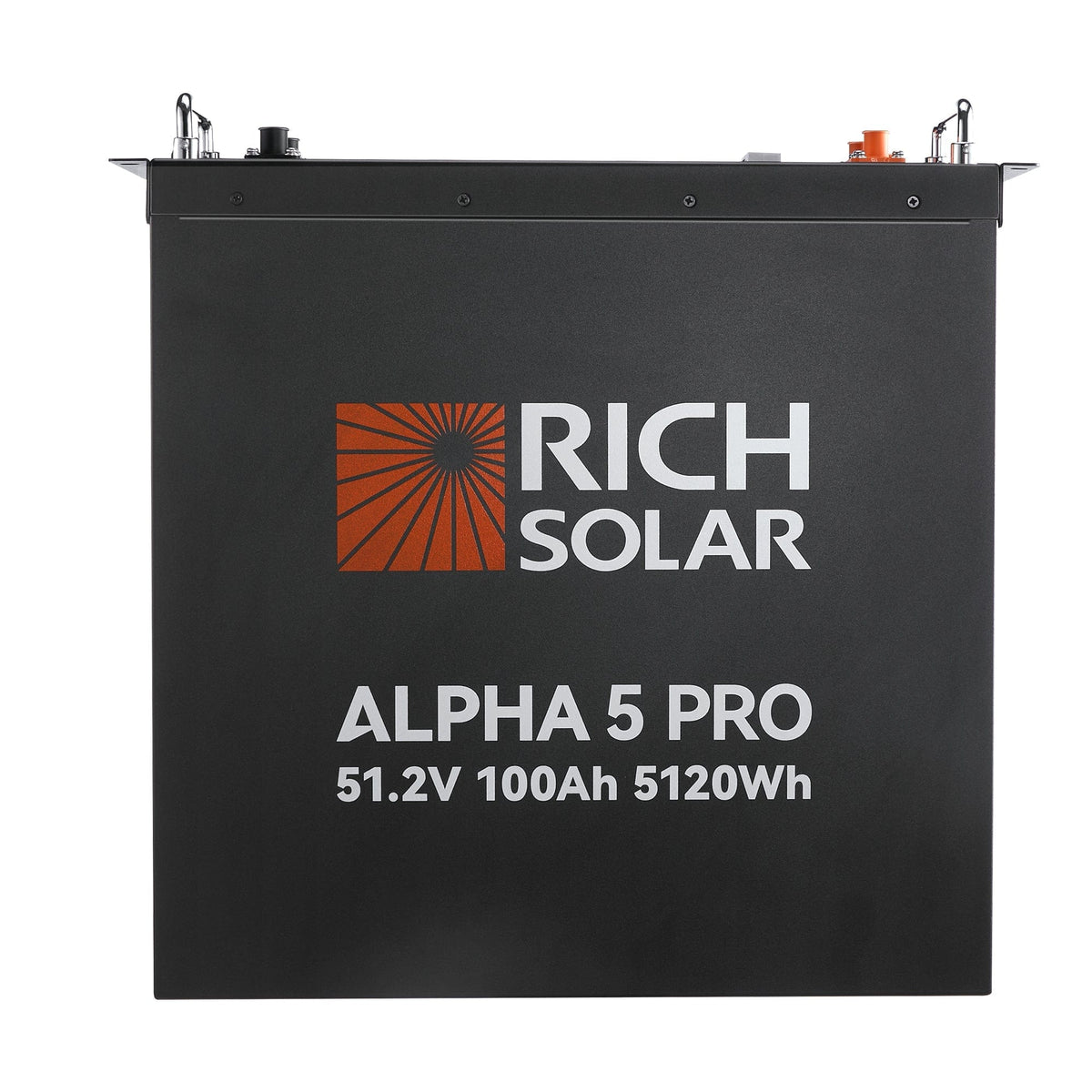

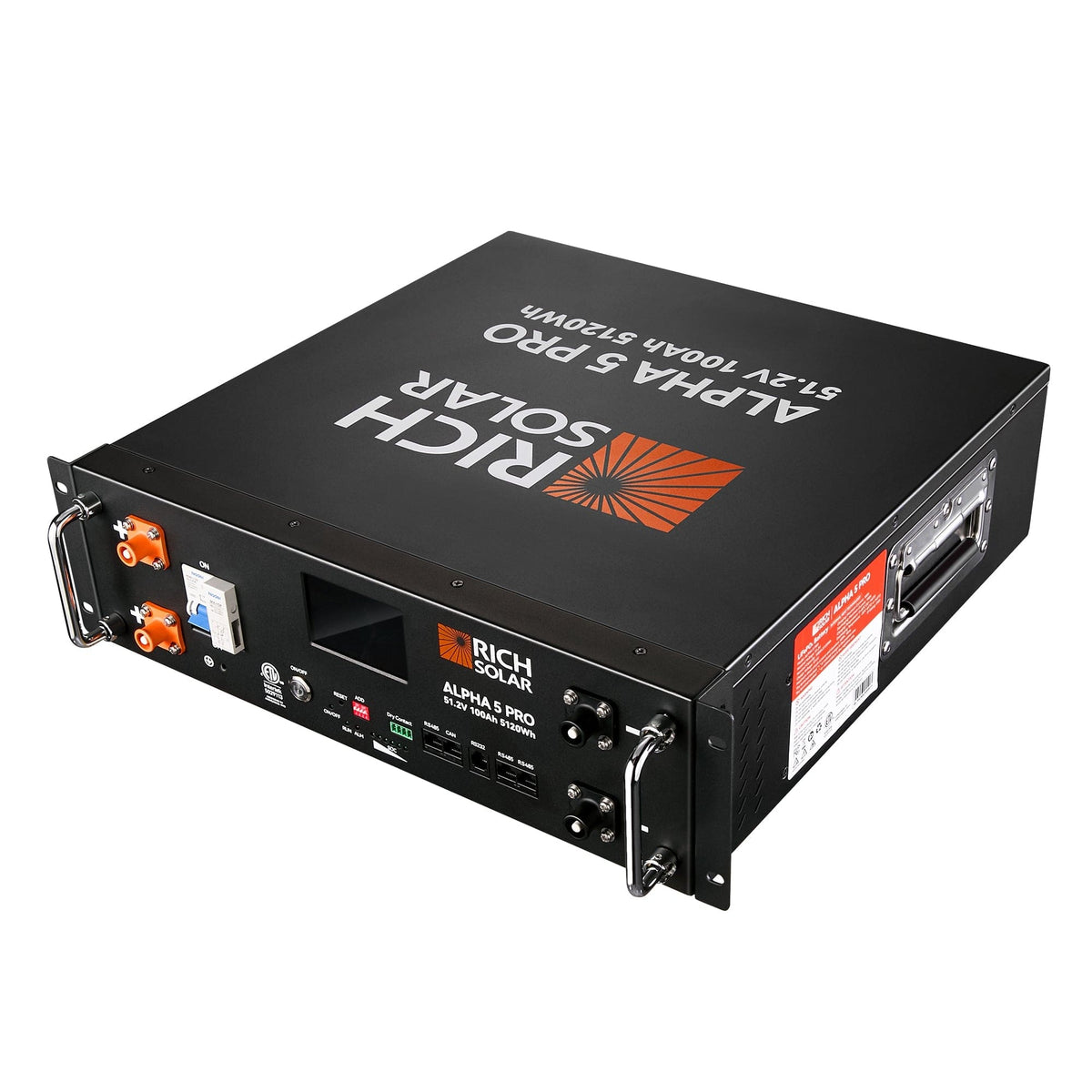

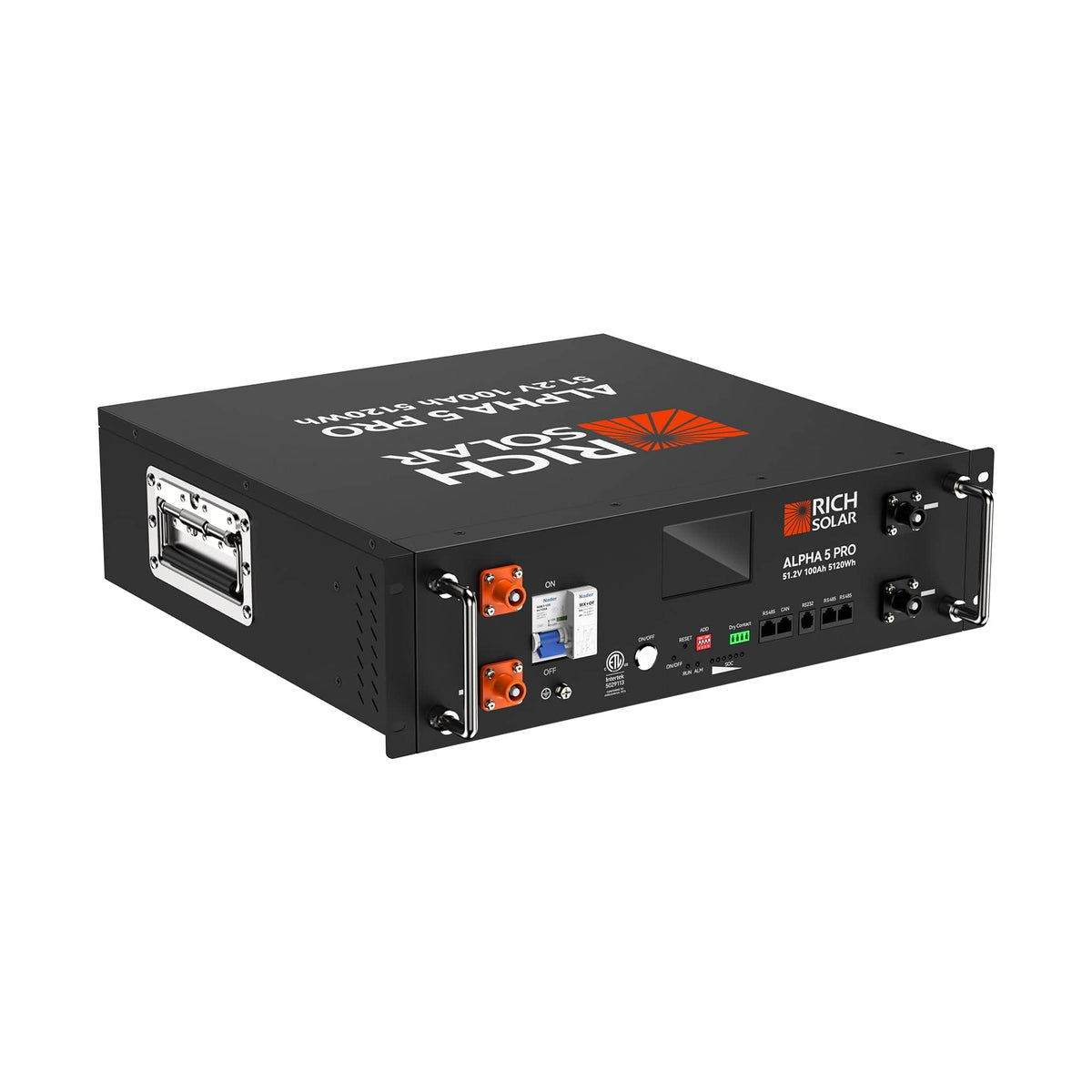

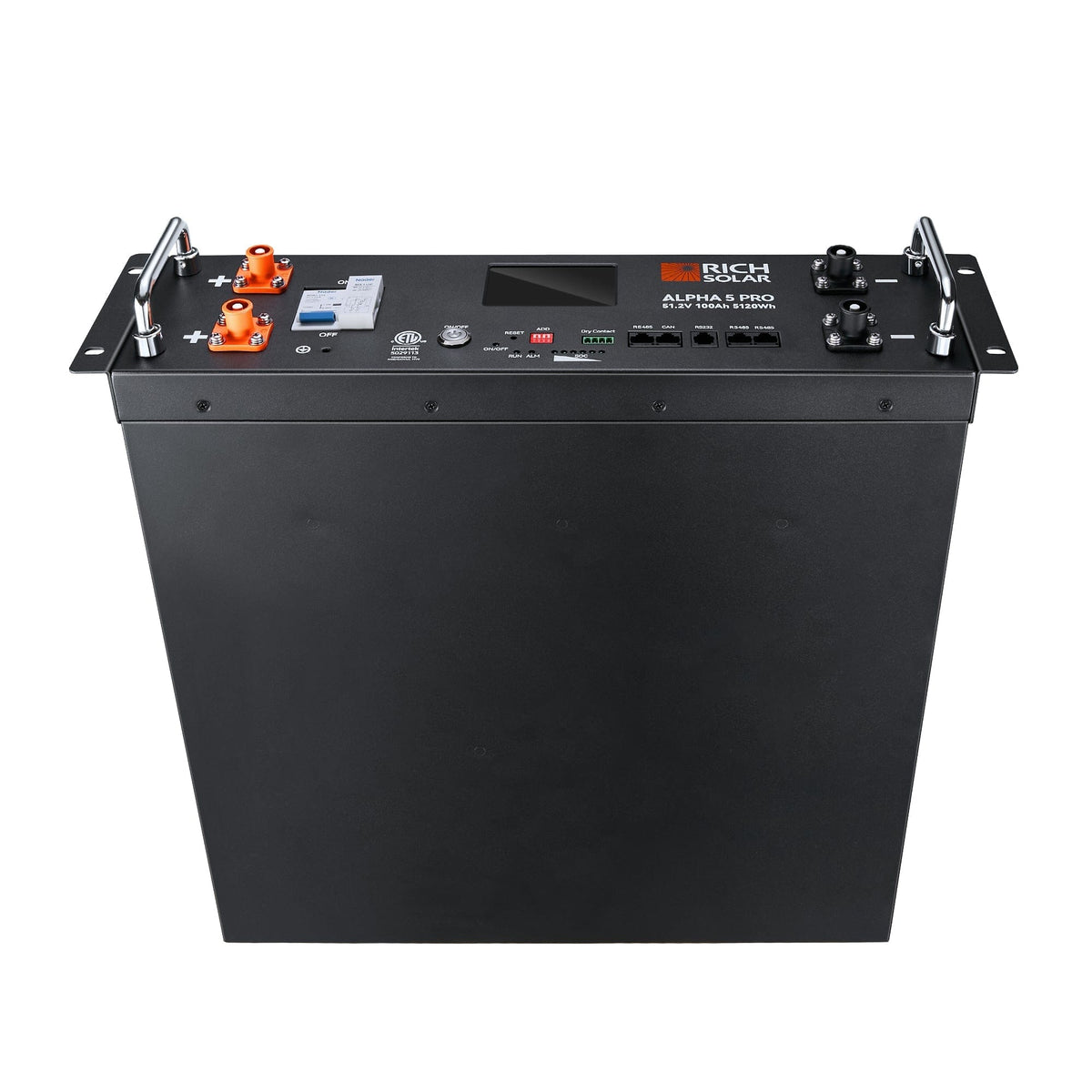

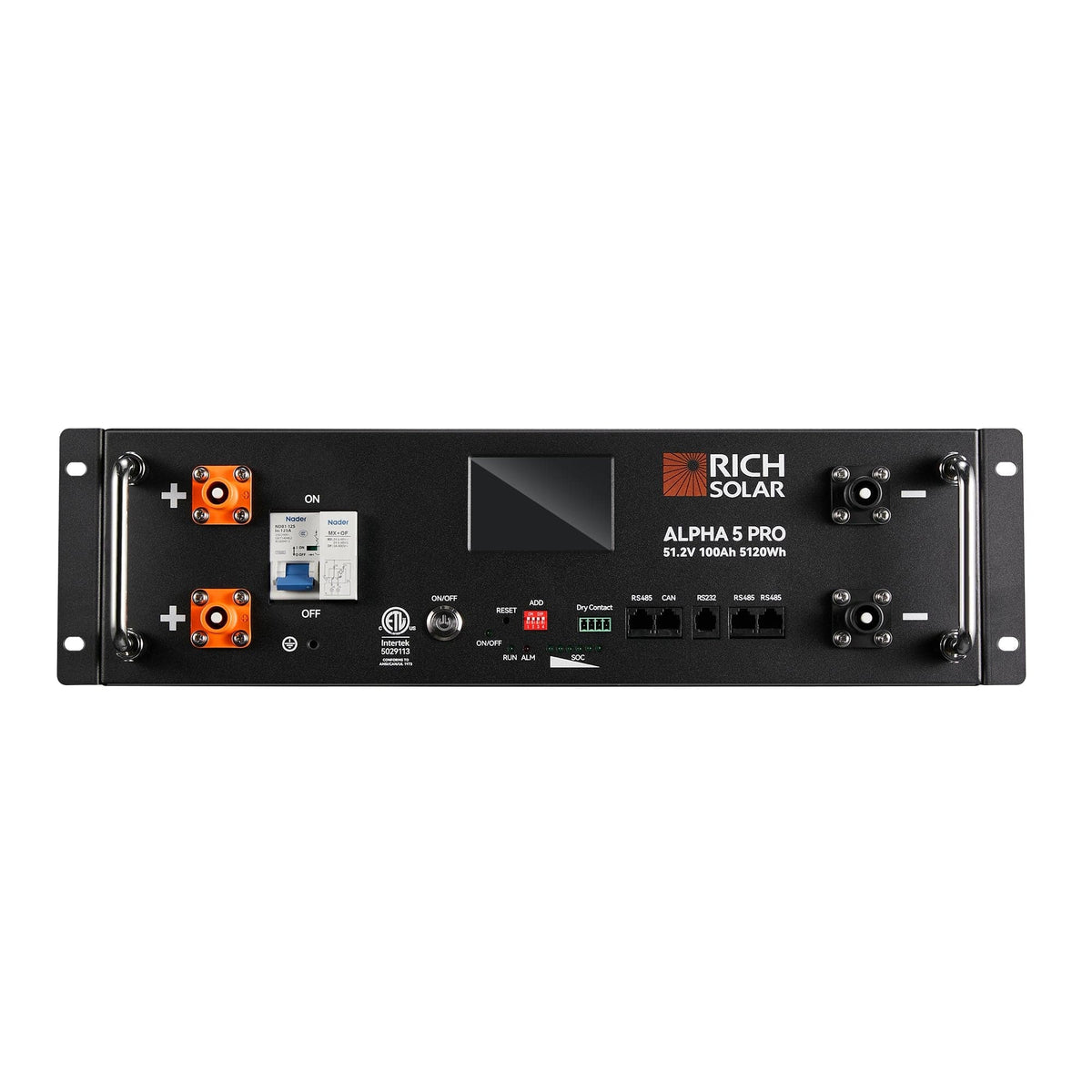

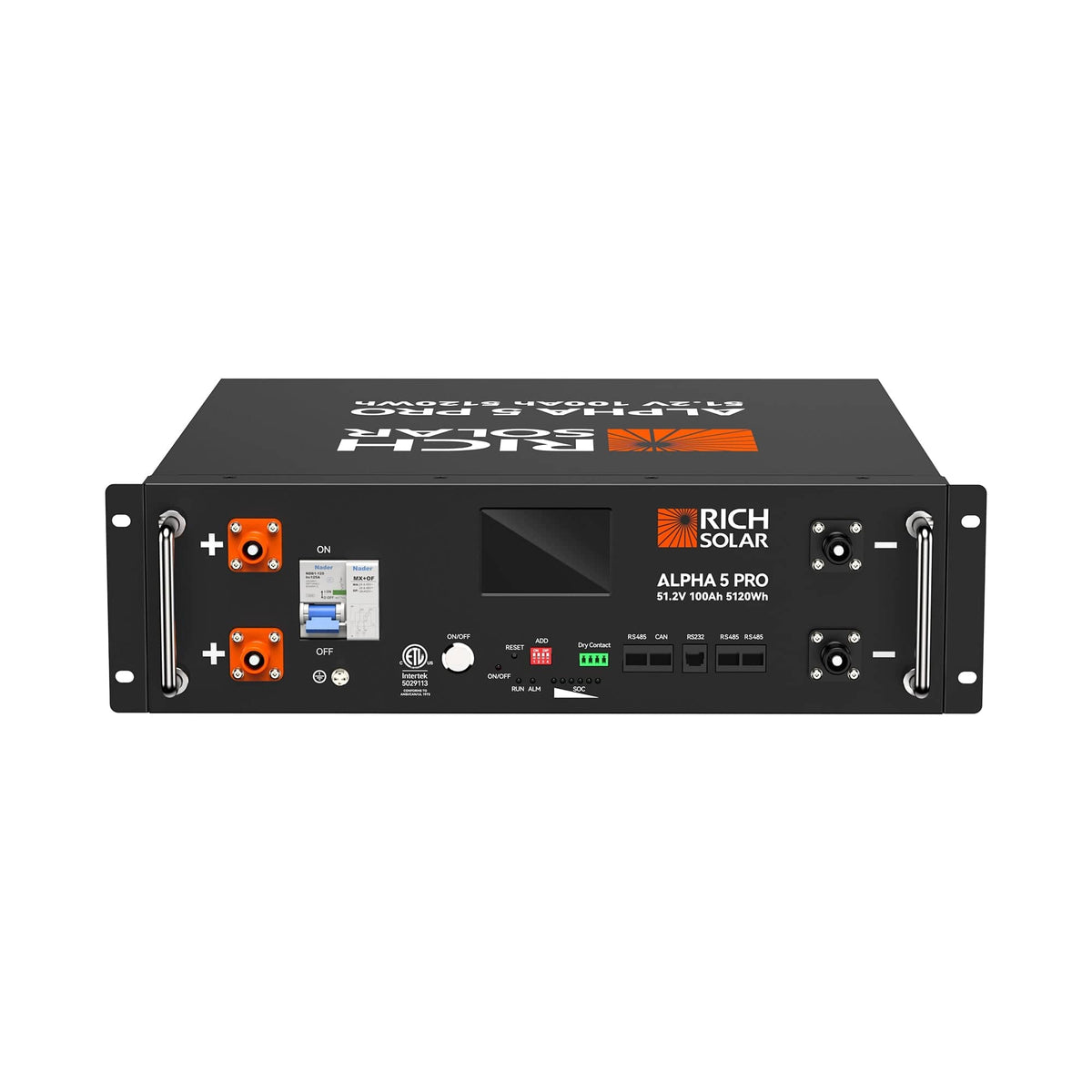

ALPHA 5 PRO Heating | 51.2V 100Ah LiFePO4 Battery

The ALPHA 5 PRO Heating | 51.2V 100Ah LiFePO4 Battery is a cutting-edge premium server rack battery designed to deliver unmatched power, safety, and longevity for residential, commercial, RV, and off-grid energy systems. Built with advanced LiFePO4 cells and featuring an integrated heating function, this battery thrives in all climates, ensuring reliable operation even in harsh cold environments. Certified to UL1973 and UL9540A standards with an impressive 7,000 cycle life and a 10-year warranty, the ALPHA 5 PRO sets a new benchmark for serious energy storage applications.

RICH SOLAR ALPHA 5 PRO Battery Features Features

Integrated Heating System
Equipped with a smart low-temperature heating system, the ALPHA 5 PRO automatically warms itself in cold climates, allowing safe charging even in subzero conditions.

Premium LiFePO4 Cells
Built with Grade A lithium iron phosphate cells, delivering outstanding safety, stability, and over 7,000 deep cycles, translating to 15+ years of typical use.

Massive Energy Storage

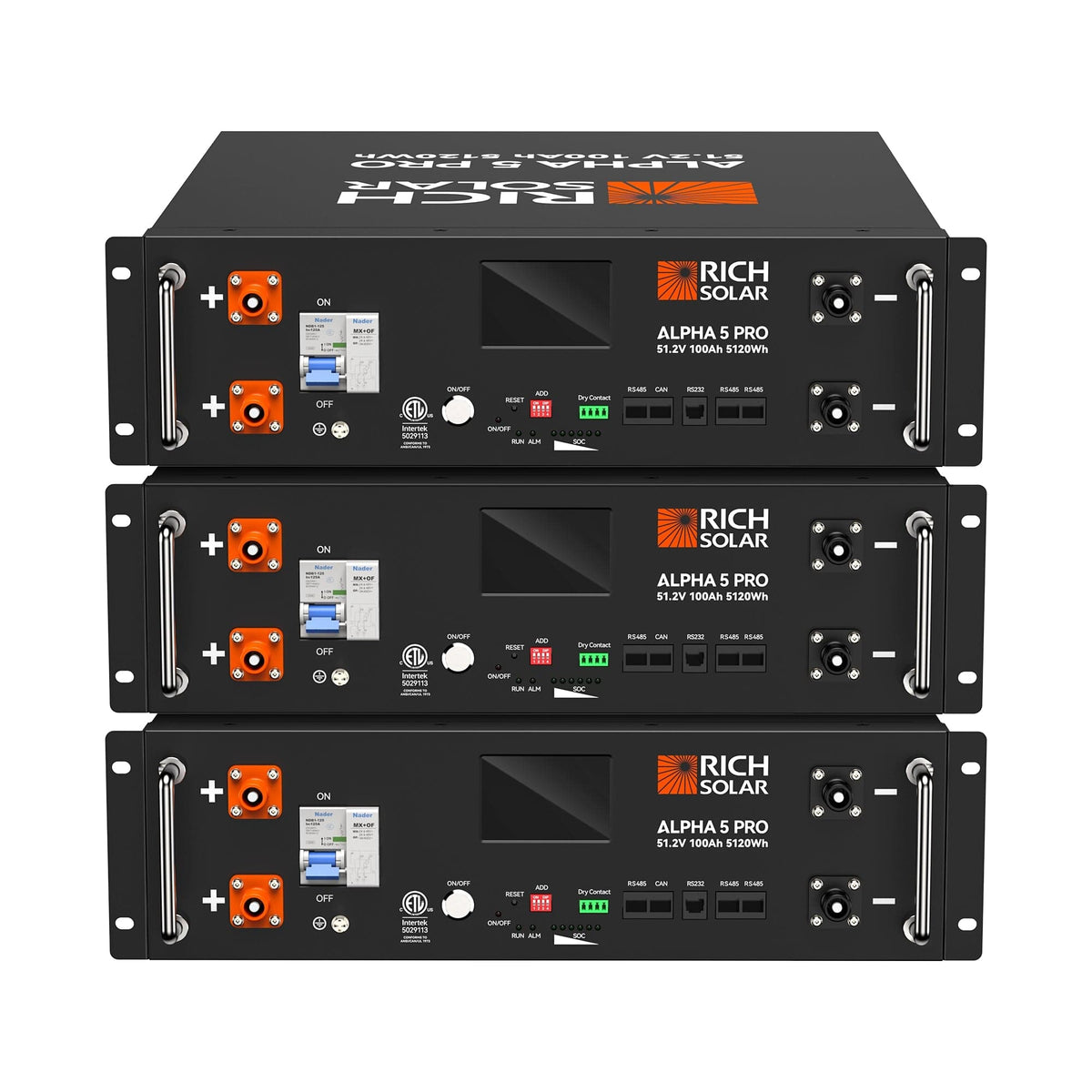

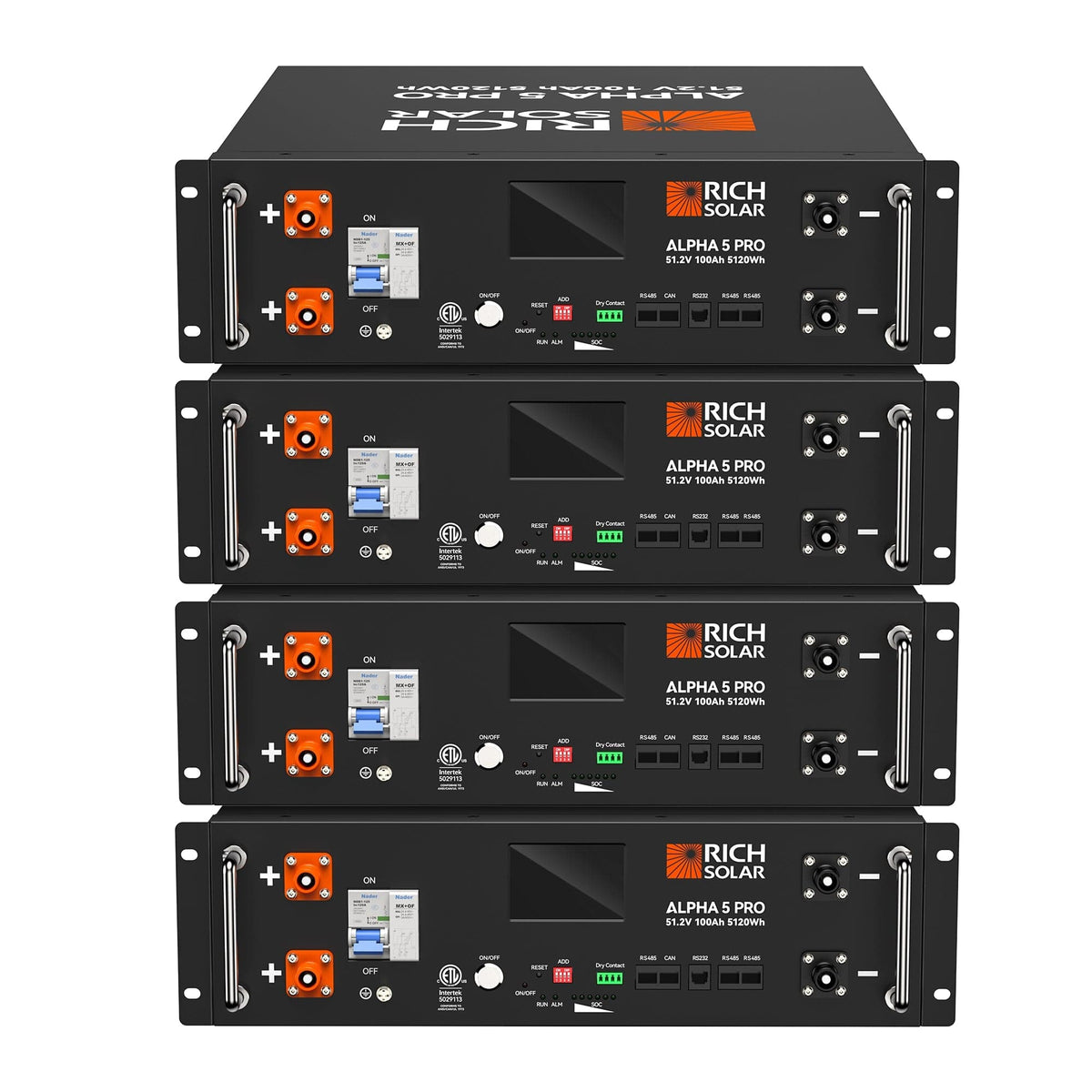

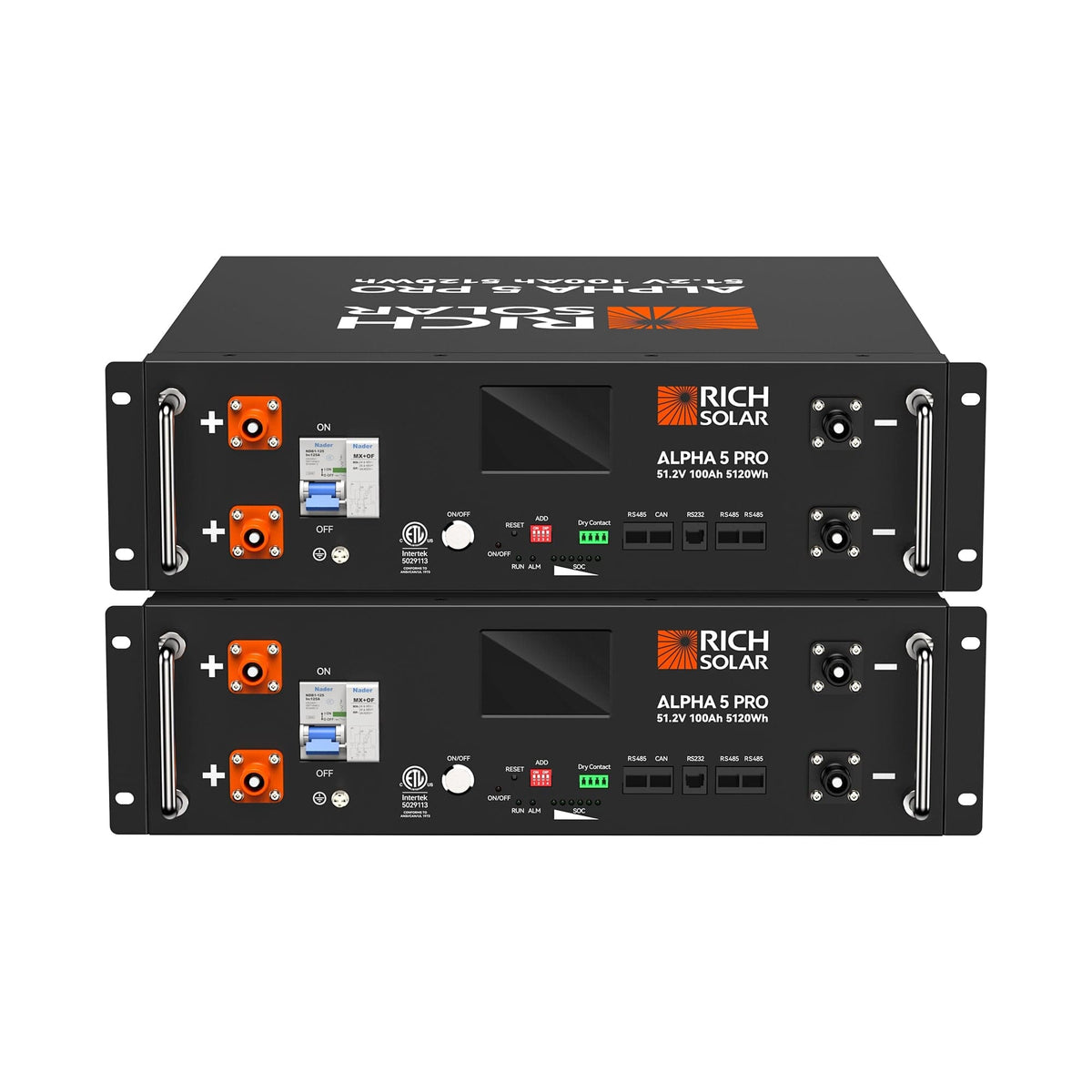

Provides 5.12kWh of storage in a single unit, easily scalable for larger residential or commercial systems by stacking multiple batteries.

Advanced BMS Protection
Includes a sophisticated Battery Management System to safeguard against overcharge, over-discharge, short circuit, temperature extremes, and balancing issues.

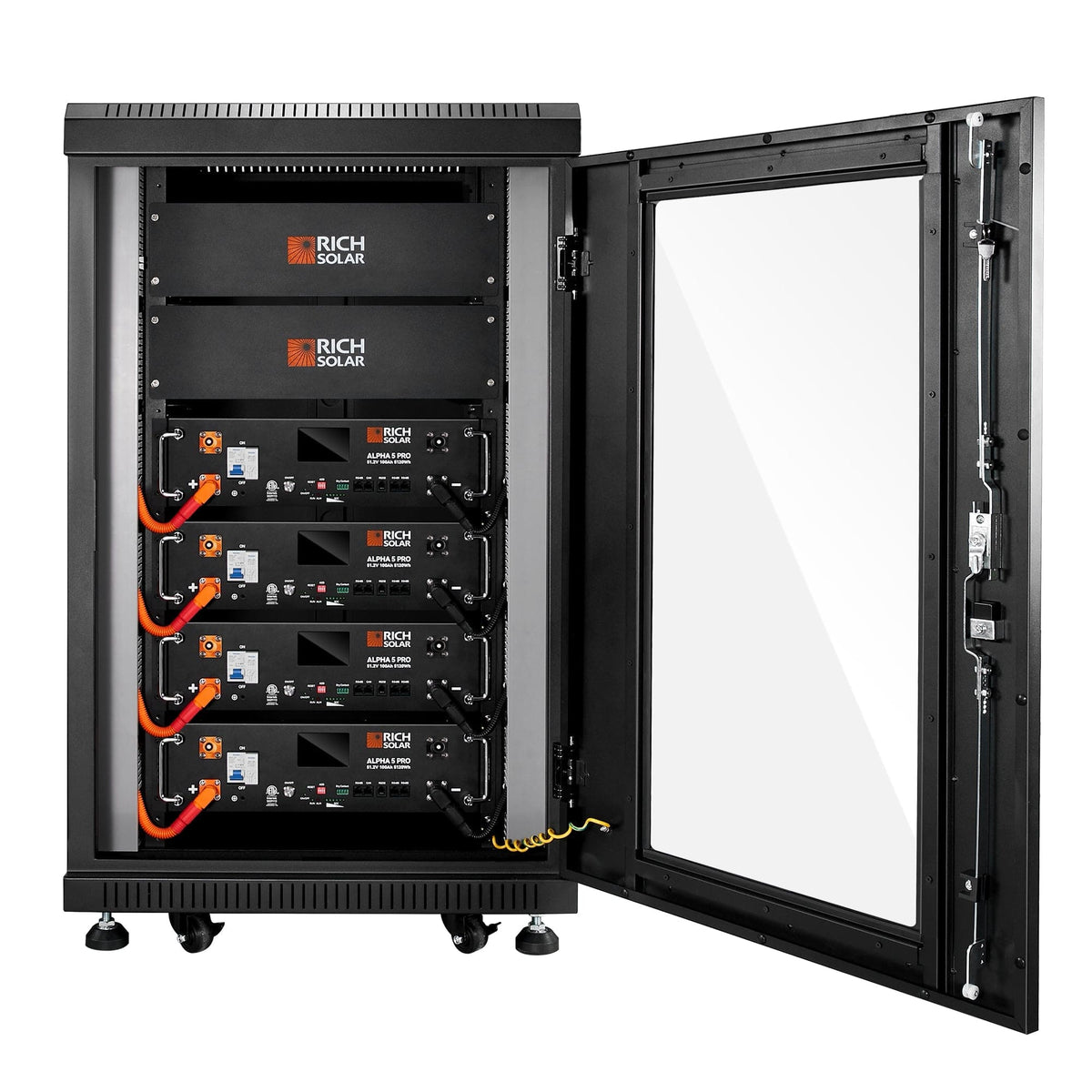

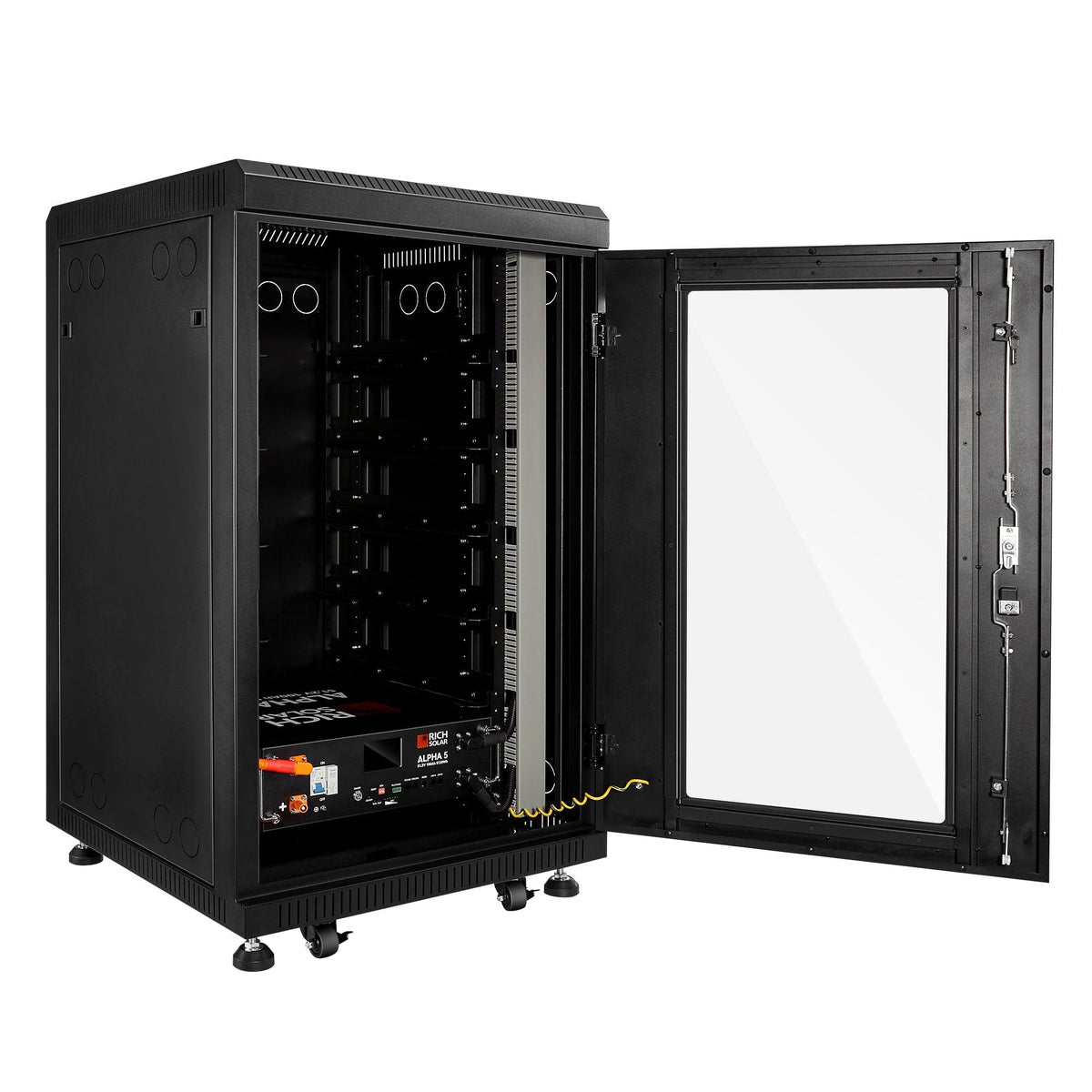

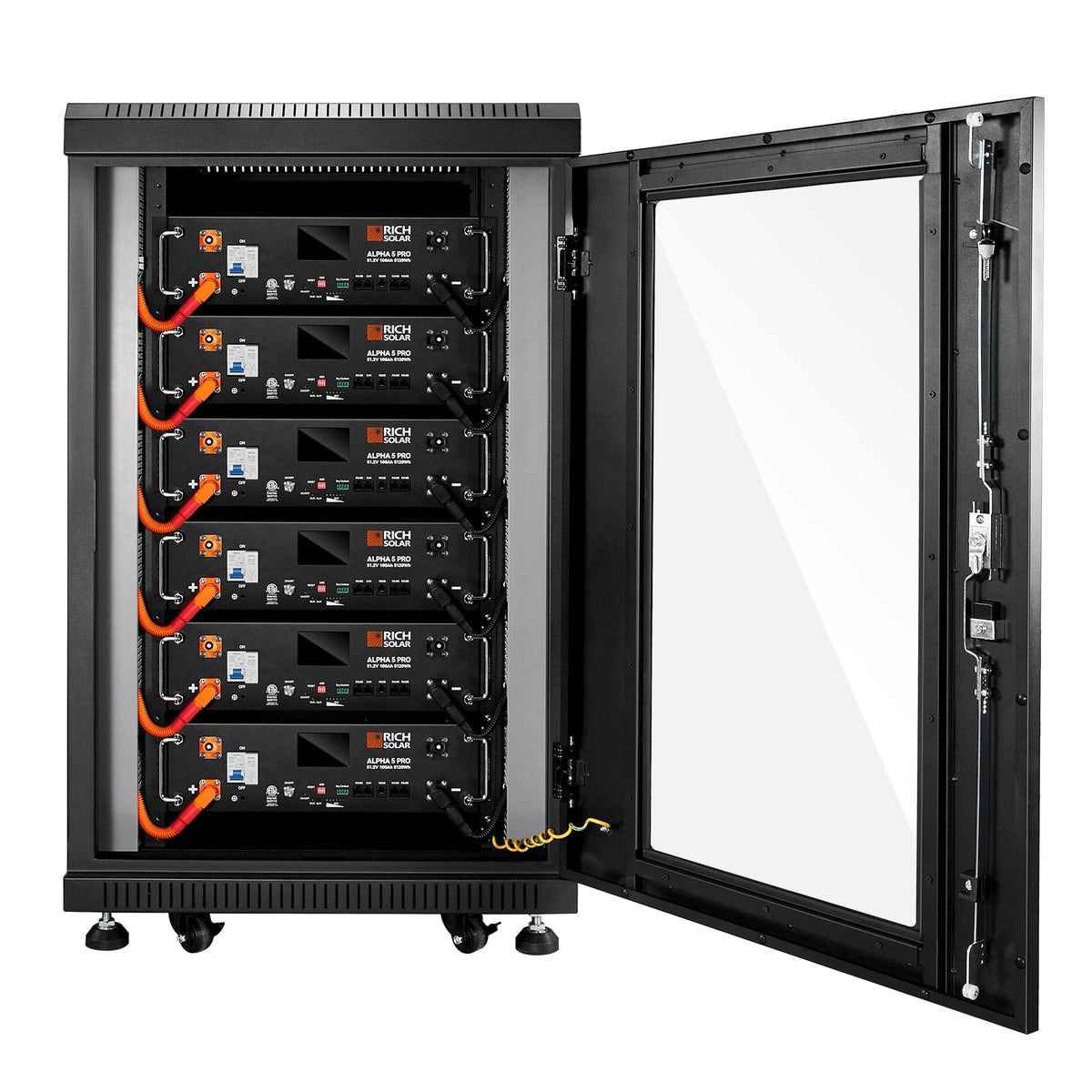

True Rack-Mount Design
19-inch standard rack size fits seamlessly into server or power wall cabinets for clean installations, perfect for solar homes or commercial facilities.

Certified Safety Standards
Tested and certified under UL1973 and UL9540A, meeting rigorous safety benchmarks for both residential and industrial energy storage systems.

ALPHA 5 PRO Heating | 51.2V 100Ah LiFePO4 Battery Applications

Residential Solar Systems – Store excess solar energy during the day to power your home at night or during outages.
Commercial Energy Storage – Reduce peak demand costs or keep mission-critical systems running with dependable backup power.
Off-Grid Cabins & Tiny Homes – Run lights, appliances, and tools with sustainable energy independence.
RVs & Travel Trailers – Support inverters, refrigerators, and air conditioners on long trips without relying on noisy generators.
Backup for Critical Loads – Keep medical devices, servers, or security systems powered during grid failures.
Cold Climate Installations – Integrated heating ensures reliable performance even in freezing temperatures.

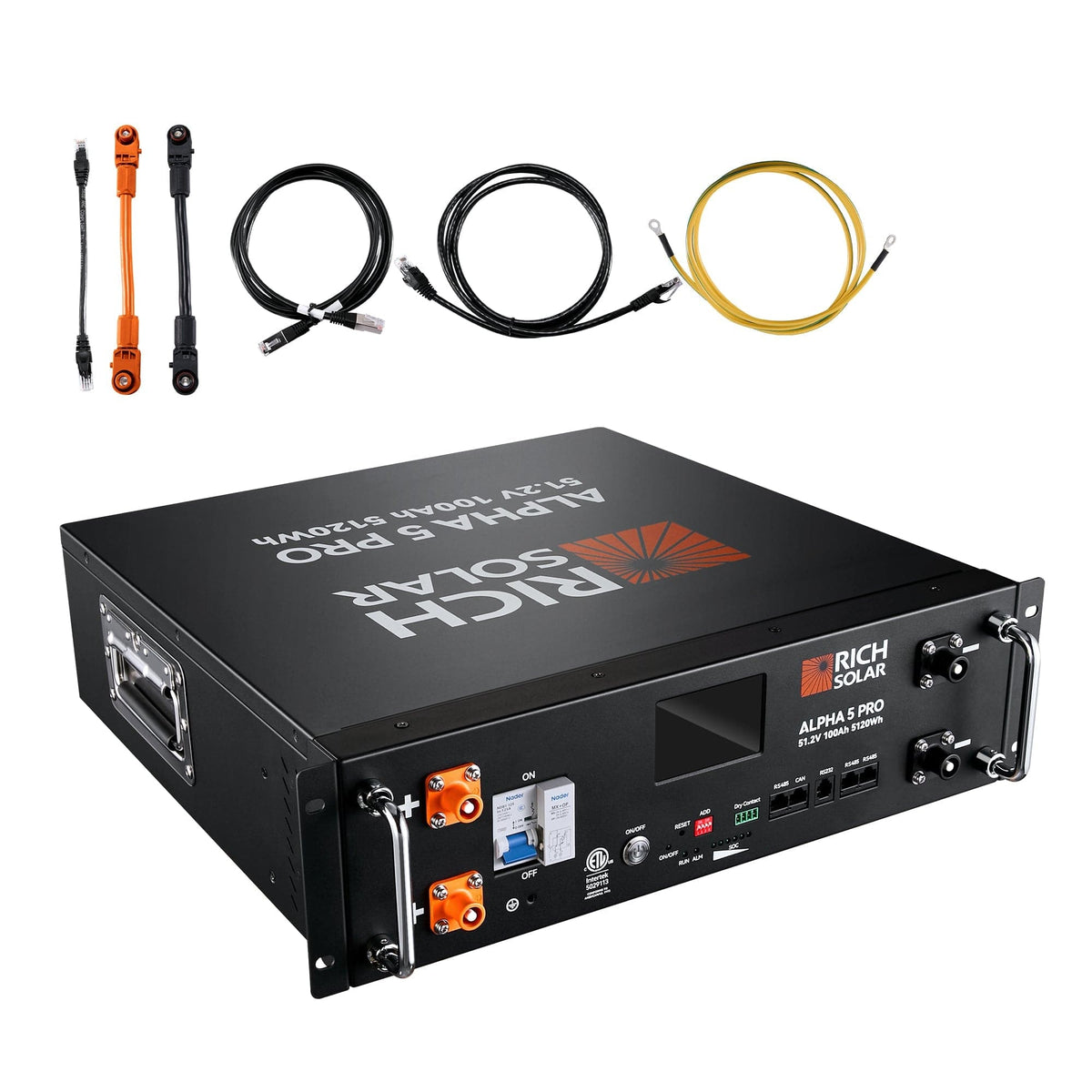

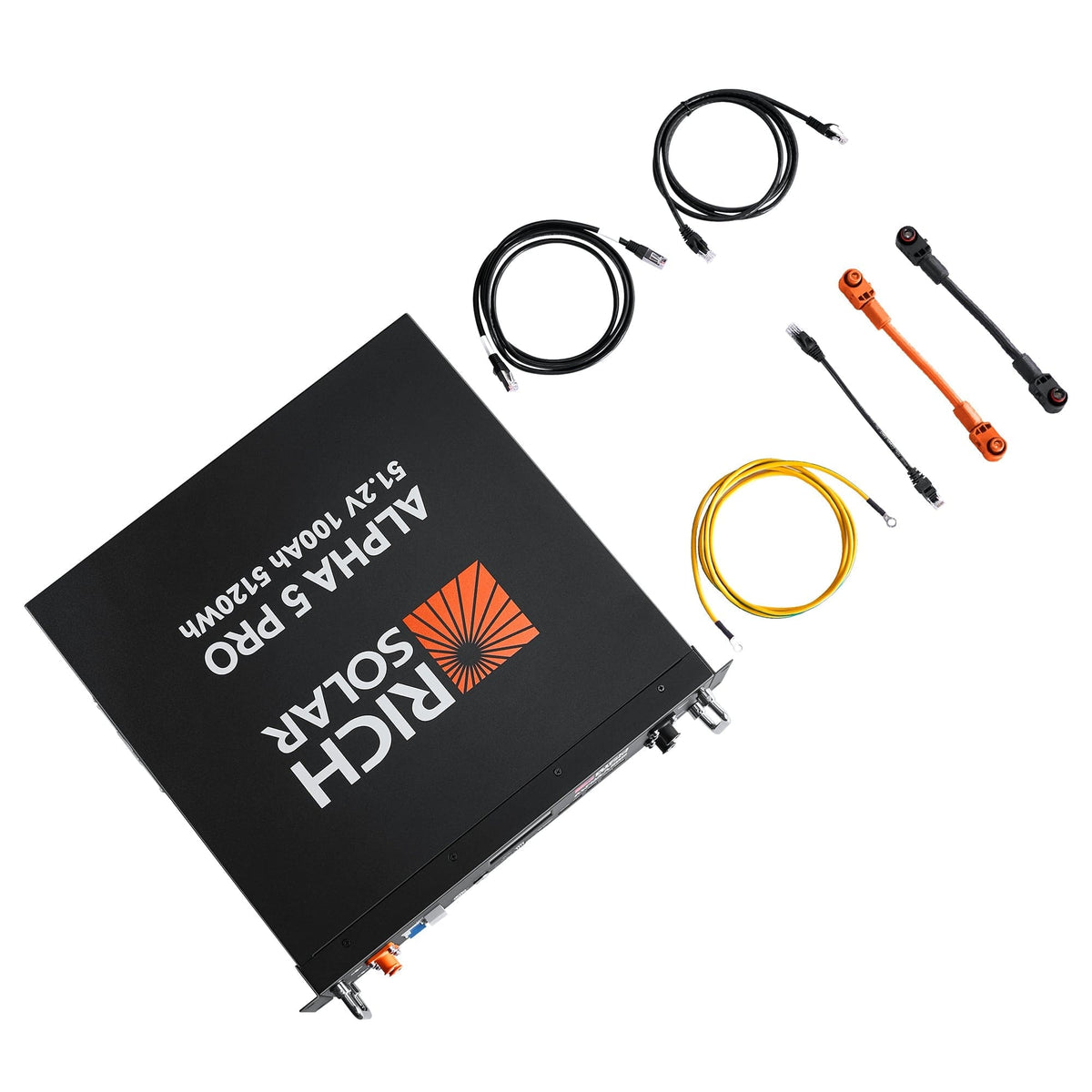

What's Included

Everything you need is included with your product.

1 x Rich Solar Alpha 5 Pro Heating Battery

1 x RS485 Communication Cable

1 x Set of Parallel Cables

1 x User Manual

RICH SOLAR ALPHA 5 PRO | 51.2V | 100Ah LiFePO4 Battery Specifications

Category	Specifications
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Minimum Capacity	99.5Ah
Nominal Capacity	5120Wh

Operating Specifications

Category	Specifications
Charging Voltage	56V
Discharging Cutoff Voltage	44.8V
Maximum Charging Current	100A
Continuous Charge Current	100A
Maximum Discharge Current	100A

Physical Specifications

Category	Specifications
Battery Dimensions	17.7"L x 17.8"W x 5.2"H
Battery Weight	99.2 lb

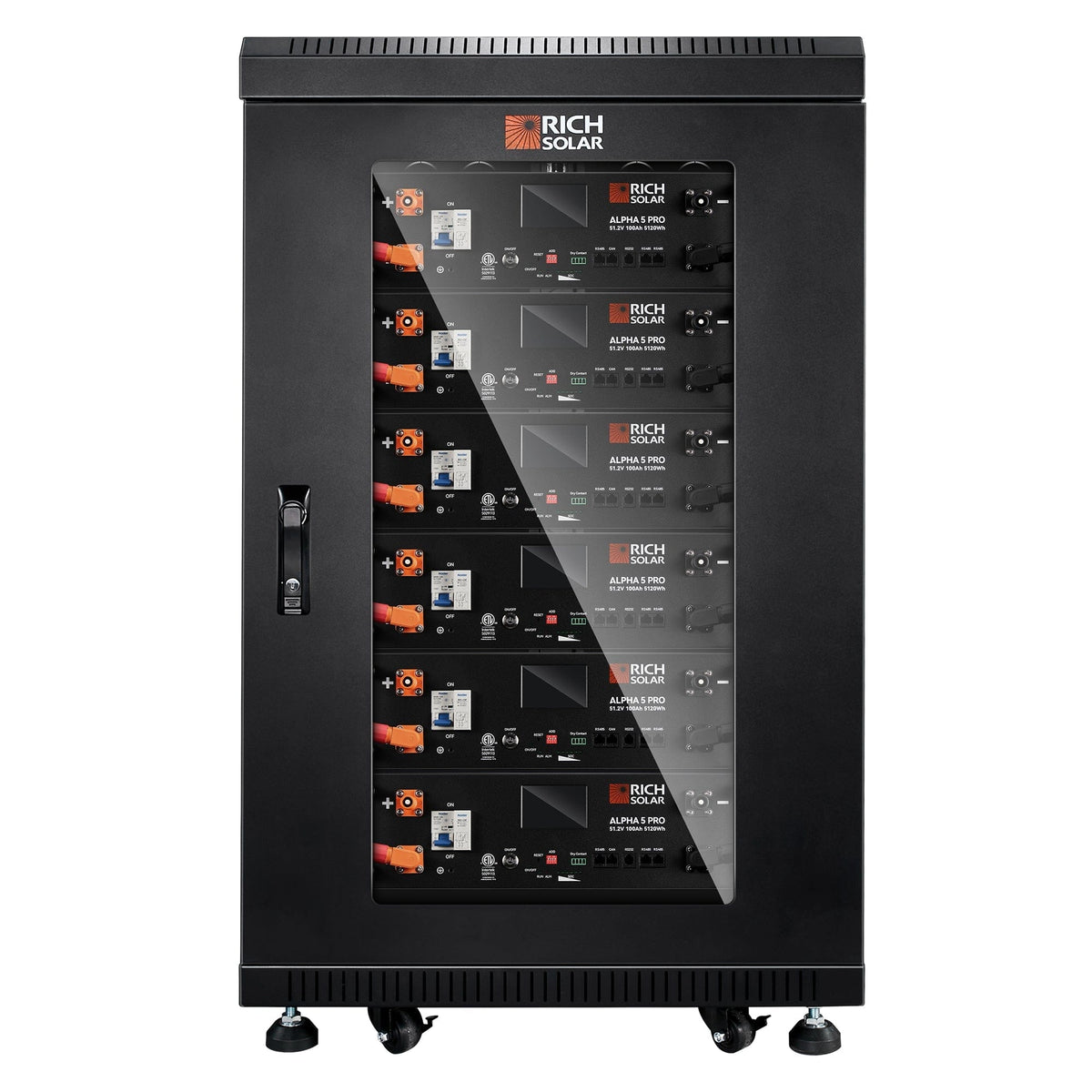

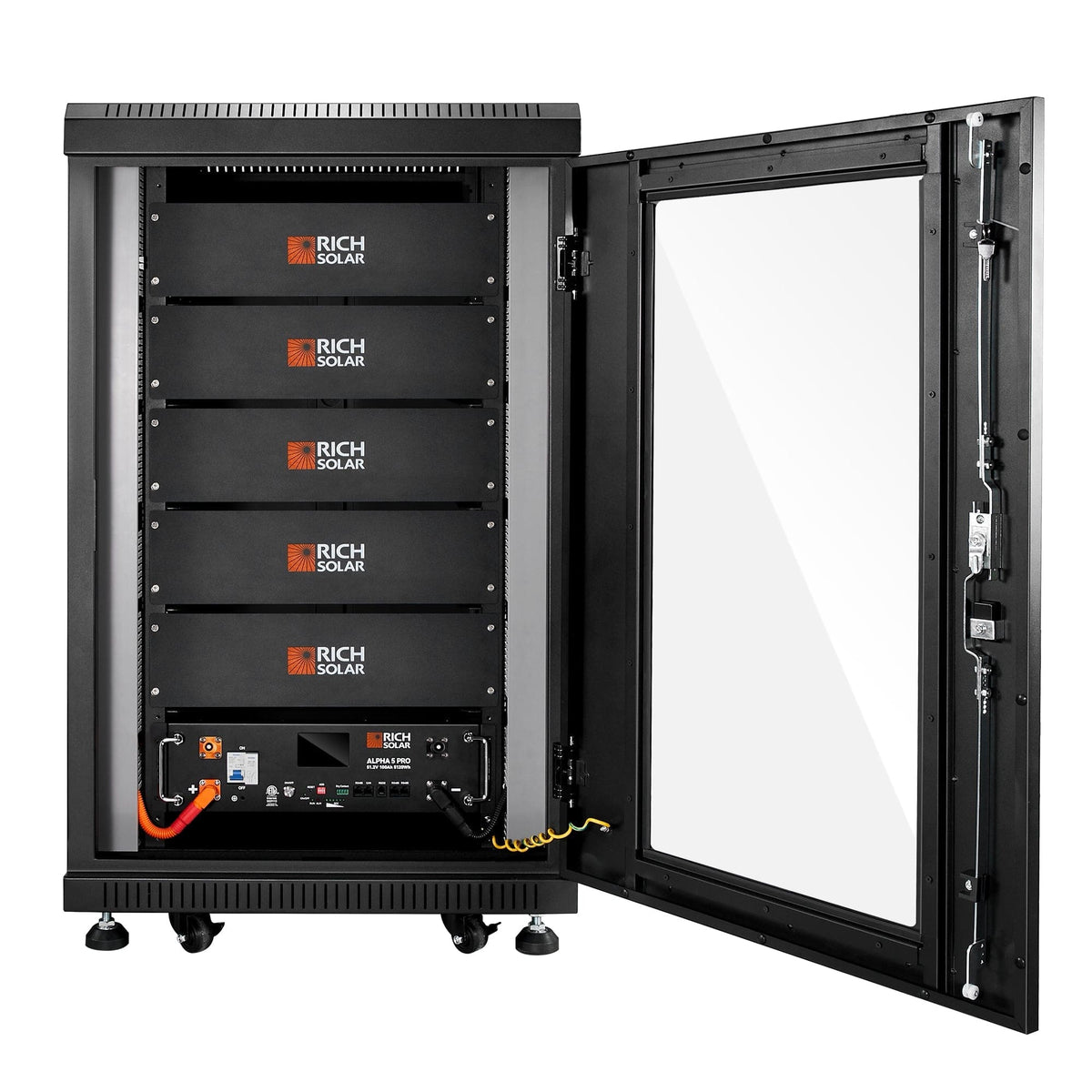

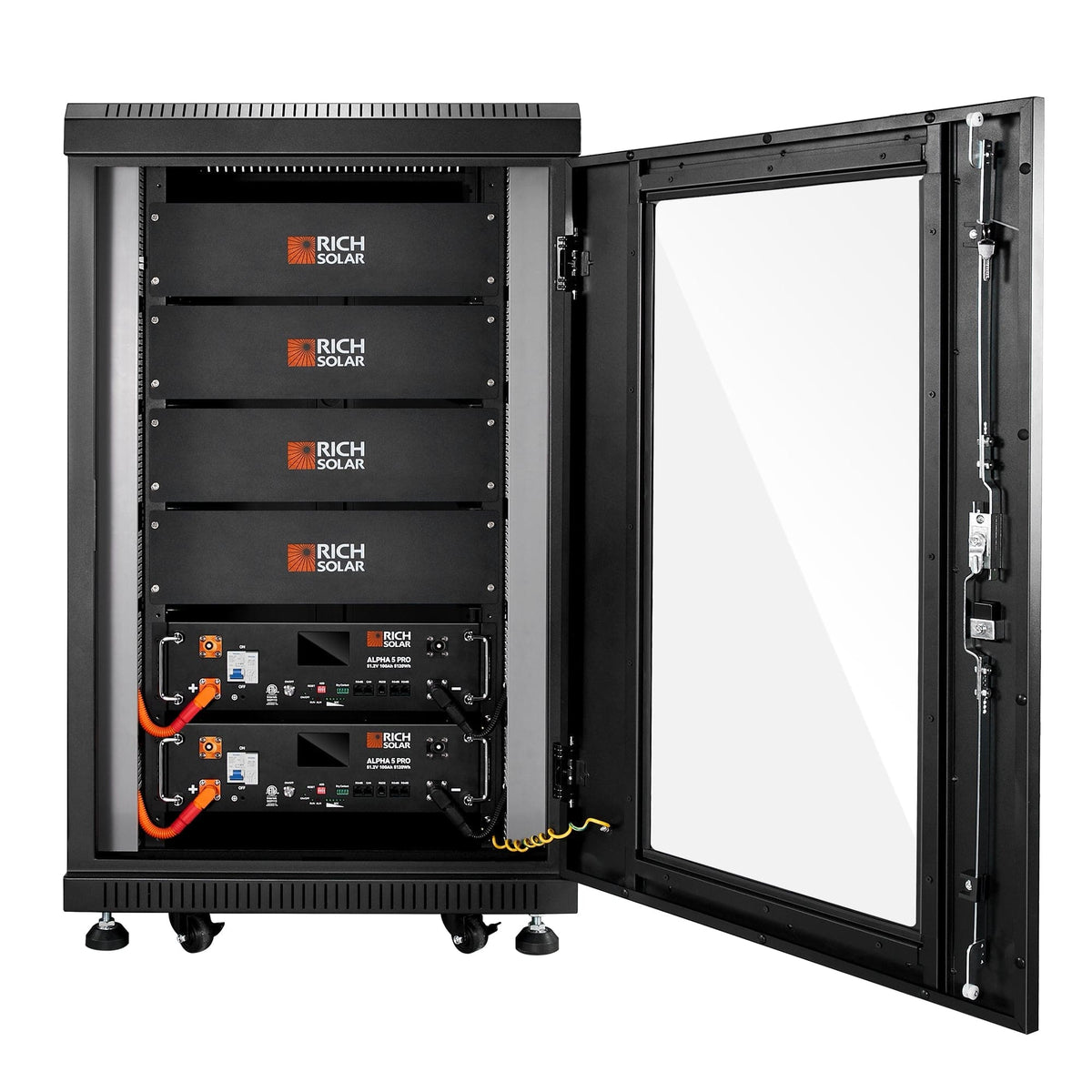

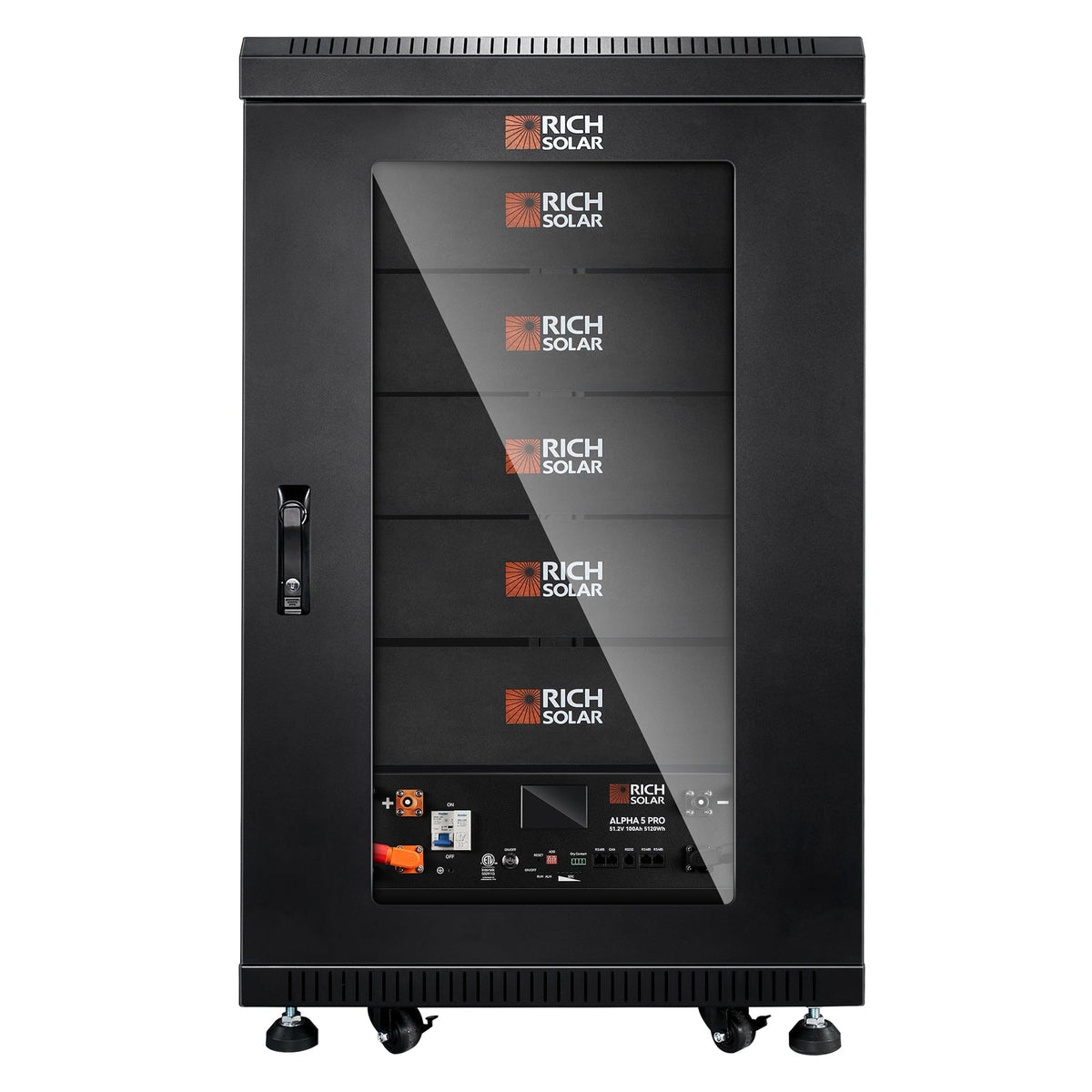

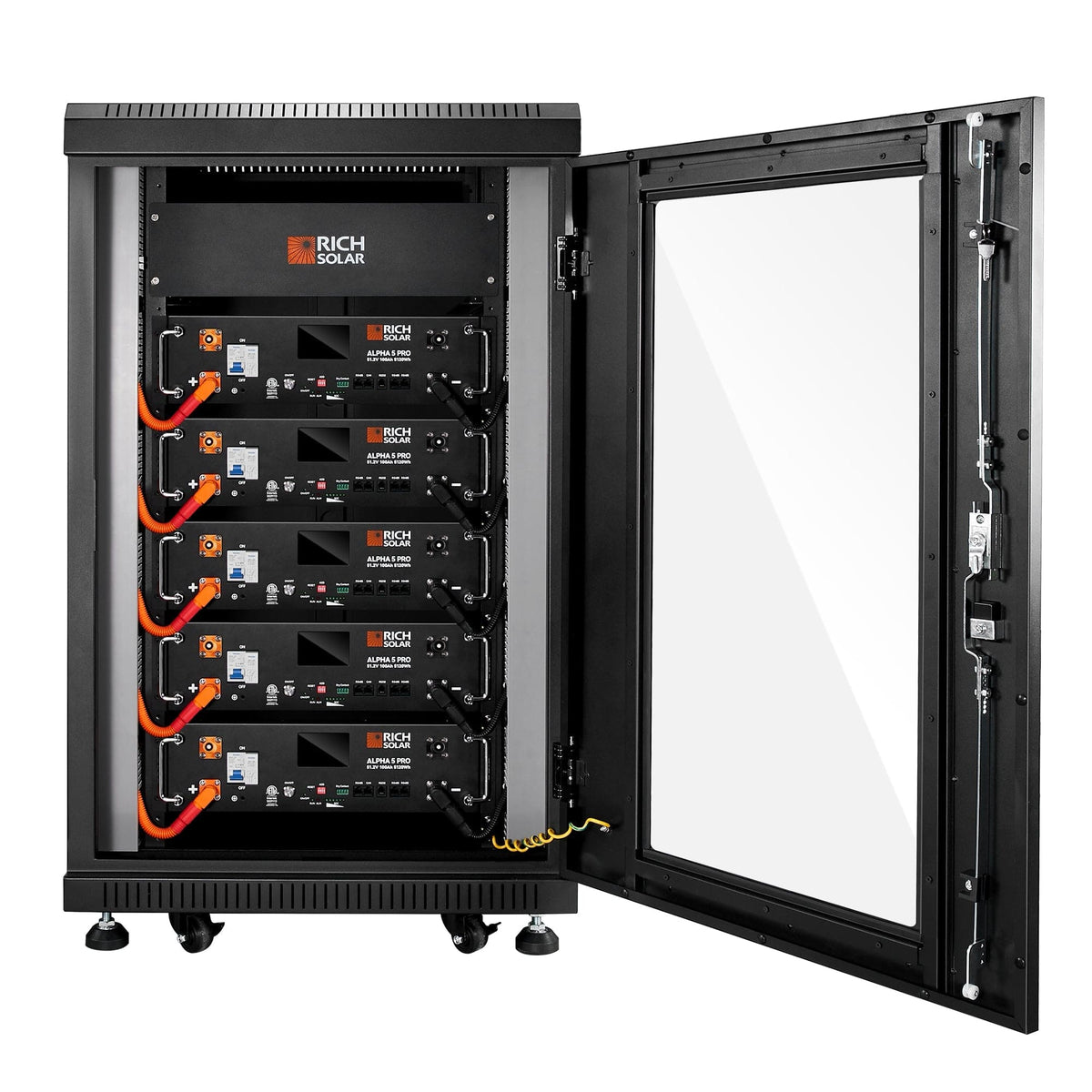

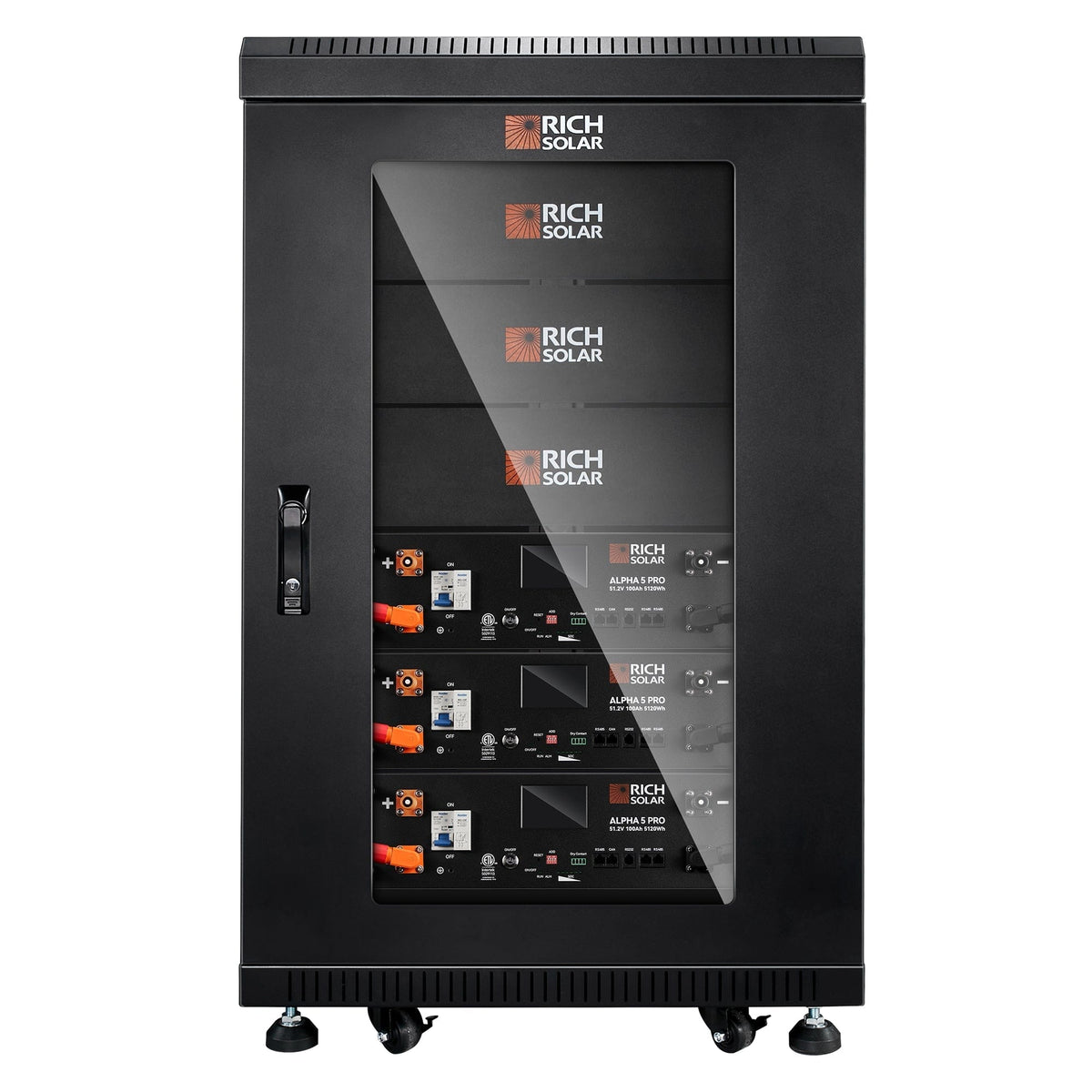

Server Rack Dimensions	27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight	224.9 lb

BMS Operation

Category	Specifications
Operation Voltage	43.2~58.4V
Maximum Charging Current	100A
Maximum Discharging Current	100A
Maximum Charge Voltage (CC/CV)	57.6V
Overcharge Protection Voltage (Battery)	58.4V
Overcharge Protection Release Voltage (Battery)	54V
Over Discharge Protection Voltage (Battery)	43.2V
Over Discharge Protection Release Voltage (Battery)	47.2V
Over Discharge Primary Charge Overcurrent Protection Value	110A
First Stage Charge Over Current Delay	1s
Primary Discharge Overcurrent Protection Value	110A
Primary Discharge Overcurrent Protection Delay:	1s
Secondary Discharge Overcurrent Protection Value	150A
Secondary Discharge Overcurrent Protection Delay	500ms

Temperature Performance

Category	Specifications
Charge Temperature	0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature	-4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature	-4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature	32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Category	Specifications
Certification	UL1973, UL9540A, FCC

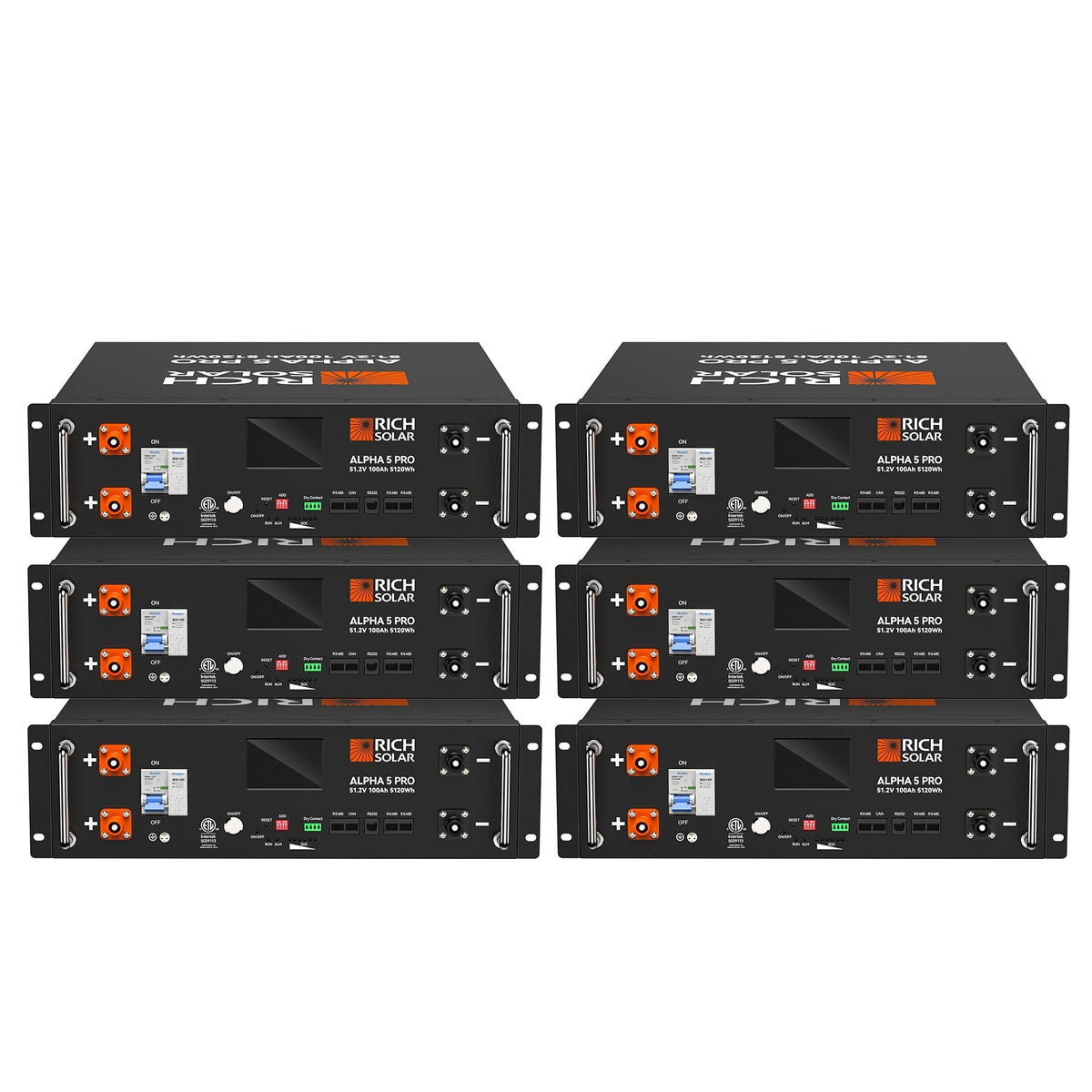

Max. Expansion	15 pcs in parallel

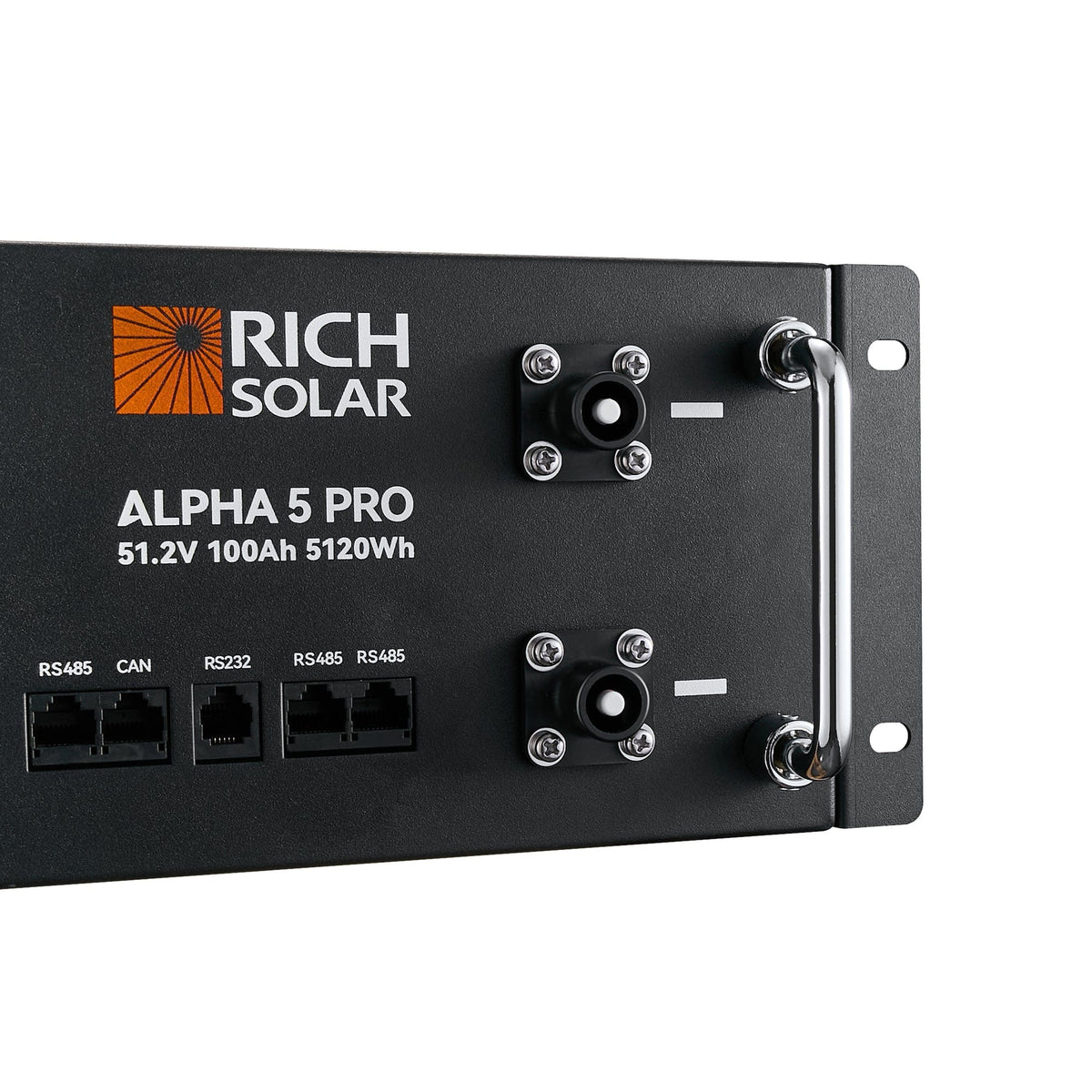

Communication Ports	RS485/RS232/CAN
Warranty	10 Years Manufacturer Defect

Frequently-Asked Questions

Can I install this outdoors?
This battery is designed for indoor or protected cabinet installations. For best results and maximum lifespan, it should be installed inside a weatherproof enclosure or an equipment room that shields it from rain, snow, and direct sunlight.

Does it work with my existing solar inverter?
Yes. The ALPHA 5 PRO is fully compatible with most popular 48V inverters, including residential and commercial models. Always double-check your inverter’s supported voltage range and maximum charge current to ensure an optimal match.

Will it keep charging in freezing temperatures?
Absolutely. Thanks to its integrated smart heating system, the ALPHA 5 PRO automatically activates internal heaters to warm the battery cells, allowing safe charging even in below-freezing environments.

Is this expandable?

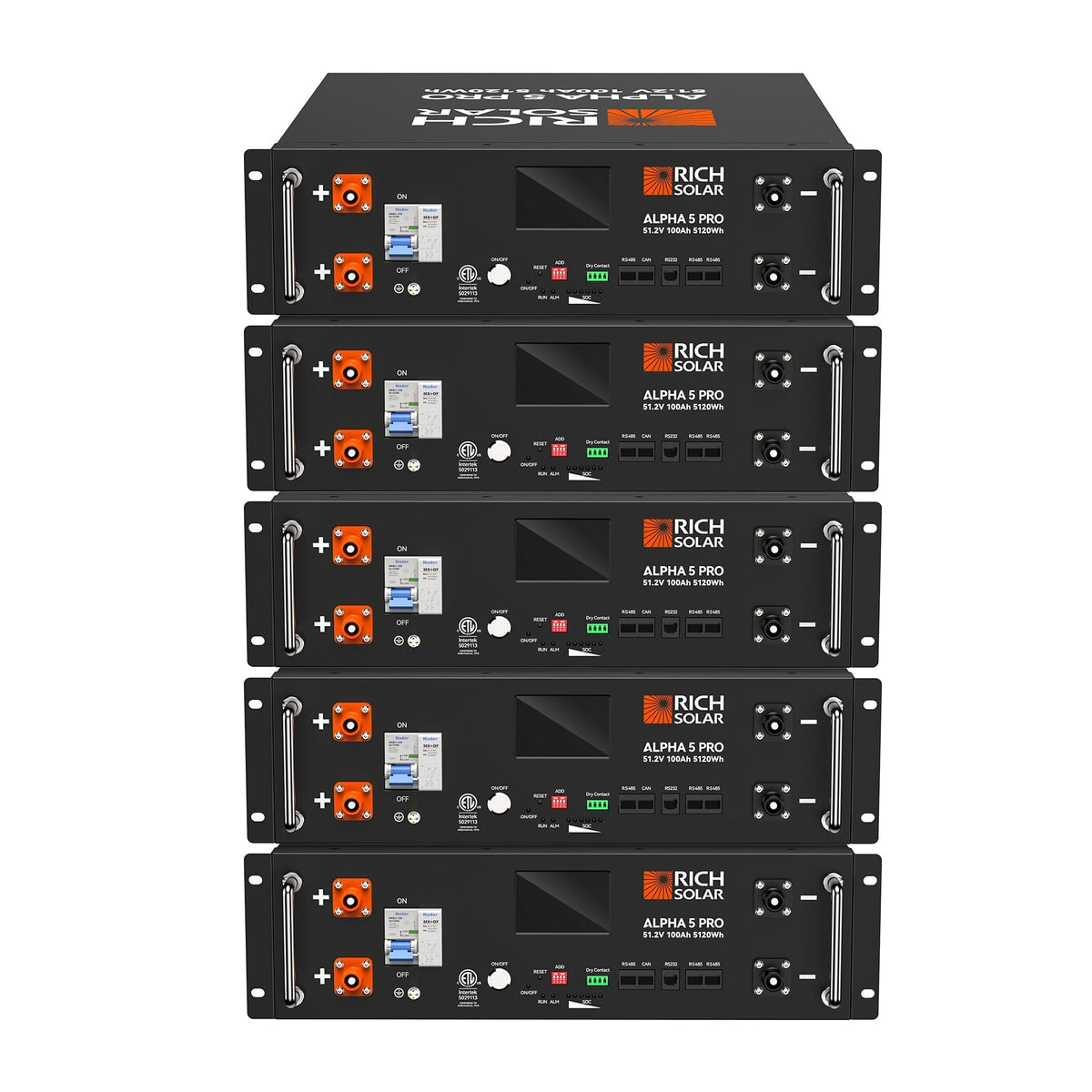

Yes. You can connect multiple ALPHA 5 PRO batteries in parallel, seamlessly scaling your storage capacity to support larger residential setups, commercial energy needs, or extended off-grid applications.
