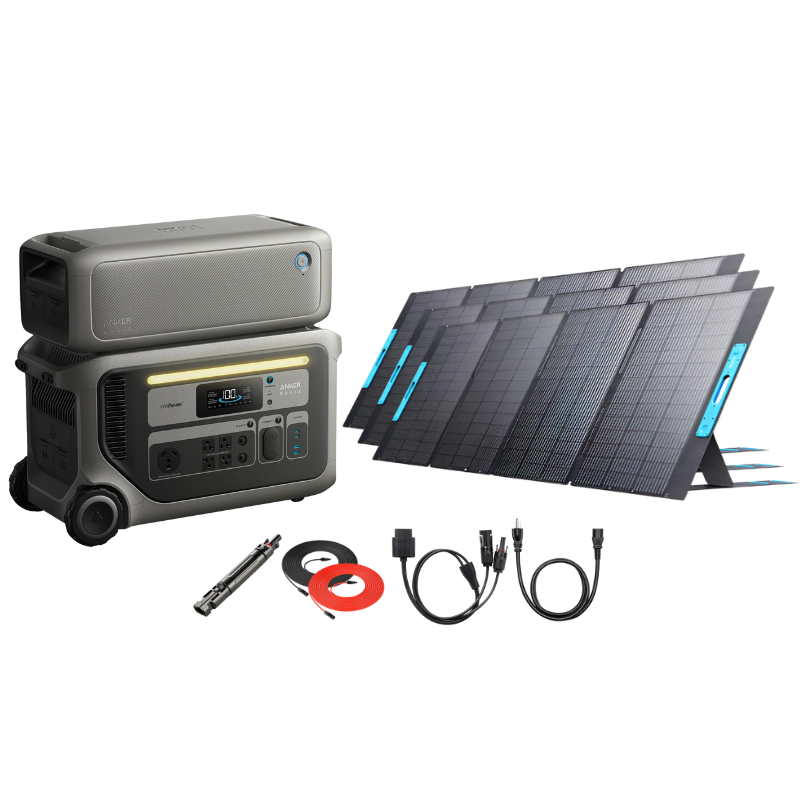

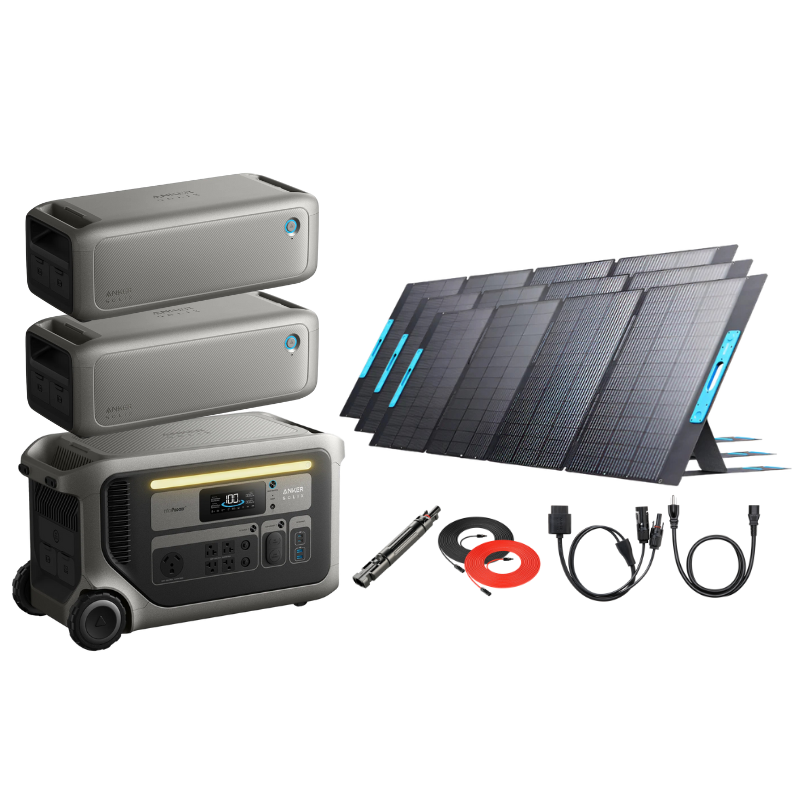

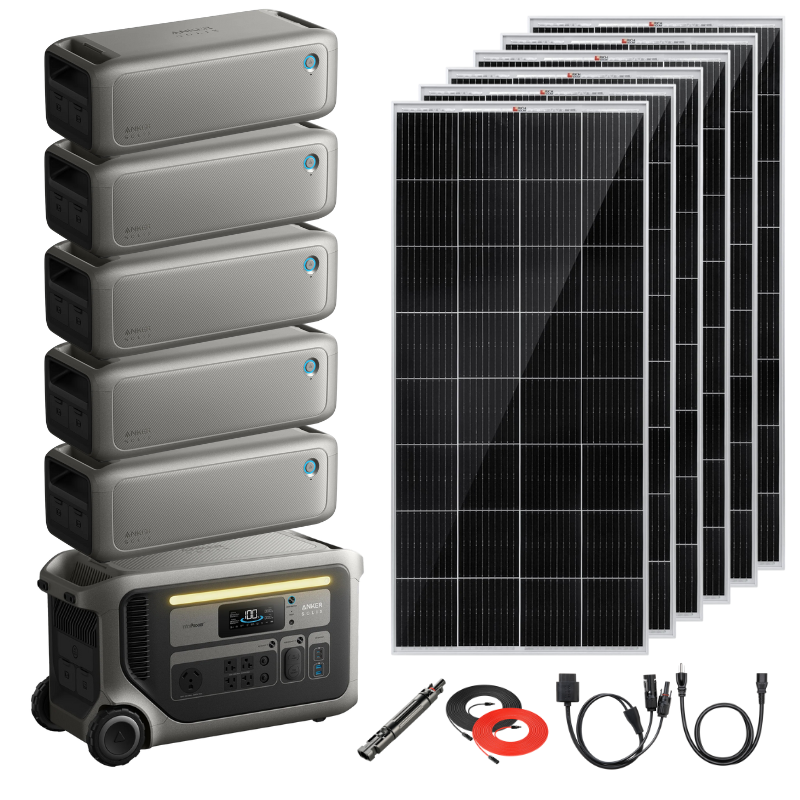

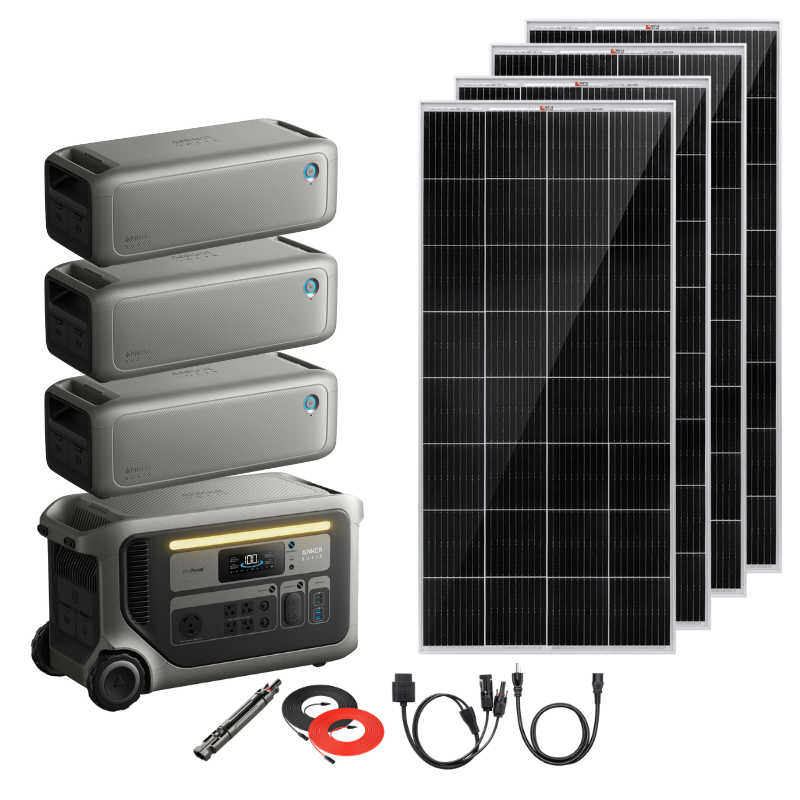

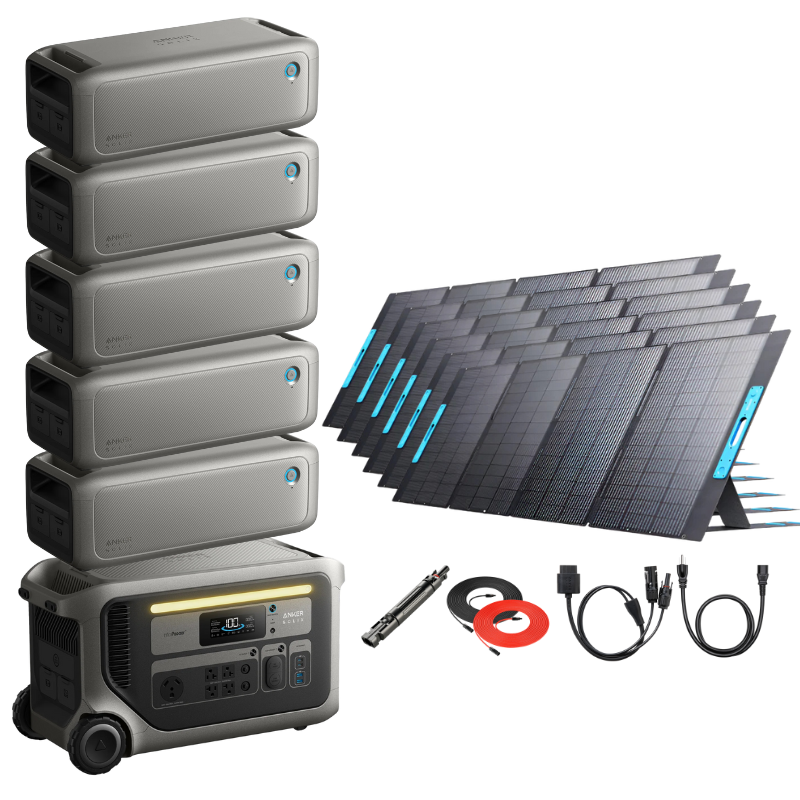

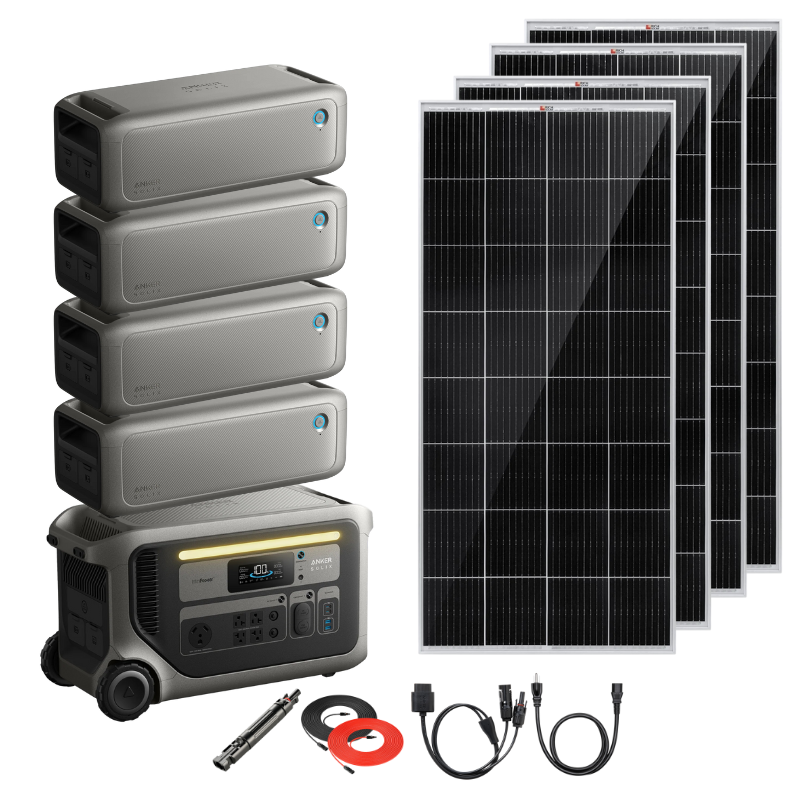

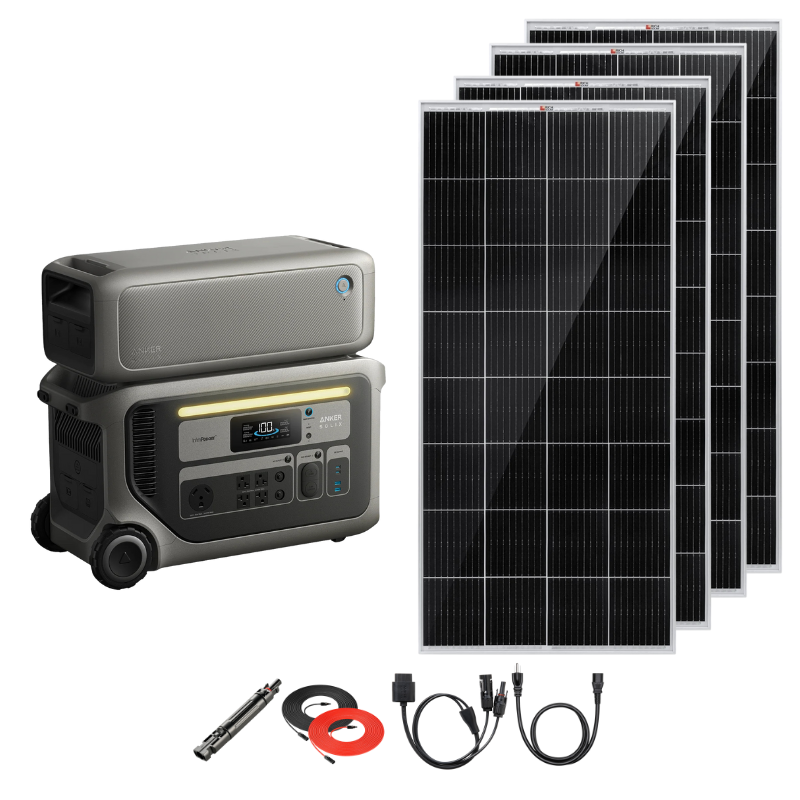

Anker SOLIX F3000 Off-Grid Power Kit
The Anker SOLIX F3000 Off-Grid Power Kit delivers a powerful, expandable, and complete energy solution for off-grid setups, mobile living, and emergency home backup. At its core is the Anker SOLIX F3000 Portable Power Station, backed by your choice of solar panel configuration and up to six expansion batteries. Every kit includes key accessories like the RICH SOLAR Inline Fuse Holder and 30FT solar extension cable, ensuring a safe, plug-and-play experience from day one. Whether you're off the grid or preparing for the unexpected, this kit has everything you need to generate, store, and manage power—reliably and efficiently.
Anker SOLIX F3000 Off-Grid Power Kit Features
3,600W High-Powered Output
Run appliances, tools, and essential devices with 3,600W AC output and peak performance for backup and remote use.
Expandable Storage – Up to 24kWh
Start with 3,072Wh in the base unit and expand with up to 6 × Anker BP3000 Expansion Batteries to reach a total of 24,000Wh capacity.
Ultra-Fast Recharging – 6,000W Max Input
Recharge with a mix of solar, AC, and fuel generator input to bring your system back to 100% in as little as 1.5 hours.
Flexible Solar Panel Pairings
Choose from portable Anker PS400 or rigid/briefcase-style RICH SOLAR 200W panels, delivering tailored charging performance for any environment.
All Essentials Included – Pre-Wired & Ready to Go
Each kit includes a RICH SOLAR Inline Fuse Holder (15A) and a 30FT 10AWG Solar Extension Cable with MC4 connectors to ensure safe, ready-to-install operation.
Smart Monitoring & Control
Manage power flows, check system status, and control usage through the Anker App with Bluetooth and Wi-Fi connectivity.
Anker SOLIX F3000 Off-Grid Power Kit Applications
-
Off-Grid Homesteads – Sustain essential loads like lighting, refrigeration, and communications.
-
RV & Mobile Living – Quiet, emission-free power on the road, with flexible solar and battery support.
-
Emergency Power Backup – Peace of mind during power outages with long runtimes and fast recharge.
-
Outdoor Worksites – Power tools, lighting, and electronics without fuel or generators.
-
Remote Workshops or Farms – Energy independence for sheds, barns, and utility spaces.
-
Event & Field Setup – Portable energy for audio/video, catering, or remote work infrastructure.
What’s Included?
Base Power System
-
Anker SOLIX F3000 Portable Power Station ×1
-
AC Charging Cable ×1
-
High-Voltage Solar Charging Cable ×1
-
User Manual & Safety Guide
Your Selected Solar Panel Kit (one of the following):
-

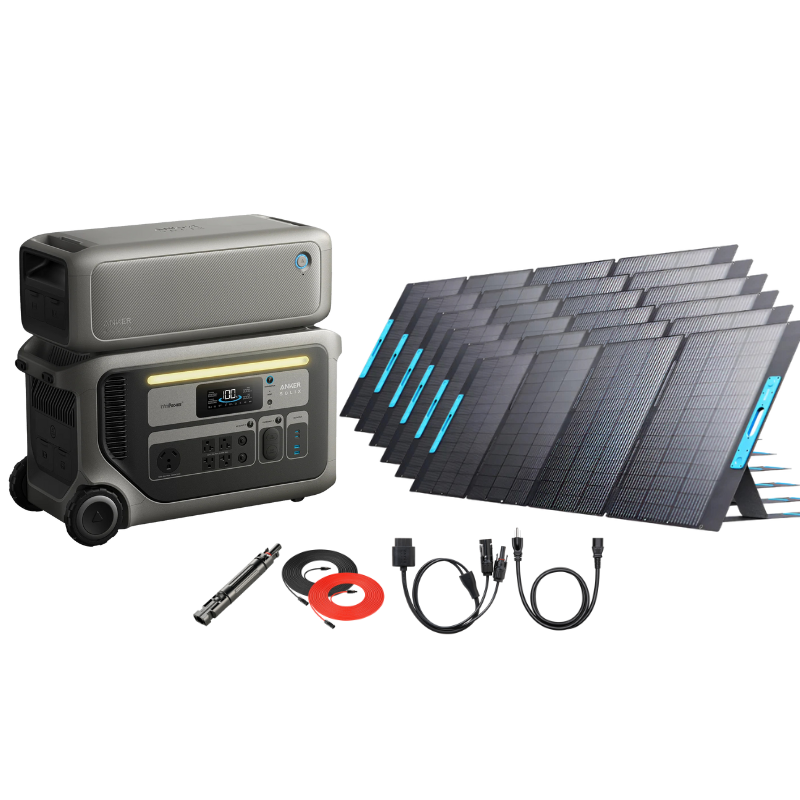

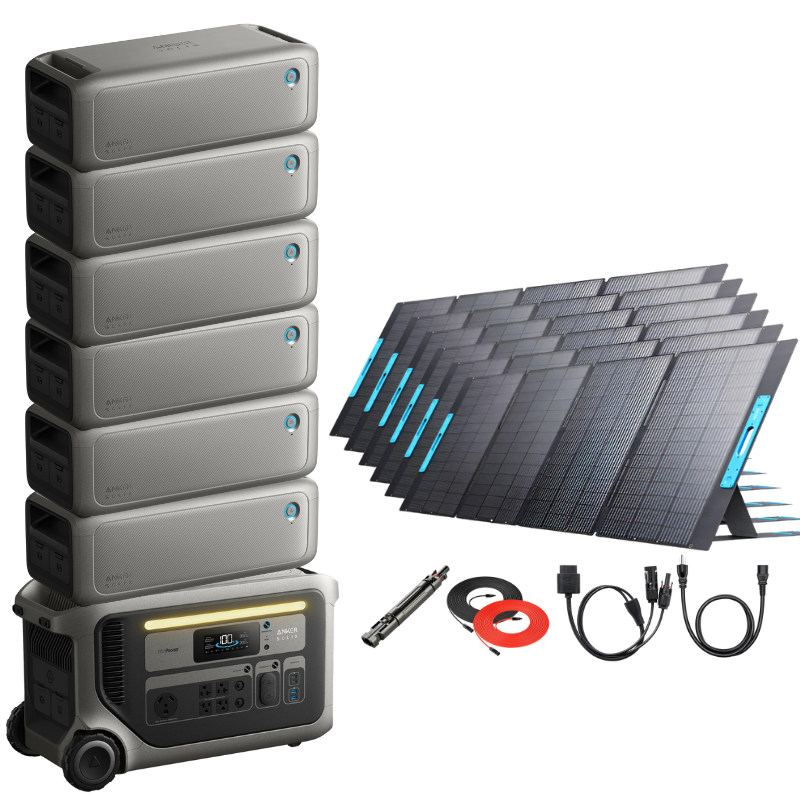

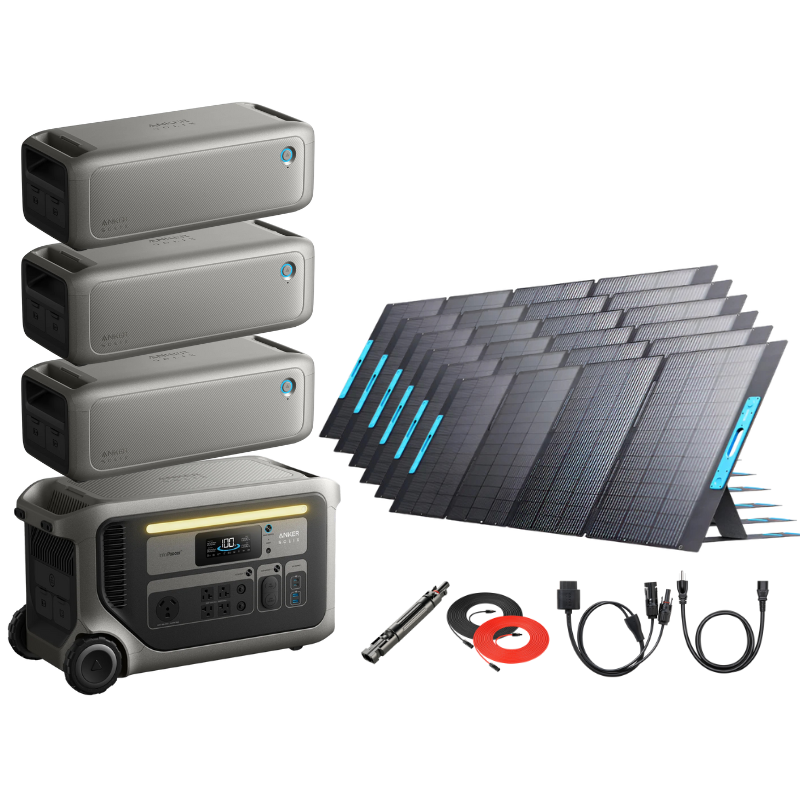

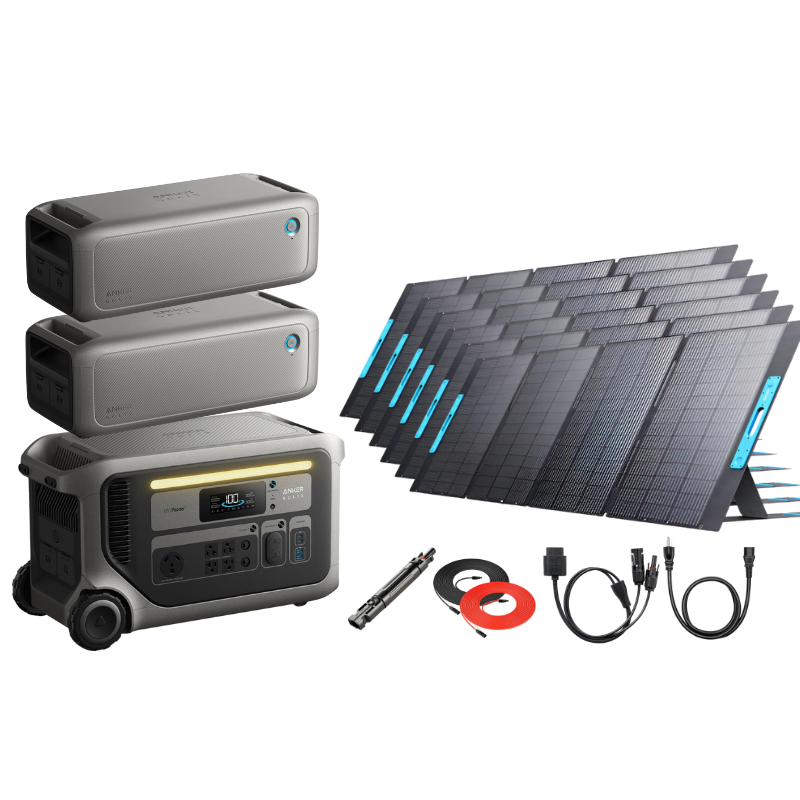

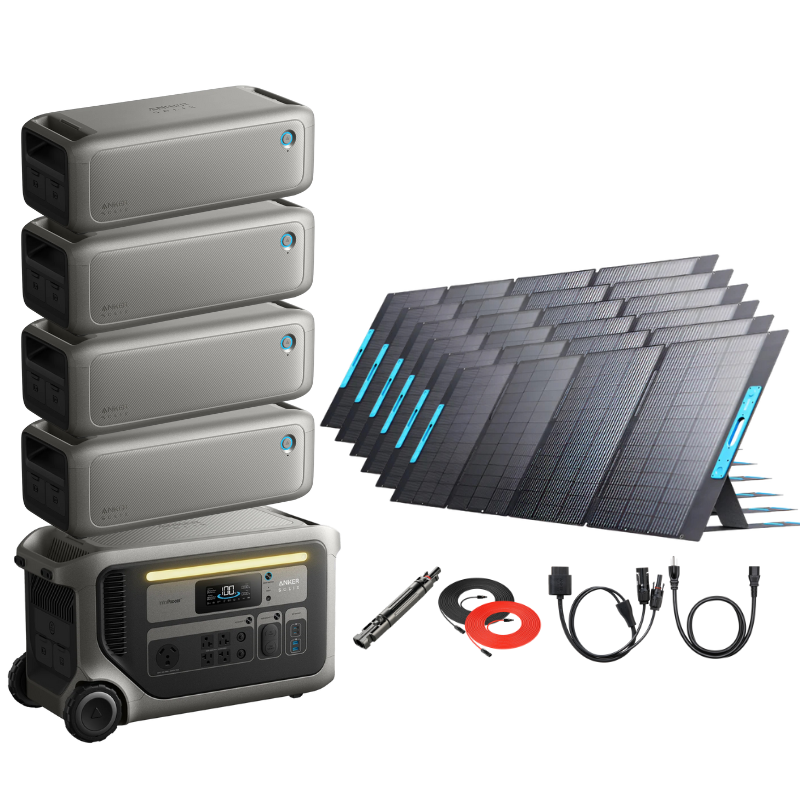

6 × Anker SOLIX PS400 Portable Solar Panels (400W each)
-

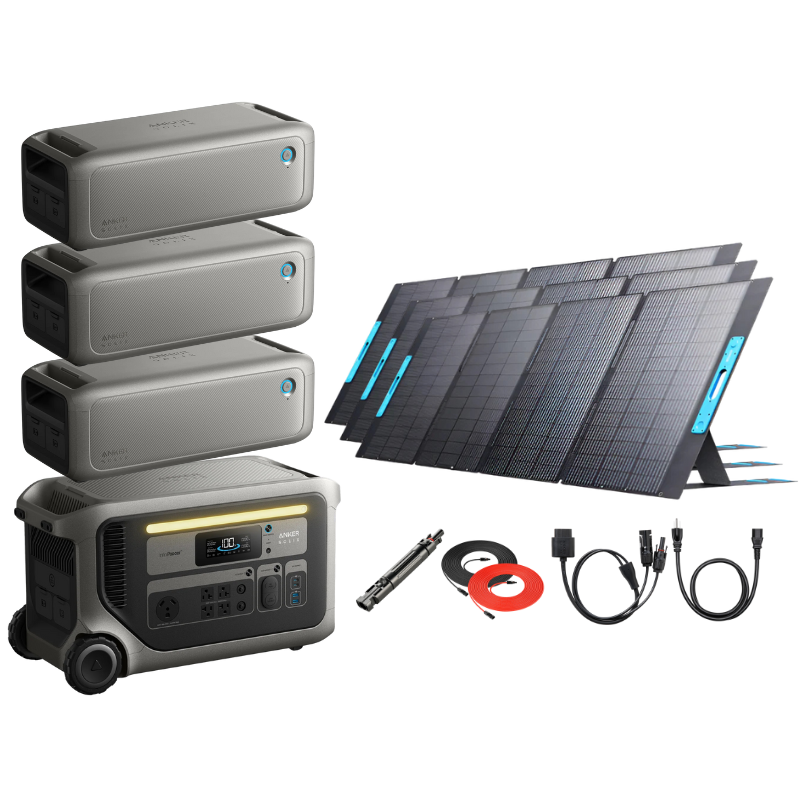

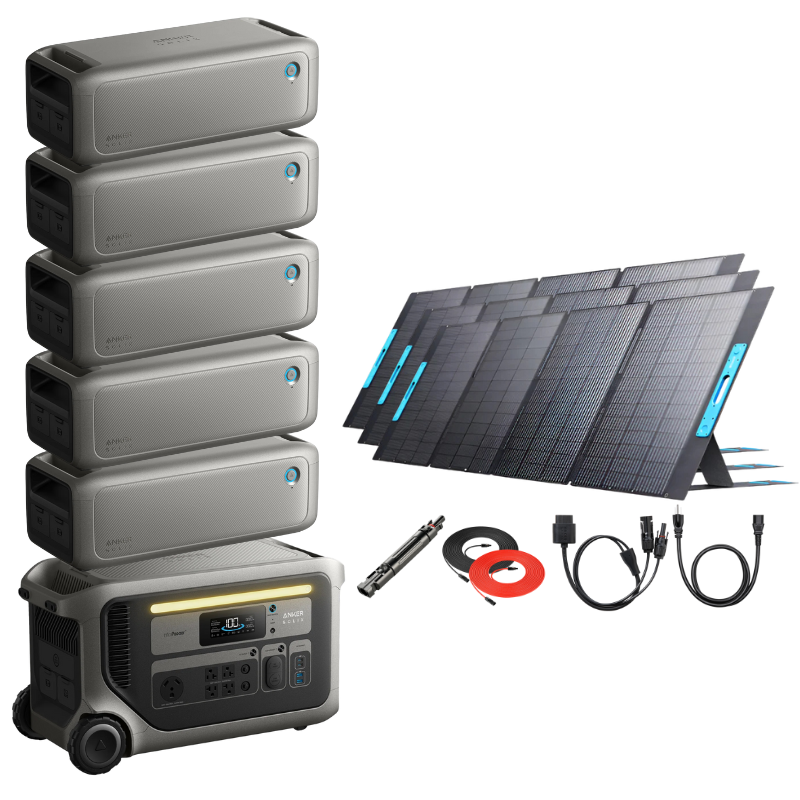

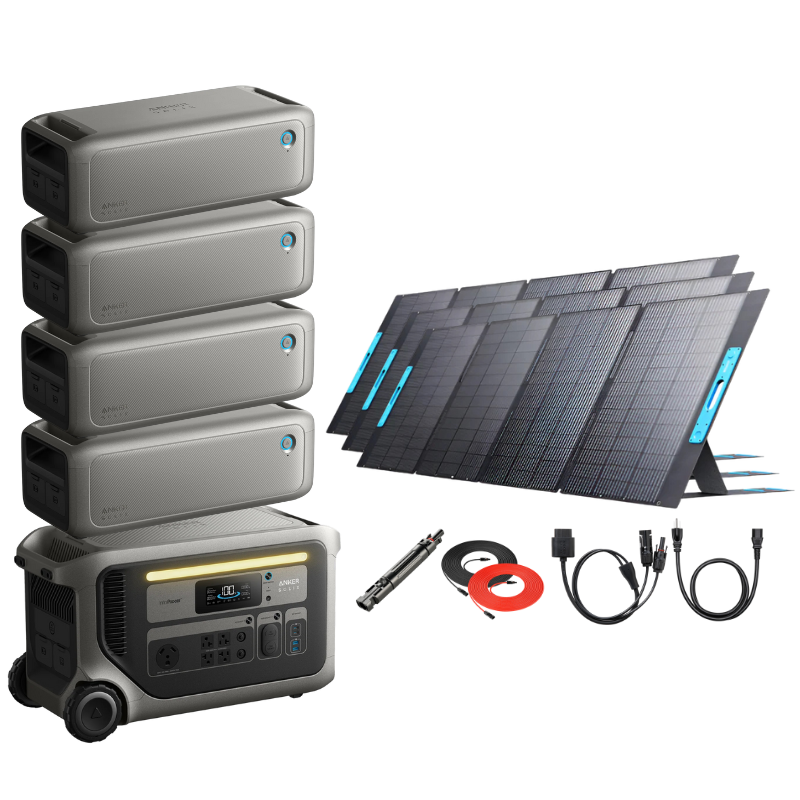

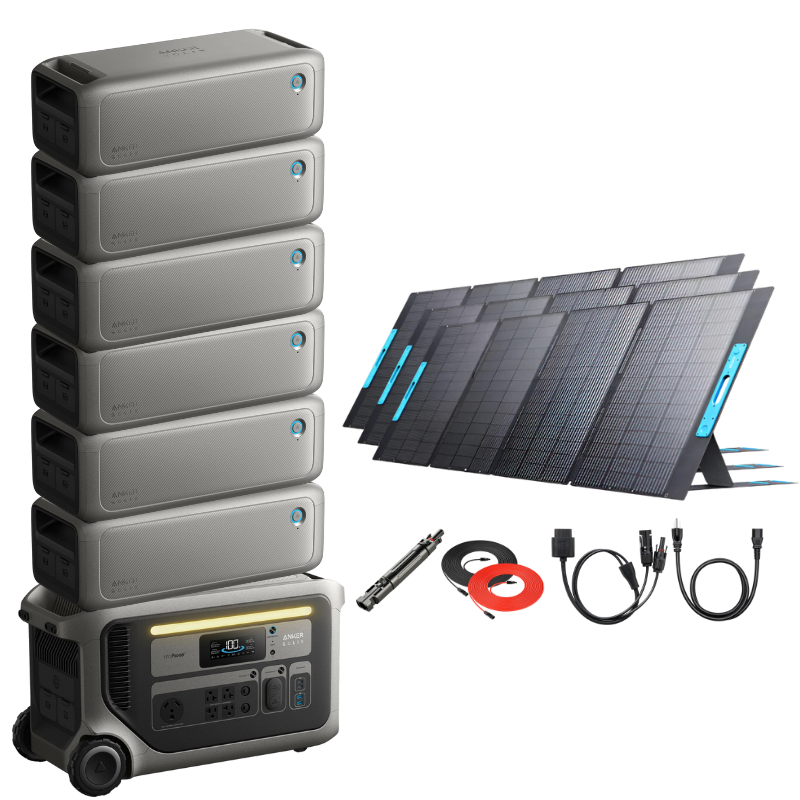

3 × Anker SOLIX PS400 Portable Solar Panels (400W each)
-

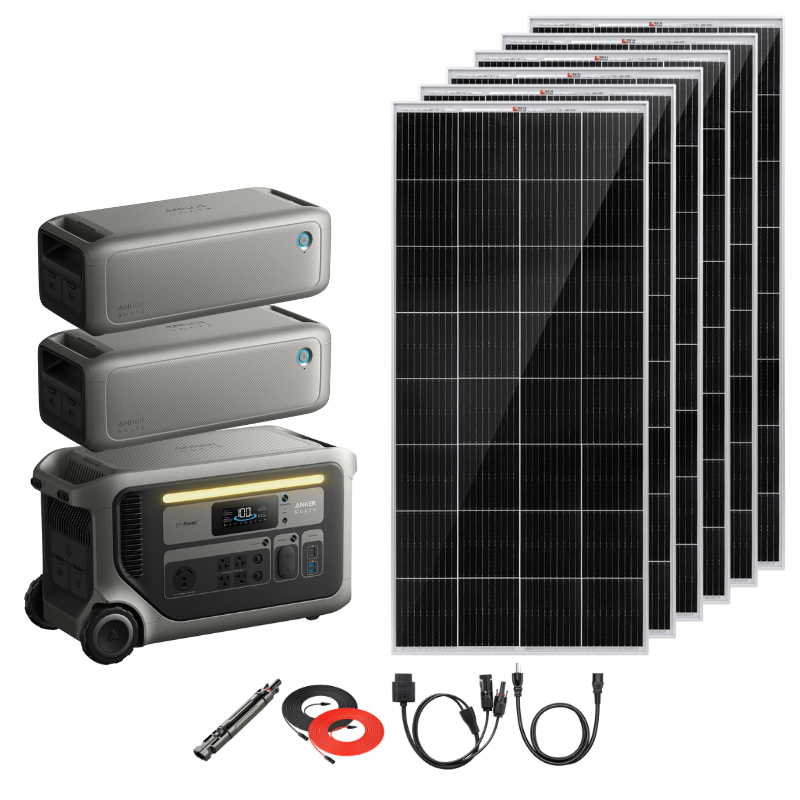

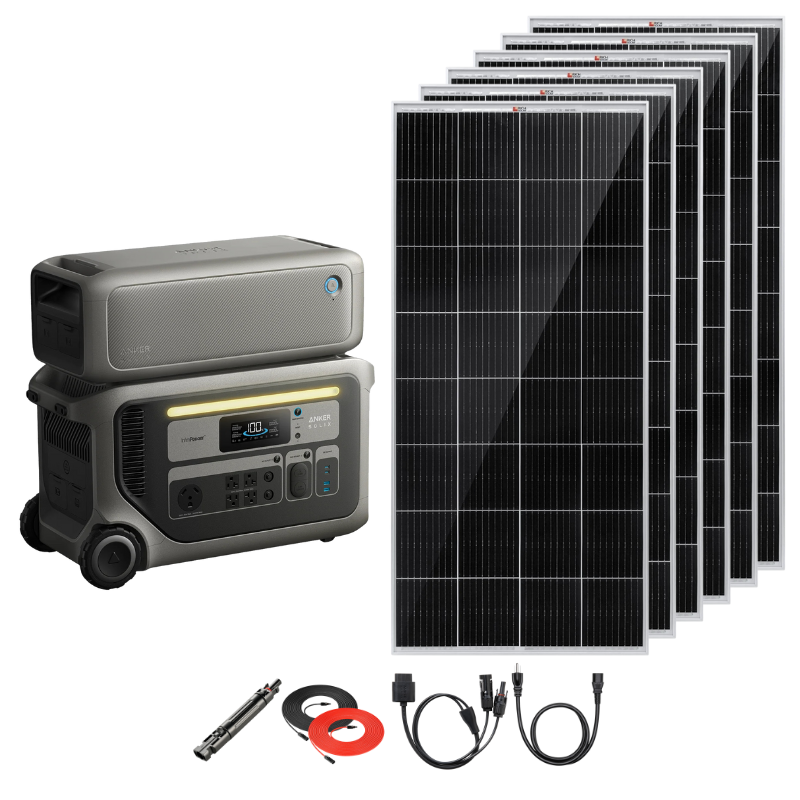

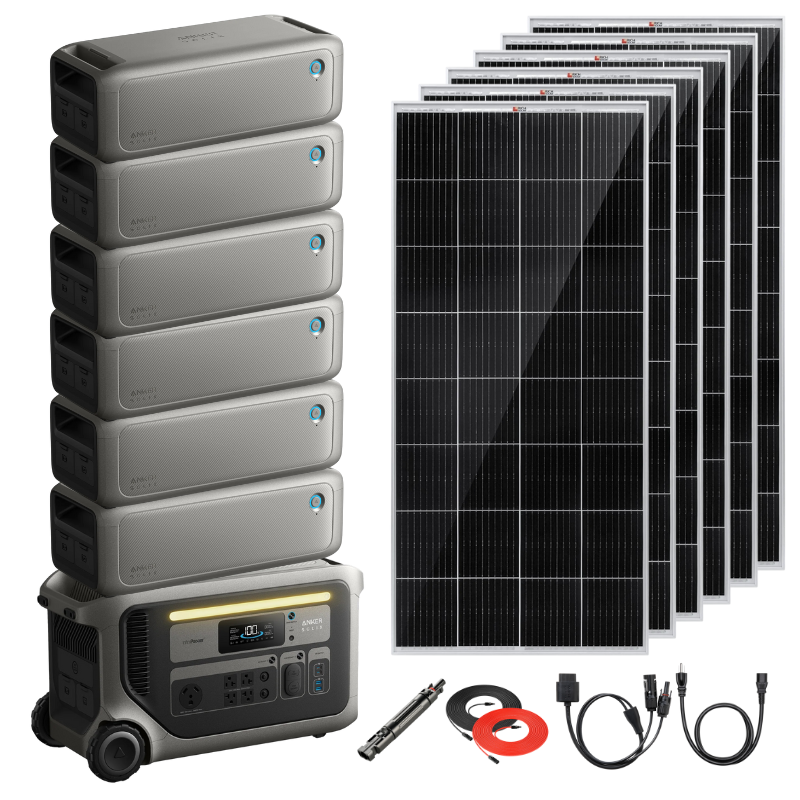

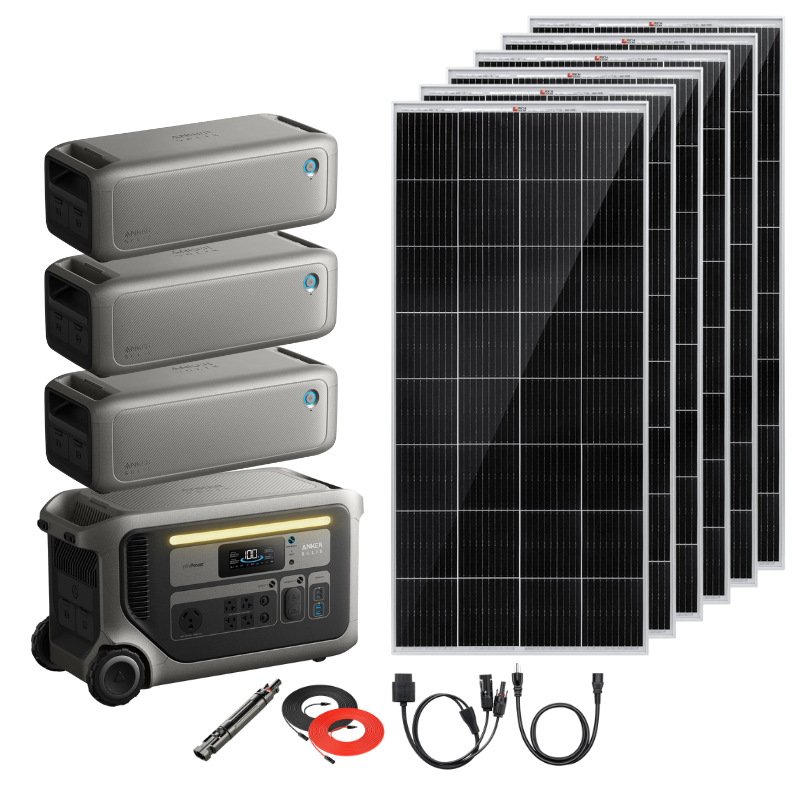

6 × RICH SOLAR MEGA 200W Rigid Solar Panels
-

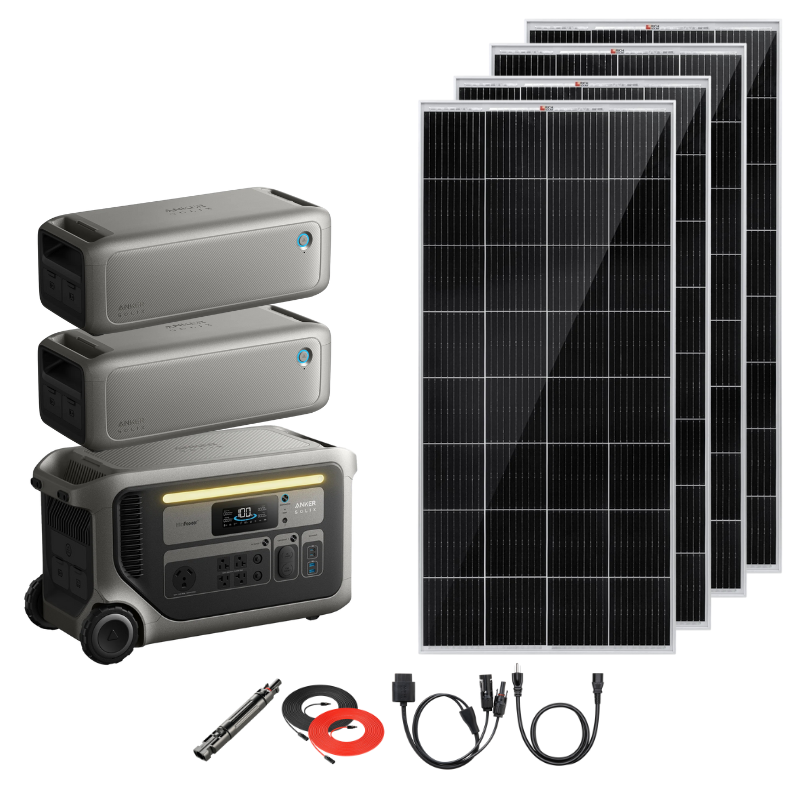

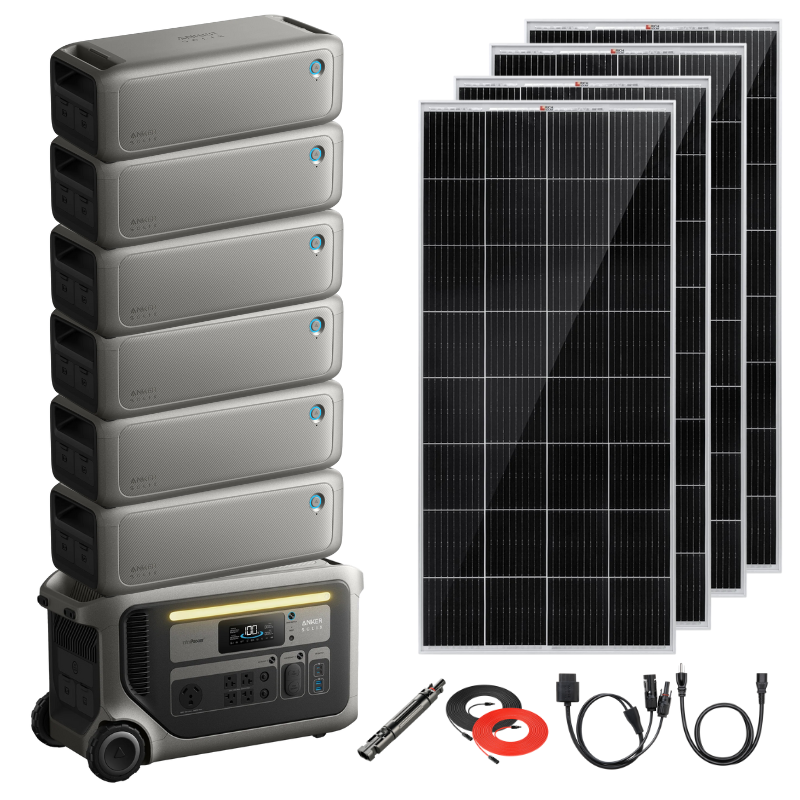

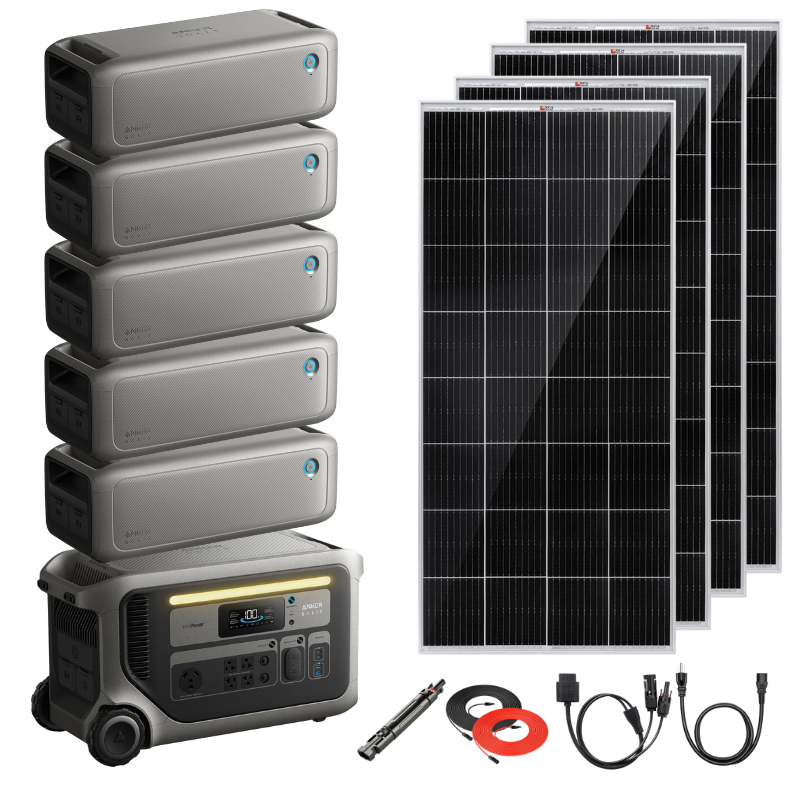

4 × RICH SOLAR MEGA 200W Rigid Solar Panels
-

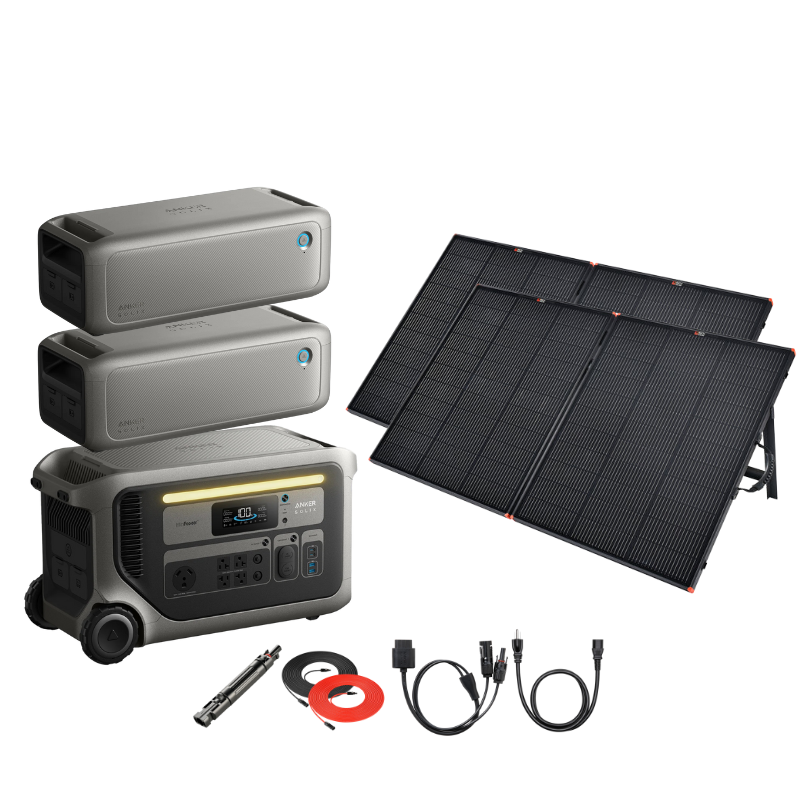

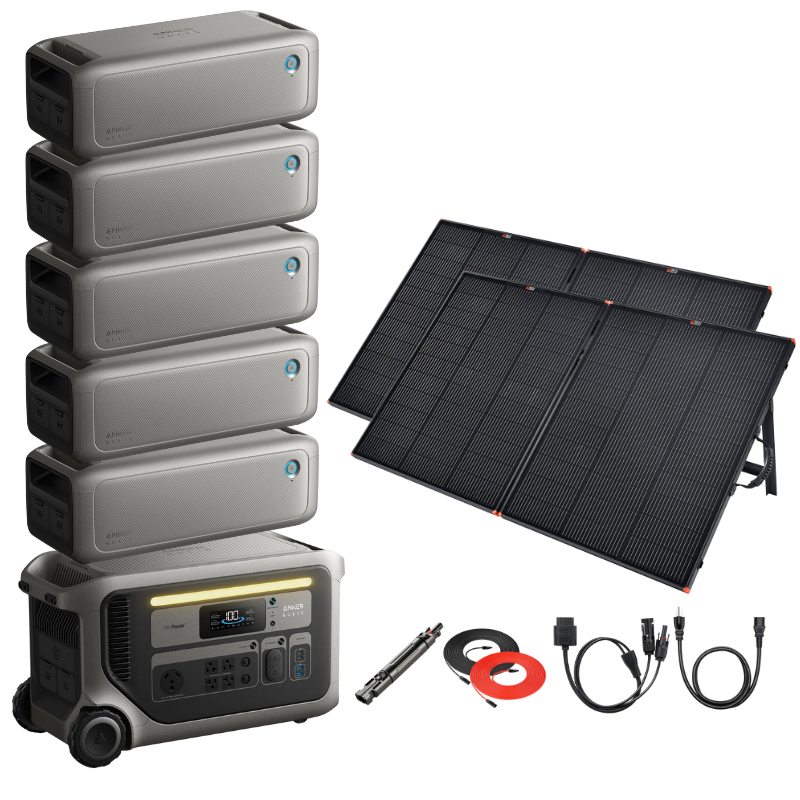

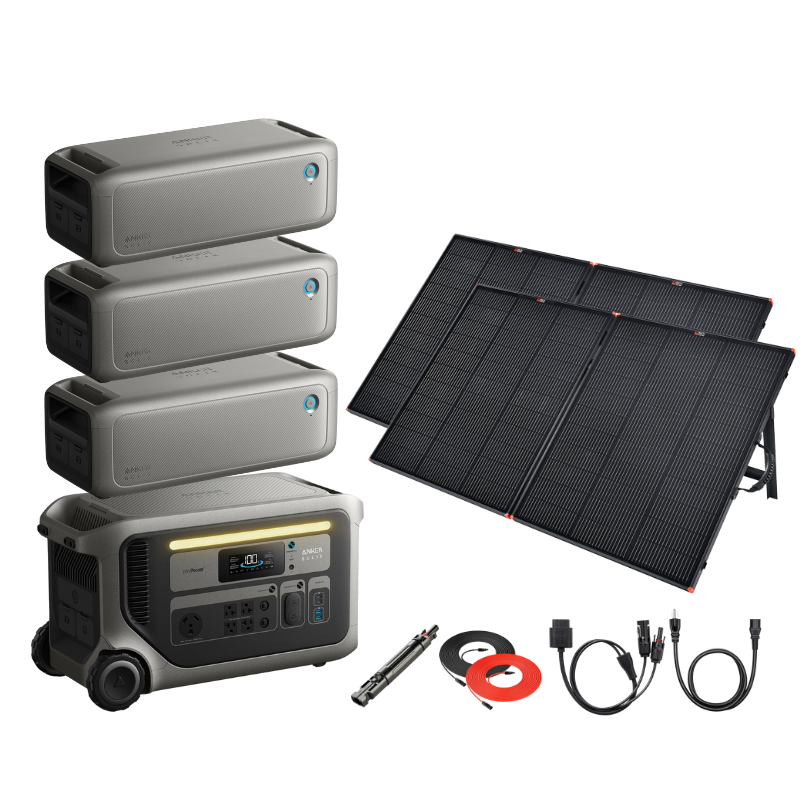

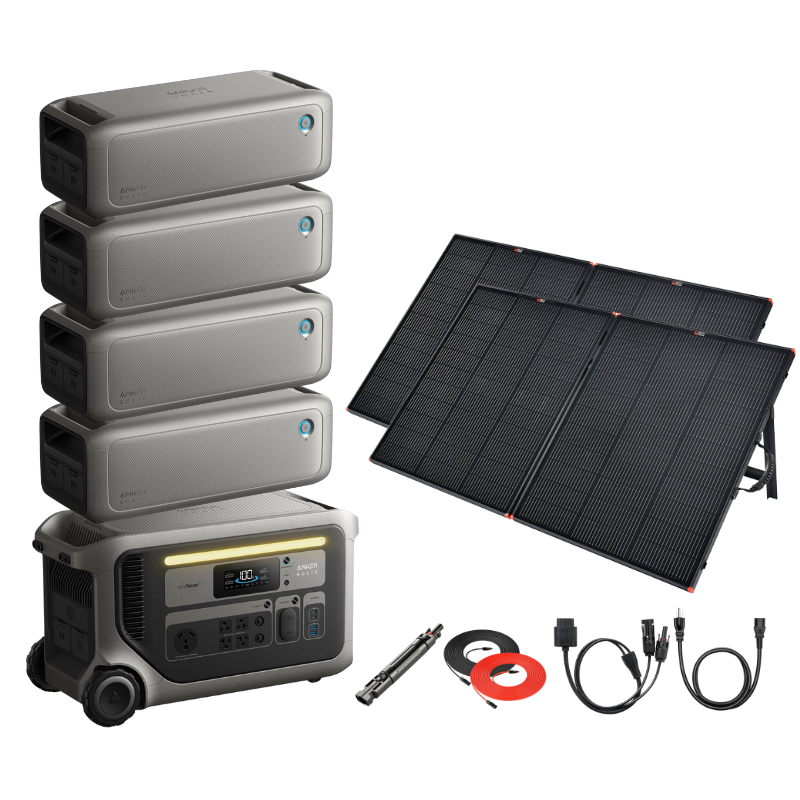

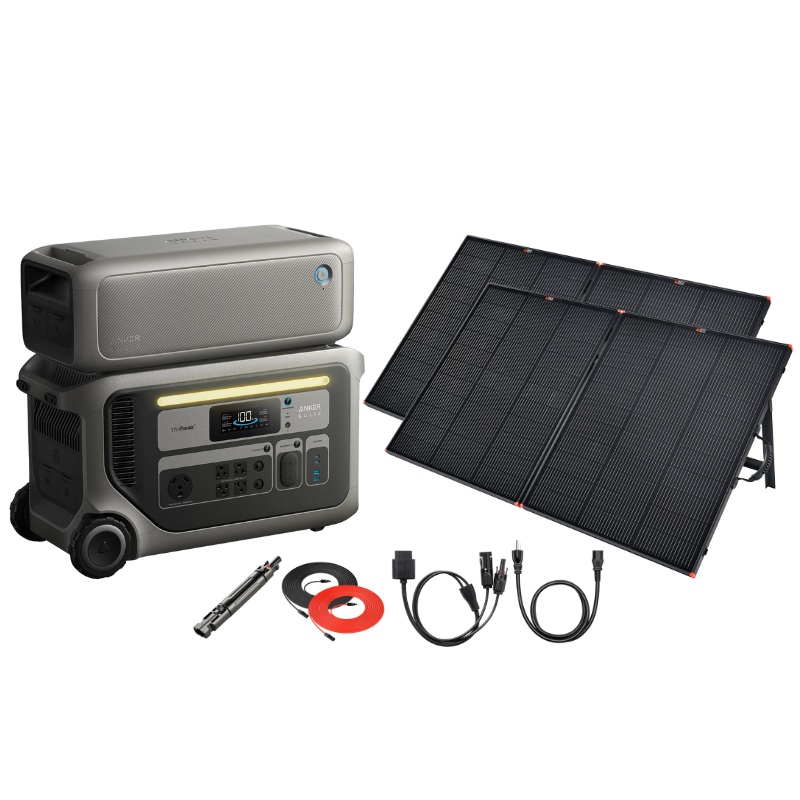

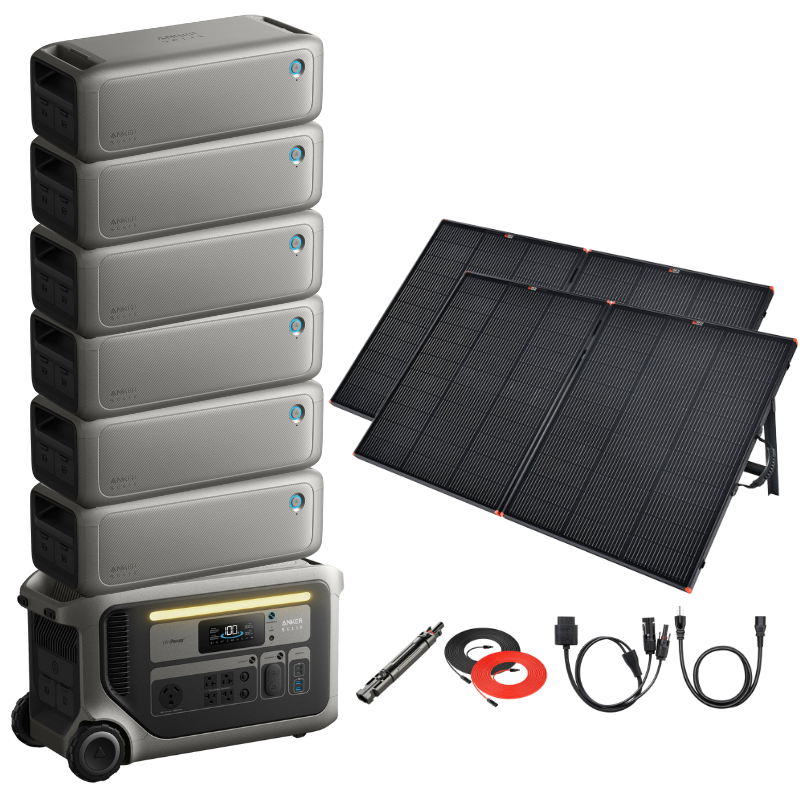

2 × RICH SOLAR MEGA 200W Portable Briefcase Panels
Battery Expansion Kit (your choice of one):
-
1, 2, 3, 4, 5, or 6 × Anker SOLIX BP3000 Expansion Battery
Included Accessories
-
RICH SOLAR Inline Fuse Holder (15A)
-
RICH SOLAR 10AWG Solar Panel Extension Cable (30FT, Male/Female Pair)
Anker SOLIX F3000 Portable Power Station Specifications
Anker SOLIX F3000 Portable Power Station Specifications
| Spec |
Details |
| Battery Type |
LiFePO₄ (LFP), 3072Wh, 60Ah |
| Cycle Life |
4,000 cycles |
| AC Input |
120V/240V, up to 3600W |
| Solar Input |
1600W Max (High PV), 800W (Low PV) |
| AC Output |
Up to 3600W, 120V |
| DC/USB Output |
12V Car, Anderson, USB-A/C ports |
| UPS Transfer |
<20ms |
| Weight |
91.5 lbs |
| Dimensions |
25.6" × 11.8" × 14.8" |
Anker SOLIX PS400 Portable Solar Panel Specifications
| Specification |
Details |
| Peak Power |
400W |
| Open Circuit Voltage |
57.6V |
| Operating Voltage |
48V |
| Rated Current |
8.33A |
| Cell Efficiency |
23% |
| Net Weight |
20.34 lb | 9.23 kg |
| Product Dimensions (Folded) |
35.9 × 25.9 × 1.9 in | 913 × 659 × 47 mm |
| Product Dimensions (Unfolded) |
102 × 35.9 × 1.2 in | 2,591 × 913 × 30 mm |
| Product Weight |
35.1 lb | 15.9 kg |
| Operating Temperature |
4°F-140°F | -20°C-60°C |
RICH SOLAR MEGA 200 | 200 Watt Solar Panel Specifications
| Category |
Specifications |
| Maximum Power(Pmax) |
200W |
| Maximum Power Voltage(Vmp) |
18.4V |
| Maximum Power Current(Imp) |
10.9A |
| Open Circuit Voltage(Voc) |
21.8V |
| Short Circuit Current(Isc) |
11.6A |
| Maximum System Voltage(Vmax) |
113 +/-35° F |
| Temperature Range |
-40 ~ +185°F |
| Weight |
23.6 lbs |
| Dimensions |
58.7 x 26.8 x 1.2 in |
RICH SOLAR MEGA 200 Portable Briefcase Solar Panel Specifications
| Category |
Specifications |
| Maximum Power (Pmax) |
200W |
| Maximum Power Voltage (Vmp) |
18.4V |
| Maximum Power Current (Imp) |
10.9A |
| Open Circuit Voltage (Voc) |
22.2V |
| Short Circuit Current (Isc) |
11.6A |
| Maximum System Voltage (Vmax) |
1000V DC |
| Weight |
26.0 lb |
| Dimensions (folded) |
33.1 x 26.4 x 2.4 in |
| Dimensions (unfolded) |
53.0 x 33.1 x 1.2 in |
Anker SOLIX BP3000 Expansion Battery Specifications
| Specification |
Details |
| Capacity |
3,072Wh |
| Battery Type |
LiFePO4 |
| Cycle Life |
4,000 cycles |
| Compatibility |
Anker SOLIX F3000 |
| Max Expansion |
Up to 3 units (12,288Wh total) |
| Connection Type |
Plug-in, tool-free |
Frequently-Asked Questions
Are the fuse holder and extension cable included in all kits?
Yes. Every kit includes a RICH SOLAR Inline Fuse Holder (15A) and 30FT 10AWG Solar Extension Cable for a complete plug-and-play system.
How do I choose the right solar panel option?
Choose Anker PS400 panels for maximum portability or RICH SOLAR MEGA panels for rigid, higher-efficiency installations. The briefcase version is best for mobile setups.
What appliances can I power with this kit?
You can run refrigerators, lights, power tools, fans, small AC units, routers, and more—depending on storage and output levels selected.
Can I add more components later?
Yes. The system is fully expandable, letting you add solar panels, BP3000 batteries, or a second F3000 for 240V output via a Double Voltage Hub.
Is it safe to use indoors?
Absolutely. The power station and batteries are silent, fume-free, and safe for indoor use.
