Big Battery 24V EAGLE 2 - LiFePO4 - 64Ah - 1.63kWh

SKU FEAGL-24016-G2-0CH
$750.00

Why Buy From Us?

Quality Guarantee: Full Big Battery warranty.
Free & Fast Shipping: No waiting, no fees.
Tax-Free Shopping: More savings, less worry.
Easy 30 Day Returns: No restocking fees.
Beat Any Price: Found cheaper? Talk to us.

Not sure what size to get? Use our Solar System Size Calculator!

QUESTIONS? CALL US! 877-556-3347

Notify me when back in stock

Estimated delivery between and .
Order within

  • Description
  • Specifications
  • Resources & Manuals
  • Warranty
  • Shipping Information
  • Why Buy From Us
  • 2ND GENERATION POWER TAKES FLIGHT! Introducing BigBattery’s all-new 24V 1.63 kWh LiFePO4 EAGLE 2. This battery embodies the reliability and durability you’ve come to expect from BigBattery solutions, packing Tier 1 LFP cells in a compact, GC2 form factor. This energy-dense design allows for effortless installations in your RVs, camper vans, scissor lifts, or other industrial equipment, and the EAGLE 2 serves as a mirror-image replacement for any stock T-105 lead-acid battery.

    But the EAGLE 2 provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with a LED capacity meter on the top of the unit, but also supports CANBus communication protocols, so you can always monitor the status and performance of your battery system. Plus, the EAGLE 2 is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re cruising around the campsite or warehouse.

    But that’s not all. The EAGLE 2 was designed to support your applications through every season. Whether you’re going boondocking in the heat of summer, or working at the warehouse or job site in the dead of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function ensures that you never have to put your vacation or work day on pause due to unreliable power. Quit worrying about your power and get back to working hard and playing harder when you equip your vehicle with the all-new EAGLE 2 from BigBattery. Shop the 24V EAGLE 2 & EAGLE 2 Kits today!

    Designed For 24V Applications

    • T-105 Exact Replacement
    • Light Industrial Equipment
    • Floor Sweepers
    • Floor Scrubbers
    • Pallet Jacks
    • Scissor Lifts
    • Light Towers
    • Class A, B, & C Rvs
    • Camper Vans
    • Emergency Backup
    • Includes Internal Warmers
    • Operates In Sub-Zero Temps

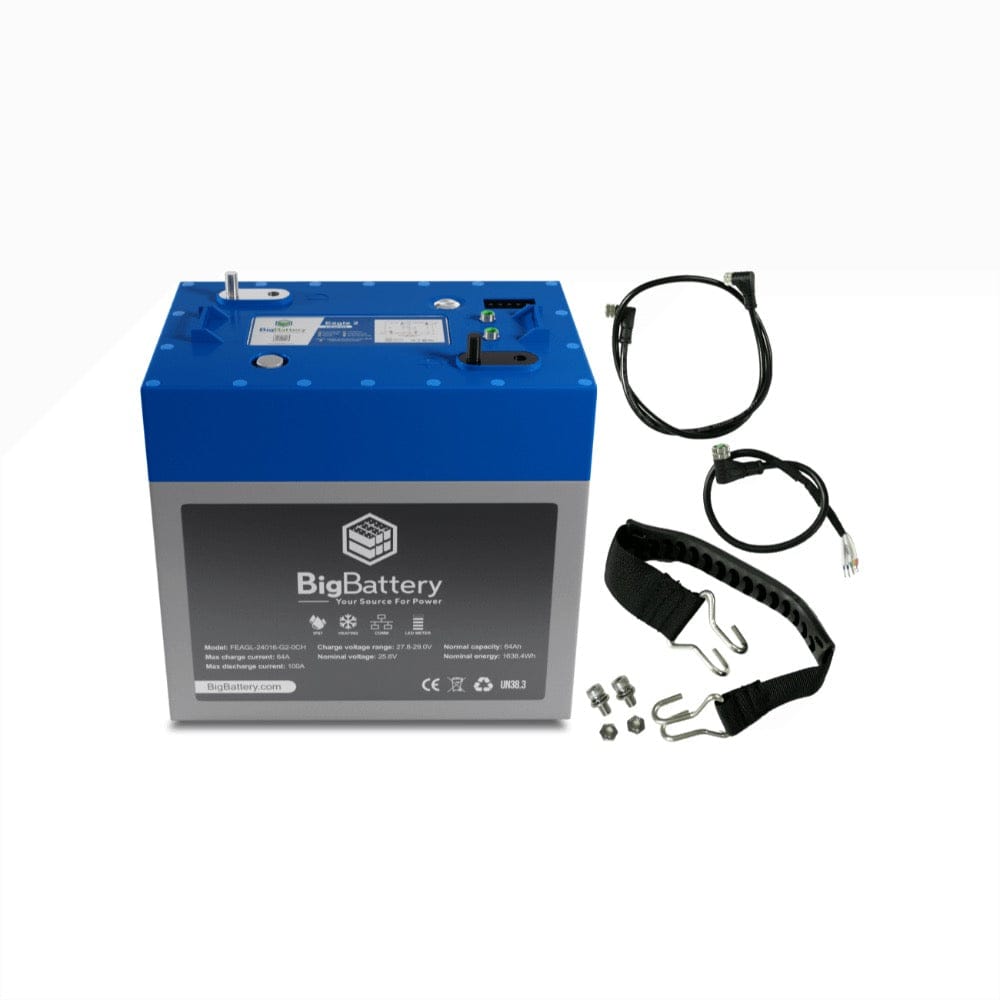

    Included Components

    • 1 × Eagle 2 Carrying Handle
    • 1 × Eagle 2 CAN Comm Cable
    • 1 × Parallel CAN Comm Cable
    • 2 × M8 Nuts & Screws

  • Tech Specs

    SKU: FEAGL-24016-G2-0CH
    UPC: 850061252197
    System Voltage: 24V
    Nominal Voltage: 25.6V
    Chemistry: LiFePO4
    kWh Capacity: 1.63kWh
    Ah Capacity: 64Ah
    Charging Voltage Range: 27.8 - 29V
    Max Charge Voltage: 29.2V
    Operating Voltage Range: 24 - 28.8V
    Suggested Low Voltage Cutoff: 24 - 25.4V
    BMS Cutoff Range: 21 - 23.5V
    Cell Configuration: 8S
    Max Continuous Discharge Current: 100A
    Max Continuous Power: 2560W
    Max Discharge Peak Current: 200A (Max 5 seconds)
    Max Charge Current: 64A
    Charge Temperature Range: -4°F - 131°F (-20°C - 55°C)
    Discharge Temperature Range: -4°F - 140°F (-20°C - 60°C)
    Optimal Discharge Temperature Range: 59°F - 95°F (15°C - 35°C)
    Storage Temperature Range:

    23°F - 95°F (-5°C - 35°C) (Max 3 months)
    32°F - 77°F (0°C - 25°C) (Max 12 months)

    Weight: 38 lbs (17.2 kg)
    Depth: 7.1 in (180 mm)
    Width: 10.2 in (260 mm)
    Height: 10.8 in (274 mm)
    Max Connections: Up to (10) Parallel
    Protection Rating: IP67
    Communications: CANBus
    Self-Heating: Yes
  • Spec Sheet
