Big Battery 48V ETHOS 15.3KWH (3 Module)

Name: Big Battery 48V ETHOS 15.3KWH (3 Module)
Brand: Big Battery
SKU: K0950
Price: 4250.0 USD
Availability: InStock

BY: Big Battery

SKU: K0950

| Availability: In Stock

$4,890.00

$4,250.00

You Save: $640.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Big Battery Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

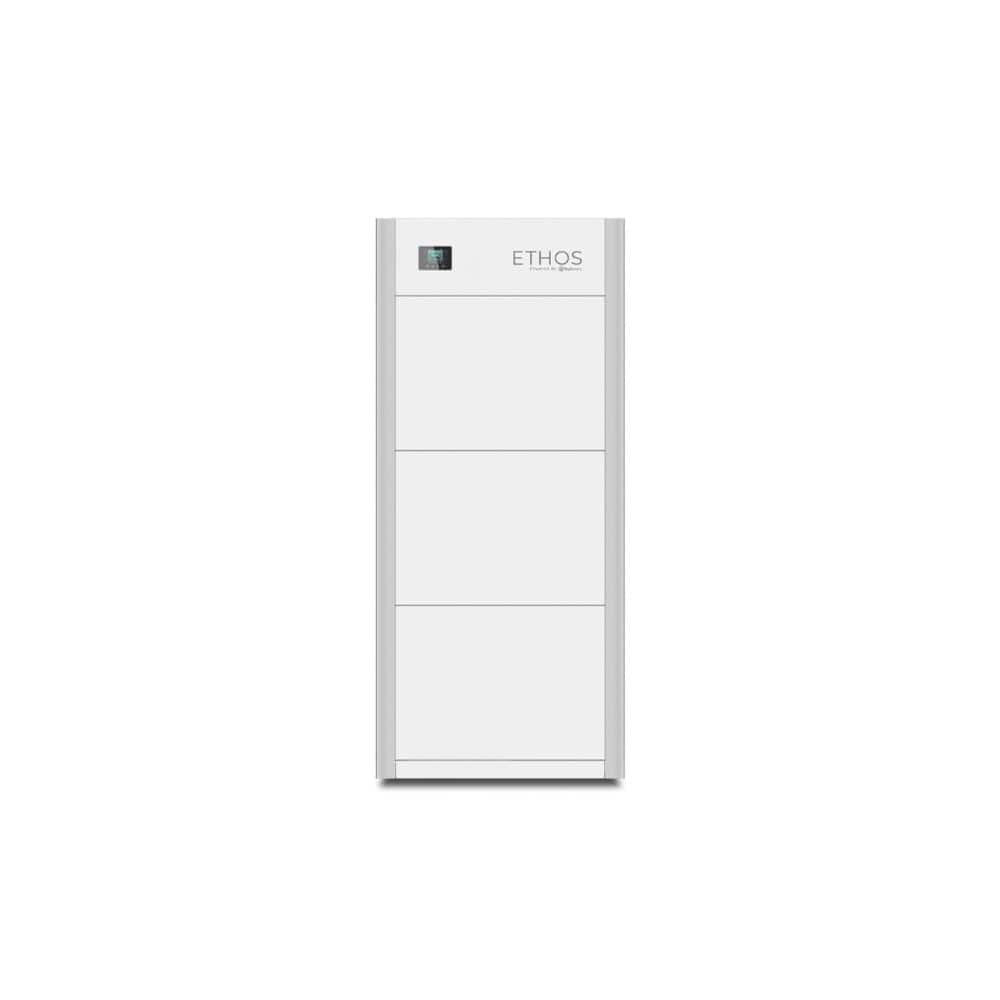

Big Battery 48V ETHOS 15.3KWH (3 Module)

Power your home, cabin, or off-grid setup with the BigBattery 48V ETHOS 15.3kWh System, featuring three stackable 5.12kWh LiFePO4 battery modules. Designed for scalability, safety, and long-term reliability, this system provides robust backup, solar storage, and off-grid energy with UL-certified safety, integrated BMS, and fire suppression. Whether you're replacing lead-acid or upgrading your solar system, the ETHOS ensures efficient and secure energy storage for any 48V application.

BigBattery 48V ETHOS 15.3kWh (3 Module) Features

High-Capacity Storage – Provides a total of 15.36kWh from three 5.12kWh modules—ideal for home backup, solar storage, or full off-grid living.

Stackable & Modular Design – Add modules as needed and scale up to 80kWh per control box for large systems or growing power needs.

Tier 1 LiFePO4 Cells – Safe, stable lithium iron phosphate chemistry offers 7,000–8,000 cycles at 80% DoD, ensuring 10+ years of reliable performance.

Integrated Smart BMS – Real-time monitoring of voltage, temperature, and current, plus passive balancing and built-in safety protections.

UL-Certified & Fire Suppression – Meets UL1973, UL9540A, and UN38.3 certifications and includes an internal fire-extinguishing module.

Weather-Resistant & Wall-Mountable – Features an IP65-rated enclosure, included mounting brackets, and a space-saving design for indoor or outdoor installation.

BigBattery 48V ETHOS 15.3kWh (3 Module) Applications

Designed for 48V Applications – Perfect for residential, solar, and off-grid systems using 48V architecture.
Residential Power Systems – Store energy for time-of-use optimization or backup during outages.
Home Solar Systems – Capture and store excess solar energy for nighttime or grid-free use.
UL-Certified ESS – Fully compliant for code-approved installs.
Cabins & Tiny Homes – Ideal for efficient off-grid living in small or mobile dwellings.
Family Homes & Mansions – Scalable capacity supports large household energy demands.
Off-Grid Homesteads – Power remote homes independently of the grid.
Emergency Power – Always-on backup when disaster strikes.
Whole Home Backup – Use multiple modules to power essential or full home circuits.
Lead Acid Replacement – Upgrade to modern lithium performance and longevity.
Intense Heat & Cold – Built for extreme climates with wide operating temperature tolerance.

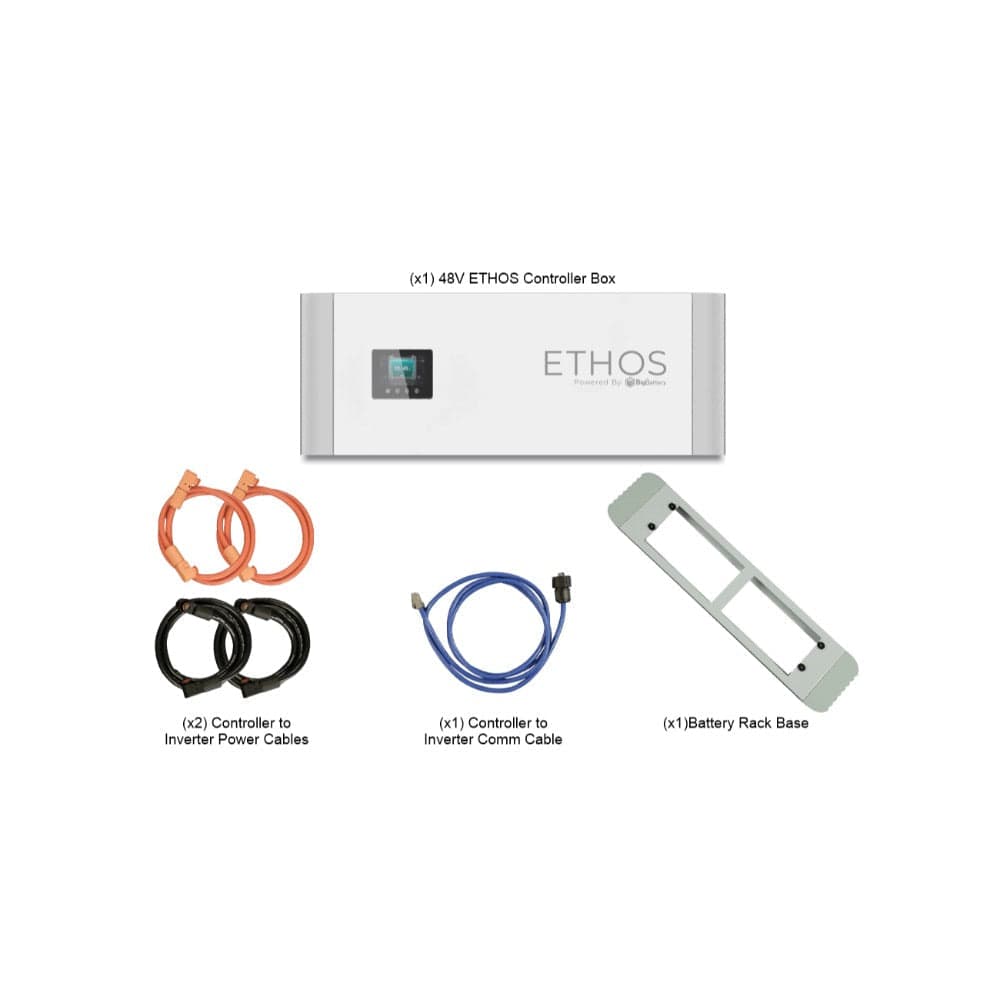

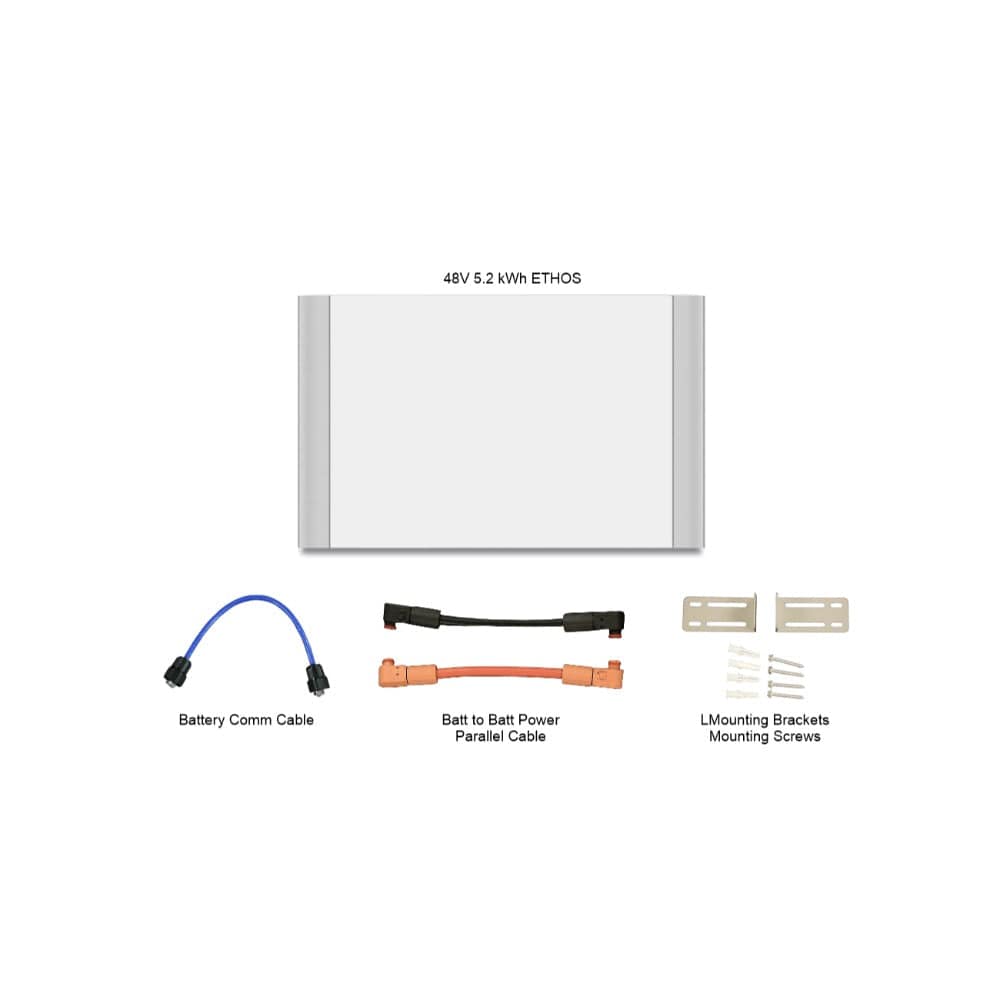

What's Included

Everything you need is included with your product.

3 × 48V ETHOS 5.12kWh Stackable Battery Module
1 × ETHOS Control Box

1 × 15kWh Ethos Controller to Battery Power Cable 4ft (1220mm)
User Manual

BigBattery 48V ETHOS 15.3kWh (3 Module) Specifications

Category	Specifications
SKU	K0950
UPC	850061252166
System Voltage:	48V
Nominal Voltage:	51.2V
Chemistry:	LiFePO4
kWh Capacity:	15.36kWh
Ah Capacity:	300Ah
Charging Voltage Range:	55.6 - 57V
Max Charge Voltage:	57V
Operating Voltage Range:	48 – 57V
Suggested Low Voltage Cutoff:	48 – 50.8V
Cell Configuration:	16S 3P
Max Continuous Discharge Current:	250A
Max Continuous Power:	12800W
Max Discharge Peak Current:	300A (Max 5 seconds)
Max Charge Current:	200A
Charge Temperature Range:	32°F - 113°F (0°C - 45°C)
Discharge Temperature Range:	-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range:	59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%):	-4°F - 113°F (-20°C - 45°C) (Max 6 months)

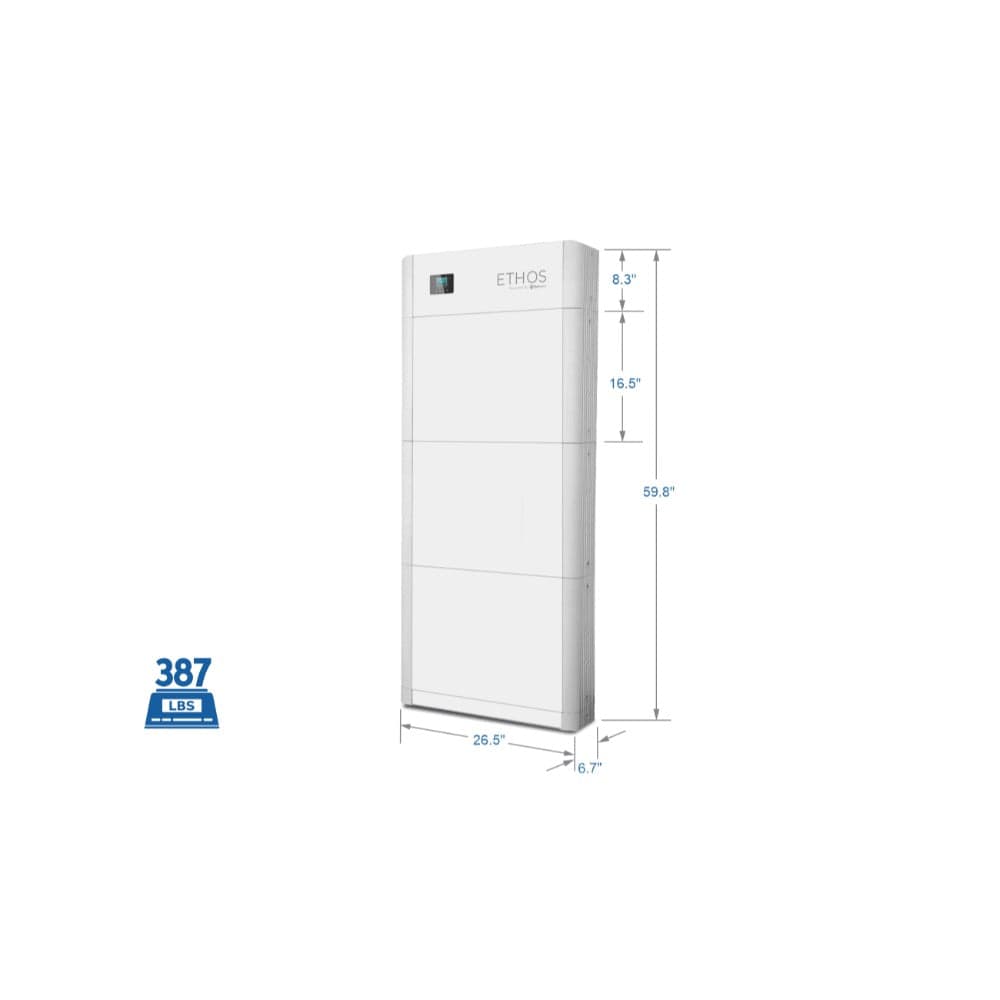

Dimensions (DxWxH)	6.7 x 26.5 x 59.8 in (170 x 674 x 1520 mm)
Weight	387 lbs (175.5 kg)
Max Connections	Up to (16) parallel connections per control box
Communications	CANBus / RS485
Protection Rating	IP65
Certifications	UL9540, UL9540a, UL1973, & UN38.3

BigBattery 48V ETHOS 15.3kWh (3 Module) Videos

Frequently-Asked Questions

Can I add more modules to this setup?

Yes. The ETHOS system is expandable—up to 80kWh per control box—so you can scale as your energy needs grow.

Is this compatible with my 48V inverter?

Most likely. ETHOS works with many major 48V inverters. Be sure to check your inverter’s voltage and current specs to confirm compatibility.

Is the battery weatherproof?

Yes, with its IP65-rated enclosure, the ETHOS is protected from dust and water spray—safe for both indoor and sheltered outdoor use.

Does this system require an external BMS?

No. Each module includes a fully integrated Battery Management System, eliminating the need for external components.

Manual and Specification Sheet

BigBattery 48V ETHOS 15.3kWh (3 Module) Manual
