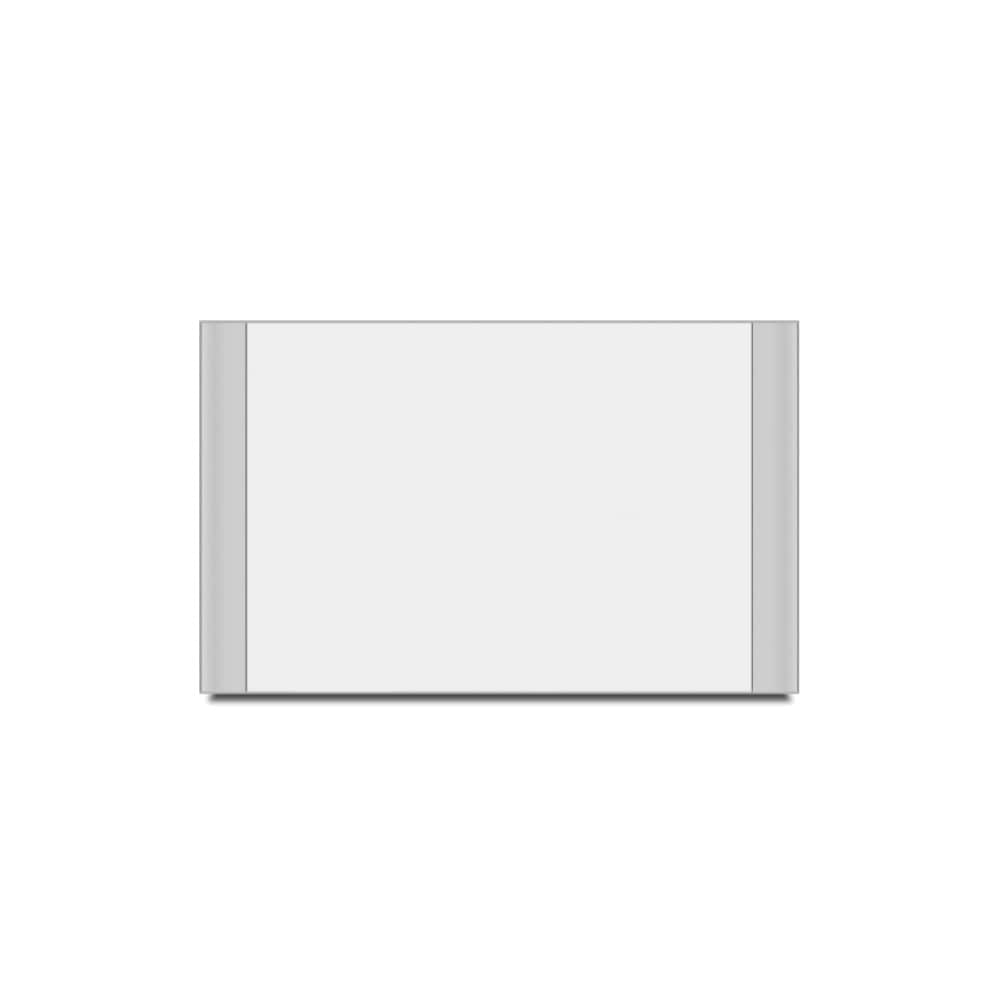

Big Battery 48V ETHOS 5.12kWh Stackable Battery Module Wall Mount Batteries Big Battery

Big Battery 48V ETHOS 5.12kWh Stackable Battery Module

Name: Big Battery 48V ETHOS 5.12kWh Stackable Battery Module
Brand: Big Battery
SKU: FETHS-48051-G1
Price: 1290.0 USD
Availability: InStock

BY: Big Battery

SKU: FETHS-48051-G1

| Availability: In Stock

$1,480.00

$1,290.00

You Save: $190.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Big Battery Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Big Battery 48V ETHOS 5.12kWh Stackable Battery Module

The BigBattery 48V ETHOS 5.12kWh Battery Module is the core of a scalable, stackable energy storage system—ideal for grid-tied homes, off-grid cabins, solar systems, and commercial setups. Each module features Tier 1 LiFePO4 cells (100Ah), a smart BMS with real-time monitoring, and is expandable up to 80kWh per system.

Engineered for safety and performance, it includes passive cell balancing, a fire-extinguishing module, and UL-certified ESS connectors. With a lifespan of 10+ years and 4,000–8,000 cycles at 80% DoD, it’s built to last.

The ETHOS system is IP65-rated, wall-mountable, and includes all necessary hardware for easy installation. Whether you're preparing for outages or building a complete solar setup, ETHOS delivers reliable, efficient power—on or off the grid.

BigBattery 48V ETHOS 5.12kWh Stackable Battery Module Features

Stackable Design – Expand your energy system with ease. The ETHOS allows you to stack multiple modules vertically for scalable power.

High-Capacity Storage – Each module delivers 5.12kWh of reliable energy—perfect for daily cycling, time-of-use offset, or emergency backup.

LiFePO4 Chemistry – Built with Lithium Iron Phosphate cells, known for their long cycle life, thermal stability, and safety.

Advanced BMS Built-In – Protects against overvoltage, short circuits, overcurrent, and temperature extremes for maximum system reliability.

UL Certified Safety – Includes UL1973 and UL9540A testing certifications, ensuring code compliance and peace of mind.

Modular Flexibility – Integrates with many 48V inverters, making it a great fit for custom and prebuilt energy systems.

BigBattery 48V ETHOS 5.12kWh Stackable Battery Module Applications

Residential Power Systems – Provides dependable energy storage for day-to-day household usage or grid-tied energy saving.
Home Solar Systems – Optimized for solar charging and discharge cycles, maximizing solar ROI.
UL-Certified ESS – Meets UL1973 and UL9540A standards, making it ideal for compliant energy storage systems.
Cabins & Tiny Homes – Compact and stackable, it's perfect for limited-space living environments.
Family Homes & Mansions – Easily stack multiple units to meet high-capacity energy demands.
Off-Grid Homesteads – Designed for long-term autonomy in fully off-grid living setups.
Emergency Power – Ready when the grid isn’t—perfect for natural disasters, outages, or backup readiness.
Whole Home Backup – Use multiple modules to power your entire home during blackouts.
Lead Acid Replacement – Upgrade from outdated lead-acid banks with safer, longer-lasting lithium technology.
Intense Heat & Cold – Built to perform in extreme climates with a wide operating temperature range.

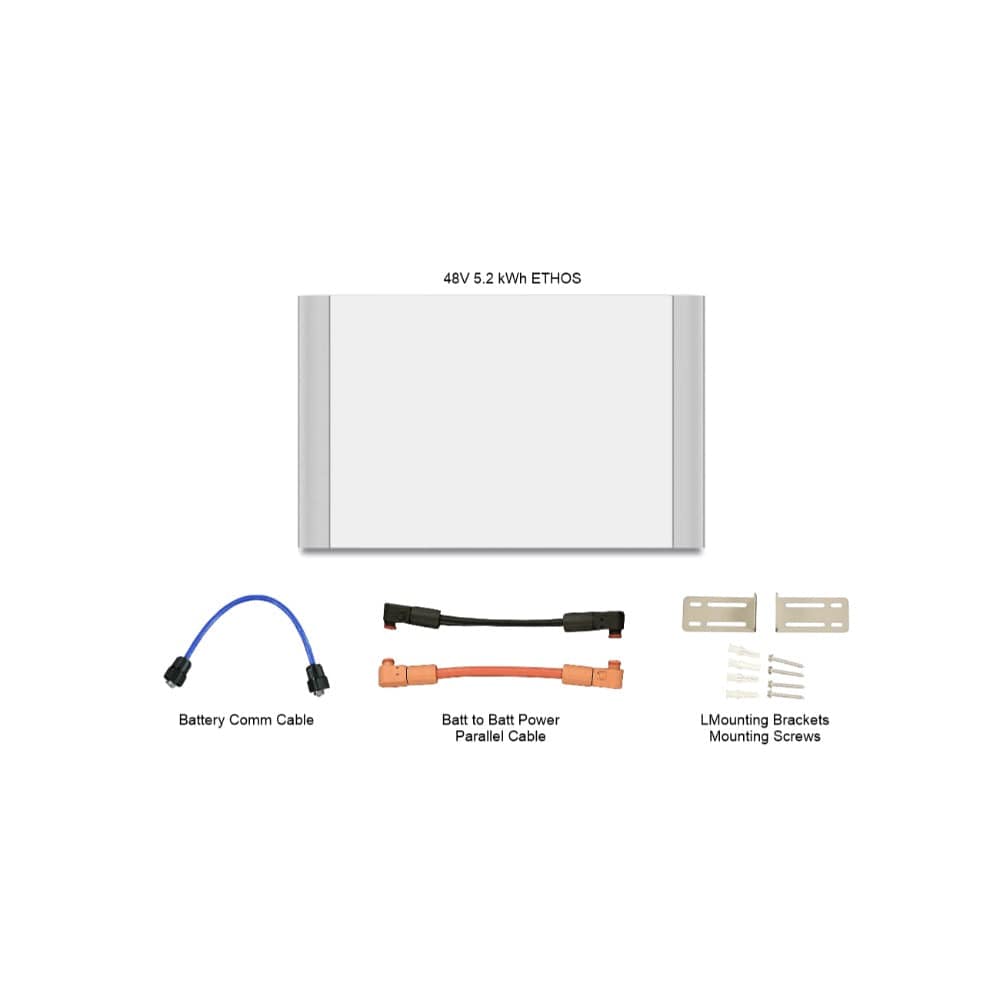

What's Included

Everything you need is included with your product.

BigBattery 48V ETHOS 5.12kWh Battery Module

User Manual

BigBattery 48V ETHOS 5.12kWh Stackable Battery Module Specifications

Category	Specifications
SKU	FETHS-48051-G1
UPC	850061252067
System Voltage:	48V
Nominal Voltage:	51.2V
Chemistry:	LiFePO4
kWh Capacity:	5.12kWh
Ah Capacity:	100Ah
Charging Voltage Range:	55.6 - 57V
Max Charge Voltage:	57V
Operating Voltage Range:	48 – 57V
Suggested Low Voltage Cutoff:	48 – 50.8V
Cell Configuration:	16S
Max Continuous Discharge Current:	100A
Max Continuous Power:	5120W
Max Discharge Peak Current:	150A (Max 5 seconds)
Max Charge Current:	100A
Charge Temperature Range:	32°F - 113°F (0°C - 45°C)
Discharge Temperature Range:	-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range:	59°F - 95°F (15°C - 35°C)
Storage Temperature Range:	-4°F - 113°F (-20°C - 45°C) (Max 6 months)
Depth	6.7 in (170 mm)
Width	26.5 in (674 mm)
Height:	16.5 in (419 mm)
Max Connections:	Up to (16) parallel connections per control box
Protection Rating:	IP65
Communications:	CANBus / RS485
Certifications	UL9540a, UL1973, & UN38.3

BigBattery 48V ETHOS 5.12kWh Stackable Battery Module Videos

Frequently-Asked Questions

How many ETHOS batteries can I stack?

You can stack multiple modules based on your inverter’s configuration and your energy needs. For large systems, consult your installer to ensure proper BMS communication and power balancing.

Is this battery compatible with all 48V inverters?

It works with many major 48V inverter brands, but always confirm voltage, current, and communication protocol compatibility before integrating.

Does this battery support outdoor installation?

Yes. With its IP65 rating, the ETHOS is protected against dust and water spray, making it suitable for indoor or sheltered outdoor setups.

Is the BMS built-in or external?

Each module comes with an integrated Battery Management System that safeguards performance and extends battery life.
