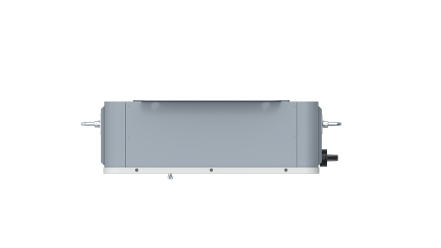

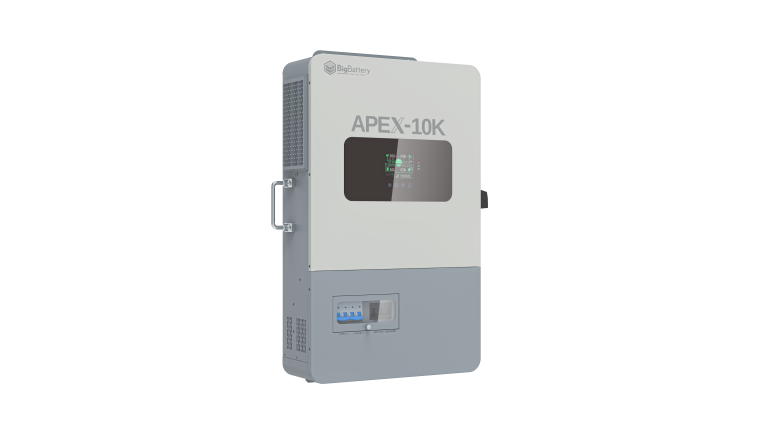

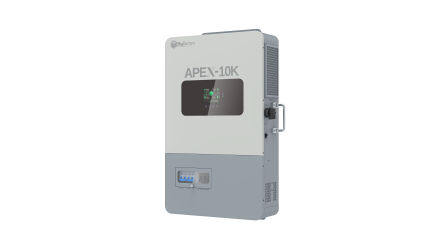

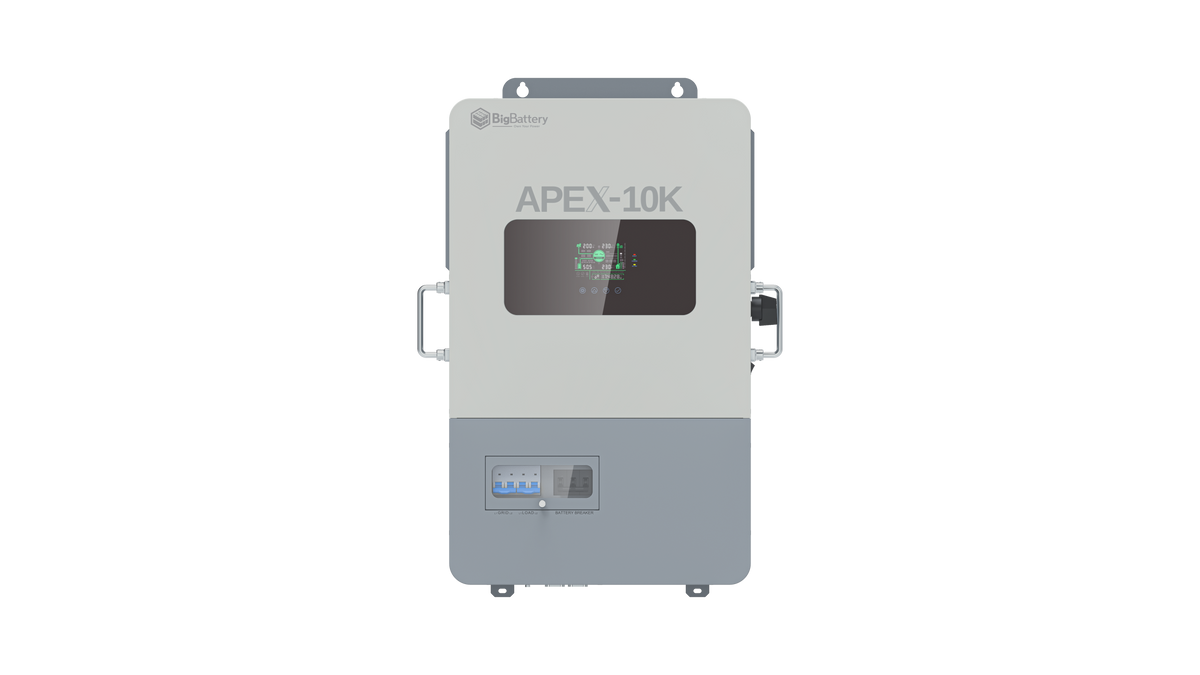

BigBattery APEX 10K Off-Grid Inverter

Name: BigBattery APEX 10K Off-Grid Inverter
Brand: Big Battery
SKU: INV035
Price: 1680.0 USD
Availability: InStock

BY: Big Battery

SKU: INV035

| Availability: In Stock

$1,850.00

$1,680.00

You Save: $170.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Big Battery Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

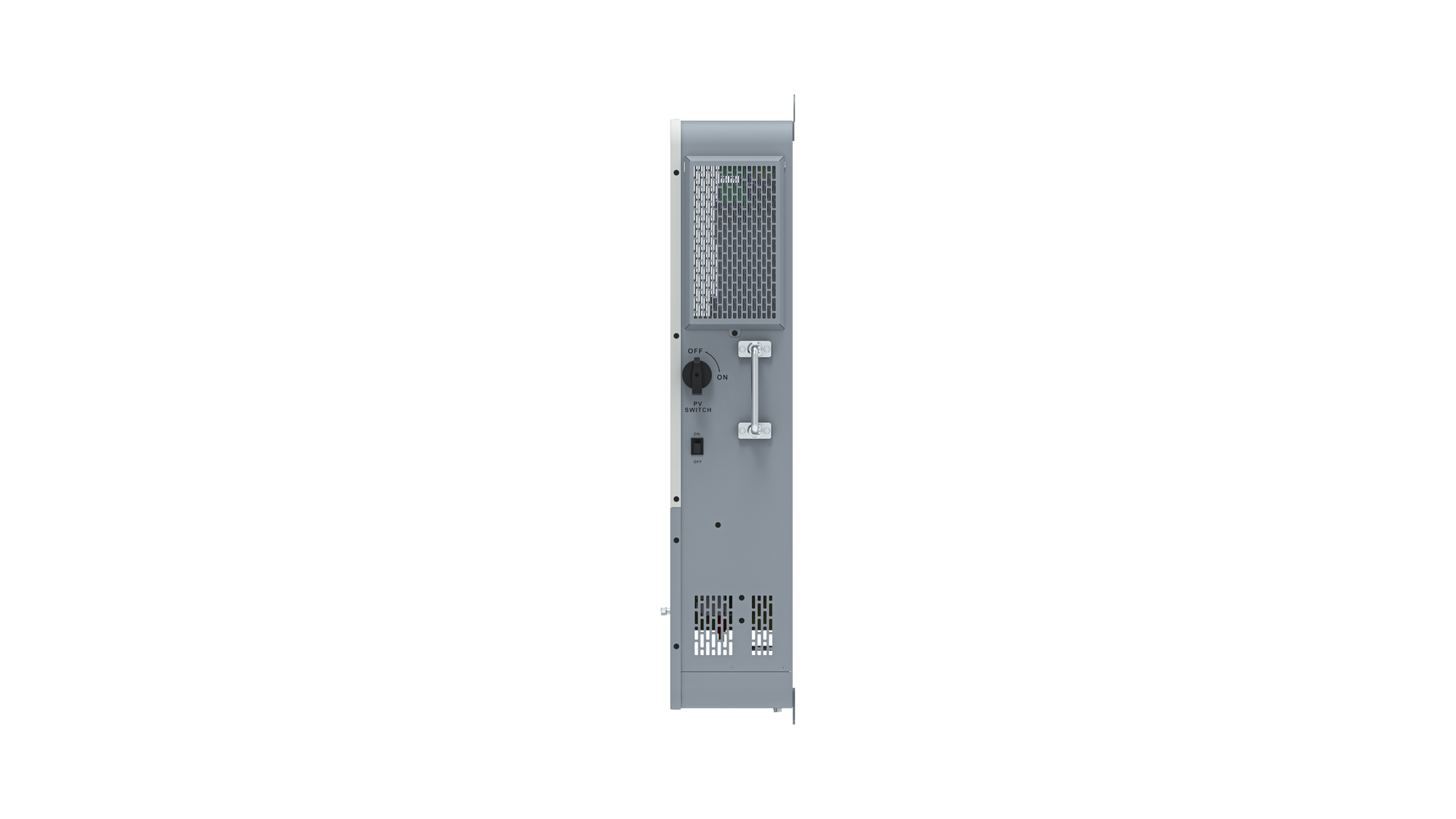

BigBattery APEX 10K Off-Grid Inverter

The BigBattery APEX 10K Off-Grid Inverter is a powerful hybrid inverter built for dependable off-grid energy systems. Delivering split-phase 120/240V pure sine wave power, it supports both solar and generator inputs for continuous energy independence. Designed to pair seamlessly with modern LiFePO₄ battery banks, the APEX 10K includes 80A pass-through capability, installer-friendly bottom wiring, and a rugged outdoor-ready enclosure—making it ideal for cabins, homesteads, and remote properties that demand reliable power.

BigBattery APEX 10K Off-Grid Inverter Features

6.5kW Hybrid Off-Grid Power – Reliable energy independence

Delivers 6.5kW continuous output with split-phase 120/240V capability for demanding off-grid applications.

Solar & Generator Compatibility – Flexible energy inputs

Supports both solar arrays and generator charging to ensure uninterrupted power availability.

Pure Sine Wave Output – Clean, appliance-safe electricity

Provides stable, utility-grade power suitable for sensitive electronics and essential appliances.

80A Pass-Through Capability – Power large loads

Allows high-capacity power transfer to run heavy appliances and critical systems smoothly.

Installer-Friendly Design – Easy system integration

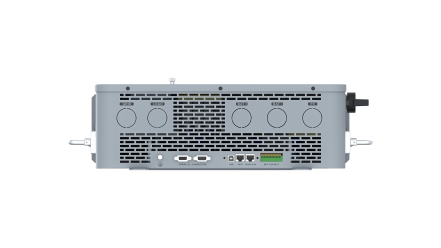

Features bottom-entry wiring and durable outdoor-ready enclosure for simplified installation.

BigBattery APEX 10K Off-Grid Inverter Applications

Off-Grid Homes – Power cabins, homesteads, and remote properties.
Solar Energy Systems – Convert solar power into reliable household electricity.
Backup Power Systems – Maintain essential loads during outages.
Remote Worksites – Deliver dependable power where grid access is unavailable.
Energy Independence Projects – Build scalable off-grid or hybrid energy systems.

What's Included

Everything you need is included with your product.

1x APEX 10K Off-Grid Inverter

User Manual

Warranty

5-Year Warranty

BigBattery APEX 10K Off-Grid Inverter Specifications

Inverter output

Specification	Details
Rated Output Power	10,000W
Surge Capacity (Peak Power)	20,000W
Rated Output Voltage	120/240 Vac (single-phase/split-phase)
Load capacity of Motors	6 HP
Rated Frequency	50/60Hz
Output Wave	Pure sine wave
Switching Time	10ms(typical value)

Battery

Specification	Details
Battery Type	Lithium-ion battery/lead-acid battery/user-defined battery
Rated Battery Voltage	48V
Voltage Range	40~60Vdc
Max. Solar Charging Current	200A
Max. Grid/Generator Charging Current	120A
Max. Hybrid Charge Current	200A

Solar Input

Specification	Details
No. Of MPPT	1+1
Max. Input Power	5,500W + 5,500W
Max. Input Current	22A + 22A
Max. Open Circuit Voltage	550Vdc+550Vdc
MPPT Voltage Range	125~450Vdc

Grid/Generator Input

Specification	Details
Input Voltage Range	65~140Vac
Input Frequency Range	50/60Hz
Bypass Overload Current	63A
A/C Inputs	1 Input - Grid or Generator
THD (V)	<5%

Efficiency

Specification	Details
Max. Efficiency	99.9%
MPPT Tracking Efficiency	92%
Parallel Capacity	Up to 6 Units (More than 3 units in parallel can form a three-phase output)

General Data

Specification	Details
Dimension	28.46 x 17.64 x 5.91 Inches
Weight	62 lbs
Protection Degree	IP20 Indoor Only
Temperature	14 - 131°F, >113°F Derate
External Module (Optional)	Wi-Fi/GPRS
Certificate	UL1741/RoHs/EN61000-6-1/EC61000-6-3/FCC Part15 ClassB/IEC62109-1/IEC62109-2
Noise	<60dB
Cooling Method	Intelligent fan
Warranty	5 years
Communication Integrated Circuit Breaker	RS485/CAN/USB/Dry Contact Utility/Load/Battery/PV

Frequently-Asked Questions

Can the APEX 10K run a full off-grid home?

Yes. With 10kW output and split-phase 120/240V, it can power many residential off-grid systems depending on load demand.

Does this inverter support generator charging?

Yes. The inverter accepts generator input as well as solar input for flexible energy management.

What type of power output does it produce?

It delivers pure sine wave electricity, which is safe for sensitive electronics and household appliances.

Is the system compatible with lithium batteries?

Yes. It is designed to work seamlessly with modern LiFePO₄ battery banks.
