BigBattery APEX-6.5K Off-Grid Inverter

Name: BigBattery APEX-6.5K Off-Grid Inverter
Brand: Big Battery
SKU: INV034
Price: 1490.0 USD
Availability: InStock

BY: Big Battery

SKU: INV034

| Availability: In Stock

$1,900.00

$1,490.00

You Save: $410.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Big Battery Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

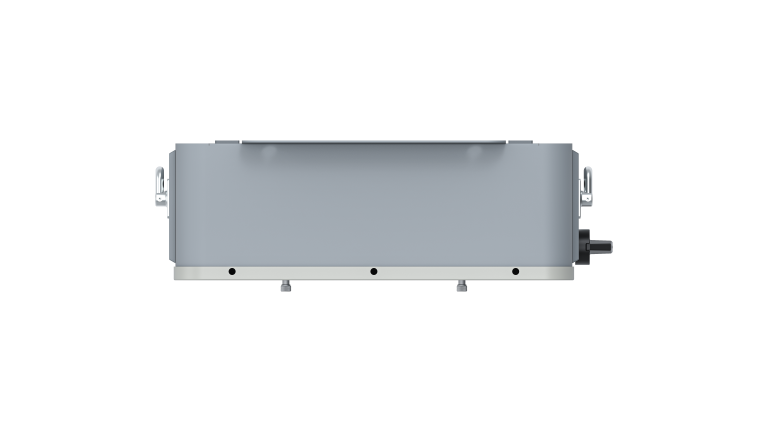

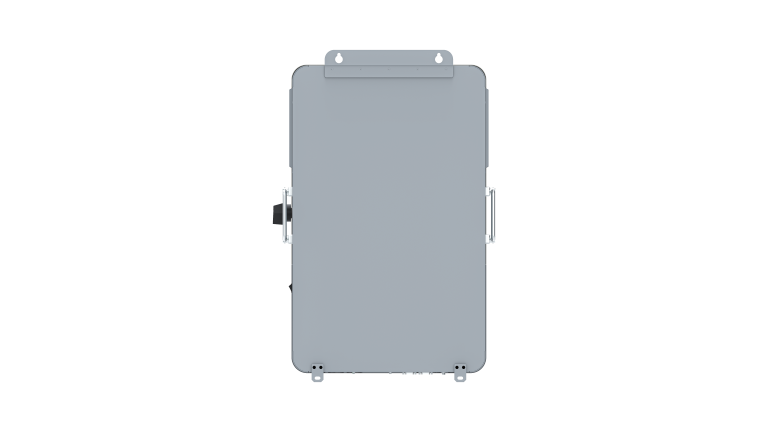

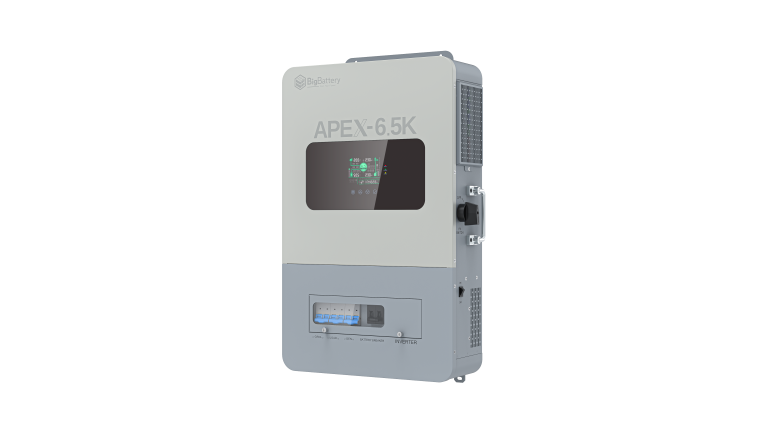

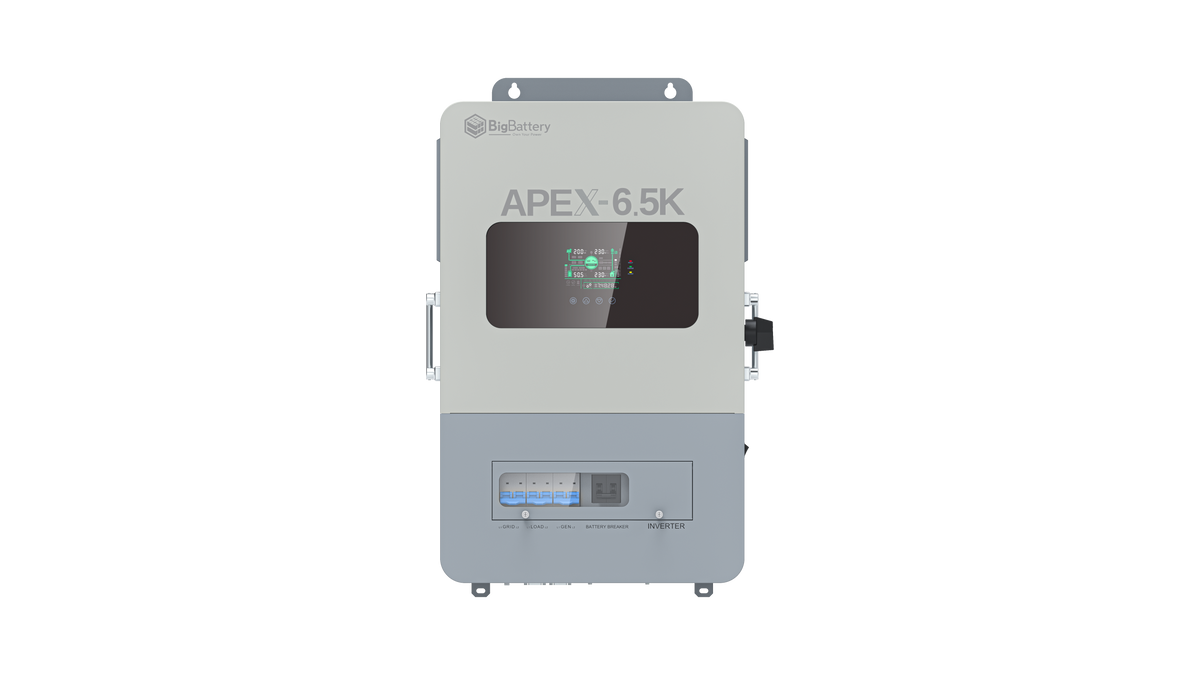

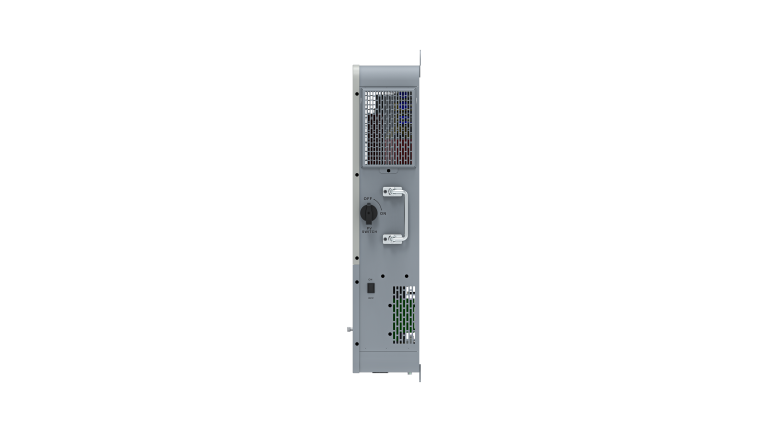

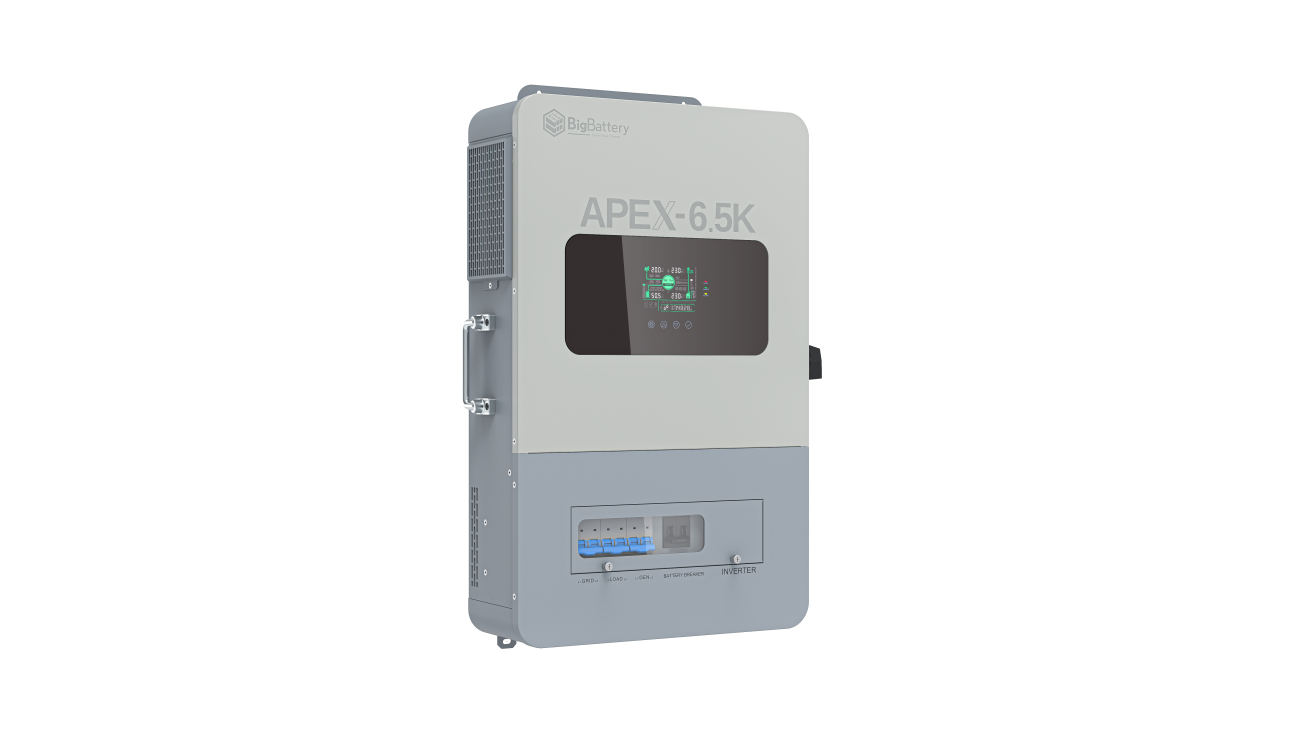

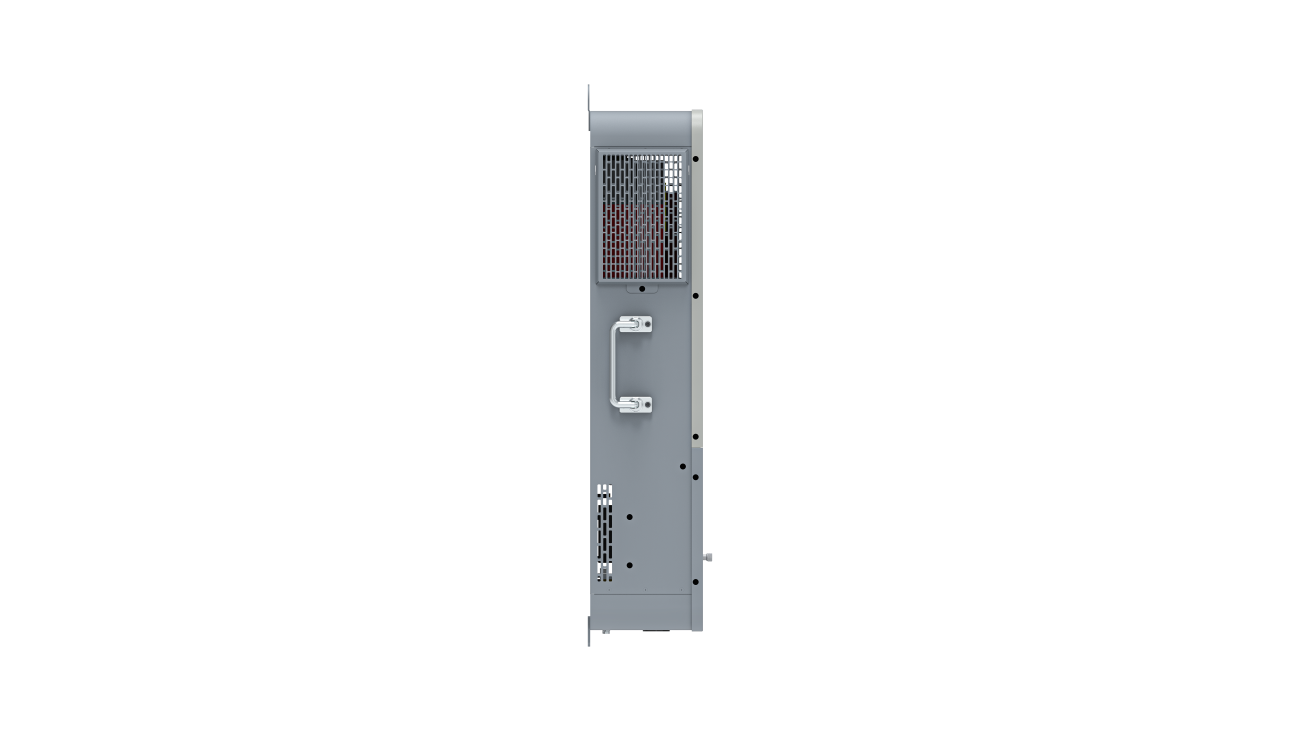

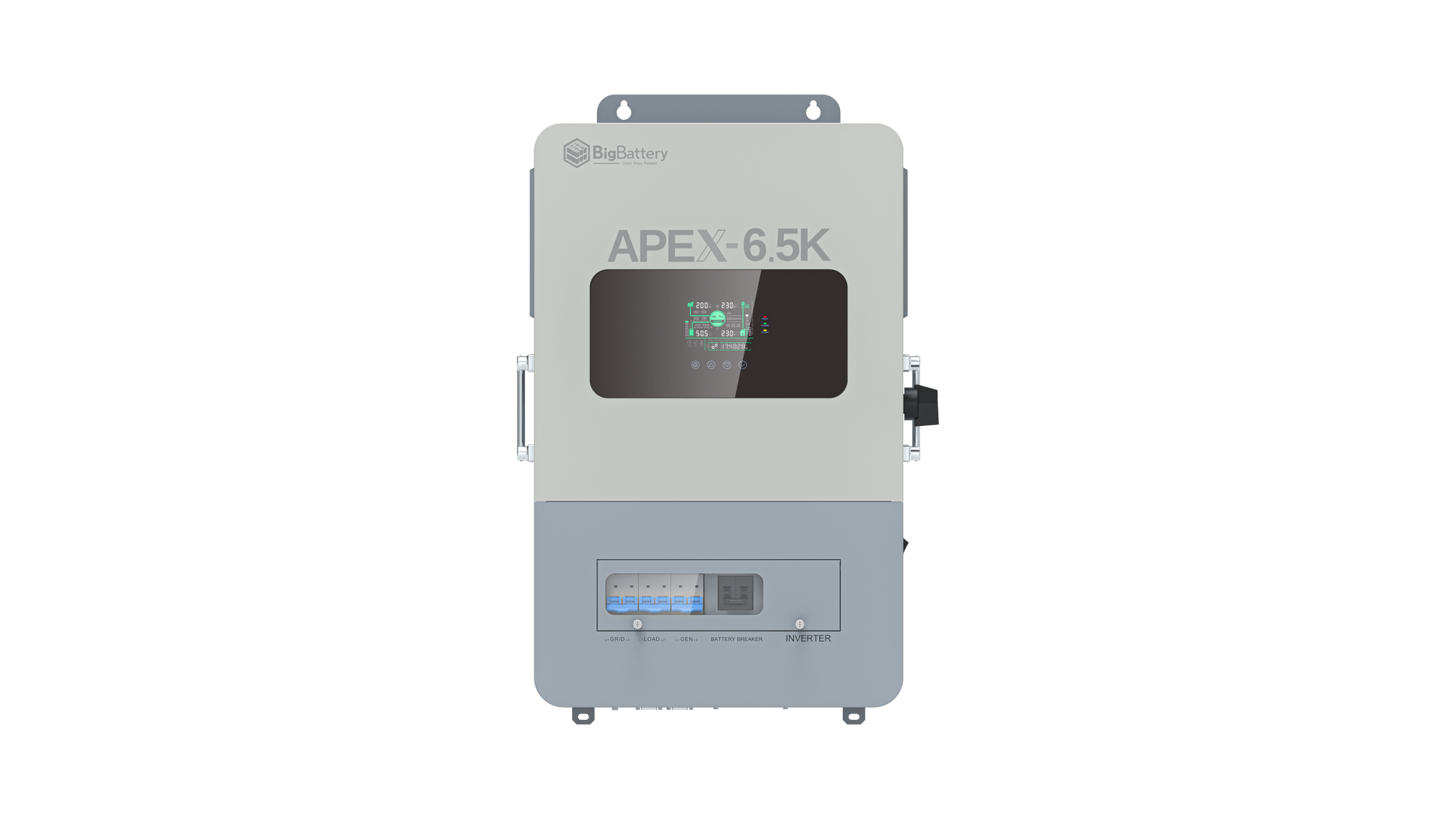

BigBattery APEX-6.5K Off-Grid Inverter

The BigBattery APEX-6.5K Off-Grid Inverter is a powerful hybrid inverter designed for reliable off-grid energy systems. Delivering split-phase 120/240V power with clean pure sine wave output, it supports both solar and generator inputs for continuous energy independence. With 6.5kW output capacity, 80A pass-through capability, and installer-friendly bottom-entry wiring, the APEX-6.5K provides dependable power for cabins, homesteads, and remote residences.

BigBattery APEX-6.5K Off-Grid Inverter Features

6.5kW Hybrid Off-Grid Power – Reliable energy independence

Delivers 6.5kW continuous output with split-phase 120/240V capability for demanding off-grid applications.

Solar & Generator Compatibility – Flexible energy inputs

Supports both solar arrays and generator charging to ensure uninterrupted power availability.

Pure Sine Wave Output – Clean, appliance-safe electricity

Provides stable, utility-grade power suitable for sensitive electronics and essential appliances.

80A Pass-Through Capability – Power large loads

Allows high-capacity power transfer to run heavy appliances and critical systems smoothly.

Installer-Friendly Design – Easy system integration

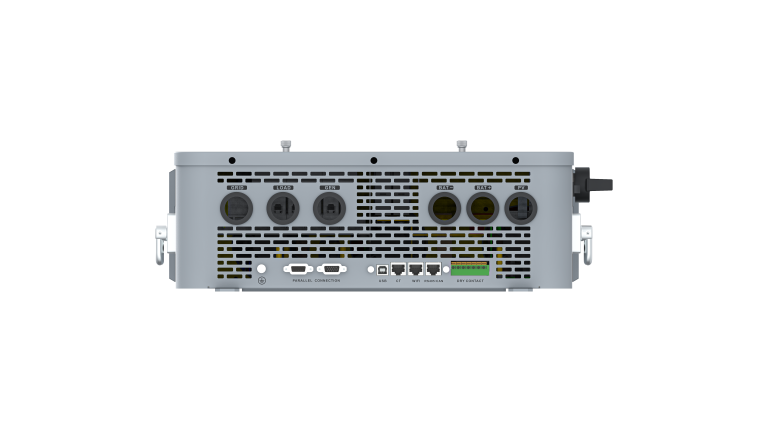

Features bottom-entry wiring and durable outdoor-ready enclosure for simplified installation.

BigBattery APEX-6.5K Off-Grid Inverter Applications

Off-Grid Homes – Deliver reliable power for cabins, homesteads, and remote residences.
Solar Energy Systems – Convert solar energy into usable household electricity.
Backup Power Systems – Maintain power for essential loads during outages.
Remote Worksites – Provide dependable power in locations without utility access.
Energy Independence Projects – Build scalable off-grid and hybrid power systems.

What's Included

Everything you need is included with your product.

1x APEX-6.5K Off-Grid Inverter

User Manual

Warranty

5-Year Warranty

BigBattery APEX-6.5K Off-Grid Inverter Specifications

Inverter output

Specification	Details
Rated Output Power	6,500W
Surge Capacity (Peak Power)	13,000W
Rated Output Voltage	120/240 Vac (single-phase/split-phase)
Load capacity of Motors	4 HP
Rated Frequency	50/60Hz
Output Wave	Pure sine wave
Switching Time	10ms(typical value)

Battery

Specification	Details
Battery Type	Lithium-ion battery/lead-acid battery/user-defined battery
Rated Battery Voltage	48V
Voltage Range	40~60Vdc
Max. Solar Charging Current	140A
Max. Grid/Generator Charging Current	80A
Max. Hybrid Charge Current	140A

Solar Input

Specification	Details
No. Of MPPT	1+1
Max. Input Power	5,000W + 5,000W
Max. Input Current	18A + 18A
Max. Open Circuit Voltage	550Vdc+550Vdc
MPPT Voltage Range	125~450Vdc

Grid/Generator Input

Specification	Details
Input Voltage Range	65~140Vac
Input Frequency Range	50/60Hz
Bypass Overload Current	40A
A/C Inputs	2 Inputs - Grid & Generator
THD (V)	<5%

Efficiency

Specification	Details
Max. Efficiency	99.9%
MPPT Tracking Efficiency	93%
Parallel Capacity	Up to 6 Units (More than 3 units in parallel can form a three-phase output)

General Data

Specification	Details
Dimension	25.51 x 16.14 x 5.51 Inches
Weight	48 lbs
Protection Degree	IP20 Indoor Only
Temperature	14 - 131°F, >113°F Derate
External Module (Optional)	Wi-Fi/GPRS
Certificate	UL1741/RoHs/EN61000-6-1/EC61000-6-3/FCC Part15 ClassB/IEC62109-1/IEC62109-2
Noise	<60dB
Cooling Method	Intelligent fan
Warranty	5 years
Communication Integrated Circuit Breaker	RS485/CAN/USB/Dry Contact Utility/Load/Battery/PV

Frequently-Asked Questions

Can this inverter work with both solar and a generator?

Yes. The APEX-6.5K supports both solar input and generator input, allowing flexible energy management.

What type of output does it provide?

It produces pure sine wave output, ensuring safe operation for sensitive electronics and appliances.

Is it suitable for whole-home off-grid systems?

Yes. With split-phase 120/240V output and 6.5kW capacity, it can support many residential off-grid power systems.

Is installation complicated?

The inverter features installer-friendly bottom wiring access, simplifying setup for professional installers.
