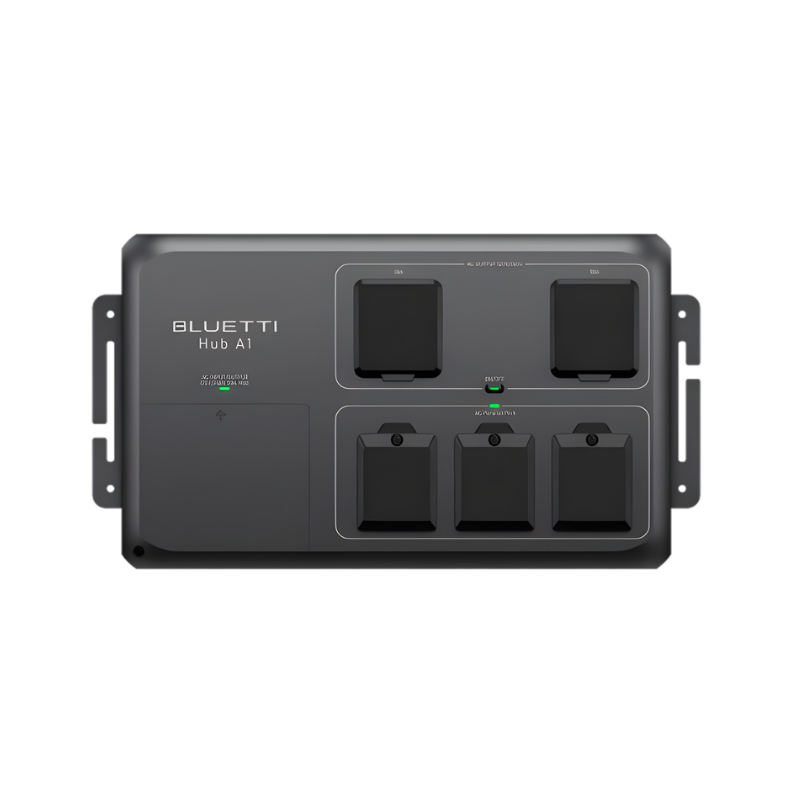

BLUETTI Hub A1

The BLUETTI Hub A1 & 3 x Parallel Connection Cable is designed to expand your BLUETTI Apex 300 power system into a high-output, scalable energy solution. With plug-and-play parallel connectivity, this kit allows you to link up to three Apex 300 units together for significantly increased output and synchronized charging. Ideal for home backup, off-grid systems, and heavy-load applications, the Hub A1 ensures seamless integration and reliable performance.

BLUETTI Hub A1 Features

Massive Power Expansion - Connect up to 3 Apex 300 units for a combined output of up to 11.5kW, delivering serious power for demanding applications.

Plug-and-Play Parallel Connection - Simple, secure connection system for fast installation with no complicated wiring or configuration required.

Simultaneous Charging - All connected units charge together, maintaining balanced performance and optimized battery management.

Multiple Output Options (30A / 50A) - Flexible output configurations support a wide range of home backup, RV, and high-load equipment.

Engineered for Stability & Safety - Designed specifically for BLUETTI systems to ensure safe, synchronized power delivery and system protection.

Placeholder Image

BLUETTI Hub A1 Applications

  • Parallel Power Station Systems – Connect up to 3 Apex 300 units for expanded output capacity
  • Home Backup Expansion – Scale power for essential circuits and large appliances
  • Off-Grid Energy Setups – Build modular systems for cabins and remote homes
  • RV & Mobile Power Configurations – Support 30A/50A service for high-demand travel needs
  • Emergency Power Solutions – Increase available output during outages
  • Worksite & Event Use – Deliver higher wattage for tools and temporary installations
Placeholder Image

What's Included

Everything you need is included with your product.

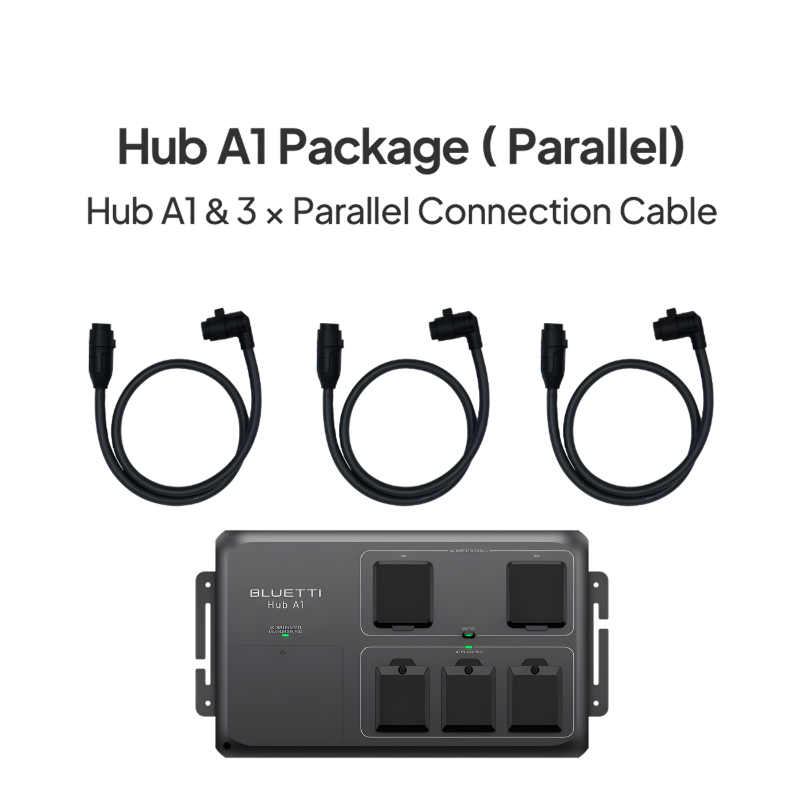

  • BLUETTI Hub A1
  • Parallel Connection Cables
  • User Manual

BLUETTI Hub A1 Specifications

Specification Details
Weight Approx. 7.72 lbs (3.5 kg)
Dimensions (L × W × H) 17.15 × 9.84 × 3 in (453.6 × 250 × 76 mm)
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Operating Humidity 10% to 90%
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Storage Humidity 0% to 90%
Noise Level 40 dB Max.
Operating Altitude <6,561.68 ft (2,000 m)

AC Input/Output

Specification Details
Input Voltage 120 VAC/240 VAC
Input Current 50 A Max.
Input Frequency 60 Hz
Input Power 6 kW (120 V)/12 kW (240 V)

AC Parallel Port

Specification Details
Input Voltage 120V/240V
Input Current 50A Max
Input Frequency 60Hz
Intergace P050A

Output

Specification Details
Output Voltage 120 VAC/240 VAC
Output Frequency 60 Hz
Interfaces & Output Current 1* NEMA L14-30R: 30A Max. | 1* NEMA 14-50R: 50A Max. |

Note:

• The charging and discharging status can be monitored on the Apex 300's display when it's charging or powering a load via the Hub A1.

• The Hub A1 supports a single-phase 120VAC input on the L1 connector. Any other connection will trigger a phase loss error.

Frequently-Asked Questions

What systems is the Hub A1 compatible with?

The Hub A1 is designed specifically for the BLUETTI Apex 300 system.

How many Apex 300 units can I connect?

You can connect up to three Apex 300 units for expanded power output.

Does this allow simultaneous charging?

Yes. All connected units charge together for synchronized performance.

Is professional installation required?

No. The system is designed for plug-and-play installation, though professional installation is recommended for whole-home applications.

What output options are supported?

The Hub A1 supports both 30A and 50A output configurations depending on your setup.
