BLUETTI RV5 Whole House Smart 5 kWh

Name: BLUETTI RV5 Whole House Smart 5 kWh
Brand: Bluetti
SKU: RV5+B4810+Epanel+Epad
Price: 3899.0 USD
Availability: InStock

BY: Bluetti

SKU: RV5+B4810+Epanel+Epad

| Availability: In stock

$5,599.00

$3,899.00

You Save: $1,700.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Bluetti Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

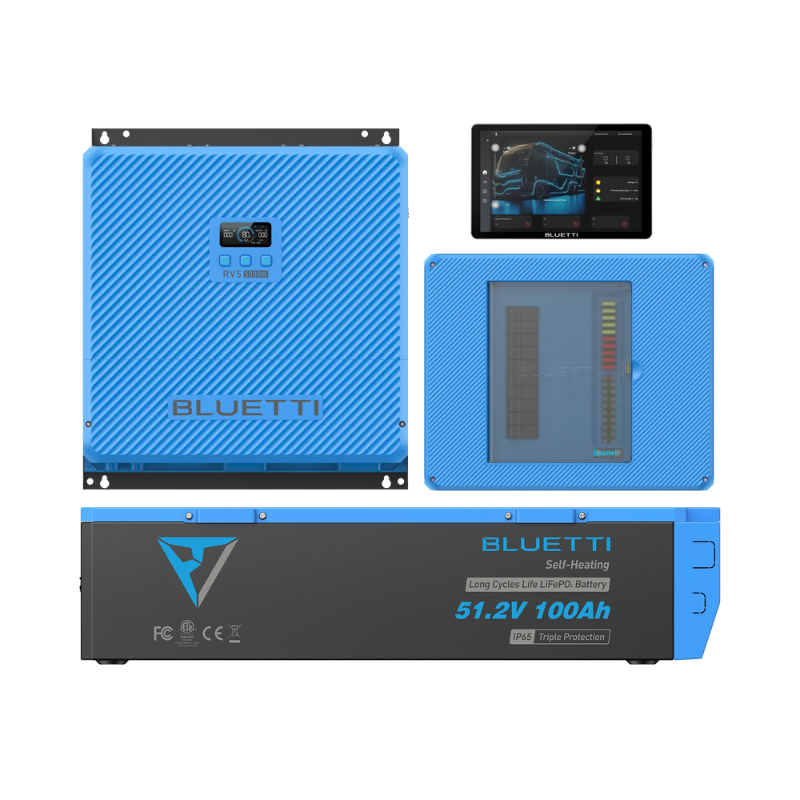

BLUETTI RV5 Whole House Smart 5 kWh

The BLUETTI RV5 Whole House Smart 5 kWh package is a complete intelligent energy storage and home backup solution designed for advanced power independence. Combining the RV5 Power Hub, high-capacity lithium battery storage, smart distribution through the Epanel, and centralized monitoring via the Epad control screen, this system delivers seamless whole-home backup capability and optimized energy management. With approximately 5 kWh of storage, it provides reliable power for essential circuits, solar integration, and emergency preparedness.

BLUETTI RV5 Whole House Smart 5 kWh Features

Complete Smart Whole-Home Backup System - All-in-one package combining energy storage, distribution, and monitoring for advanced home power control.

5 kWh Class Lithium Energy Storage

High-capacity LiFePO₄ battery module provides dependable backup power for essential household loads.

Epanel Smart Distribution Integration - Manages and prioritizes critical circuits, ensuring efficient power delivery during outages.

Epad Central Control Screen Monitoring - Real-time system visibility and control through an intuitive centralized touchscreen interface.

RV5 Power Hub Energy Management - Streamlined charging, energy flow, and power distribution for solar + storage operation.

Scalable and Future-Ready Design - Expandable system architecture allows for additional storage and upgrades as needs grow.

BLUETTI RV5 Whole House Smart 5 kWh Applications

• Whole-Home Backup Power – Keep critical circuits running during outages

• Solar + Battery Storage Systems – Intelligent renewable energy integration

• Energy Independence Solutions – Reduce reliance on the grid with stored power

• Emergency Preparedness – Reliable backup for essential appliances and devices

• Advanced Home Power Management – Centralized monitoring and smart load control

What's Included

Everything you need is included with your product.

BLUETTI RV5 Power Hub
BLUETTI B4810 LiFePO₄ Battery
BLUETTI Epanel Smart Distribution Panel

BLUETTI Epad Central Control Screen
Required connection cables and accessories
User manuals

BLUETTI RV5 Whole House Smart 5 kWh Specifications

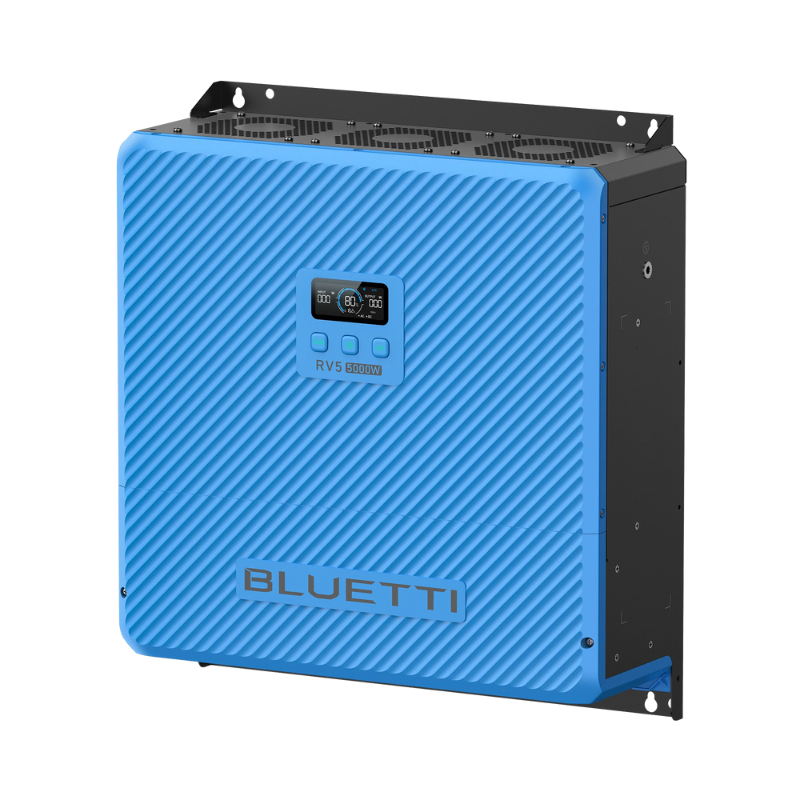

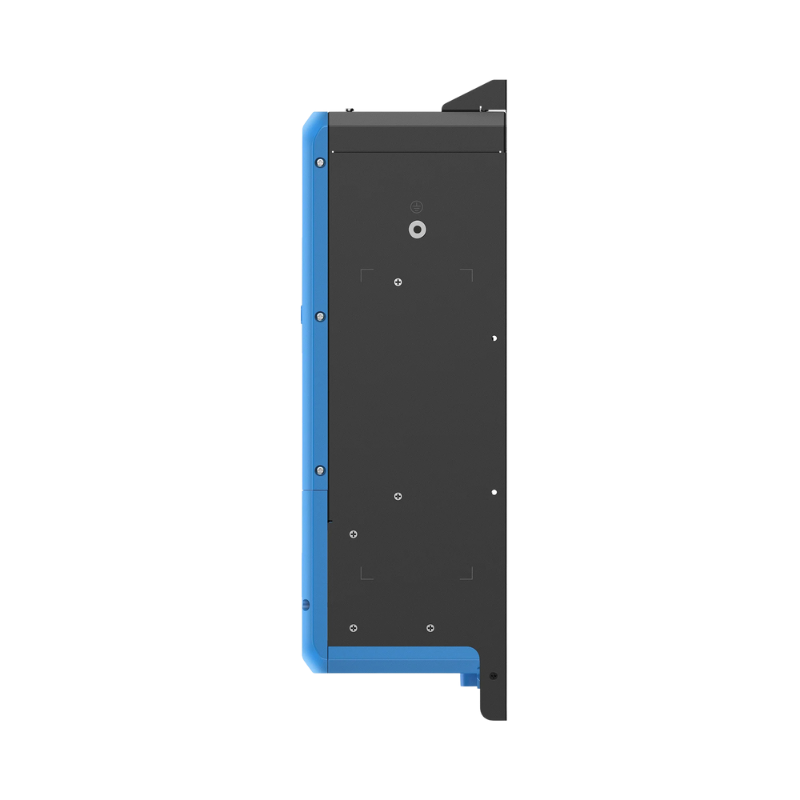

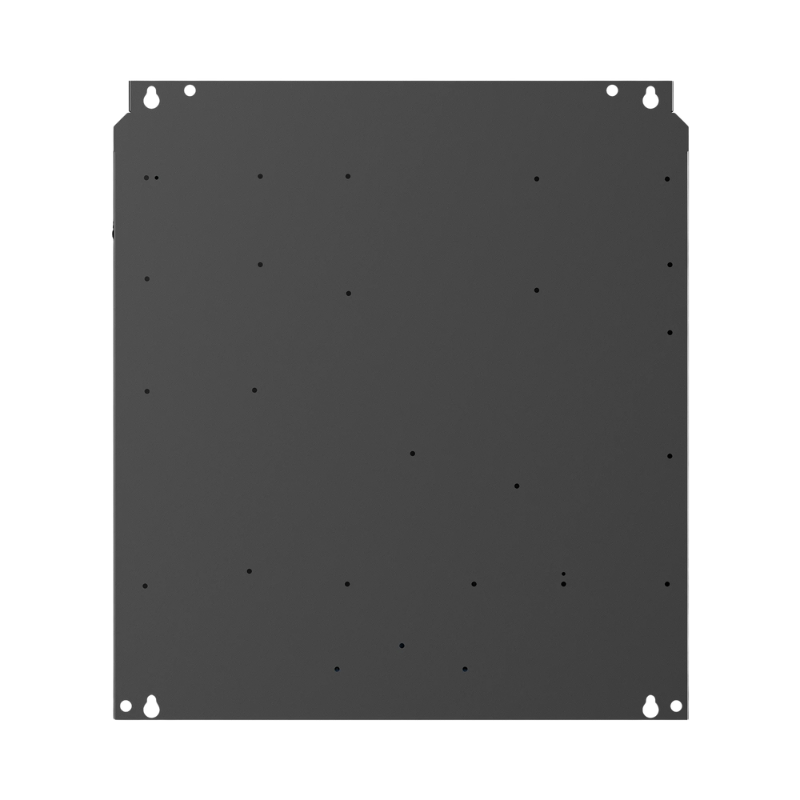

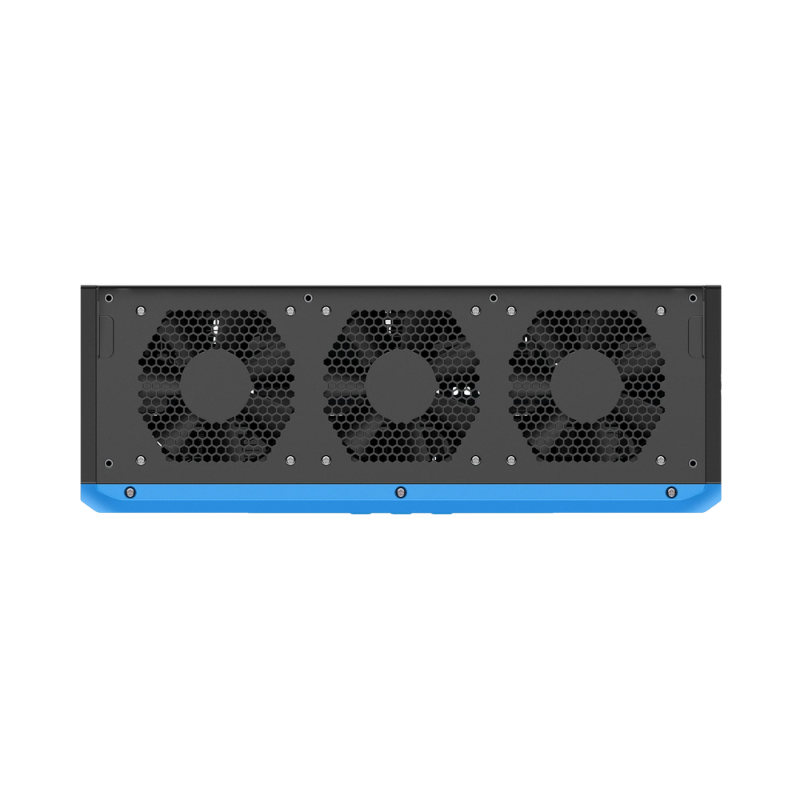

BLUETTI RV5 Power Hub

AC Input

Specifications	Details
Rated Input Voltage	Standard AC Input (N/L1/G) - 120 V \| EV Input (L1/L2/G) - 208V
Charging Power	5,000W Max. (limited by the battery terminal's maximum current)
UPS	Switchover time ≤20ms

AC Output

Specifications	Details
Rated Output Voltage	120V
Rated Output Power	5,000W
Rated Output Current	42A

Solar Charging(PV1/PV2)

Specifications	Details
Max. Input Power	1,800W
Max. Input Current	50A
Input Voltage	12V to 50V

Vehicle Charging(PV2)

Specifications	Details
Max. Input Power	600W (12V) / 1,200W (24V)
Max. Input Current	50A
Input Voltage	12V to 14.4V (12V battery) \| 24V to 28.8V (24V battery)

DC Output

Specifications	Details
Rated Output Voltage	12V/24V
Rated Output Power	1,360W (12V) \| 1,620W (24V)
AC+DC Input Power	6,000W Max.
Rated Output Current	100A (12V) \| 60A (24V)
Total Load Power	6,000W Max. (varies based on battery type and quantity)

General

Specifications	Details
Weight Approx.	30.86lbs (14kg)
Operating Temperature	-4°F to 131°F (-20°C to 55°C)
Operating Humidity	95% Max.
Dimensions	17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm)
Storage Temperature	-4°F to 104°F (-20°C to 70°C)
Certification	UL458
Warranty	5Y

BLUETTI B4810 LiFePO4 Battery Unit

BATTERY INFO

Specifications	Details
Model	B4810
Battery Capacity	5,120Wh (51.2V, 100Ah)
Battery Type	LiFePO₄ (Lithium Iron Phosphate)
Cycle Life	6,000 cycles @ 70% capacity

Charging & Discharging

Specifications	Details
Charge Current	50A (Recommended) \| 100 A Max.
Discharge Current	100A Max.
Peak Discharge Current	200A @ 30 s
Cell Temperature Protection	Charging: <-1°C or >61°C (<30°F or >142°F), \| Discharging: <-21°C or >61°C (<-5.8°F or >142°F),

GENERAL

Specifications	Details
Weight	Approx. 101.4lbs (46kg)
IP Rating	IP65
Operating Temperature	Charging: -20°C to 55°C (-4°F to 131°F) \| Discharging: -20°C to 55°C (-4°F to 131°F)
Storage Temperature	Up to 1 month: -20°C to 40°C (-4°F to 104°F) \| Up to 6 months: -20°C to 25°C (-4°F to 77°F)
Dimensions (L × W × H)	23.94 × 14.96 × 5.71in (608 × 380 × 145mm)
Max. Expansion (Parallel & Series)	122.88kWh (24P) 51.2V, 2,400Ah
Certifications	MSDS, UN38.3, FCC, CE, RoHS, UL
Warranty	5 Years

BLUETTI Epanel Smart Distribution Panel

AC Input

Specifications	Details
Rated Input Voltage	120 V/240 V
Max. Input Current	50 A
Input Frequency	60 Hz ± 3 Hz
No. of Input Ports	2
Neutral & Ground Wiring Range	16 AWG to 6 AWG

AC Output

Specifications	Details
Rated Output Voltage	120 V
Max. Output Current per Circuit	30 A
No. of Output Ports	8 (4 smart outlets with internal switches and power metering; 4 standard outlets)

DC Input

Specifications	Details
Input Voltage	10 V to 30 V
Max. Input Current	100 A
No. of Input Ports	1
Input Port Wiring Range	20 AWG to 2 AWG
Input Fuse Type	Bolt-on

DC Output

Specifications	Details
Rated Output Voltage	10 V to 30 V
Max. Output Current per Circuit	20 A
No. of Output Ports	20 (6 smart outlets with internal switches and power metering; 14 standard outlets)
Output Port Wiring Range	30 AWG to 10 AWG
Output Fuse Type	Blade
No. of Output Fuses	20 (one fuse per output circuit)
Fuse Indicators Color	Red

General

Specifications	Details
Weight	Approx. 7.7 lbs (3.5 kg)
Dimensions	17 × 13.89 × 4.12 in (431.8 × 352.9 × 104.6 mm)
Operating Temperature	-4°F to 113°F (-20°C to 45°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Max. Operating Humidity	90%
IP Rating	IP20
Operating Altitude	6,561.68 ft (2,000 m)

BLUETTI Epad Central Control Screen Specifications

Specifications	Details
Model	Epad
Weight	Approx. 0.67 kg/1.48 lbs (without brackets)
Dimensions (L × W × H)	247 × 158 × 34.2 mm/9.72 × 6.22 × 1.35 in (without brackets)
Operating Temperature	-10°C to 55°C/14°F to 131°F
Storage Temperature	-20°C to 55°C/-4°F to 131°F
Protection Rating	IP20
Power Consumption	Approx. 6 W (screen on) / 2.5 W (screen off)
USB-C Input	4.5 V to 5.5 VDC, 3 A Max.

Connectivity

Specifications	Details
CAN Port × 2	Non-isolated RJ45, for RV5 or Epanel
Ethernet	10/100 Mbps, auto-negotiation
Wi-Fi (Built-in Antenna) Frequency	2,412 MHz to 2,472 MHz
Transmit Power	20 dBm Max.
Modulation	DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Bluetooth 5.2 (Built-in Antenna) Frequency	2,402 MHz to 2,480 MHz
Transmit Power	10 dBm Max.
Modulation	GFSK
microSD Slot	Supports SDHC cards (32 GB Max.)
USB-A × 2	5 V/1.5 A total, supports up to 32 GB USB flash drives per port

External Devices

Specifications	Details
Temperature Sensor Range	-20°C to 70°C (±2°C)/-4°F to 158°F (±3.6°F)
Liquid Level Sensor	Range: 0% to 100% (±2%); Supported Resistance: EU: 0–180 Ω \| US: 240–30 Ω
No. of Digital Inputs	2
Dry Contacts Outputs	2 relays (NO, COM, NC); Load Capacity: 30 V DC/3 A \| 125 V AC/3 A

Display

Specifications	Details
Type	Color LCD
Size	10.1"
Resolution	1280 × 800
Touchscreen	Capacitive

Other Features

Specifications	Details
Temperature Measurement	-20°C to 70°C (±2°C)/-4°F to 158°F (±3.6°F)
Humidity Measurement	0% to 100% (±2%)
Buzzer	Built-in
RTC (Real-Time Clock)	Built-in
Ambient Light Sensor	Built-in for auto screen brightness adjustment

Frequently-Asked Questions

What makes this a “Whole House Smart” package?

This package includes smart distribution (Epanel) and centralized monitoring (Epad), allowing intelligent circuit-level backup and full system control.

What can the 5 kWh system power?

It can support essential household loads such as refrigeration, lighting, internet equipment, medical devices, and other critical circuits depending on usage.

Does this system work with solar panels?

Yes. The RV5 system is designed for solar + battery integration, allowing renewable energy storage and backup.

Is professional installation required?

Yes. Because the system connects to home electrical circuits and distribution panels, installation by a qualified electrician is strongly recommended.
