BougeRV 30A Solar Fuse Holder

SKU ISE081
$17.99

⭐ Authorized BougeRV Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

BougeRV 30A Solar Fuse Holder Overview

Protect your solar system with BougeRV's 30 Amp Waterproof In-Line Fuse. This reliable and waterproof fuse provides overcurrent protection for your solar panels, ensuring their safety and preventing damage. Easy to install and suitable for various solar applications, this fuse is a must-have for your solar setup. Shop now for peace of mind and worry-free solar power generation.

BougeRV 30A Solar Fuse Holder Features

Photovoltaic Fuse

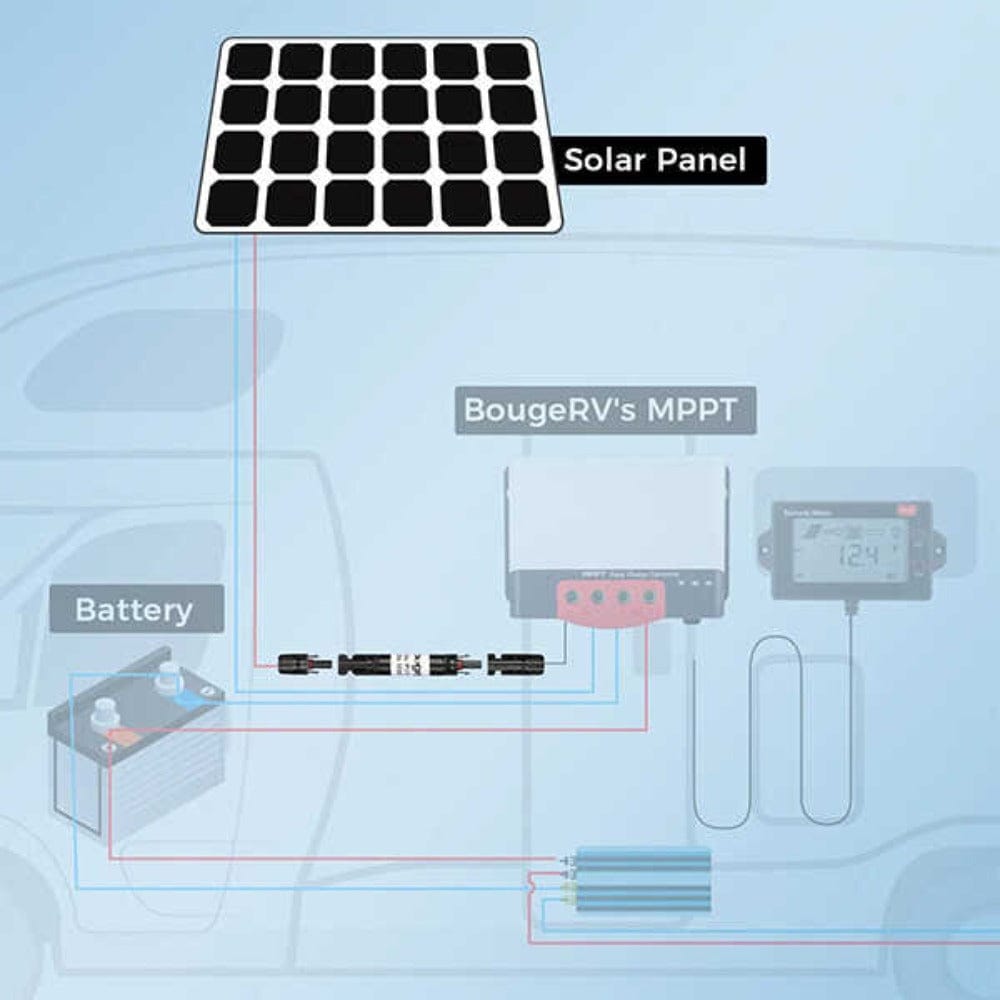

This solar fuse is a great added protection for your solar panel, solar controller, and other appliances of your photovoltaic system. It will quickly interrupt the circuit once the fuse's rated amperage is exceeded, which can avoid damage to the photovoltaic appliances.

Easy Installation and Stability

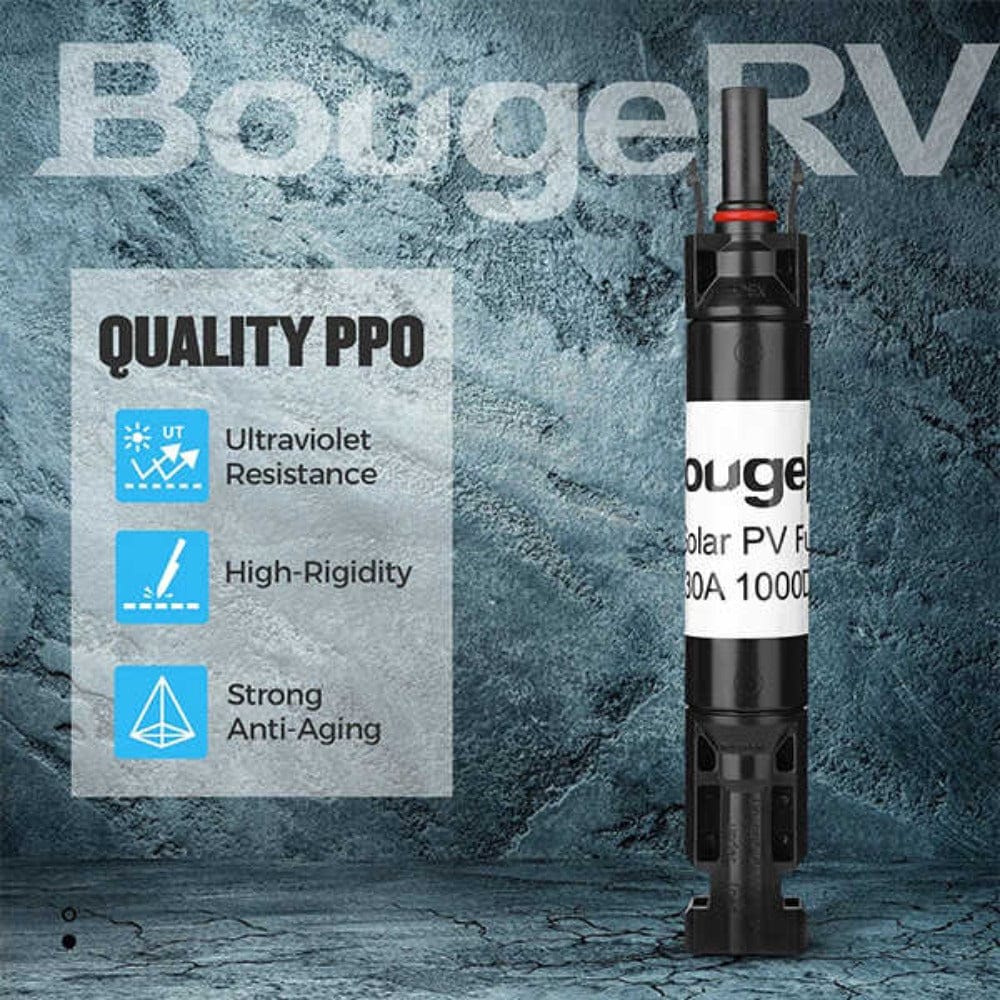

Suitable for most solar connectors, plug, and play. With the built-in lock on the male connector, this solar inline fuse connector can keep stable work outdoors. Made with quality PPO, this solar fuse connector is resistant to UV and aging.

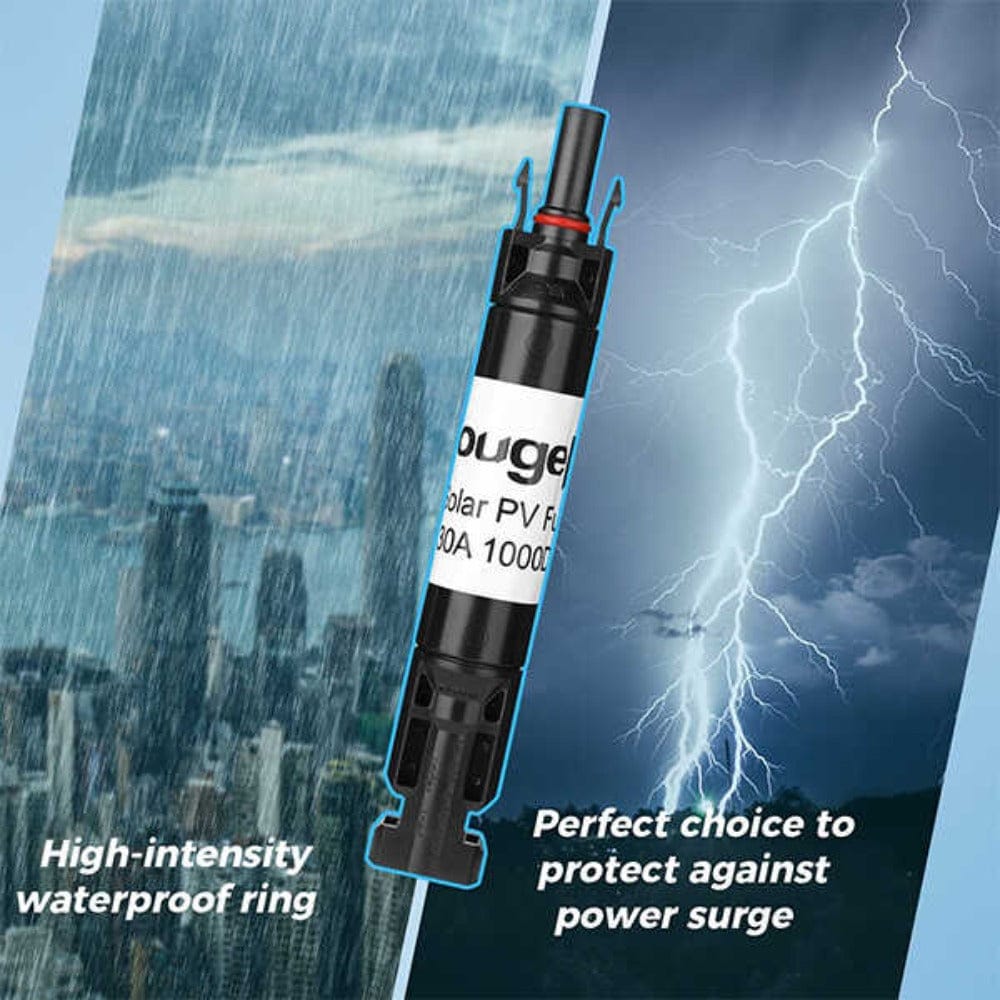

Waterproof

With an IP67 protection degree waterproof ring on the male connector, this solar fuse connector can keep you worry-free for rainy days.

Dedicated PV Fuse

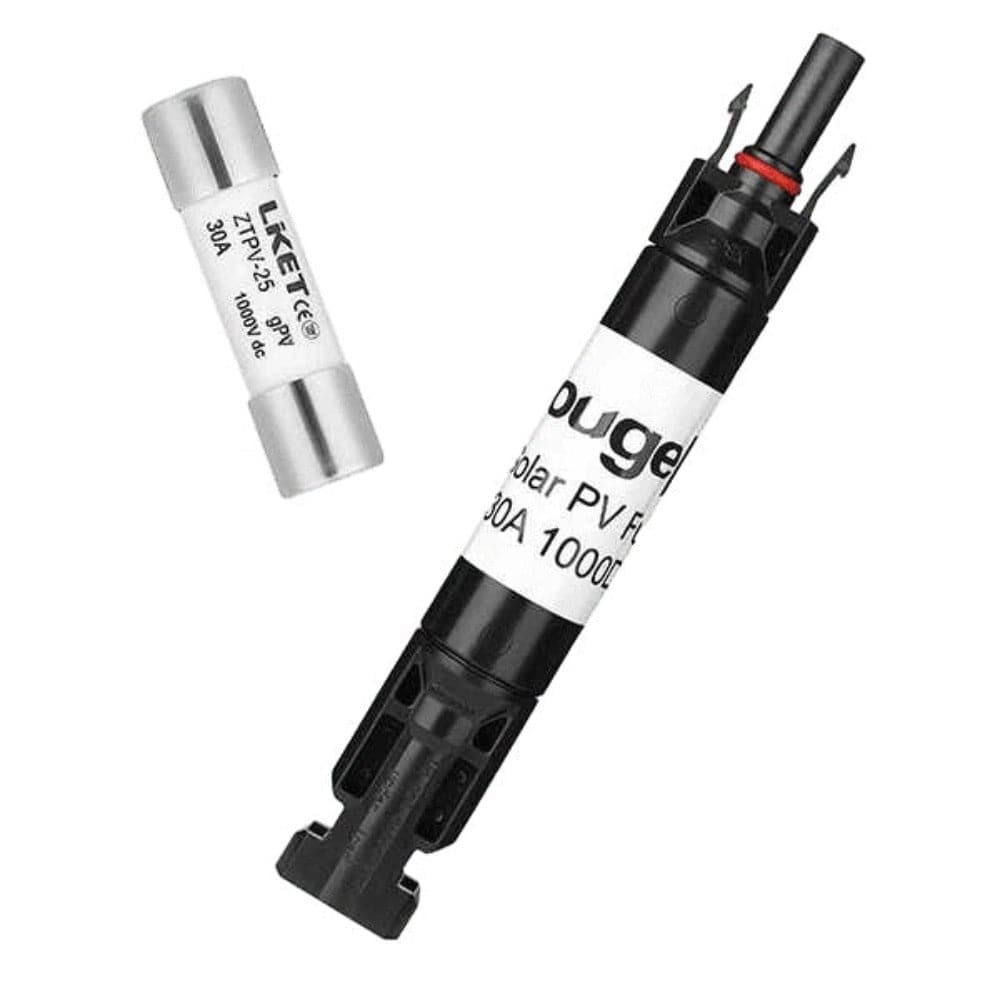

Certified by TÜV and CE, this solar fuse connector is a great choice to protect against a power surge. With the solar connector on two ends, there is the ceramic fuse tube in the middle, it is suitable for solar panels, solar cables, and solar controllers.

ELIMINATE ARC FAULT

Thanks to its ceramic tube filled with fine quartz sand, this product can quickly and effectively cut the circuit in the event of a power surge, eliminating any potential for arc faults.

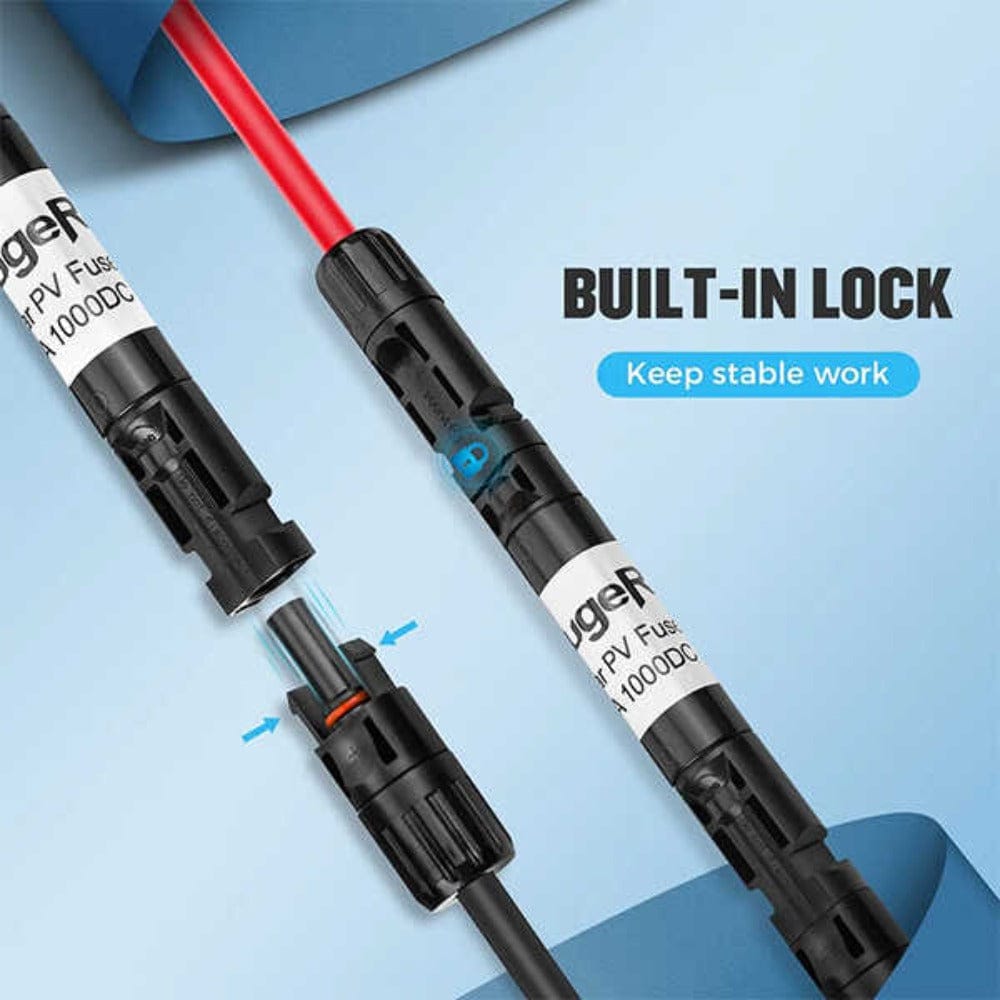

KEEP STABLE WORKING

Featuring a built-in lock on the male connector, this solar fuse is specifically designed to maintain stable operation outdoors 24/7, ensuring reliable performance day or night.

BougeRV 30A Solar Fuse Holder Specification

  • Dimension: 5.1 × 0.71 × 0.71 inch
  • Weight: 45g/1.59oz
  • Ambient temperature range: -40℉ to 194 ℉(IEC)

  • Degree of protection: IP67
  • Contact material: Copper tin-plated
  • Insulation material: PPO
  • Locking system plug connectors: Snap-in
  • Flame class: UL94-HB / UL94-V0
  • Rated voltage: 1000V DC (IEC)/800V DC (UL)
  • Rated current: 30A
  • The contact resistance of plug connectors: 0,5 mΩ
  • Cable Size: 2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)

What's in The Box

  • BougeRV 30A Solar Fuse Holder
