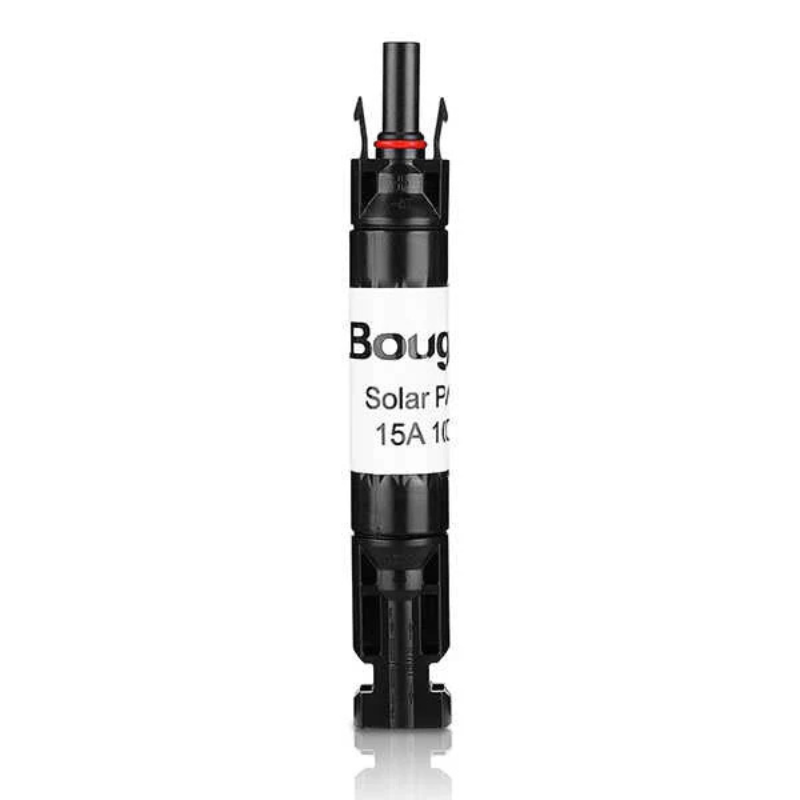

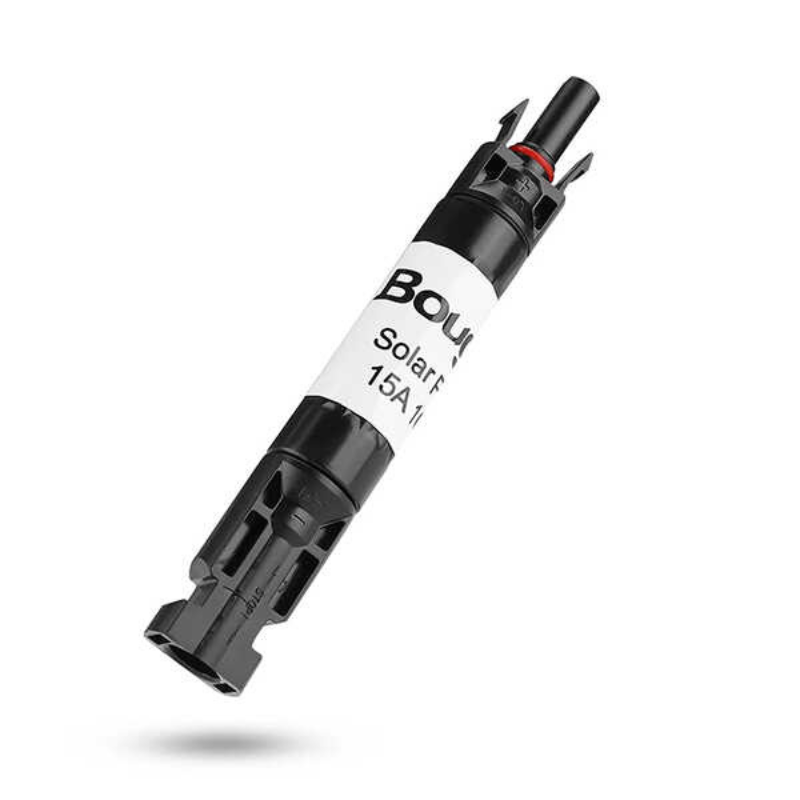

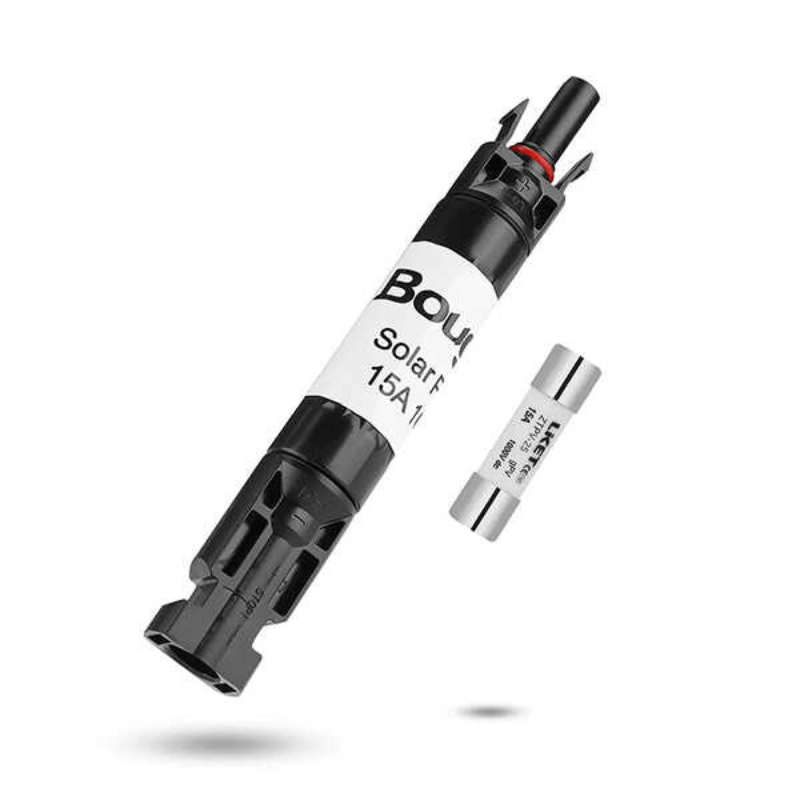

BougeRV 5 PCS 15A Solar Fuse Holder

BougeRV 5 PCS 15A Solar Fuse Holder

BY: BougeRV | SKU: ISE082 Availability: In Stock
$39.99

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized BougeRV Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

BougeRV 5 PCS 15A Solar Fuse Holder

The BougeRV 5 PCS 15A Solar Fuse Holder set provides reliable overcurrent protection for DC solar power systems in a compact, weather-resistant design. Each fuse holder is engineered with IP67 protection, copper tin-plated contacts, and a secure snap-in locking system, ensuring safe and stable electrical connections in demanding outdoor environments. Rated for 1000V DC and 15A, this 5-pack is ideal for expanding or maintaining RV, marine, and off-grid solar installations.

BougeRV 5 PCS 15A Solar Fuse Holder Features

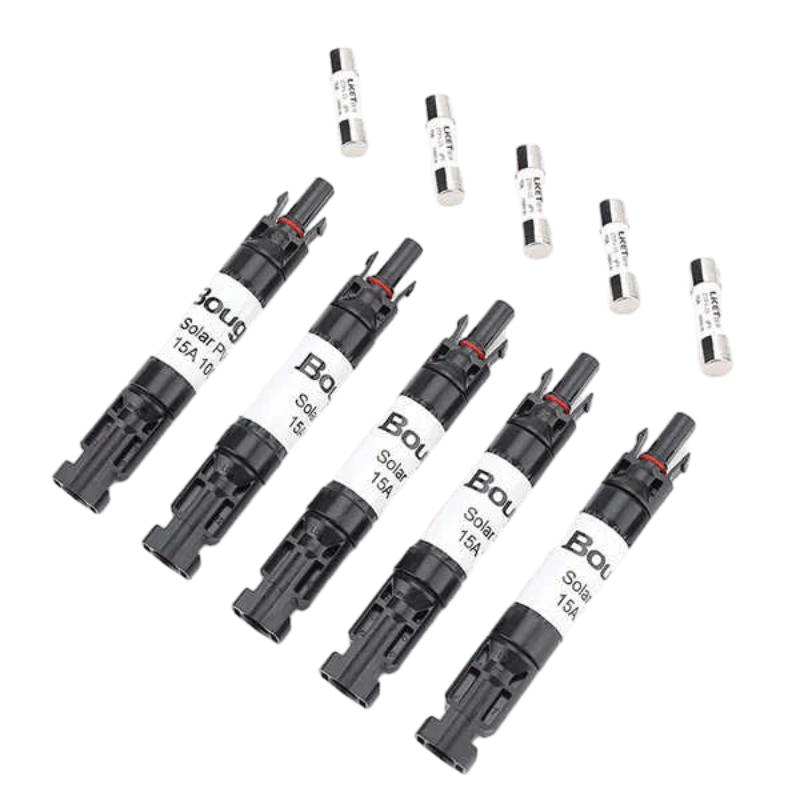

5-Pack for Solar System Expansion - Includes five 15A fuse holders, perfect for multi-panel arrays, replacements, or spare protection components.

High-Voltage DC Rating - Rated for 1000V DC (IEC) / 800V DC (UL), suitable for modern high-voltage solar systems.

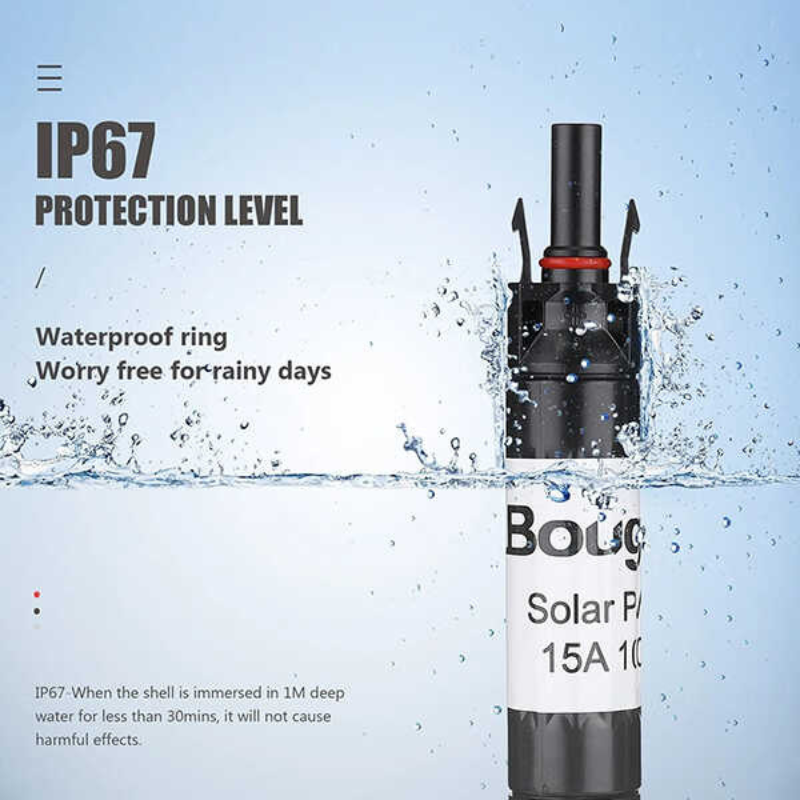

IP67 Weatherproof Protection - Built with an IP67 rating to resist dust ingress and temporary water immersion for outdoor use.

Copper Tin-Plated Contacts - Ensures low contact resistance (0.5 mΩ), excellent conductivity, and corrosion resistance.

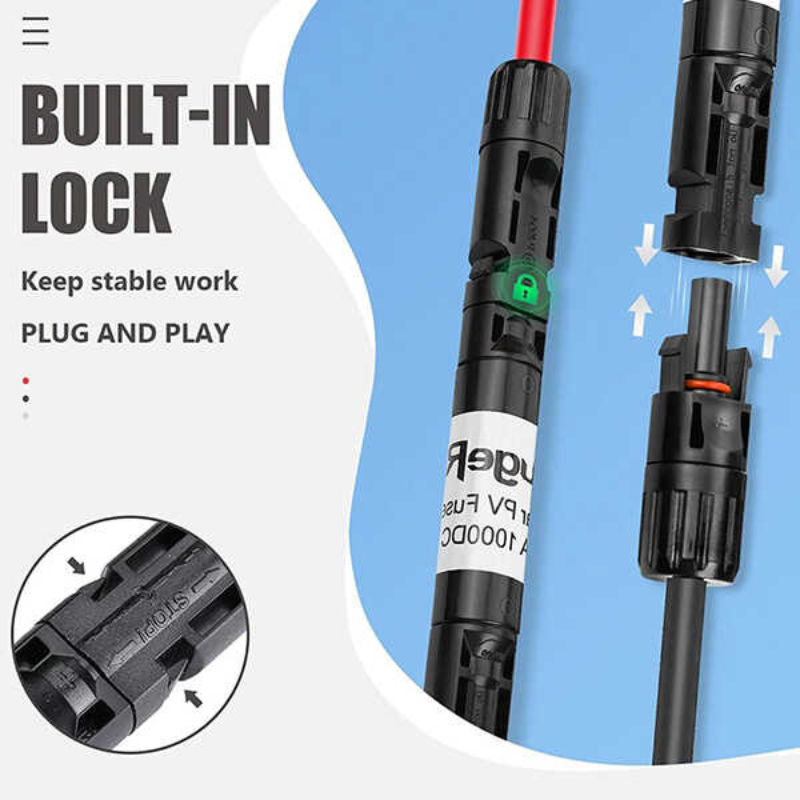

Secure Snap-In Locking Design - The snap-in plug connector system provides a firm, vibration-resistant connection.

Wide Temperature Tolerance - Operates reliably from -40°F to 194°F (IEC) in extreme environmental conditions.

Placeholder Image

BougeRV 5 PCS 15A Solar Fuse Holder Applications

  • Solar panel array protection – Overcurrent and short-circuit safety
  • RV & camper solar systems – Compact inline DC protection
  • Marine solar installations – Corrosion-resistant design
  • Off-grid power systems – High-voltage DC compatibility
  • Portable solar kits – Lightweight and easy to install
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • 5 x BougeRV 15A Solar Fuse Holder
  • 1× User Manual

Warranty

  • 2-Year Manufacturer Warranty

BougeRV 15A Solar Fuse Holder Specifications

Category Specifications
SKU ISE082
Dimension 5.1 × 0.71 × 0.71 inch
Contact material Copper tin-plated
Weight 45g/1.59oz
Insulation material PPO
Ambient temperature range -40℉ to 194 ℉(IEC)
Locking system plug connectors Snap-in
Degree of protection IP67
Flame class UL94-HB / UL94-V0
Rated voltage 1000V DC (IEC)/800V DC (UL)
Rated current 15A
Cable Size 2.5 mm², 4 mm², 6 mm²(10awg, 11awg, 12awg, 13awg)
The contact resistance of plug connectors 0,5 mΩ

Frequently-Asked Questions

Why would I need a 5-pack of solar fuse holders?

A 5-pack is ideal for multi-panel solar arrays, system expansions, or keeping spares on hand for maintenance.

Are these fuse holders suitable for outdoor use?

Yes. Each unit features an IP67 waterproof and dustproof rating.

What cable sizes are supported?

They are compatible with 2.5 mm², 4 mm², and 6 mm² solar cables (10–13 AWG).

Can these be used in high-voltage solar systems?

Yes. They are rated up to 1000V DC (IEC).
