BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel

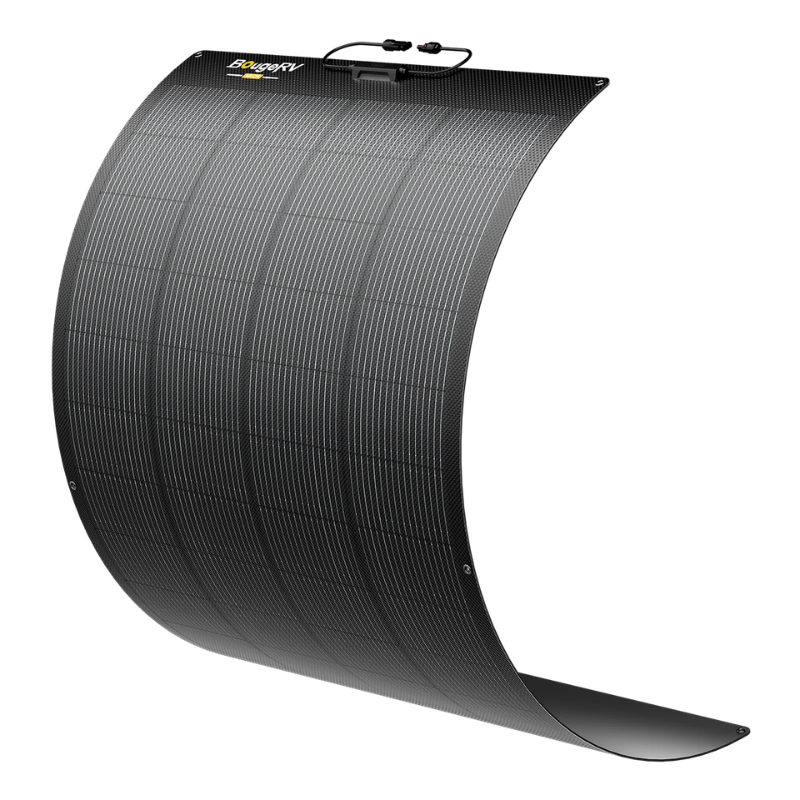

The BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel is a curved solar panel designed for lightweight and flexible solar charging applications. It provides 100W max power output, 25% solar cell efficiency, and an upgraded fiberglass design that is suitable for curved or uneven surfaces. With a slim profile, lightweight build, and wide operating temperature range, this panel is ideal for RVs, vans, boats, cabins, and other off-grid solar setups.
BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel Features
100W Max Power Output - Provides 100W ±5W maximum power output for compatible solar charging systems.

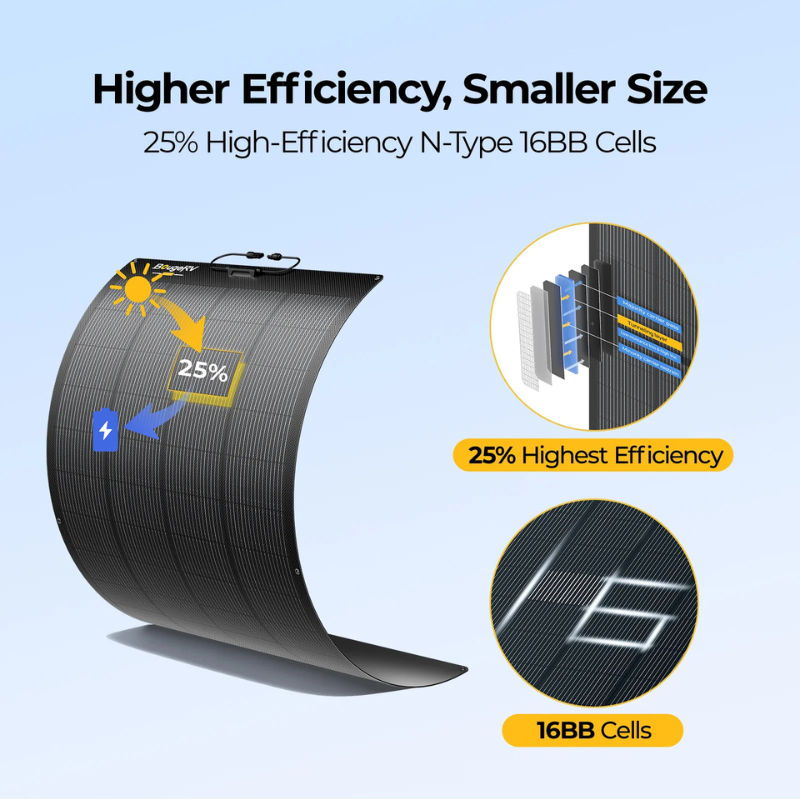

25% Solar Cell Efficiency - Built with 25% solar cell efficiency to help improve solar energy conversion in a compact flexible panel design.
Flexible Curved Solar Panel Design - Designed as a curved solar panel, making it suitable for curved surfaces where rigid panels may not fit as easily.
Lightweight Build - Weighs only 5.14 lbs, making it easier to install, move, and handle compared to heavier rigid solar panels.
Wide Operating Temperature Range - Designed to operate in temperatures from -40°F to 185°F.
15A Series Fuse Rating - Includes a 15A series fuse rating for compatible solar system protection.
25-Year Power Output Warranty - Includes a 25-year 80% output warranty.
5-Year Material and Workmanship Warranty - Comes with a 5-year material and workmanship warranty.

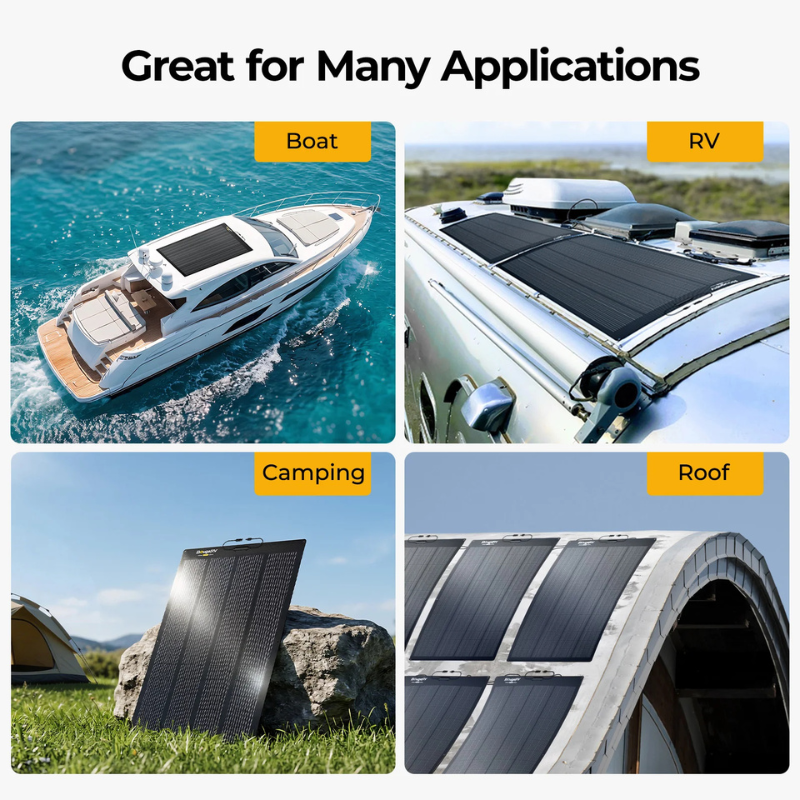

BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel Applications
-
RV Solar Charging - Suitable for adding solar power to RV roofs and curved mounting areas.
-
Van Solar Setups - Works for van builds and mobile solar systems where lightweight panels are preferred.
-
Boat Solar Applications - Flexible design makes it useful for compatible marine and boat installations.
-

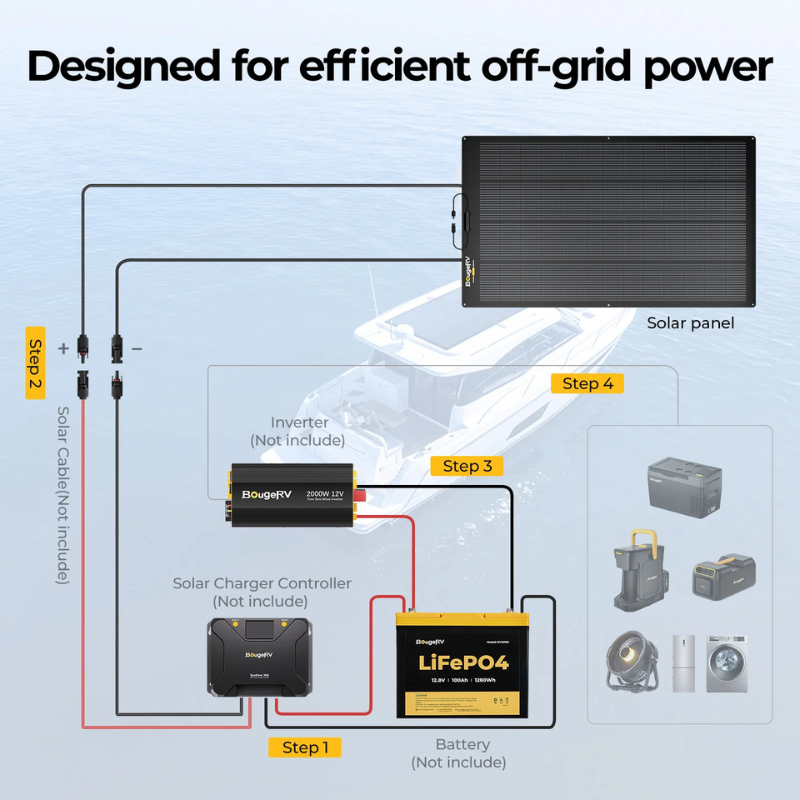

Cabin and Off-Grid Power - Can be used in small off-grid solar systems for battery charging.
-

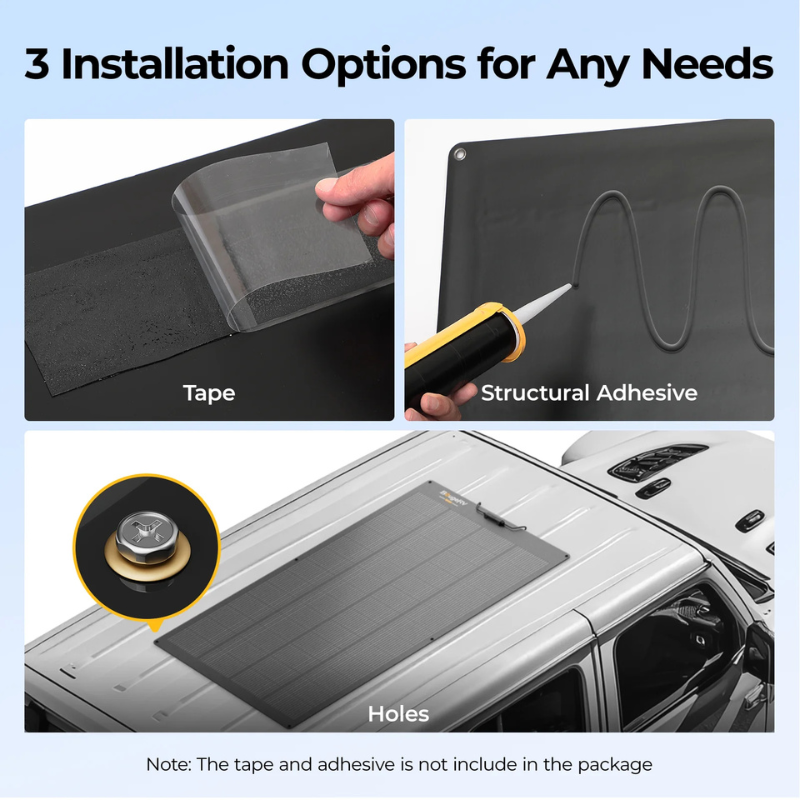

Curved Surface Installation - Designed for surfaces where a rigid solar panel may not sit properly.
-
Portable Solar Projects - Lightweight construction makes it easier to handle for portable or temporary solar setups.
What’s Included?
- BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel
- User Manual
Warranty
- 25-year 80% power output warranty
- 5-year material and workmanship warranty

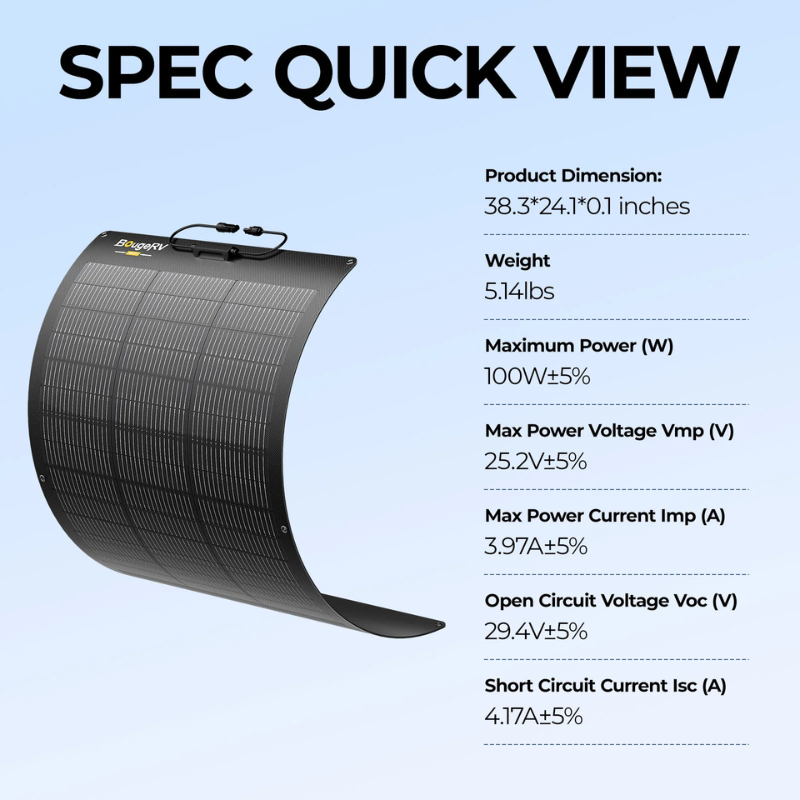

BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel Specifications
| Specification |
Details |
| SKU |
ISE214N |
| Version |
Upgrade |
| Max Power (Pmax) |
100 ±5% W |
| Solar Cells Efficiency |
25% |
| Max. Power Voltage Vmp (V) |
25.2 ±5% V |
| Max. Power Current Imp (A) |
3.97 ±5% A |
| Open Circuit Voltage Voc (V) |
29.4 ±5% V |
| Short Circuit Current (Isc) |
4.17 ±5% A |
| Operating Temperature Limits |
-40°F ~ +185°F |
| Series Fuse Rating |
15A |
| Temperature Coefficient Pmax |
-0.35%/K |
| Temperature Coefficient Voc |
-0.3%/K |
| Temperature Coefficient Isc |
+0.048%/K |

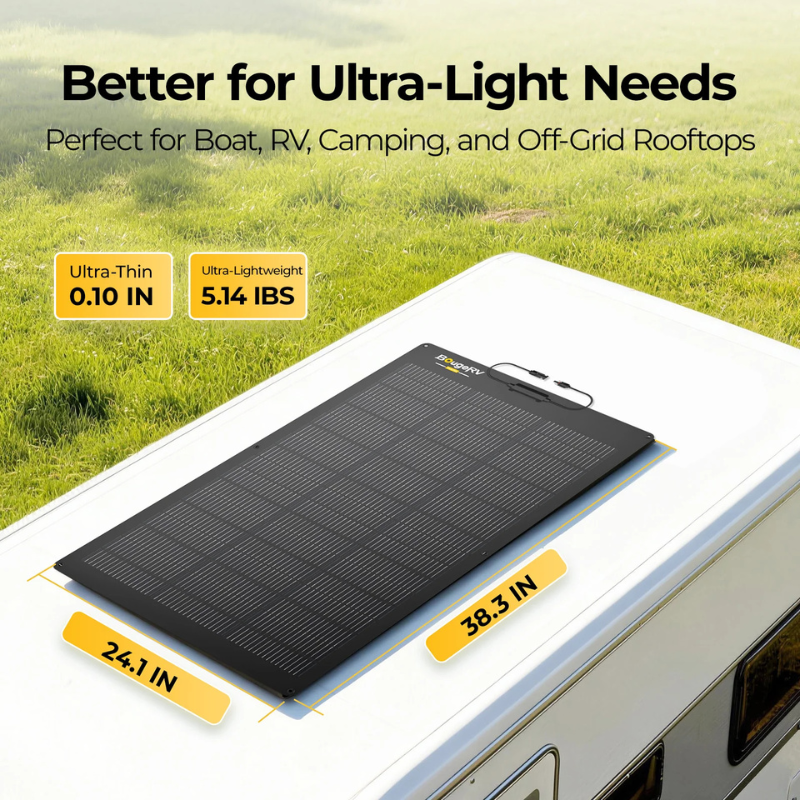

| Dimensions |
38.3 × 24.1 × 0.1 inches |
| Weight |
5.14 lbs |
| Product Type |
Curved Solar Panels |
| Power Output Warranty |
25 years, 80% output warranty |
| Material & Workmanship Warranty |
5 Years |
Frequently-Asked Questions
What is the max power output of this solar panel?
The BougeRV Arch 2.0 100W N-Type Fiberglass Flexible Solar Panel has a 100W ±5W max power output.
What is the solar cell efficiency?
The solar cell efficiency is 25%.
Is this a rigid or flexible solar panel?
This is a curved flexible solar panel, designed for installations where a rigid panel may not be ideal.
What are the dimensions of the panel?
The panel measures 38.3 x 24.1 x 0.1 inches.
How much does the panel weigh?
The panel weighs 5.14 lbs.
What is the operating temperature range?
The operating temperature range is -40°F to 185°F.
What is the series fuse rating?
The series fuse rating is 15A.
What warranty does this panel include?
It includes a 25-year 80% power output warranty and a 5-year material and workmanship warranty.
