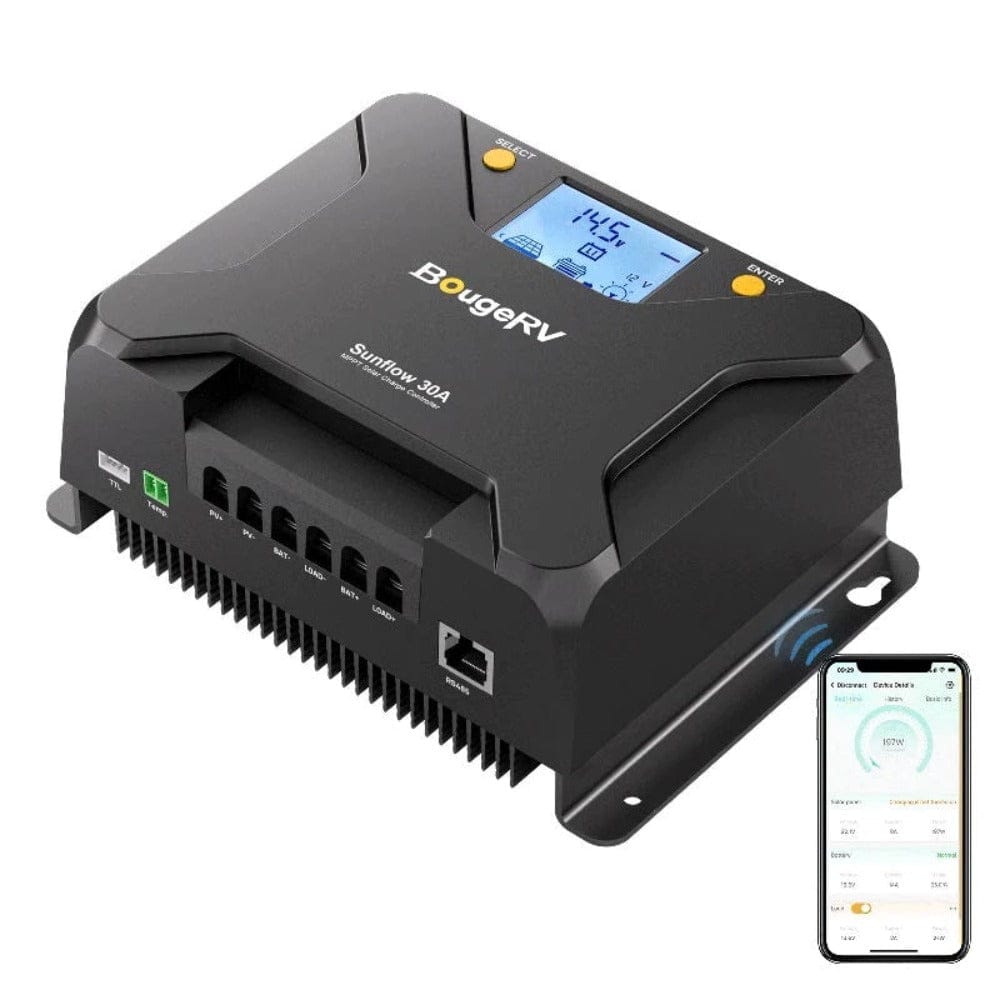

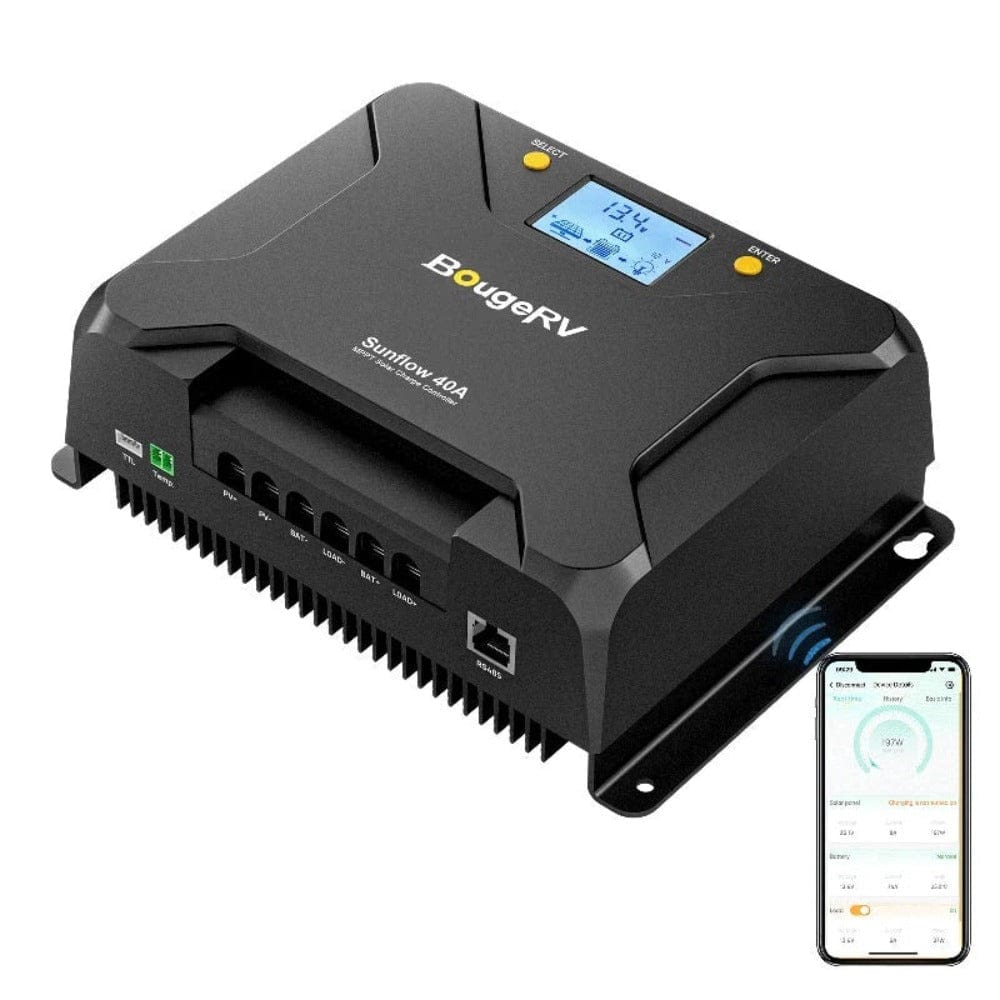

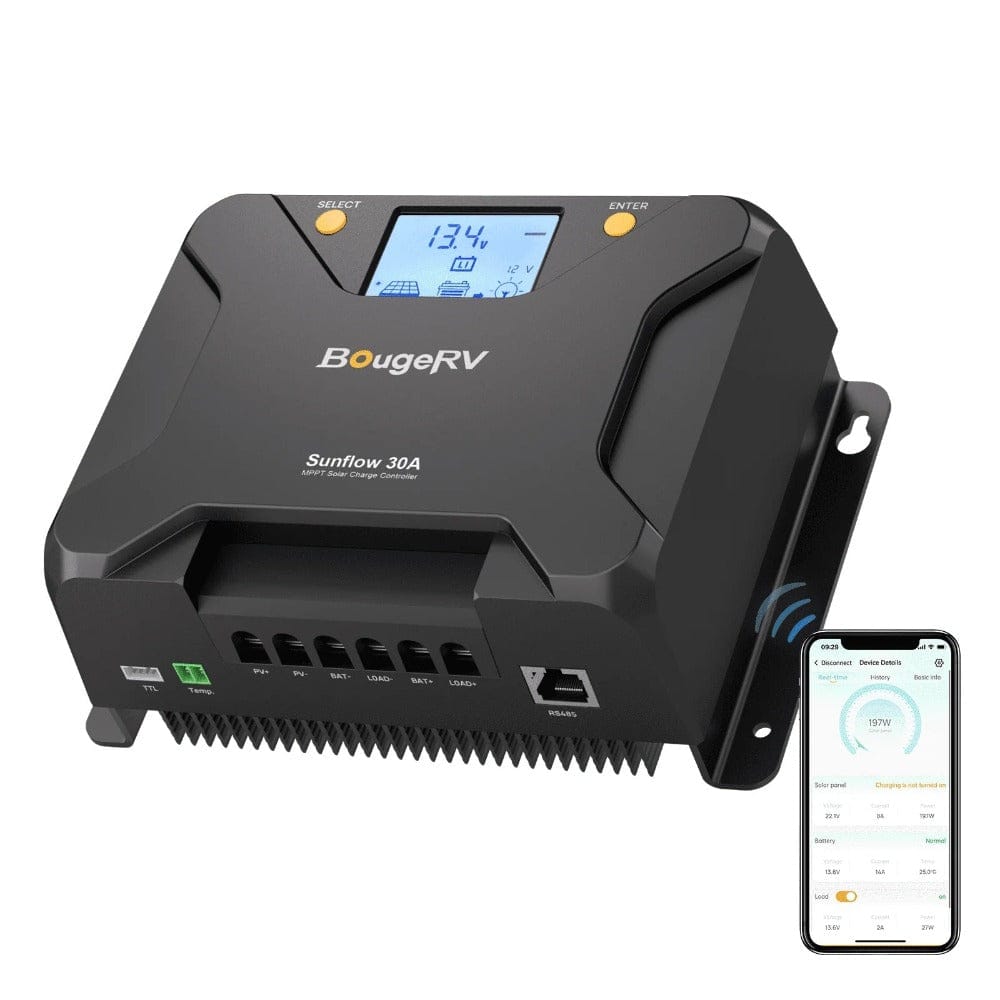

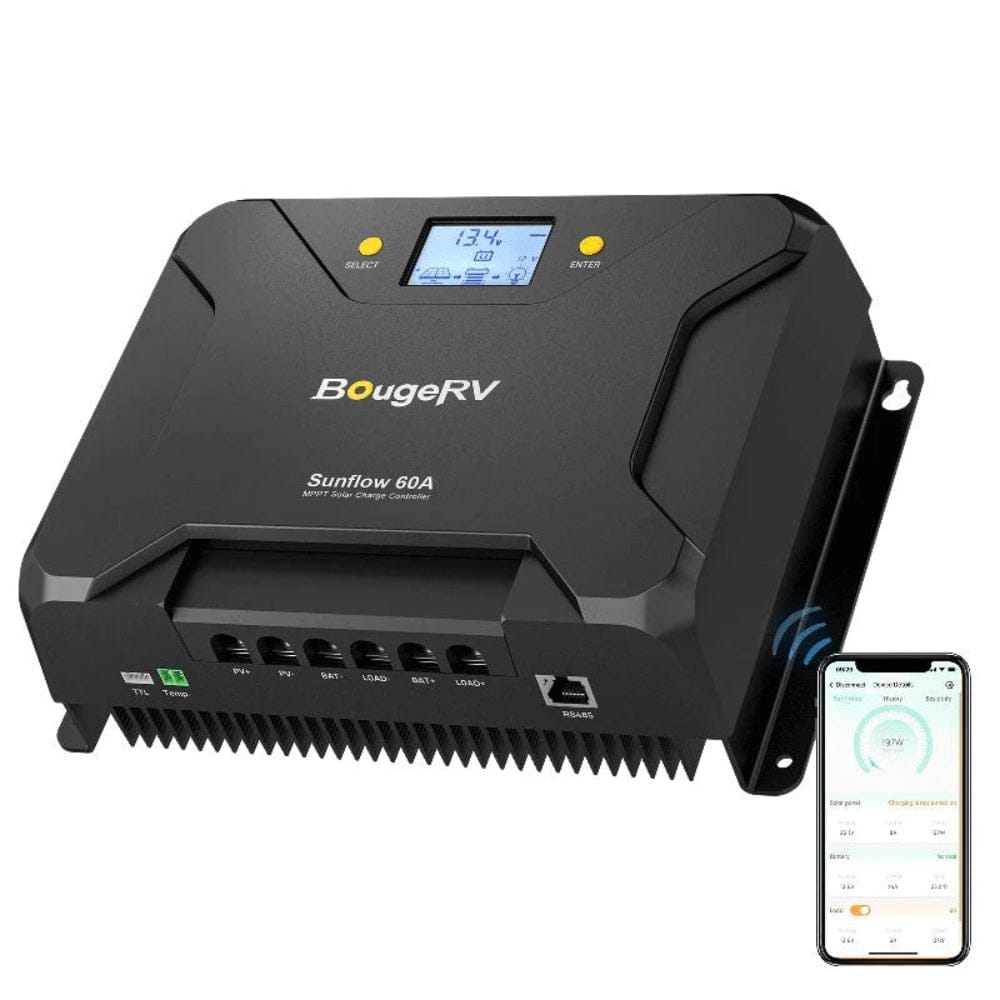

BougeRV Sunflow MPPT Solar Charge Controller 12V/24V

SKU ISE217
$139.99

⭐ Authorized BougeRV Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

BougeRV Sunflow MPPT Solar Charge Controller 12V/24V Overview

With advanced Maximum Power Point Tracking (MPPT) technology, the BougeRV Sunflow MPPT solar charge controller ensures that your solar panels are operating at their peak efficiency. It also includes innovative low-temp cut-off features to protect your lithium batteries. Maximize the potential of your solar panels and switch to clean, renewable energy by upgrading your solar system with this high-performance charge controller.

BougeRV Sunflow MPPT Solar Charge Controller 12V/24V Features

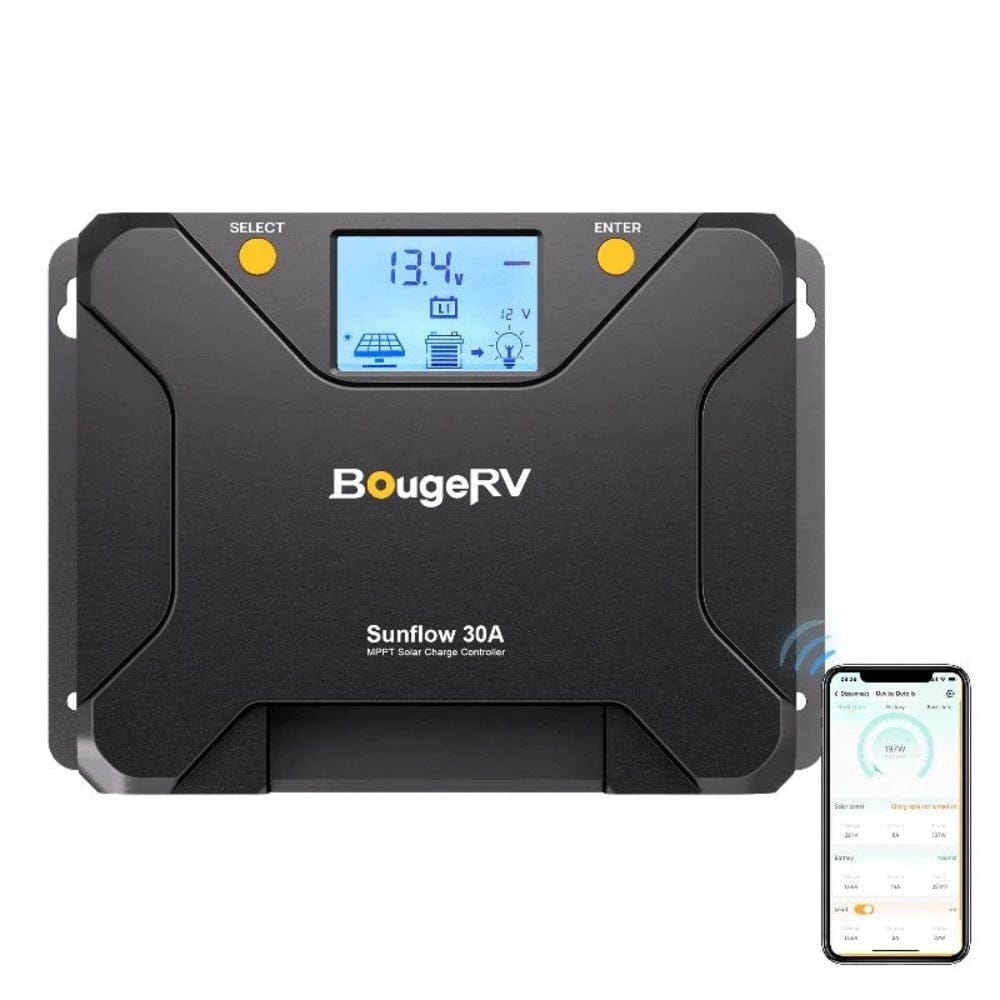

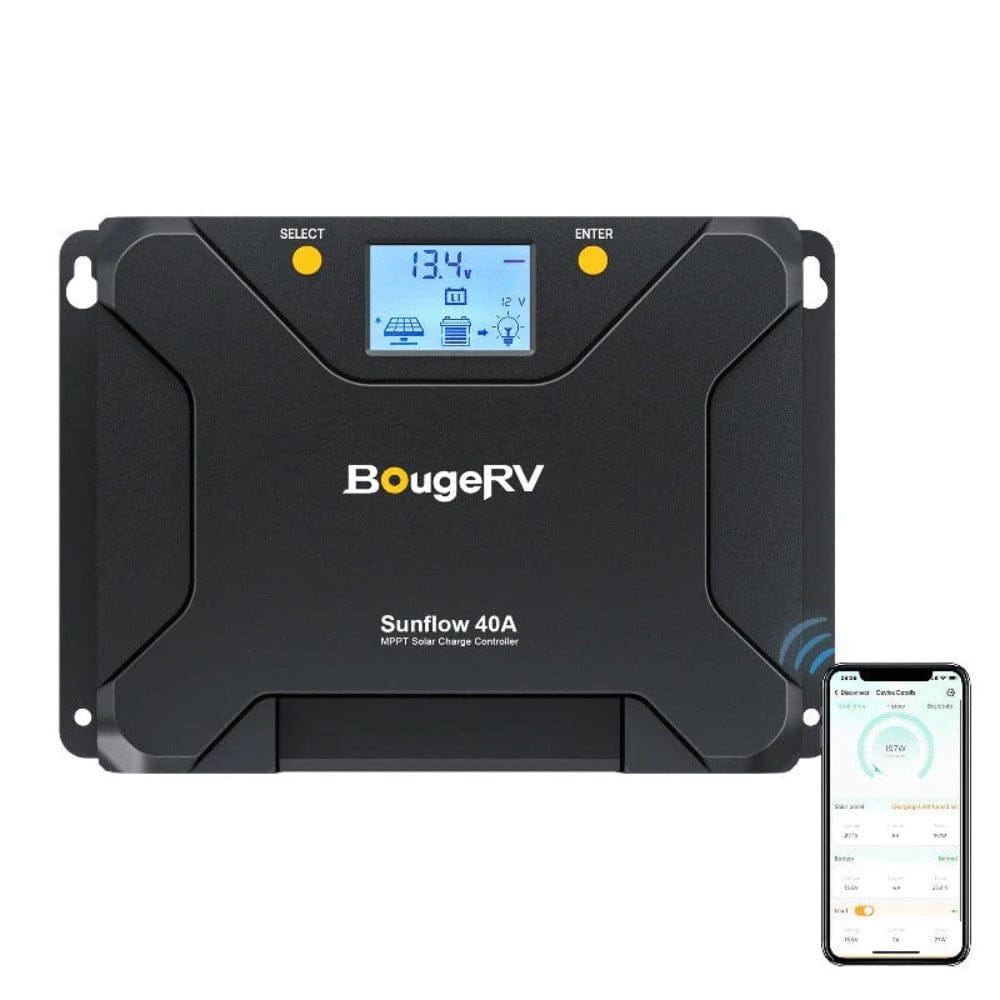

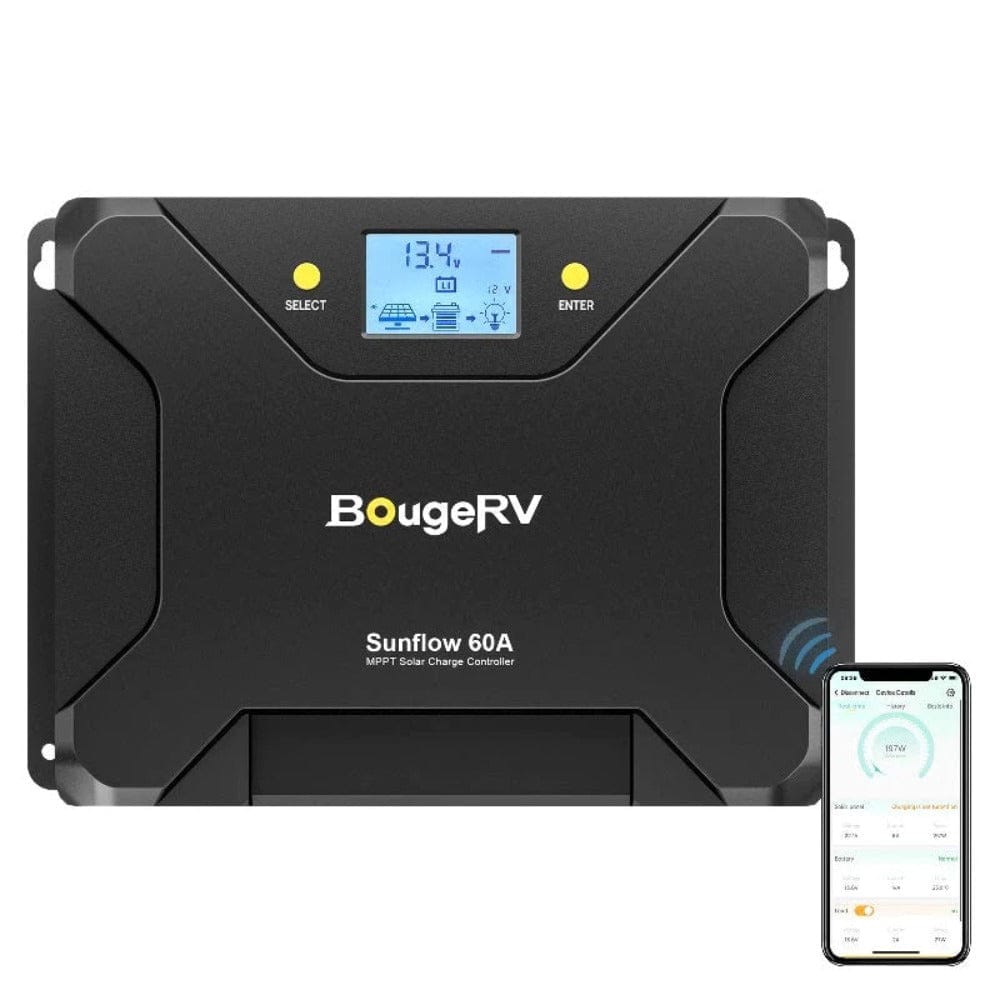

SMART LCD AND APP CONTROL

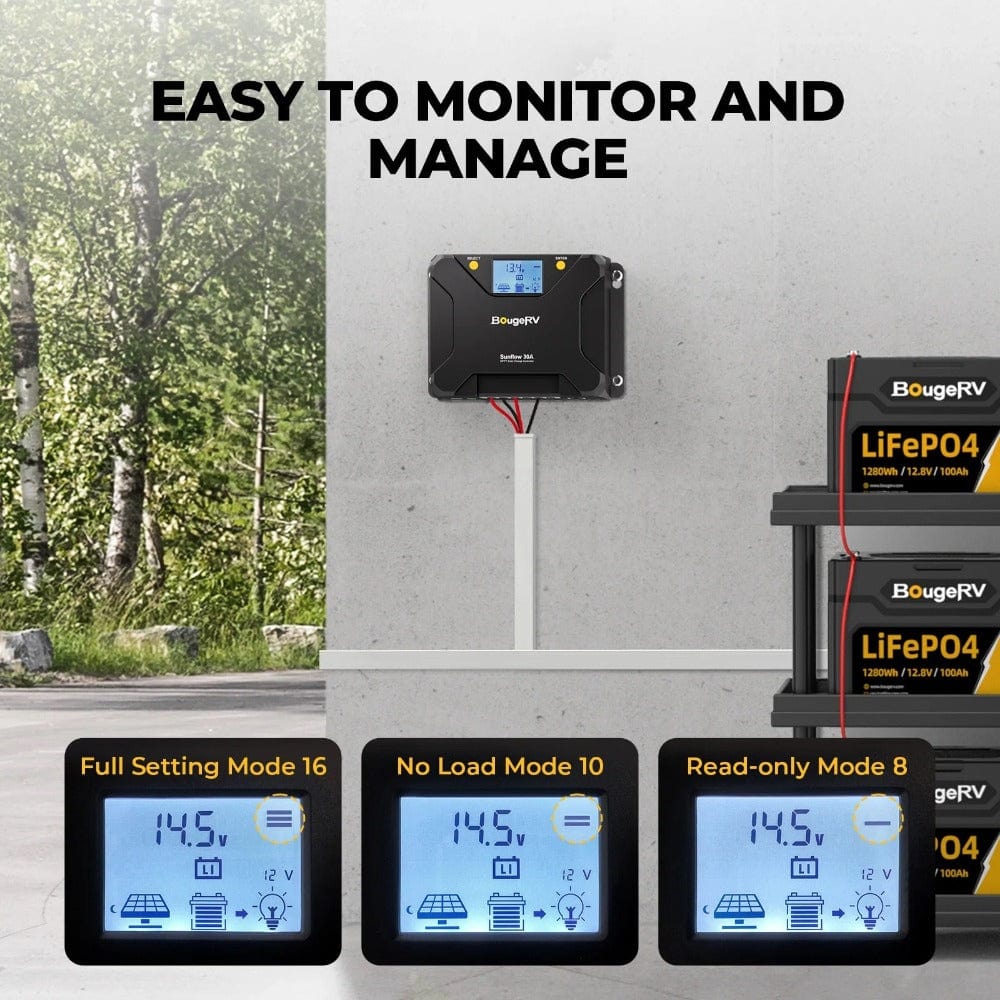

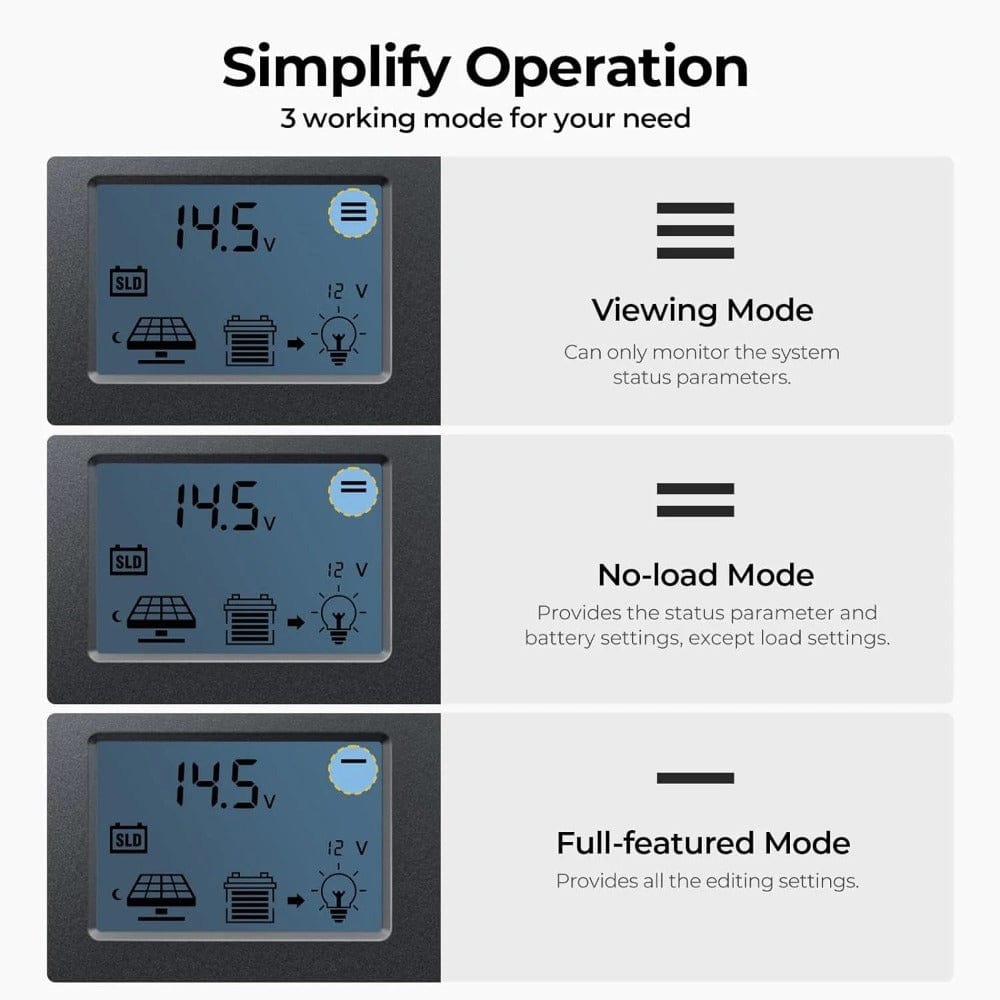

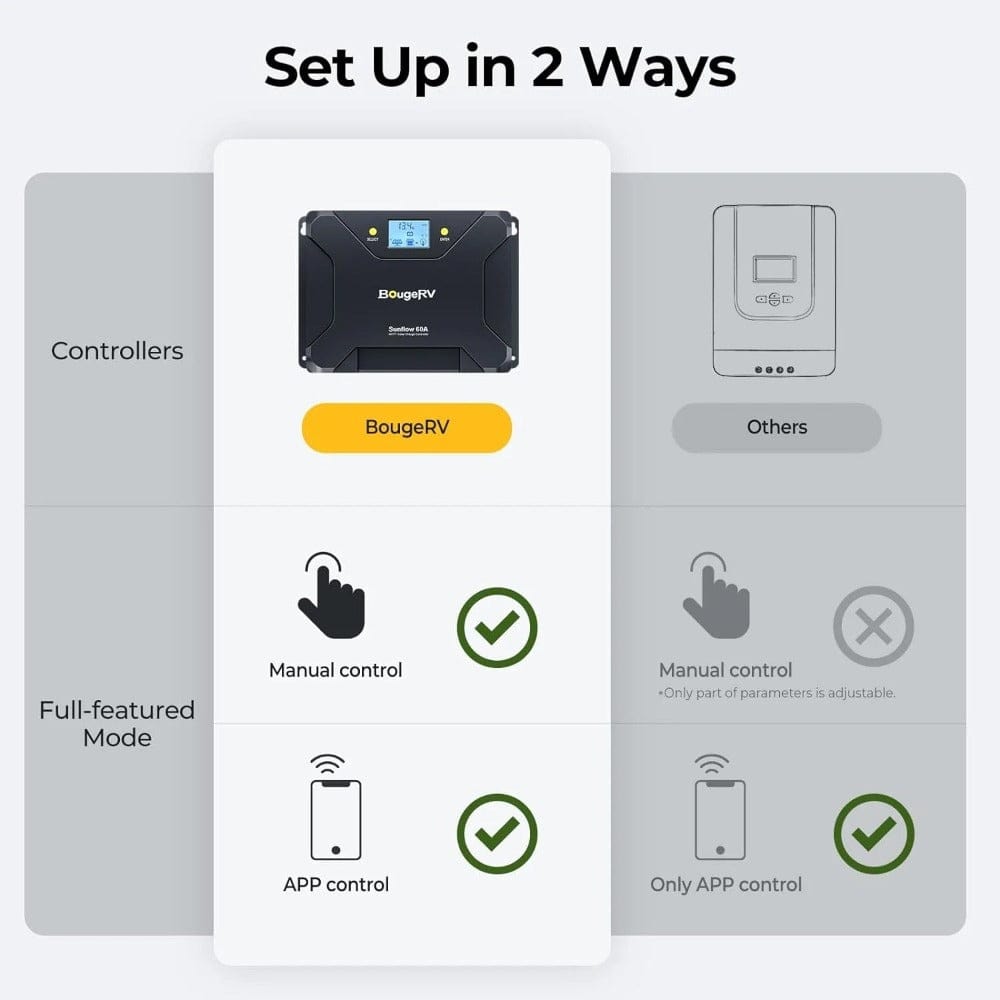

Sunflow MPPT controller provides 3 modes for display operation, full-featured mode, no-load mode, and read-only mode, you can select the full-featured mode to modify all adjustable parameters via the screen button in case you don't want to use the application. Sunflow MPPT controller also features a remote app control, the Bluetooth range is up to 32 feet. Stay informed with the "Solar" APP that provides the solar panel, battery and load status.

FULLY COMPATIBLE WITH LiFePO4

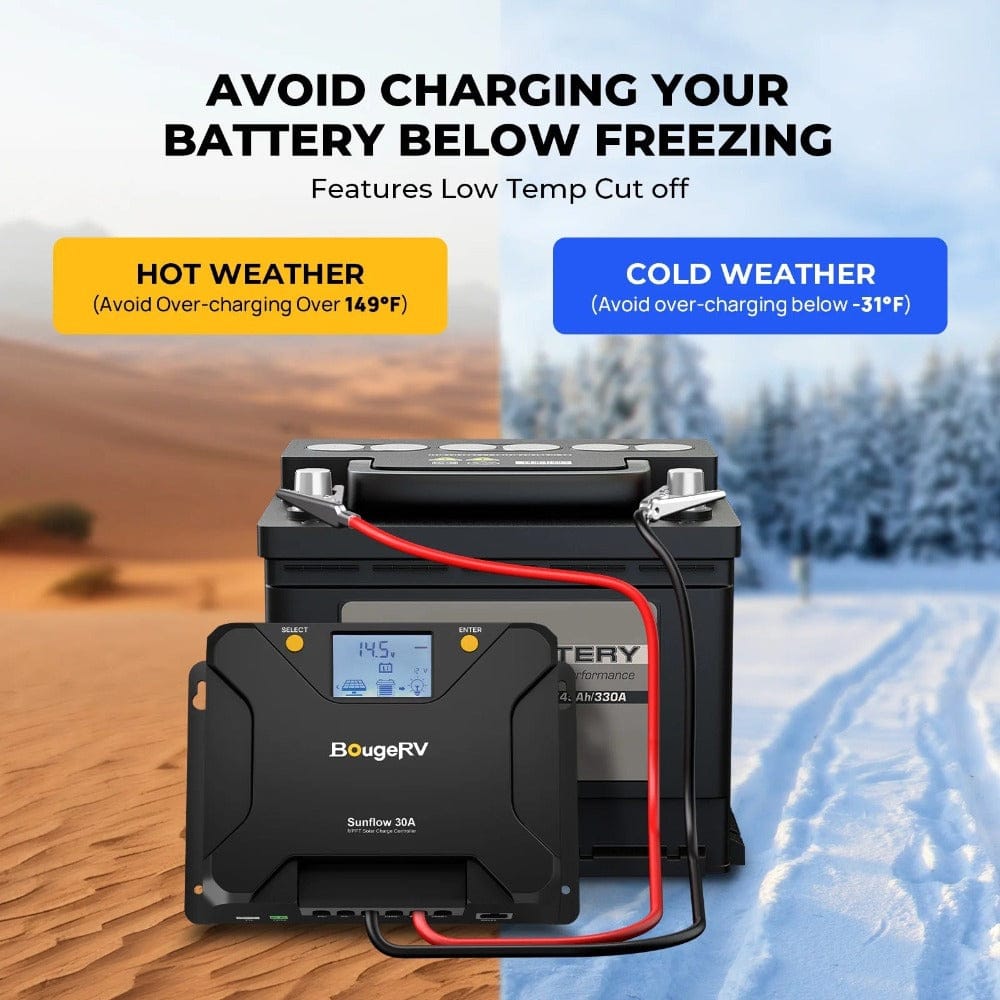

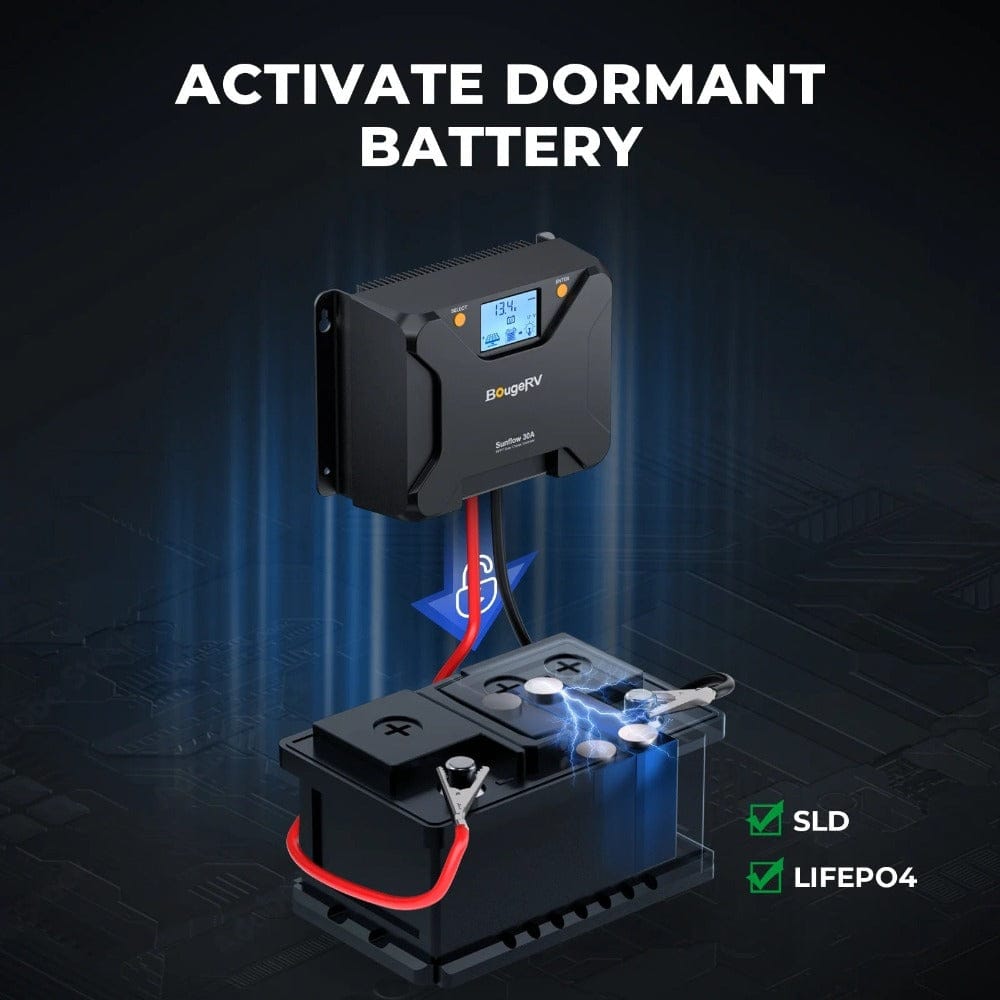

BougeRV Sunflow MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery. Sunflow MPPT battery charge controller can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

Activate Your Battery

  • For LiFePO4: The controller's lithium battery activation function refers to the specific process of initializing and optimizing the performance of a new or inactive lithium battery. It can effectively extend the lifespan of the lithium battery and maintain its performance stability.
  • For SLD: The BougeRV MPPT solar charge controller has the capability to reactivate the active material inside lead-acid batteries through a regulated current and voltage, thereby enabling them to function properly.

High-efficiency Charge

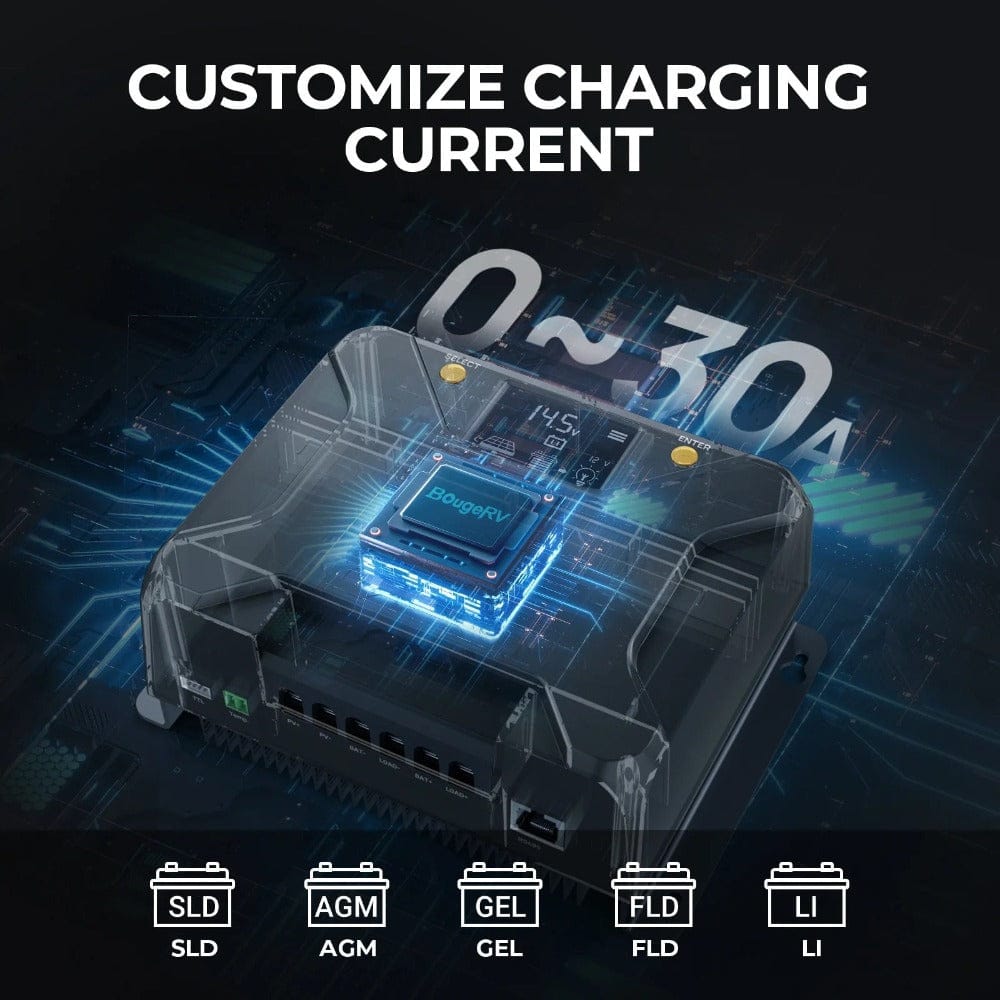

BougeRV Sunflow MPPT controller can adjust the charge current from 0A to 30A/40A/60A. Its high tracking efficiency is up to 99.5%, and its peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

Active Shield: Certified by CE and RoHS

Certified by CE and RoHS. BougeRV MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

Warranty

BougeRV offers an 18-month warranty for customers. 24h X 7 online service( Except weekend ) and Lifetime Technical Support will help you solve any product problems.

BougeRV Sunflow MPPT Solar Charge Controller 12V/24V Specification

  • System Voltage: 12V/24V
  • Rated Charging Current: 30 Amp/ 40 Amp/ 60 Amp
  • Maximum PV Input Voltage: 100V (95V protection, 90V recovery)
  • Maximum Input of PV System: 450W/12V; 900W/24V
  • Rated Load Current: 20 Amp
  • Charge Current Ajust Range: 0 Amp to 30 Amp/ 40 Amp/ 60 Amp
  • Battery Operate Voltage Range: 8V to 32V
  • No Load Loss: ≤10mA
  • Product Warranty: 18-month
  • Battery Type: LiFePO4, SLD, GEL, FLD, AGM, User Defined
  • Grounding Type: Common Negative
  • Operating Temperature Range: -31℉ to 149℉ (-35℃ to 65℃)
  • Protection Grade: IP34
  • Bluetooth Communication: built-in bluetooth
  • Data Storage: Save the last 200 days of historical data
  • Dimension: 7.28L*5.23W*2.95H inches/8.94L*6.26W*2.95 inches/10.35L*7.32W*3.35J inches
  • Weight: 2.37 lbs/3.95 lbs/5.52 lbs
  • Product Type: Solar Charge Controller

What's in The Box

  • 1 X BougeRV Sunflow MPPT Solar Charge Controller
