Dakota Lithium Marine 4 Bank, 40-Amp (10-Amp Per Bank) 12V Onboard Lithium Battery Charger Converter/Charger Dakota Lithium

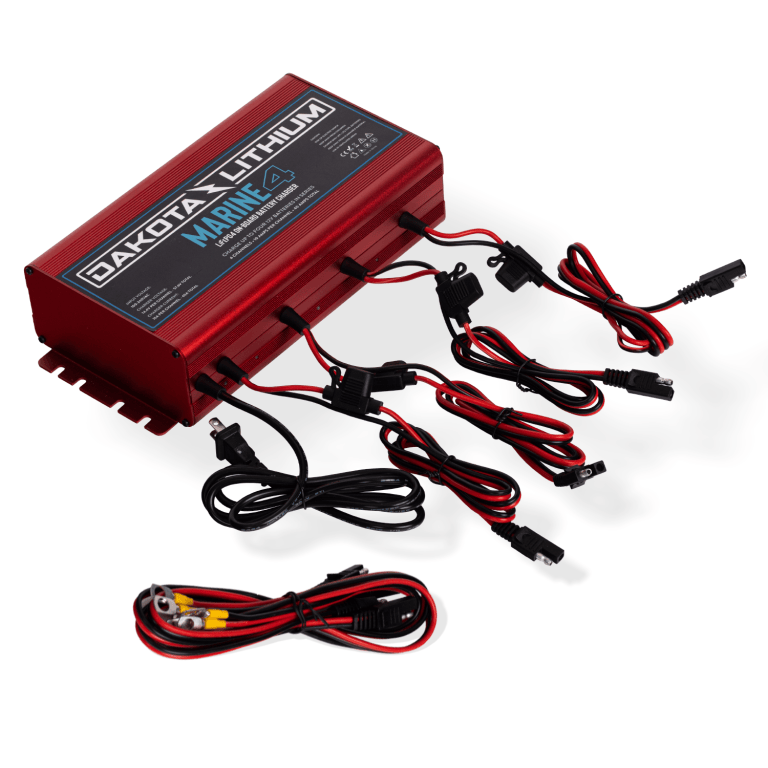

Dakota Lithium Marine 4 Bank, 40-Amp (10-Amp Per Bank) 12V Onboard Lithium Battery Charger

BY: Dakota Lithium | SKU: MARINE 4 BANK, 40-AMP 12V ONBOARD Availability: In Stock
$299.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Dakota Lithium Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

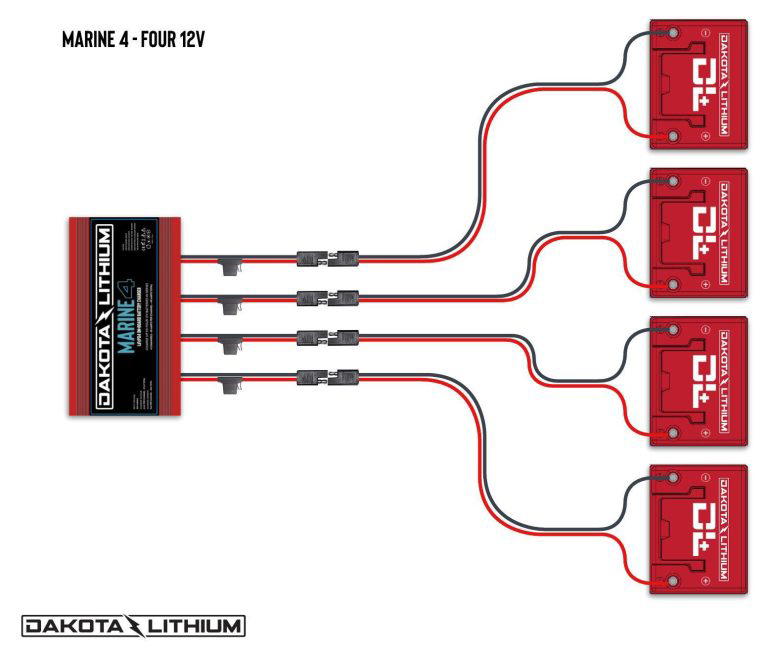

Built for rugged reliability on and off the water, the Marine 4 is an onboard marine battery charger engineered exclusively for lithium batteries. With 4 channels/banks charging at 10 amps per channel/bank you can rapidly charge up to 4 Dakota Lithium batteries or any 12-volt lithium batteries, including marine, boat, starter, and deep-cycle batteries. This onboard charger is recommended for golf carts, trolling motors, RVs, or any battery bank where multiple 12V batteries are wired in series or parallel. By charging each battery independently this charger ensures your battery bank is balanced and fully charged every time -- providing you with maximum performance and increased battery lifespan. Plus the ease of a waterproof charger installed onboard your vehicle saves you time and hassle every time you charge, giving you more time to do what you love. Designed for water this charger is double sealed, with a fully-sealed and waterproof onboard battery charger enclosed in a rugged and shock proof aluminum case with an ingress protection rating of IP67 for use in the coldest and wettest environments. Built for an extended lifespan this charger uses passive cooling to replace charger fans that commonly break with 4 aluminum fins that dissipate heat while providing enhanced shock proof and structural durability. Built for you. Built North Dakota tough. *Please see the Operation Manual for more information* Lead Wire Measurements: Charger to SAE plug 36" SAE to ring terminals 24" Total length connected: 60" AC Power Cord to Charger 60"

For 12 volt lithium batteriesWe highly reccomend you use a LiFePO4 compatible charger. 12v chargers for lead acid batteries may work, but will decrease performance and lifespan of the battery.

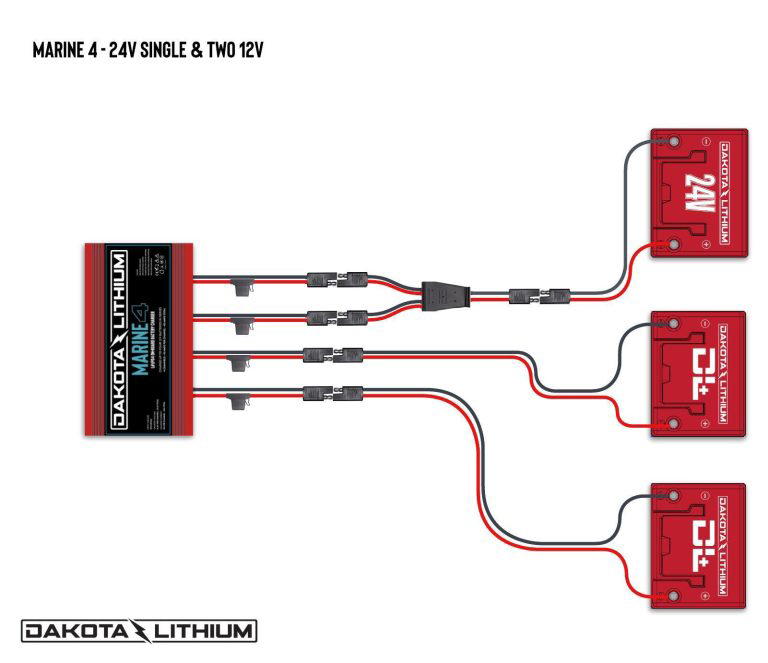

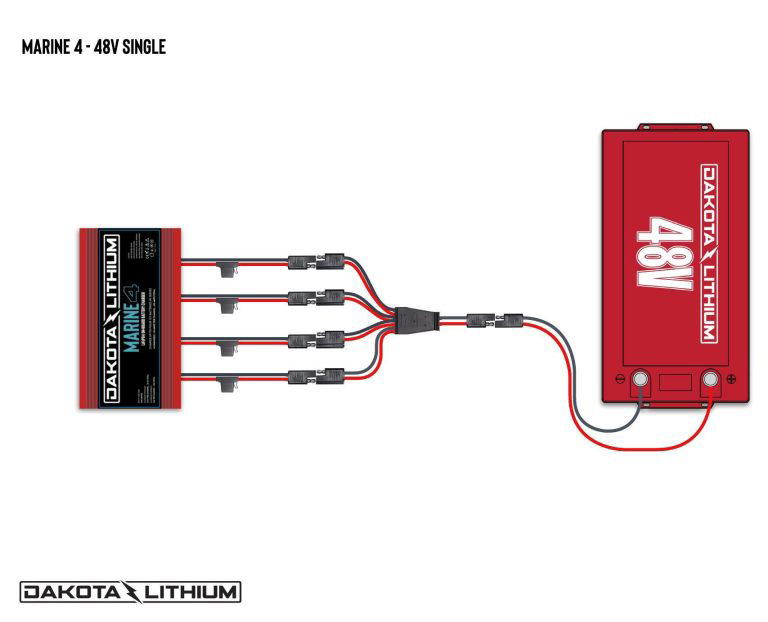

Free Adapter for 24V, 36V or 48V single batteries, by requestEasily charge a 24V, 36V, or 48V single battery, or a bank of 12V + 24V or 36V batteries. (adapter available by request for no additional cost)
Charger ratingINPUT 100-120VAC, 50/60HZ. OUTPUT: 14.4 volts, 40.0 amps, 10 amps per bank / channel
Terminal ConnectionsSAE connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit. Then connect the charger via the SAE plug when you need to charge. Red light on the charger will turn on when charging. Light turns green when the battery is full.
Smart BMS communicationCharger will restart or "wake up" a Dakota Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.

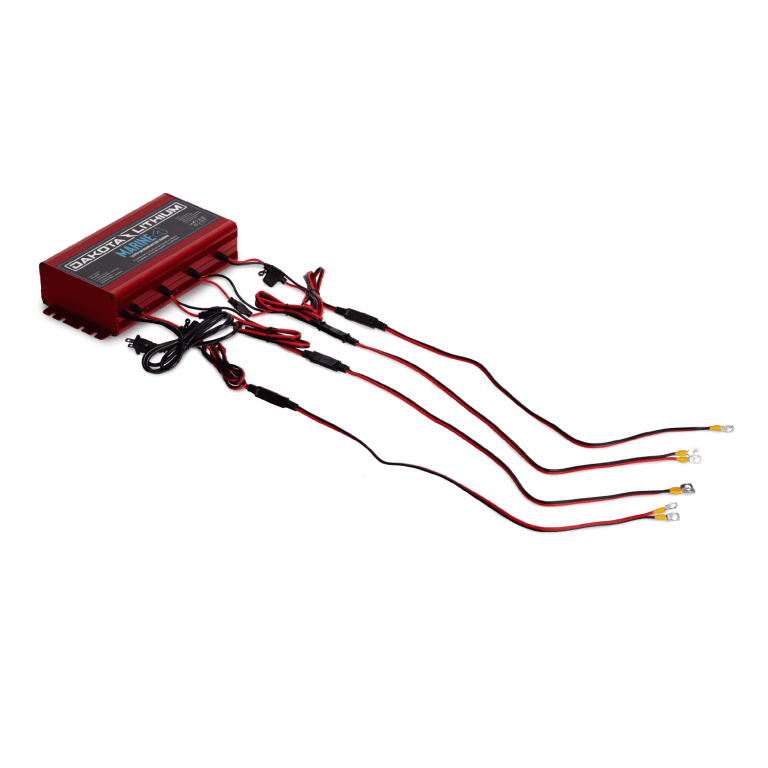

Lead Wire LengthsCharger to SAE plug 36"SAE to ring terminals 24"Total length connected 60"AC Power Cord to Charger 60"
How fast will my battery charge?Charges at a rate of 10 amps per battery (4 batteries supported). To determine your charging speed take the amp hour rating of your battery and divide by 10. For example, a 54 amp hour battery (Ah) would charge in 5.4 hours.
Can I charge my battery faster?For most applications a charging time of 3 - 10 hours provides the longest lifespan for your battery. But if you have an application where you need rapid charging Dakota Lithium batteries can be safely charged in up to 1 hour (at a rate of 1C). For example, you could use a 20 amp charger with a 23 Ah battery for a 1 hour charge time. Charging at a 1 hour rate does reduce the lifespan over time. In our laboratory testing we found that the longest lifespan for Dakota Lithium batteries was at a charging speed of 0.3C or less (we recommend that the charger amp rating is 1/3 or less of the battery amp hour rating for longest lifespan).
What voltage should LiFePO4 batteries be charged at?14.4 volts is recommended for Dakota Lithium (LiFePO4) batteries. This charger charges at 14.4 volts.
WaterproofBuilt for marine use. IP 67. Internal components are sealed in a waterproof putty that makes it impossible for water to short circuit the charger. Wiring is SAE waterproof plugs.
