Dakota Lithium Ultra Fast 12V 20A Waterproof Lithium LiFePO4 Onboard Battery Charger Converter/Charger Dakota Lithium

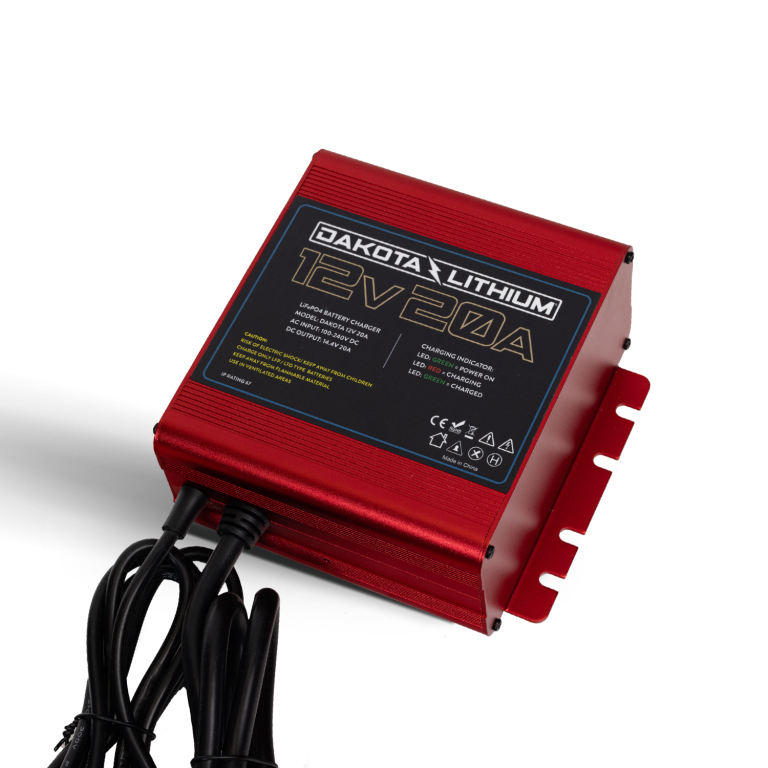

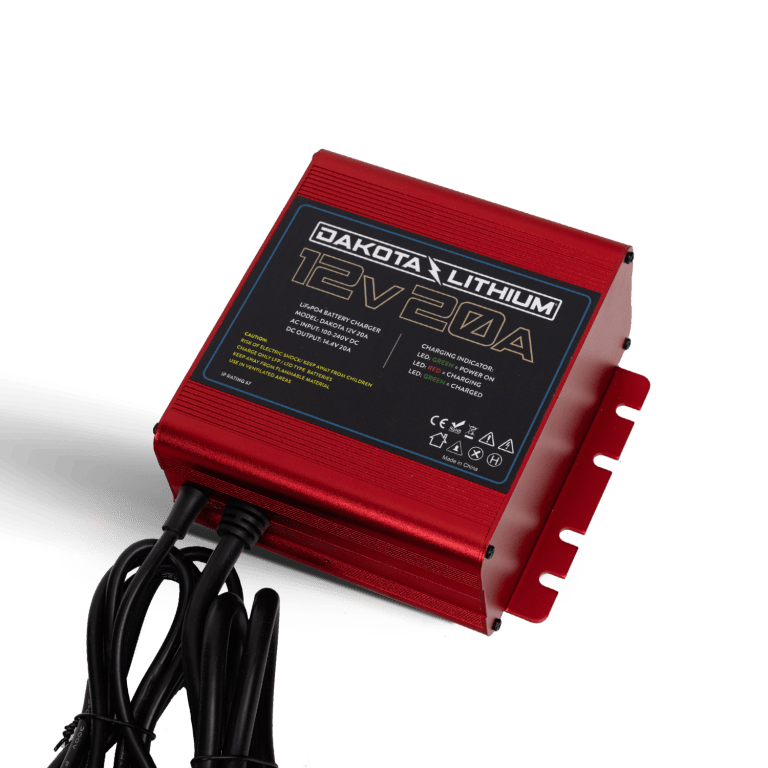

Dakota Lithium Ultra Fast 12V 20A Waterproof Lithium LiFePO4 Onboard Battery Charger

BY: Dakota Lithium | SKU: ULTRA FAST 12V 20A Availability: In Stock
$199.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Dakota Lithium Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

This firehose of power is optimized to charge large 12V (volt) batteries FAST while ensuring a long battery lifespan., all-while being weather, water resistant, and ready for the harshest conditions. Our Dakota Lithium Chargers has been optimized for use with our lithium iron phosphate batteries (LiFePO4 or LFP). Not recommended for charging lead acid or SLA batteries, it is too powerful. Built in a high tensile aluminum case for rapid cooling, this charger is rated at 20A and is an upgrade for those of you who need to charge fast and play hard. All Dakota Lithium batteries should be charged using a LiFePO4 compatible charger like this one. SLA chargers will reduce the performance and lifespan of the battery. Included Anderson plug with ring terminals for safe & easy charging. Simply plug the charger into the Anderson plug, and remove when done.

For 12 volt lithium batteriesWe highly reccomend you use a LiFePO4 compatible charger. 12v chargers for lead acid batteries may work, but will decrease performance and lifespan of the battery.
Charger ratingINPUT 100-120VAC, 50/60HZ. OUTPUT: 14.4 volts, 20.0 amps
Dimensions5.67" x 6.22" x 2.72" (44mm x W:158mm x H: 69mm)

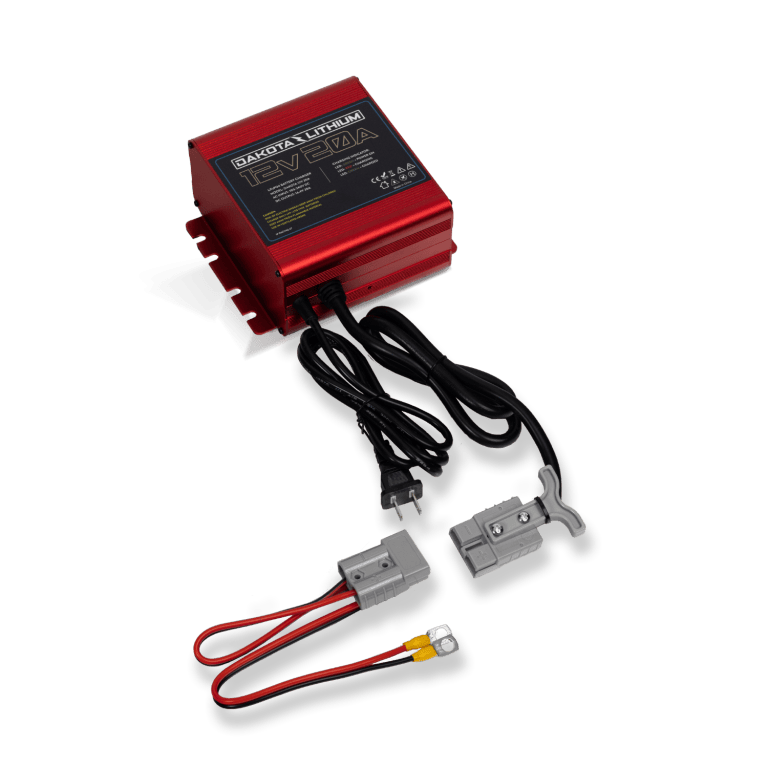

Terminal ConnectionsAnderson SB 50 connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit. Then connect the charger via the Anderson plug when you need to charge. Red light on the charger will turn on when charging. Light turns green when the battery is full.
Smart BMS communicationCharger will restart or "wake up" a Dakota Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.
How fast will my battery charge?Charges at a rate of 20 amps. To determine your charging speed take the amp hour rating of your battery and divide by 20. For example, a 54 amp hour battery (Ah) would charge in 2.5 hours.
Can I charge my battery faster?For most applications a charging time of 3 - 10 hours provides the longest lifespan for your battery. But if you have an application where you need rapid charging Dakota Lithium batteries can be safely charged in up to 1 hour (at a rate of 1C). For example, you could use a 20 amp charger with a 23 Ah battery for a 1 hour charge time. Charging at a 1 hour rate does reduce the lifespan over time. In our laboratory testing we found that the longest lifespan for Dakota Lithium batteries was at a charging speed of 0.3C or less (we recommend that the charger amp rating is 1/3 or less of the battery amp hour rating for longest lifespan).
Waterproof RatingIP67
What voltage should LiFePO4 batteries be charged at?14.4 volts is recommended for Dakota Lithium (LiFePO4) batteries. This charger charges at 14.4 volts.
RecommendationThe 12V 20a charger is great for DL+ 12V 60Ah, DL+ 12V 135Ah, DL+ 12V 320Ah
