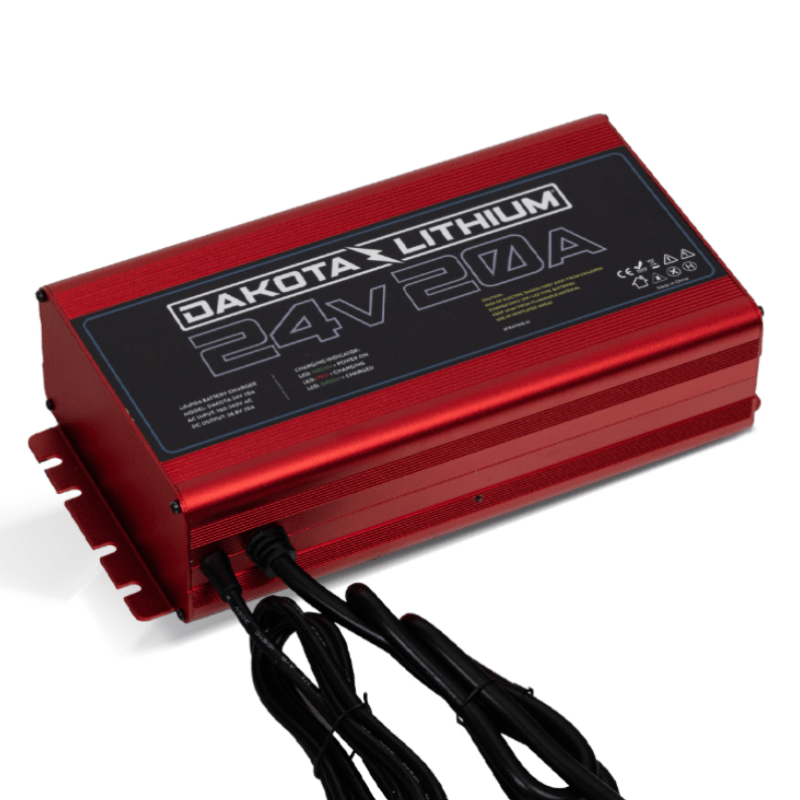

Dakota Lithium Ultra Fast 24V 20A Waterproof LiFePO₄ Onboard Battery Charger
Engineered for performance and built to thrive in harsh environments, the Dakota Lithium Ultra Fast 24V 20A Charger is the ideal charging solution for 24V LiFePO₄ battery systems. Designed with fast-charging capability and IP67 waterproof protection, it is a rugged onboard charger for marine vessels, RVs, off-grid systems, and commercial equipment. With optimized LiFePO₄ charging profiles, thermal regulation, and compact design, it ensures batteries are topped off quickly, safely, and efficiently—even in wet and demanding conditions.
Dakota Lithium Ultra Fast 24V 20A Waterproof LiFePO₄ Onboard Battery Charger Features
Fast 20A LiFePO₄ Charging Output
Delivers a high-output 20A current optimized for 24V LiFePO₄ battery chemistry, charging most battery banks in 1–2 hours.
Fully Waterproof Design (IP67 Rated)
Encased in a rugged, sealed aluminum housing that’s completely dust-tight and waterproof—ideal for boats, outdoor, or wet installations.
Optimized Multi-Stage Charging
Features intelligent bulk, absorption, and float charging phases for maximum battery life and full performance.
Rugged, Compact, and Lightweight
Easy to install in tight compartments; shock- and vibration-resistant for mobile or marine use.
LED Status Indicators
Built-in indicator lights provide charging status and fault alerts at a glance for simple diagnostics.
Thermal Management Protection
Incorporates over-temp and voltage protections to safeguard batteries and charger electronics during long charge cycles.
Dakota Lithium Ultra Fast 24V 20A Waterproof LiFePO₄ Onboard Battery Charger Applications
-
Marine Systems: Fast, waterproof battery recharging on fishing boats, sailboats, and workboats.
-
RV & Travel Trailers: Ideal for recharging house batteries while stationary or connected to shore power.
-
Off-Grid Cabins & Solar Systems: Backup or primary charging for 24V solar power setups.
-
Commercial Power Banks: Heavy-duty support for utility trucks, field equipment, and mobile operations.
-
Emergency Battery Maintenance: Keeps standby or deep-cycle batteries ready during all-weather conditions.
What’s Included?
Dakota Lithium Ultra Fast 24V 20A Waterproof LiFePO₄ Onboard Battery Charger Specifications
| Category |
Details |
| Warranty |
11-Year Manufacturer Defect Warranty (Best-in-Class) |
| Capacity |
15Ah – delivers consistent power for full rated capacity |
| Energy |
180Wh |
| Voltage |
12.8V |
| Cold Cranking Amps (CCA) |
300 CCA (lead-acid equivalent) |
| Discharge Rates |
30A continuous, 300A max pulse (<5 sec) |
| Charge Parameters |
50A max, 14.4V recommended, 15V max |
| Charger Compatibility |
Use LiFePO₄-compatible charger; SLA chargers reduce lifespan and performance |
| Alternator Charging |
Compatible with ATV, UTV, powersports alternators |
| Smart BMS |
Dual-purpose BMS enables deep cycle & engine start use |
| Protection Features |
Active BMS with cell balancing, low/high voltage cutoff, short circuit, and temp protection |
| Operating Temperature |
-4°F to 150°F (avoid charging below 32°F to extend lifespan) |
| Lifespan / Cycle Life |
Up to 5,000 cycles at 80% capacity (SLA ~500 cycles) |
| Size (L × W × H) |
5.90 × 3.43 × 3.66 in (150 × 87 × 93 mm) |
| Weight |
3.97 lbs (1.8 kg) |
| Terminals |
M6 dual posts (top/side); 5 ft-lbs recommended torque, 9 ft-lbs max |
| Motorcycle Sizing Kit |
Included – adjustable to fit most motorcycle, ATV, and PWC compartments |
| Use Case Note |
Not a car/truck battery – designed for motorcycles, ATVs, and deep-cycle applications |
| Certifications |
UN38.3, UL1642 (cells), tested to IEC62133; meets all US and international shipping standards |
| ISO Certification |
ISO 9001:2015 certified; select models from ISO 14001 certified facilities |
Frequently-Asked Questions
Can this charger be left connected full-time?
Yes. It automatically switches to float mode when the battery is fully charged, making it safe for long-term maintenance.
Is it compatible with non-LiFePO₄ batteries?
No. This charger is engineered specifically for 24V LiFePO₄ batteries and should not be used with lead-acid or other chemistries.
Where should I install it?
It can be mounted in wet or enclosed spaces like bilge compartments, battery bays, or under seats—thanks to its IP67 rating.
Will it work for charging two 12V batteries wired in series?
Yes, as long as the combined system voltage is 24V and the batteries are LiFePO₄ chemistry.
