Deye 48 Volt 10.24kWh Lithium Battery w/BMS, Wall/Floor Mount

Name: Deye 48 Volt 10.24kWh Lithium Battery w/BMS, Wall/Floor Mount
Brand: Deye
SKU: RW-F10.2-B
Price: 2907.45 USD
Availability: InStock

BY: Deye

SKU: RW-F10.2-B

| Availability: In stock

$2,907.45

Product Highlights

Designed for home backup
10,240 Wh capacity for extended backup and off-grid runtime
Purpose-built hardware secures compatible solar modules and racking
LiFePO4 chemistry supports dependable long-term cycling

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Deye Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Deye 48 Volt 10.24kWh Lithium Battery w/BMS

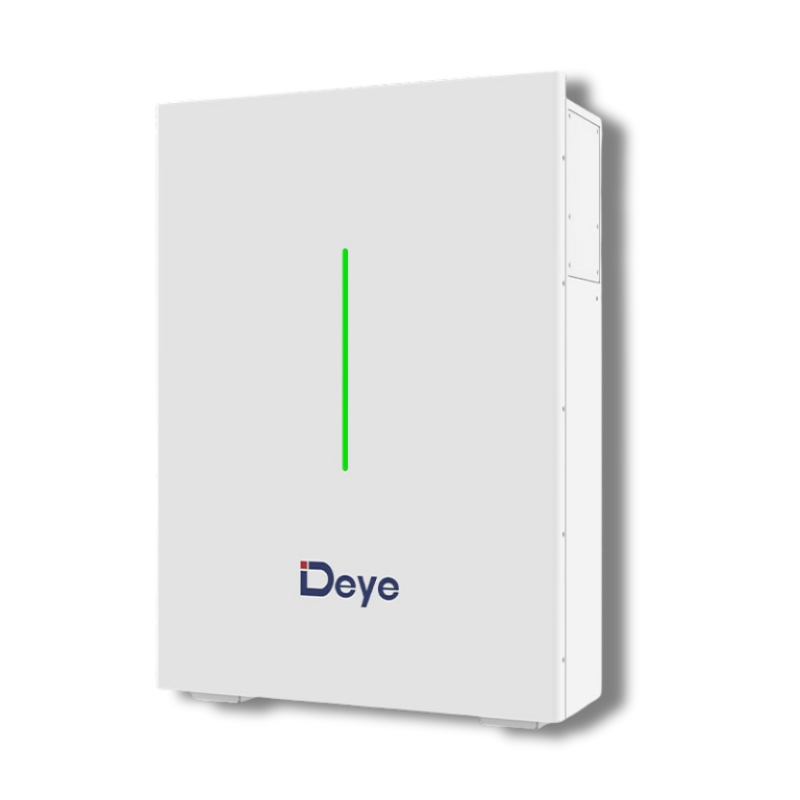

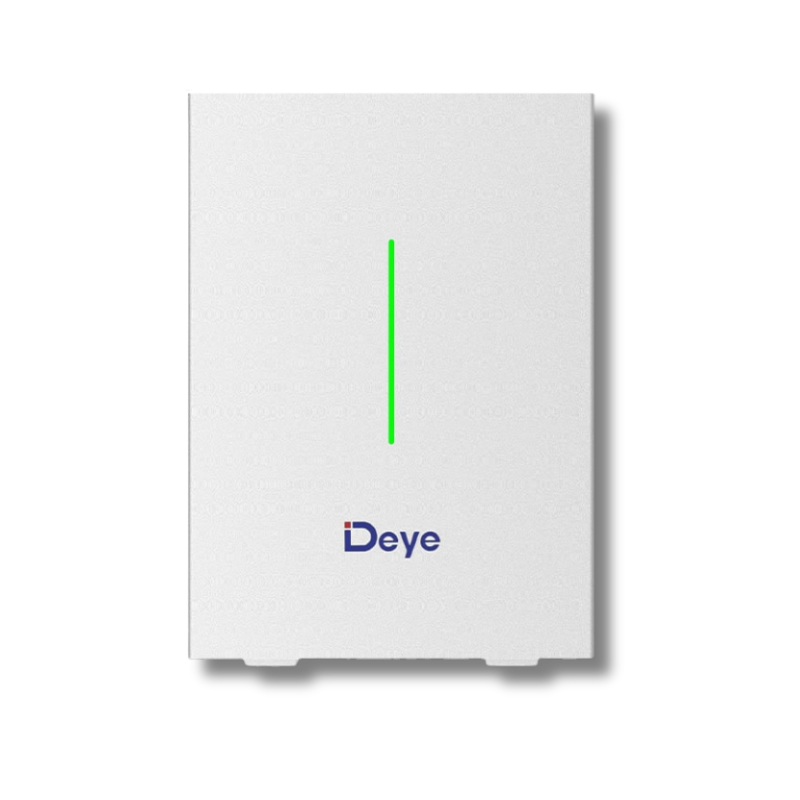

The Deye RW-F10.2-B is a high-capacity 48V 10.24kWh LiFePO4 lithium battery designed for residential and commercial energy storage systems. Featuring an integrated BMS, built-in 125A breaker, NEMA 3R (IP65) enclosure rating, and scalable parallel capability, this battery delivers reliable performance for both wall-mounted and floor-mounted installations.

Deye 48 Volt 10.24kWh Lithium Battery w/BMS Features

10.24kWh LiFePO4 Capacity – high-density lithium iron phosphate chemistry for extended lifespan

Integrated BMS Protection – advanced battery monitoring and system safety control

Built-In 125A Breaker – 4P, 60Vdc internal protection

9.2kWh Usable Energy – optimized output at 90% depth of discharge

6,000+ Cycle Life – long-term durability at 90% DoD

High Charge/Discharge Capability – 100A recommended, 240A max discharge

Parallel Scalability – supports up to 32 units (327kWh total system capacity)

NEMA 3R / IP65 Rated – outdoor-ready weather-resistant enclosure

CAN2.0 & RS485 Communication – compatible with hybrid inverter systems

Deye 48 Volt 10.24kWh Lithium Battery w/BMS Applications

Whole-Home Backup – reliable residential energy storage solution
Commercial ESS Systems – scalable battery storage for growing loads
Hybrid Solar Installations – integrates with CAN/RS485-enabled inverters
Outdoor Energy Storage – suitable for weather-exposed installations

What's Included

Everything you need is included with your product.

Deye 48 Volt 10.24kWh Lithium Battery w/BMS

User Manual

Warranty

10 Years Warranty

Deye 48 Volt 10.24kWh Lithium Battery w/BMS Specifications

Main Parameter

Category	Specifications
Battery Chemistry	LiFePO₄
Built – in Circuit Breaker	125A 4P, 60Vdc
Capacity (Ah)	200
Scalability	Max. 32 pcs pack (Max 327kWh) in parallel
Nominal Voltage (V)	51.2
Operating Voltage (V)	43.2~57.6
Nominal Energy (kWh)	10.24
Usable Energy (kWh)	9.2
Charge/Discharge Current (A) – Recommend	Charge: 100 / Discharge: 100
Charge/Discharge Current (A) – Max	Charge: 198 / Discharge: 240
Charge/Discharge Current (A) – Peak (2mins, 25°C)	300
Recommend Depth of Discharge	90%
Dimension (W × H × D)	23.6″ × 32.7″ × 7.9″ (600 × 830 × 200mm, Without hanging board)
Weight (Approximate)	235.9 lbs. (107kg)
Master LED Indicator	LED (SOC: 20% ~ SOC100% and working state)
IP Rating of Enclosure	NEMA 3R (IP65)
Operating Temperature	Charge: 33°F – 131°F (1 – 55°C) / Discharge: 4°F – 131°F (-20°C – 55°C)
Humidity	5% – 95%
Altitude	≤Max. 9,843 ft (3,000m)
Cycle Life	≥6000 (25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL)
Cycle Life	Wall – Mounted, Floor – Mounted
Communication Port	CAN2.0, RS485
Warranty Period	10 years
Certification	UN38.3, FCC, UL1973, UL9540A, UL9540

Frequently-Asked Questions

How many batteries can be connected together?

Up to 32 RW-F10.2-B units can be connected in parallel for a maximum system capacity of 327kWh.

Is this battery outdoor rated?

Yes. It carries a NEMA 3R (IP65) enclosure rating suitable for outdoor installations.

Does it include a built-in breaker?

Yes. It includes a 125A 4-pole breaker.

Is this compatible with hybrid inverters?

Yes. It supports CAN2.0 and RS485 communication protocols.
