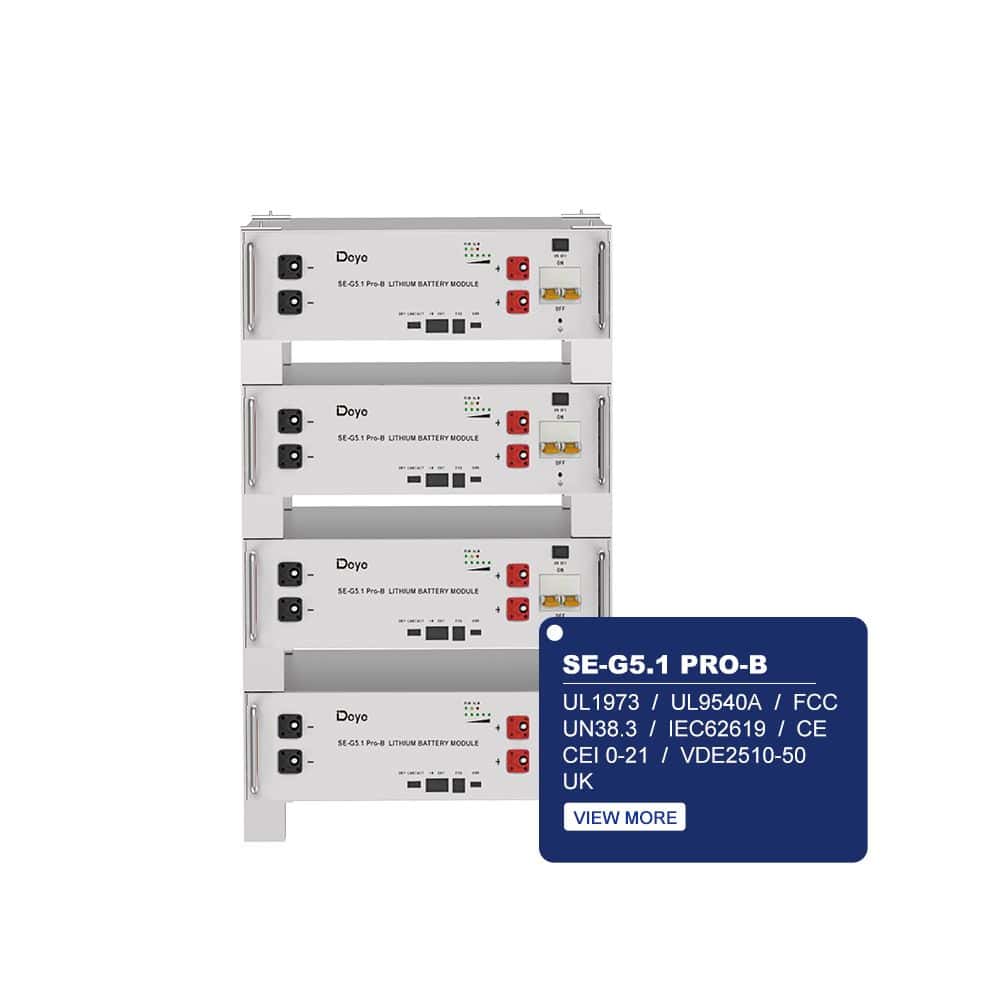

Visit CalculatorThe Deye SE-G5.1PRO-B is a 48V 5.12kWh LiFePO4 lithium battery designed for scalable residential and commercial energy storage systems. With an integrated BMS, built-in 125A breaker, and support for up to 64 units in parallel, this battery delivers safe, long-life performance with flexible wall, floor, or rack mounting options.
5.12kWh LiFePO4 Capacity – high-efficiency lithium iron phosphate chemistry for long service life
Integrated BMS Protection – advanced battery management for safety and performance
Built-In 125A Breaker – 2-pole, 60Vdc internal protection
90% Depth of Discharge – maximizes usable energy capacity
6,000+ Cycle Life – long-term reliability at 90% DoD
Scalable Architecture – supports up to 64 batteries in parallel (327kWh max)
Flexible Installation – wall-mounted, floor-mounted, or 19” rack compatible



Everything you need is included with your product.

Main Parameter
| Category | Specifications |
| Battery Chemistry | LiFePO4 |
| Built-in Circuit Breaker | 125A 4P, 60Vdc |
| Capacity (Ah) | 100 |
| Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2~57.6 |
| Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.6 |
| Recommended Depth of Discharge | 90% |
| Dimension (W×H×D, mm) | 440 × 133 × 540 |
| Weight Approximate (kg) | 45 |
| Master LED Indicator | 5LED (SOC: 20% – SOC100%), 3LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge: 0~55°C (Optional heating: -20°C – 55°C), Discharge: -20°C~55°C |
| Altitude | ≤2000m |
| Cycle Life | ≥6000 (25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL) |
| Installation | Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm) |
| Communication Port | CAN2.0, RS485 |
| Warranty Period | 10 years |
| Certification | UN38.3, IEC62619, CE, UK, VDE 2510-50, CEI 0-21, FCC, UL1973, UL9540A, UL9540 |
How many batteries can be connected together?
Up to 64 batteries can be connected in parallel for a maximum system capacity of 327kWh.
Does this battery include a built-in breaker?
Yes, it includes a 125A 2-pole circuit breaker.
Is this compatible with hybrid inverters?
Yes, it supports CAN2.0 and RS485 communication protocols.
Can this battery be rack-mounted?
Yes, it supports 19” standard rack installation (cabinet depth ≥ 600mm).
