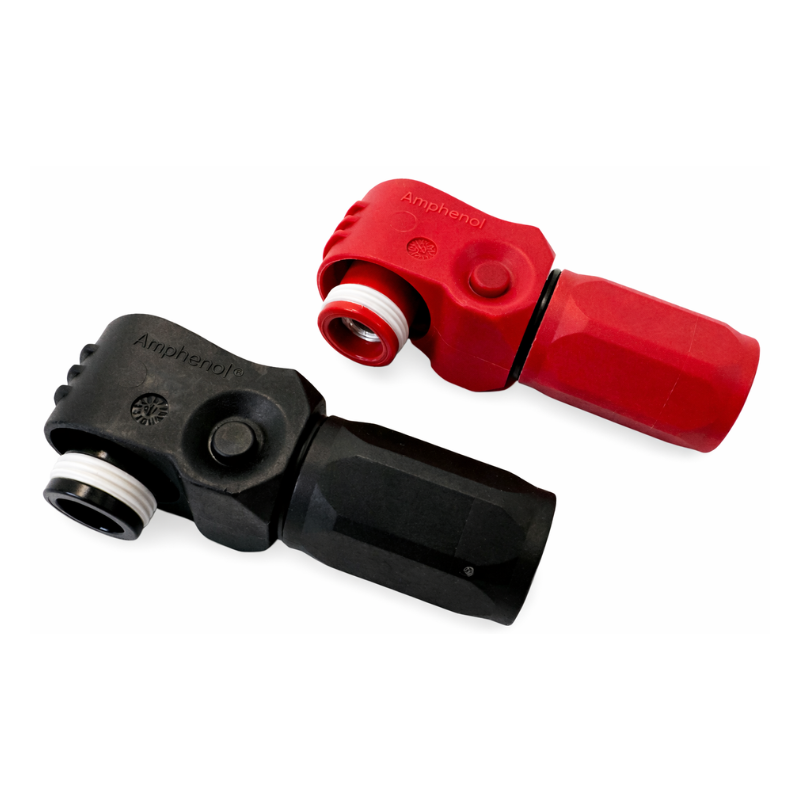

Discover Energy AES Rackmount ESS Battery Cable Terminal Connector Set
The Discover Energy AES Rackmount ESS Battery Cable Terminal Connector Set is designed for secure, high-current connections between AES Rackmount Battery Modules and the AES Rackmount Battery Module Combiner. Built with Amphenol SurLok Plus™ connectors, this UL-listed set ensures safe, reliable, and code-compliant system integration.
Discover Energy AES Rackmount ESS Battery Cable Terminal Connector Set Features
Amphenol SurLok Plus™ Connectors – industrial-grade quick-connect terminals for secure, tool-assisted locking
High Current Capacity – rated up to 120A for reliable battery module performance
1000V DC Rated – designed for high-voltage energy storage applications
IP67 Protection Rating – sealed construction for dust-tight and water-resistant performance
Wide Temperature Range – operates from -40°C to 125°C (-40°F to 257°F)
Discover Energy AES Rackmount ESS Battery Cable Terminal Connector Set Applications
-
Battery Module Integration – connects AES Rackmount battery modules to combiner systems
-
Energy Storage Systems – ideal for commercial and industrial ESS installations
-
Modular Battery Stacking – enables safe expansion of AES Rackmount systems
-
High-Voltage DC Systems – suitable for 1000V DC battery architectures
What’s Included?
Discover Energy AES Rackmount ESS Battery Cable Terminal Connector Set Specifications
Electrical Specifications
| Parameter |
Specification |
| Operating Temperature |
-40°C (-40°F) to 125°C (257°F) |
| Current Rating |
120 A max |
| Operating Voltage |
1000 Vdc |
| Dielectric Withstanding Voltage |
3000 Vdc |
Mechanical Specifications
| Parameter |
Specification |
| Height |
22.6 mm (0.89 in) |
| Width |
18 mm (0.71 in) |
| Length |
55.1 mm (2.17 in) |
| Cable Acceptance |
25 mm² (4 AWG) – 26.5 mm² (3 AWG) |
| IP Rating |
IP67 |
Frequently Asked Questions
Are these connectors compatible with all Discover batteries?
These connectors are specifically designed for use with AES Rackmount Battery Modules and the AES Rackmount Battery Module Combiner.
What voltage are these connectors rated for?
They are rated for systems up to 1000V DC.
Are the connectors waterproof?
They carry an IP67 rating, meaning they are dust-tight and protected against temporary immersion.
