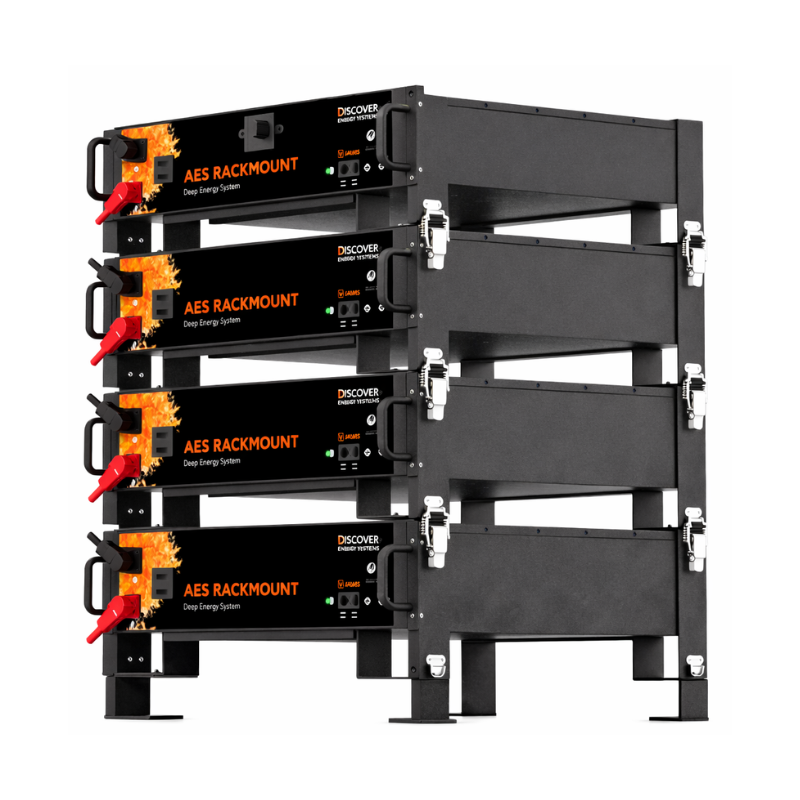

Discover Energy AES Rackmount ESS Quick Stack Bracket
The Discover Energy AES Rackmount ESS Quick Stack Bracket is designed to securely stack AES Rackmount Battery Modules into a clean, organized, and tool-free open rack configuration. Engineered for scalability, this bracket system allows installers to stack up to six AES Rackmount battery modules with a Battery Module Combiner, creating a compact and serviceable energy storage setup.
Ideal for commercial and industrial energy storage projects, the Quick Stack system improves airflow, reduces heat transfer between modules, and simplifies installation time on site.
Discover Energy AES Rackmount ESS Quick Stack Bracket Features
Tool-Free Interlocking Design – Brackets securely interlock without specialized tools for faster installation.
Scalable Stacking System – Supports stacking up to six AES Rackmount battery modules with one Battery Module Combiner.
Improved Thermal Spacing – Built-in spacing creates airflow gaps between batteries to reduce heat transfer.
Heavy-Duty Steel Construction – Durable indoor-rated bracket system designed for long-term structural support.
Modular & Installer-Friendly – Simplifies alignment and positioning for clean, professional ESS builds.
Discover Energy AES Rackmount ESS Quick Stack Bracket Applications
-
Commercial energy storage systems – Structured battery stacking for C&I installations
-
Industrial facilities – Organized multi-battery ESS deployments
-
Utility-scale backup systems – Modular rack expansion capability
-
Telecom & data infrastructure – Clean indoor battery rack installations
What’s Included?
-
1 x Front End Bracket
-
2 x Back End Bracket
-
3 x Side Arm
-
4 x Side Arm Nut (M4)
-
5 x Mounting Screw (M6)
- 1 Spare Set: Mounting Screw (2), Side Arm Nut (2)
Discover Energy AES Rackmount ESS Quick Stack Bracket Specifications
Front End Bracket
| Parameter |
Specification |
| Height |
179.0 mm (7.05 inch) |
| Width |
480.6 mm (18.9 inch) |
| Depth |
53.0 mm (2.1 inch) |
Holding Pins
| Parameter |
Specification |
| Height |
6.0 mm (0.24 inch) |
| Diameter |
6.0 mm (0.24 inch) |
Back End Bracket
| Parameter |
Specification |
| Height |
179.0 mm (7.05 inch) |
| Width |
446.0 mm (17.6 inch) |
| Depth |
50.0 mm (2.0 inch) |
Side Arm
| Parameter |
Specification |
| Height |
30.0 mm (1.2 inch) |
| Length |
400.0 mm (15.7 inch) |
Frequently Asked Questions
How many batteries can be stacked using this bracket system?
The system supports stacking up to six AES Rackmount battery modules along with one Battery Module Combiner.
Is this rack tool-free?
Yes. The brackets interlock without the need for specialized tools, simplifying installation.
Is this designed for outdoor use?
No. This rack system is intended for indoor installations only.
