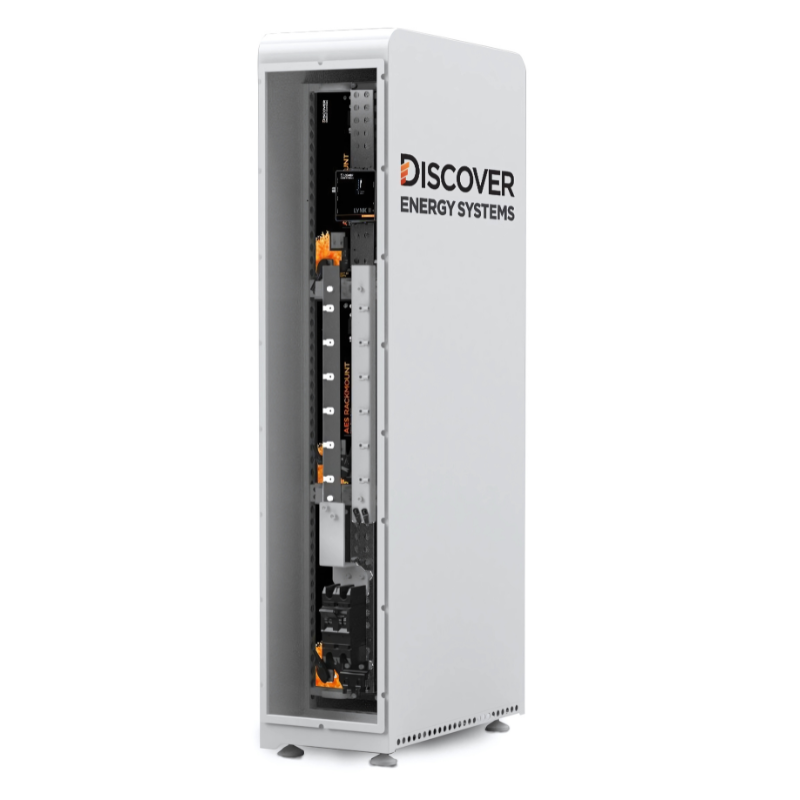

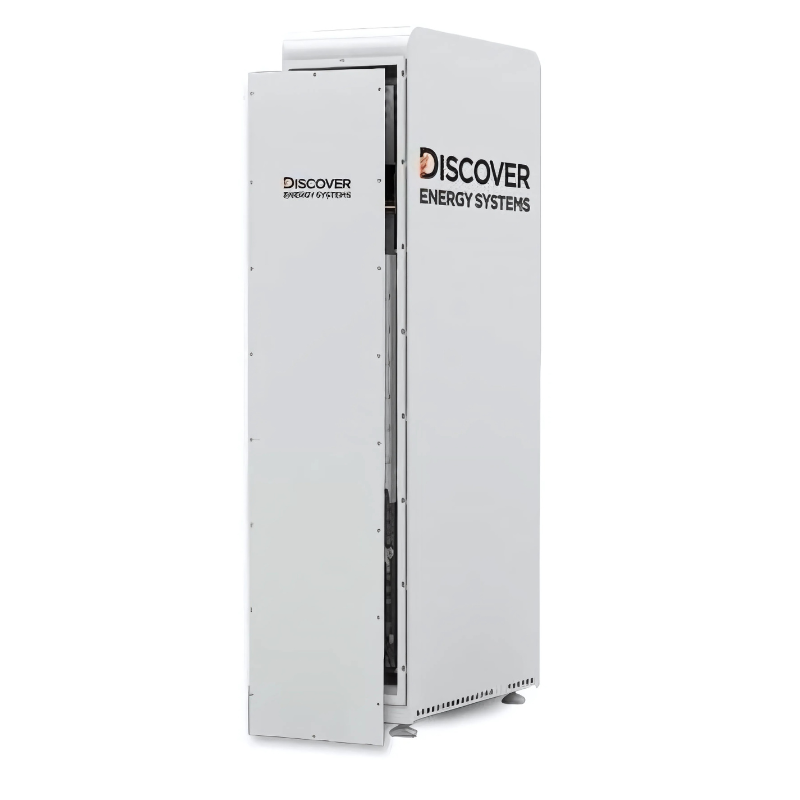

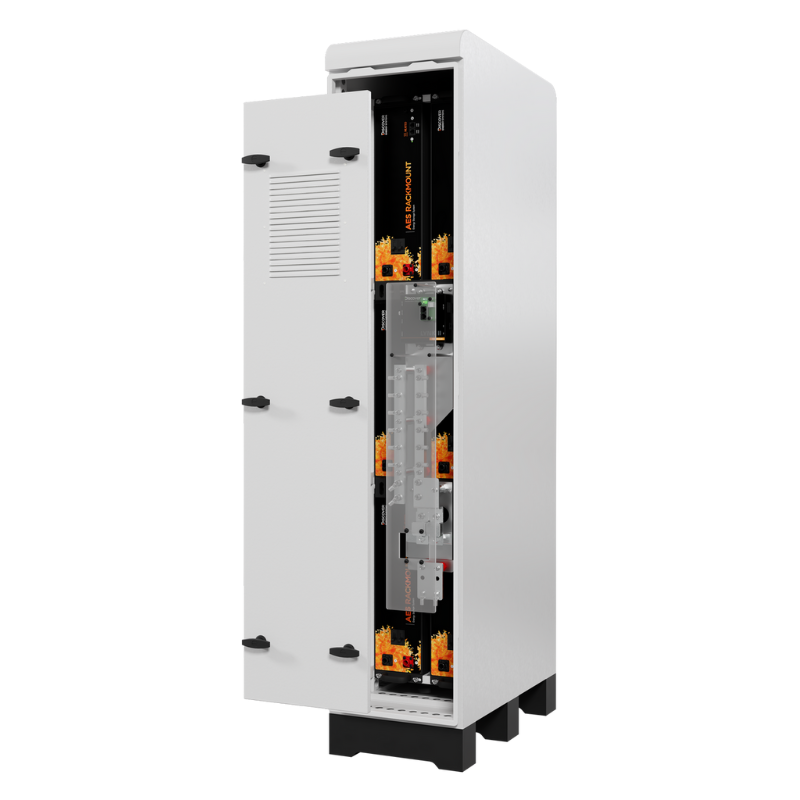

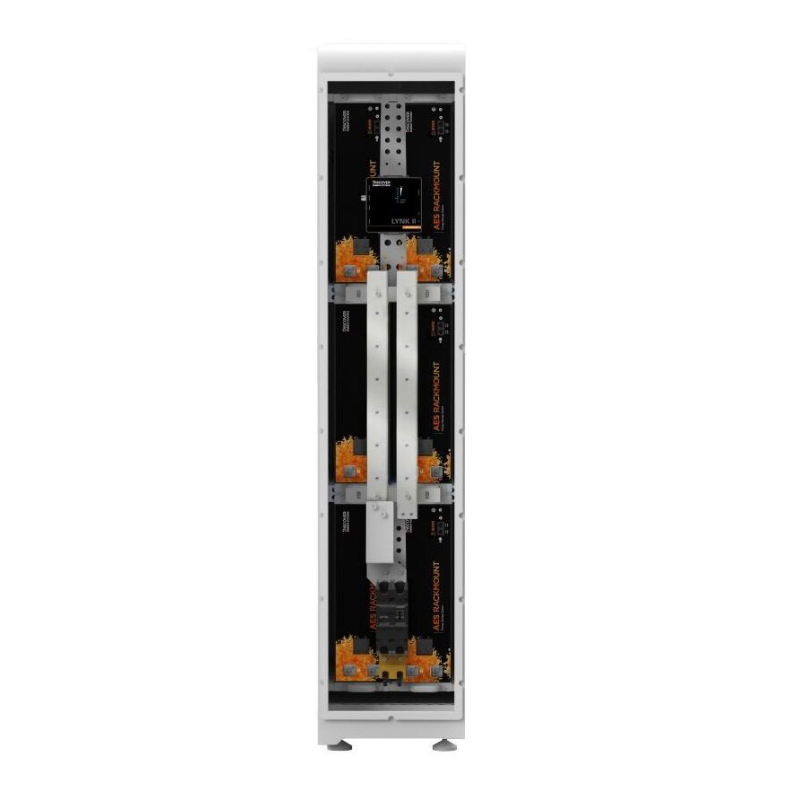

Discover Energy ESS Slimline Enclosure

The Discover ESS Slimline Enclosure is a sleek, space-efficient housing solution designed for indoor or covered outdoor installations of Discover Energy lithium battery systems. With a low-profile wall-mount design, it offers secure storage for up to two rackmount battery modules, protecting them from dust and incidental contact while allowing easy access for service and monitoring. Perfect for residential and small commercial energy storage systems where floor space is limited and aesthetics matter.

Discover Energy ESS Slimline Enclosure Features

Slimline Wall-Mounted Design

Compact, vertical cabinet takes up minimal space—perfect for garages, mechanical rooms, or utility walls.

Holds Up to 2 Discover Rackmount Batteries

Securely houses two Discover AES rackmount batteries (5.0 kWh each) for up to 10 kWh of enclosed energy storage.

Durable Powder-Coated Metal Construction

Protects internal batteries from physical impact, dust, and debris in indoor or semi-protected environments.

Cable Access Panels and Integrated Rails

Designed with cable cutouts and pre-installed mounting rails for simple battery installation and organized cable management.

Ventilated Enclosure with Service Access

Passive airflow slots maintain temperature balance while the front-access panel allows for easy inspection and maintenance.

Sleek, Low-Profile Appearance

A visually refined energy enclosure option that blends seamlessly into modern utility spaces.

Placeholder Image

Discover Energy ESS Slimline Enclosure Applications

  • Indoor residential battery installations - Ideal for safely mounting battery modules in garages, basements, or dedicated energy storage rooms.
  • Wall-mounted battery banks - Useful for clean, vertical battery layouts that save valuable floor space in compact utility environments.
  • Hybrid and off-grid energy systems - Compatible with Discover battery modules used in solar backup or standalone solar-plus-storage solutions.
  • Small commercial energy enclosures - Provides scalable battery mounting in retail, office, or light industrial energy backup systems.
  • Retrofit-friendly battery housing - Easily integrated into existing energy storage installations or inverter/battery wall builds.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Discover Energy ESS Slimline Battery Enclosure
  • User Manual

Discover Energy ESS Slimline Enclosure Specifications

Category Specifications
Compatibility AES RACKMOUNT Battery Module 5.12 kWh 100 Ah
Single Enclosure Configuration Up to Six AES RACKMOUNT Battery Modules (30.7 kWh Max)
Parallel Enclosure Configuration Up to Four AES RACKMOUNT 30 kWh Slimline Enclosures (122.8 kWh Max)
Height (with footings) 1695.5 mm / 66.75 inches
Width 680 mm / 26.8 inches
Depth 350 mm / 13.8 inches
Weight 80 kg / 176.37 lbs
Environmental NEMA 3R / IP 54
Mounting Free Standing or Pad Mount
Access Removable Door with Locking Mechanism
DC Power Conversion Terminal Block Positions 2
DC Bus Bar 500 A DC
Battery Cables Included with Amphenol connectors
Finish White Powder Coated UV Rated
Standards Designed to UL 9540
Communication Options LYNK II Gateway

Frequently-Asked Questions

Can this be used outdoors?

The enclosure is best suited for indoor or sheltered outdoor locations. It is not rated for direct exposure to rain or snow.

Does it include the batteries?

No. This product includes the enclosure only. Compatible Discover AES batteries must be purchased separately.

How are the batteries mounted inside?

The unit includes pre-installed rails that support rackmount-style batteries for easy sliding installation and alignment.

Is active cooling required?

No. The enclosure features passive airflow vents which are sufficient for most indoor or shaded installations.
