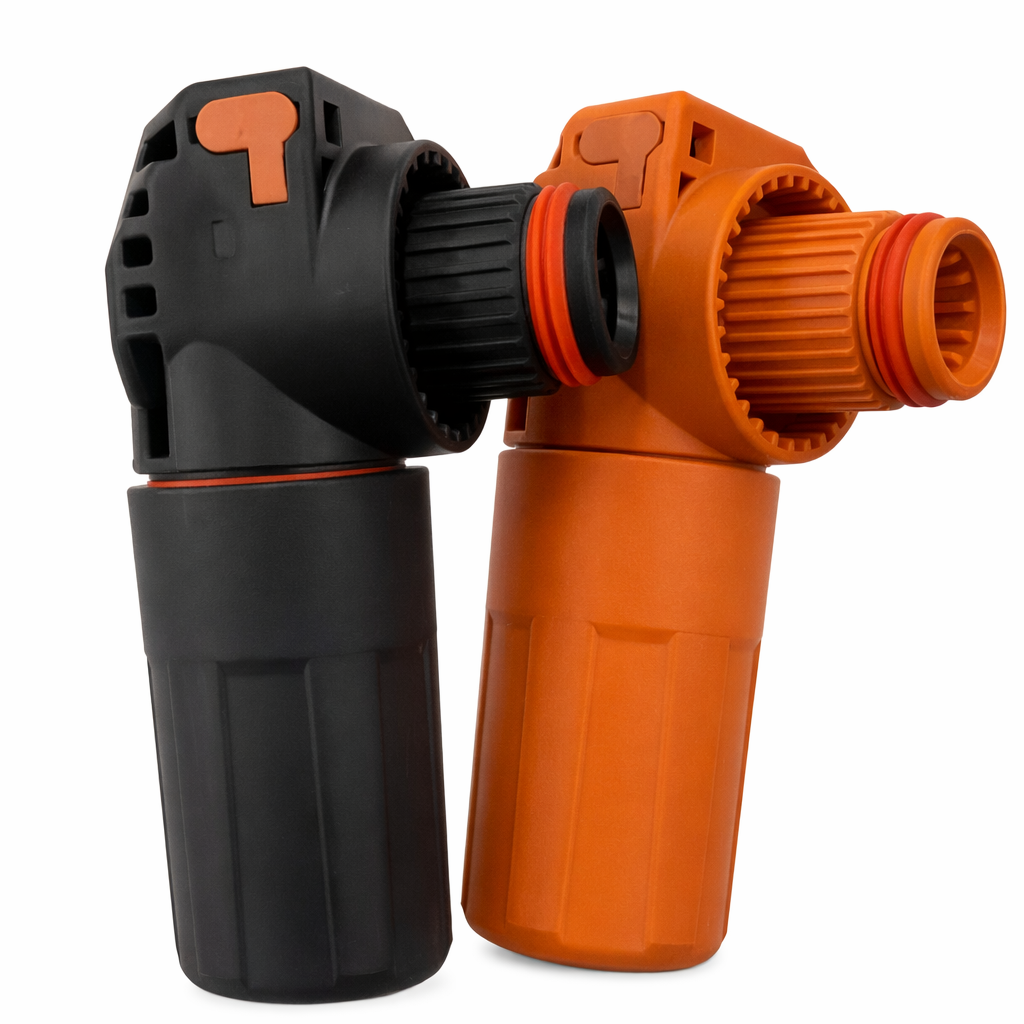

Discover Energy HELIOS ESS – (UL) Battery Cable Terminal Connector Set
The Discover Energy HELIOS ESS (UL) Battery Cable Terminal Connector Set (SKU: 950-0072) is designed for secure, code-compliant power connections within HELIOS ESS battery systems. Featuring push/pull connectors and wide cable compatibility, this set ensures reliable, high-current performance in commercial and industrial energy storage installations.
Discover Energy HELIOS ESS – (UL) Battery Cable Terminal Connector Set Features
UL Recognized Push/Pull Connectors – Designed for secure, tool-friendly high-current battery connections in HELIOS ESS systems.
Wide Cable Compatibility (1/0–2/0 AWG) – Accepts 55 mm² (1/0 AWG) up to 70 mm² (2/0 AWG) conductors for flexible installation options.
High IP Protection (IPX8 / IPXXB) – Engineered for enhanced protection against moisture ingress and contact hazards.
Compact Form Factor – Slim, low-profile design simplifies routing and installation inside conduit boxes and battery enclosures.
Discover Energy HELIOS ESS – (UL) Battery Cable Terminal Connector Set Applications
-
Battery-to-Inverter Connections – Designed for secure high-current connections within HELIOS ESS systems.
-
Commercial Energy Storage – Ideal for C&I battery installations requiring reliable terminations.
-
Rackmount Battery Systems – Compatible with HELIOS ESS rack-based deployments.
-
Utility-Scale Installations – Supports UL-compliant high-capacity battery banks.
What’s Included?
Discover Energy HELIOS ESS – (UL) Battery Cable Terminal Connector Set Specifications
| Parameter |
Specification |
| Height |
34.4 mm (1.35 in) |
| Width |
27 mm (1.06 in) |
| Length |
83.6 mm (3.29 in) |
| Cable Acceptance |
55 mm² (1/0 AWG) – 70 mm² (2/0 AWG) |
| IP Rating |
IPX8, IPXXB |
| Regulatory |
UL94-V0, UL94 HB |
Frequently Asked Questions
What cable sizes are compatible with this connector set?
The connectors support 55 mm² (1/0 AWG) up to 70 mm² (2/0 AWG) cables, commonly used in HELIOS ESS battery systems.
Is this connector set UL compliant?
Yes, the materials meet UL94-V0 / UL94 HB standards and are designed for UL-recognized HELIOS ESS installations.
Can this be used outside HELIOS systems?
This set is specifically designed for HELIOS ESS battery applications. Compatibility with other systems should be verified by a licensed installer.
