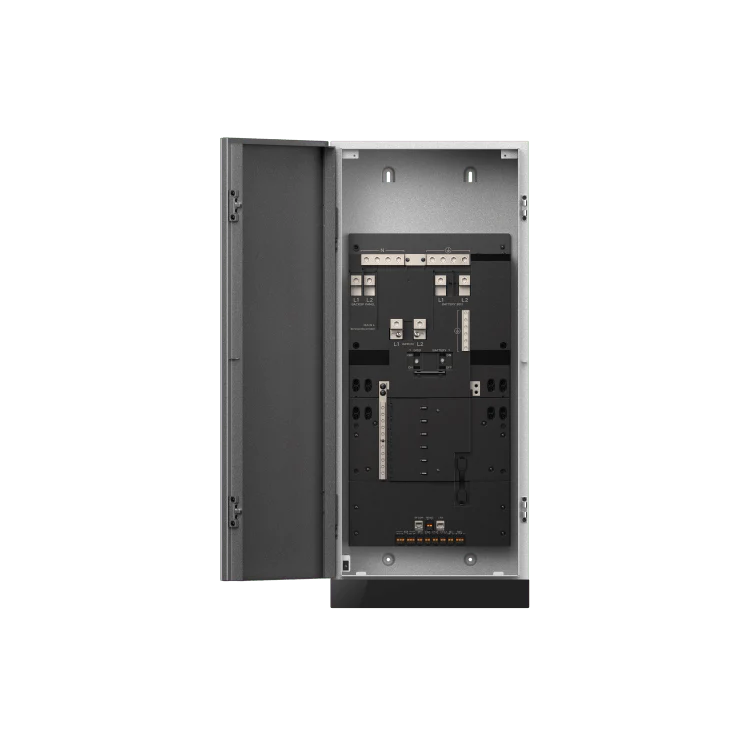

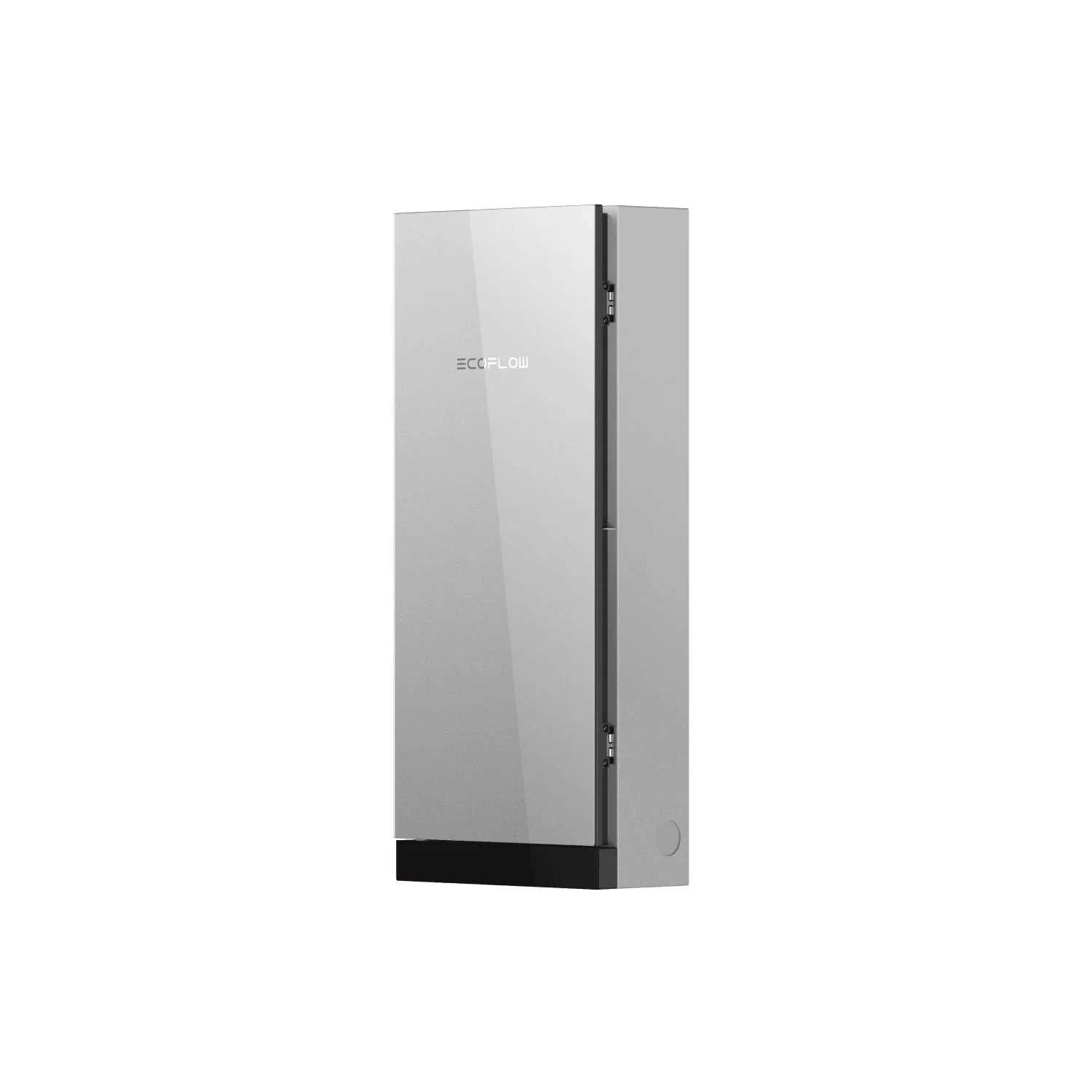

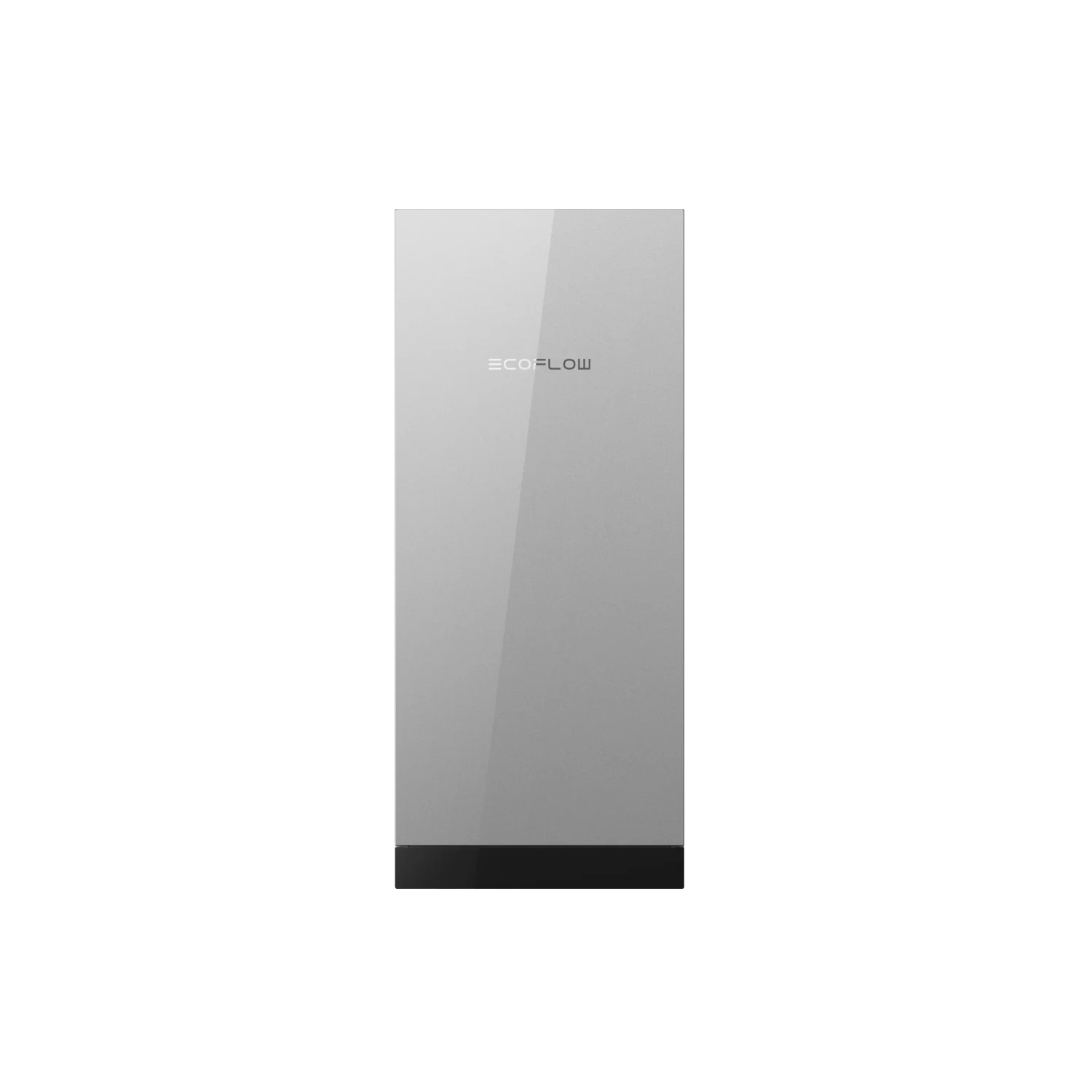

EcoFlow Smart Gateway (200A)

The EcoFlow Smart Gateway (200A) is a home energy management and backup switching component designed to work with compatible EcoFlow backup systems. It helps manage power distribution and system monitoring for supported setups, with a durable enclosure intended for residential installation environments.

Placeholder Image

EcoFlow Smart Gateway (200A) Features

200A gateway capacity – supports high-current backup panel output up to 200A.

Multi-connectivity control – supports Bluetooth/Wi-Fi/Ethernet/CAN/RS485 communication methods.

Precision monitoring support – main circuit power detection accuracy of 0.5% and sub-circuit power detection accuracy of 1%.

Installation-ready enclosure – NEMA 3R enclosure protection with Overvoltage Category IV rating.

Low-noise operation – rated noise emission ≤40 dB.

Certified compliance – UL67, UL869A, UL916, UL1741 listed; FCC Part 15B/15C EMC compliance.

Placeholder Image

EcoFlow Smart Gateway (200A) Applications

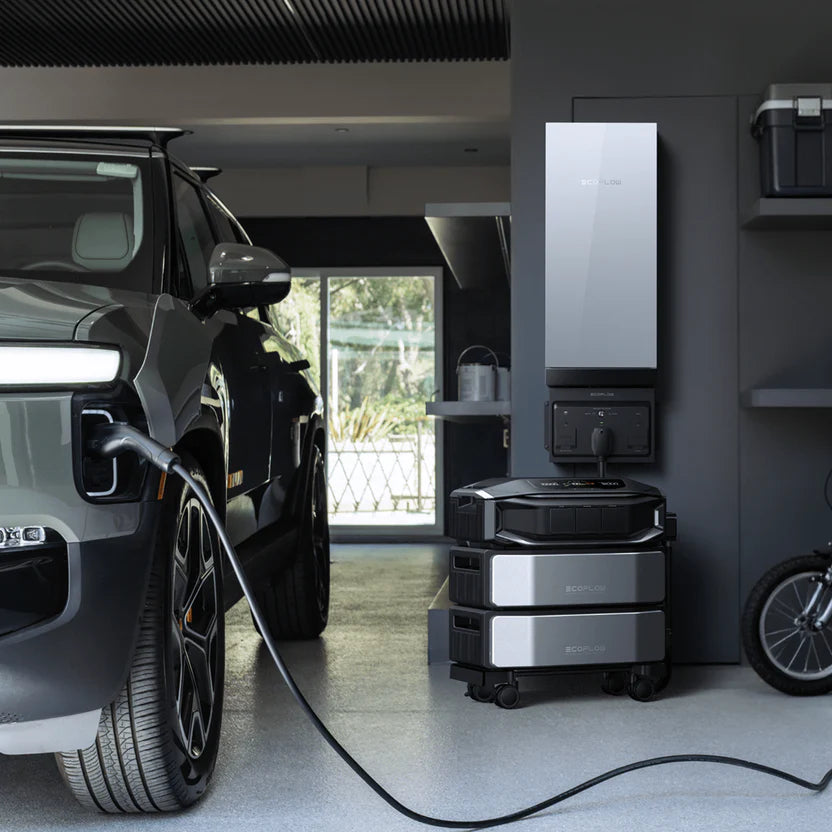

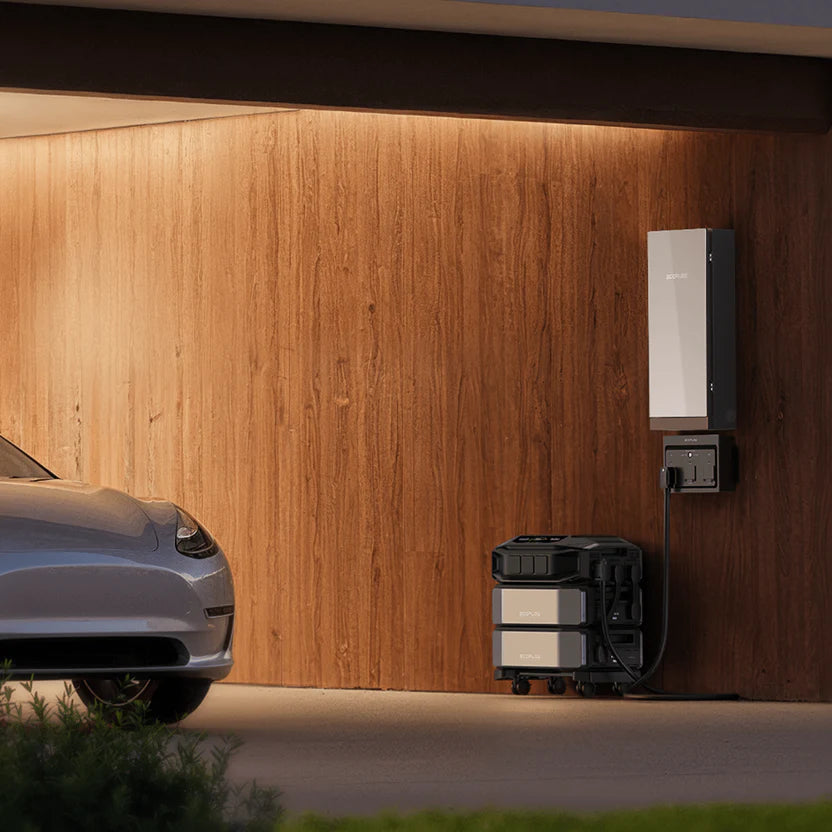

  • Whole-home backup coordination – helps manage power flow and system control for compatible EcoFlow backup configurations.
  • Load management – supports monitoring and managing connected circuits where applicable.
  • Residential indoor/outdoor installs – suitable for protected exterior or utility-space installs with a NEMA 3R-rated enclosure.
Placeholder Image

What's Included

Everything you need is included with your product.

  • 1 x EcoFlow Smart Gateway (200A)
  • 1 x EcoFlow Smart Inlet Box (Smart Home Panel 2 Upgrade)
  • 1 x EcoFlow Smart Inlet Box Connection Cable (5P8 Port to 5P8 Port)
  • 1 x Mark-off template
  • 1 x User Manual
  • 1 x Warranty Card

Warranty

  • 10-year limited warranty

EcoFlow Smart Gateway (200A) Specifications

Specification Details
Net Weight 65.5±0.4lb(29.7±0.2kg)
Overvoltage Category IV
Enclosure Protection NEMA 3R
Storage Temperature Range -30~50℃(-22~122℉)
Branch Circuit Rated Current 60A*6 circuits output
Noise Emission ≤40dB
Warranty 10 Years
Communication Method luetooth/Wi-Fi/Ethernet/CAN/RS485
Sub circuit power detection accuracy 1%
Dimensions (HWD) 385 × 188 × 905mm (15.16 × 7.40 × 35.63 in.)
Rated Input Voltage (V) 120/240V, 120/208V，60Hz
Operating Temperature Range -30~50℃(-22~122℉)
Maximum Operating Altitude ≤3000m(9842.52ft)
Maximum Branch Output for the Backup Panel 200A
Certificates UL67, UL869A, UL916, UL1741
EMC FCC Part 15B | FCC Part 15C
Main circuit power detection accuracy 0.5%
Ecologically compatible products EcoFlow DELTA Pro Ultra Inverter/EcoFlow DELTA Pro Ultra X Inverter/PowerPulse EV Charger

Frequently-Asked Questions

Does the EcoFlow Smart Gateway (200A) include everything needed to connect the inlet box?

Yes. The package includes the Smart Inlet Box and the 5P8-to-5P8 connection cable, along with the template and warranty card.

What enclosure rating does the Smart Gateway have?

It has NEMA 3R enclosure protection, intended for residential installation environments.

What communication methods are supported?

It supports Bluetooth, Wi-Fi, Ethernet, CAN, and RS485.

What is the maximum output supported for the backup panel?

The Smart Gateway supports a maximum branch output up to 200A for the backup panel.
