EG4 12KPV Complete Hybrid Solar Kit | 5.8kW Solar | 10-16kWh Wall Mount Batteries

The EG4 12KPV Complete Hybrid Solar Kit is a compact yet powerful solar energy solution designed for homeowners seeking energy independence, backup power, and lower electricity costs. Featuring the advanced EG4 12KPV hybrid inverter, this system efficiently manages solar production, battery storage, and grid interaction in one seamless platform.

With a 5.8kW solar array and flexible 10–16kWh wall-mounted battery options, this kit is ideal for small to mid-sized homes, cabins, or backup applications. Whether you're looking to reduce reliance on the grid or build a hybrid energy system, this kit offers scalability, reliability, and high-performance components.

EG4 12kPV Complete Hybrid Solar Kit Features

All-in-One Hybrid Inverter - 8000W continuous output with 12000W PV input enables efficient solar generation, battery charging, and grid interaction in a single unit.
Flexible Battery Options (10–16kWh) - Choose from multiple LiFePO4 wall-mount batteries including EG4 (closed-loop) and other open-loop options for tailored energy storage.
High-Efficiency Solar Panels - Includes 14 × 415W Mono Black PERC panels, delivering 5.8kW of clean solar power with excellent performance and durability.
Closed-Loop Communication (EG4 Battery Option) - When paired with EG4 batteries, the system enables real-time communication for optimized charging, performance, and protection.
Scalable & Expandable Design - Easily expand battery storage or solar capacity as energy needs increase.
Complete Installation Package - Comes with essential wiring, protection components, and mounting hardware for a smoother installation process.

EG4 12kPV Complete Hybrid Solar Kit Applications

Hybrid Home Energy Systems - Ideal for homeowners wanting solar with battery backup while staying grid-connected.
Backup Power Solutions - Keeps critical loads running during outages with automatic switching.
Small Homes & Cabins - Perfect for efficient energy use in smaller residential setups or remote locations.
Energy Cost Reduction - Store excess solar energy and use it during peak utility rate periods.
Off-Grid Ready Systems - Capable of supporting off-grid setups when paired with sufficient battery storage.

What's Included

Everything you need is included with your product.

Inverter:

EG4 12kPV - 8000W Output - 12000W PV Input - 48V - 120/240V Split Phase - Hybrid

Battery Options (Choose One):

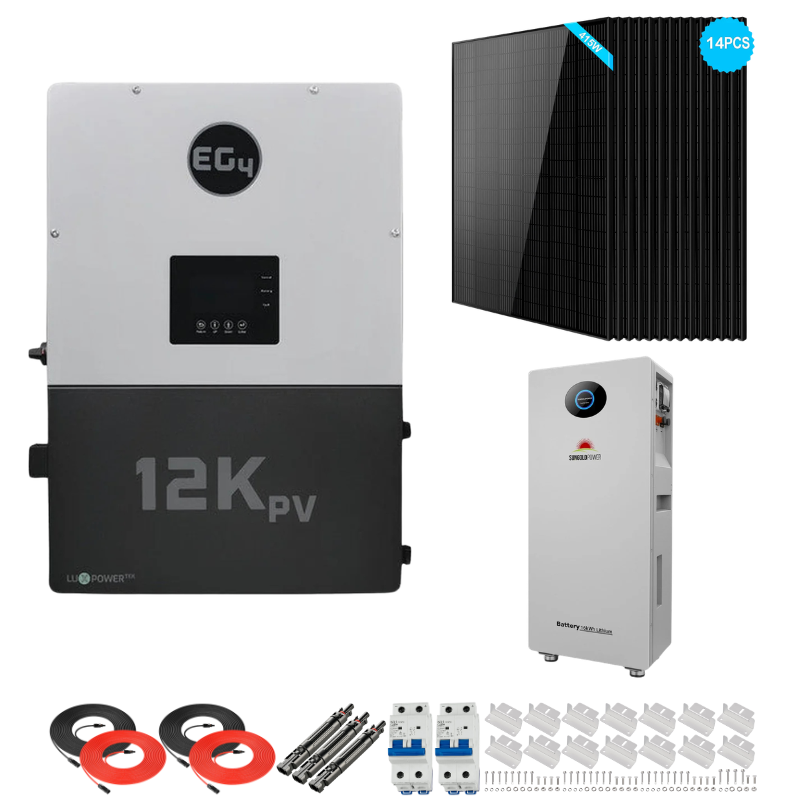

1 x SunGold Power PowerMax - 16kWh - Open Loop

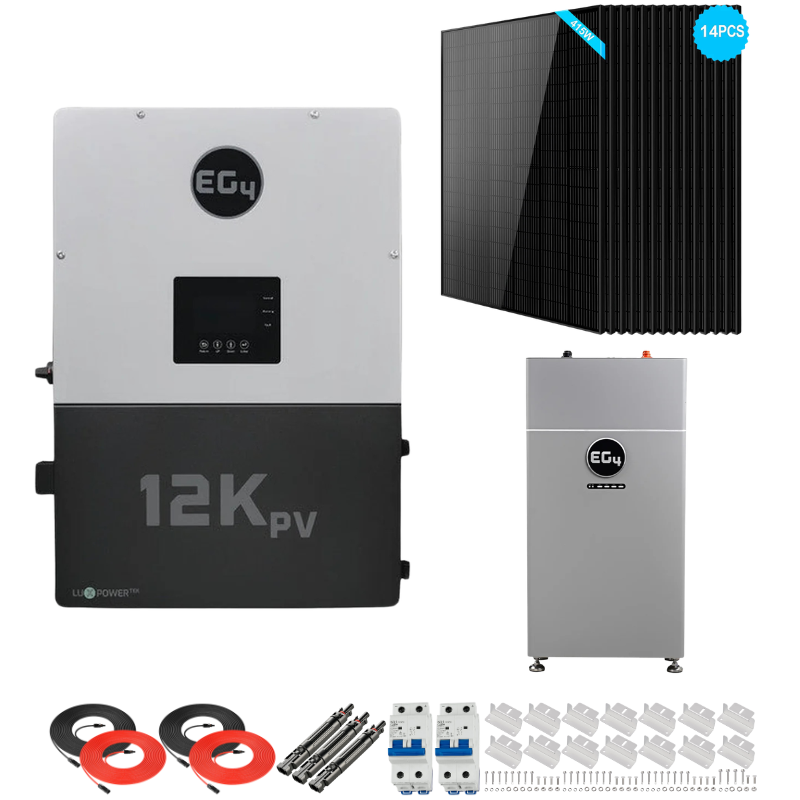

1 x EG4 Indoor Wallmount - 16kWh - Closed Loop

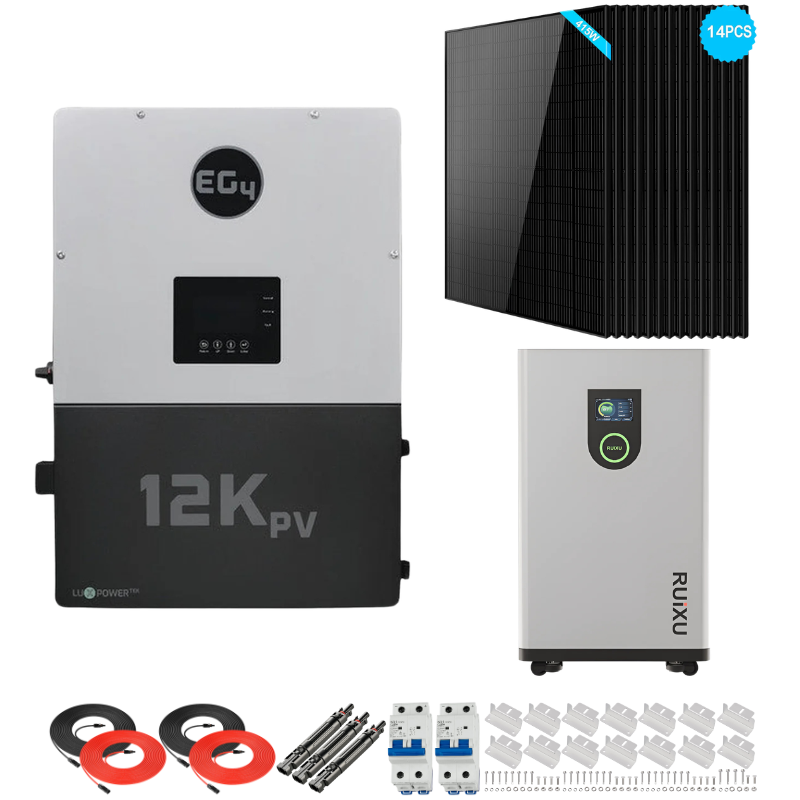

1 x RUiXU Lithi2-16 - 16kWh - Open Loop

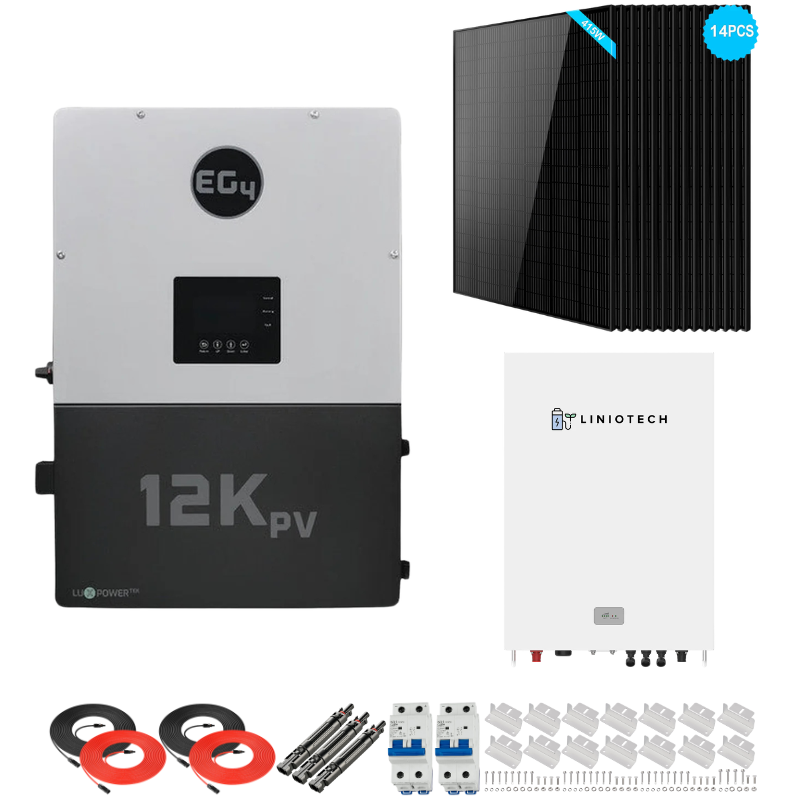

1 x LINIOTECH - 10kWh - Open Loop

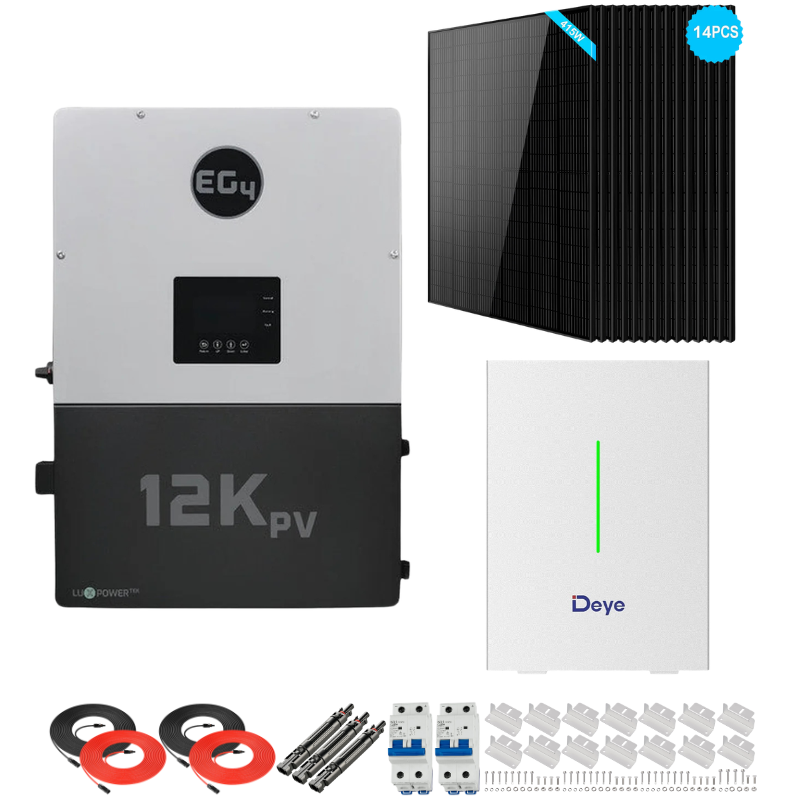

1 x Deye 48V - 10.2kWh - Open Loop

Solar Panel:

14 × SunGold Power 415W Mono Black PERC (5.8kW)

Accessories:

2 x Rich Solar 10AWG Solar Extension Cable - 50ft
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
2 x 25A PV Breaker
14 x Z-Brackets

EG4 12kPV Complete Hybrid Solar Kit Specifications

EG4 12kPV - 8000W Output - 12000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

AC input data

Specification	Details
Nominal ac voltage	120/240VAC (L1/L2/N required)
Frequency	50/60Hz
Max. continuous ac current	37.5A @ 240VAC
Max. ac input power	9000W
Ac bypass (grid \| generator)	50A
Available fault current	5kA
Input short circuit current	150A peak @100us, per inverter

AC output data

Specification	Details
Output voltage	120/240VAC
Output frequency	50/60Hz
Max. continuous output current @ 240v	25A
Nominal power output	6000W
Surge capacity	12,000W for ≈3.5 seconds \| 11,000W for ≈5 seconds
Power factor	0.99 @ full load
Reactive power adjust range	(-0.8) ~ (+0.8) leading adjustable
Operating frequency	50/60Hz
Thd (v)	<3%
Switching time	<15ms @ Single \| <30ms @ Parallel

PV input data

Specification	Details
Number of mppts	2
Inputs per mppt	1
Max. usable input current	17/17A
Max. short circuit input current	25/25A
Dc input voltage range*	100 – 480 VDC
Unit startup voltage	100 VDC ±10 VDC
Mppt operating voltage range	120 – 385 VDC
Nominal mppt voltage	320 VDC
Max. pv input voltage**	500 VDC
Maximum utilized solar power	8000W (4000W per MPPT)
Recommended maximum solar input	10000W

Battery data

Specification	Details
Type	Lead-acid/Lithium
Max. discharge current	140A
Max. charge current	125A
Nominal voltage	48 VDC
Battery voltage range	46.4 – 60 VDC (Lithium) \| 38.4 – 60 VDC (Lead-acid)
Rec. battery capacity per inverter	>200Ah
High dc cut-off voltage	59 VDC (Lithium) \| 60 VDC (Lead-acid)
High dc recovery voltage	57.4 VDC (Lithium) \| 58 VDC (Lead-acid)
Low dc warning voltage (lead-acid) \| Load>20%	44.0 VDC (Configurable)
Low dc warning voltage (lead-acid) \| 20%≤Load≤50%	Warning Voltage @Load <20% - 1.2V
Low dc warning voltage (lead-acid) \| Load>50%	Warning Voltage @Load <20% - 3.6V
Low dc warning voltage return (lead-acid)	Low dc warning voltage @Different Load +2V

SunGold Power PowerMax - 16kWh - Open Loop Specifications

Specification	Details
Product Model	SG48200T
Rated voltage	51.2V
Max. voltage range	44.8~57.6V, Shipping voltage>51.2V
Charge voltage	56.0V
Float charge voltage	54.6V
Nominal enery@0.5c	10.24KWh
Usable enery@0.5c	9.84kWh
Nominal capacity@0.5c	200Ah
Dimension	21.1* 37.26.8 inch (535944*173mm)
Weight	~198.4lb (90kg)
Standard charge current	≤100A
Max. charge current	140A
Standard discharge current	≤100A
Max. discharge current	200A (initial temp. ≤86℉（30℃）)
Peak discharge current	200~240A@5mins \| 240~300A@15S
Communication	RS485 /CAN
Max parallel number	32pcs
Operation temperature 1	Charge: 32℉ to 122℉(0 to 50℃) \| Discharge: 14℉ to 122℉ (-10 to 50℃)
Storage temperature @off mode	32℉(0℃)
Certificates	UN38.8 MSDSUL1973 UL9540Ais coming soon.

Deye 48V - 10.2kWh - Open Loop Specifications

Main Parameter

Specification	Details
Model	RW-F10.2-B
Battery Chemistry	LiFePO4
Built-in Circuit Breaker	125A 4P, 60Vdc
Capacity ( Ah )	200
Scalability	Max. 32 pcs pack ( Max.327kWh ) in parallel
Nominal Voltage ( V )	51.2
Operating Voltage ( V )	43.2~57.6
Nominal Energy ( kwh )	10.24
Usable Energy ( kwh )	9.2
Charge / Discharge Current ( A ) Recommend	Charge : 100 / Discharge : 100
Charge / Discharge Current ( A ) Max.	Charge : 198 / Discharge : 240
Charge / Discharge Current ( A ) Peak ( 2mins, 25°C )	300

Other Parameter

Specification	Details
Recommend Depth of Discharge	90%
Dimension ( W X H X D )	23.6" × 32.7" × 7.9" ( 600 × 830 × 200mm, without hanging board )
Weight Approximate	235.9 lbs. ( 107kg )
Master LED Indicator	LED ( SOC : 20% ~ SOC100% and working state )
IP Rating of Enclosure	NEMA 3R ( IP65 )
Operating Temperature	Charge : 33°F ~ 131°F ( 1 ~ 55°C ) / Discharge : -4°F ~ 131°F ( -20°C ~ 55°C )
Operating Temperature ( with heating film )	Charge / Discharge : -4°F~131°F ( -20°C ~ 55°C )
External ambient temperature range	-4°F ~ 131°F ( -20°C ~ 55°C, with heating film )
Recommend Operating Temperature	59°F ~ 95°F ( 15°C ~ 35°C )
Storage Temperature	32°F ~ 95°F ( 0 ~ 35°C )
Humidity	5% ~ 95%
Altitude	≤Max. 9,843 ft ( 3,000m )
Cycle Life	≥6000 ( 25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL )
Installation	Wall-Mounted, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period	10 years
Energy Throughput	32MWh ( @25°C, 0.5C / 0.5C, 70%EOL )
Certification	UN38.3, FCC, UL1973, UL9540A, UL9540

LINIOTECH - 10kWh - Open Loop Specifications

Specification	Details
Battery Chemistry	LiFePO4
Capacity (Ah)	280Ah
Scalability	Max.16pcs in parallel (262kWh)
Voltage (V)	51.2V
Operating Voltage(V)	46-56V
Energy (kWh)	14.34kWh
Recommend Discharge Energy (80% DOD) (kWh)	11.47kWh
Recommend Charge/Discharge Current (A)	100A
Charge/Discharge Current (Max.)	150A
Peak Current (2 mins, 25°C)	200A
Recommend Depth of Discharge	90%
Dimension (W/H/D)	7001050200mm / 27.641.37.9 in
Weight Approximate	128.5kgs / 283 lbs
Master LED Indicator	4 LED (SOC:25%~100%) \| 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP65
Working Temperature	Charge:0℃～55℃ Discharge:-20℃～55℃
Storage Temperature	0℃～35℃
Humidity	5%~95%
Altitude	≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥8500
Installation	Ground/Outdoor
Communication Port	CAN2.0, RS485, WiFi
Warranty Period	12 years
Certification	UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS
Maximum Continuous Discharge Rate	7.68KW

RUiXU Lithi2-16 - 16kWh - Open Loop Specifications

Specification	Details
Nominal Voltage	51.2V
Capacity	314Ah (Min. Capacity @ 0.2C: 314Ah)
Sleeping Capacity	16.07kWh
Operating Voltage Range	44.8V - 56.0V
Charge Voltage	56.8V
Recommended Charge Current	140A
Max Charge Current	200A
Recommended Discharge Current	100A
Max Discharge Current	200A
Cycle Life (@ 80% DOD)	≥ 9500 cycles
Communication Protocols	RS485 / CAN
Dimensions (with Wheels)	36.3" x 21.3" x 10"
Weight	~320 lbs
Mounting Options	Wall-mounted with included screws and anti-tipping anchor
Certifications	UL1973, UL9540
IP Rating	IP65 (Outdoor-Ready)

EG4 Indoor Wallmount - 16kWh - Closed Loop Specifications

Specification	Details
Product Type	LFP Battery
Battery Type	Lithium Iron Phosphate (LFP
Model Number	WM-48-314-IN-XX / WM48314INXX (XX is a number between 00 – 99

Electrical Characteristics

Specification	Details
Nominal Energy Capacity	16 kWh
Usable Energy (DOD%)	12.86 kWh (80% recommended)
Recommended Voltage Range	47.5 – 57.6 VDC
Nominal Voltage	51.2 VDC
Capacity	314 Ah
Charging Voltage Range	56 – 57 VDC
Discharging Cut-Off Voltage	47.5 VDC
Max Continuous / Recommended Charge Current	157A / 157A
Max Continuous / Recommended Discharge Current	200A / 157A
Continuous Charge / Discharge Power	8 / 10.2 kW
Recommended Charging / Discharging Rate	0.5C
Short Circuit Current	1700A, 15 ms delay
Peak Power	12.8 kW (3 sec)
Round-Trip Efficiency	95%
Max Parallel Units	32
Protection Features	Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS)	Integrated, Active Balancing
Communication Protocols	RS485, CAN
Battery Breaker	250A

Battery Heater Specifications

Specification	Details	Condition
Voltage	56V	-
Power Consumption	448W	-
Internal Battery Temperature	≤32°F (0°C) / ≥37°F (3°C)	Heat On / Heat Off

Environmental Specifications

Specification	Details
Storage Temperature Range*	−4 – 131°F (−20 – 55°C)
Humidity Range	5% – 95% RH (non-condensing)
Altitude	9843 ft (<3000 m)
Cooling Method	Natural Convection
Dimensions (H × W × D)	34.1 in × 18.1 in × 9.6 in (865 mm × 460 mm × 245 mm)
Operating Temperature Range	Charge: 32 – 122°F (0 – 50°C) \| Discharging: −4 – 131°F (−20 – 55°C)

Mechanical Specifications

Specification	Details
Weight	293.2 lbs (133 kg)
Enclosure Rating	IP20
Enclosure Rating	Floor mount / wall attached
Display / Indicators	LED Status
Connector Type	Degson quick connector / screw terminals

Certifications & Compliance

Specification	Details
UL 1973	Yes
UL 9540	See https://eg4electronics.com/ for supported UL 9540 configurations
UL 9540A	Cell, Module (Pending), Unit Level (Pending)
UN 38.3	Yes

Warranty & Lifecycle

Specification	Details
Cycle Life (70% EOL Capacity)*	10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life	15 years
Warranty	10 years or 10,000 cycles
Lifetime Production**	122.2 MWh
Application Type	Residential / Commercial / Off-Grid / Backup

Frequently-Asked Questions

Can I expand the battery capacity later?

Yes, this system is fully expandable. You can add additional compatible batteries as your energy needs grow.

What’s the difference between open-loop and closed-loop batteries?

Closed-loop batteries communicate directly with the inverter for optimized performance, while open-loop batteries operate independently but still function effectively.

Will this power my whole home?

It can power essential loads and many household appliances. Full-home coverage depends on energy usage and system expansion.

Is this system suitable for off-grid use?

Yes, with sufficient battery storage and solar input, this system can operate fully off-grid.

Manual

Shipping & Easy Returns

Shipping is FAST & FREE across the US. Read our full Shipping Policy here.

We offer market leading Easy 30 Day Returns. Read more about our Returns Policy here.

Why Buy From Us

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Off-Grid Source.

Free Shipping: Absolutely no hidden charges, ever.
Guaranteed Best Prices: If you find a lower price elsewhere, we'll match it.
30-Day Easy Returns: Not Happy with your product? Return it, no questions asked.
Great Customer Service: It's rare to get a real person these days, but with us, you always will. Have questions? Call us at +1 (877)-556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.
