EG4 12kPV Complete Hybrid Solar Kit | 5.8kW Solar | 20.4kWh Server Rack Batteries

The EG4 12kPV Complete Hybrid Solar Kit is a versatile and efficient energy solution designed for homeowners seeking reliable hybrid power with battery backup. Combining the powerful EG4 12kPV hybrid inverter with a 5.8kW solar array and 20.4kWh server rack battery options, this system delivers dependable energy production, storage, and seamless grid interaction.

This kit is ideal for both grid-tied and off-grid applications, offering flexibility, scalability, and high-performance components. With multiple battery brands to choose from, users can tailor the system to their specific needs while maintaining long-term reliability and efficiency.

EG4 12kPV Complete Hybrid Solar Kit Features

Powerful Hybrid Inverter Technology - 8000W continuous output with 12000W PV input capacity allows for strong solar production and efficient energy management between solar, battery, and grid.
20.4kWh Battery Storage Options - Includes multiple high-quality LiFePO4 server rack batteries from trusted brands like EG4, SunGold, Rich Solar, RUiXU, and SOK.
Efficient 5.8kW Solar Array - Built with 14 × 415W Mono Black PERC panels, delivering solid daily production with excellent efficiency and durability.
Closed-Loop & Open-Loop Compatibility - Supports both closed-loop communication (EG4 LL-S) for optimized performance and open-loop batteries for flexible integration.
Expandable Energy System - Easily add more batteries or panels to increase storage capacity and solar production as energy needs grow.
Complete Installation Kit - Includes essential wiring, breakers, fuses, and mounting hardware for a streamlined setup.

EG4 12kPV Complete Hybrid Solar Kit Applications

Hybrid Home Energy Systems (Grid-Tied with Battery Backup) - Perfect for homeowners who want to stay connected to the grid while storing excess solar energy for nighttime use or outages. Maximizes energy independence while maintaining utility backup.
Partial or Full Off-Grid Setups - Ideal for cabins, rural homes, or properties without reliable utility access. Provides consistent, self-sustaining power using solar and battery storage.
Backup Power for Outages - Keeps essential appliances like refrigerators, lights, and communication devices running during power failures. Seamless transition ensures uninterrupted power when the grid goes down.
Energy Cost Reduction & Self-Consumption - Store excess solar energy instead of sending it back to the grid and use it during peak rate times. Reduces electricity bills and increases solar ROI.
Small to Medium Residential Properties - Designed to efficiently power average-sized homes with moderate to high energy usage. Scalable system allows expansion as energy demands grow.

What's Included

Everything you need is included with your product.

Inverter:

EG4 12kPV - 8000W Output - 12000W PV Input - 48V - 120/240V Split Phase - Hybrid

Battery Options (Choose One):

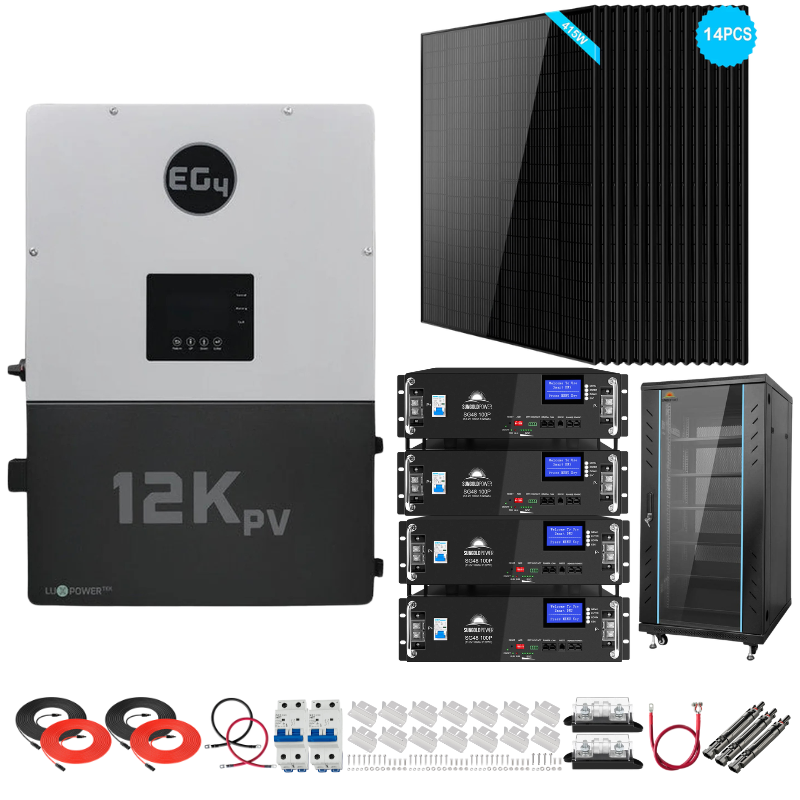

4 × Sungold Server Rack 5.12kWh Open Loop Batteries (20.4kWh Total)

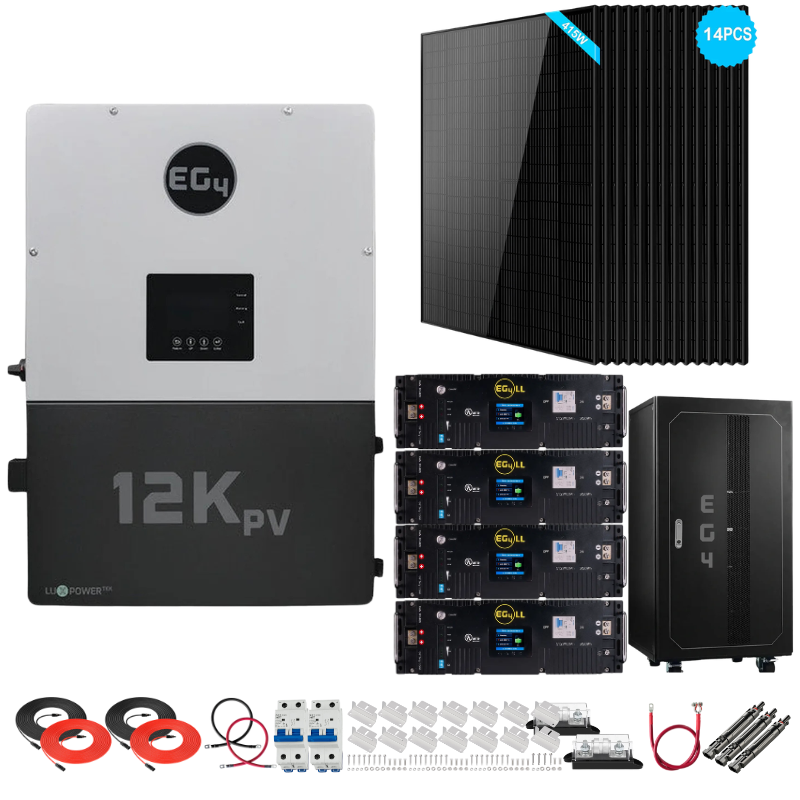

4 × EG4 LL-S 5.12kWh Closed Loop Batteries (20.4kWh Total)

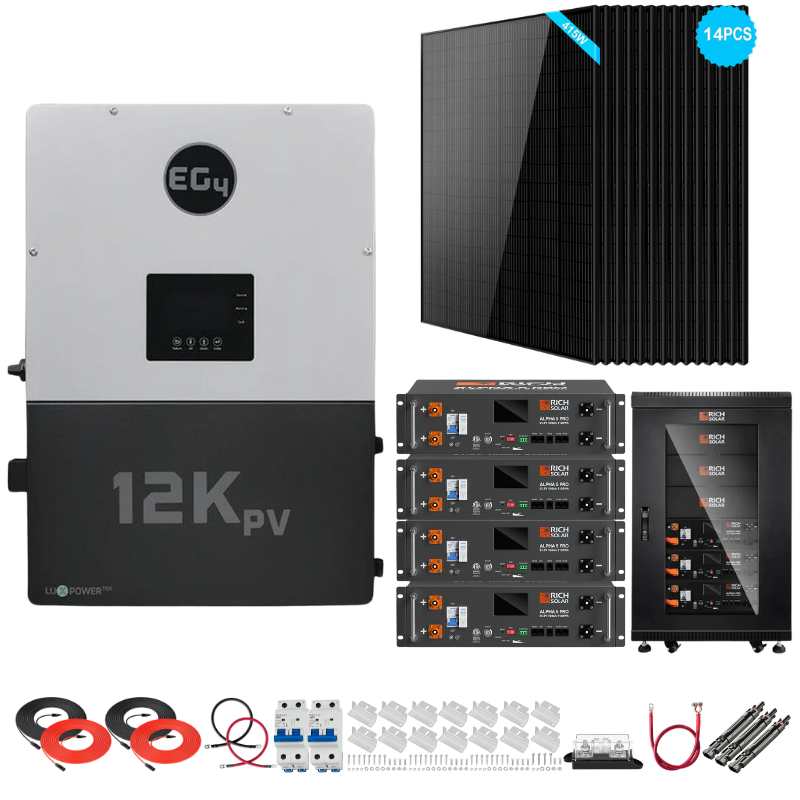

4 × Rich Solar Alpha 5 Pro 5.12kWh Open Loop Batteries (20.4kWh Total)

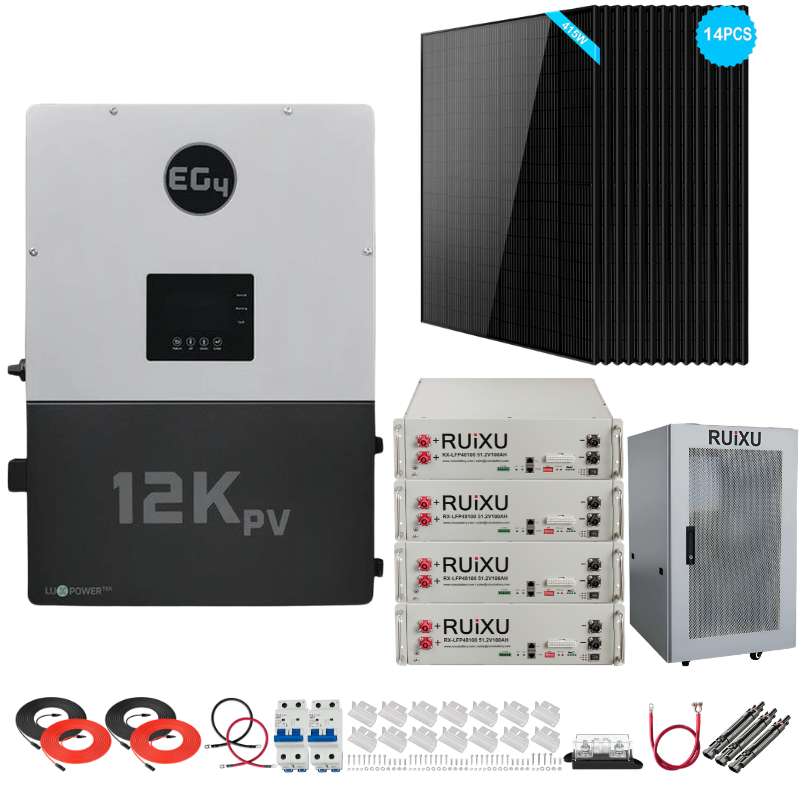

4 × RUiXU 51.2V 5.12kWh Open Loop Batteries (20.4kWh Total)

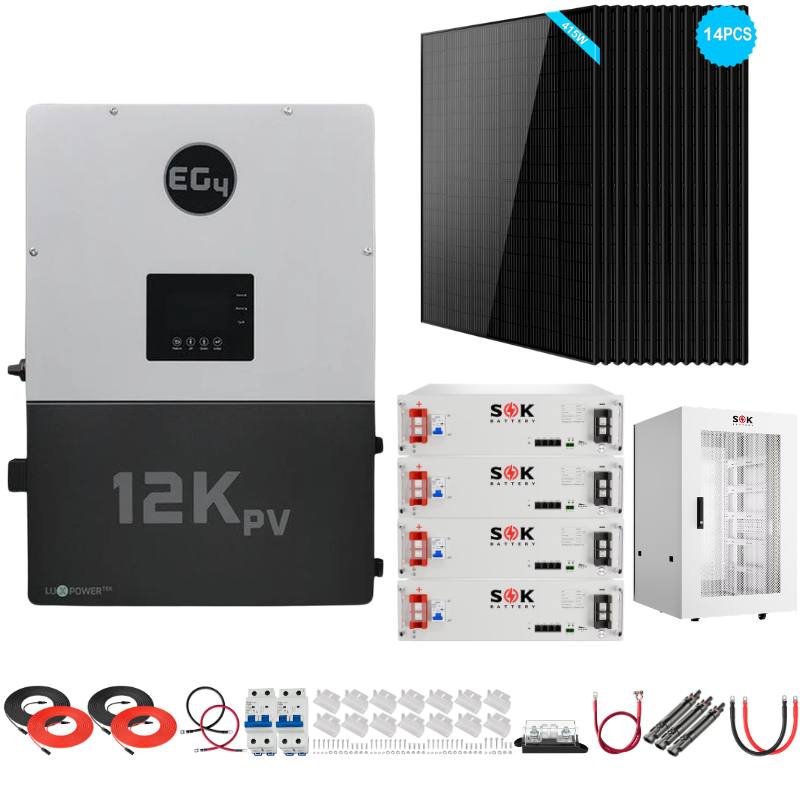

4 × SOK 48V 5.12kWh Open Loop Batteries (20.4kWh Total)

Solar Panel:

14 × SunGold Power 415W Mono Black PERC (5.8kW)

Accessories:

2 x Rich Solar 10AWG Solar Extension Cable - 50ft
2/0AWG Battery Cable - 6ft - 5/16 Both Ends (Set Red & Black)
2 x 25A PV Breaker
14 x Z-Brackets
2 x 250A Class-T Fuse
2/0AWG Battery Cable - 6in - 5/16 Both Ends (Red Only)
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A

Accessory Based on Battery Choice:

SunGold Power 6-Slot Enclosed Battery Cabinet (Comes with Sungold Power)
EG4 Pre-Assembled EG4 Enclosed Battery Rack | 6 Slot | Wheels Included | Bus Bar Covers | Welded (Grey) (Comes with EG4)
Rich Solar 6-Slot Enclosed Battery Cabinet (Comes with Rich Solar)
RUiXU 6-Slot Battery Cabinet (Comes with RUiXU)
SOK Battery Cabinet with Busbar (Comes with SOK)
4 x 4AWG Cable - 1ft - 5/16 Both Ends (Red & Black) (Comes with SOK)

EG4 12kPV Complete Hybrid Solar Kit Specifications

EG4 12kPV - 8000W Output - 12000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

AC output/input

Specification	Details
Nominal grid voltage (input & output)	120/240VAC; 120/208VAC (L1/L2/N required)
Frequency	50/60Hz
Max. AC input power	8000W
Min. generator size	>5000W
Max. continuous current	80A \| 80A

AC grid output data

Specification	Details
Max. output current	33.3A @240VAC \| 38.5A @208VAC
Output voltage	120/240VAC; 120/208VAC
Nominal power output	8000W
Output frequency	50/60Hz
Power factor	0.99 @ Full Load
Reactive power adjust range	±0.8
Max cont. line wattage	4000W
Peak power	0.5s – 16kW \| 1s – 12kW \| 1min – 10 kW \| 12 min – 8.8 kW
Operating frequency	50/60Hz
THD (V) @Full Load	<3%
Transfer time	Single > 20 ms – Default, 10 ms – Selectable \| Parallel > 20 ms

PV input data

Specification	Details
Number of MPPTs	2
Inputs per MPPT	2
Max. usable input current	25/25A \| 25A per MPPT \| 41.6A in total
Max. short circuit input current	31/31A
DC input voltage range	100-600 VDC
Unit startup voltage	100 VDC
MPPT operating voltage range	120-500 VDC
Nominal MPPT voltage	360 VDC
Maximum utilized solar power	12000W
Recommended maximum solar input	15000W

Efficiency

Specification	Details
Maximum efficiency (PV to grid)	97.5%
Maximum efficiency (battery to grid)	94%
CEC weighted efficiency	96.4%
Maximum efficiency (PV to battery)	99.9%
Idle consumption (standby mode)	<55W

Battery data

Specification	Details
Compatible battery types	Lead-Acid/Lithium
Max. charge/discharge current	167A @ 48 VDC
Nominal voltage	48 VDC
Voltage range	40-60 VDC (Lithium); 40-60 VDC (Lead-Acid)
Recommended battery capacity per inverter	>200Ah

General data

Specification	Details
Max. units in parallel	10
Product dimensions (H×W×D)	29.5×20.5×11.2 in (750×520×285 mm)
Unit weight	110 lbs. (50 kg)
Design topology	High Frequency - Transformerless
Relative humidity	0-100%
Operating altitude	<2000m (<6561 ft)
Operating ambient temperature range	-13°F – 140°F (-25°C – 60°C)
Storage ambient temperature range	-13°F – 140°F (-25°C – 60°C)
Noise emission (typical)	<50 dB @ 3 ft
Locked rotor amps (LRA)	195A
Communication interface	RS485/Wi-Fi/CAN
Standard warranty*	10-year standard warranty
Enclosure rating	NEMA 4X
Safety features	PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, integrated PV disconnect

Sungold Server Rack - 20.4kWh - Open Loop Specifications

Specification	Details
Battery Model	SG48100P
Chemistry	Lithium iron phosphate battery
Nominal Voltage	51.2V
Maximum cut-off voltage for charging	57.6V
Charging Limited Voltage	57.6V
Nominal Capacity	100A
Nominal Energy	5.12kWh
Unit Dimension (LWH)	19.3 X 18.9 X 5.5 inch
Unit Weight	93lbs
Charge cut-off current	5A
Standard Continuous Charge/Discharge Rate	50A
Disharge cut-off voltage	43.2V
Communication Protocol	RS232/RS485/CAN Support multiple protocols
Cycle Life	≥7000
Calendar Life	≥15 Year
Operating Temperature	Battery charging:32°F~113°F, Battery discharging:-4°F~140°F
Maximum AllowedModules in Parallel	Supports up to 32 batteries in parallel
Storage Temperature	14°F~113°F
Certificates	CE UN38.3 UL1973 UL9540A

EG4 LL-S - 20.4kWh - Closed Loop Specifications

Module Operating Parameters

Specification	Details
Voltage	51.2V
Capacity	100AH
Charging Voltage (Bulk/Absorb)	56.8V \| 56.2V (+/-0.2V)
Float	54V (+/-0.2V)
Low DC Cutoff	44.8V \| 47-45.6V (start high, lower as needed)
Charging Current	100A (Max. continuous) \| 30-50A
Discharging Current	100A (Max. continuous) \| 90A

Environmental Parameters

Specification	Details
Charging Range	32° ‒ 113°F (0°C to 45°C)
Discharging Range	-4°F ‒ 122°F (-20°C to 50°C)
Storage Range	-4°F ‒ 122°F (-20°C to 50°C)
Ingress Protection	IP20

Charging/ Discharging Parameters (Charge)

Specification	Details
Cell Voltage Protection	3.8V \| 1 sec \| 3.45V
Module Voltage Protection	60.0V \| 1 sec \| 55.2V
Over Charging Current 1	>102A \| 20 sec
Over Charging Current 2	>120A \| 3 sec
Temperature Protection	<23°F or >158°F <-5°C or >70°C \| 1 sec \| >32°F or <140°F >0°C or 60°C

Charging/ Discharging Parameters (Discharge)

Specification	Details
Cell Voltage Protection	2.3V \| 1 sec \| 3.1V
Module Voltage Protection	44.8V \| 1 sec \| 48V
Over-Charging Current 1	>102A \| 30 sec \| 60 sec
Over-Charging Current 2	>150A \| 3 sec \| 60 sec
Short Circuit	>300A \| <0.1 mS
Temperature Protection	<-4°F or >167°F <-20°C or >75°C \| 1 sec \| >14°F or <149°F >-10°C or <65°C
PCB Temp Protection	>221°F (>105°C) \| 1 sec \| @ <176°F (<80°C)

General Specifications

Specification	Details
Cell Balance	120mA \| Passive Balance \| Cell Voltage Difference >40mV
Temperature Accuracy	3% \| Cycle Measurement \| Measuring Range: 40°F ‒ 212°F (-4°C ‒ 100°C)
Voltage Accuracy	0.5% \| Cycle Measurement \| For Cells/Module
Current Accuracy	3% \| Cycle Measurement \| Measurement Range: +/-200A
SOC	5% \| Integral Calculation
Power Consumption	Sleep & Off Mode \| <300uA \| Storage/Transport/ Standby
Power Consumption	Operating Mode \| <25mA \| Charging/Discharging
Communication Ports	RS485/CAN \| Customizable
Maximum Modules in Series	1
Maximum Modules in Parallel	64
Dimensions (H×W×D)	6.1in×19in×17.4in (15.5cm×48.2cm×44.2cm)
Weight	99.6 lbs. (45.2 kg)
Module	ETL Listed to UL Standard 9540A:2019
Cell	UL:1973

Rich Solar Alpha 5 Pro - 20.4kWh - Open Loop Specifications

Specification	Details
Battery Type	LFP Batter
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Minimum Capacity	99.5Ah
Nominal Energy	5120Wh
Charging Voltage	56V
Discharging Cutoff Voltage	44.8V
Standard Charging Current	20A
Maximum Charging Current	100A
Standard Discharge Current	50A
Continuous Discharge Current	100A
Maximum Discharge Current	100A
Shell Material	Sheet metal casing
Weight	99.20lb
Initial AC（1000Hz）Internal Resistance	≤50mΩ
Monthly Self-Discharge Rate	≤5%
Overall Dimensions	17.7x17.8x5.2in
Cycle Life(Times)(25℃±2℃)	≥7000; Capacity Retention≥70%

RUiXU 51.2V - 20.4kWh - Open Loop Specifications

Specification	Details
Rated voltage	51.2V
Max. voltage range	44.8~57.6V, Shipping voltage>51.2V
Charge voltage	56.0V
Float charge voltage	54.6V
Low voltage cut-off	44.8V
Nominal energy	5.12KWh
Usable energy	4.92kWh
Nominal capacity	100Ah
Dimension	482133.5460mm (18.95.218.1 inch)
Weight	~46kg (101lb)
Standard charge current	≤50A
Max. charge current	70A
Standard discharge current	≤50A
Max. discharge current	100A (initial temp. ≤35℃)
Peak discharge current	101~119A@5mins \| 120~200A@5S
Communication	RS485 /CAN
Max parallel number	32pcs
Operation temperature	Charge: 0~50℃ \| Discharge:-20~50℃
Storage temperature	0℃

SOK 48V - 20.4kWh - Open Loop Specifications

Electrical Performance

Specification	Details
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Energy	5120 Wh
Self-Discharge	< 3% / Month
Cells	3.2 V 100 Ah

Charge Performance

Specification	Details
Recommended Charge Current	50 A
Maximum Charge Current	100 A
Recommended Charge Voltage	≤ 58.4 V
Maximum Batteries in Series	48

Discharge Performance

Specification	Details
Maximum Continuous Discharge Current	100 A
Peak Discharge Current	120 A / min
Recommended Low Voltage Disconnect	44.8 V

Temperature Performance

Specification	Details
Discharge Temperature	–4 ~ 140 °F (–20 ~ 60 °C)
Charge Temperature	–4 ~ 122 °F (–20 ~ 50 °C)
Storage Temperature	23 ~ 95 °F (–5 ~ 35 °C)
BMS High-Temperature Cut-Off	Discharge 167 °F (75 °C) / Charge 158 °F (70 °C)
Reconnect Temperature	Discharge 149 °F (65 °C) / Charge 140 °F (60 °C)

Mechanical Performance

Specification	Details
Dimensions (L × W × H)	19.14 × 16.95 × 5.22 in
Approx. Weight	100 lb
Terminal Type	M8
Terminal Torque	80 ~ 100 in-lbs
Case Material	SPCC + SGCC
Enclosure Protection	IP20

Inverter Supported

CAN	RS485
Victron / SMA / SOFAR / Studer Innotec	Voltronic / RCT / MPP / Alphaoutback
PYLON / Sol-Ark / Solis / Goodwe / Deye / Growatt / SAJ / Megarevo / INVT / Sermatec / TBB / MUST / Sunsynk	SRNE / RYLON / Growatt
Schneider	4 Person
LUXPOWER	Yes

Frequently-Asked Questions

Can this system operate off-grid?

Yes, the EG4 12kPV supports off-grid functionality while also allowing grid-tied operation, making it highly flexible.

What’s the benefit of closed-loop batteries?

Closed-loop batteries (like EG4 LL-S) communicate directly with the inverter for improved efficiency, monitoring, and protection.

Is this system expandable?

Absolutely. You can add additional batteries and solar panels to increase capacity over time.

What appliances can this system run?

It can power essential household loads such as refrigerators, lighting, electronics, and some larger appliances depending on load management.

Manual

Shipping & Easy Returns

Shipping is FAST & FREE across the US. Read our full Shipping Policy here.

We offer market leading Easy 30 Day Returns. Read more about our Returns Policy here.

Why Buy From Us

We get it. You've got a lot of choices when it comes to online retailers. Here's why we think you should shop with us at Off-Grid Source.

Free Shipping: Absolutely no hidden charges, ever.
Guaranteed Best Prices: If you find a lower price elsewhere, we'll match it.
30-Day Easy Returns: Not Happy with your product? Return it, no questions asked.
Great Customer Service: It's rare to get a real person these days, but with us, you always will. Have questions? Call us at +1 (877)-556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.
