EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase + EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh Energy Storage Systems EG4 1 EG4 12kPV + 1 x EG4-WallMount Indoor Battery | 14.3kWh Capacity

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase + EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh

BY: EG4 | SKU: EG4BNDL-E0007-1X Availability: In Stock
$9,746.00
$8,595.00
You Save: $1,151.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized EG4 Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

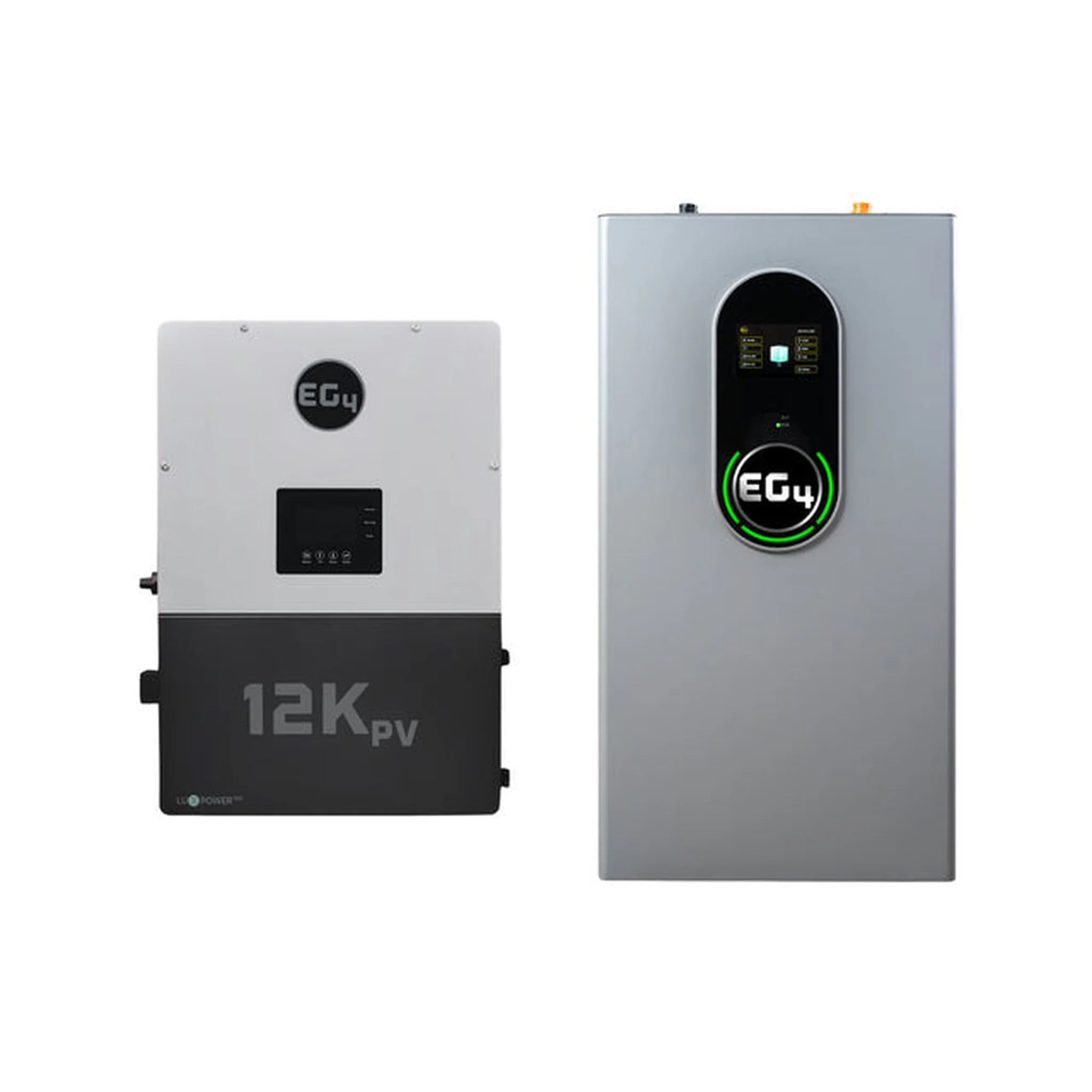

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase + EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh

The EG4 12kPV Hybrid Inverter + EG4 WallMount Indoor Battery Bundle provides a complete solar energy storage solution for off-grid, grid-tied, and hybrid applications. This bundle includes the EG4 12kPV All-in-One Hybrid Inverter, which delivers 12000W of PV input and 8000W continuous AC output, and the EG4 WallMount Indoor Battery, a 14.3kWh 51.2V LiFePO4 battery designed for long-term reliability and safe indoor installation. Together, they create a seamless, expandable power system ideal for homes, businesses, and off-grid living.

Placeholder Image

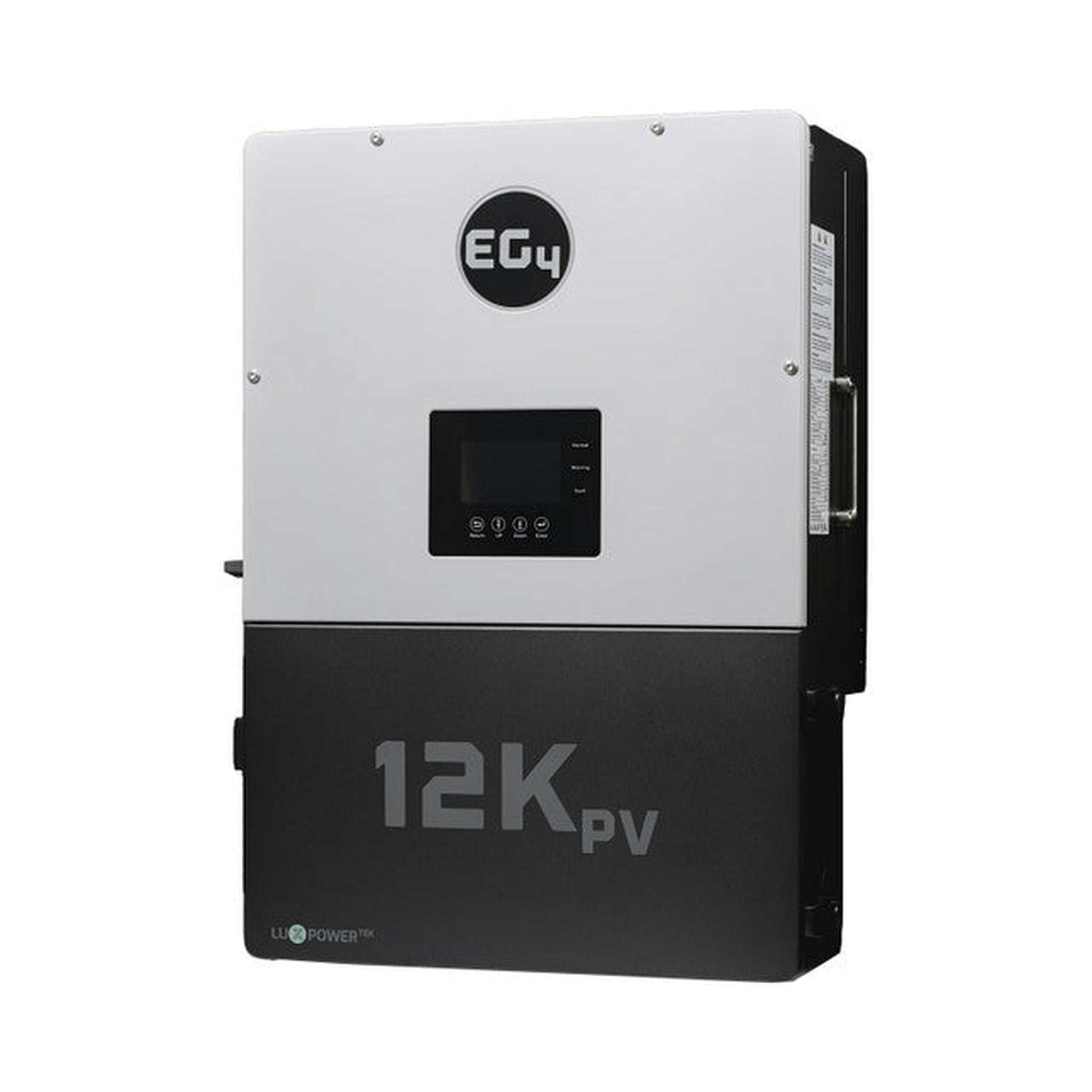

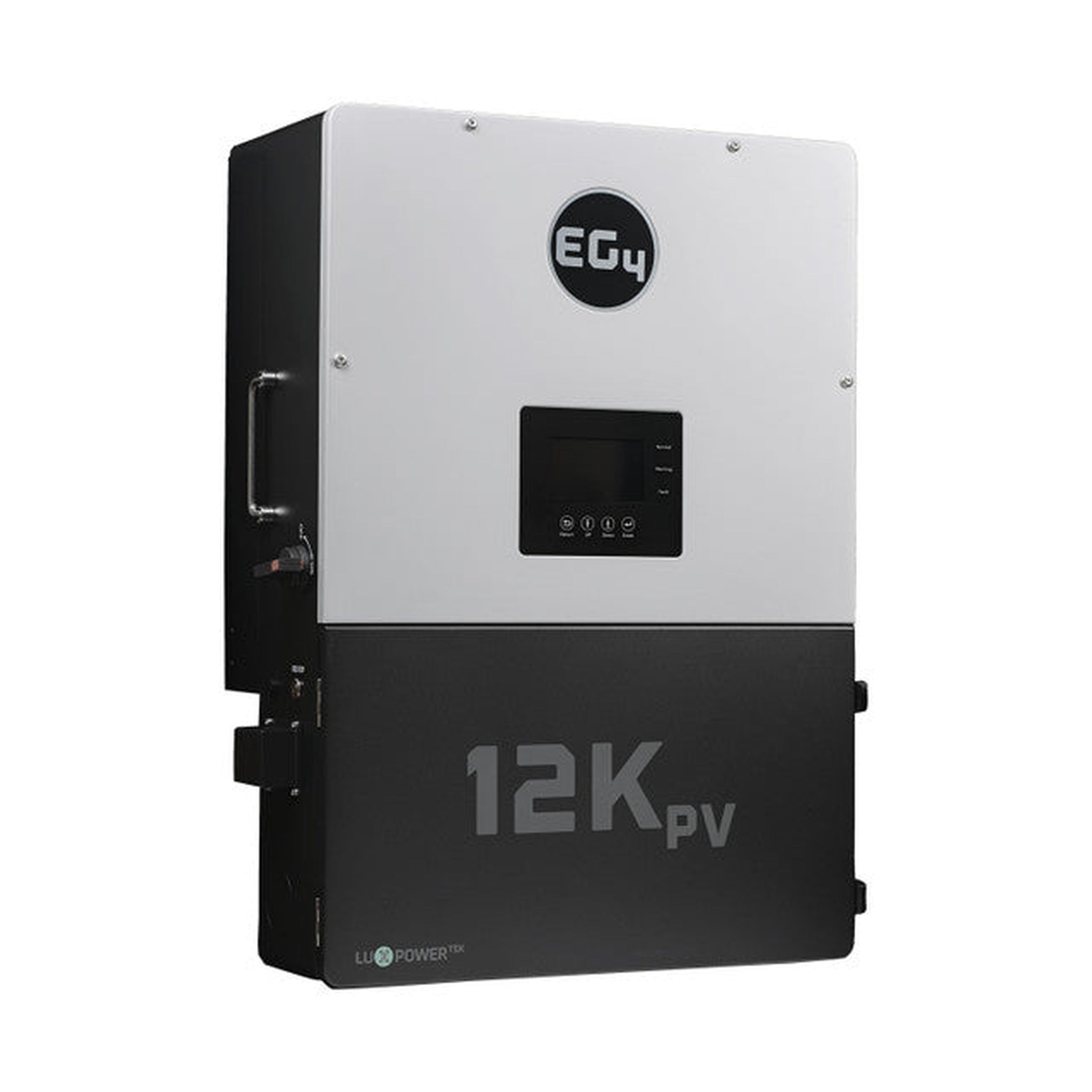

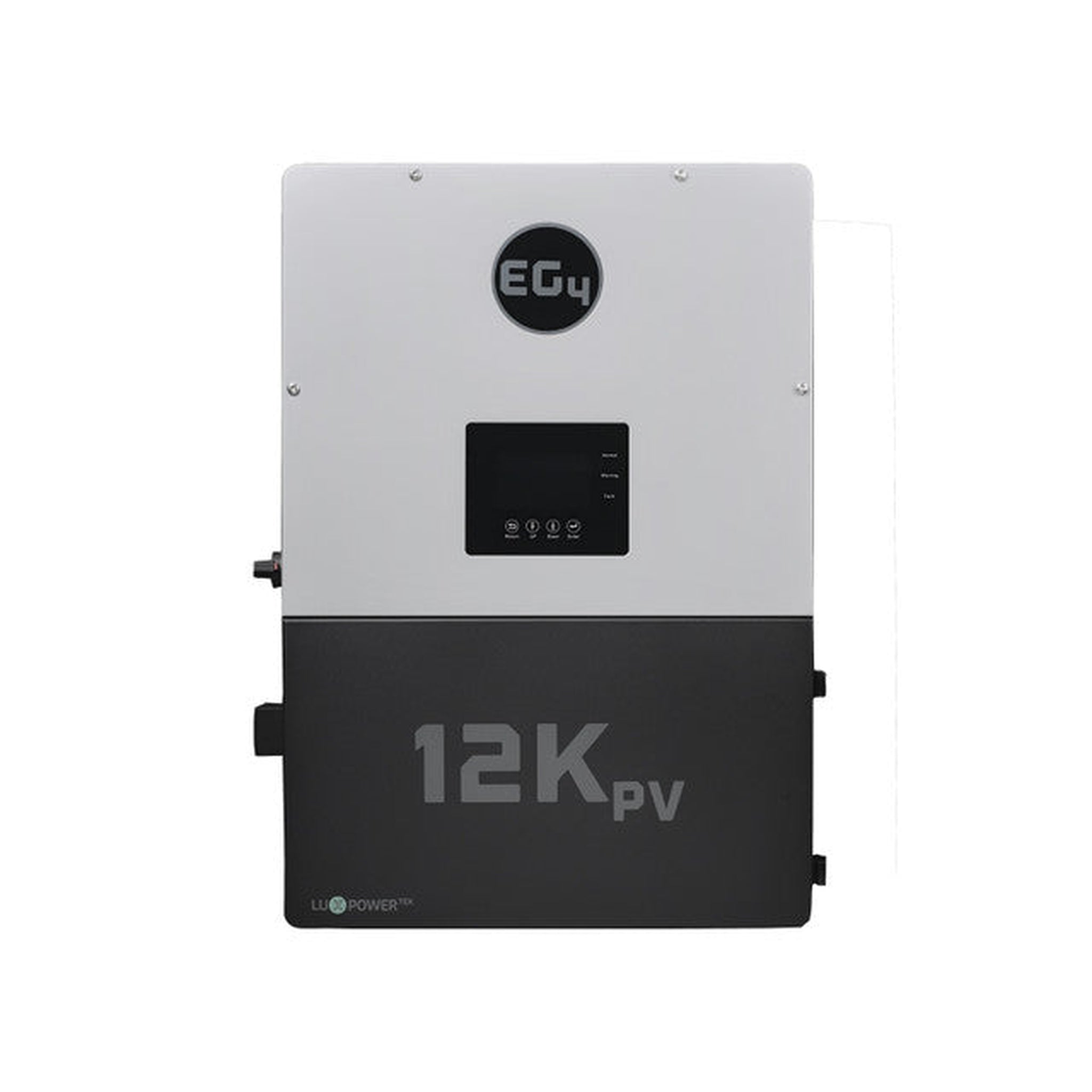

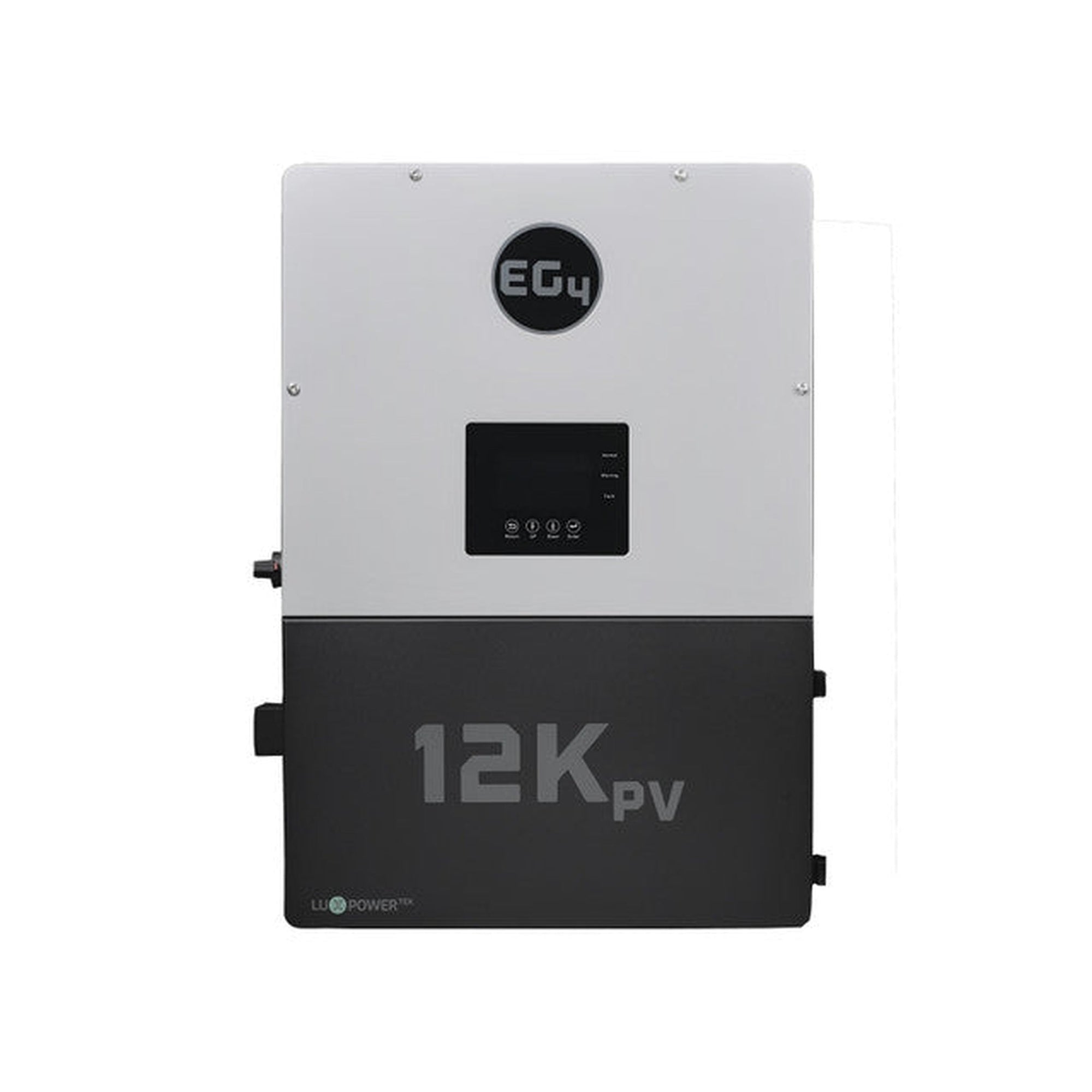

EG4 12kPV Hybrid Inverter

The EG4 12kPV is a 48V, split-phase hybrid inverter designed for both rural and suburban homeowners seeking energy independence. It is similar to the EG4 18kPV in its ability to power loads while charging batteries and also shares the same certifications, architecture, and firmware.

However, the 12kPV is more compact, making installation simpler, and provides significant cost savings. It plays a central role in the EG4 energy storage system, incorporating MPPTs, a two-way DC-AC inverter, grid interaction, and battery connectivity. This integration of grid-tie and off-grid functionalities removes the need for additional charge controllers or transformers, offering a convenient and comprehensive energy solution.

The 12kPV supports 12kW of PV input and 8kW of continuous output, even during battery charging, positioning it as an effective option for those looking to implement a lightweight ESS. Additionally, its modular design allows for expansion, adapting to both today and tomorrow’s energy needs. Users can monitor system performance and perform updates remotely via the EG4 Web Monitoring Website/App, ensuring control and flexibility.

Elevate energy independence with the 12kPV. This compact, cost-effective powerhouse integrates seamlessly into energy storage systems, offering an all-in-one solution. With swift installation, remote monitoring, and future-ready features, the 12kPV ensures reliable, efficient, and scalable energy solutions.

Enter the solar landscape confidently, backed by EG4’s US-based support and a constant commitment to powering the way into the future.

Placeholder Image

EG4 48V Indoor 280Ah WallMount Battery

The WallMount Indoor 280Ah batteries are ideal for low-voltage residential indoor energy storage applications. The batteries use lithium iron phosphate cells with the highest safety performance and an intelligent Battery Management System (BMS) that can monitor and record the voltage of each cell along with the current, voltage, and temperature of the module in real-time. The BMS also contains a passive balance function and an advanced battery control method, both of which improve the performance of the battery pack.

ON-BOARD LCD TOUCH SCREEN

Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.

DUAL ON-BOARD FIRE ARRESTORS

Offer fail-safe protection against thermal runaway.

INTEGRATED SELF-HEATING FEATURE

Internal heating keeps cells operating during cold temperatures.

INTEGRATED BUSBARS

The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.

INNOVATIVE EMERGENCY STOP FUNCTION

The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shut down capability) with the press of a button.

THE PERFECT PARTNER TO EG4 INVERTERS

The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

Placeholder Image

What's Included

Everything you need is included with your product.

  • EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh
  • EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar Inverter
  • EG4 PowerPro Battery Paralleling Cables On BNDL-E0012-2 (1), BNDL-E0012-3 (2), BNDL-E0012-4 (2), BNDL-E0012-5 (4)
  • User Manual

EG4 12kPV Hybrid Inverter Specifications

Specification Details
MAX. UNITS IN PARALLEL 10
PRODUCT DIMENSIONS (H×W×D) 29.5×20.5×11.2 in (750×520×285 mm)
UNIT WEIGHT 110 lbs. (50 kg)
DESIGN TOPOLOGY High Frequency - Transformerless
RELATIVE HUMIDITY 0-100%
OPERATING ALTITUDE <2000m (<6561 ft)
OPERATING AMBIENT TEMPERATURE RANGE -13°F – 140°F (-25°C – 60°C)
STORAGE AMBIENT TEMPERATURE RANGE -13°F – 140°F (-25°C – 60°C)
NOISE EMISSION (TYPICAL) <50 dB @ 3 ft
LOCKED ROTOR AMPS (LRA) 195A
COMMUNICATION INTERFACE RS485/Wi-Fi/CAN
STANDARD WARRANTY* 10-year standard warranty
ENCLOSURE RATING NEMA 4X
SAFETY FEATURES PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, integrated PV disconnect

EG4 WallMount Indoor Battery Specifications

Specifications Details
VOLTAGE 56V
POWER CONSUMPTION 224W
INTERNAL BATTERY TEMPERATURE ≤32°F (0°C)/≥41°F (5°C) | Heat On/Heat Off
CHARGING RANGE 32° to ≈113°F (0°C to ≈45°C)
DISCHARGING RANGE 4°F to ≈122°F (-20°C to ≈50°C)
STORAGE RANGE -4°F to ≈122°F (-20°C to ≈50°C)
INGRESS PROTECTION IP20
DIMENSIONS (H×W×D) 36.4 in.×18.1 in.×9.6 in. (925 mm×460 mm×245 mm)
WEIGHT 282.2 lbs. (128 kg)
DESIGN LIFE >10 Years
CYCLE LIFE >8000 cycles, 0.5C 80% DOD
LIFETIME PRODUCTION 82.6MWh**

Frequently-Asked Questions

Can the EG4 12kPV operate both off-grid and grid-tied?

Yes! This hybrid inverter is capable of fully off-grid operation, grid-tied use, or hybrid solar with battery backup.

What battery types are compatible with the EG4 12kPV?

It is designed for 48V LiFePO4 battery banks, including the EG4 WallMount Indoor Battery.

Can I expand the battery storage in this bundle?

Yes! The EG4 WallMount Battery supports parallel stacking, allowing for additional storage capacity.

Does this inverter comply with Rapid Shutdown (RSD) regulations?

Yes! The EG4 12kPV Hybrid Inverter is RSD compliant and meets NEC safety standards.

Does this system support remote monitoring?

Yes! The Wi-Fi and RS485 connectivity allow for real-time system monitoring and control via the EG4 app.
