EG4 12kPV Hybrid Inverter All-In-One | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | Rapid Shutdown (Rapid Shutdown RSD) | All-In-One Hybrid Solar Inverter Hybrid Inverters EG4

EG4 12kPV Hybrid Inverter All-In-One | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | Rapid Shutdown (Rapid Shutdown RSD) | All-In-One Hybrid Solar Inverter

BY: EG4

SKU: EG412KPV8LV

| Availability: In stock

$4,182.33

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized EG4 Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

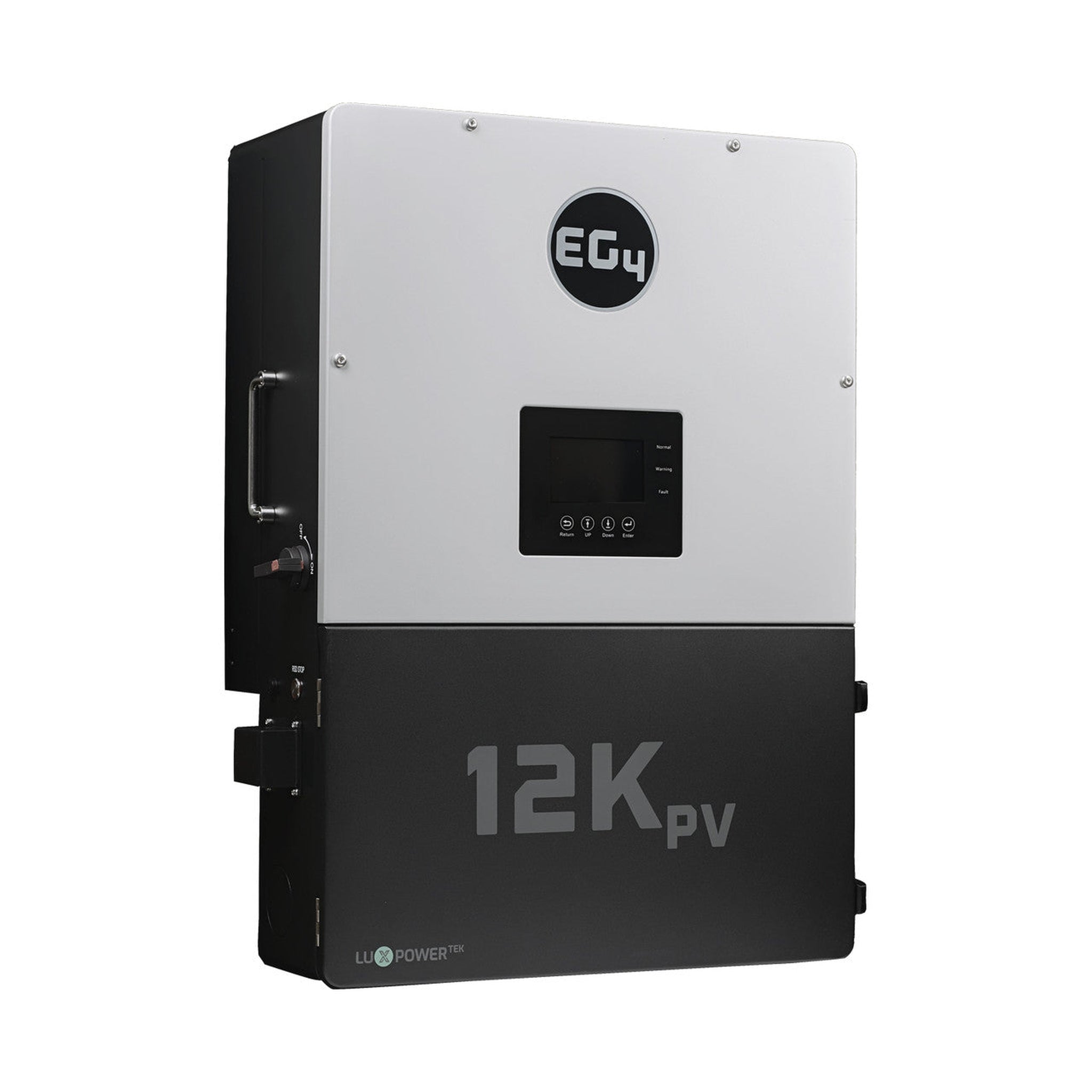

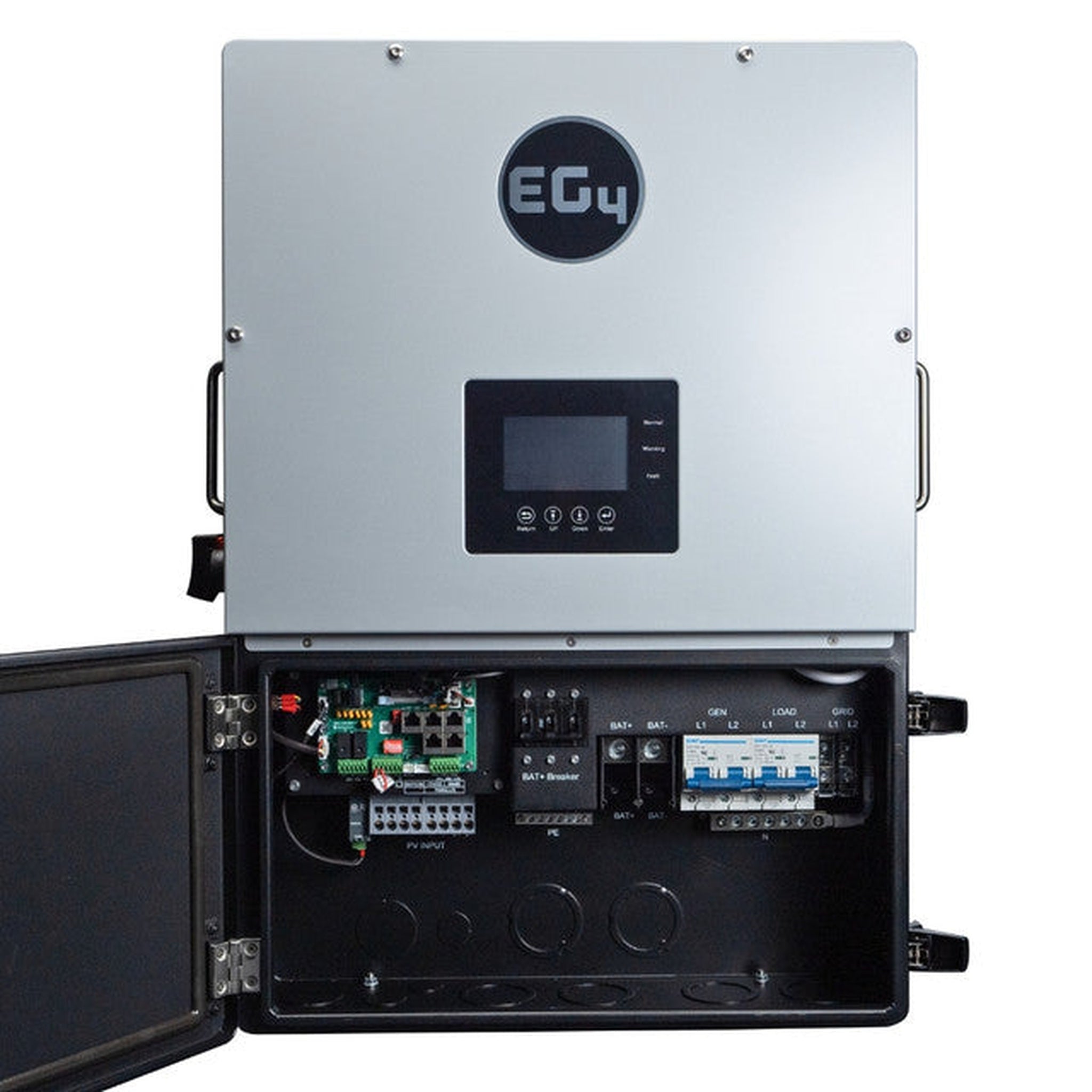

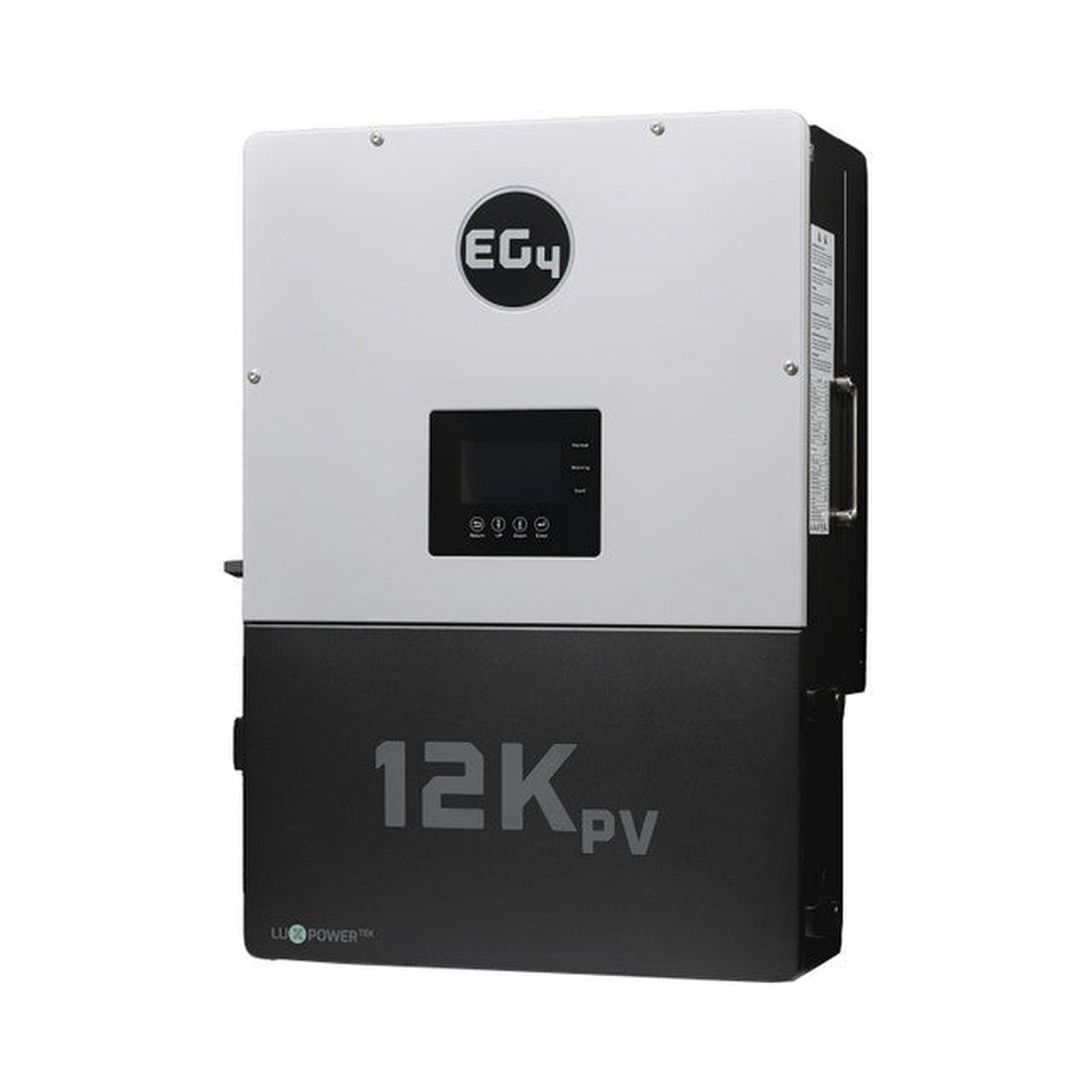

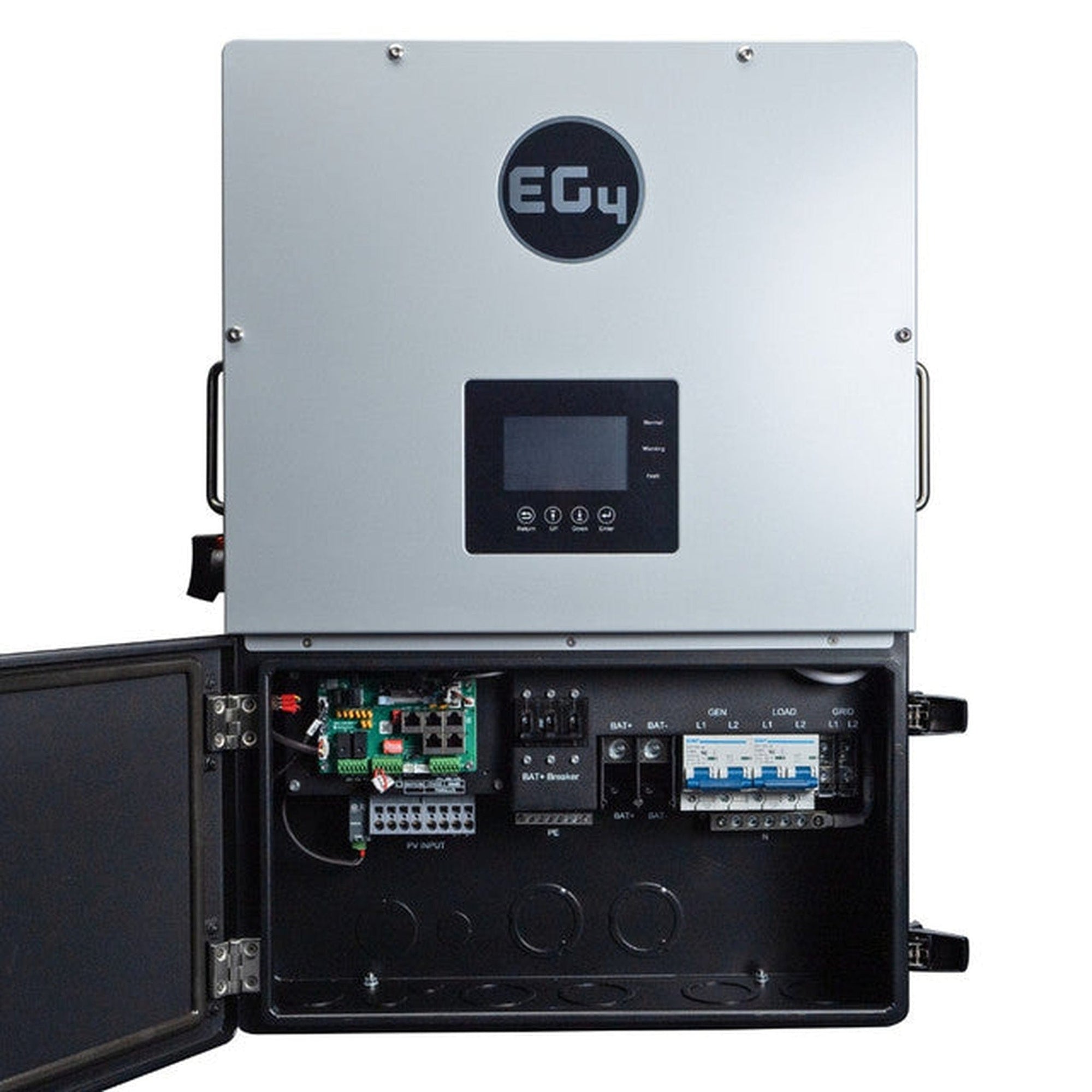

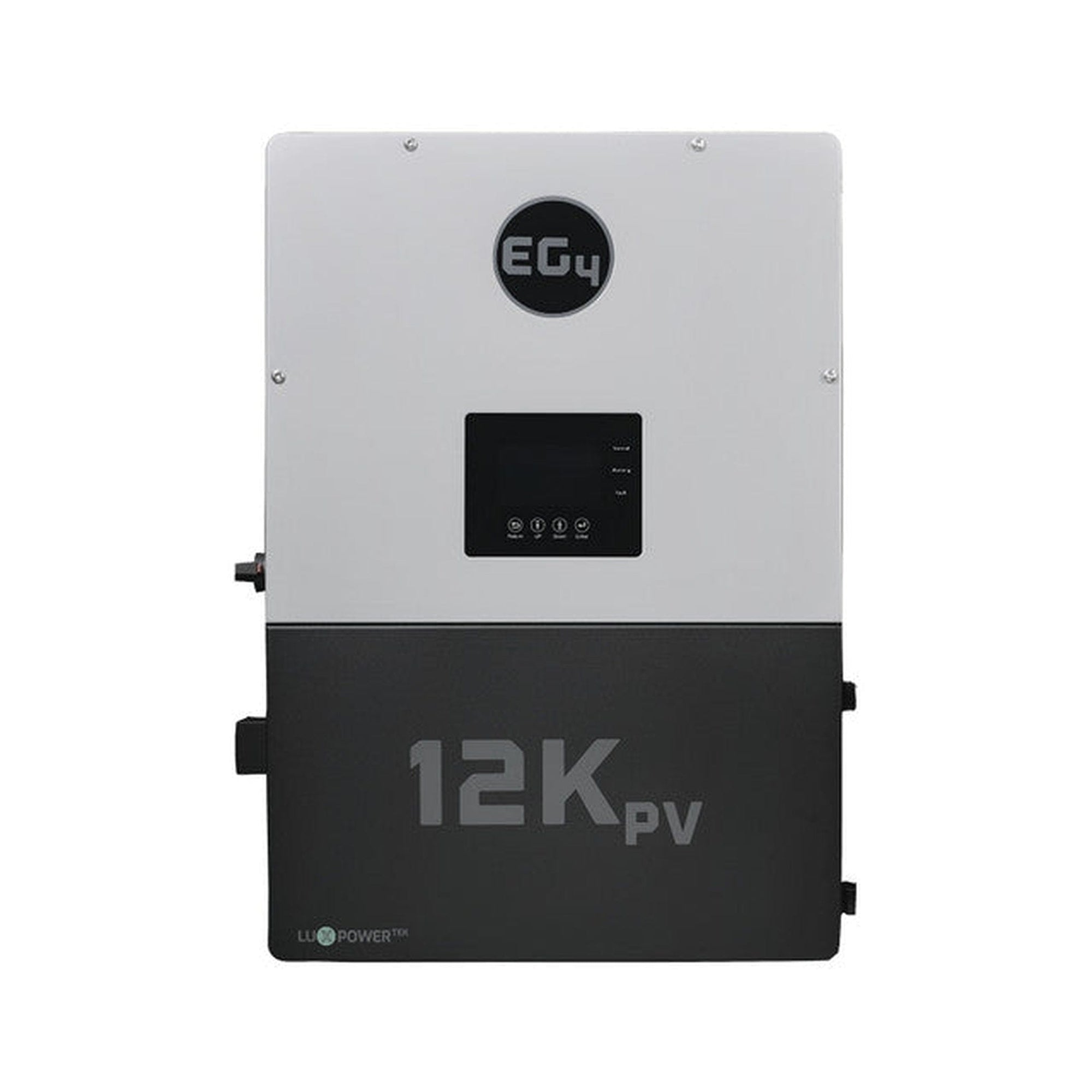

EG4 12kPV Hybrid Inverter All-In-One | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | Rapid Shutdown

The EG4 12kPV Hybrid Inverter is a powerful all-in-one hybrid solar inverter designed to provide seamless energy management for both off-grid and grid-tied applications. With a 12000W PV input capacity, 8000W AC output, and 120/240V split-phase capability, this inverter is perfect for residential, commercial, and industrial solar energy systems. Equipped with Rapid Shutdown (RSD) compliance, MPPT charge controllers, and Wi-Fi remote monitoring, the EG4 12kPV ensures safe, efficient, and reliable solar power conversion.

8kW Continuous AC Output: Delivering consistent and reliable power for a wide range of applications, from powering your home to supporting small businesses.
MPPTs Rated to 12kW, Accepts Maximum 15kW Array: Maximizing solar power input for optimal energy harnessing, perfect for both residential solar power systems and light commercial setups.
Dual High Voltage (120-500 VDC) and High Amperage (25A) MPPTs: Accommodates high-output solar panels with ease, ensuring efficient energy conversion.
Parallel Up to 10 Units for 80kW of Power Output: Expand your system effortlessly to meet growing energy demands, ideal for scalable energy solutions.
Split Phase Hybrid Design: Ensures efficient power management and distribution, suitable for off-grid living and grid-tied systems with battery backup.
Handles Up to a 4,000W Imbalance for 30 Minutes: Provides flexibility in managing power loads, essential for emergency power supply and renewable energy projects.
Fast 10ms Transfer Time: Protects sensitive equipment with rapid power switching, crucial during power outages.

134A Surge Capacity: Supports high surge loads for demanding applications, such as backup power solutions.
Export-Limiting Applications: Optimized for scenarios where power export needs to be controlled, enhancing energy storage systems.
Compatible with Generator Input: Ensures continuous power supply during outages, providing reliable backup power.
10-Year Warranty: Guarantees long-term reliability and customer satisfaction.
RSD/ESS Shutdown: Meets safety standards for rapid shutdown capabilities.
Advanced Monitoring and Control: Utilize the EG4 monitoring app/website to monitor system performance, perform updates, and track EG4 battery performance.
Harness Multiple Power Sources (AC/DC) Efficiently: Versatile design for maximum energy utilization, supporting hybrid solar systems.

Why Choose the EG4 12kPV Hybrid Inverter?

The EG4 12kPV Hybrid Inverter is engineered with cutting-edge technology to deliver superior performance and reliability. Its high-frequency split-phase design and advanced monitoring capabilities make it the ultimate solution for both residential and light commercial applications. Whether you need a single unit or an expansive system of up to 10 inverters, the EG4 12kPV offers unparalleled flexibility and efficiency.

Homeowners will benefit from the robust power output, rapid transfer times, and comprehensive monitoring tools that ensure optimal system performance and energy management. The EG4 12kPV Hybrid Inverter is a powerful, reliable, and efficient solar power solution that meets your energy needs today and in the future. Go off-grid, stay connected, or sell back to the grid. The choice is yours.

What's Included

Everything you need is included with your product.

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar Inverter

User Manual

EG4 12kPV Hybrid Inverter All-In-One Specifications

AC OUTPUT/INPUT

Specification	Details
NOMINAL GRID VOLTAGE (INPUT & OUTPUT)	120/240VAC; 120/208VAC (L1/L2/N required)
FREQUENCY	50/60Hz
MAX. AC INPUT POWER	8000W
MIN. GENERATOR SIZE	>5000W
MAX. CONTINUOUS CURRENT	80A \| 80A

AC GRID OUTPUT DATA

Specification	Details
MAX. OUTPUT CURRENT	33.3A@240VAC \| 38.5A @208VAC
OUTPUT VOLTAGE	120/240VAC; 120/208VAC
NOMINAL POWER OUTPUT	8000W
OUTPUT FREQUENCY	50/60Hz
POWER FACTOR	0.99 @ Full Load
REACTIVE POWER ADJUST RANGE	±0.8
MAX CONT. LINE WATTAGE	4000W
PEAK POWER	0.5 s - 16kW \| 1 s - 12kW \| 1 min - 10 kW \| 12 min - 8.8 kW
OPERATING FREQUENCY	50/60Hz
THD (V) @FULL LOAD	<3%
TRANSFER TIME	Single > 20 ms – Default, 10 ms – Selectable \| Parallel > 20 ms

PV INPUT DATA

Specification	Details
NUMBER OF MPPTS	2
INPUTS PER MPPT	2
MAX. USABLE INPUT CURRENT	25/25A \| 25A per MPPT \| 41.6A in total
MAX. SHORT CIRCUIT INPUT CURRENT	31/31A
DC INPUT VOLTAGE RANGE	100-600 VDC
UNIT STARTUP VOLTAGE	100 VDC
MPPT OPERATING VOLTAGE RANGE	120-500 VDC
NOMINAL MPPT VOLTAGE	360 VDC
MAXIMUM UTILIZED SOLAR POWER	12000W
RECOMMENDED MAXIMUM SOLAR INPUT	15000W

EFFICIENCY

Specification	Details
MAXIMUM EFFICIENCY (PV TO GRID)	97.5%
MAXIMUM EFFICIENCY (BATTERY TO GRID)	94%
CEC WEIGHTED EFFICIENCY	96.4%
MAXIMUM EFFICIENCY (PV TO BATTERY)	99.9%
IDLE CONSUMPTION (STANDBY MODE)	<55W

BATTERY DATA

Specification	Details
COMPATIBLE BATTERY TYPES	Lead-Acid/Lithium
MAX. CHARGE/DISCHARGE CURRENT	167A @ 48 VDC
NOMINAL VOLTAGE	48 VDC
VOLTAGE RANGE	40-60 VDC (Lithium); 40-60 VDC (Lead-Acid)
RECOMMENDED BATTERY CAPACITY PER INVERTER	>200Ah

GENERAL DATA

Specification	Details
MAX. UNITS IN PARALLE	10
PRODUCT DIMENSIONS (H×W×D)	29.5×20.5×11.2 in (750×520×285 mm)
UNIT WEIGHT	110 lbs. (50 kg)
DESIGN TOPOLOGY	High Frequency - Transformerless
RELATIVE HUMIDITY	0-100%
OPERATING ALTITUDE	<2000m (<6561 ft)
OPERATING AMBIENT TEMPERATURE RANGE	-13°F – 140°F (-25°C – 60°C)
STORAGE AMBIENT TEMPERATURE RANGE	-13°F – 140°F (-25°C – 60°C)
NOISE EMISSION (TYPICAL	<50 dB @ 3 ft
LOCKED ROTOR AMPS (LRA)	195A
COMMUNICATION INTERFACE	RS485/Wi-Fi/CAN
STANDARD WARRANTY*	10-year standard warranty
ENCLOSURE RATING	NEMA 4X
SAFETY FEATURES	PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, integrated PV disconnec

Frequently-Asked Questions

Can the EG4 12kPV be used in both off-grid and grid-tied applications?

Yes! This hybrid inverter supports both off-grid systems and grid-tied solar setups with battery backup capabilities.

What battery types are compatible with the EG4 12kPV?

This inverter is designed for 48V LiFePO4 battery banks, ensuring efficient and reliable energy storage.

Does this inverter comply with Rapid Shutdown (RSD) requirements?

Yes! The EG4 12kPV meets Rapid Shutdown (RSD) safety standards, making it compliant with NEC regulations.

Can I expand my system with multiple inverters?

Yes, the EG4 12kPV supports parallel operation, allowing users to scale up their energy system.

Does it support remote monitoring?

Yes! The Wi-Fi and RS485 connectivity enable real-time monitoring and control via the EG4 app.
