EG4 18kPV Complete Hybrid Solar Kit | 11kW Solar | 14–16kWh Wall Mount Batteries

Name: EG4 18kPV Complete Hybrid Solar Kit | 11kW Solar | 14–16kWh Wall Mount Batteries
Brand: EG4
SKU: EG4-18KPV-10-16-SGPM-O
Price: 12853.8 USD
Availability: InStock

BY: EG4

SKU: EG4-18KPV-10-16-SGPM-O

| Availability: In stock

$14,799.00

$12,853.80

You Save: $1,945.20

Inverter:

Battery:

Solar Panel:

Quantity

Product Highlights

Built for home backup and off-grid power
10 AWG conductors support dependable high-current connections
16,000 Wh capacity for extended backup and off-grid runtime
Purpose-built hardware secures compatible solar modules and racking

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized EG4 Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

EG4 18kPV Complete Hybrid Solar Kit | 11kW Solar | 14–16kWh Wall Mount Batteries

The EG4 18KPV Complete Hybrid Solar Kit with Wall Mount Batteries is a powerful, flexible energy solution built for homeowners who need high output, reliable backup, and scalable storage. Featuring the advanced EG4 18KPV hybrid inverter, this system seamlessly manages solar production, battery storage, and grid interaction for maximum efficiency.

Paired with a 11kW solar array and 16kWh wall-mounted battery options, this kit is ideal for whole-home backup, energy independence, and reducing electricity costs. With multiple battery choices, users can customize performance while maintaining long-term reliability and expandability.

EG4 18kPV Complete Hybrid Solar Kit Features

High-Output Hybrid Inverter – Delivers 12,000W continuous output at 240V and supports 18,000W of utilized PV input for flexible residential energy management.
11kW Solar Array – Includes 20 × SunGold Power 550W Monocrystalline PERC Solar Panels, providing 11,000W of combined rated solar capacity.
Flexible Battery Options – Choose a 14–16kWh-class LiFePO4 battery from SunGold Power, EG4, RUiXU, LINIOTECH, or Pytes.
Closed-Loop EG4 Integration – The EG4 Indoor WallMount option enables direct battery-to-inverter communication for coordinated charging and battery monitoring.
Grid-Tied and Off-Grid Operation – Supports solar self-consumption, battery backup, and grid interaction, including utility export where approved and properly configured.
Expandable System Design – Supports additional compatible battery storage or solar panels within the inverter’s electrical limits and manufacturer requirements.

EG4 18kPV Complete Hybrid Solar Kit Applications

Whole-Home Backup Power - Keeps essential and major appliances running during outages with seamless power transfer.
Hybrid Grid-Tied Systems - Store excess solar energy and use it during peak utility rate periods.
Off-Grid Living - Suitable for remote homes, cabins, and areas without reliable grid access.
Energy Cost Reduction - Reduce electricity bills by maximizing solar self-consumption.
High Energy Demand Homes - Designed for households with larger energy consumption needs.

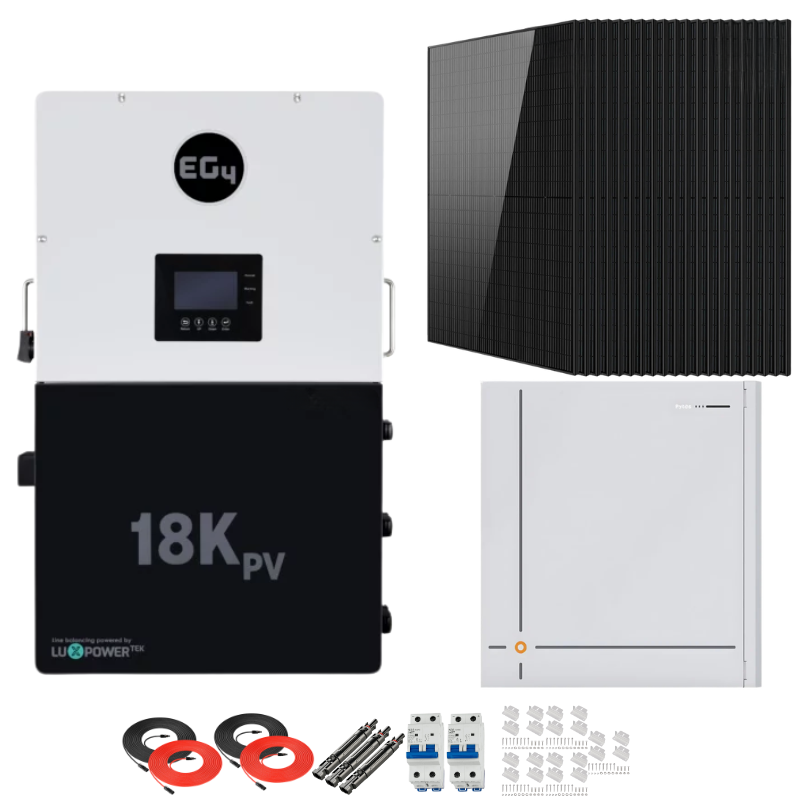

What's Included

Everything you need is included with your product.

Inverter:

EG4 18KPV - 12000W Output - 18000W PV Input - 48V - 120/240V Split Phase - Hybrid

Battery Options (Choose One):

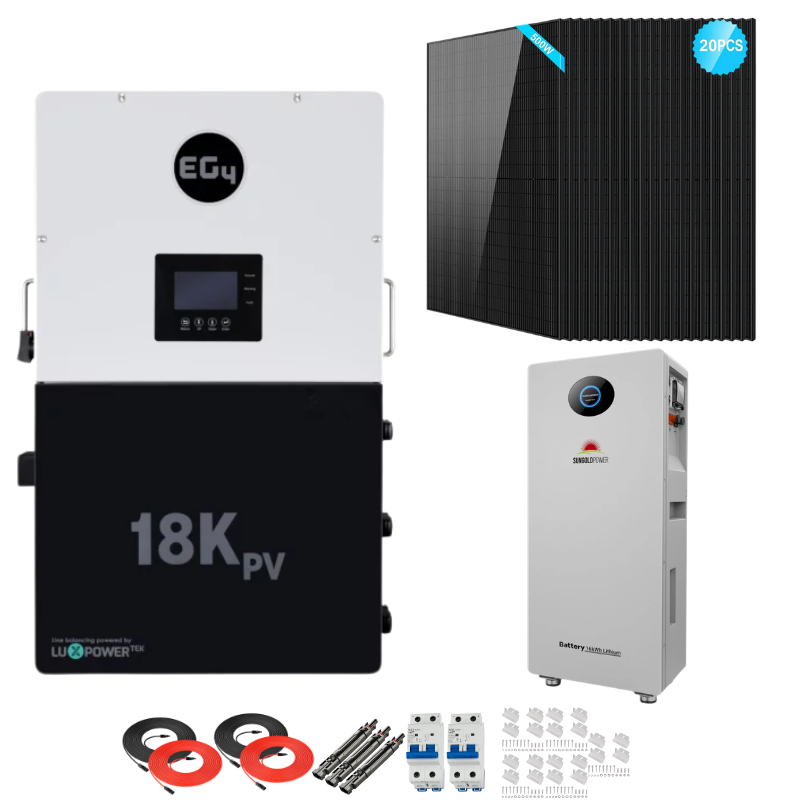

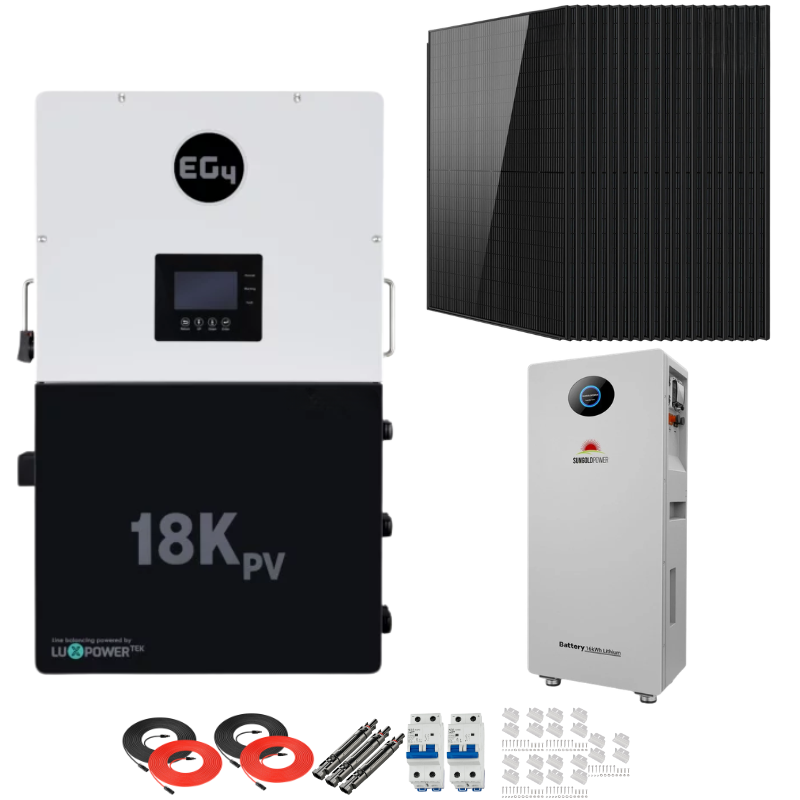

SunGold Power PowerMax - 16kWh - Open Loop

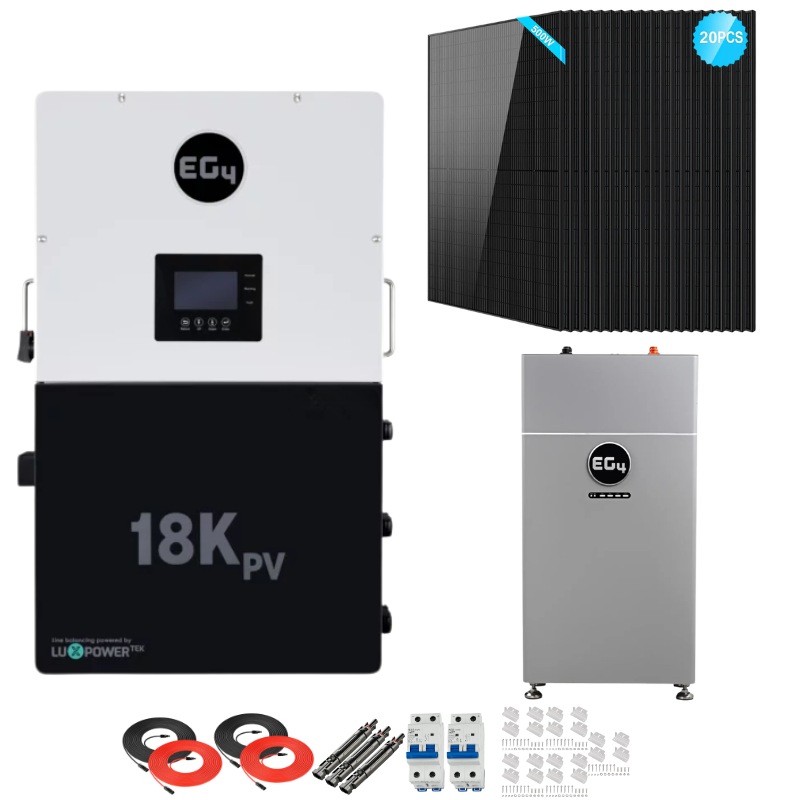

EG4 Indoor Wallmount - 16kWh - Closed Loop

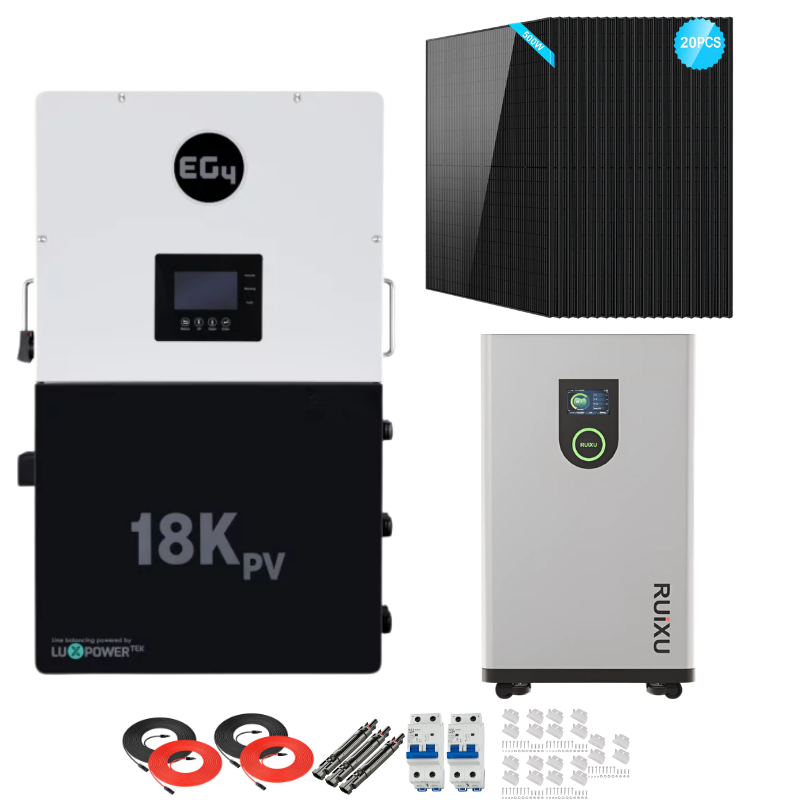

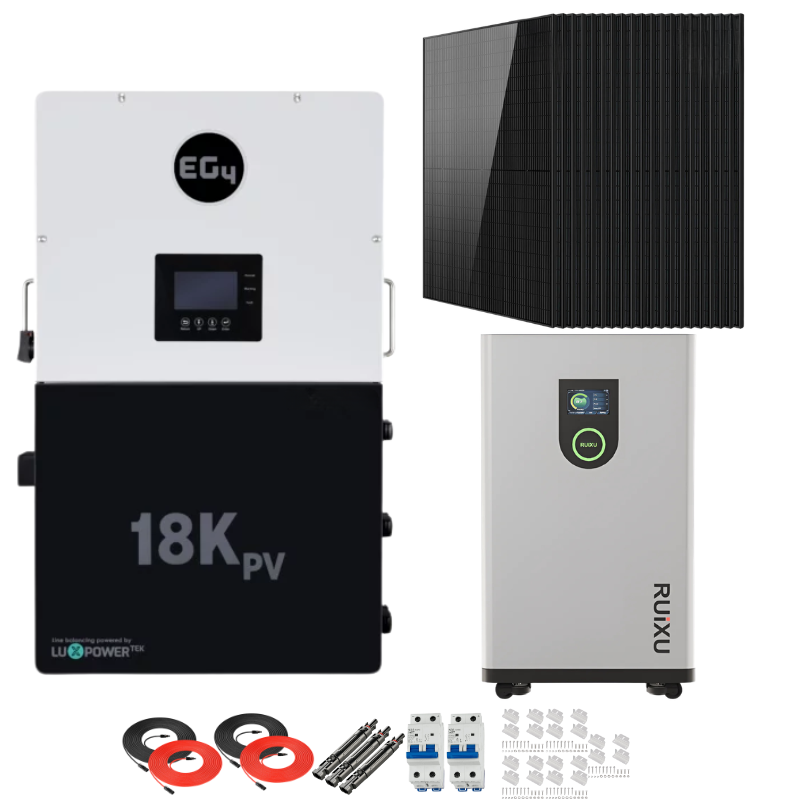

RUiXU Lithi2-16 - 16kWh - Open Loop

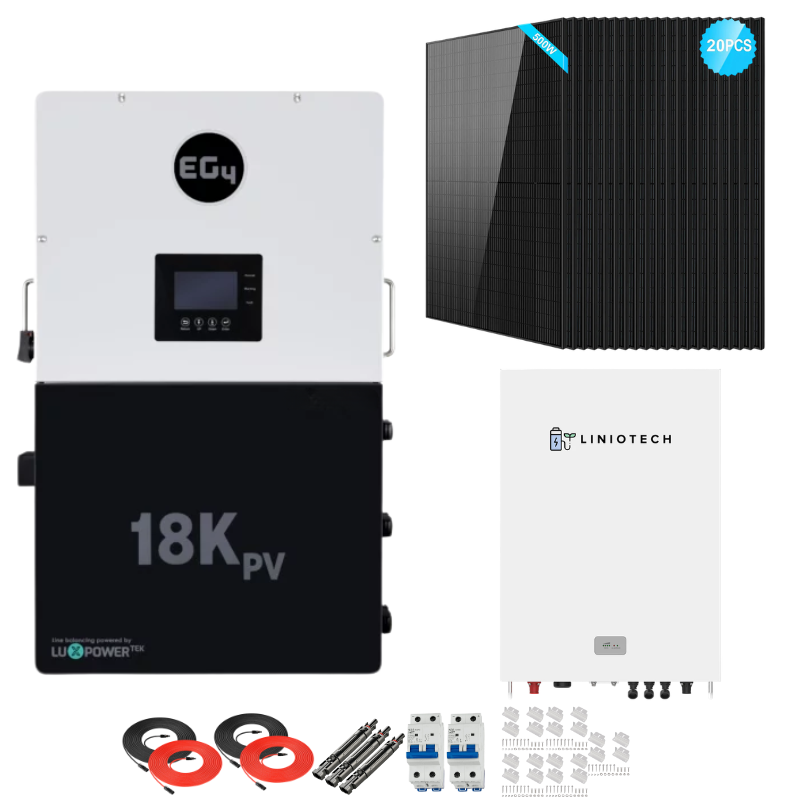

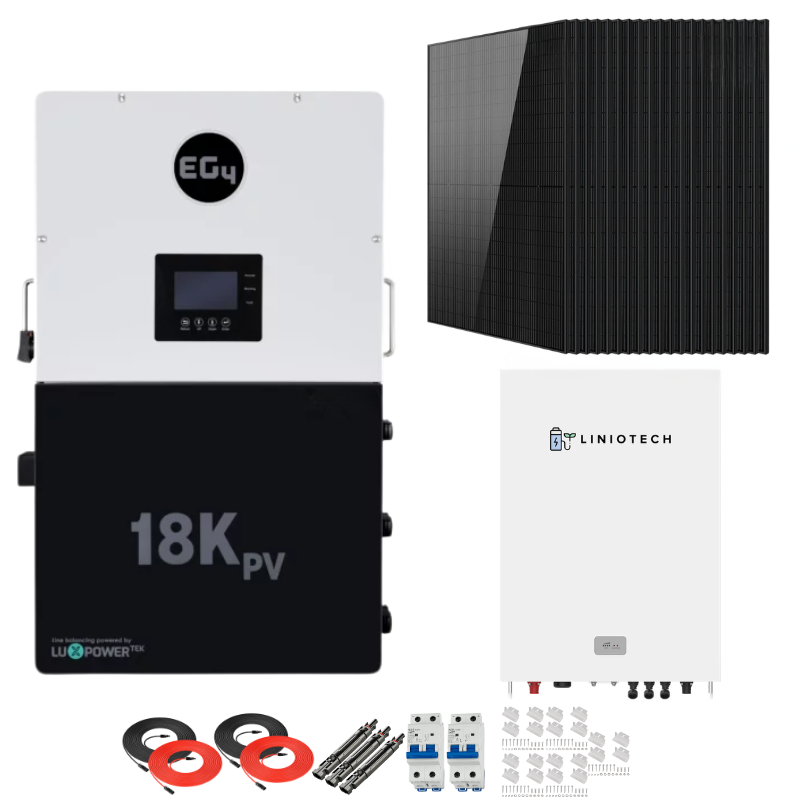

LINIOTECH - 14.3kWh - Open Loop

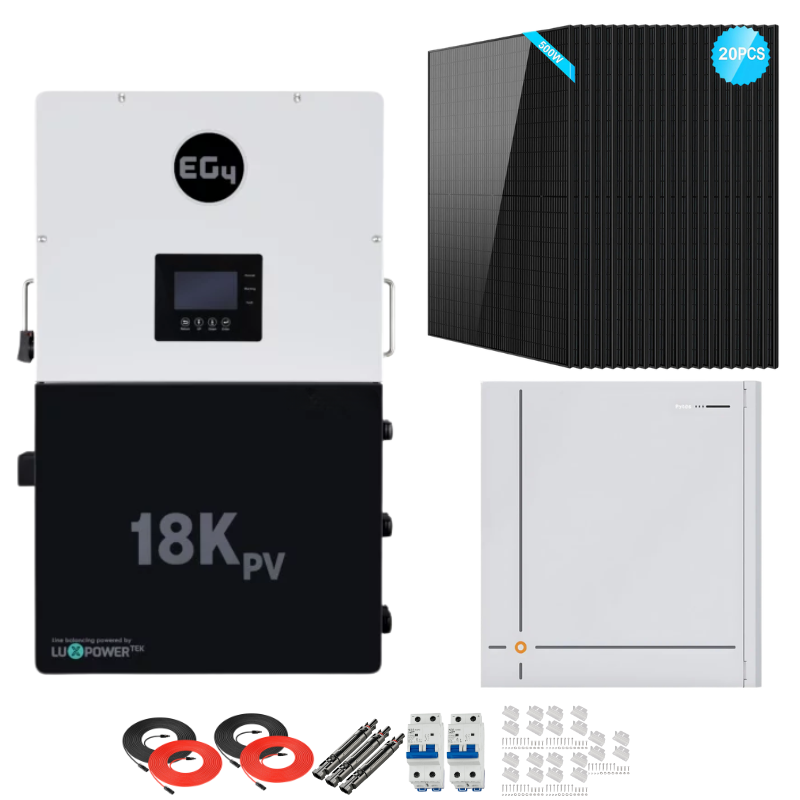

Pytes V16 - 16kWh - Open Loop

Solar Panel:

20 × SunGold Power 550 Watt Monocrystalline Solar Panel (11kW)

Accessories:

2 x RICH SOLAR 10 Gauge Solar Panel Extension Cable with Male and Female Solar Connector Ends | Pair of 10AWG Red and Black Extension Wire with Connectors on Both Ends | Choose Cable Length: 10ft, 15ft, 20ft, 30ft, 50ft, 75ft, 100ft
3 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
2 x Sungold Power 25A PV Breaker
20 x Sungold Power Solar Bracket

EG4 18kPV Complete Hybrid Solar Kit Specifications

EG4 18KPV - 12000W Output - 18000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

AC input data

Specification	Details
Nominal AC voltage (grid \| generator)	120/240VAC; 120/208VAC (L1/L2/N required)
Frequency	50/60Hz
Max. ac current	50A @ 240VAC
Max. ac input power	12000W
Max. ac bypass	200A

AC grid output data

Specification	Details
Max. output current	50A
Output voltage	120/240VAC; 120/208VAC (L1/L2/N required)
Operating voltage range	180-270VAC
Nominal power output	@240V 12000W \| @208V 10400W
Frequency	50/60Hz
Power factor	0.99 @ Full Load
Reactive power adjust range	(-0.8) ~ (+0.8) Leading Adjustable
Max cont. line wattage	6000W
Peak power (surge capacity)	w/ PV: 14700W (10 min), 15500W (5 min) \| w/o PV: 13500W (10 min)
THD @full load	<5%
Open loop response time (OLRT)	<2 seconds
Time to steady state	<10 seconds
Transfer time	20ms (Default), 10ms (Configurable) \| Parallel – 20ms

Backup/ups ac output data

Specification	Details
Rated output current (240/208VAC)	50A
Ac bypass (generator)	90A
Nominal output voltage	240 \| 120/240 \| 120/208VAC
Rated output power	@240VAC 12000W \| @208VAC 10400W
Max. continuous line wattage	8000W per 120V
Peak power	w/ PV: 14700W (10 min), 15500W (5 min) \| w/o PV: 13500W (10 min)
THDV (total harmonic distortion voltage)	<5%
Open loop response time (OLRT)	<2 seconds
Time to steady state	<10 seconds
Switching time	10ms

PV input data

Weight	180 lbs
Height	300 cm
Airline Approved	Yes
Sleeping Capacity	4 Person
Skylight Window	Yes
Floor Material	1000D PVC floor
Mounting hardware	Stainless steel

SunGold Power PowerMax - 16kWh - Open Loop Specifications

Specification	Details
Product Model	PowerMax 314 Outdoor
Rated voltage	51.2V
Voltage Range	44.8~57.6Vdc
Rated capacity	314Ah
Rated energy	16.07kWh
Usable Energy	15.42kWh
Max.Depth of discharge	>96%
Rated DC power	7.68kW
Weight	271.17lbs(123kg)
Dimensions(LWH)	41.2618.1110.67inches(1048460271mm)
Standard charge current	150A
Standard discharge current	150A
Max. charging current	190A
Max. discharging current	190A
Peak charging current	220A (3S)
Peak discharging current	220A (3S)
Breaker Current	240A
Screen	Touch Screen
Life cycle(80% DOD,0.5C,25℃)	8000 Cycles
Max. charging voltage	57.6V
Over discharge voltage	44.8V
Max. number of parallel	16
Communication interfaces	CAN/RS485/USB/WIFI/Bluetooth
Lithium Battery Standard	UN38.3, MSDS, EN55032, EN55024,EN61000-3-2, EN61000-3-3,UL1973,UL9540A
Storage time /temperature	6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range	32°F to 131°F (0~55℃)
Discharging temperature range	14°F to 131°F (-10~55℃)
Cooling method	Natural cooling
Enclosure protection rating	IP65
Operation Environment	Indoor & Outdoor

EG4 Indoor Wallmount - 16kWh - Closed Loop Specifications

Specification	Details
Product Type	LFP Battery
Battery Type	Lithium Iron Phosphate (LFP
Model Number	WM-48-314-IN-XX / WM48314INXX (XX is a number between 00 – 99

Electrical Characteristics

Specification	Details
Nominal Energy Capacity	16 kWh
Usable Energy (DOD%)	12.86 kWh (80% recommended)
Recommended Voltage Range	47.5 – 57.6 VDC
Nominal Voltage	51.2 VDC
Capacity	314 Ah
Charging Voltage Range	56 – 57 VDC
Discharging Cut-Off Voltage	47.5 VDC
Max Continuous / Recommended Charge Current	157A / 157A
Max Continuous / Recommended Discharge Current	200A / 157A
Continuous Charge / Discharge Power	8 / 10.2 kW
Recommended Charging / Discharging Rate	0.5C
Short Circuit Current	1700A, 15 ms delay
Peak Power	12.8 kW (3 sec)
Round-Trip Efficiency	95%
Max Parallel Units	32
Protection Features	Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS)	Integrated, Active Balancing
Communication Protocols	RS485, CAN
Battery Breaker	250A

Battery Heater Specifications

Specification	Details	Condition
Voltage	56V	-
Power Consumption	448W	-
Internal Battery Temperature	≤32°F (0°C) / ≥37°F (3°C)	Heat On / Heat Off

Environmental Specifications

Specification	Details
Storage Temperature Range*	−4 – 131°F (−20 – 55°C)
Humidity Range	5% – 95% RH (non-condensing)
Altitude	9843 ft (<3000 m)
Cooling Method	Natural Convection
Dimensions (H × W × D)	34.1 in × 18.1 in × 9.6 in (865 mm × 460 mm × 245 mm)
Operating Temperature Range	Charge: 32 – 122°F (0 – 50°C) \| Discharging: −4 – 131°F (−20 – 55°C)

Mechanical Specifications

Specification	Details
Weight	293.2 lbs (133 kg)
Enclosure Rating	IP20
Enclosure Rating	Floor mount / wall attached
Display / Indicators	LED Status
Connector Type	Degson quick connector / screw terminals

Certifications & Compliance

Specification	Details
UL 1973	Yes
UL 9540	See https://eg4electronics.com/ for supported UL 9540 configurations
UL 9540A	Cell, Module (Pending), Unit Level (Pending)
UN 38.3	Yes

Warranty & Lifecycle

Specification	Details
Cycle Life (70% EOL Capacity)*	10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life	15 years
Warranty	10 years or 10,000 cycles
Lifetime Production**	122.2 MWh
Application Type	Residential / Commercial / Off-Grid / Backup

RUiXU Lithi2-16 - 16kWh - Open Loop Specifications

Specification	Details
Nominal Voltage	51.2V
Capacity	314Ah (Min. Capacity @ 0.2C: 314Ah)
Nominal Energy	16.07kWh
Operating Voltage Range	44.8V - 56.0V
Charge Voltage	56.8V
Recommended Charge Current	140A
Max Charge Current	200A
Recommended Discharge Current	100A
Max Discharge Current	200A
Cycle Life (@ 80% DOD)	≥ 9500 cycles
Communication Protocols	RS485 / CAN
Dimensions (with Wheels)	36.3" x 21.3" x 10"
Weight	~320 lbs
Mounting Options	Wall-mounted with included screws and anti-tipping anchor
Certifications	UL1973, UL9540
IP Rating	IP65 (Outdoor-Ready)

LINIOTECH - 14.3kWh - Open Loop Specifications

Specification	Details
Battery Chemistry	LiFePO4
Capacity (Ah)	280Ah
Scalability	Max.16pcs in parallel (262kWh)
Voltage (V)	51.2V
Operating Voltage(V)	46-56V
Energy (kWh)	14.34kWh
Recommend Discharge Energy (80% DOD) (kWh)	11.47kWh
Recommend Charge/Discharge Current (A)	100A
Charge/Discharge Current (Max.)	150A
Peak Current (2 mins, 25°C)	200A
Recommend Depth of Discharge	90%
Dimension (W/H/D)	7001050200mm / 27.641.37.9 in
Weight Approximate	128.5kgs / 283 lbs
Master LED Indicator	4 LED (SOC:25%~100%) \| 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP65
Working Temperature	Charge:0℃～55℃ Discharge:-20℃～55℃
Storage Temperature	0℃～35℃
Humidity	5%~95%
Altitude	≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥8500
Installation	Ground/Outdoor
Communication Port	CAN2.0, RS485, WiFi
Warranty Period	12 years
Certification	UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS
Maximum Continuous Discharge Rate	7.68KW

Pytes V16 - 16kWh - Open Loop Specifications

Electrical

Specification	Details
Battery Chemistry	Lithium Iron Phosphate (LFP)
Rated Voltage	51.2 V
Rated Capacity	314 Ah
Rated Energy	16kWh
Recommended Continuous Charge / Discharge Current	125 A (6.4kW)
Max Charge / Discharge Current	200A (10.24kW)
Peak Discharge Current	300A (15.36kW) @15s

General

Specification	Details
Dimensions (W × D × H)	26.42 × 10.24 × 27.56 inch (671 × 260 × 700 mm)
Weight (lb / kg)	288 / 130.5
Ingress Protection Rating	IP66
Mounting Method	Wall / Ground
Terminal	Phoenix Plug & Play DC Connector
Communication Ports	CAN / RS485 / RS232 / Dry Contact / WiFi
Cycle Life	8000 cycles
Warranty	10 years

Internal Heating Film

Specification	Details
Rated Input Voltage	51.2 Vdc
Rated Power	500 W
Control Temperature	On: ≤41°F (5°C) / Off: ≥59°F (15°C)

Environmental

Specification	Details
Charging Temperature	32°F ~ 131°F (0°C ~ 55°C)
Discharging Temperature	-4°F ~ 131°F (-20°C ~ 55°C)
Recommended Operating Altitude	≤ 9843 ft (3000 m)
Relative Humidity	0 ~ 95%, non-condensing

Compliance

Specification	Details
Certifications	UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3

Frequently-Asked Questions

Can this kit power my entire home?

It may support whole-home or essential-load backup when appropriately sized. Your simultaneous loads, appliance starting requirements, and selected battery’s discharge capability determine what can run together.

Why does the kit have 11kW of solar and a 12kW inverter?

The included panels total 11kW of rated solar capacity. The inverter provides 12kW continuous AC output at 240V and can utilize up to 18kW of PV input. These figures describe different system capabilities.

How long will the battery provide backup power?

Runtime depends on the selected battery’s usable capacity, charge level, connected loads, and system losses. The options provide approximately 14–16kWh of nominal storage.

Can this system sell excess electricity back to the grid?

The EG4 18kPV supports grid export when correctly installed and configured. Export availability depends on utility approval, interconnection requirements, and your electricity plan.

Can I expand the system later?

Yes. Compatible batteries and additional solar panels may be added within the inverter’s electrical limits and manufacturer requirements. Expansion may require additional wiring and equipment.

Manual

Shipping & Easy Returns

Shipping is free across the Lower 48. No fuel surcharges, no residential fees, and no liftgate charge on freight orders. The price you see is the price you pay. Read our full Shipping Policy here.

Most orders leave the warehouse in 1 to 2 business days and arrive within 3 to 10 business days. We send tracking the moment it ships.

Anything that ships on a pallet goes freight with liftgate and pallet jack included, so the driver gets it off the truck and onto the ground at your address. The carrier will call you directly to schedule a delivery window.

Returns are 30 days from delivery. For freight deliveries, inspect the shipment before you sign for it. If something is damaged in transit, note it on the delivery receipt and we handle the freight claim, not you. Read more about our Returns Policy here.

Why Buy From Us

Buying solar online should not mean guessing your way through the install. Here’s what you get with Off-Grid Source.

We size the system, not just sell it. Call before you order and a sales engineer will check the kit against your actual loads, tell you if you’re buying too much or too little, and list the site-specific parts your install will need.
A+ rated by the Better Business Bureau. Another trust signal that you’re buying from a real company that stands behind the sale.
Free shipping across the Lower 48. No hidden freight charges, residential fees, or liftgate surprises at checkout.
Guaranteed best prices. Find the same product for less elsewhere and we’ll match it.
30-day easy returns. If it is not the right fit, we’ll help you get it sent back.
A real person on the phone. Product questions, sizing, install planning, warranty help: call us at +1 (877) 556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.

EG4 18kPV Complete Hybrid Solar Kit | 11kW Solar | 14–16kWh Wall Mount Batteries

Product Highlights

EG4 18kPV Complete Hybrid Solar Kit | 11kW Solar | 14–16kWh Wall Mount Batteries

EG4 18kPV Complete Hybrid Solar Kit Features

EG4 18kPV Complete Hybrid Solar Kit Applications

What's Included

EG4 18kPV Complete Hybrid Solar Kit Specifications

EG4 18KPV - 12000W Output - 18000W PV Input - 48V - 120/240V Split Phase - Hybrid Specifications

SunGold Power PowerMax - 16kWh - Open Loop Specifications

EG4 Indoor Wallmount - 16kWh - Closed Loop Specifications

RUiXU Lithi2-16 - 16kWh - Open Loop Specifications

LINIOTECH - 14.3kWh - Open Loop Specifications

Pytes V16 - 16kWh - Open Loop Specifications

General

Frequently-Asked Questions

Manual

Shipping & Easy Returns

Why Buy From Us

Why Choose Off Grid Source

Our Customers Tell It Better Than We Do

They Stood By Me

Awesome Service!

Real Person, Honest Service.

Easy Return

Totally Off Grid.

Great Product! Fast Shipping

Excellent Customer Service
