EG4 6000XP Complete Off-Grid Solar Kit | 3.32kW Solar | 10-16kWh Wall Mount Batteries

Name: EG4 6000XP Complete Off-Grid Solar Kit | 3.32kW Solar | 10-16kWh Wall Mount Batteries
Brand: EG4
SKU: EG4-6000XP-3.3-16-SGPW-O
Price: 6314.57 USD
Availability: InStock

BY: EG4

SKU: EG4-6000XP-3.3-16-SGPW-O

| Availability: In stock

$6,999.00

$6,314.57

You Save: $684.43

Inverter:

Battery:

Solar Panel:

Quantity

Product Highlights

Built for off-grid power and emergency backup
16,000 Wh capacity for extended backup and off-grid runtime
Purpose-built hardware secures compatible solar modules and racking
3,320 W solar output for larger off-grid energy systems

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized EG4 Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

EG4 6000XP Complete Off-Grid Solar Kit | 3.32kW Solar | 10-16kWh Wall Mount Batteries

The EG4 6000XP Complete Off-Grid Solar Kit is a versatile and space-efficient solar solution designed for off-grid homes, cabins, and backup power applications. Built around the powerful EG4 6000XP all-in-one inverter, this system delivers reliable 120/240V split-phase power with integrated solar charging and battery management.

With a 3.32kW solar array and flexible 10kWh–16kWh wall-mounted battery options, this kit offers scalable energy storage to match your needs. Whether you're powering essential loads or building a complete off-grid system, this kit provides a balanced combination of performance, flexibility, and ease of installation.

EG4 6000XP Complete Off-Grid Solar Kit Features

All-in-One Off-Grid Inverter - 6000W continuous output with 8000W PV input allows you to efficiently power essential appliances, tools, and electronics from a single integrated unit.
Flexible Wall-Mount Battery Options - Choose from multiple 10kWh–16kWh lithium battery solutions including SunGold, Deye, EG4, RUiXU, and LINIOTECH to match your budget and performance preferences.
Compact 3.32kW Solar Array - Includes 8 high-efficiency 415W Mono PERC panels, providing strong solar production while maintaining a smaller installation footprint.
Scalable Energy Storage - Easily expand battery capacity over time as your energy demands increase.
Off-Grid Ready Design - Engineered specifically for off-grid operation, making it ideal for remote locations or energy independence setups.
Complete Installation Kit - Includes essential wiring, protection components, and mounting hardware for a streamlined setup.

EG4 6000XP Complete Off-Grid Solar Kit Applications

Off-grid cabins & tiny homes - Ideal for powering everyday essentials like lights, refrigeration, and small appliances in compact living spaces without relying on the utility grid.
Backup power for small homes - Provides reliable emergency power during outages, keeping critical systems such as internet, lighting, and refrigeration running smoothly.
Remote workshops & garages - Perfect for running tools, equipment, and lighting in detached or off-grid workspaces where grid access is limited or unavailable.
Rural properties without utility access - Designed for properties in remote locations, delivering dependable energy independence without the need for expensive grid connections.
Starter solar systems for energy independence - A great entry-level solution for users beginning their transition to solar, with the ability to expand battery storage and solar capacity over time.

What's Included

Everything you need is included with your product.

Inverter:

EG4 6000XP - 6000W Output - 8000W PV Input - 48V - 120/240V Split Phase

Battery Options (Choose One):

1 x SunGold Power Powerwall X - 10.2kWh - Open Loop
1 x Deye 48V - 10.2kWh - Open Loop
1 x LINIOTECH - 14.3kWh - Open Loop
1 x RUiXU Lithi2-16 - 16kWh - Open Loop
1 x EG4 Indoor Wallmount - 16kWh - Closed Loop

Solar Panels:

8 × SunGold 415W Mono Black PERC (3.32kW)

Accessories:

10AWG Solar Extension Cable - 50ft
2 x Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
25A PV Breaker
8 x Z-Brackets

EG4 6000XP Complete Off-Grid Solar Kit Specifications

EG4 6000XP - 6000W Output - 48V - 120/240V Split Phase Specifications

AC input data

Specification	Details
Nominal ac voltage	120/240VAC (L1/L2/N required)
Frequency	50/60Hz
Max. continuous ac current	37.5A @ 240VAC
Max. ac input power	9000W
Ac bypass (grid \| generator)	50A
Available fault current	5kA
Input short circuit current	150A peak @100us, per inverter

AC output data

Specification	Details
Output voltage	120/240VAC
Output frequency	50/60Hz
Max. continuous output current @ 240v	25A
Nominal power output	6000W
Surge capacity	12,000W for ≈3.5 seconds \| 11,000W for ≈5 seconds
Power factor	0.99 @ full load
Reactive power adjust range	(-0.8) ~ (+0.8) leading adjustable
Operating frequency	50/60Hz
Thd (v)	<3%
Switching time	<15ms @ Single \| <30ms @ Parallel

PV input data

Specification	Details
Number of mppts	2
Inputs per mppt	1
Max. usable input current	17/17A
Max. short circuit input current	25/25A
Dc input voltage range*	100 – 480 VDC
Unit startup voltage	100 VDC ±10 VDC
Mppt operating voltage range	120 – 385 VDC
Nominal mppt voltage	320 VDC
Max. pv input voltage**	500 VDC
Maximum utilized solar power	8000W (4000W per MPPT)
Recommended maximum solar input	10000W

Battery data

Specification	Details
Type	Lead-acid/Lithium
Max. discharge current	140A
Max. charge current	125A
Nominal voltage	48 VDC
Battery voltage range	46.4 – 60 VDC (Lithium) \| 38.4 – 60 VDC (Lead-acid)
Rec. battery capacity per inverter	>200Ah
High dc cut-off voltage	59 VDC (Lithium) \| 60 VDC (Lead-acid)
High dc recovery voltage	57.4 VDC (Lithium) \| 58 VDC (Lead-acid)
Low dc warning voltage (lead-acid) \| Load>20%	44.0 VDC (Configurable)
Low dc warning voltage (lead-acid) \| 20%≤Load≤50%	Warning Voltage @Load <20% - 1.2V
Low dc warning voltage (lead-acid) \| Load>50%	Warning Voltage @Load <20% - 3.6V
Low dc warning voltage return (lead-acid)	Low dc warning voltage @Different Load +2V

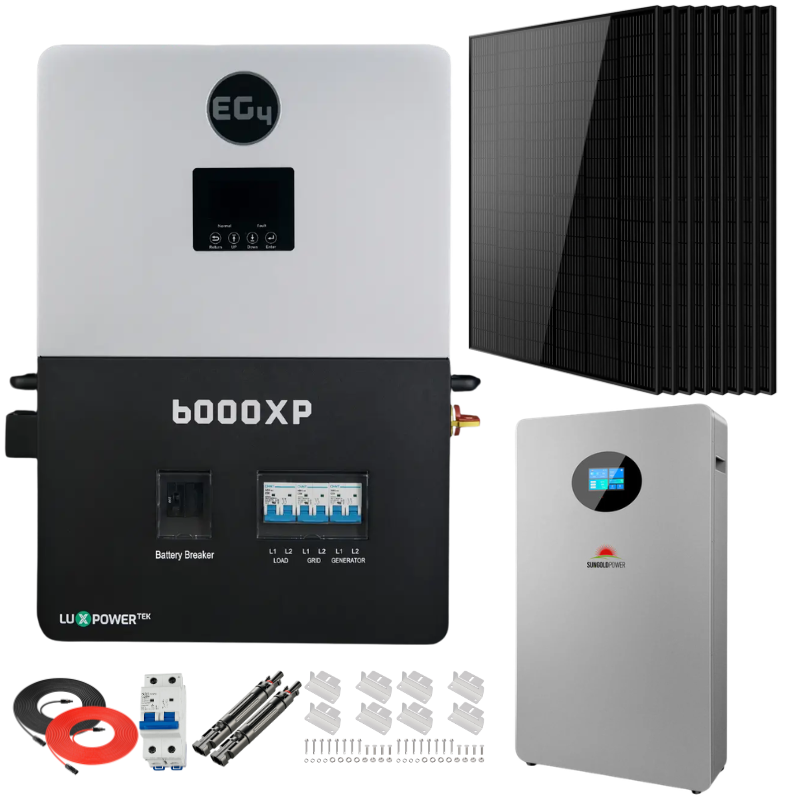

SunGold Power Powerwall X - 10.2kWh - Open Loop Specifications

Specification	Details
Product Model	SG48200T
Rated voltage	51.2V
Max. voltage range	44.8~57.6V, Shipping voltage>51.2V
Charge voltage	56.0V
Float charge voltage	54.6V
Nominal enery@0.5c	10.24KWh
Usable enery@0.5c	9.84kWh
Nominal capacity@0.5c	200Ah
Dimension	21.1* 37.26.8 inch (535944*173mm)
Weight	~198.4lb (90kg)
Standard charge current	≤100A
Max. charge current	140A
Standard discharge current	≤100A
Max. discharge current	200A (initial temp. ≤86℉（30℃）)
Peak discharge current	200~240A@5mins \| 240~300A@15S
Communication	RS485 /CAN
Max parallel number	32pcs
Operation temperature 1	Charge: 32℉ to 122℉(0 to 50℃) \| Discharge: 14℉ to 122℉ (-10 to 50℃)
Storage temperature @off mode	32℉(0℃)
Certificates	UN38.8 MSDSUL1973 UL9540Ais coming soon.

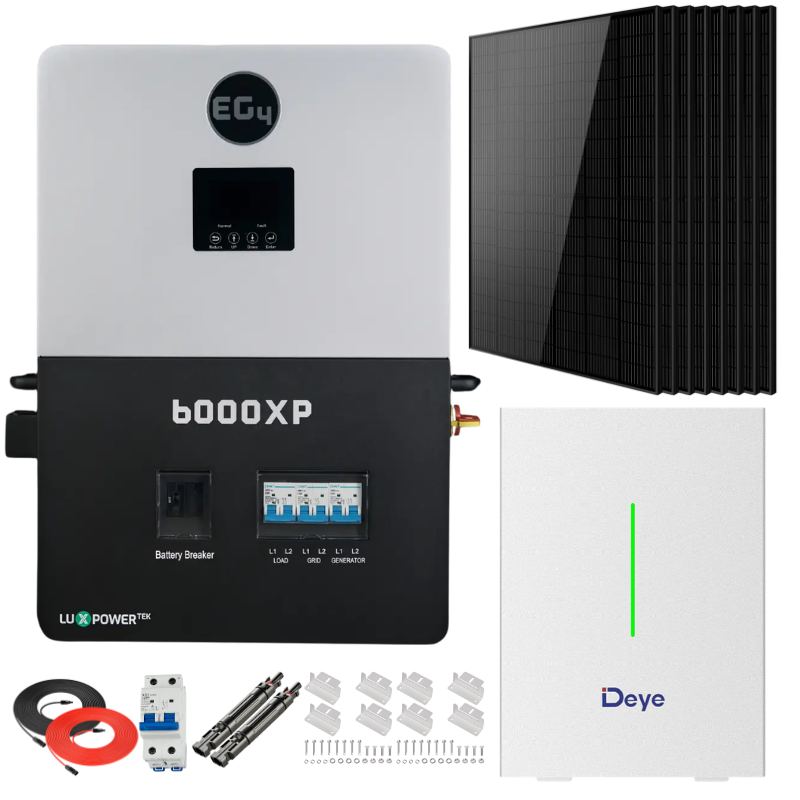

Deye 48V - 10.2kWh - Open Loop Specifications

Main Parameter

Specification	Details
Model	RW-F10.2-B
Battery Chemistry	LiFePO4
Built-in Circuit Breaker	125A 4P, 60Vdc
Capacity ( Ah )	200
Scalability	Max. 32 pcs pack ( Max.327kWh ) in parallel
Nominal Voltage ( V )	51.2
Operating Voltage ( V )	43.2~57.6
Nominal Energy ( kwh )	10.24
Usable Energy ( kwh )	9.2
Charge / Discharge Current ( A ) Recommend	Charge : 100 / Discharge : 100
Charge / Discharge Current ( A ) Max.	Charge : 198 / Discharge : 240
Charge / Discharge Current ( A ) Peak ( 2mins, 25°C )	300

Other Parameter

Specification	Details
Recommend Depth of Discharge	90%
Dimension ( W X H X D )	23.6" × 32.7" × 7.9" ( 600 × 830 × 200mm, without hanging board )
Weight Approximate	235.9 lbs. ( 107kg )
Master LED Indicator	LED ( SOC : 20% ~ SOC100% and working state )
IP Rating of Enclosure	NEMA 3R ( IP65 )
Operating Temperature	Charge : 33°F ~ 131°F ( 1 ~ 55°C ) / Discharge : -4°F ~ 131°F ( -20°C ~ 55°C )
Operating Temperature ( with heating film )	Charge / Discharge : -4°F~131°F ( -20°C ~ 55°C )
External ambient temperature range	-4°F ~ 131°F ( -20°C ~ 55°C, with heating film )
Recommend Operating Temperature	59°F ~ 95°F ( 15°C ~ 35°C )
Storage Temperature	32°F ~ 95°F ( 0 ~ 35°C )
Humidity	5% ~ 95%
Altitude	≤Max. 9,843 ft ( 3,000m )
Cycle Life	≥6000 ( 25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL )
Installation	Wall-Mounted, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period	10 years
Energy Throughput	32MWh ( @25°C, 0.5C / 0.5C, 70%EOL )
Certification	UN38.3, FCC, UL1973, UL9540A, UL9540

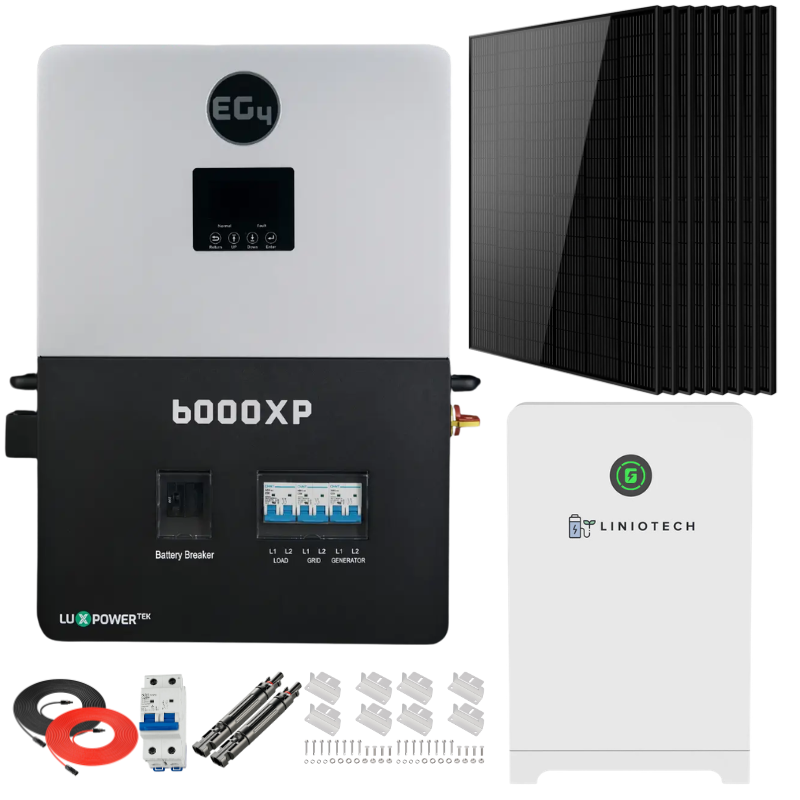

LINIOTECH - 14.3kWh - Open Loop Specifications

Specification	Details
Battery Chemistry	LiFePO4
Capacity (Ah)	280Ah
Scalability	Max.16pcs in parallel (262kWh)
Voltage (V)	51.2V
Operating Voltage(V)	46-56V
Energy (kWh)	14.34kWh
Recommend Discharge Energy (80% DOD) (kWh)	11.47kWh
Recommend Charge/Discharge Current (A)	100A
Charge/Discharge Current (Max.)	150A
Peak Current (2 mins, 25°C)	200A
Recommend Depth of Discharge	90%
Dimension (W/H/D)	7001050200mm / 27.641.37.9 in
Weight Approximate	128.5kgs / 283 lbs
Master LED Indicator	4 LED (SOC:25%~100%) \| 2 LED (working, alarming, protecting)
IP Rating of Enclosure	IP65
Working Temperature	Charge:0℃～55℃ Discharge:-20℃～55℃
Storage Temperature	0℃～35℃
Humidity	5%~95%
Altitude	≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥8500
Installation	Ground/Outdoor
Communication Port	CAN2.0, RS485, WiFi
Warranty Period	12 years
Certification	UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS
Maximum Continuous Discharge Rate	7.68KW

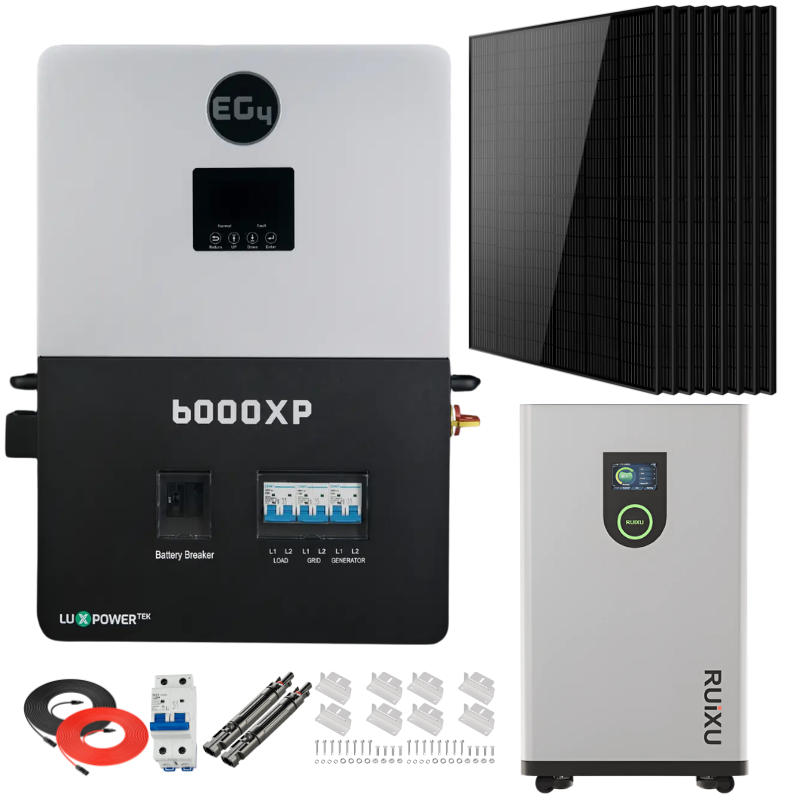

RUiXU Lithi2-16 - 16kWh - Open Loop Specifications

Specification	Details
Nominal Voltage	51.2V
Capacity	314Ah (Min. Capacity @ 0.2C: 314Ah)
Sleeping Capacity	16.07kWh
Operating Voltage Range	44.8V - 56.0V
Charge Voltage	56.8V
Recommended Charge Current	140A
Max Charge Current	200A
Recommended Discharge Current	100A
Max Discharge Current	200A
Cycle Life (@ 80% DOD)	≥ 9500 cycles
Communication Protocols	RS485 / CAN
Dimensions (with Wheels)	36.3" x 21.3" x 10"
Weight	~320 lbs
Mounting Options	Wall-mounted with included screws and anti-tipping anchor
Certifications	UL1973, UL9540
IP Rating	IP65 (Outdoor-Ready)

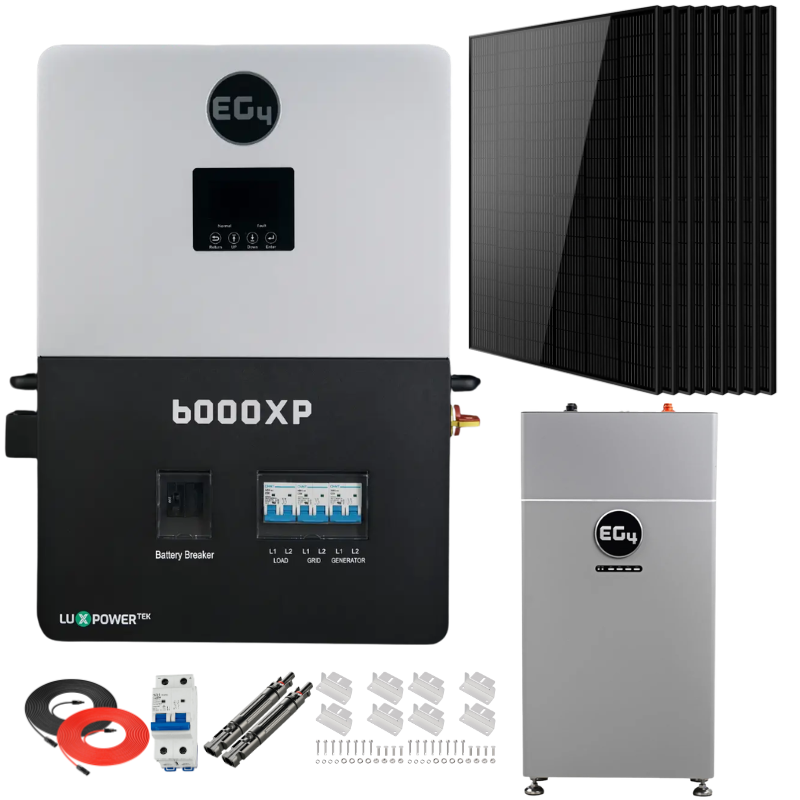

EG4 Indoor Wallmount - 16kWh - Closed Loop Specifications

Specification	Details
Product Type	LFP Battery
Battery Type	Lithium Iron Phosphate (LFP
Model Number	WM-48-314-IN-XX / WM48314INXX (XX is a number between 00 – 99

Electrical Characteristics

Specification	Details
Nominal Energy Capacity	16 kWh
Usable Energy (DOD%)	12.86 kWh (80% recommended)
Recommended Voltage Range	47.5 – 57.6 VDC
Nominal Voltage	51.2 VDC
Capacity	314 Ah
Charging Voltage Range	56 – 57 VDC
Discharging Cut-Off Voltage	47.5 VDC
Max Continuous / Recommended Charge Current	157A / 157A
Max Continuous / Recommended Discharge Current	200A / 157A
Continuous Charge / Discharge Power	8 / 10.2 kW
Recommended Charging / Discharging Rate	0.5C
Short Circuit Current	1700A, 15 ms delay
Peak Power	12.8 kW (3 sec)
Round-Trip Efficiency	95%
Max Parallel Units	32
Protection Features	Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS)	Integrated, Active Balancing
Communication Protocols	RS485, CAN
Battery Breaker	250A

Battery Heater Specifications

Specification	Details	Condition
Voltage	56V	-
Power Consumption	448W	-
Internal Battery Temperature	≤32°F (0°C) / ≥37°F (3°C)	Heat On / Heat Off

Environmental Specifications

Specification	Details
Storage Temperature Range*	−4 – 131°F (−20 – 55°C)
Humidity Range	5% – 95% RH (non-condensing)
Altitude	9843 ft (<3000 m)
Cooling Method	Natural Convection
Dimensions (H × W × D)	34.1 in × 18.1 in × 9.6 in (865 mm × 460 mm × 245 mm)
Operating Temperature Range	Charge: 32 – 122°F (0 – 50°C) \| Discharging: −4 – 131°F (−20 – 55°C)

Mechanical Specifications

Specification	Details
Weight	293.2 lbs (133 kg)
Enclosure Rating	IP20
Enclosure Rating	Floor mount / wall attached
Display / Indicators	LED Status
Connector Type	Degson quick connector / screw terminals

Certifications & Compliance

Specification	Details
UL 1973	Yes
UL 9540	See https://eg4electronics.com/ for supported UL 9540 configurations
UL 9540A	Cell, Module (Pending), Unit Level (Pending)
UN 38.3	Yes

Warranty & Lifecycle

Specification	Details
Cycle Life (70% EOL Capacity)*	10,000 cycles @ 0.5C, 25°C, 80% DOD
Design Life	15 years
Warranty	10 years or 10,000 cycles
Lifetime Production**	122.2 MWh
Application Type	Residential / Commercial / Off-Grid / Backup

Frequently-Asked Questions

What can this system power?

This system can power essentials like refrigerators, lighting, internet, TVs, and small appliances. Load capacity depends on battery size and usage patterns.

What’s the difference between battery options?

Battery options vary in capacity, communication (open vs closed loop), and installation style. Closed-loop batteries (like EG4) offer deeper integration with the inverter.

Can I expand the system later?

Yes. You can add more batteries and increase solar capacity as your energy needs grow.

Is this system DIY-friendly?

Yes, for users with electrical experience. However, professional installation is recommended for safety and code compliance.

Manual

Shipping & Easy Returns

Shipping is free across the Lower 48. No fuel surcharges, no residential fees, and no liftgate charge on freight orders. The price you see is the price you pay. Read our full Shipping Policy here.

Most orders leave the warehouse in 1 to 2 business days and arrive within 3 to 10 business days. We send tracking the moment it ships.

Anything that ships on a pallet goes freight with liftgate and pallet jack included, so the driver gets it off the truck and onto the ground at your address. The carrier will call you directly to schedule a delivery window.

Returns are 30 days from delivery. For freight deliveries, inspect the shipment before you sign for it. If something is damaged in transit, note it on the delivery receipt and we handle the freight claim, not you. Read more about our Returns Policy here.

Why Buy From Us

Buying solar online should not mean guessing your way through the install. Here’s what you get with Off-Grid Source.

We size the system, not just sell it. Call before you order and a sales engineer will check the kit against your actual loads, tell you if you’re buying too much or too little, and list the site-specific parts your install will need.
A+ rated by the Better Business Bureau. Another trust signal that you’re buying from a real company that stands behind the sale.
Free shipping across the Lower 48. No hidden freight charges, residential fees, or liftgate surprises at checkout.
Guaranteed best prices. Find the same product for less elsewhere and we’ll match it.
30-day easy returns. If it is not the right fit, we’ll help you get it sent back.
A real person on the phone. Product questions, sizing, install planning, warranty help: call us at +1 (877) 556-3347.

FAST & FREE SHIPPING

From US-Based Warehouse

30-DAYS EASY RETURNS

Yes, Really.

GUARANTEED BEST PRICES

Find a Better Price? We’ll Match It.

GREAT CUSTOMER SERVICE

Call Us: (+1) 877-556-3347

Our Customers Tell It Better Than We Do

Excellent 4.9/5

Trusted By 10,000+ Customers. See All Reviews.

They Stood By Me

I was a DIY solar power wannabe... that is 'til I connected with Manny... The man's a prince! He not only knows his stuff; he walked me through all things electrical. To make sure I had all I needed... he gave me his cell phone # to text him anytime I got confused... nights and weekends included. The prices were very competitive... definitely go with Manny -- you won't go wrong!

Bruce D.

Awesome Service!

I am always hesitant to buy things at places I have never shopped... I want to give a shout out to Manny who with great patience and knowledge helped me get my orders... I felt valued as a customer and I will definitely be back in the future. I highly recommend them, they make you feel like family.

Jennene A.

Real Person, Honest Service.

I'm about to go off grid. I called Manny, he walked me through everything so I could truly understand what I needed and never tried to upsell me. He was honest and made a customer for life.

Ray B.

Easy Return

I would personally like to thank Manny... I purchased the inverter and decided I needed to return it... Manny was very understanding and went out of his way to help me return the product and not even have to pay for shipping return. He gives this company reputation, honor and quality customer service!

Roger V.

Totally Off Grid.

I have been talking with Manny the owner... He has not only helped me design a system but he's been assisting with the install and components. I am super pleased so far with the assistance.

Jeff S.

Great Product! Fast Shipping

We added 2 more batteries to our current set up. Pleased with the customer service from Off-Grid Source! Will be back!

Jason

Excellent Customer Service

Very fast response times. Very professional. I highly recommend!

Ray W.

EG4 6000XP Complete Off-Grid Solar Kit | 3.32kW Solar | 10-16kWh Wall Mount Batteries

Product Highlights

EG4 6000XP Complete Off-Grid Solar Kit | 3.32kW Solar | 10-16kWh Wall Mount Batteries

EG4 6000XP Complete Off-Grid Solar Kit Features

EG4 6000XP Complete Off-Grid Solar Kit Applications

What's Included

EG4 6000XP Complete Off-Grid Solar Kit Specifications

EG4 6000XP - 6000W Output - 48V - 120/240V Split Phase Specifications

SunGold Power Powerwall X - 10.2kWh - Open Loop Specifications

Deye 48V - 10.2kWh - Open Loop Specifications

LINIOTECH - 14.3kWh - Open Loop Specifications

RUiXU Lithi2-16 - 16kWh - Open Loop Specifications

EG4 Indoor Wallmount - 16kWh - Closed Loop Specifications

Frequently-Asked Questions

Manual

Shipping & Easy Returns

Why Buy From Us

Why Choose Off Grid Source

Our Customers Tell It Better Than We Do

They Stood By Me

Awesome Service!

Real Person, Honest Service.

Easy Return

Totally Off Grid.

Great Product! Fast Shipping

Excellent Customer Service
