EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input Inverters EG4

EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input

BY: EG4 | SKU: CHARGERVERTER-GC Availability: In Stock
$847.00
$719.95
You Save: $127.05

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized EG4 Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

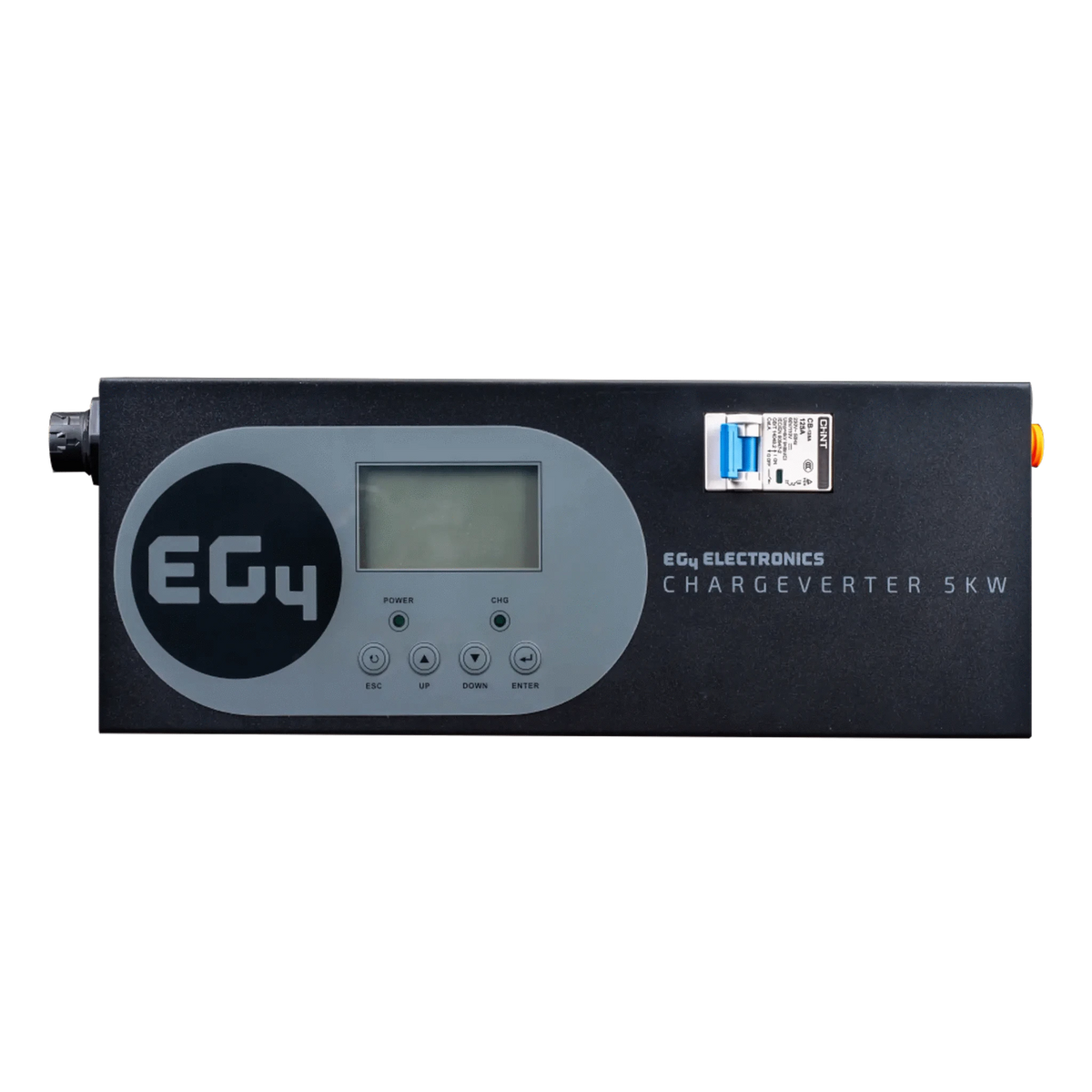

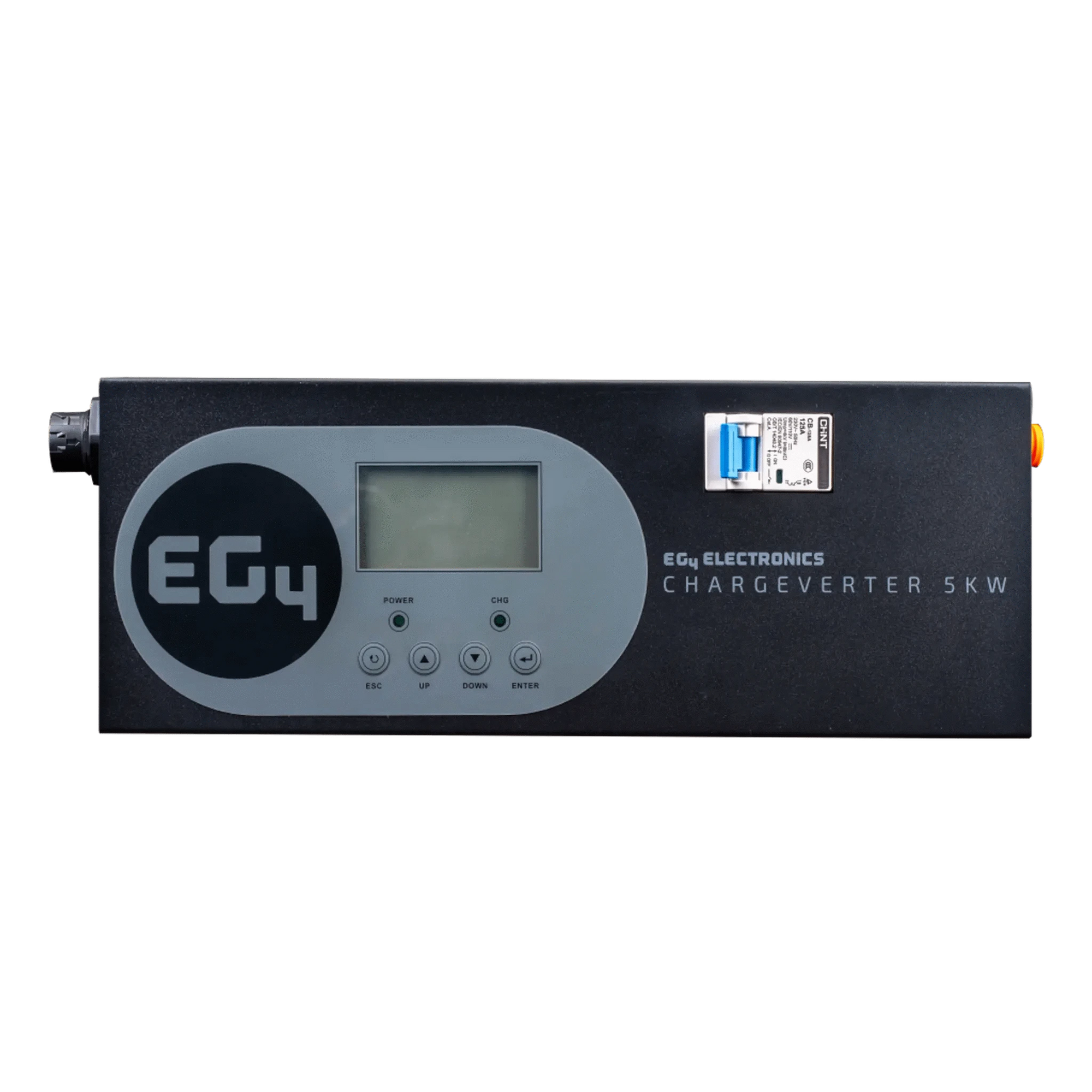

EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input

Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups.


Bad Weather Resilience:

  • Charge batteries during low light conditions using a generator (up to 100A)
  • Ideal for unpredictable weather patterns

Protection from "Dirty Power":

  • Guards against unreliable sine waves from lower-budget generators
  • Protects inverters from power quality issues

Charger Output Specifications:

  • Optimized for 240 VAC power supply
  • Nominal Battery Voltage: 48VDC
  • Adjustable Charge Current: 0-100A at 240VAC
  • Adjustable Charge Voltage: 43-57VDC (Default at 54VDC)
  • Maximum Output Watts: 5120W at 240 VAC
Placeholder Image


AC Input Specifications:

  • Plug directly into a generator without concern for power issues
  • AC Input Voltage Range: 90-264VAC
  • Maximum Input Amps: 26A at 240VAC, 28A at 120VAC

Dry Contacts:

  • Control of generator start/stop function based on Voltage or state of charge (SOC)

Using EG4 Batteries?

  • Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter
Placeholder Image

What's Included

Everything you need is included with your product.

  • EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input
  • User Manual

EG4 Chargeverter - GC Specifications

CHARGER OUTPUT SPECIFICATIONS

Specification Details
Battery Voltage 48VDC nominal
Charge Current (adjustable) 0-100A @240VAC, 0-45A @120VAC, 0-50A @208VAC
Charge Voltage (adjustable) 43-57VDC (default 54VDC)
Max. Output 5120W @240VAC, 3050W @120VAC
Max. Efficiency 94% @240VAC, 92% @120VAC

AC INPUT SPECIFICATIONS

Specifications Details
AC Input Voltage Range 90-264VAC
AC Frequency 50-60Hz
Max. Input Current 26A @240VAC, 28A @120VAC
Idle Consumption ~10W

ENVIRONMENTAL SPECIFICATIONS

Specifications Details
Operating Temperature Range 14°F – 131°F (-10°C – 55°C)
Storage Temperature Range 5°F – 140°F (-15°C – 60°C)
Humidity 5% to 95% relative humidity (non-condensing)
Ingress Protection IP21
Operating Altitude 0~4921 ft. (0~1500m)

DRY CONTACT SPECIFICATIONS

Specifications Details
Interface Connector NO, NC, and C (RJ11 Jack)

GENERAL SPECIFICATIONS

Specifications Details
Communication Port RS485 (RJ45 Jack)
Dimensions H x W x D 5” x 13.2” x 4.9” (127mm x 335mm x 124mm)
Net Weight 13 lbs. (5.9 kg)
Warranty 3 years (only when used indoors)

Frequently-Asked Questions

What battery types are compatible with the EG4 Chargeverter - GC?

The Chargeverter - GC is designed to charge 48V LiFePO4 and lead-acid battery banks.

Can I use this charger with a 120V or 240V AC power source?

Yes! The EG4 Chargeverter - GC supports both 120V and 240V AC input, making it compatible with standard electrical grids.

Does the charger have built-in safety features?

Yes, it includes overvoltage, overcurrent, and short-circuit protection to ensure safe operation.

Is this charger suitable for off-grid solar applications?

Absolutely! It is ideal for off-grid solar battery charging and backup power solutions.

Does this charger support remote monitoring?

No, this model does not have Wi-Fi or remote monitoring features, but it includes an LED display for real-time charging status updates.
