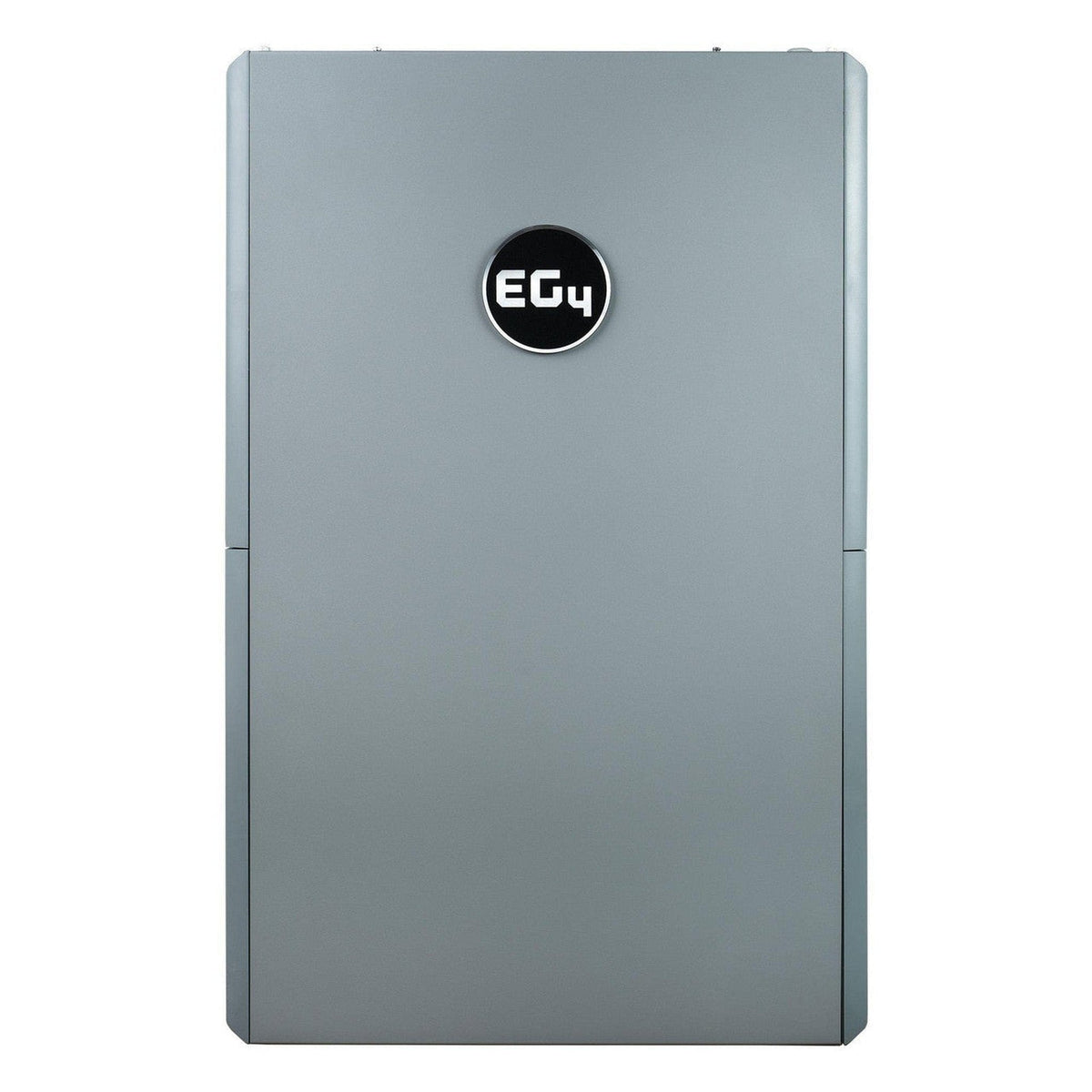

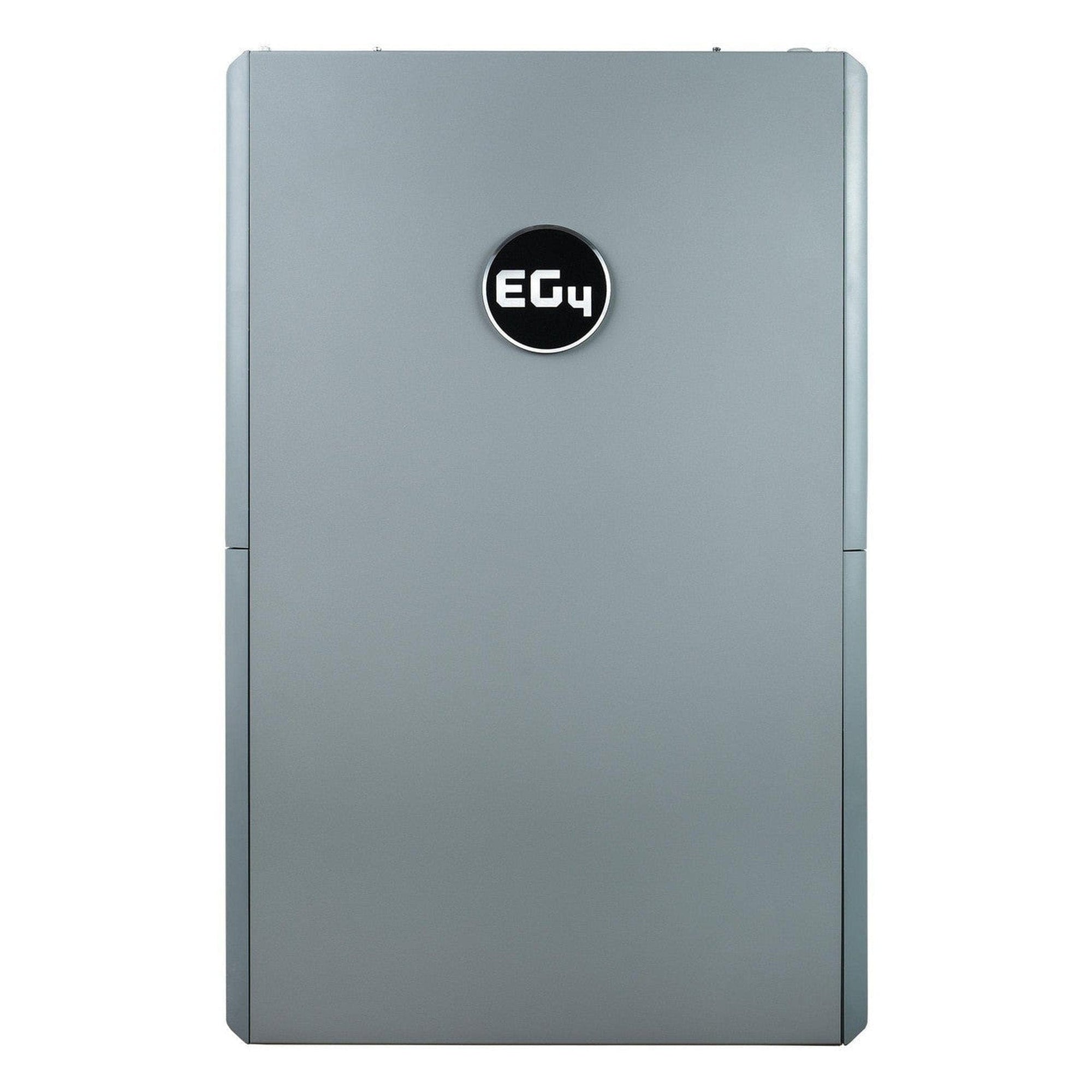

EG4 PowerPro WallMount AllWeather Lithium Battery | 48V 280Ah | 14.3kWh LiFePO4 | All-Weather Energy Storage | UL1973, UL9540A

Presenting the EG4 PowerPro WallMount All-Weather Battery, the prime choice for comprehensive solar energy storage. This state-of-the-art 48V 280Ah Lithium Iron Phosphate (LiFePO4) battery sets a new standard for reliability and performance, guaranteeing seamless and continuous power supply for all your solar needs.

Features:

Confident Power

• Delivering 10kW continuously, with peak power reaching 10.5kW for 10 seconds and 15.4kW for 3 seconds.
• Consistent discharge current rated at 200A.
• Capable of over 8000 cycles at 80%. Depth of Discharge (DOD), resulting in a lifetime production of 82.6MWh.

Reliable

• Intelligent BMS ensures reliability, efficiency, and safety.
• Integrated self-heating for optimal performance in low temperatures.

All-Weather Design

• Ideal for outdoor use, designed to endure diverse weather conditions.
• Integrated self-heating ensures peak battery performance in low temperatures.
• Weather-rated quick connectors by Amphenol for reliable connections.

Safety

• Dual onboard fire arrestors ensure fail-safe protection.

• Innovative total emergency stop function for instant shutdown by RSD / ESS disconnect / inverter RSD.
• Benefit from a 10-year warranty provided by EG4 Electronics.

Seamless Integration

• Can pair with any inverter in the market
• Designed to pair seamlessly with EG4, Victron, Growatt,
  Megarevo, Luxpower, Deye, and Sol-Ark inverters

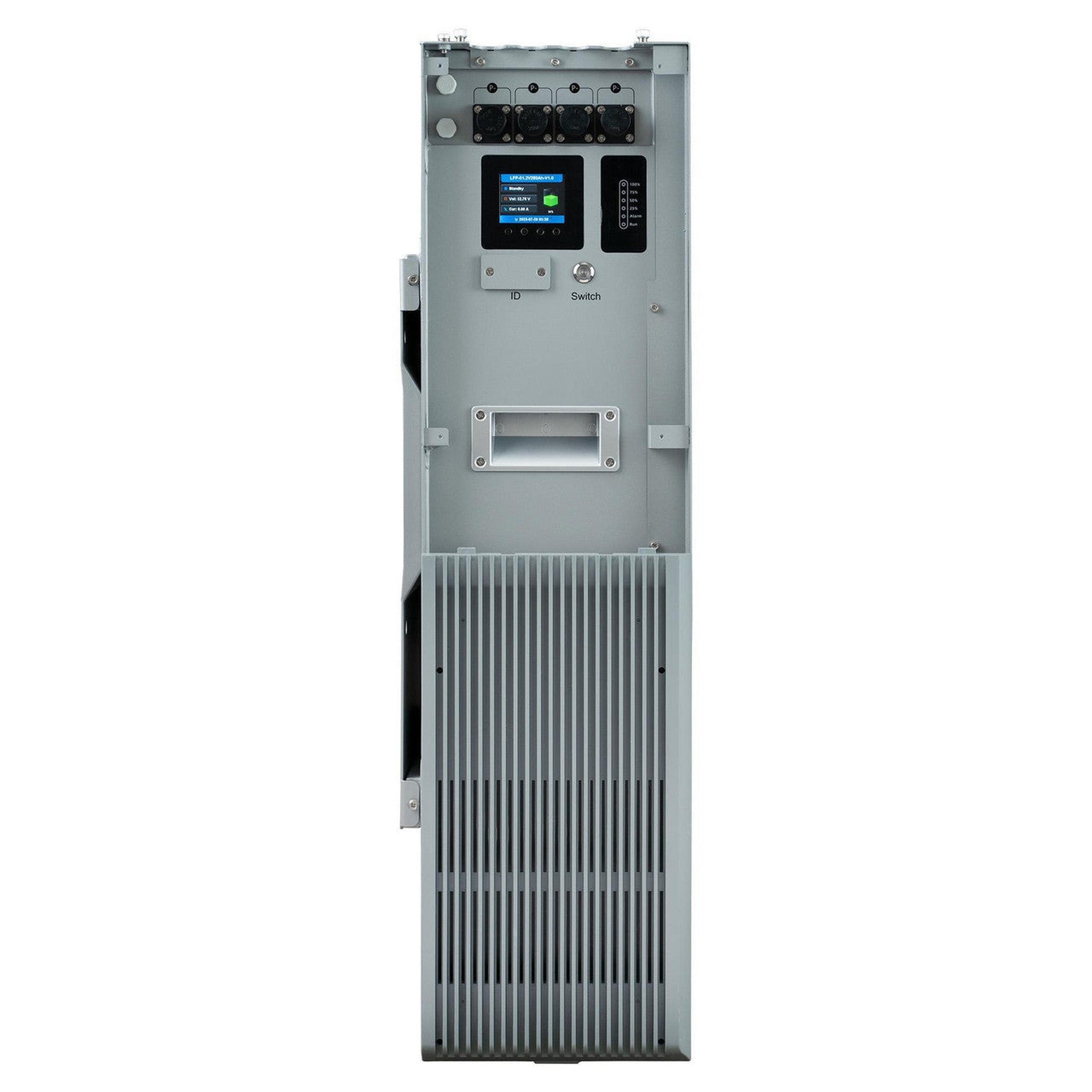

• Onboard LCD touch screen for easy BMS monitoring and communication.
• Quick connect battery cables for fast, safe, and reliable battery connections.

Comprehensive Certifications

• UL9540A Certified, UL1973
• UL9540 pending
• Outdoor Rating IP65

PowerPro ESS

• Optional conduit box addon makes installation with an EG4 18kPV simple
• Turn any PowerPro into a fully capable Energy Storage System when paired with an EG4 18kPV
• No thermal monitoring, or ventilation needed
• No maintenance

Technical Specifications:

• Model name: PowerPro WallMount AllWeather Battery
• Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
• Voltage: 48V (Nominal: 51.2V, Float: 54V)
• Continuous Charge/Discharge Current: 200A (Max)
• Capacity: 14.3kWh
• BMS: 200A
• Weight: 308.6 lbs. / 140Kg

Specifications

EG4 | PowerPro ESS | 14.3 - 28.6kWh Capacity | EG4-18Kpv & EG4-PowerPro WallMount Battery | 9540 Pending

Manuals and Downloads

Manual

Warranty

10-Year Warranty through EG4 Electronics

-------------------------------------------

Congratulations on your purchase. EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Warranty from the date of the original (EG4 PowerPro WallMount AllWeather Battery 48V 280Ah | 14.3kWh ) purchase. Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.

This limited warranty is to the original purchaser of the product and is one-time transferable only if the product remains installed in the original installation location. All parts exchanges are covered during the warranty period. Outside of the continental US, replacement shipping charges may apply.

Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.
