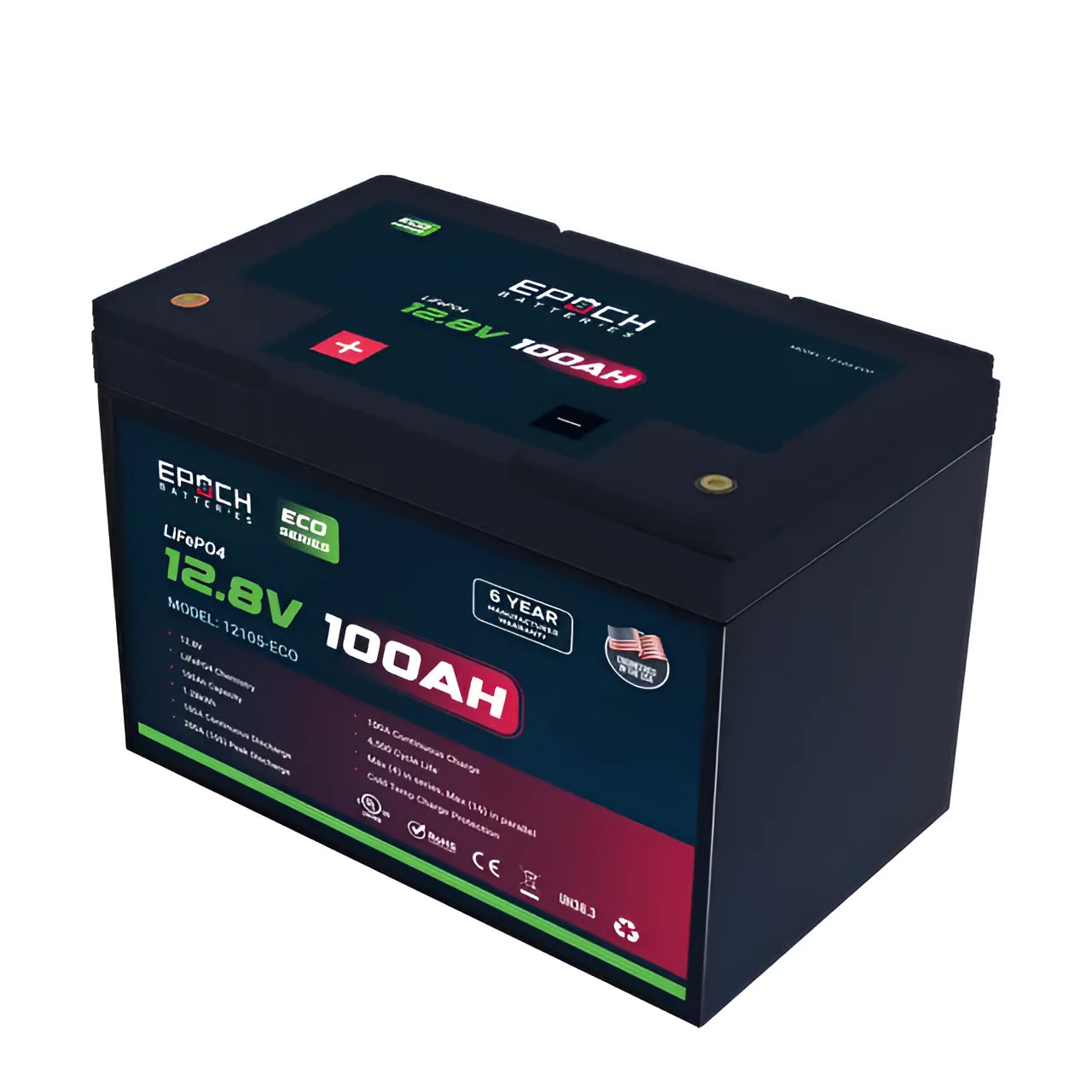

Epoch 12V 100Ah Eco Series LiFePO4 Battery Overview
The Epoch 12V 100Ah Eco Series LiFePO4 Battery is a deep-cycle powerhouse designed for reliable, long-lasting energy storage. Built with advanced LiFePO₄ chemistry, this battery delivers over 4,500 cycles and includes a smart BMS with 20+ safety features, ensuring top performance in demanding applications. With low-temperature cut-off protection, high/low temperature disconnects, and IP54-rated durability, it’s engineered for both indoor and outdoor use. Compact yet powerful, the Eco Series supports series and parallel connections for flexible scalability up to 20.48 kWh.
Epoch 12V 100Ah Eco Series Features
LiFePO₄ Deep Cycle Technology
Safe, stable, and long-lasting chemistry designed for energy storage and mobility solutions.
Smart BMS Protection
Built-in Battery Management System with 20+ safety features, including over-current, overcharge, short-circuit, and temperature protection.
Scalable Power Options
Connect up to 4 batteries in series (48V) or 16 in parallel (20.48 kWh) for custom energy systems.
Temperature Resilience
Includes low-temperature charge cut-off and high/low disconnects to safeguard against extreme conditions.
Maintenance-Free Design
Over 4,500 cycles for 10+ years of dependable use with zero maintenance required.
Compact & Lightweight
At just 21 lbs, this Group 24 battery is easy to install in RVs, boats, solar systems, and backup applications.
Durable IP54 Protection
Dust-protected, splash-resistant, and weather-ready for everyday outdoor scenarios.
Epoch 12V 100Ah Eco Series Applications
-
Solar energy storage – ideal for off-grid and hybrid systems
-
RV & camper vans – reliable energy for travel and off-grid adventures
-
Marine power – dependable battery for trolling motors and onboard systems
-
Emergency backup – keep lights, communication, and critical loads running
-
Portable power systems – lightweight and scalable for custom setups
What’s Included?
Warranty
Epoch 12V 100Ah Eco Series Specifications
| Category |
Specification |
| Cell Configuration |
4S1P |
| Chemistry |
LiFePO₄ |
| Ah Capacity |
100 |
| Max Continuous Discharge Amps |
100A |
| Max Charge Current Amps |
100A |
| Max Discharge Peak Current Amps |
300A (5 Seconds) |
| Series / Parallel |
Max (4) in Series, Max (16) in Parallel |
| Voltage |
12.8V |
| Max Charge Voltage |
14.6V |
| Operating Voltage Range |
10.0 - 14.6V |
| Charge Temp Range |
0°C (32°F) / 55°C (131°F) |
| Discharge Temp Range |
-20°C (-4°F) / 60°C (140°F) |
| Weight |
21 lbs |
| Dimensions (L×W×H) |
10.25 × 6.75 × 9 in |
Frequently-Asked Questions
Can this battery be used in series and parallel?
Yes, up to 4 in series (48V) and 16 in parallel (20.48kWh).
Is it safe to charge in freezing conditions?
No, the battery has a low-temperature charge cut-off at 0°C (32°F) to protect the cells.
How long does it last?
It delivers 4,500+ cycles, translating to 10+ years of use under normal conditions.
Can it replace a lead-acid battery?
Yes, it is a drop-in replacement for Group 24 lead-acid batteries, offering higher efficiency and cycle life.
