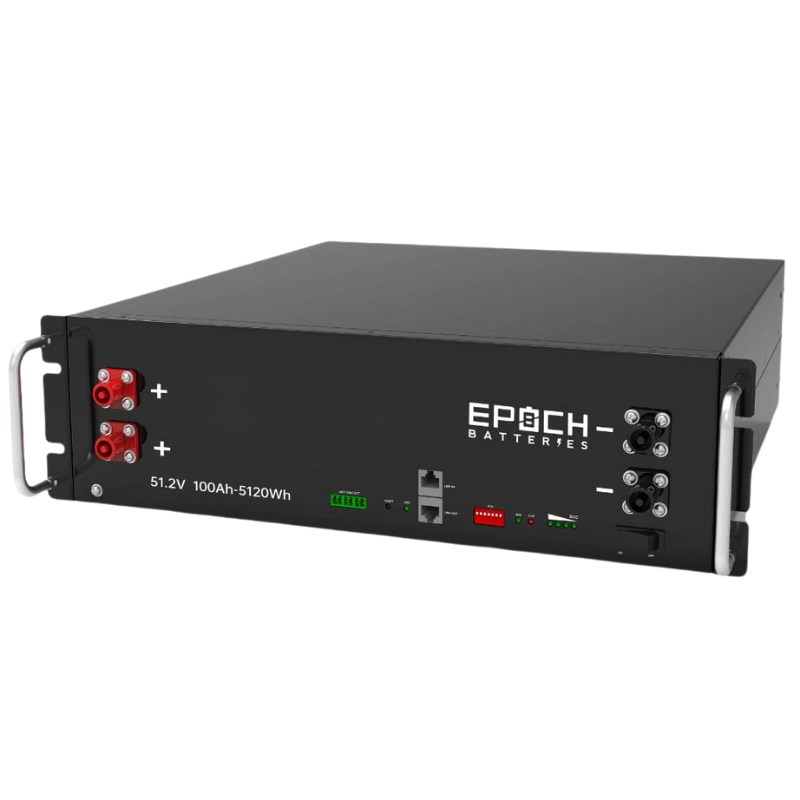

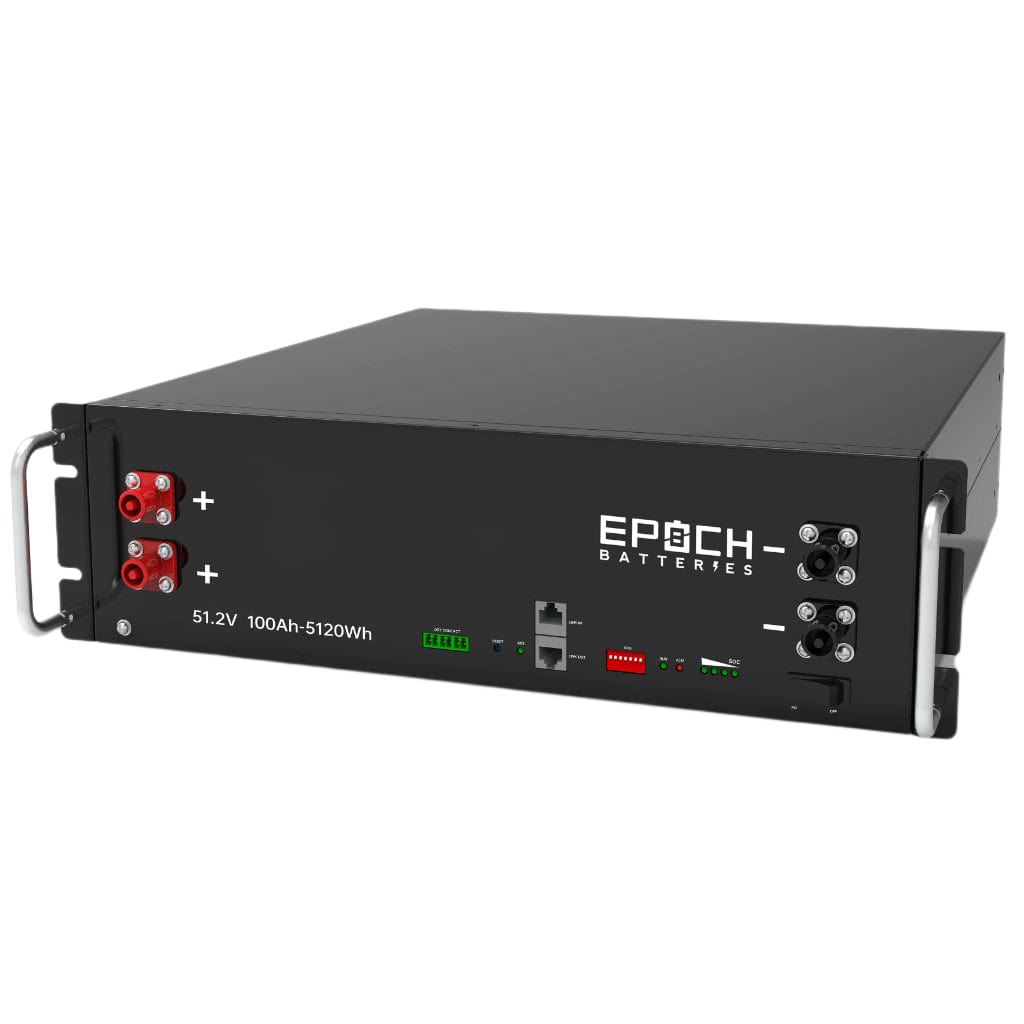

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery

Name: Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery
Rating: 5.00 (1 reviews)

BY: Epoch Batteries

SKU: SR48100H

| Availability: In stock

$1,499.00

Product Highlights

Built for home backup and off-grid power
5,120 Wh capacity for extended backup and off-grid runtime
Expandable design lets stored power grow with future needs
Self-heating supports charging in cold-weather conditions

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Epoch Batteries Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery

The Epoch 48V 100Ah 5.12kWh Self-Heating Server Rack Lithium Battery is a rack-mount LiFePO4 battery designed for residential and off-grid energy storage systems. Built in a 3U rack format, it delivers 5.12kWh nominal energy, supports CAN/RS485 communication, and can be expanded up to 32 batteries in parallel for larger storage systems. With integrated self-heating, BMS protection, and a long cycle life of 6,000+ cycles, this battery is built for dependable indoor energy storage applications.

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery Features

5.12kWh LiFePO4 Energy Storage - Provides 51.2V nominal voltage, 100Ah capacity, and 5.12kWh nominal energy for reliable backup and off-grid power systems.

Self-Heating Battery Design - Built with self-heating functionality that activates when battery temperature is between -25°C and 5°C with incoming current, helping support charging in colder environments.

6,000+ Cycle Life - Rated for 6,000+ cycles, making it suitable for long-term residential, backup, and off-grid energy storage use.

CAN/RS485 Communication - Supports CAN and RS485 communication, with closed-loop inverter communication through configured protocol settings.

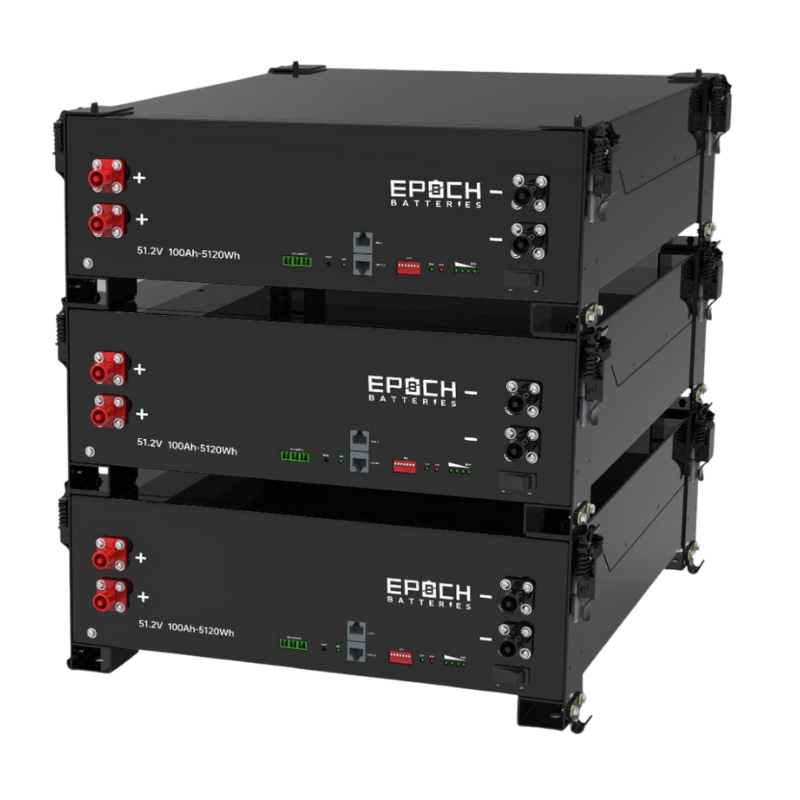

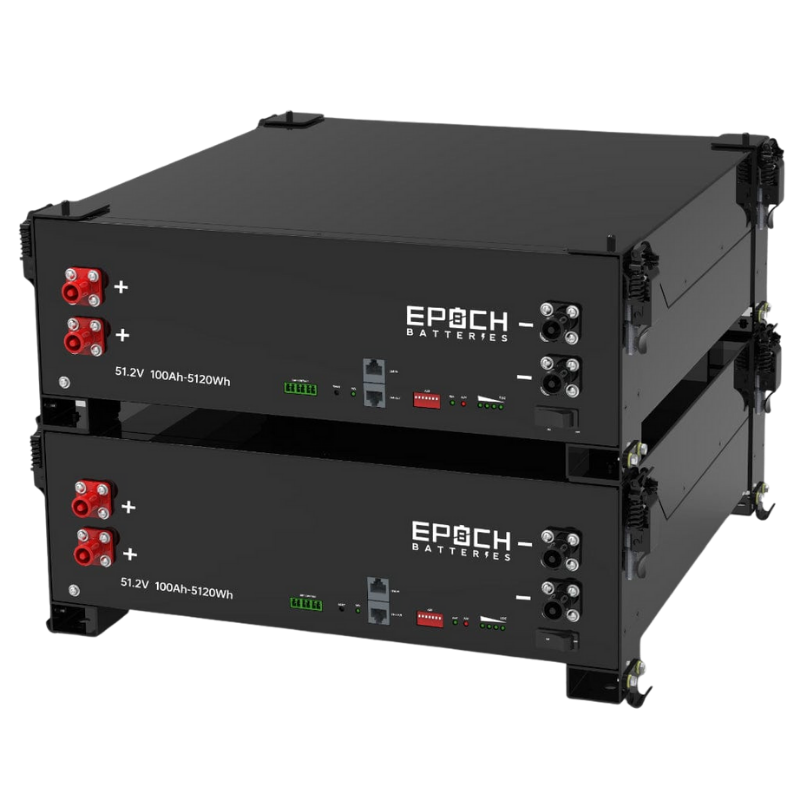

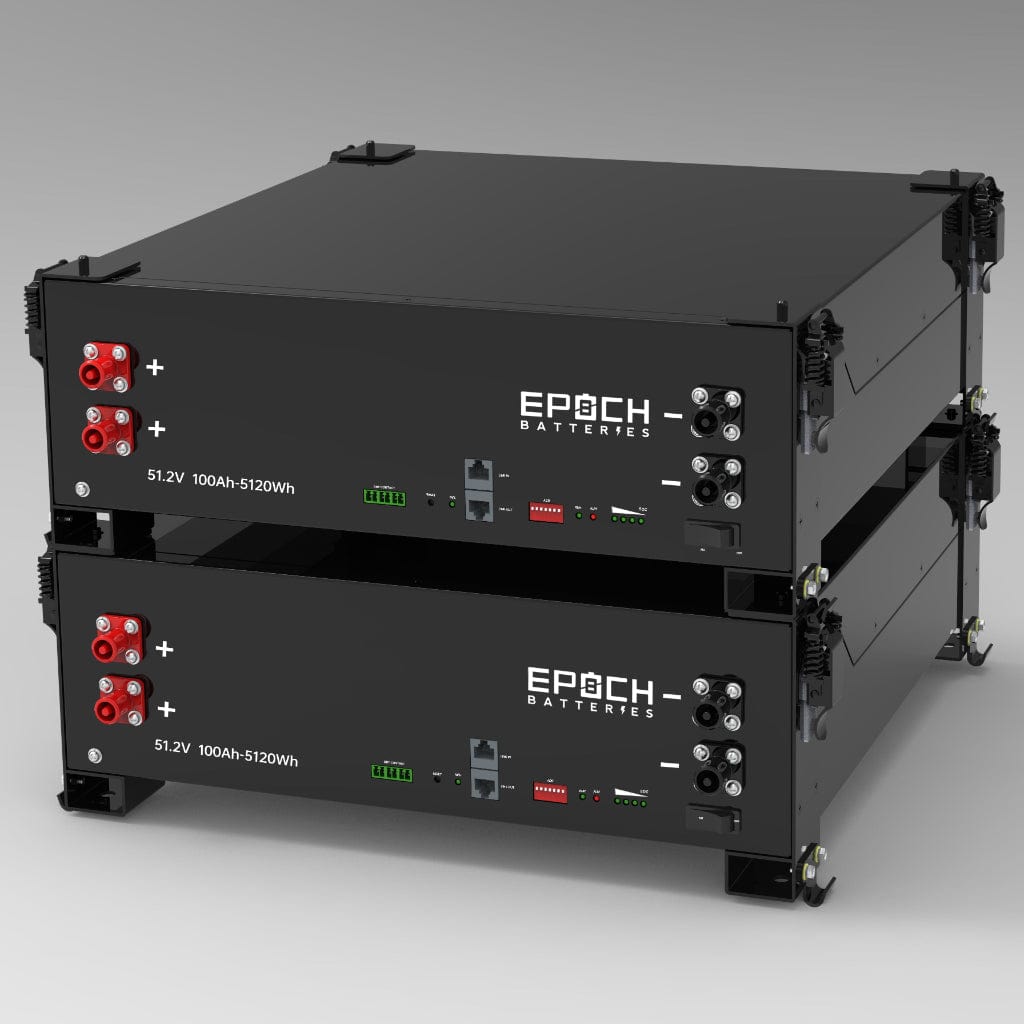

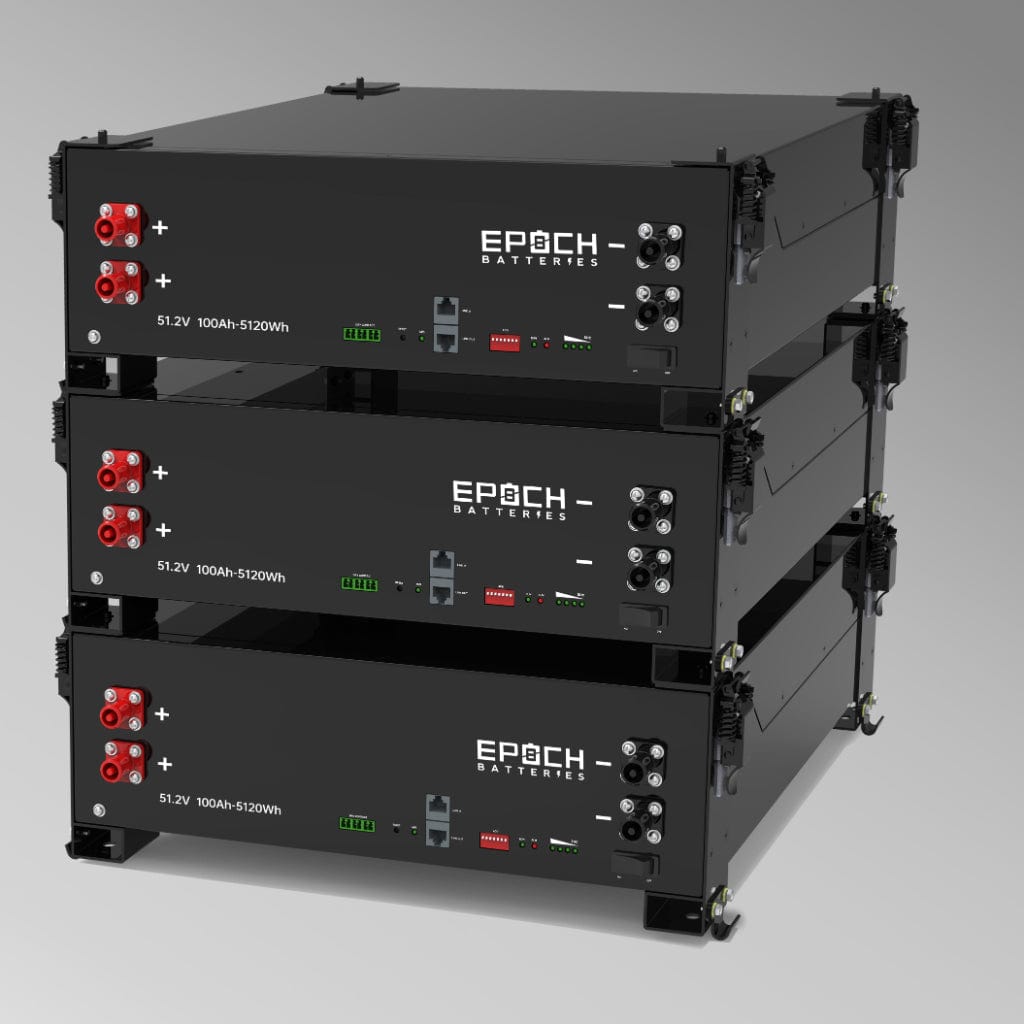

Parallel Expansion up to 32 Batteries - Supports up to 32 batteries in parallel for plug-and-play expansion. A 4-battery bank provides approximately 20.48kWh, while a 32-battery bank provides approximately 163.84kWh nominal energy.

Built-In BMS Protection - Includes BMS protection against over-discharge, overcharge, over-current, short-circuit, and high/low temperature conditions.

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery Applications

Residential Energy Storage – stores solar or grid energy for daily home backup and energy independence.
Off-Grid Solar Systems – supports standalone solar power systems for cabins, remote homes, and off-grid properties.
Server Rack Battery Banks – designed for standard 19-inch rack installations in organized battery storage systems.
Hybrid Inverter Systems – supports CAN/RS485 communication for compatible inverter setups.
Backup Power Systems – provides dependable stored energy during outages and grid interruptions.
Expandable Battery Banks – allows parallel expansion up to 32 batteries for larger storage capacity.
Cold-Weather Battery Storage – self-heating function helps support charging performance in lower-temperature environments.

What's Included

Everything you need is included with your product.

Epoch 48V 100Ah 5.12kWh Self-Heating Server Rack Battery

Please note: External power cables required to connect the battery to an inverter or junction box are sold separately.

User Manual

Warranty

11-year manufacturer warranty

Epoch 48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery Specifications

General

Specification	Details
Battery type	48V 100Ah self-heating LiFePO4 server rack battery
Rack format	3U rack mount / standard 19-inch rack compatible
Chemistry	LiFePO4 / Lithium iron phosphate
Cell configuration	16S1P
Installation types	Rack mounted; wall, floor, or stack mounting with additional kits
Cycle life	6,000+ cycles
Warranty	11-year manufacturer warranty

Voltage and capacity

Specification	Details
Nominal voltage	51.2V
Nominal capacity	100Ah
Nominal energy	5.12kWh
Usable energy	4.92kWh at 0.2C
Charge voltage	56.0V
Float voltage	54.6V
Operating voltage range	48.0V – 56.0V product-page range
End discharge / inverter cutoff	48.0V
Restart voltage	52.0V

Current ratings

Specification	Details
Max continuous discharge	100A
Recommended discharge current	≤50A
Max charge current	70A
Recommended charge current	≤50A
Peak / surge discharge	<119A for 5 minutes; <200A for 15 seconds
Short-circuit protection	Yes

Communication and inverter compatibility

Specification	Details
Communication ports	CAN / RS485
Closed-loop communication	Supports inverter communication through configured protocol settings
Compatible inverter examples	Victron, Sol-Ark, Growatt, SMA, Deye, Sunsynk, Solis, Schneider, Luxpower, Goodwe, Studer, Voltronic, Alpha-Outback, Sofar, SAJ, MEGAREVO, TBB, MPP
Rapid shutdown	Optional for U.S. market
Parallel communication	Link IN / Link OUT communication between rack batteries

Parallel expansion

Specification	Details
Series connections	Do not wire in series
Parallel connections	Max 32 batteries in parallel, plug and play

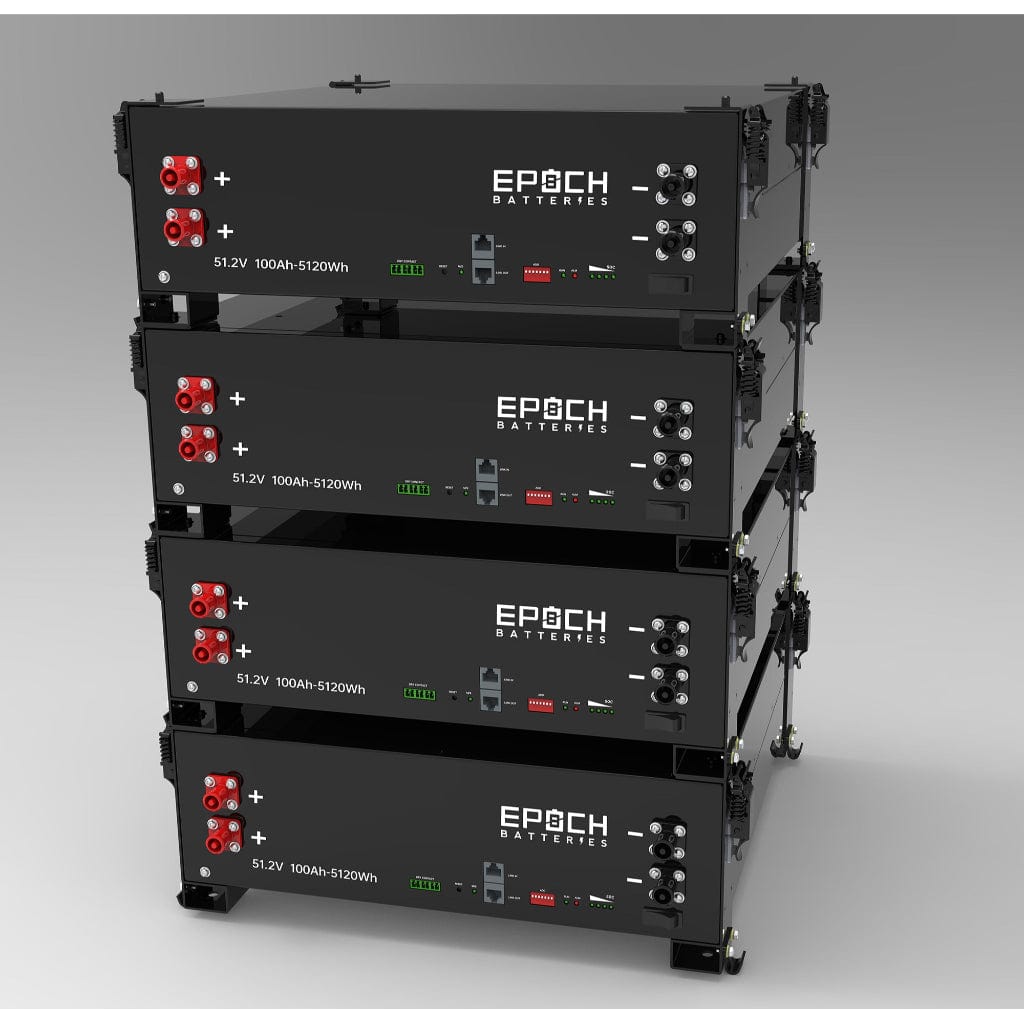

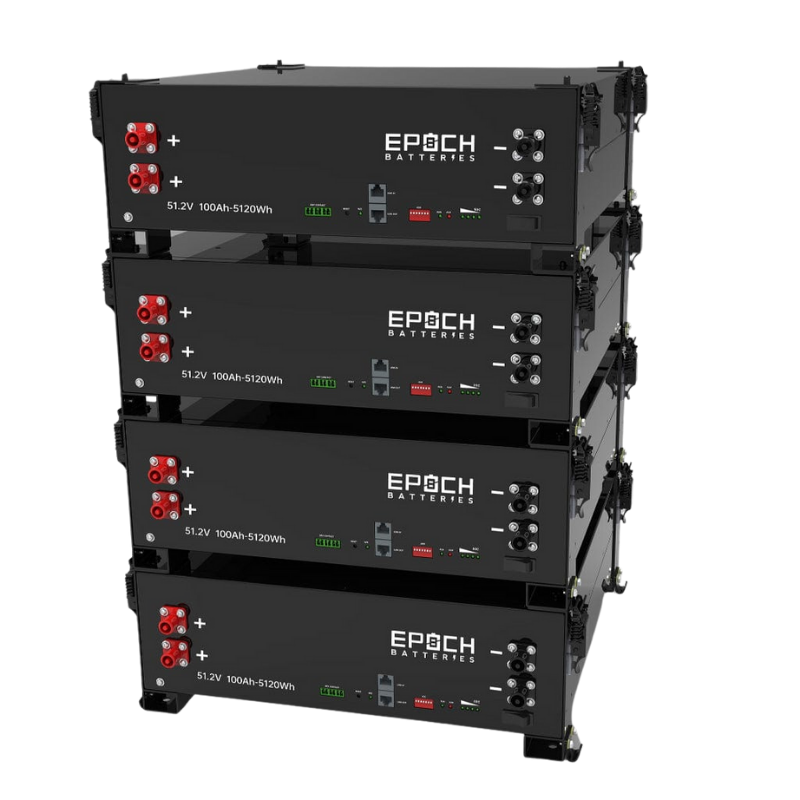

Example 4-battery bank	Approx. 20.48kWh nominal energy
Example 16-battery bank	Approx. 81.92kWh nominal energy
Example 32-battery bank	Approx. 163.84kWh nominal energy

Temperature and heating

Specification	Details
Charge temperature range	-10°C to 50°C with communication
Discharge temperature range	-20°C to 50°C with communication
Heating start condition	Battery temperature -25°C to 5°C and incoming current ≥0.08C
Heating completion condition	Battery temperature ≥12°C
Recommended operating environment	15°C to 35°C, 5%–75% RH
Self-discharge rate	≤3% per month / ≤15% per year

Dimensions and weight

Specification	Details
Rack height	3U / approx. 5.2 inches tall
Product dimensions	17.4 in × 18.1 in × 5.2 in
Metric dimensions	442.0 ±2 mm W × 460.0 ±2 mm D × 133.5 ±2 mm H
Weight	Approx. 101 lb / 46 kg

Protection and compliance notes

Specification	Details
BMS protection	Over-discharge, overcharge, over-current, short-circuit, and high/low temperature protection
IP rating	IP20 indoor rack battery protection
UL9540 status	UL9540 pending; confirm current certification documents for permitting
Storage recommendation	Dry, clean, dark, and well-ventilated indoor environment
Shipping / storage SOC	Store and transport near 50% state of charge when possible

Frequently-Asked Questions

What is the capacity of the Epoch 48V 100Ah Server Rack Battery?

It has a 100Ah nominal capacity and 5.12kWh nominal energy.

What battery chemistry does it use?

It uses LiFePO4 / lithium iron phosphate battery chemistry.

Is this battery self-heating?

Yes. The battery includes a self-heating function that starts when the battery temperature is between -25°C and 5°C and incoming current is at least 0.08C.

Can this battery be installed in a standard rack?

Yes. It uses a 3U rack mount format and is compatible with standard 19-inch rack systems.

Can the battery be connected in series?

No. The provided specifications state do not wire in series.

How many batteries can be connected in parallel?

Up to 32 batteries can be connected in parallel.

What is the maximum continuous discharge current?

The maximum continuous discharge current is 100A.

What is the maximum charge current?

The maximum charge current is 70A.

What communication ports does it support?

It supports CAN and RS485 communication.

What is the IP rating?

The battery has an IP20 rating for indoor rack battery protection.

What is the warranty?

It includes an 11-year manufacturer warranty.
