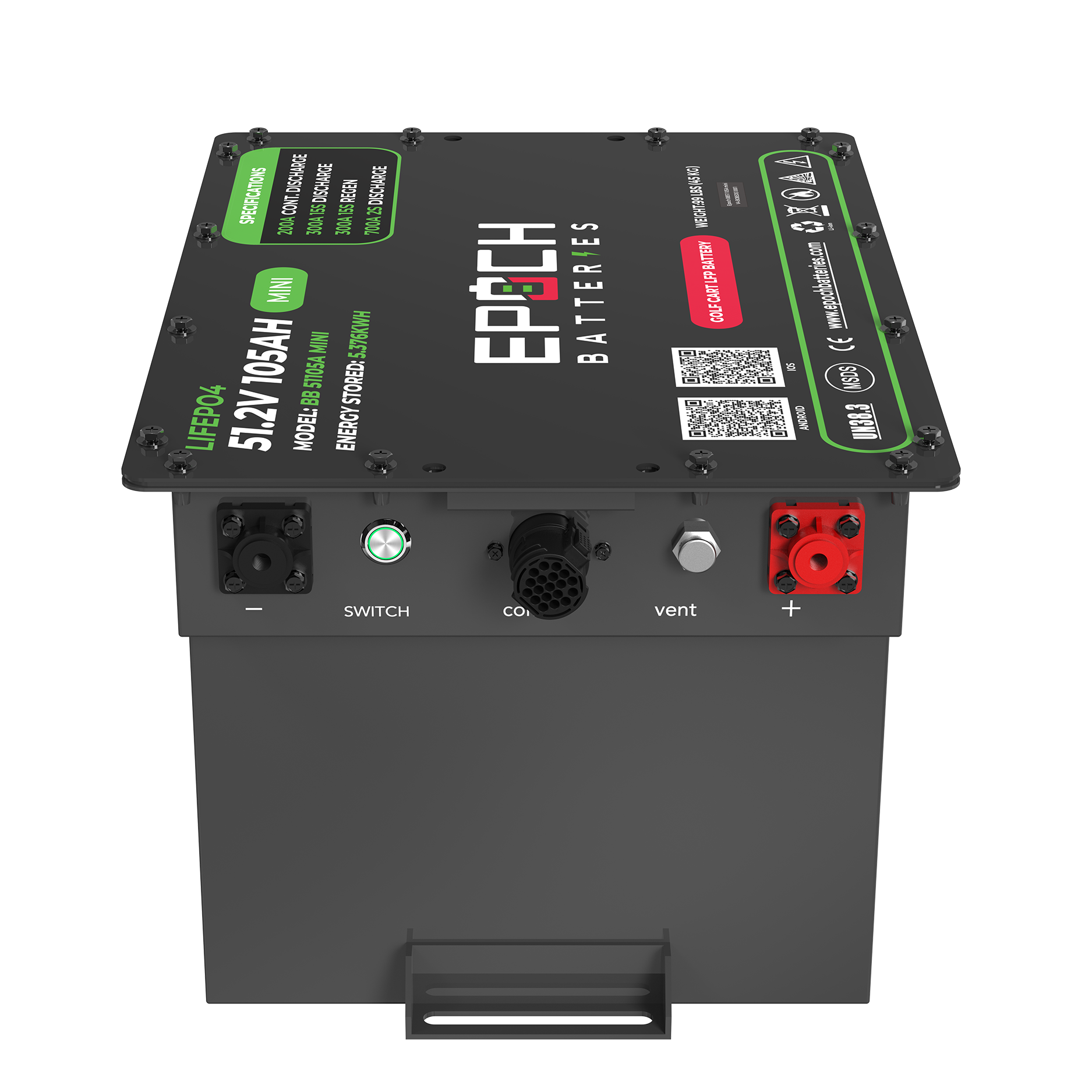

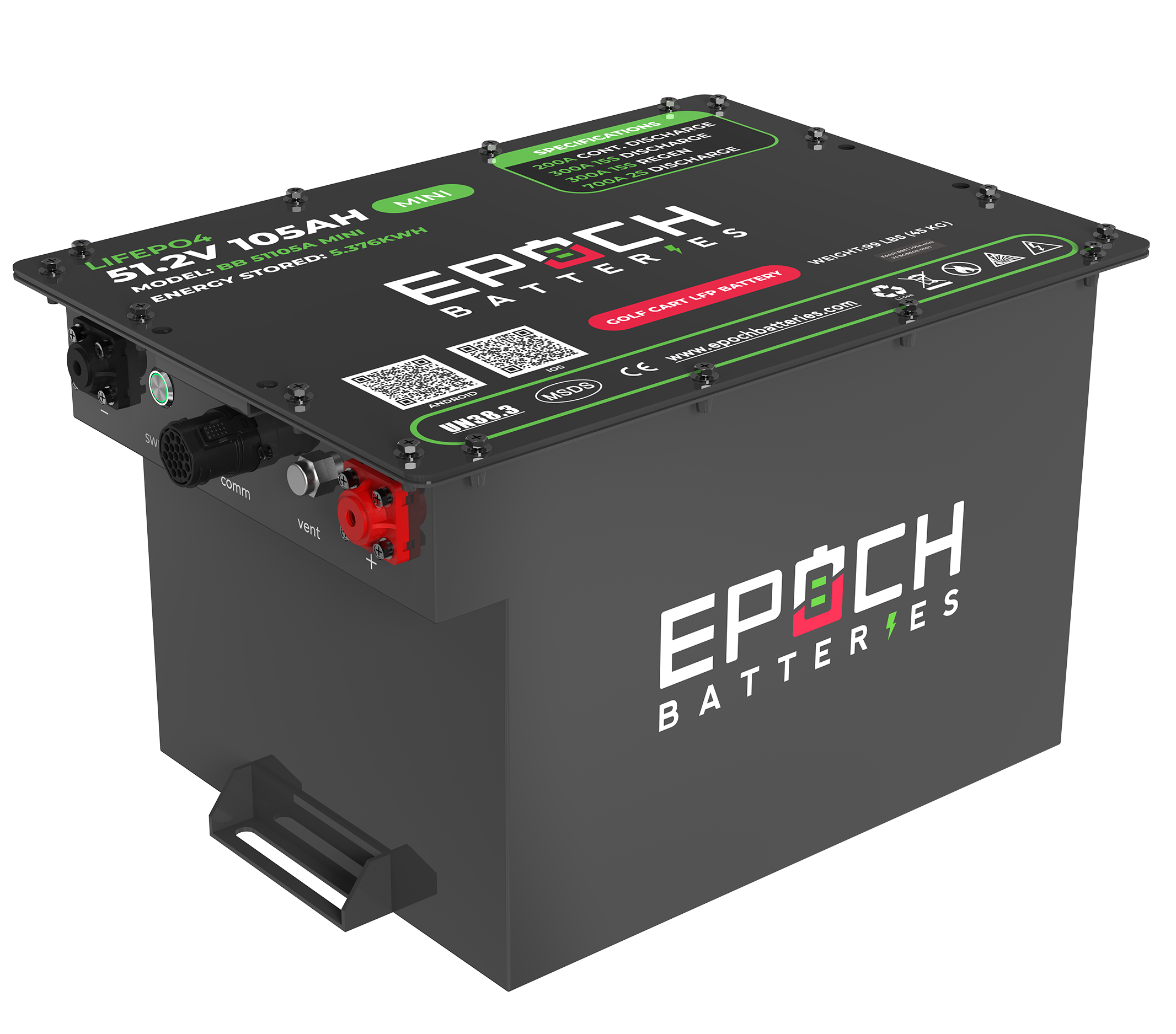

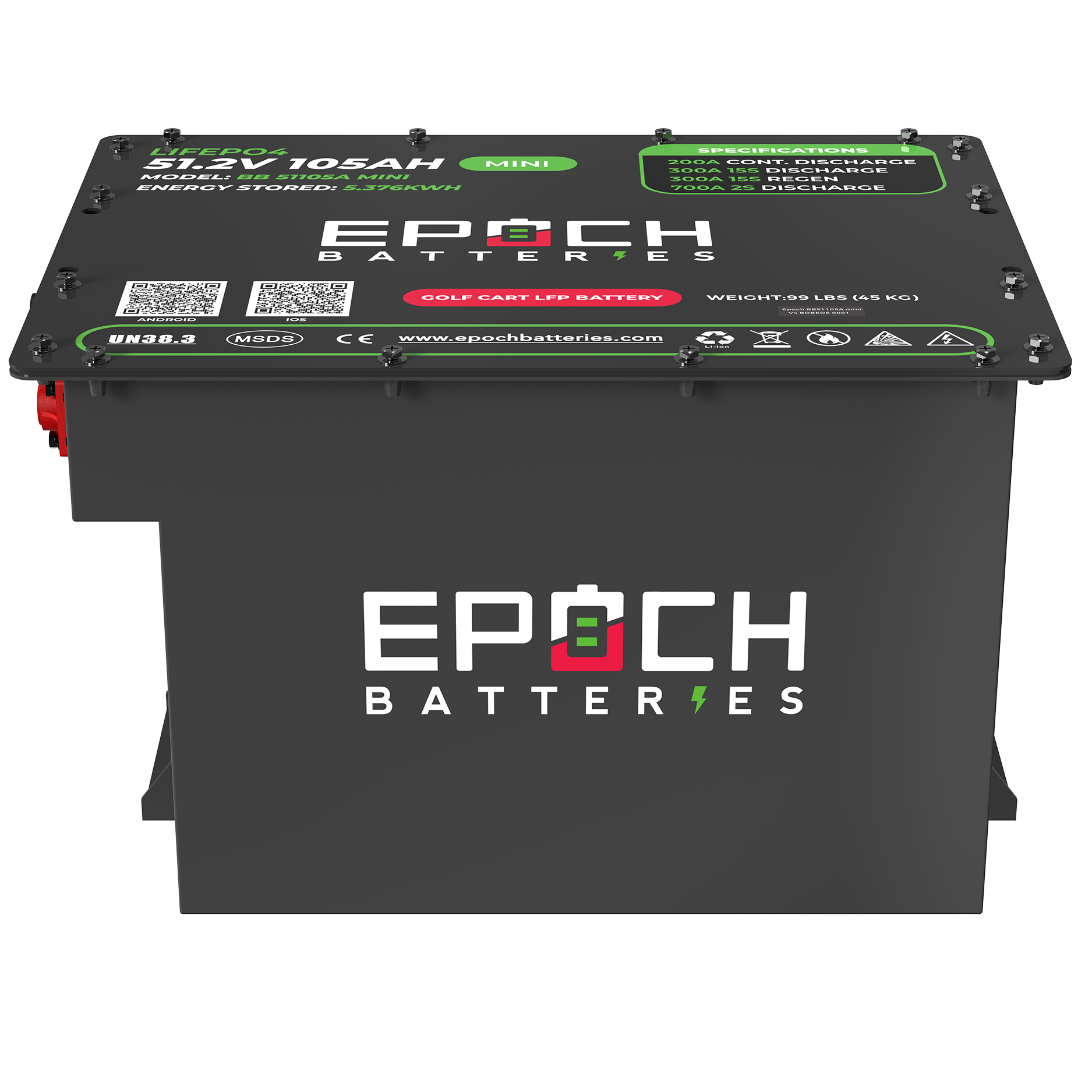

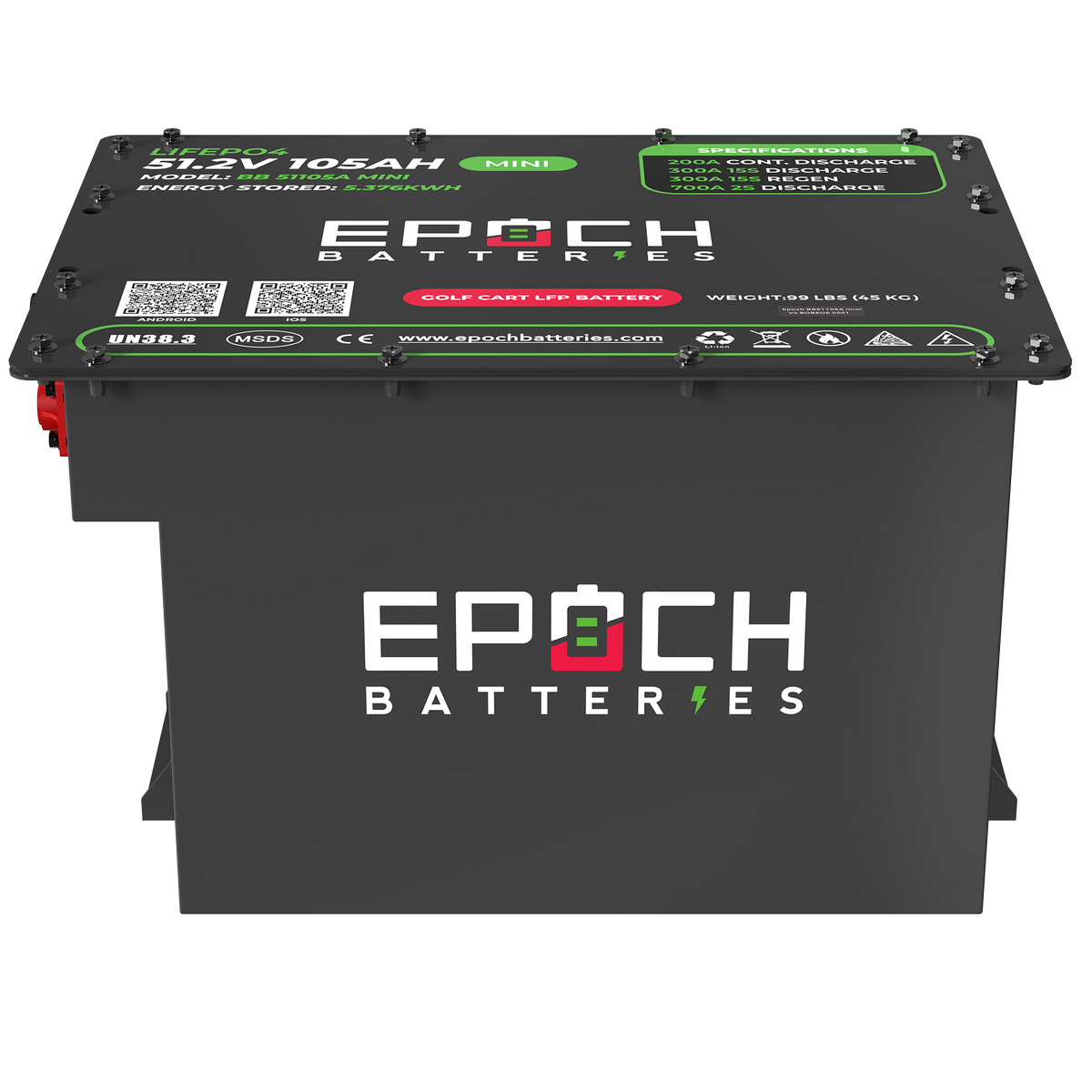

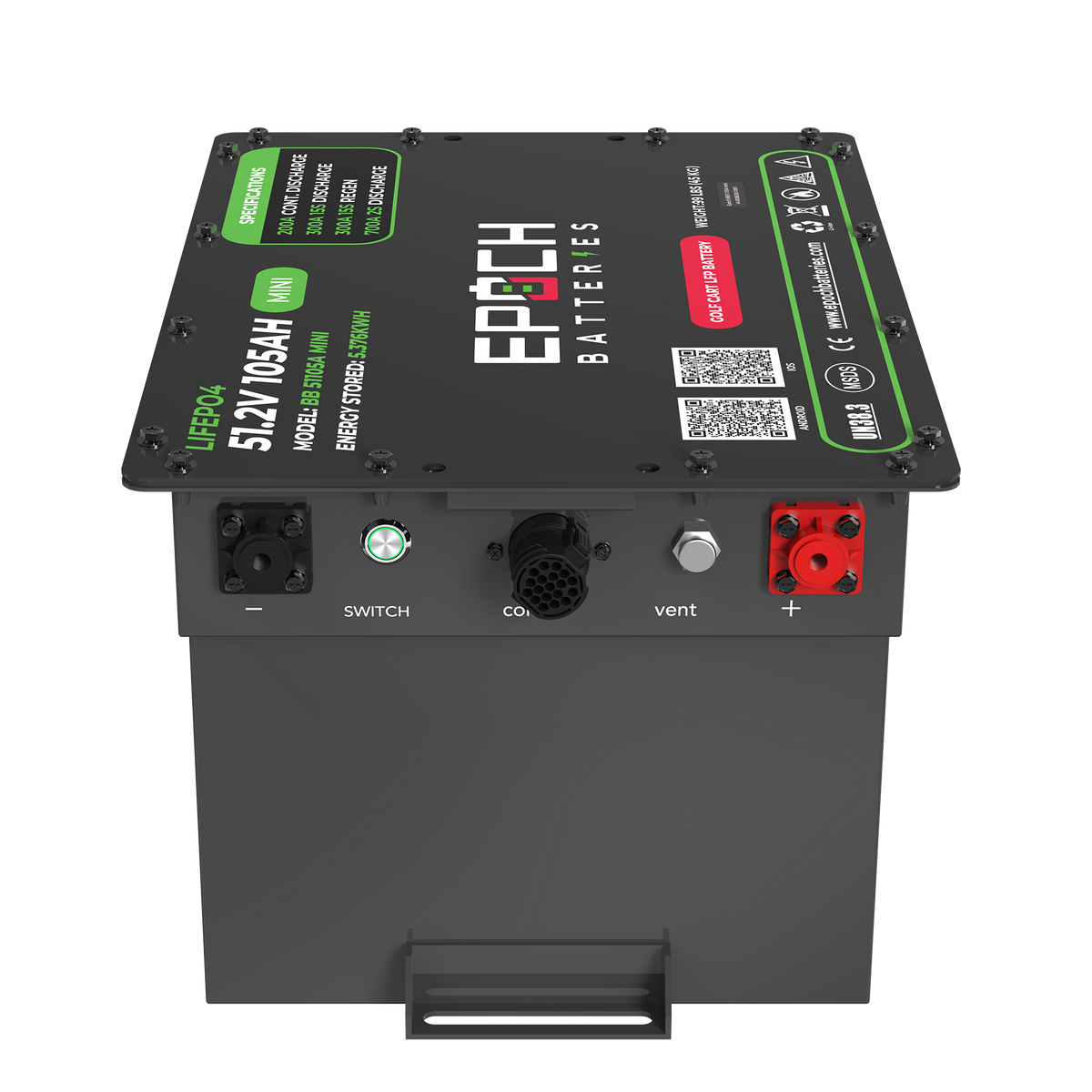

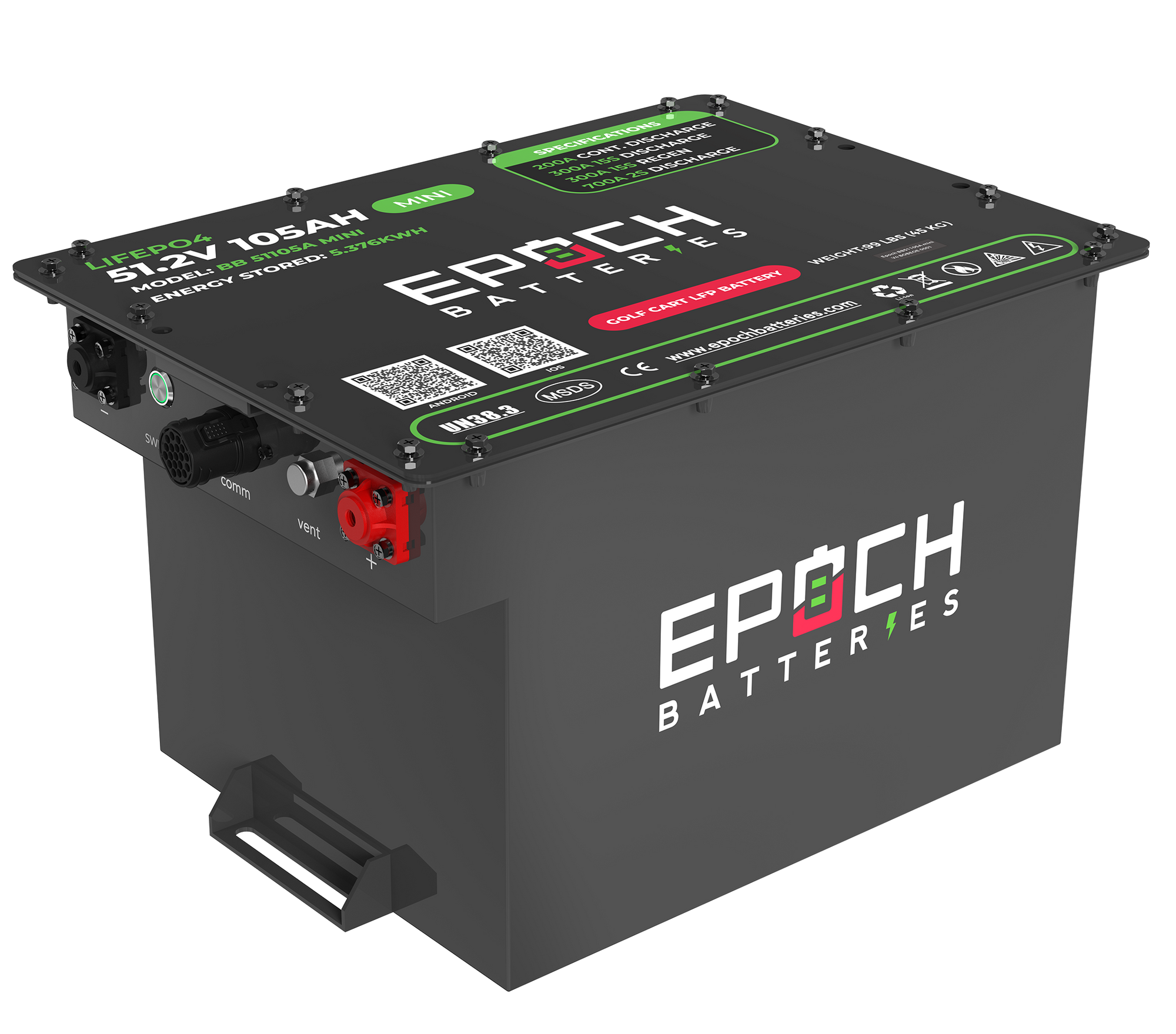

Epoch 48V 105Ah MINI – LiMax Series Lithium (LiFePO₄) Golf Cart Battery – Complete Kit
The Epoch 48V 105Ah MINI – LiMax Series is a high-performance lithium conversion kit built specifically for golf carts. Engineered with LiFePO₄ chemistry, it offers a powerful combination of lightweight design, extended cycle life, and superior safety compared to lead-acid batteries. With 200A continuous discharge, 700A peak discharge (2s), and integrated Bluetooth monitoring (iOS & Android), this battery is built to deliver top-tier performance on the course.
The included 48V 15A lithium charger, battery gauge, 12V converter, and mounting brackets make this a true drop-in solution for upgrading from lead-acid batteries. Backed by an 11-year warranty, it’s a long-term investment in reliability and efficiency.
Epoch 48V 105Ah MINI – LiMax Series Features
Complete Conversion Kit
Includes charger, gauge, converter, and cart-specific mounting brackets for a full lithium upgrade.
High Power Output
Delivers 200A continuous discharge, with 300A @ 15s and 700A @ 2s peak discharge—perfect for demanding golf carts.
Fast Charging & Regen Capable
Supports 100A continuous charge and 300A @ 15s peak charge/regen for energy recovery.

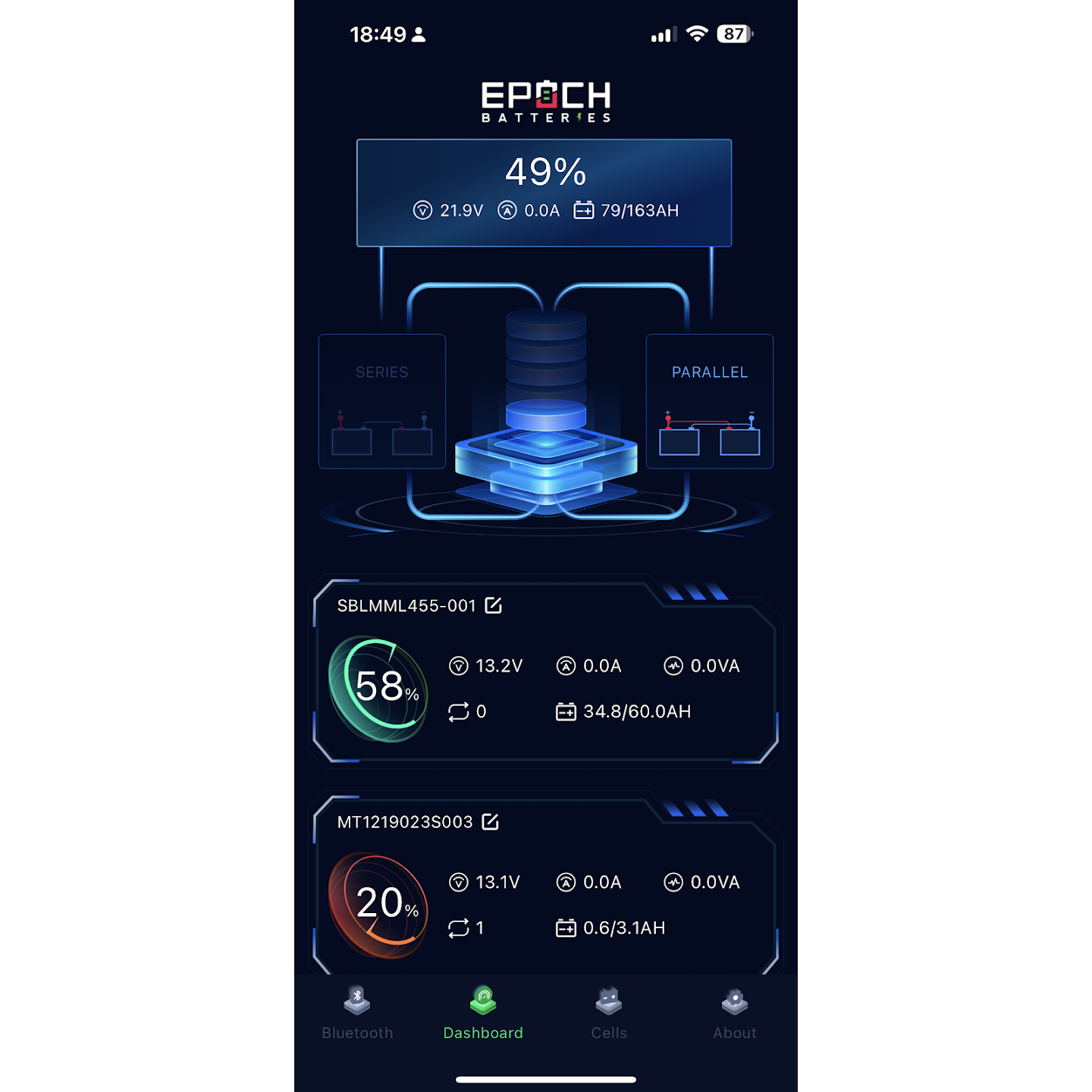

Bluetooth App Monitoring
Check real-time data and updates via iOS & Android apps. Includes over-the-air (OTA) firmware updates.
Long Cycle Life
Over 3,500 cycles at 80% depth of discharge, providing years of dependable use.
Compact & Durable
At 99 lbs, it’s lighter than comparable lead-acid packs with a rugged design built for long-term performance.
Industry-Leading Warranty
Protected by an 11-Year Manufacturer Warranty.
Applications
-
Golf carts – smooth, reliable rides with extended runtime
-
Utility carts – dependable for heavy-duty tasks
-
Commercial fleets – lower operating costs and longer service life
-
Neighborhood vehicles – efficient and maintenance-free power solution
What’s Included?
-
1 × 48V 105Ah LiFePO₄ Battery (LiMax Series)
-
1 × 48V 15A Lithium Charger
-

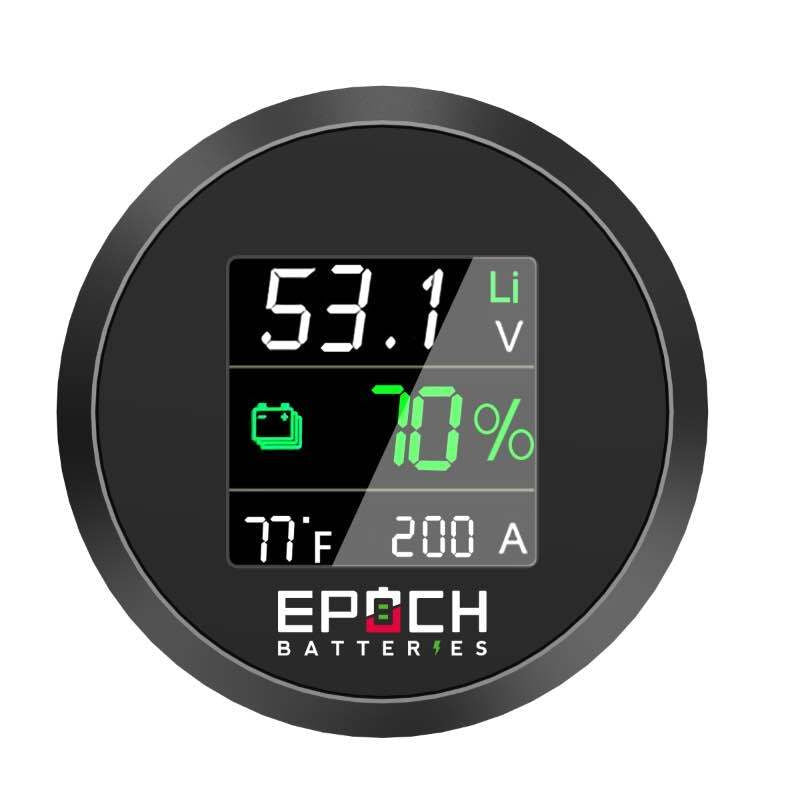

1 × Battery Gauge
-
1 × 12V Converter
-
Cart-Specific Mounting Brackets
-
User Manual
Warranty
Epoch 48V 105Ah MINI – LiMax Series Specifications
| Category |
Specification |
| Cell Configuration |
1P16S |
| Chemistry |
LiFePO₄ |
| Ah Capacity |
105Ah |
| Max Continuous Discharge Amps |
200A |
| Max Charge Current Amps |
100A Continuous, 300A @ 15s |
| Max Discharge Peak Current Amps |
300A @ 15s, 700A @ 2s |
| Series / Parallel |
Max (2) in Parallel |
| Voltage |
51.2V |
| Max Charge Voltage |
58.4V |
| Operating Voltage Range |
40 – 58.4V |
| Charge Temp Range |
0°C (32°F) / 55°C (131°F) |
| Discharge Temp Range |
-20°C (-4°F) / 60°C (140°F) |
| Storage Temp |
0°C (32°F) / 35°C (95°F) (Max 12 Months) |
| Weight |
99 lbs |

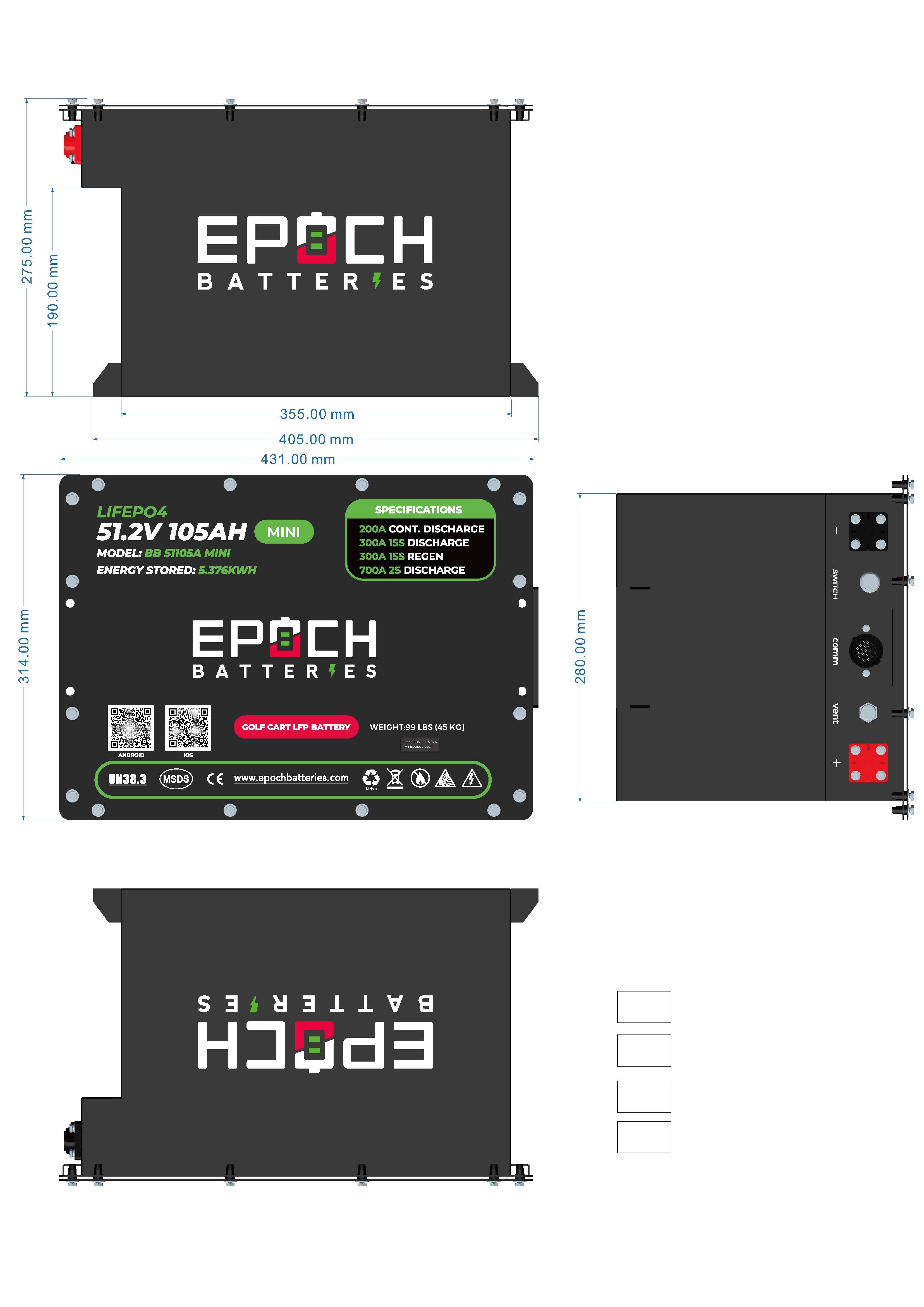

| Dimensions (L×W×H) |
15.8 × 11.1 × 10.9 in |
Frequently-Asked Questions
How does this compare to lead-acid batteries?
It lasts up to 5–7 times longer with over 3,500 cycles, requires no maintenance, and delivers more usable capacity.
Can I monitor battery performance?
Yes! The Bluetooth app lets you monitor real-time data and receive OTA updates.
Is it compatible with all golf carts?
Yes, it includes mounting brackets for easy installation.
Does it support regenerative braking?
Yes, it supports up to 300A regen charging.
