Epoch Pro Series 5" Touch Screen Display | LCD Display

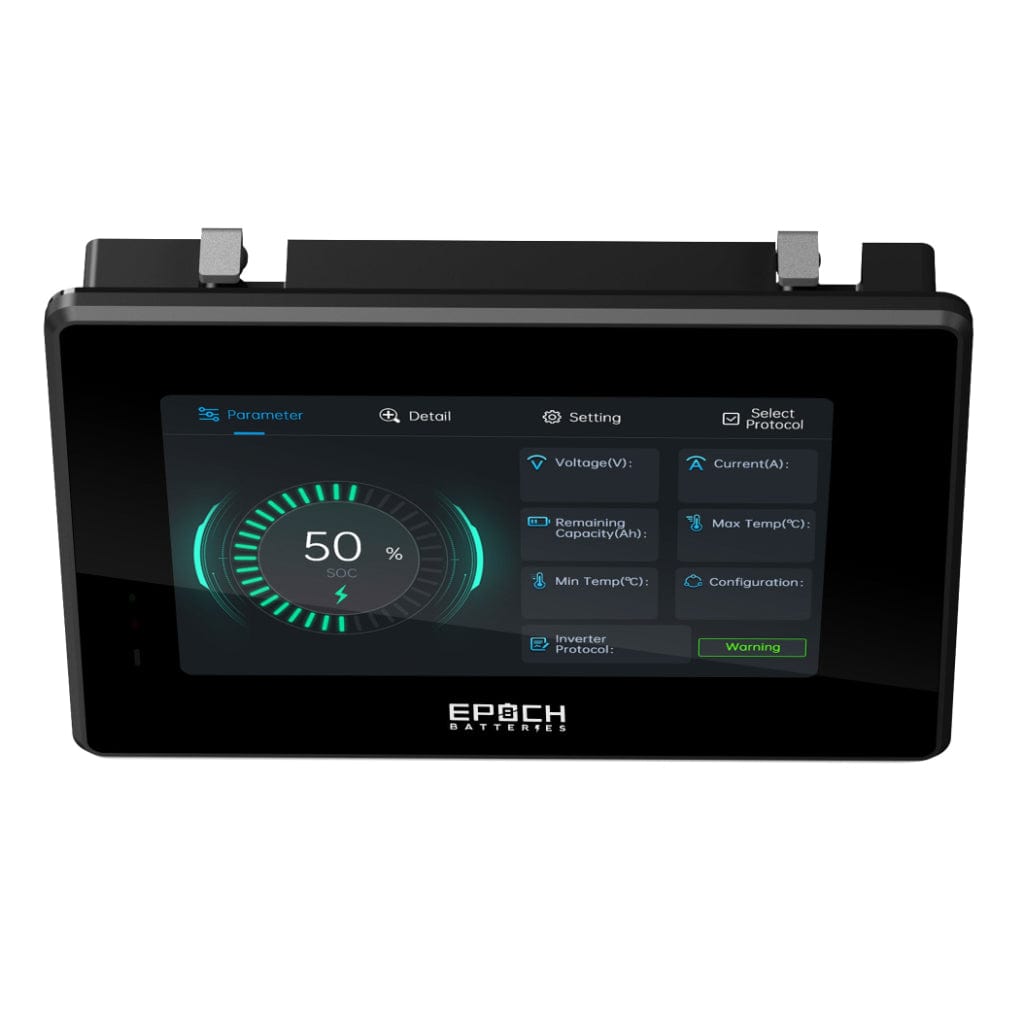

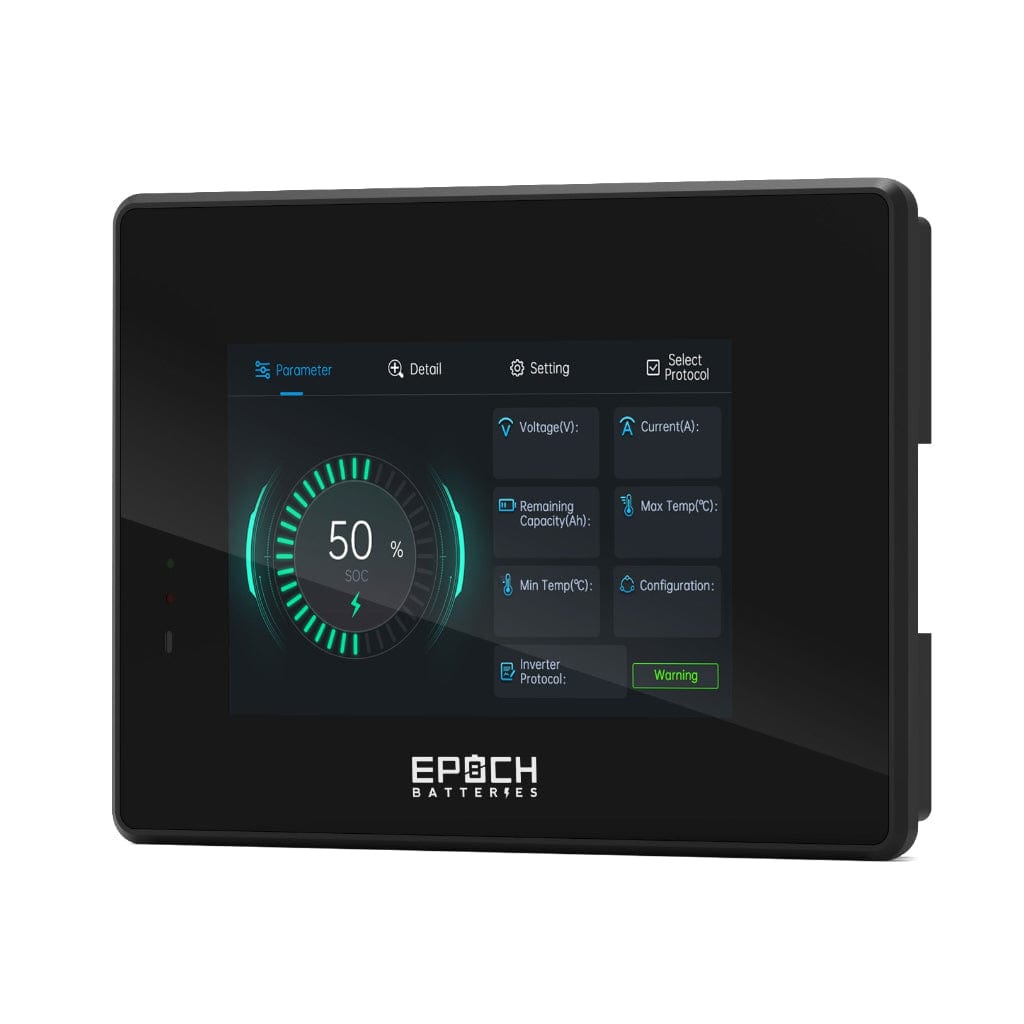

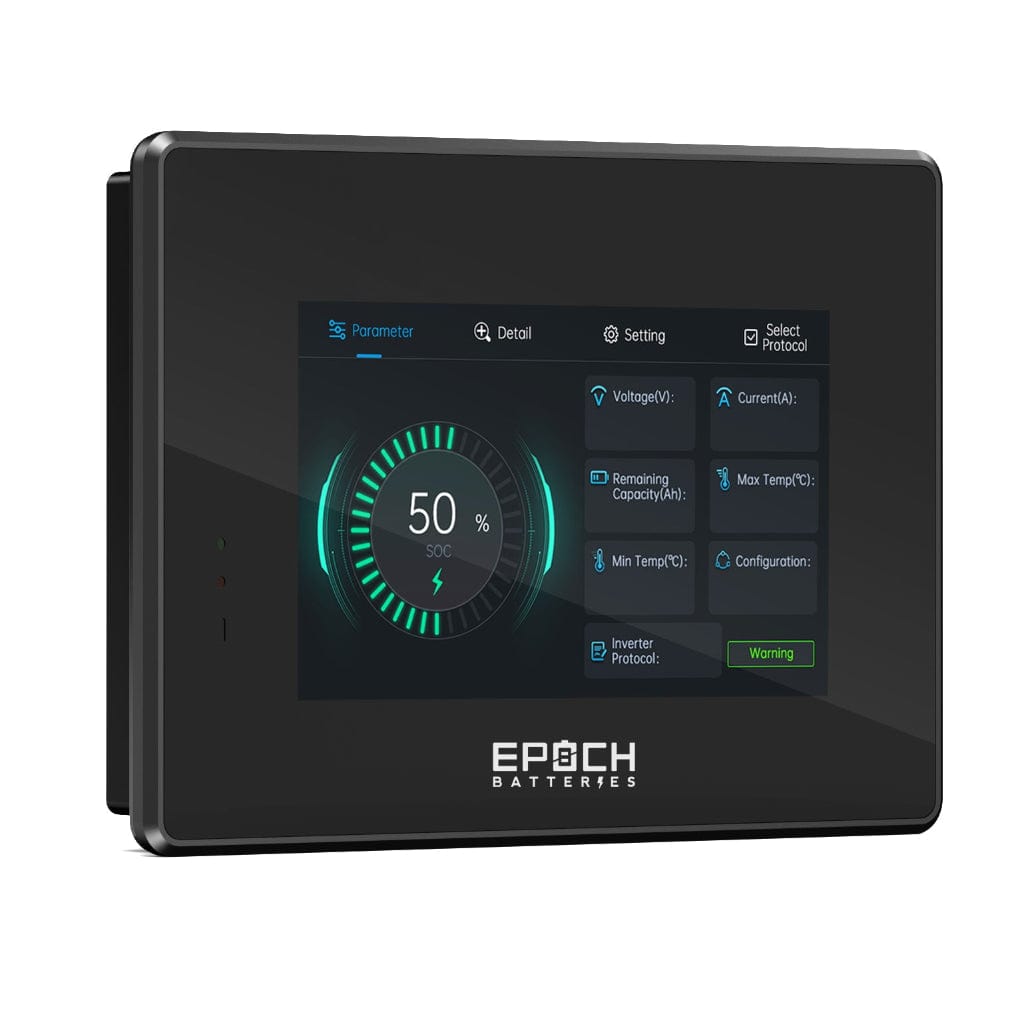

The Epoch Pro Series 5" Touch Screen Display is a powerful monitoring solution that gives you real-time access to your battery system’s vital statistics. Designed for the Pro Series line, this high-resolution LCD display offers intuitive visuals, fast touch response, and a clean interface—perfect for both mobile and stationary power applications. Whether you're managing a golf cart, RV, or solar battery bank, this display helps you stay in control with just a tap.
Epoch Pro Series 5" Touch Screen Display | LCD Display Features
Intuitive Interface – Clear graphics and responsive touch controls allow easy monitoring of system performance.

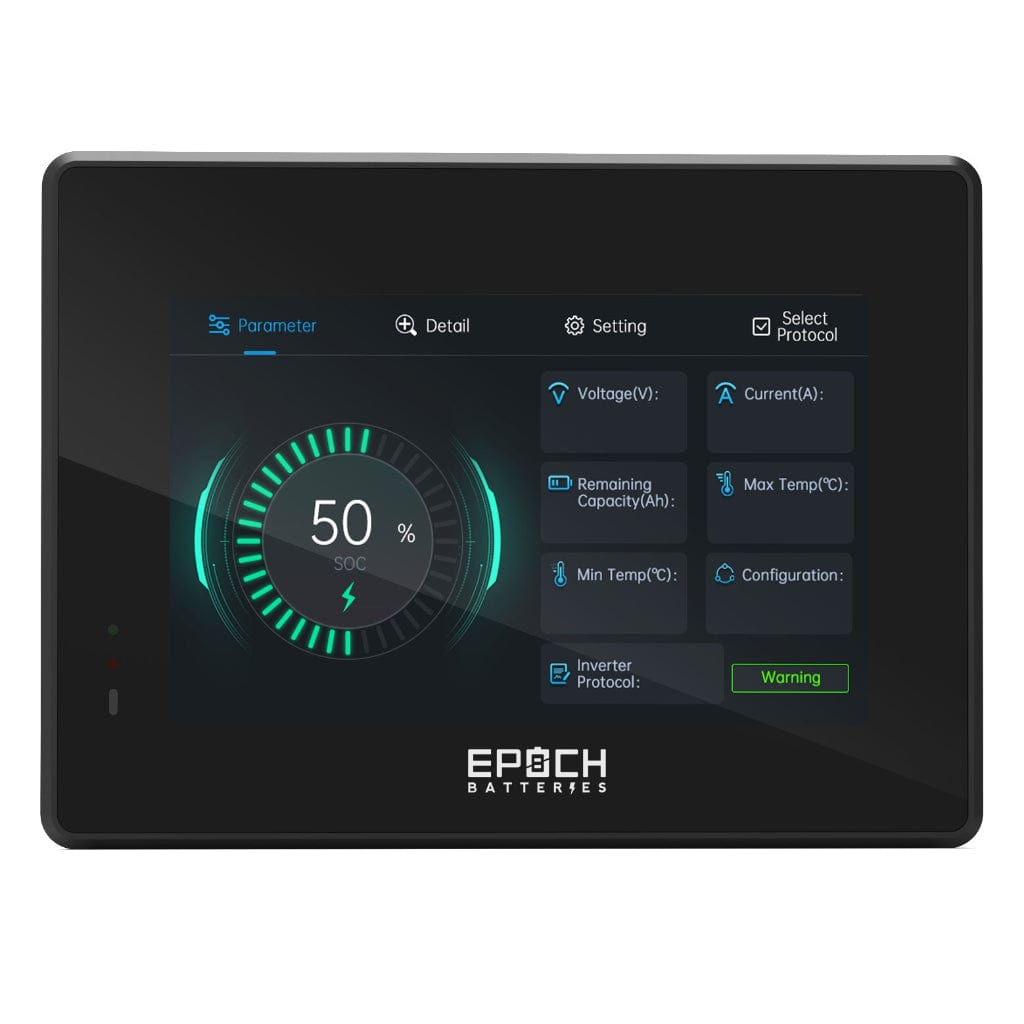

Real-Time Monitoring – Displays voltage, current, state of charge, cycles, and more at a glance.
CANBus Connectivity – Seamless communication with Epoch Pro Series batteries using CANBus protocol.
Durable Build – Housed in a rugged and sleek enclosure suitable for off-road, marine, or indoor setups.

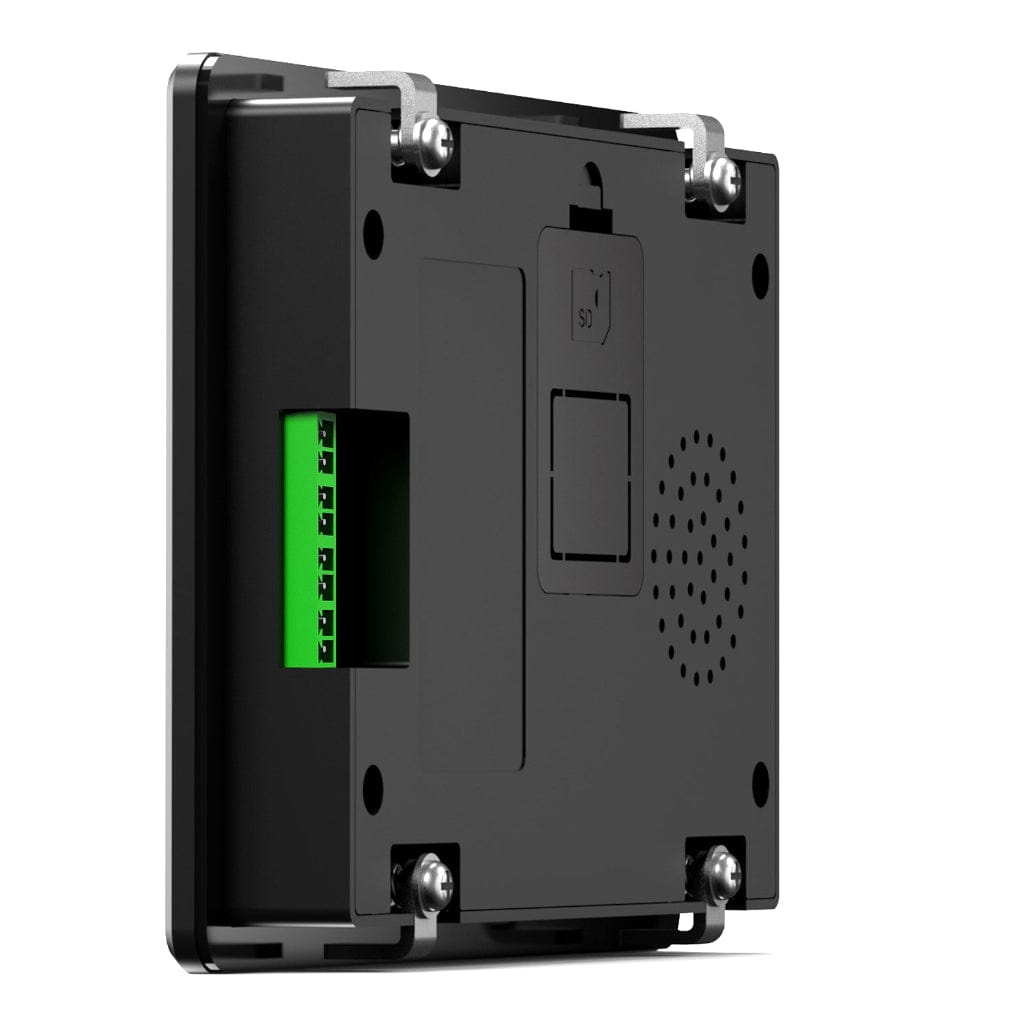

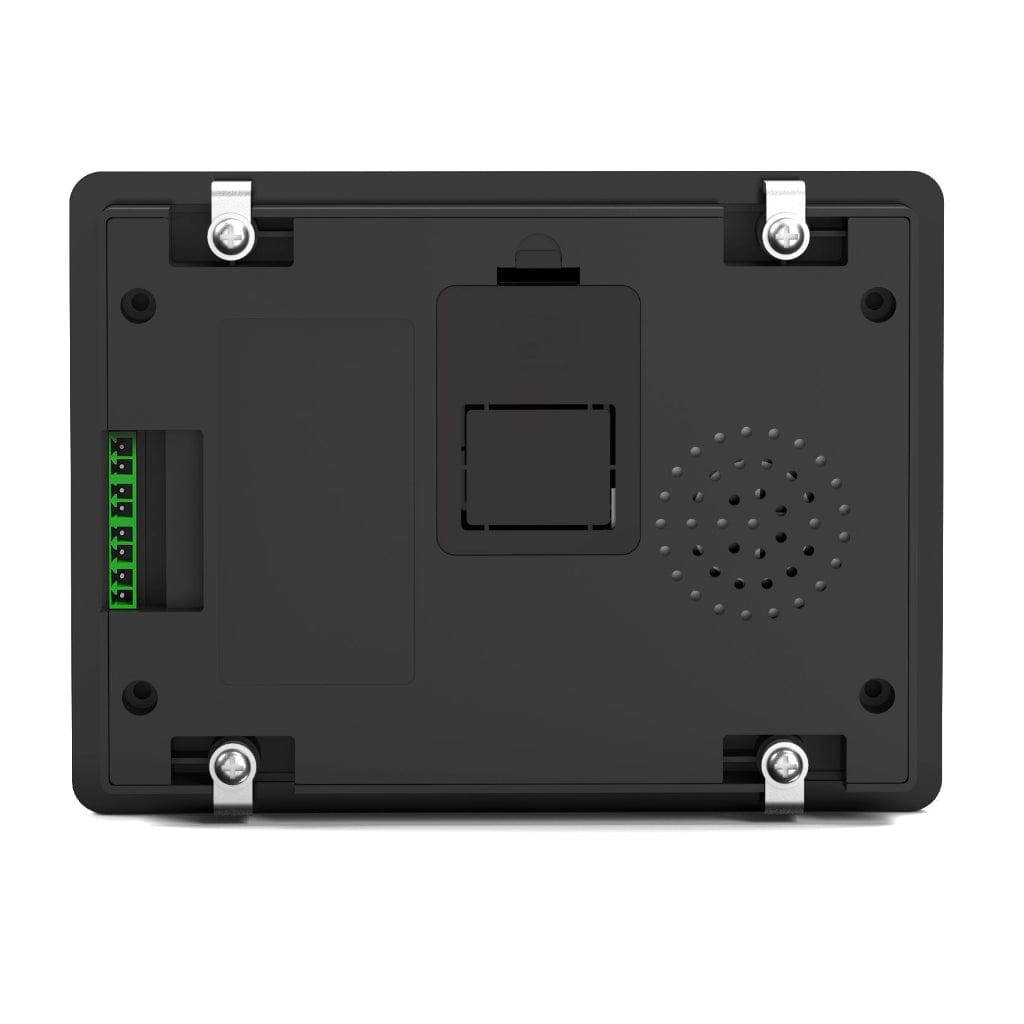

Custom Mounting Options – Supports dash, surface, or panel mounting to suit your installation needs.
Epoch Pro Series 5" Touch Screen Display | LCD Display Applications
-
Golf Carts – Centralized battery visibility for advanced energy management
-
RVs & Campers – Track power status in real time while off-grid
-
Marine Systems – Monitor deep-cycle batteries in boats or yachts
-
Solar Installations – Perfect for hybrid or off-grid systems requiring precise system tracking
-
Industrial Vehicles – Useful in forklifts, sweepers, and other motive applications
What’s Included?
Epoch Pro Series 5" Touch Screen Display | LCD Display Specifications
| Rated Input Voltage |
9–60V |
| Rated Power |
<5W |
| Operating Current Maximum |
170mA (VCC=12V) |
| Operating Current Minimum |
55mA (VCC=12V) |
| Resolution |
800×480 |
| Operating Humidity |
10%–90% RH |
| Protective Level |
IP65 (Front) |
| Communication |
RS485 |
| Operating Temperature |
-20~70℃ |
| Storage Temperature |
-30~80℃ |
| Net Weight |
340g |
| Type |
LCD |
| Size |
5 Inch |
Frequently-Asked Questions
Does this screen work with non-Epoch batteries?
This screen is specifically designed to communicate with Epoch Pro Series batteries using the CANBus protocol. Compatibility with third-party systems is not guaranteed.
Can I install this screen on a dashboard or control panel?
Yes! The display supports multiple mounting configurations including dash, surface, and panel installs, depending on your needs.
Is the touch screen waterproof?
The screen is resistant to light moisture and dust, but it is recommended to install it in a dry, protected area for optimal longevity.
