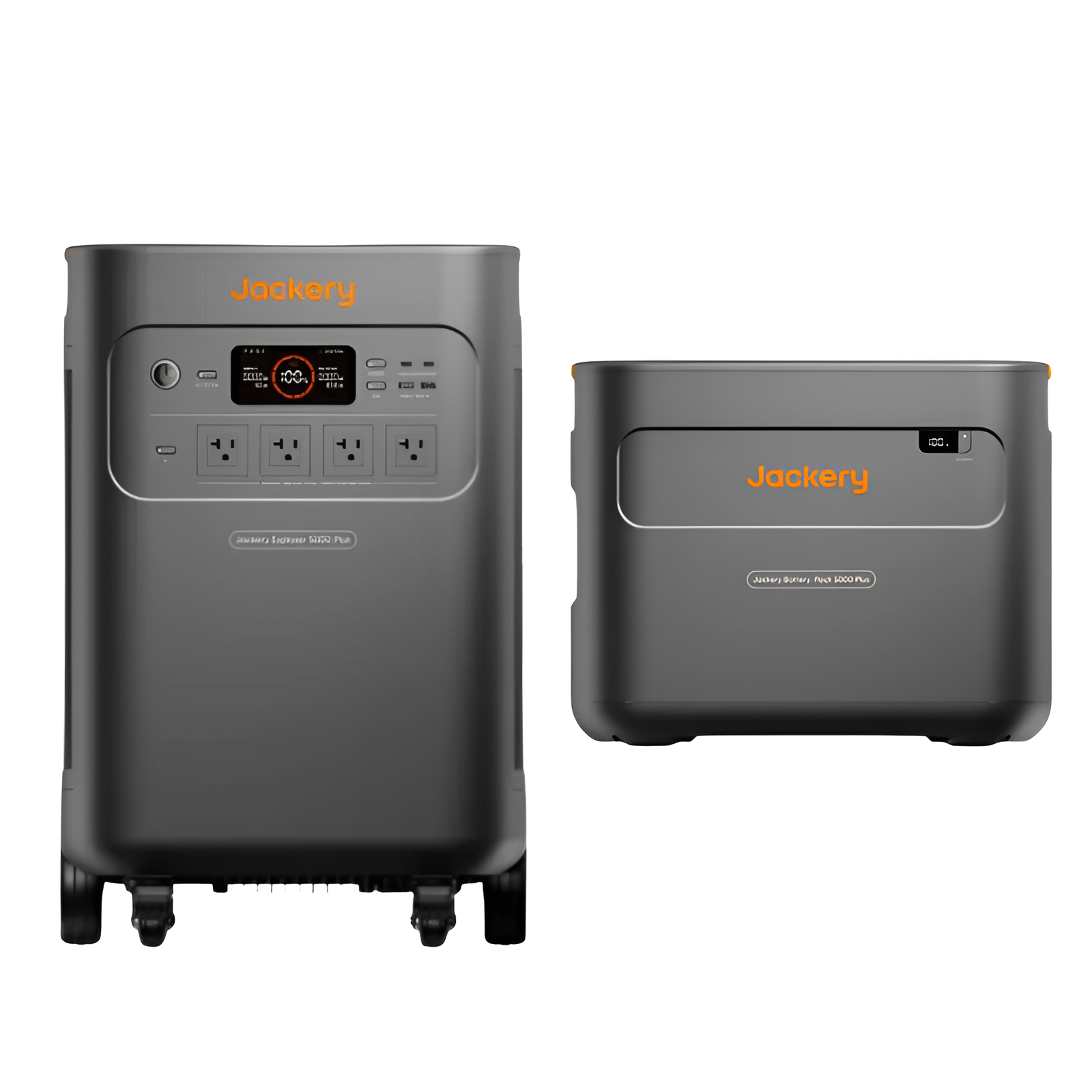

Jackery Explorer 5000 Plus Portable Power Station + E5000 Expansion Battery
The Jackery Explorer 5000 Plus, paired with the E5000 Expansion Battery, offers an incredible 10,080Wh total capacity with 7,200W peak output, making it one of the most powerful portable energy solutions available. Ideal for whole-home backup, RV living, off-grid cabins, and demanding outdoor applications, this system provides clean, silent, and renewable energy. With up to 4,000W solar charging capability, it ensures fast recharge times and long-lasting performance thanks to advanced LiFePO₄ battery technology.
Jackery Explorer 5000 Plus Portable Power Station + E5000 Expansion Battery Features
Exceptional Power Output
Delivers 5,000W continuous and 7,200W peak output—powering heavy appliances and multiple devices at once.
Extended Capacity
Bundled with an E5000 Expansion Battery for a combined 10,080Wh of energy storage.
Rapid Solar Recharging
Accepts up to 4,000W of solar input, achieving a full charge in as little as 2 hours under optimal conditions.
Long-Lasting LiFePO₄ Battery
Over 4,000 charge cycles for years of reliable use without significant capacity loss.
Whole-Home Backup Ready
Compatible with transfer switches for powering home circuits during grid outages.
Clean & Quiet Operation
No gas, no fumes, and no noise—safe for indoor and outdoor use.
Jackery Explorer 5000 Plus Portable Power Station + E5000 Expansion Battery Applications
-
Whole-Home Backup – Keep essential appliances and systems running during outages.
-
RV & Van Life – Run A/C units, kitchen appliances, and entertainment gear on the go.
-
Remote Work Sites – Supply power to heavy-duty tools and electronics in off-grid locations.
-
Camping & Overlanding – Enjoy extended trips with reliable renewable energy.
-
Emergency Preparedness – Maintain power security during disasters or prolonged blackouts.
What’s Included?
- 1 x Jackery Explorer 5000 Plus Whole-Home Backup
- 1 x AC Charging Cable
- 1 x MC4 Wrench
- 1 x Jackery Battery Pack 5000 Plus
- 1 x Expansion Cable
- 1 x User Manual
Warranty
Jackery Explorer 5000 Plus Specifications
Battery Specifications
|
| Capacity |
5040Wh | 45Ah/112V DC |
| Cell Chemistry |
LiFePO4 |
| Cycle Life |
4000 cycles to 70%+ capacity |
Ports
|
| AC Output |
(NEMA L14-30R/14-50) 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output |
7200W Max, 14400W Surge |
| AC Output (x4) |
120V, 20A, 2400W |
| USB-A Output (x2) |
18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| USB-C Output (x2) |
100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| Cigarette Lighter Port |
12V⎓10A |
| AC Expansion Port (Output) |
240V~60Hz, 30A, 7200W |
| DC Expansion Port (Output) |
80.5V-126V⎓41A Max |
| Charge Mode AC Input |
120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
120V, 12A Max; 240V, 16.7A Max |
| AC Expansion Port (Input) |
240V~60Hz, 16.7A Max |
| DC Expansion Port (Input) |
80.5V-126V⎓98A Max |
| High-PV |
135V-450V⎓15A Max |
| Low-PV |
2 x DC 8mm Ports; 16V-60V⎓10.5A Max
Double to 21A/1200W Max 11V-16V (Working Voltage)⎓8A Max, Double to 8A Max |
General Specifications
|
| Weight |
134.5 lbs | 61 kg |
| Height |
16.5 in | 41.8 cm
|
| Width |
15.5 in | 39.5 cm |
| Length |
25 in | 63.5 cm |
| Warranty |
5 Years |
| Charge Temperature |
0°C~45°C | 32°F~113°F |
| Discharge Temperature |
-15°C~45°C | 5°F~113°F |
| UPS |
Backup UPS: ＜20ms, Online UPS: 0ms |
| Inverter Topology |
Non-isolated |
| Power Factor |
≥0.98 |
| Entire Unit |
Type 1 |
Jackery Battery Pack 5000 Plus Specifications
| Specification |
Details |
| Model No. |
JBP-5000A (Only use together with Jackery Explorer 5000 Plus) |
| Capacity |
45Ah/112V DC (5040Wh) |
| Cell Chemistry |
LiFePO4 |
| Weight |
About 81.57 lbs/37 kg |
| Dimension |
16.5 x 13.5 x 13.2 in/41.8 x 34.4 x 33.6 cm |
| Cycle Life |
4000 cycles to 70%+ capacity |
| Maximum Short Circuit Current and Duration |
2600A/5ms |
| Ingress Protection |
IP20 |
| Ingress Protection |
80.5V-126V⎓41A Max |
| DC Expansion Port (Output) |
80.5V-126V⎓98A Max |
| Charge Temperature |
0°C~45°C (32°F~113°F) |
| Discharge Temperature |
-15°C~45°C (5°F~113°F) |
| Package List |
Jackery Battery Pack 5000 Plus*1 Expansion Cable*1 User Manual*1 |
Frequently-Asked Questions
Can the Explorer 5000 Plus power my whole house?
Yes. With a transfer switch, it can power essential circuits during outages.
How long will the full kit power my appliances?
Runtime depends on the device’s power consumption—for example, a 1,000W appliance could run for about 10 hours with the combined capacity.
Does it support charging while in use?
Yes, it offers pass-through charging for simultaneous use and recharging.
Is it safe for indoor operation?
Yes—its electric, emission-free design makes it safe indoors.
Can more batteries be added?
Yes, additional E5000 Expansion Batteries can be connected for extra capacity.
