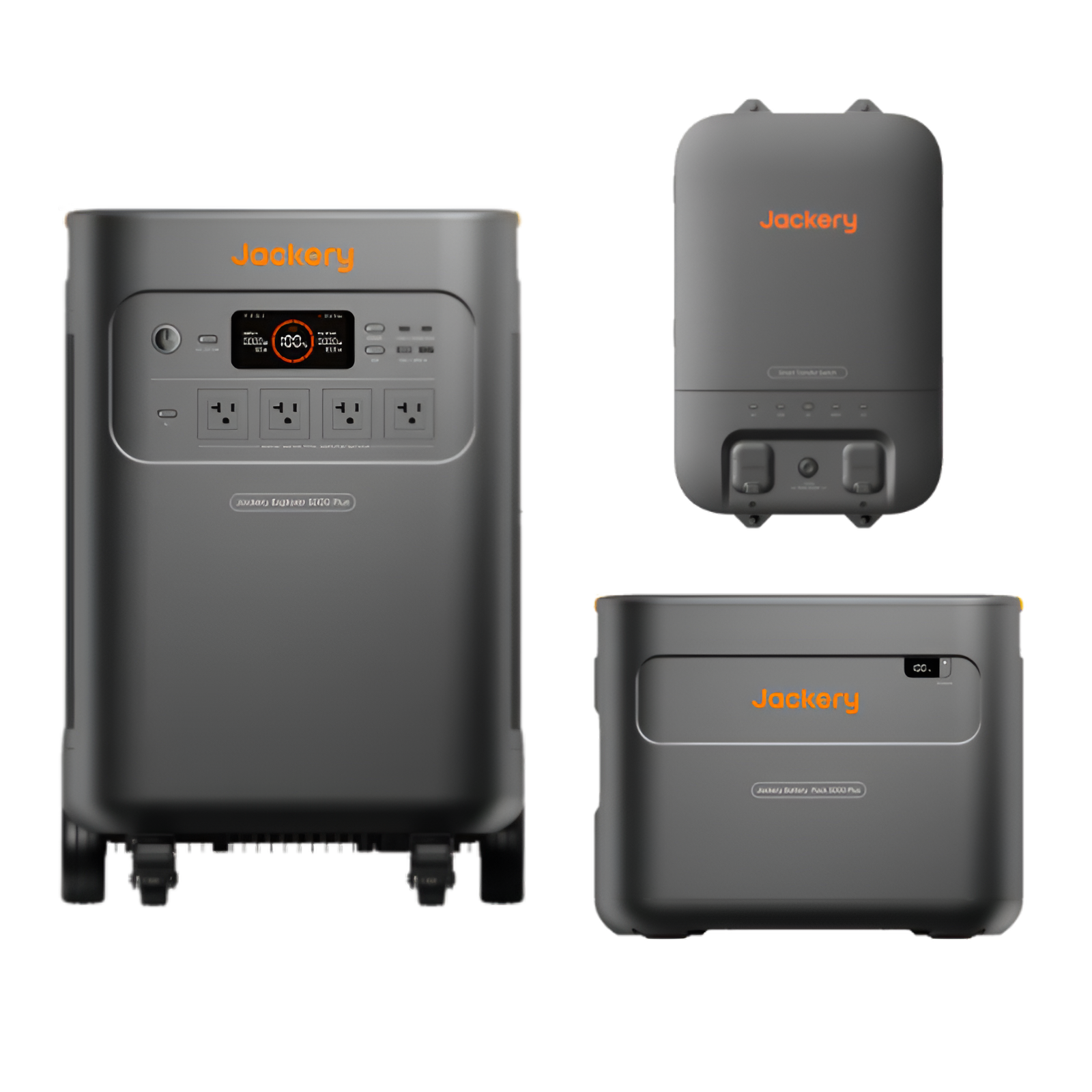

Jackery Explorer 5000 Plus Portable Power Station + Jackery Battery Pack 5000 Plus + Jackery Smart Home Transfer Switch
The Jackery Explorer 5000 Plus Whole-Home Backup Solution delivers one of the most reliable and powerful off-grid energy setups on the market. With a massive 5,000Wh capacity expandable up to 10,000Wh using the Battery Pack 5000 Plus, and the ability to integrate directly with your home via the Jackery Smart Home Transfer Switch, this system ensures peace of mind during outages while powering large appliances with ease. Offering 7200W peak output, it provides dependable power for households, RVs, outdoor events, and emergency backup situations—all in a clean, quiet, and eco-friendly design.
Jackery Explorer 5000 Plus Portable Power Station + Jackery Battery Pack 5000 Plus + Jackery Smart Home Transfer Switch Features
Massive Expandable Capacity
The Explorer 5000 Plus starts at 5,000Wh and can be expanded to 10,000Wh with the Battery Pack 5000 Plus—ideal for whole-home backup.
High Power Output
Delivers 4000W continuous output and 7200W surge power, enough to run refrigerators, HVAC units, washers, dryers, and more.
Seamless Home Integration
The Smart Home Transfer Switch connects directly to your home’s breaker panel, enabling fast and safe power distribution during outages.
Fast Solar Charging
Supports up to 4000W solar input, fully recharging the system in as little as 2 hours with compatible solar panels.
Durable and Portable Design
Built with heavy-duty casters and handles for easy transport while maintaining rugged durability for indoor or outdoor use.
Smart App Control
Monitor power usage, control charging modes, and check system status through the Jackery mobile app.
Jackery Explorer 5000 Plus Portable Power Station + Jackery Battery Pack 5000 Plus + Jackery Smart Home Transfer Switch Applications
-
Whole-Home Backup – Keeps essential household appliances running during blackouts.
-
RV & Camping Power – Reliable off-grid energy solution for extended trips.
-
Construction & Outdoor Events – Power tools, lighting, and sound systems with ease.
-
Emergency Preparedness – Provides peace of mind with a quiet, renewable alternative to gas generators.
-
Sustainable Living – Pair with solar panels for clean, renewable home energy storage.
What’s Included?
-
1 × Jackery Explorer 5000 Plus Portable Power Station
-
1 x Jackery Battery Pack 5000 Plus
-
1 × Jackery Smart Home Transfer Switch
-
1 × AC Charging Cable
-
1 × MC4 Wrench
-
1 x Expansion Cable
-
1 × Marking Template
-
1 x Power Input / Output Cable
-
2 x Wall Breaker
-
4 x M4 Phillips Flat Head Screw (ssecure wall brackets to Smart Transfer Switch)
-
1 × User Manual
Warranty
Jackery Explorer 5000 Plus Portable Power Station
|
| Discharge Temperature |
5–113 °F (-15–45 °C) |
| Warranty |
5 Years |
| Battery |
|
| Capacity |
45Ah / 112V DC (5040 Wh) |
| Cell Chemistry |
LiFePO4 |
| Cycle Life |
4000 cycles to 70%+ capacity |
| Output Ports |
|
| AC Output |
(4×) 120V, 20A, 2400W |
|
(1×) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output |
7200W Max, 14400W Surge |
| USB-C Output |
(2×) 100W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) |
| USB-A Output |
(2×) 18W Max (5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A) |
| Cigarette Lighter Port |
12V⎓10A |
| AC Expansion Port |
240V~60Hz, 30A, 7200W |
| DC Expansion Port |
80.5V–126V⎓41A Max |
| Input Ports |
|
| Charge Mode AC Input |
120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
120V-60Hz, 12A Max; 240V-60Hz, 16.7AMax |
| AC Expansion Port (Input) |
240V~60Hz, 16.7A Max |
| DC Input |
DC Expansion Port (Input): 80.5V–126V⎓98A Max |
| High-PV |
135V–450V⎓15A Max |
| Low-PV |
(2×) DC 8mm Ports: 16V–60V⎓10.5A Max, Double to 21A/1200W Max |
|
11V–16V (Working Voltage)⎓8A Max, Double to 8A Max |
| Charging Time |
|
| AC Adapter |
3.5 Hours |
| Car Adapter |
Not Supported |
| Other Specifications |
|
| UPS |
Backup UPS: ＜20ms; Online UPS: 0ms |
| Inverter Topology |
Non-isolated |
| Power Factor |
≥0.98 |
| Entire Unit |
Type 1 |
Jackery Battery Pack 5000 Plus
| Category |
Specification |
| Model No. |
JBP-5000A (Only use together with Jackery Explorer 5000 Plus) |
| Capacity |
45Ah / 112V DC (5040Wh) |
| Cell Chemistry |
LiFePO4 |
| Weight |
About 81.57 lbs (37 kg) |
| Dimensions |
16.5 × 13.5 × 13.2 in / 41.8 × 34.4 × 33.6 cm |
| Cycle Life |
4000 cycles to 70%+ capacity |
| Maximum Short Circuit Current and Duration |
2600A / 5ms |
| Ingress Protection |
IP20 |
| DC Expansion Port (Input) |
80.5V–126V⎓41A Max |
| DC Expansion Port (Output) |
80.5V–126V⎓98A Max |
| Charge Temperature |
0°C-45°C (32°F - 113°F) |
| Discharge Temperature |
-15°C-45°C (5°F - 113°F) |
| Package List |
Jackery Battery Pack 5000 Plus ×1, Expansion Cable ×1, User Manual ×1 |
Jackery Smart Home Transfer Switch Specifications
| Category |
Specification |
| Model No. |
JA-TS02A |
| AC Voltage (Nominal) |
120V/240V~ 60Hz |
| Feed-In Type |
Split Phase |
| Maximum Input Current |
100A Grid / 60A Power Station |
| Maximum Output Current |
60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current |
10KA |
| Overvoltage Category |
IV |
| UPS |
≤20ms |
| Enclosure Type (Distribution Panel) |
NEMA Type 1 |
| Number of Load Branches |
12 |
| Main Circuit |
2 AWG |
| Branch Circuit |
14 AWG / 12 AWG / 10 AWG |
| Communication |
Wi-Fi and Bluetooth |
| Operating Temperature |
-20°C-40°C(-4°F-104°F) |
| Weight |
About 25.57 lbs (11.6 kg) |
| Dimensions |
22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Package List |
Jackery Smart Transfer Switch, Marking-off Template, Power Input/Output Cable, 2 × Wall Bracket, 4 × M4 Phillips Flat Head Screw, User Manual |
Frequently-Asked Questions
Can the Jackery 5000 Plus power an entire home?
Yes, when paired with the Smart Home Transfer Switch, the Explorer 5000 Plus can power essential household circuits such as refrigerators, lights, medical devices, and more.
How long does it take to charge with solar panels?
With 4000W solar input, the Explorer 5000 Plus can fully recharge in about 2 hours under optimal sunlight conditions.
Is the Battery Pack 5000 Plus required?
The expansion pack is optional but highly recommended for those needing extended backup—boosting total capacity to 10,000Wh.
Does it work with gas generators?
Yes. With the included Generator Input Adapter, it can be safely recharged from a compatible gas generator when solar or AC power isn’t available.
What’s the battery lifespan?
The LiFePO₄ battery offers 4,000+ charge cycles, meaning it can last over a decade with regular use.
