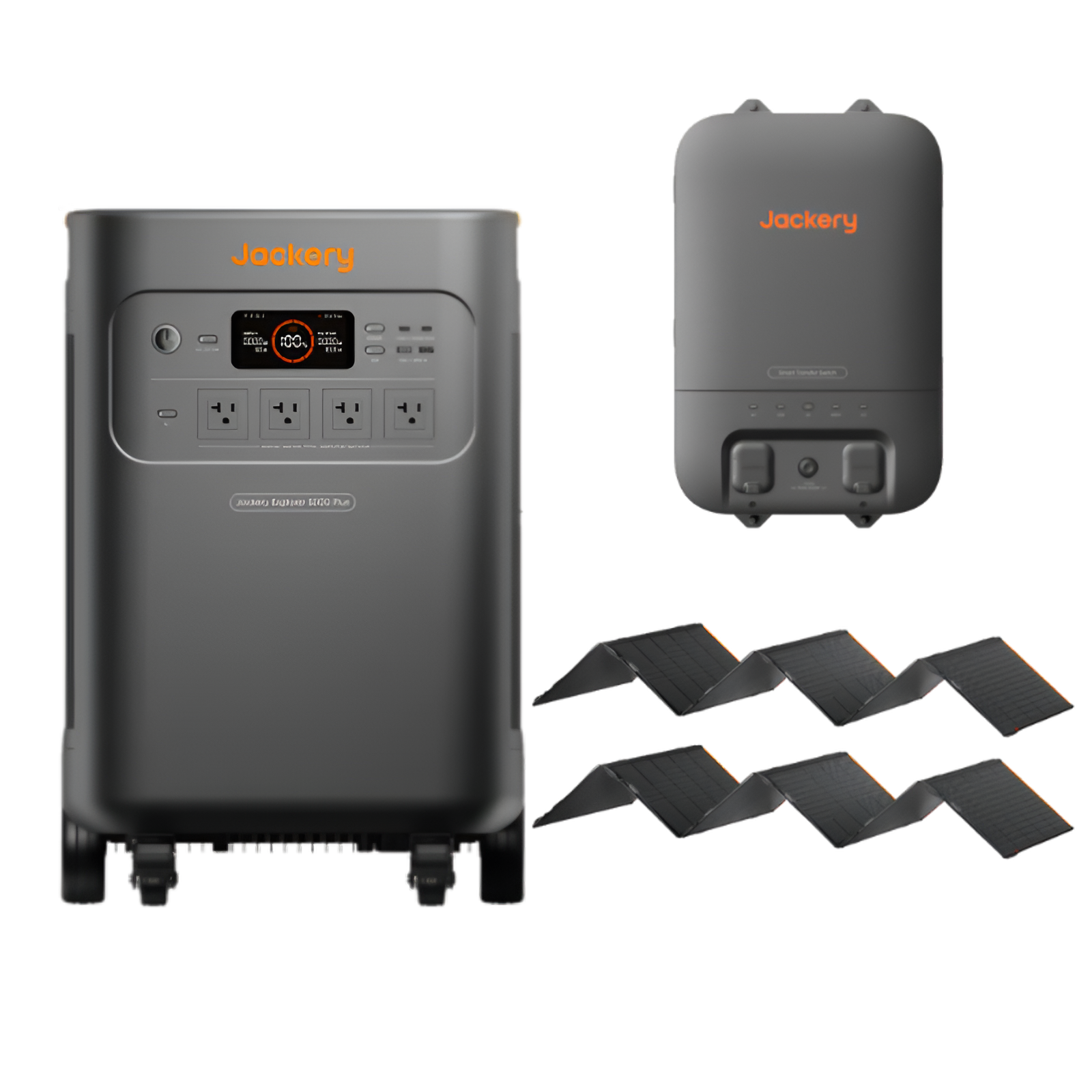

Jackery Explorer 5000 Plus Portable Power Station + Jackery Smart Home Transfer Switch + 2 × Jackery SolarSaga 500 X
The Jackery Explorer 5000 Plus Bundle is a complete home backup and off-grid power solution, combining high-capacity energy storage, seamless home integration, and efficient solar charging. With 5040Wh of capacity and an impressive 4000W continuous / 7200W peak output, this system is capable of running household essentials and heavy appliances during outages. The included Smart Home Transfer Switch provides safe and fast power delivery to key circuits, while two SolarSaga 500 X solar panels ensure fast and renewable recharging, making it a powerful, sustainable choice for home, travel, and emergencies.
Jackery Explorer 5000 Plus Portable Power Station + Jackery Smart Home Transfer Switch + 2 × Jackery SolarSaga 500 X Features
Massive 5040Wh Capacity
Delivers long-lasting power with a LiFePO₄ battery built for reliability and safety.
High Output Performance
Powers even the most demanding appliances with 4000W continuous / 7200W surge output.
Seamless Home Backup
The Smart Home Transfer Switch allows you to safely supply power directly to household circuits during blackouts.
Rapid Solar Charging
Paired with two SolarSaga 500 X panels, the system recharges quickly and sustainably, reducing downtime between uses.
Expandable Storage
Supports connection with additional Jackery Battery Packs to scale energy storage up to 10,000Wh+.
Smart App Control
Monitor and manage your system from anywhere with the Jackery app, providing real-time data and remote control.
Portable & Durable Design
Equipped with heavy-duty wheels and handles for easy transport despite its high-capacity build.
Jackery Explorer 5000 Plus Portable Power Station + Jackery Smart Home Transfer Switch + 2 × Jackery SolarSaga 500 X Applications
-
Whole-Home Backup – Power essential appliances such as fridges, lights, and medical devices during outages.
-
Off-Grid Solar Living – Run a home or cabin sustainably with fast solar recharging.
-
Emergency Preparedness – Keep critical devices running during storms or power cuts.
-
RV & Camping Adventures – Power air conditioners, cooking devices, and electronics for extended trips.
-
Outdoor Work & Events – Supply electricity for tools, sound systems, and lighting without noise or fumes.
What’s Included?
-
1 × Jackery Explorer 5000 Plus Portable Power Station
-
1 × Jackery Smart Home Transfer Switch
-
12 × Jackery SolarSaga 85
-
20 × Hinges
-
16 × Ground Stakes
-
2 × Hex Keys
-
80 × Screws
-
4 × Anderson Rubber Plugs
-
2 × Compass Carabiners
-
2 × Solar Charging Cables
-
2 × Storage Bags
-
1 × AC Charging Cable
-
1 × MC4 Wrench
-
1 × Marking Template
-
1 x Power Input / Output Cable
-
2 x Wall Breaker
-
4 x M4 Phillips Flat Head Screw (ssecure wall brackets to Smart Transfer Switch)
-
1 × User Manual
Warranty
Jackery Explorer 5000 Plus Portable Power Station
| Category |
Specification |
| General |
|
| Weight |
About 134.5 lbs (61 kg) |
| Dimensions |
16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature |
32–113 °F (0–45 °C) |
| Discharge Temperature |
5–113 °F (-15–45 °C) |
| Warranty |
5 Years |
| Battery |
|
| Capacity |
45Ah / 112V DC (5040 Wh) |
| Cell Chemistry |
LiFePO4 |
| Cycle Life |
4000 cycles to 70%+ capacity |
| Output Ports |
|
| AC Output |
(4×) 120V, 20A, 2400W |
|
(1×) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output |
7200W Max, 14400W Surge |
| USB-C Output |
(2×) 100W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) |
| USB-A Output |
(2×) 18W Max (5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A) |
| Cigarette Lighter Port |
12V⎓10A |
| AC Expansion Port |
240V~60Hz, 30A, 7200W |
| DC Expansion Port |
80.5V–126V⎓41A Max |
| Input Ports |
|
| Charge Mode AC Input |
120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
120V-60Hz, 12A Max; 240V-60Hz, 16.7AMax |
| AC Expansion Port (Input) |
240V~60Hz, 16.7A Max |
| DC Input |
DC Expansion Port (Input): 80.5V–126V⎓98A Max |
| High-PV |
135V–450V⎓15A Max |
| Low-PV |
(2×) DC 8mm Ports: 16V–60V⎓10.5A Max, Double to 21A/1200W Max |
|
11V–16V (Working Voltage)⎓8A Max, Double to 8A Max |
| Charging Time |
|
| AC Adapter |
3.5 Hours |
| Car Adapter |
Not Supported |
| Other Specifications |
|
| UPS |
Backup UPS: ＜20ms; Online UPS: 0ms |
| Inverter Topology |
Non-isolated |
| Power Factor |
≥0.98 |
| Entire Unit |
Type 1 |
Jackery Smart Home Transfer Switch Specifications
| Category |
Specification |
| Model No. |
JA-TS02A |
| AC Voltage (Nominal) |
120V/240V~ 60Hz |
| Feed-In Type |
Split Phase |
| Maximum Input Current |
100A Grid / 60A Power Station |
| Maximum Output Current |
60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current |
10KA |
| Overvoltage Category |
IV |
| UPS |
≤20ms |
| Enclosure Type (Distribution Panel) |
NEMA Type 1 |
| Number of Load Branches |
12 |
| Main Circuit |
2 AWG |
| Branch Circuit |
14 AWG / 12 AWG / 10 AWG |
| Communication |
Wi-Fi and Bluetooth |
| Operating Temperature |
-20°C-40°C(-4°F-104°F) |
| Weight |
About 25.57 lbs (11.6 kg) |
| Dimensions |
22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Package List |
Jackery Smart Transfer Switch, Marking-off Template, Power Input/Output Cable, 2 × Wall Bracket, 4 × M4 Phillips Flat Head Screw, User Manual |
Jackery SolarSaga 500 X
| Category |
Specification |
| General |
|
| Weight |
22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg) |
| Protection Class Against Electric Shock |
Class II |
| Waterproof |
IP68 |
| Operating Temperature Range |
-40-185°F (-41-85℃) |
| Warranty |
5 Years |
| Solar |
|
| Maximum System Voltage |
600V DC |
| Maximum Reverse Current |
15A |
| Bifaciality Coefficient (back/front) |
Pmax >80%, Voc >97%, Isc >80% |
| Voltage Temperature Coefficient |
-0.26%/℃ |
| Power Temperature Coefficient |
-0.32%/℃ |
| STC (1000W/㎡, 25℃, AM 1.5) |
|
| Peak Power (Pmax) |
500W ±5% |
| Open Circuit Voltage (Voc) |
48.5V ±5% |
| Short Circuit Current (Isc) |
13.02A ±5% |
| Power Voltage (Vmp) |
41.7V ±5% |
| Power Current (Imp) |
12.0A ±5% |
| BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5) |
|
| Peak Power (Pmax) |
545W ±5% |
| Open Circuit Voltage (Voc) |
49.2V ±5% |
| Short Circuit Current (Isc) |
13.86A ±5% |
| Power Voltage (Vmp) |
42.5V ±5% |
| Power Current (Imp) |
12.84A ±5% |
| Dimensions |
|
| Folded |
Around 39.21 × 20.71 × 3.82 in (996 × 526 × 97 mm) |
| Unfolded |
Around 98.15 × 39.21 × 11.57 in (2493 × 996 × 294 mm) |
Frequently-Asked Questions
Can this system replace a gas generator for whole-home backup?
Yes, it can provide backup to essential circuits with the Smart Home Transfer Switch, making it a safe, quiet, and eco-friendly alternative to traditional generators.
How fast does it charge with two SolarSaga 500 X panels?
With 1000W of solar input, the Explorer 5000 Plus can recharge in about 5–6 hours under optimal sunlight.
Can I expand the battery capacity later?
Yes, it is compatible with the Jackery Battery Pack 5000 Plus, which can expand total storage to over 10kWh.
What types of appliances can it power?
It can power large appliances like refrigerators, air conditioners, sump pumps, ovens, and medical equipment.
Is the system safe for indoor use?
Yes, unlike gas generators, it produces zero emissions and no fumes, making it safe to use indoors.
