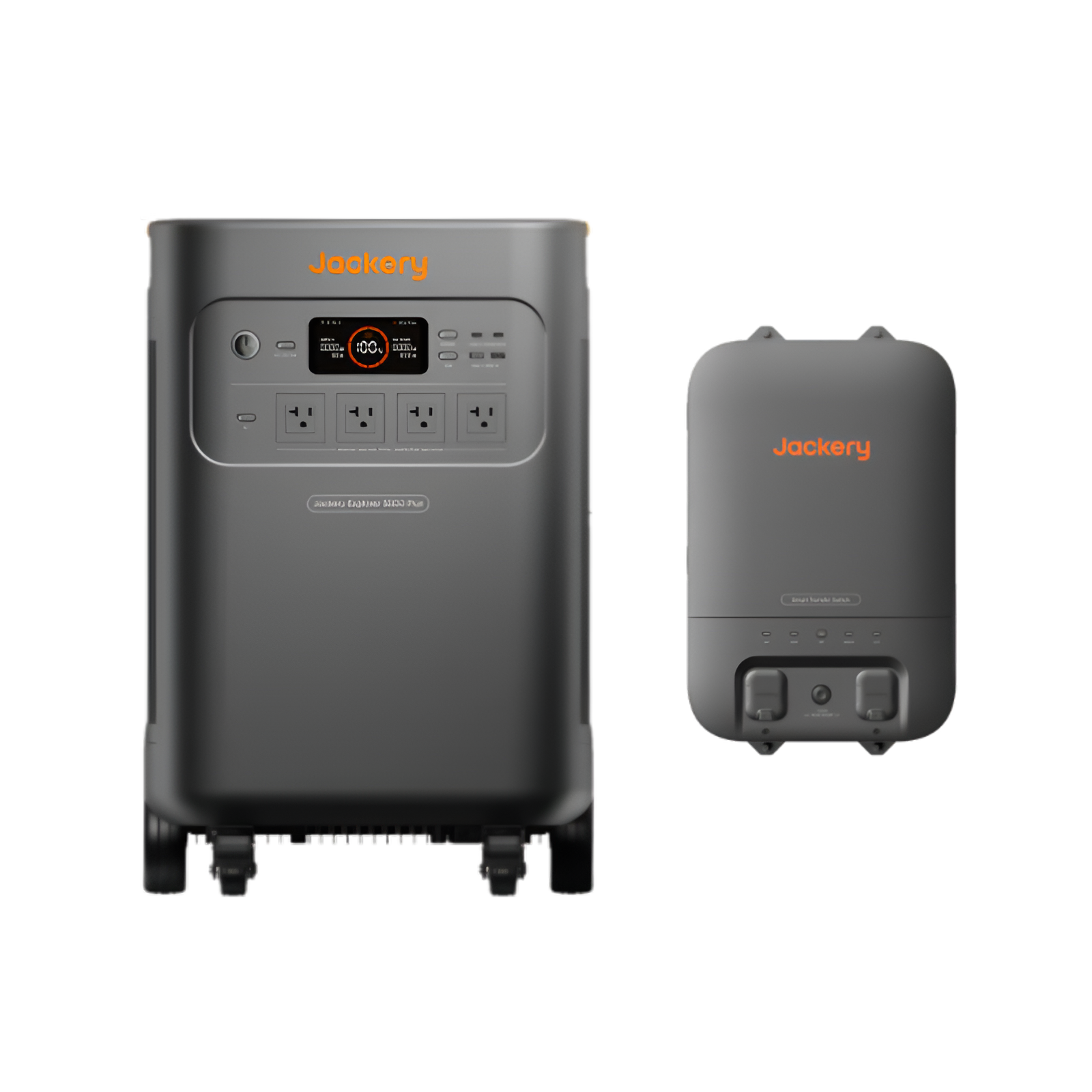

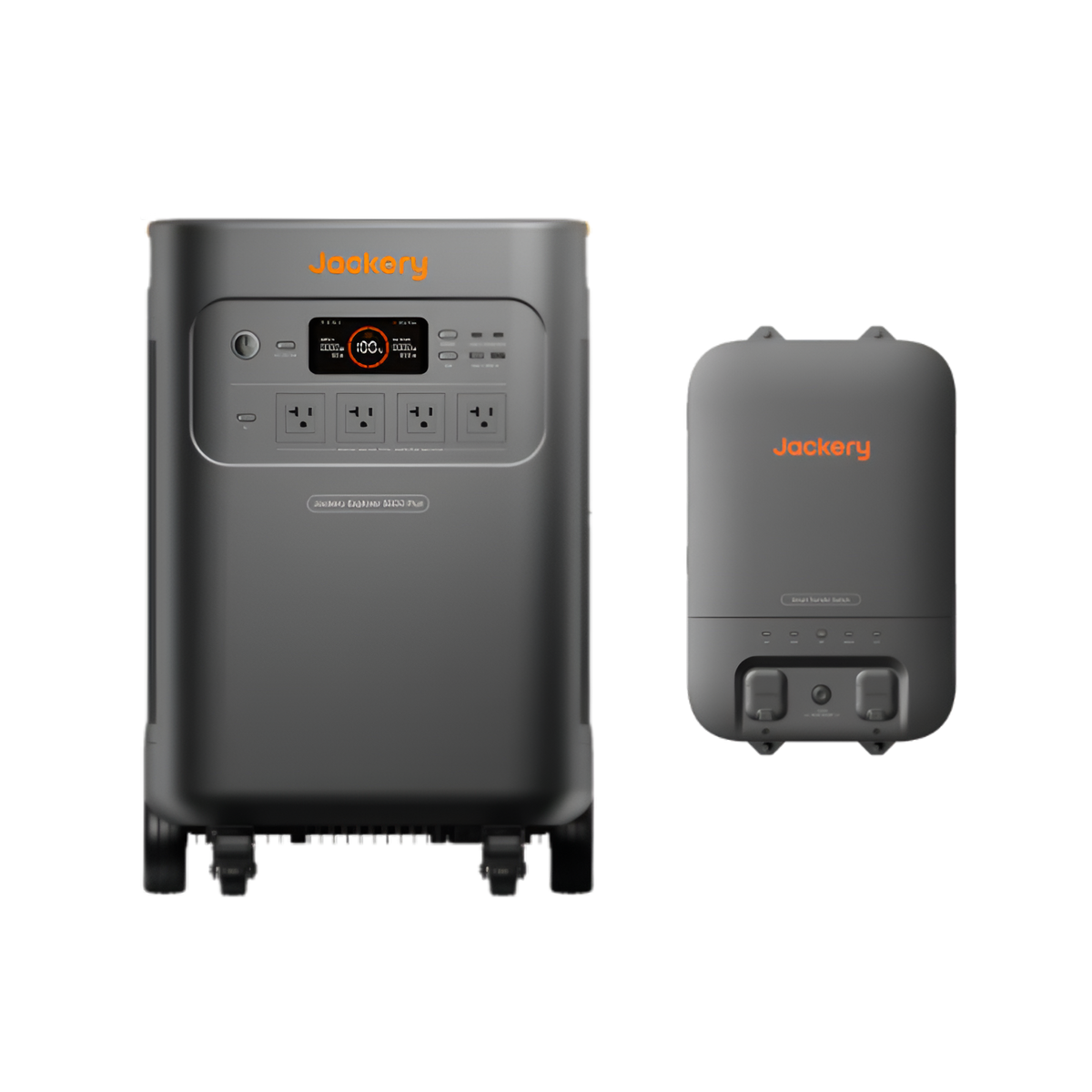

Jackery Explorer 5000 Plus Portable Power Station + Smart Home Transfer Switch
The Jackery Explorer 5000 Plus combined with the Jackery Smart Home Transfer Switch delivers the ultimate whole-home backup solution. With its powerful 5,000W continuous output (7,200W peak) and expandable capacity up to 10,080Wh with additional batteries, this system is built to handle both everyday energy needs and emergency situations. The Smart Home Transfer Switch makes integration seamless, automatically switching to backup power during outages so your essential appliances never miss a beat. Silent, eco-friendly, and solar-ready, this kit is designed for reliable, long-lasting performance both on and off the grid.
Jackery Explorer 5000 Plus Portable Power Station + Smart Home Transfer Switch Features
Whole-Home Power Backup
Paired with the Smart Home Transfer Switch, the Explorer 5000 Plus keeps your critical circuits running automatically during outages.
High Power Output
Delivers 5,000W continuous and 7,200W peak power for demanding appliances and multiple devices at once.
Expandable Battery Capacity
Supports additional E5000 Expansion Batteries, scaling total capacity up to 10,080Wh or beyond.
Rapid Solar Charging
With up to 4,000W of solar input, you can fully recharge in as little as 2 hours under optimal conditions.
Smart & Seamless Integration
The Smart Home Transfer Switch enables easy, safe connection to your home grid without manual intervention.
Reliable LiFePO₄ Battery
Offers 4,000+ charge cycles, ensuring long-term durability and dependable performance.
Safe & Silent Operation
Unlike gas generators, it produces no fumes, noise, or emissions—perfect for indoor use.
Jackery Explorer 5000 Plus Portable Power Station + Smart Home Transfer Switch Applications
-
Whole-Home Backup – Keep refrigerators, lights, medical devices, and other essentials powered automatically during blackouts.
-
Emergency Preparedness – Provides reliable, long-duration energy storage for disaster scenarios.
-
Off-Grid Living – Combine with solar panels for sustainable, round-the-clock energy.
-
RV & Travel – Power air conditioning, appliances, and electronics anywhere.
-
Construction & Job Sites – Run power tools and equipment in locations without grid access.
What’s Included?
-
1 × Jackery Explorer 5000 Plus Portable Power Station
-
1 × Jackery Smart Home Transfer Switch
-
1 × AC Charging Cable
-
1 × MC4 Wrench
-
1 × Marking Template
-
1 x Power Input / Output Cable
-
2 x Wall Breaker
-
4 x M4 Phillips Flat Head Screw (ssecure wall brackets to Smart Transfer Switch)
-
1 × User Manual
Warranty
Jackery Explorer 5000 Plus Portable Power Station
| Category |
Specification |
| General |
|
| Weight |
About 134.5 lbs (61 kg) |
| Dimensions |
16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature |
32–113 °F (0–45 °C) |
| Discharge Temperature |
5–113 °F (-15–45 °C) |
| Warranty |
5 Years |
| Battery |
|
| Capacity |
45Ah / 112V DC (5040 Wh) |
| Cell Chemistry |
LiFePO4 |
| Cycle Life |
4000 cycles to 70%+ capacity |
| Output Ports |
|
| AC Output |
(4×) 120V, 20A, 2400W |
|
(1×) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output |
7200W Max, 14400W Surge |
| USB-C Output |
(2×) 100W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) |
| USB-A Output |
(2×) 18W Max (5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A) |
| Cigarette Lighter Port |
12V⎓10A |
| AC Expansion Port |
240V~60Hz, 30A, 7200W |
| DC Expansion Port |
80.5V–126V⎓41A Max |
| Input Ports |
|
| Charge Mode AC Input |
120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output |
120V-60Hz, 12A Max; 240V-60Hz, 16.7AMax |
| AC Expansion Port (Input) |
240V~60Hz, 16.7A Max |
| DC Input |
DC Expansion Port (Input): 80.5V–126V⎓98A Max |
| High-PV |
135V–450V⎓15A Max |
| Low-PV |
(2×) DC 8mm Ports: 16V–60V⎓10.5A Max, Double to 21A/1200W Max |
|
11V–16V (Working Voltage)⎓8A Max, Double to 8A Max |
| Charging Time |
|
| AC Adapter |
3.5 Hours |
| Car Adapter |
Not Supported |
| Other Specifications |
|
| UPS |
Backup UPS: ＜20ms; Online UPS: 0ms |
| Inverter Topology |
Non-isolated |
| Power Factor |
≥0.98 |
| Entire Unit |
Type 1 |
Jackery Smart Home Transfer Switch Specifications
| Category |
Specification |
| Model No. |
JA-TS02A |
| AC Voltage (Nominal) |
120V/240V~ 60Hz |
| Feed-In Type |
Split Phase |
| Maximum Input Current |
100A Grid / 60A Power Station |
| Maximum Output Current |
60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current |
10KA |
| Overvoltage Category |
IV |
| UPS |
≤20ms |
| Enclosure Type (Distribution Panel) |
NEMA Type 1 |
| Number of Load Branches |
12 |
| Main Circuit |
2 AWG |
| Branch Circuit |
14 AWG / 12 AWG / 10 AWG |
| Communication |
Wi-Fi and Bluetooth |
| Operating Temperature |
-20°C-40°C(-4°F-104°F) |
| Weight |
About 25.57 lbs (11.6 kg) |
| Dimensions |
22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Package List |
Jackery Smart Transfer Switch, Marking-off Template, Power Input/Output Cable, 2 × Wall Bracket, 4 × M4 Phillips Flat Head Screw, User Manual |
Frequently-Asked Questions
Do I need an electrician to install the Smart Home Transfer Switch?
Yes, professional installation is recommended to ensure safe and proper connection to your home’s electrical circuits.
Can the Explorer 5000 Plus and Transfer Switch power my entire house?
It is designed to power essential circuits such as refrigerators, lights, internet routers, and medical devices. Whole-home coverage depends on your total energy needs.
Is the system compatible with solar panels?
Yes. It supports up to 4,000W solar input for renewable and rapid recharging.
Can I expand the capacity later?
Yes. Additional E5000 Expansion Batteries can be added to increase total storage.
Is it safe for indoor use?
Absolutely. Since it’s fully electric, it produces no fumes, noise, or emissions.
