Jackery HomePower 3600 Plus Double Kit

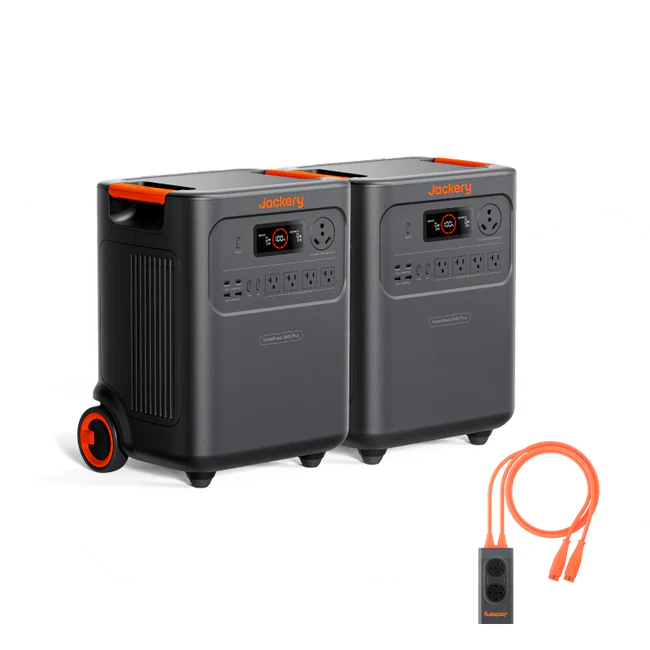

The Jackery HomePower 3600 Plus Double Kit combines two HomePower 3600 Plus power stations with the Jackery Connector, delivering an impressive 7,200W rated output (14,400W surge) and expanded capacity up to 7.16kWh–21.48kWh with additional battery packs.

This bundle is ideal for homeowners who need robust whole-home backup, RV owners requiring extended off-grid capability, or anyone preparing for long-duration outages. With parallel 120V/240V support, ultra-durable LiFePO₄ batteries (6,000+ cycles), and rapid recharge options, this system ensures reliable and efficient clean energy for years to come.

Placeholder Image

Jackery HomePower 3600 Plus Double Kit Features

Dual 3600W Output – 7,200W Combined Power - Seamlessly powers high-demand 120V and 240V appliances with two units linked.

Massive Expandable Capacity – Up to 21.48kWh - Start with 7.16kWh (two HomePower 3600 Plus units), expandable by adding Battery Pack 3600s.

Advanced Jackery Connector - Supports parallel operation, enabling 240V split-phase output at 25A max per line.

Ultra-Durable LiFePO₄ Batteries - 6,000+ cycles to 70% capacity, ensuring 10+ years of dependable energy.

Fast Charging Options - Recharge in just 2.5 hours via AC, or combine with solar input for hybrid charging.

UPS Functionality (<20ms) - Keeps sensitive electronics powered during sudden outages.

Rugged & Portable - Features pull rods and wheels for mobility despite high capacity.

Placeholder Image

Jackery HomePower 3600 Plus Double Kit Applications

  • Whole-Home Backup – Power essential 240V appliances like central AC, pumps, and ovens.
  • Emergency Preparedness – Stay powered during extended blackouts or disasters.
  • Off-Grid Cabins & RVs – Supports high-demand living needs in remote areas.
  • Worksite Power – Run heavy-duty tools and equipment without gas generators.
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • 2 x Jackery HomePower 3600 Plus
  • 2 x AC Charge Cable
  • User Manual
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image

Warranty

  • 3+2 Years Manufacturer Warranty

Jackery Solar Generator HomePower 3600 Plus Specifications

General

Category Specifications
Weight About 77.16 lbs (35 kg)
Dimensions 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm
Charge Temperature -4°F to 113°F ( -20°C to 45°C)
Discharge Temperature -4°F to 113°F ( -20°C to 45°C)
Warranty 3+2 Years

Battery

Category Specifications
Capacity 80Ah / 44.8V DC (3584 Wh)
Cell Chemistry LiFePO4
Cycle life 6000 cycles to 70%+ capacity

Output Ports

Category Specifications
AC Output (4x) 120V~ 60Hz, 20A Max, 2400W | (1x) 120V~ 60Hz, 30A Max, 3600W
AC Total Output 3600W Rated, 7200W Surge peak
USB-C Output (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port 12V⎓10A Max

Input Ports

Category Specifications
Charge Mode AC Input 100V-120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output 120V~ 60Hz, 12A Max, 1440W
DC Input (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; | 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max

Charging Time

Category Specifications
AC Adapter 2.5 Hours
Car Adapter Supported

Jackery Connector

Category Specifications
Operating Usage Temperature -4℉~113℉（-20~45°C）
Product Weight About 1.66Kg
Input voltage/current 120V~ 60Hz，25A Max
Output voltage/current AC Output*1：120V/240V~ 60Hz，25A Max | AC Output*1：240V~ 60Hz，25A Max

Jackery Solar Generator HomePower 3600 Plus Video

Placeholder Image

Frequently-Asked Questions

Does the Double Kit support 240V appliances?

 Yes, when connected via the Jackery Connector, it provides 240V split-phase output.

Can I expand the Double Kit further?

 Yes, each HomePower 3600 Plus can be paired with up to 3 Battery Pack 3600s, reaching 21.48kWh total capacity.

How does charging work with two units?

 Both units can be charged simultaneously via AC or solar.

Is the Jackery Connector required for double operation?

 Yes, the Connector is necessary to safely combine two HomePower 3600 Plus units for 240V/parallel operation.
