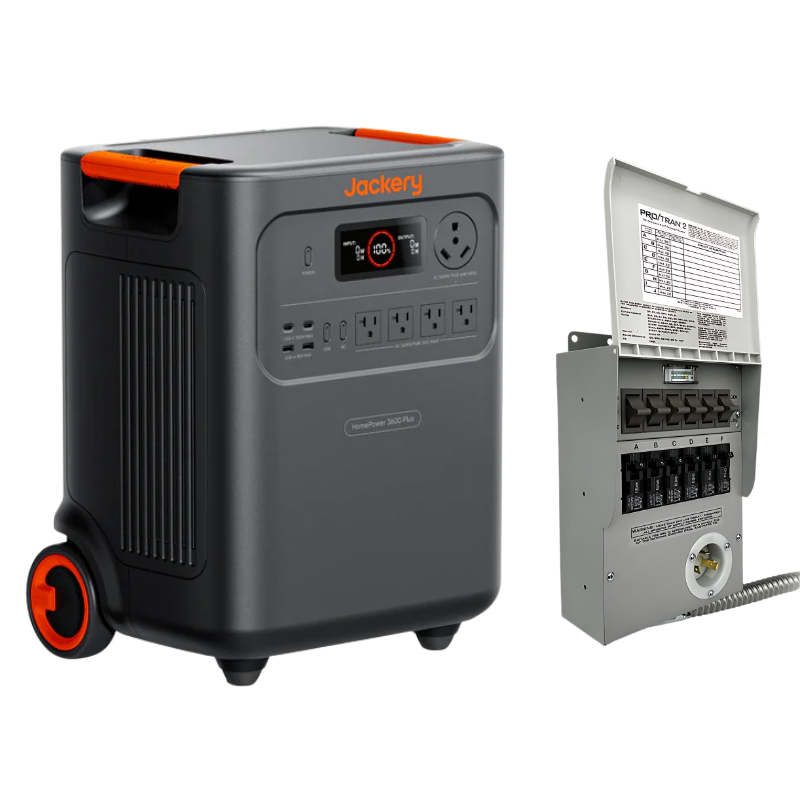

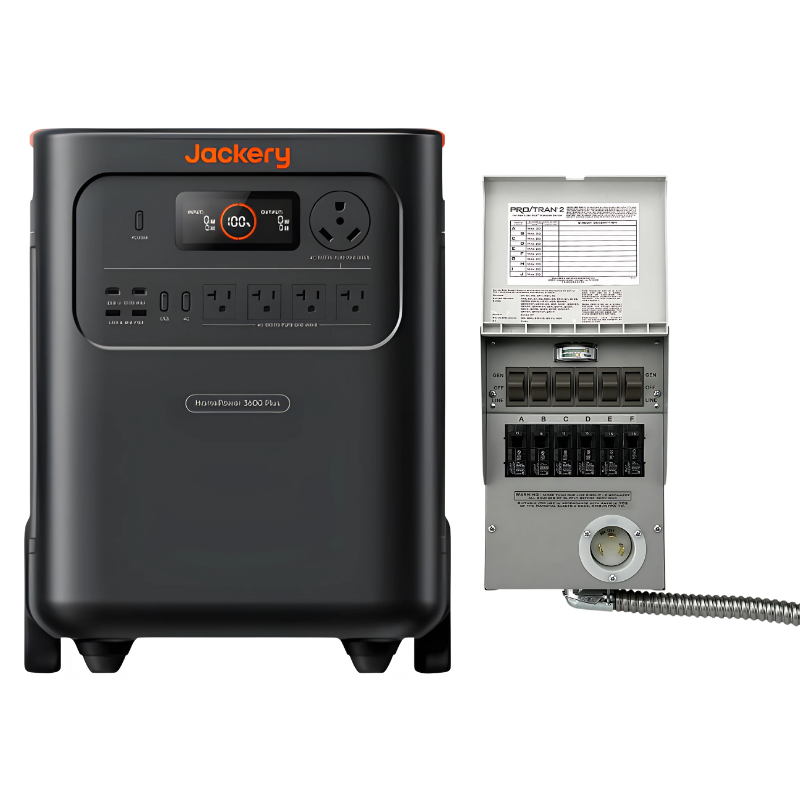

Jackery HomePower 3600 Plus + Manual Transfer Switch

The Jackery HomePower 3600 Plus + Manual Transfer Switch is the ultimate home backup solution, allowing you to safely connect your Jackery power station directly to your home’s electrical panel. With a 3600W output (7200W surge), expandable battery capacity up to 21.48kWh, and the included Pro/Tran® 2 30A Transfer Switch, you can keep your lights, refrigerator, and critical appliances running during outages.

Built for reliability and convenience, this bundle offers a simple plug-and-play connection with NEMA L5-30 inlet, durable metal housing, and six circuit compatibility—perfect for powering essential circuits in your home.

Placeholder Image

Jackery HomePower 3600 Plus + Manual Transfer Switch Features

High-Powered Backup - 3600W rated output, expandable up to 21.48kWh with battery packs, and 7200W surge capacity.

Safe & Easy Home Integration - The included Pro/Tran® 2 30A Transfer Switch allows seamless, code-compliant connection to your home circuits.

Durable Build - Metal enclosure and gray finish ensure long-lasting durability and safety.

Flexible Circuit Control - Supports up to 6 circuits for powering critical home appliances and devices.

Portable & Expandable Power - Lightweight power station with modular battery expansion to adapt to your energy needs.

Placeholder Image

Jackery HomePower 3600 Plus + Manual Transfer Switch Applications

  • Emergency Backup Power – Power refrigerators, lights, and medical equipment during blackouts.
  • Home Integration – Connect directly to your home panel for a safer, compliant setup.
  • Off-Grid Living – Ideal for cabins, tiny homes, and off-grid properties.
  • Disaster Preparedness – Reliable energy source for storms, wildfires, or grid instability.
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • Jackery HomePower 3600 Plus
  • Manual Transfer Switch
  • AC Charge Cable
  • User Manual
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image
Placeholder Image

Warranty

  • 3+2 Years Manufacturer Warranty

Jackery Solar Generator HomePower 3600 Plus Specifications

General

Category Specifications
Weight About 77.16 lbs (35 kg)
Dimensions 15.2×12.2×19.3 in / 38.5×30.9×49.1 cm
Charge Temperature -4°F to 113°F ( -20°C to 45°C)
Discharge Temperature -4°F to 113°F ( -20°C to 45°C)
Warranty 3+2 Years

Battery

Category Specifications
Capacity 80Ah / 44.8V DC (3584 Wh)
Cell Chemistry LiFePO4
Cycle life 6000 cycles to 70%+ capacity

Output Ports

Category Specifications
AC Output (4x) 120V~ 60Hz, 20A Max, 2400W | (1x) 120V~ 60Hz, 30A Max, 3600W
AC Total Output 3600W Rated, 7200W Surge peak
USB-C Output (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
USB-A Output (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
Cigarette Lighter Port 12V⎓10A Max

Input Ports

Category Specifications
Charge Mode AC Input 100V-120V~ 60Hz, 15A Max
Bypass Mode AC Input/Output 120V~ 60Hz, 12A Max, 1440W
DC Input (2x) DC 8mm Ports: 12-16V (Working Voltage)⎓8A Max, Double to 8A Max; | 16-60V (Working Voltage)⎓12A Max, Double to 24A/1000W Max

Charging Time

Category Specifications
AC Adapter 2.5 Hours
Car Adapter Supported

Jackery Solar Generator HomePower 3600 Plus Video

Placeholder Image

Frequently-Asked Questions

Do I need an electrician to install the transfer switch?

 Yes, for safety and code compliance, the transfer switch must be installed by a licensed electrician.

How many appliances can this power during an outage?

 Up to 6 circuits can be powered, including essentials like lights, refrigerators, and sump pumps.

Can I expand capacity beyond 3584Wh?

 Yes, the HomePower 3600 Plus supports expansion batteries up to 21.48kWh.

Is the setup compatible with solar panels?

 Yes, you can recharge the HomePower 3600 Plus with Jackery SolarSaga panels while using the transfer switch for home backup.
