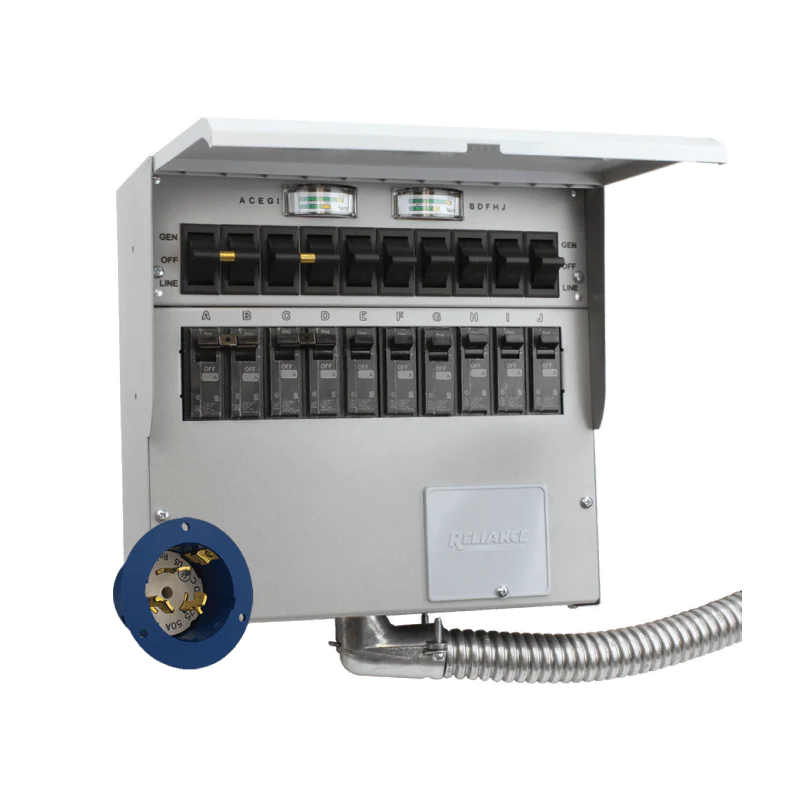

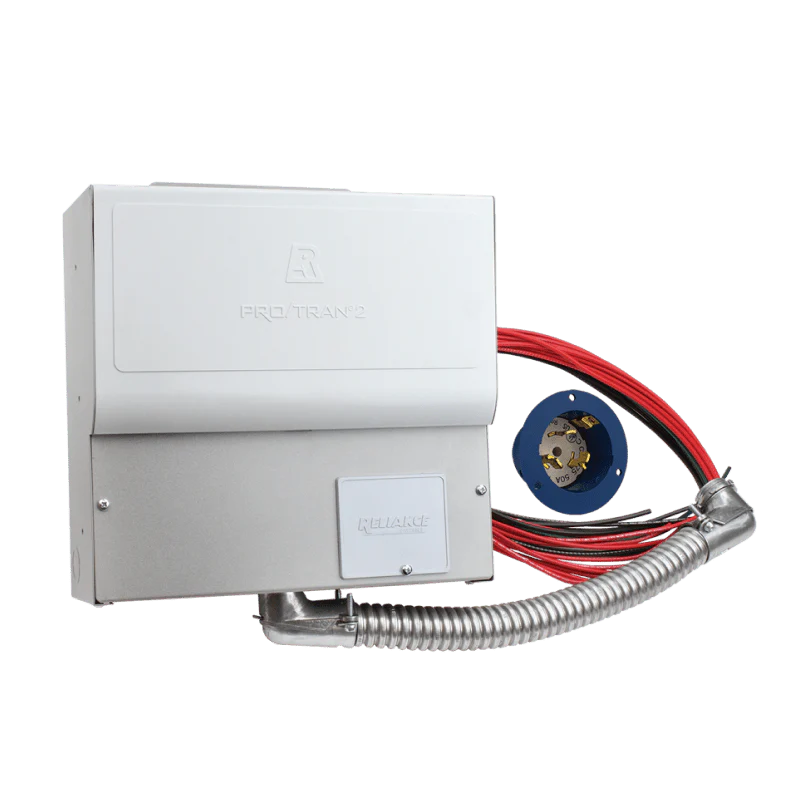

Jackery Manual Transfer Switch for Explorer 5000 Plus
The Jackery Manual Transfer Switch is designed specifically for the Explorer 5000 Plus Series to provide a safe, reliable, and convenient home backup power solution. With a pre-wired design and durable metal enclosure, this transfer switch allows you to seamlessly switch selected household circuits to backup power during outages while preventing back-feeding and ensuring safe operation.
Jackery Manual Transfer Switch for Explorer 5000 Plus Features
Designed for Explorer 5000 Plus – Ensures seamless and safe backup power compatibility with the Jackery Explorer 5000 Plus Series.
Pre-Wired Design – Allows for faster and easier installation, reducing setup time and complexity.
Back-Feed Protection – Prevents electrical back-feeding to ensure safer operation during power outages.
Durable Metal Enclosure – Built with a sturdy metal cabinet and protective cover for reliable indoor use.
Integrated Power Monitoring – Includes color-coded wattmeters for easy circuit monitoring and load management.
CS6375 Power Inlet Included – Simplifies connection and enhances usability for backup power integration.
Jackery Manual Transfer Switch for Explorer 5000 Plus Applications
-
Home backup power – Keeps essential household circuits running during power outages.
-
Emergency preparedness – Provides a reliable power transfer solution for unexpected outages.
-
Indoor residential use – Designed specifically for safe indoor electrical installations.
-
Load management – Ideal for monitoring and managing multiple household circuits.
What’s Included?
-
Manual Transfer Switch – Pre-wired metal enclosure
-
CS6375 Power Inlet – For secure power connection
-
Charging Cable – Included for system integration
Warranty
- 1 x Relianc Manual Transfer Switch
- 1 x CS6375 power inlet
- 1 x Charging Cable
Jackery Manual Transfer Switch for Explorer 5000 Plus Specifications
| Specification |
Details |
| Product Type |
Manual Transfer Switch |
| Output Voltage |
125V / 250V |
| Maximum Output Current |
50A Max |
| Number of Circuits |
10 total (1×2P 30A, 1×2P 20A, 6×1P 15A) |
| Enclosure Material |
Metal |
| Color |
Gray |
| Power Inlet Type |
NEMA SS2-50 (CS6375) |
| Dimensions (W × H × D) |
11.75 × 11.25 × 4.75 inches |
| Shipping Weight |
16.05 lbs |
| Waterproof Rating |
Not waterproof |
| App Connectivity |
No |
| Warranty |
5 years |
Frequently-Asked Questions
Is this transfer switch compatible with other Jackery power stations?
No. This manual transfer switch is specifically designed for use with the Jackery Explorer 5000 Plus Series.
Does this switch prevent back-feeding?
Yes. The transfer switch is designed to prevent back-feeding, ensuring safer operation during power outages.
Is the transfer switch pre-wired?
Yes. The unit comes pre-wired to allow for quicker and easier installation.
Can this be used outdoors?
No. This transfer switch is intended for indoor use only and is not waterproof.
How many circuits can be connected?
The switch supports up to 10 circuits, including both single-pole and double-pole configurations.
