Jackery Whole-Home Backup Kit 5000 Plus (20kWh)

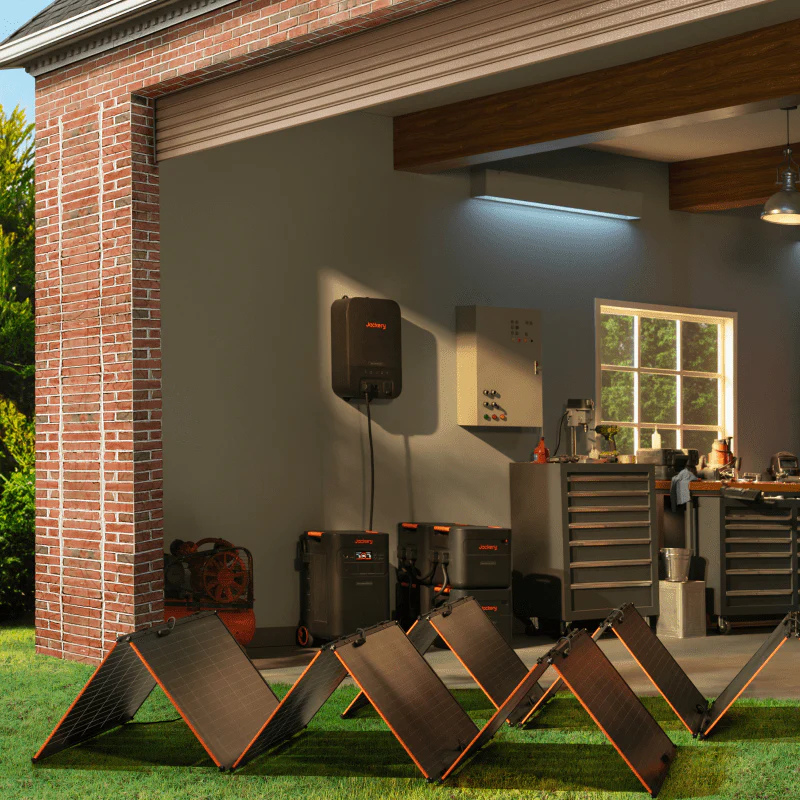

The Jackery Whole-Home Backup Kit 5000 Plus (20kWh) is a comprehensive residential backup power solution designed to keep essential home appliances and electronics running during outages, storms, and emergency situations. Combining two Explorer 5000 Plus portable power stations, two Battery Pack 5000 Plus expansion batteries, and a Smart Transfer Switch, this system delivers a massive 20,160Wh of expandable energy storage and up to 7,200W continuous output.

Featuring ultra-fast UPS functionality, 0ms power transition, 120V/240V split-phase operation, and support for high-power appliances, the Whole-Home Backup Kit provides dependable energy security for modern homes. Whether you're preparing for hurricanes, blackouts, remote living, or emergency preparedness, this system offers clean, quiet, and maintenance-free backup power without the need for fuel.

Jackery Whole-Home Backup Kit 5000 Plus (20kWh) Features

20.16kWh Whole-Home Energy Storage - Combines two Explorer 5000 Plus power stations and two expansion batteries for 20,160Wh of backup energy.

7200W Split-Phase Output - Delivers 120V/240V split-phase power capable of supporting heavy-duty home appliances and critical circuits.

0ms UPS Backup Protection - Provides uninterrupted power for sensitive electronics and critical devices during utility outages.

Smart Transfer Switch Integration - Automatically transfers essential home circuits to backup power when grid power is lost.

Supports Essential Home Loads - Powers refrigerators, freezers, internet equipment, lighting, medical devices, sump pumps, and more.

5 Charging Methods - Supports AC wall charging, solar charging, hybrid charging, and additional charging configurations for maximum flexibility.

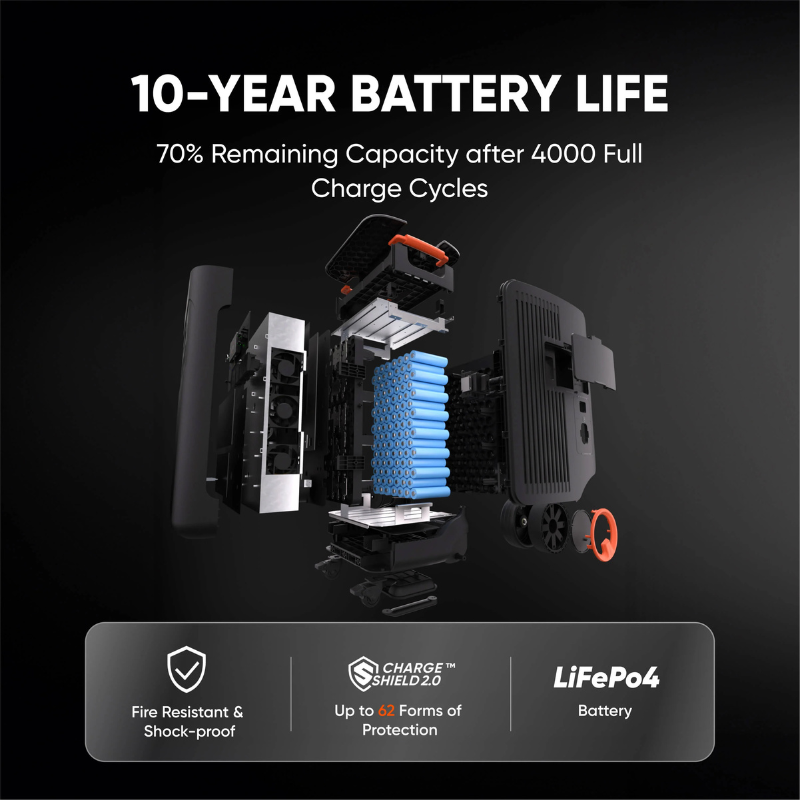

LiFePO4 Battery Technology - Premium lithium iron phosphate battery cells provide enhanced safety, long cycle life, and stable performance.

4000+ Charge Cycles - Retains over 70% battery capacity after 4000 charge cycles for years of dependable service.

Indoor & Outdoor Emergency Power - Provides reliable backup energy for home emergencies, RV use, job sites, outdoor events, and off-grid applications.

Smart App Monitoring - Monitor battery status, energy usage, charging performance, and system operation through the Jackery app.

Jackery Whole-Home Backup Kit 5000 Plus (20kWh) Applications

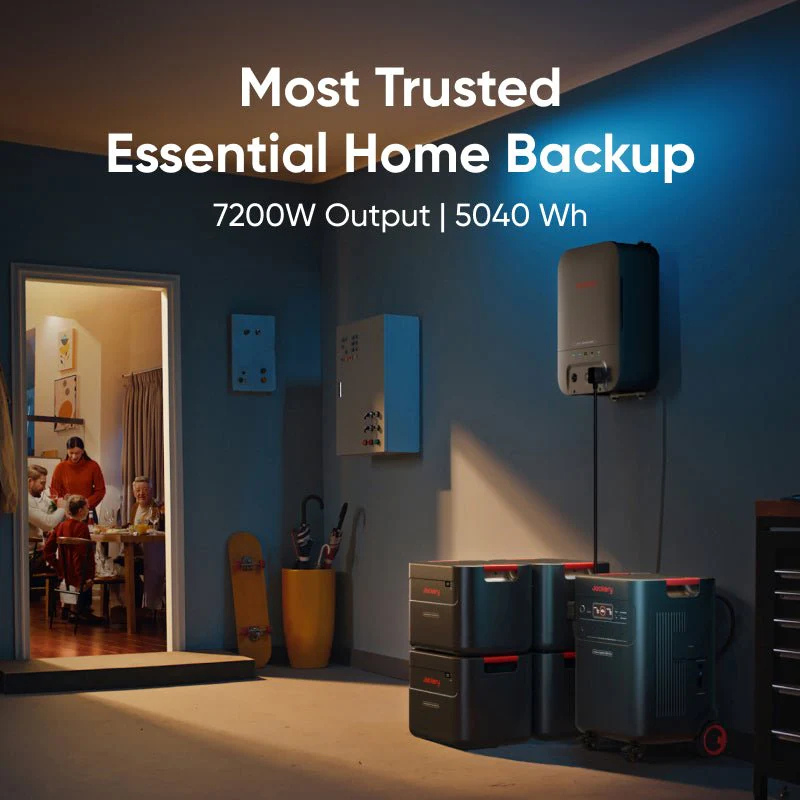

Whole-home emergency backup – maintain critical household circuits during outages.
Hurricane and storm preparedness – reliable power during severe weather events.
Medical equipment backup – support CPAP machines, oxygen concentrators, and critical devices.
Home office protection – keep computers, networking equipment, and communication systems online.
Refrigerator and freezer backup – protect food during extended outages.
RV and mobile power systems – portable power for travel and remote locations.
Off-grid living support – dependable energy storage for cabins and remote properties.
Construction and job sites – portable high-capacity power for tools and equipment.
Outdoor events and recreation – clean, quiet power without fuel generators.
Disaster preparedness – comprehensive backup solution for emergencies.

What's Included

Everything you need is included with your product.

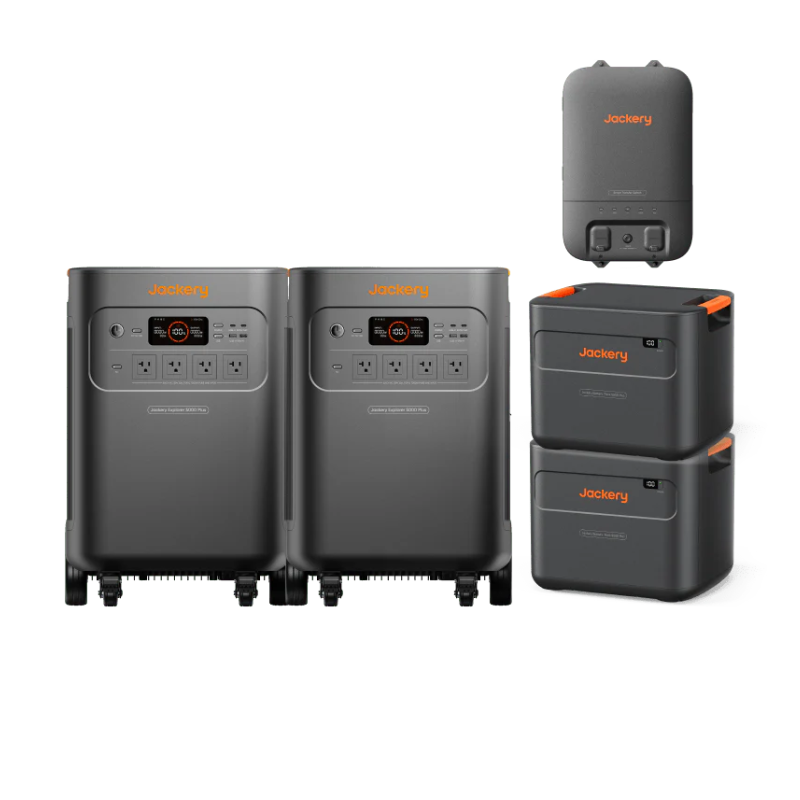

2 × Jackery Explorer 5000 Plus Portable Power Stations
2 × Jackery Battery Pack 5000 Plus Expansion Batteries
1 × Jackery Smart Transfer Switch
2 × AC Charging Cables

2 × Expansion Cables
2 × MC4 Wrenches
User Manual

Warranty

5-Year Warranty – Supported by a comprehensive 5-year warranty, ensuring reliable product support and long-term use.

Jackery Explorer 5000 Plus Specifications

General

Specification	Details
Weight	About 134.5 lbs (61 kg)
Dimensions	16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	5–113°F (-15–45°C)
Warranty	5 Years

Battery

Specification	Details
Capacity	45Ah / 112V DC (5040 Wh)
Cell Chemistry	LiFePO4
Cycle Life	4000 cycles to 70%+ capacity

Output Ports

Specification	Details
AC Output	(4x) 120V, 20A, 2400W \| (1x) NEMA L14-30R/14-50: 120V/240V~60Hz, 30A, 7200W Max
AC Total Output	7200W Max, 14400W Surge
USB-C Output	(2x) 100W Max, 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A
USB-A Output	(2x) 18W Max, 5V=3A, 6–9V=2A, 9–12V=1.5A
Cigarette Lighter Port	12V=10A
DC Expansion Port	80.5V–126V, 41A Max
AC Expansion Port	240V~60Hz, 30A, 7200W

Input Ports

Specification	Details
Charge Mode AC Input	120V~60Hz, 15A Max
Bypass Mode AC Input/Output	120V~60Hz, 12A Max; 240V~60Hz, 16.7A Max
AC Expansion Port (Input)	240V~60Hz, 16.7A Max
DC Input	DC Expansion Port (Input): 80.5V–126V, 98A Max
High-PV	135V–450V, 15A Max
Low-PV	(2x) DC 8mm Ports: 16V–60V, 10.5A Max, Double to 21A/1200W Max \| 11V–16V (Working Voltage)=8A Max, Double to 8A Max

Charging Time

Specification	Details
AC Adapter	3.5 Hours
Car Adapter	No

Other Specifications

Specification	Details
UPS	Backup UPS: <20ms, Online UPS: 0ms
Inverter Topology	Non-isolated
Power Factor	≥0.98
Entire Unit	Type 1

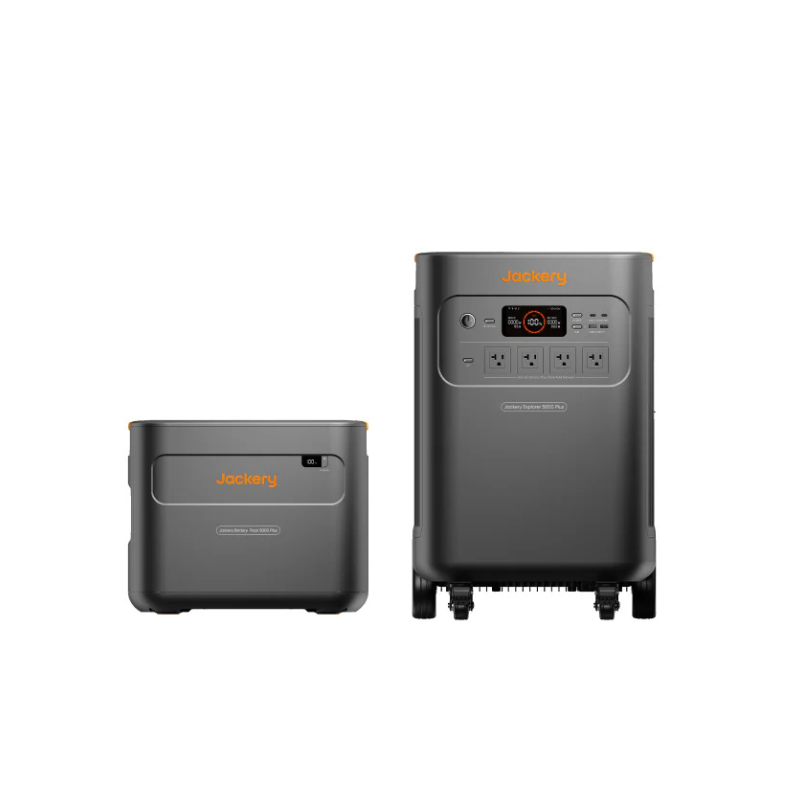

Jackery Battery Pack 5000 Plus

General

Specification	Details
Capacity	45Ah / 112V DC (5040 Wh)
Weight	About 81.57 lbs (37 kg)
Dimensions	16.5 × 13.5 × 13.2 in / 41.8 × 34.4 × 33.6 cm
Battery Lifecycle	4000 cycles to 70%+ capacity
Warranty	5 Years
Charge Temperature	32–113°F (0–45°C)
Discharge Temperature	5–113°F (-15–45°C)

Ports

Specification	Details
DC Expansion Port (Input)	80.5V–126V, 41A Max
DC Extension Ports (Output)	80.5V–126V, 98A Max

Jackery Smart Transfer Switch

General

Specification	Details
Dimensions	22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm
Weight	About 25.57 lbs (11.6 kg)
Operating Temperature	-4°F–113°F (-20°C–45°C)

Electrical & System Specifications

Specification	Details
AC Voltage (Nominal)	120V/240V~60Hz
Feed-In Type	Split Phase
Maximum Input Current	100A Grid / 60A Power Station
Maximum Output Current	60A Home Load / 33.4A Power Station
Maximum Input Short-Circuit Current	10kA
Overvoltage Category	IV
UPS	≤20ms
Enclosure Type (Distribution Panel)	NEMA Type 1
Number of Load Branches	12
Main Circuit	2 AWG
Branch Circuit	14 AWG, 12 AWG, 10 AWG
Communication	Wi-Fi and Bluetooth

Frequently-Asked Questions

What is the total battery capacity of this system?

The Whole-Home Backup Kit provides 20,160Wh (20.16kWh) of total energy storage using two Explorer 5000 Plus units and two Battery Pack 5000 Plus expansion batteries.

Can this system power an entire home?

The Smart Transfer Switch allows critical household circuits to be backed up. Runtime depends on the home's energy consumption and selected loads.

Does the system support 240V appliances?

Yes. The kit supports 120V/240V split-phase operation for compatible household appliances and equipment.

What type of battery technology is used?

The system uses LiFePO4 (Lithium Iron Phosphate) batteries known for safety, longevity, and thermal stability.

How long will the batteries last?

The batteries are rated for 4000 charge cycles while maintaining over 70% of their original capacity.

Does the system work with solar panels?

Yes. The Explorer 5000 Plus supports up to 4000W of solar input using both high-voltage and low-voltage PV configurations.

Can the system be monitored remotely?

Yes. Built-in WiFi and Bluetooth connectivity allow monitoring and management through the Jackery mobile app.

How fast does backup power activate?

The integrated UPS system provides transfer times under 20ms, with online UPS functionality capable of 0ms transfer for critical electronics.
