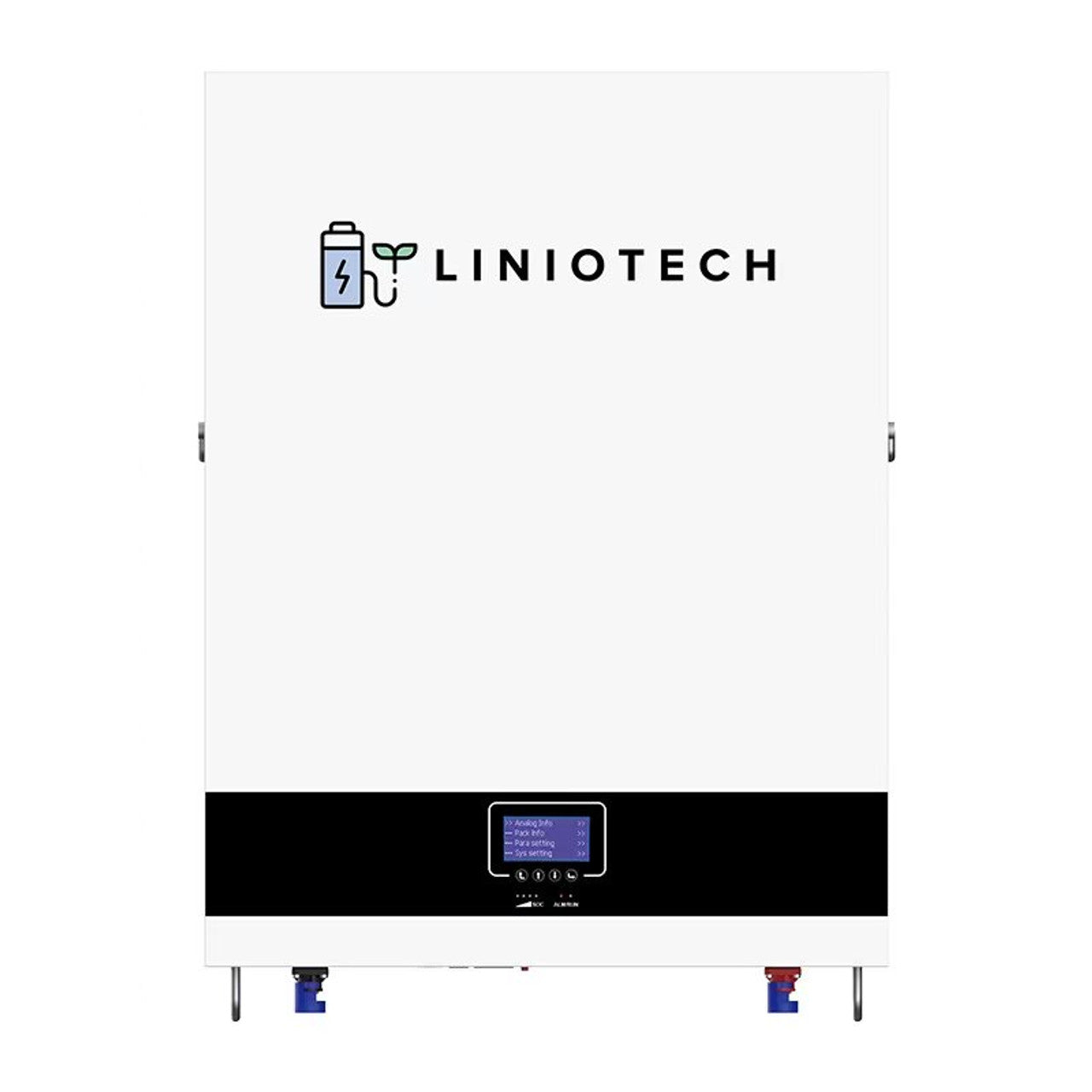

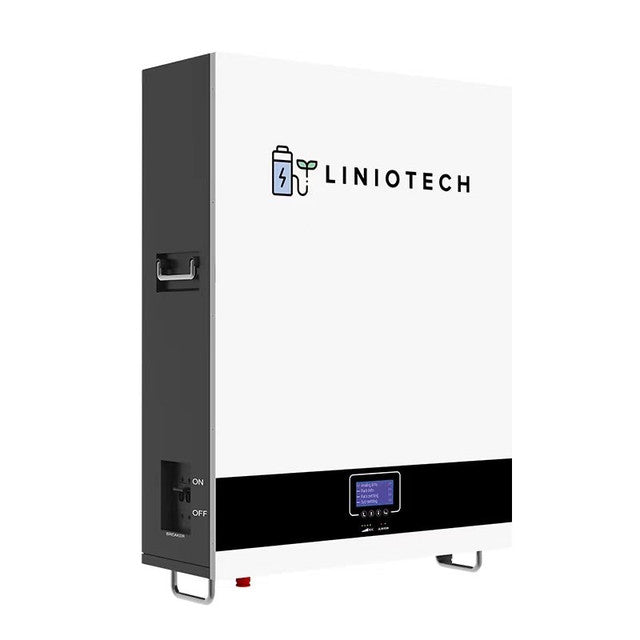

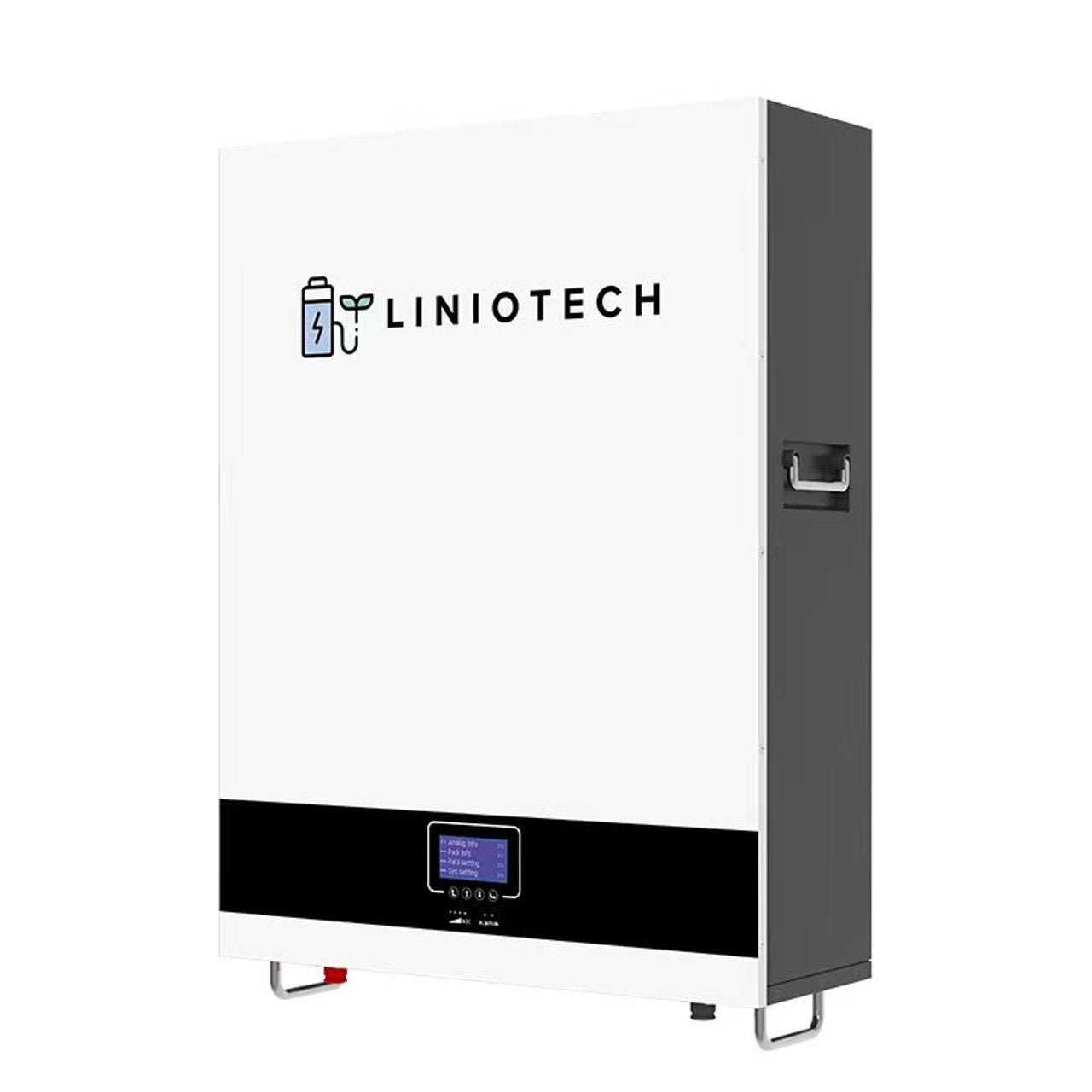

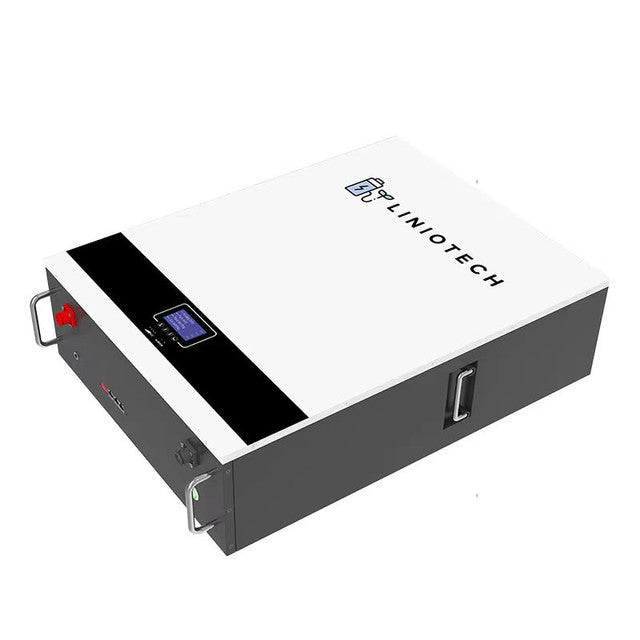

LINIOTECH 10 KWH Lifepo4 Power Reserve Power Wall Battery Storage

LINIOTECH 10 KWH Lifepo4 Power Reserve Power Wall Battery Storage

BY: Liniotech | SKU: LNT-10REPT Availability: In Stock
$2,999.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Liniotech Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

LINIOTECH 10 kWh LiFePO4 Power Reserve Power Wall Battery Storage

The LINIOTECH 10 kWh Power Wall is a compact, wall-mounted lithium iron phosphate (LiFePO4) battery designed for long-term, safe, and efficient energy storage. With a 200Ah capacity, 7.68kW output, and up to 8,500 life cycles, it is ideal for residential and small business applications. Built with IP21 protection, natural cooling, and compatibility with leading solar systems, this battery ensures reliable power backup and solar storage with a projected lifespan of 20 years.

Placeholder Image

LINIOTECH 10 kWh LiFePO4 Power Wall Battery Features

Reliable Energy Storage

Provides 10.24 kWh capacity for daily energy needs, reducing grid reliance.

Safe LiFePO4 Chemistry

Delivers thermal stability, long cycle life, and enhanced safety compared to traditional lithium batteries.

Strong Output Performance

Handles up to 150A charge/discharge current with 7.68kW continuous output.

Long Design Life

Rated for 20 years of service life and 8,500 cycles at 80% DOD.

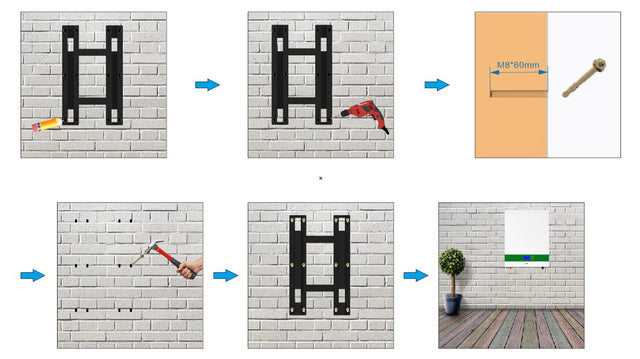

Wall-Mount Slim Design

Compact 735 × 525 × 190 mm form factor saves space and integrates seamlessly into homes and businesses.

Placeholder Image

LINIOTECH 10 kWh LiFePO4 Power Wall Applications

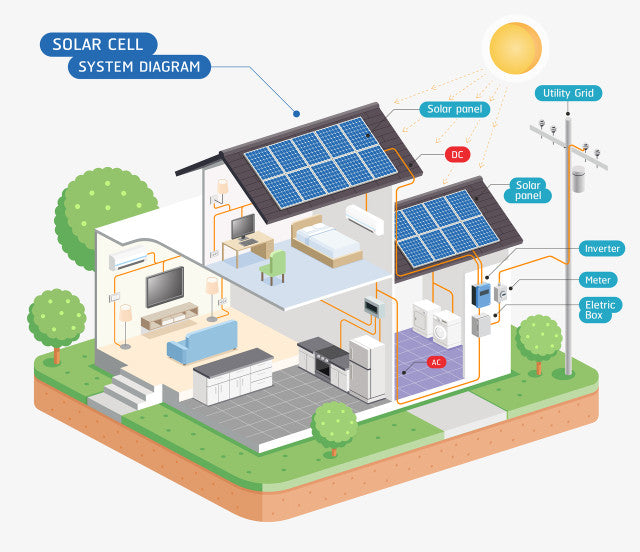

  • Residential solar storage – store solar energy for nighttime or cloudy days
  • Backup power supply – dependable during grid outages
  • Small business energy storage – stabilize power and reduce utility costs
  • Off-grid and hybrid systems – reliable storage for energy independence
Placeholder Image

What's Included

Everything you need is included with your product.

  • LINIOTECH 10 kWh LiFePO4 Power Reserve Power Wall Battery Storage
  • User Manual

Warranty

  • 12 years of Warranty

LINIOTECH 10 KWh 200Ah 48V LiFePO4 Lithium Solar Battery Brick Stackable Specifications

Specifications Details
Battery Type LiFePO4
Voltage 51.2V
Operating Voltage 51.2 Vdc
Max. charging voltage 56 Vdc
Cut-off Discharge Voltage 46 Vdc
Max. charging and discharging current 150A(7680W)

Nominal Parameters

Specifications Details
Capacity 200Ah
Energy 10.24KwH

Basic Parameters

Specifications Details
Net Weight ~216 lbs
Dimension (W*D*H) 735 x525x190(220)mm
Ingress Protection IP21
Cooling Natural Cooling

Basic Parameters

Specifications Details
Life time(25°C) 20 Years
Life cycles(80% DOD, 25°C) 8500 Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1973 - pending , UL9540A - pending , IEC62619,CE-EMC, UN38.3, MSDS

Frequently-Asked Questions

How long will this battery last?

With 8,500 cycles at 80% DOD, this battery can reliably last over a decade under normal use.

Can it support whole-home backup?

Yes, with 7.68kW output, it can power essential household appliances and systems.

Is it compatible with solar systems?

Yes, it is designed for integration with solar inverters and hybrid power setups.
