LINIOTECH 14.33KWH Lifepo4 48V 280Ah Battery Storage IP65 Outdoor Rated Floor Mount

LINIOTECH 14.33KWH Lifepo4 48V 280Ah Battery Storage IP65 Outdoor Rated Floor Mount

BY: Liniotech | SKU: LNT051280A-B-GBP2F Availability: In Stock
$3,799.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Liniotech Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Storage IP65 Outdoor Rated Floor Mount

The LINIOTECH 14.33kWh 48V 280Ah LiFePO4 Battery is a powerful and durable energy storage solution designed for both residential and commercial applications. Built with advanced lithium iron phosphate chemistry, it ensures enhanced safety, longer cycle life, and superior thermal stability. Its IP65 outdoor-rated enclosure and floor-mount design make it suitable for harsh environments, while its scalability allows you to expand storage capacity up to 262 kWh by connecting up to 16 units in parallel.

Placeholder Image

LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Features

High Energy Capacity

Delivers 14.33 kWh of usable energy at 280Ah, perfect for large households or business power backup.

Scalable Design

Supports expansion with up to 16 units in parallel for a total capacity of 262 kWh.

Safe & Reliable Chemistry

Built with LiFePO4 cells for superior safety, thermal stability, and more than 10,000 cycles of life.

Powerful Performance

Handles up to 200A peak discharge (2 minutes at 25°C) and 150A continuous discharge, ensuring high-power delivery.

Durable Outdoor Protection

IP65-rated enclosure provides dustproof and water-resistant protection for outdoor installations.

Smart Monitoring

Equipped with 4 LED SOC indicators (25%–100%) plus 2 LED status indicators (working, alarming, protecting).

Placeholder Image

LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Applications

  • Residential backup power – ensure your home stays powered during grid outages
  • Commercial energy storage – reduce energy costs and maintain operations
  • Solar energy systems – store clean energy for use day or night
  • Off-grid power solutions – reliable energy independence for remote locations
  • Industrial backup – dependable energy storage for heavy-duty equipment
Placeholder Image

What's Included

Everything you need is included with your product.

  • LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Storage IP65 Outdoor Rated Floor Mount
  • User Manual

Warranty

  • 12 years of Warranty

LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Specifications

Specifications Details
Battery Chemistry LiFePO4
Capacity (Ah) 280Ah
Scalability Max.16pcs in parallel (262kWh)
Voltage (V) 51.2V
Operating Voltage(V) 46-56V
Energy (kWh) 14.34kWh
Recommend Discharge Energy (80% DOD) (kWh) 11.47kWh
Recommend Charge/Discharge Current (A) 100A
Charge/Discharge Current (Max.) 150A
Peak Current (2 mins, 25°C) 200A
Recommend Depth of Discharge 90%

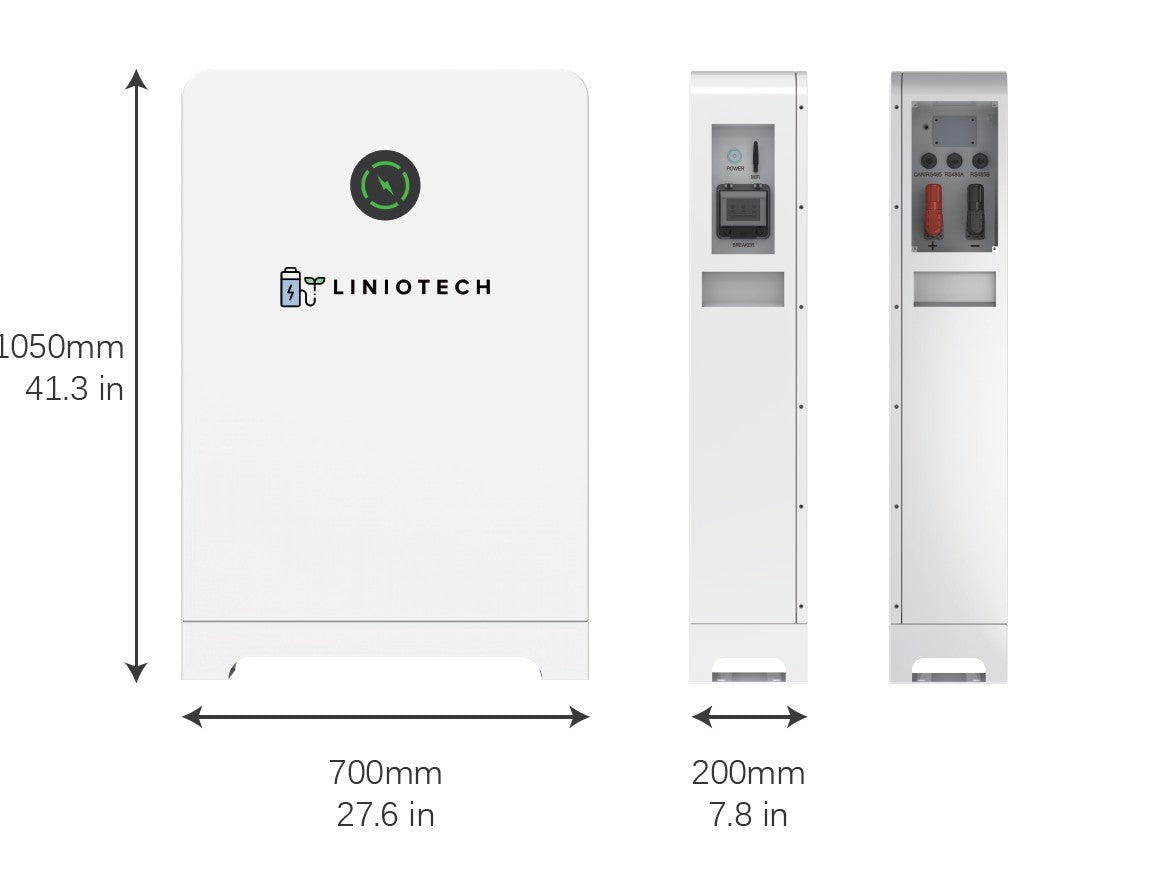

Dimension (W/H/D) 700*1050*200mm / 27.6*41.3*7.9 in
Weight Approximate 128.5kgs / 283 lbs
Master LED Indicator 4 LED (SOC:25%~100%) | 2 LED (working, alarming, protecting)
IP Rating of Enclosure IP65
Working Temperature Charge:0℃～55℃ Discharge:-20℃～55℃
Storage Temperature 0℃～35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥8500
Installation Ground/Outdoor
Communication Port CAN2.0, RS485, WiFi
Warranty Period 12 years
Certification UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS
Maximum Continuous Discharge Rate 7.68KW

Frequently-Asked Questions

How long does this battery last?

This model offers 10,000+ cycles, giving you over a decade of reliable performance.

Can it be used outdoors?

Yes, its IP65-rated enclosure makes it weather-resistant and suitable for outdoor installation.

Can I scale the system?

Yes, you can connect up to 16 units in parallel for a massive 262 kWh storage capacity.
