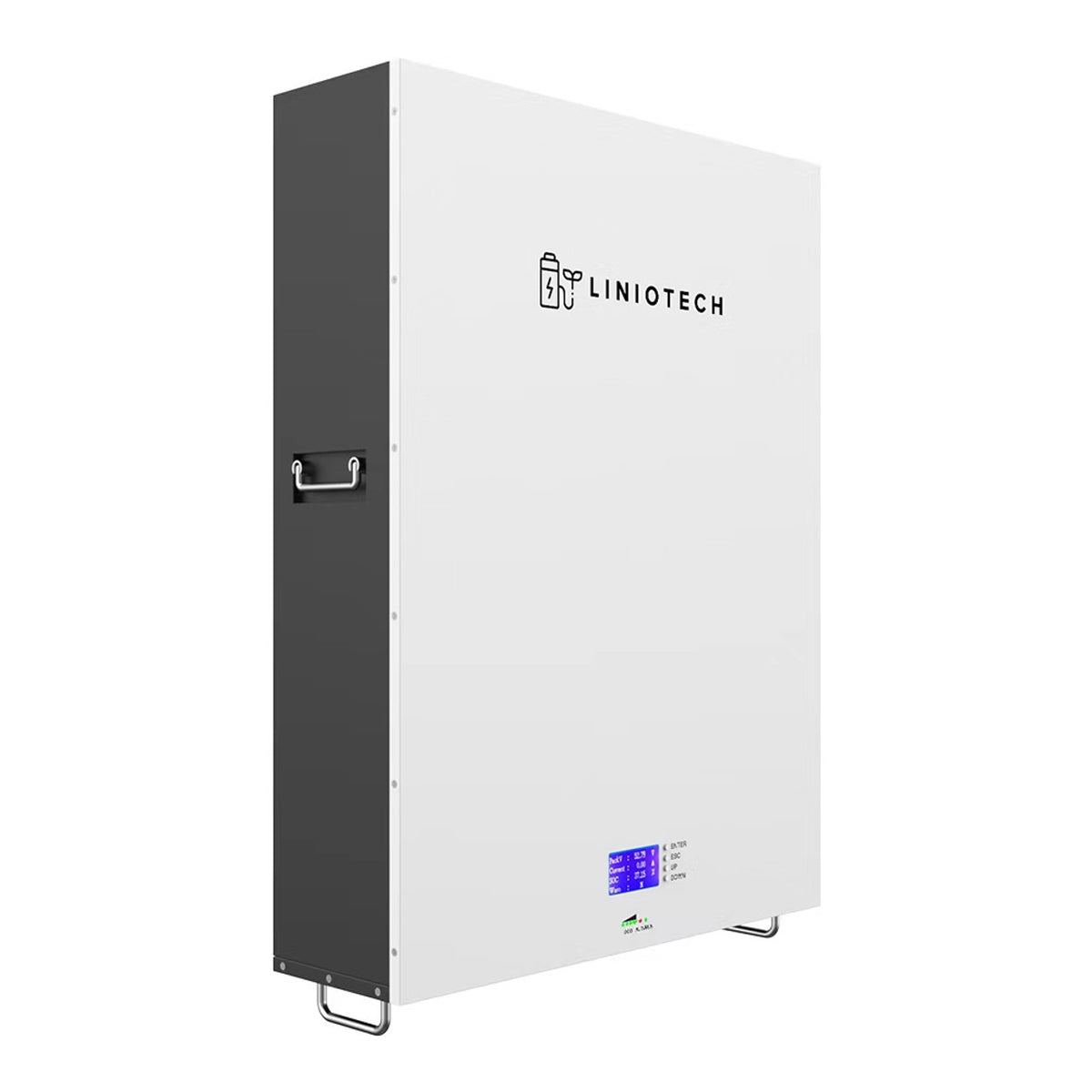

14.33 kwh 48V 280ah Sol-Ark UL9540 / UL9540A / UL1973 CE-EMC Power Storage Wall with Heating Function

14.33 kwh 48V 280ah Sol-Ark UL9540 / UL9540A / UL1973 CE-EMC Power Storage Wall with Heating Function

BY: Liniotech | SKU: LNT051280A-B-GBP2 Availability: In Stock
$3,799.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Liniotech Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

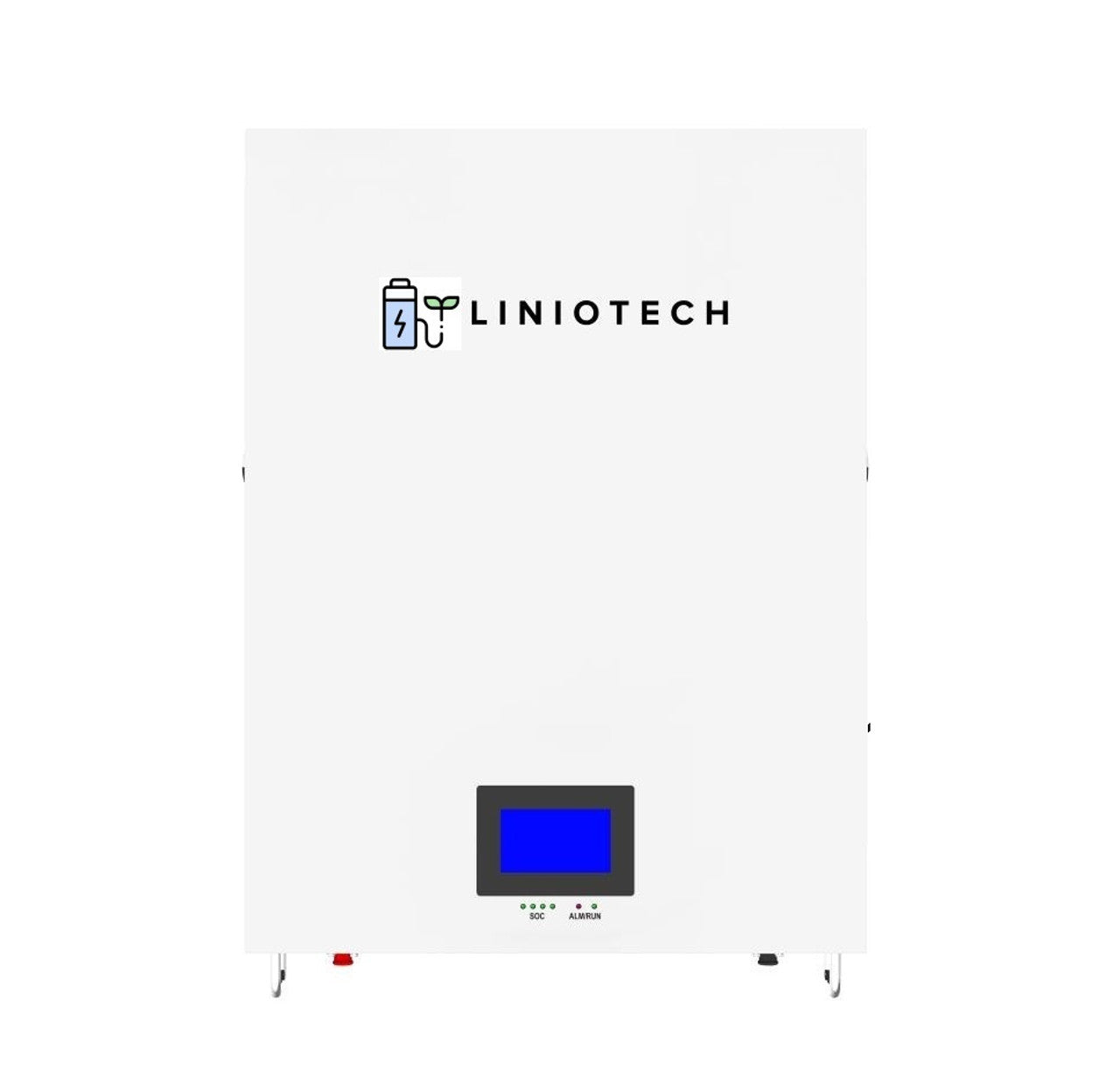

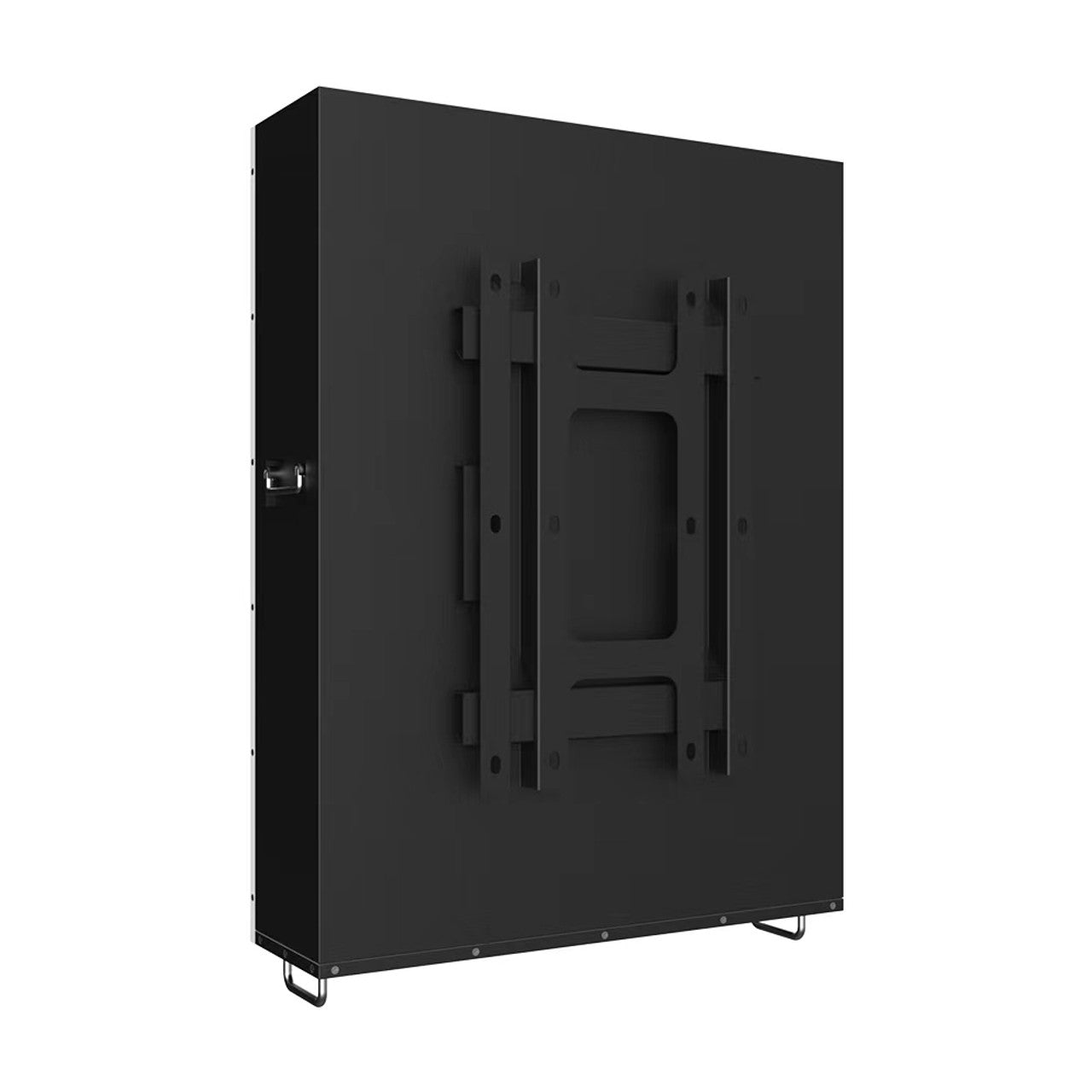

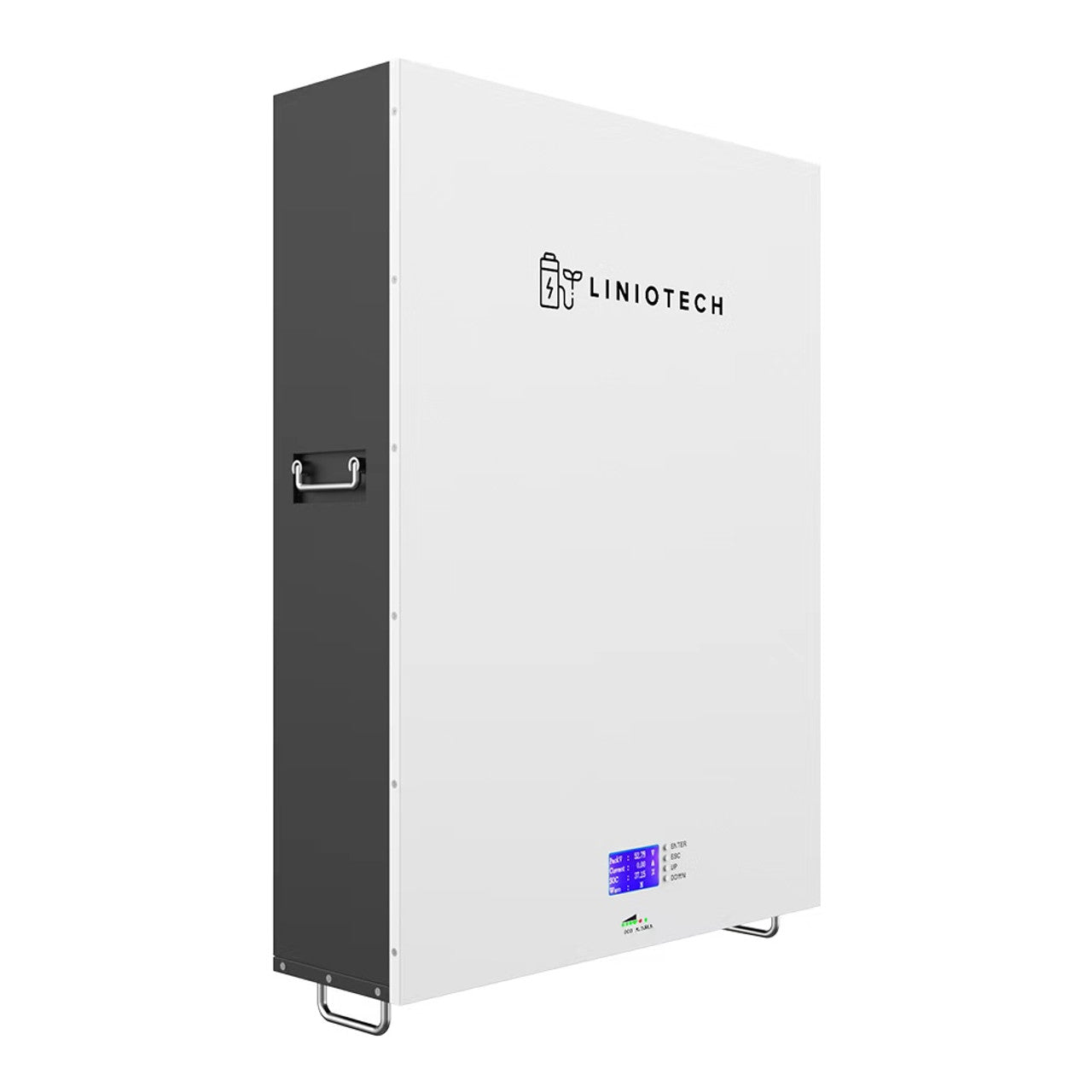

LINIOTECH 14.33 kWh 48V 280Ah UL1973 / UL9540A / UL9540 Wall Mount

The LINIOTECH 14.33 kWh 48V 280Ah Wall-Mount LiFePO4 Battery is a premium energy storage solution designed for home and commercial use. Certified under UL1973, UL9540A, and UL9540, it ensures the highest safety standards while delivering reliable long-term performance. With a 12-year warranty, strong 7.68kW continuous discharge rate, and 7,500 cycle life, this wall-mounted system is ideal for pairing with solar inverters and backup power systems.

Placeholder Image

LINIOTECH 14.33 kWh 48V 280Ah Wall Mount Features

High Storage Capacity

Delivers 14.33 kWh energy with a 280Ah capacity, suitable for powering homes and businesses.

Certified Safety Standards

Meets UL1973, UL9540, UL9540A, IEC62619, CE-EMC, UN38.3, and ROHS certifications for safe integration.

Strong Power Output

Handles 200A charging/discharging with a 7.68kW continuous discharge rate.

Long Life Cycle

Up to 7,500 cycles at 80% DOD, providing more than a decade of dependable service.

Space-Saving Design

Compact 900 × 675 × 200 mm wall-mounted design, perfect for residential or small commercial installations.

Placeholder Image

LINIOTECH 14.33 kWh 48V 280Ah Wall Mount Applications

  • Residential solar storage – store daytime solar for nighttime use
  • Backup power – reliable energy during grid outages
  • Commercial storage – reduce peak energy costs and ensure continuity
  • Hybrid/off-grid systems – efficient storage for independent energy setups
Placeholder Image

What's Included

Everything you need is included with your product.

  • LINIOTECH 14.33 kWh 48V 280Ah UL1973 / UL9540A / UL9540 Wall Mount
  • User Manual

Warranty

  • 12 years of Warranty

LINIOTECH 14.33 kWh 48V 280Ah Wall Mount Specifications

Specifications Details
Battery Chemistry LiFePO4
Capacity (Ah) 280Ah
Scalability Max.16pcs in parallel (229kWh)
Voltage (V) 51.2V
Operating Voltage(V) 46-56V
Energy (kWh) 14.34kWh
Usable Energy (kWh) 12.91
Recommend Charge/Discharge Current (A) 100A
Charge/Discharge Current (Max.) 150A
Peak Current (2 mins, 25°C) 200A
Recommend Depth of Discharge 80%
Dimension (W/H/D) 900*675*200
Weight Approximate 128.50kg
Master LED Indicator 4 LED (SOC:25%~100%) | 2 LED (working, alarming, protecting)
IP Rating of Enclosure IP20
Working Temperature Charge:0℃～55℃ | Discharge:-20℃～55℃
Storage Temperature 0℃～35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥8500
Installation Wallmounted
Communication Port CAN2.0, RS485
Warranty Period 12 years
Certification UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3

Frequently-Asked Questions

How long does this battery last?

It offers 7,500 cycles at 80% DOD, equivalent to 10–12 years of service under typical use.

Can this battery be wall-mounted indoors?

Yes, its compact wall-mount design makes it suitable for indoor residential and commercial setups.

Is it compatible with solar inverters?

Yes, it is UL9540 certified, ensuring safe integration with compliant solar inverter systems.
